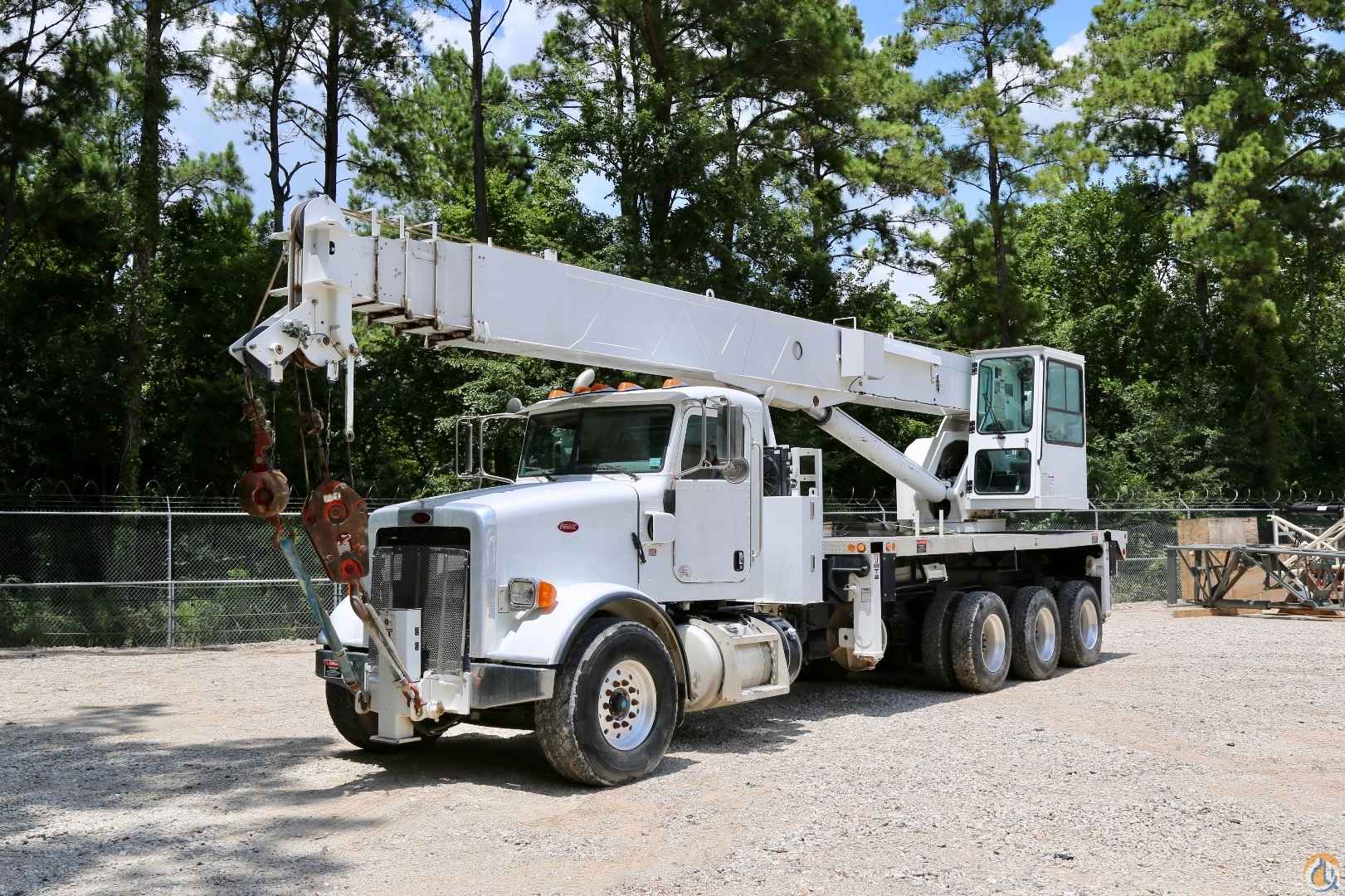

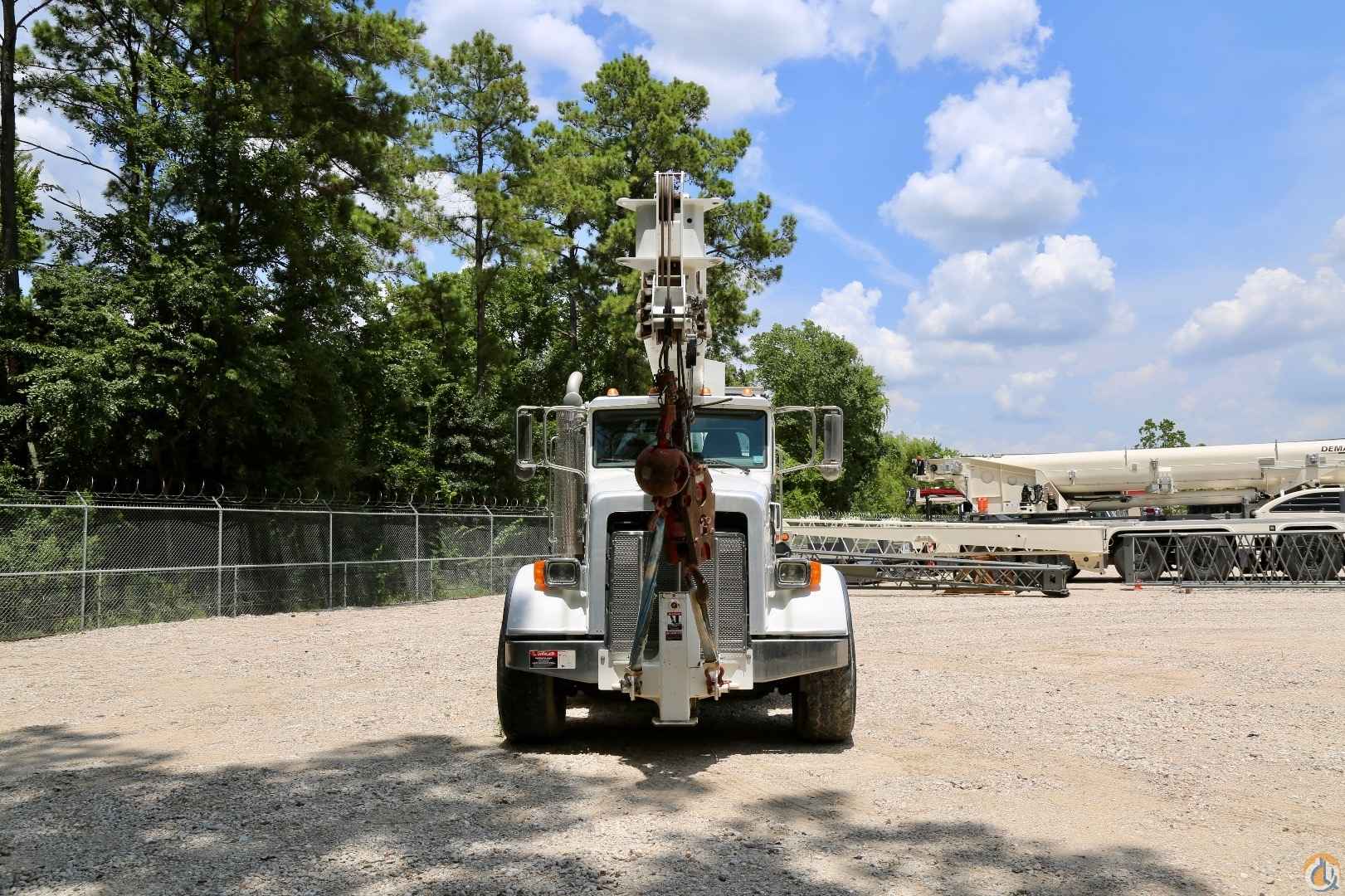

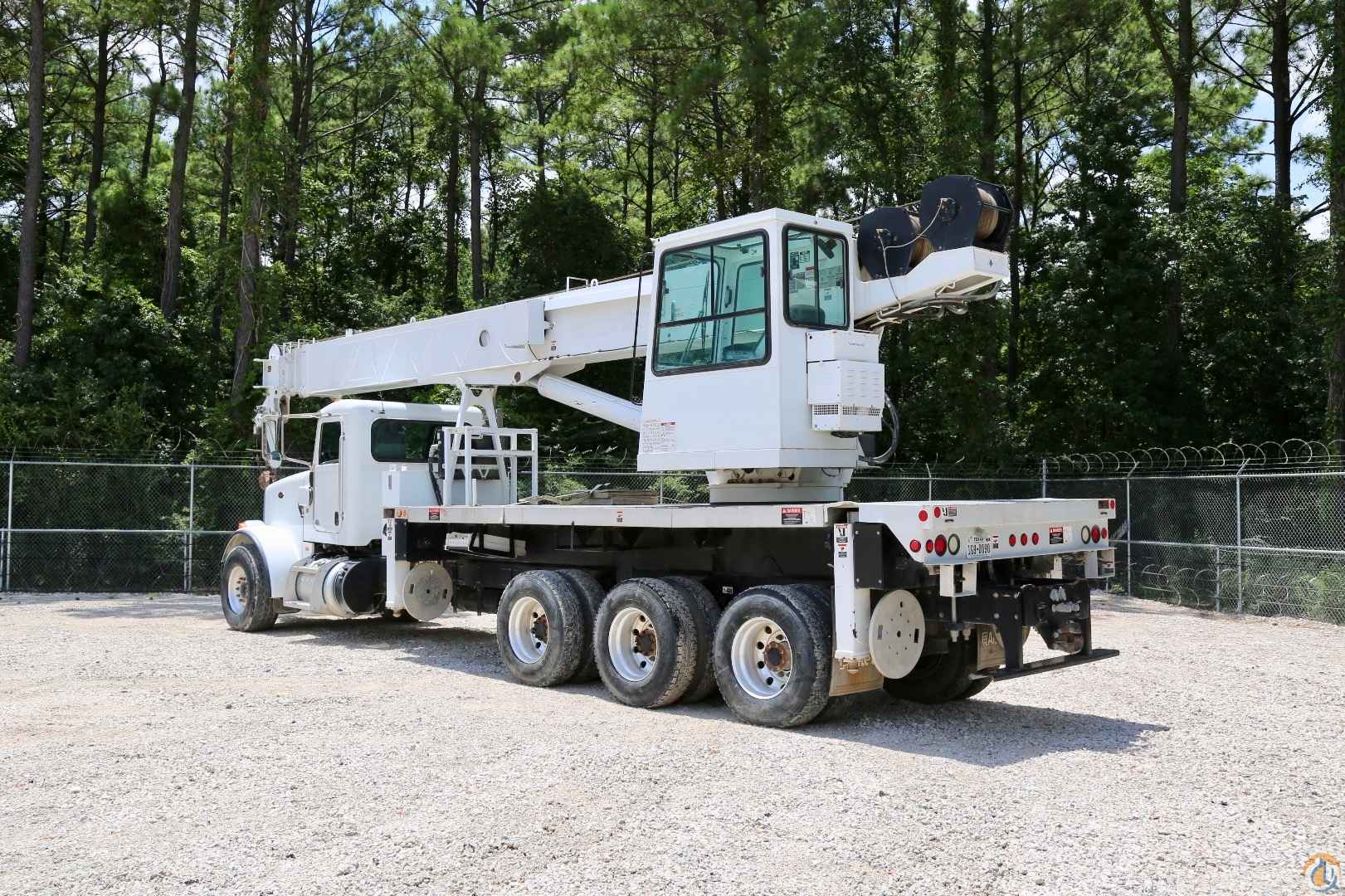

Specifications

Maximum Lifting Capacity: 76,000 lb (34473 kg)

Boom: 127 ft (38.7 m), 5-Section Non-Insulated

Sheave Height: 137 ft (41.8 m)

Stowed Travel Height: 12.9 ft (3.9 m)

Vehicle Travel Length: 38 ft (11.6 m)

Outriggers: Primary - Out-and-Down (Primary & Auxiliary)

Standard Features

Altec LMAP (Load Moment & Area Protection) System

Rated Capacity Limiter

Displays: Boom Length, Boom Angle, Load on Hook, Percent of Rated Capacity

Electronic Working Area Definition

Operator Defined Audible Alarm Set-Points for Boom Angle, Length and Rotational Position

Outrigger Boom Interlock System

Outrigger Motion Alarm

Back-Up Alarm

Emergency Stop at Operator Controls

Winch Drum Rotation Indicator

Anti-Two Block Device

Front Bumper Outrigger

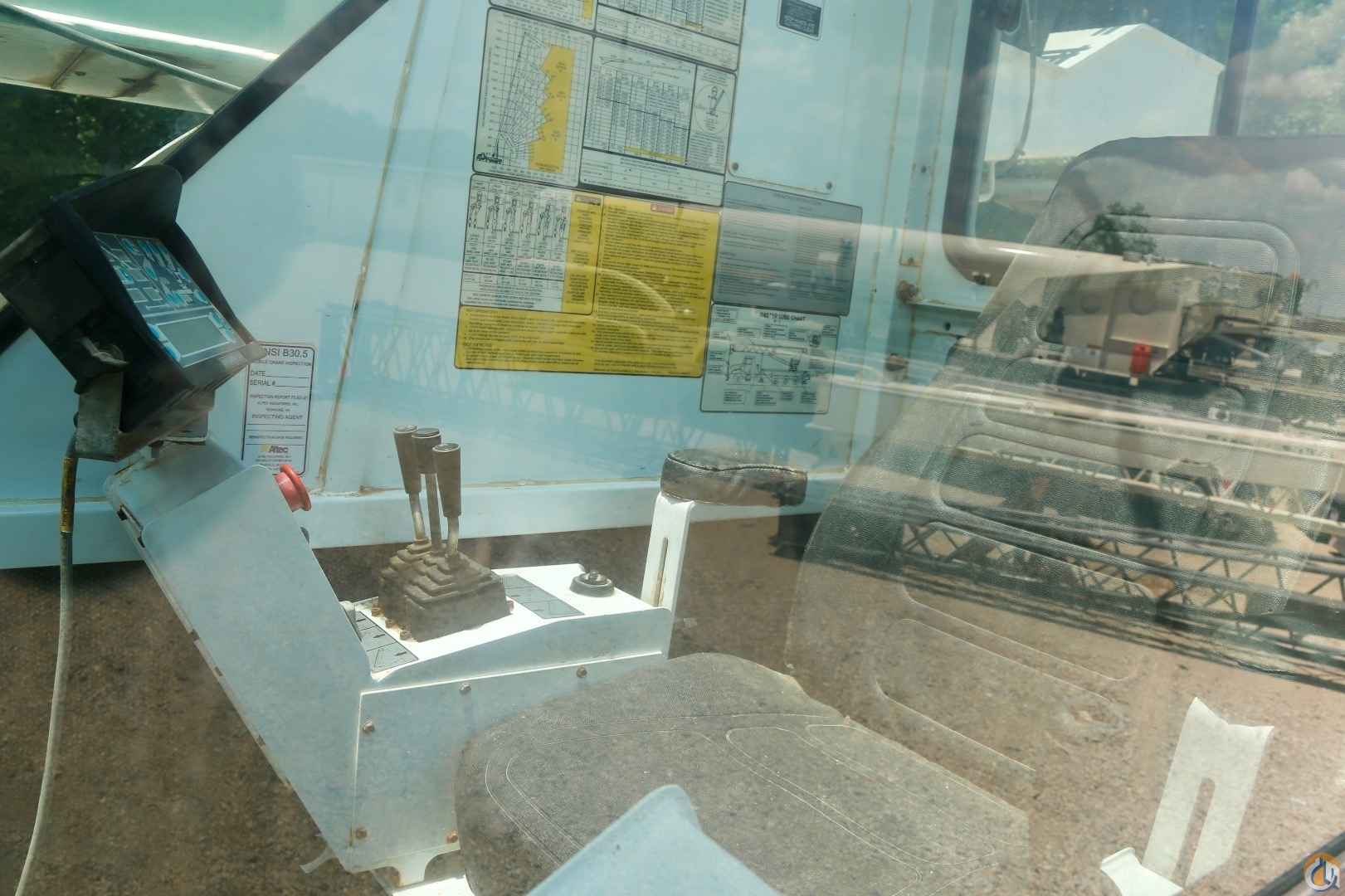

Altec Opti-View® Control System
