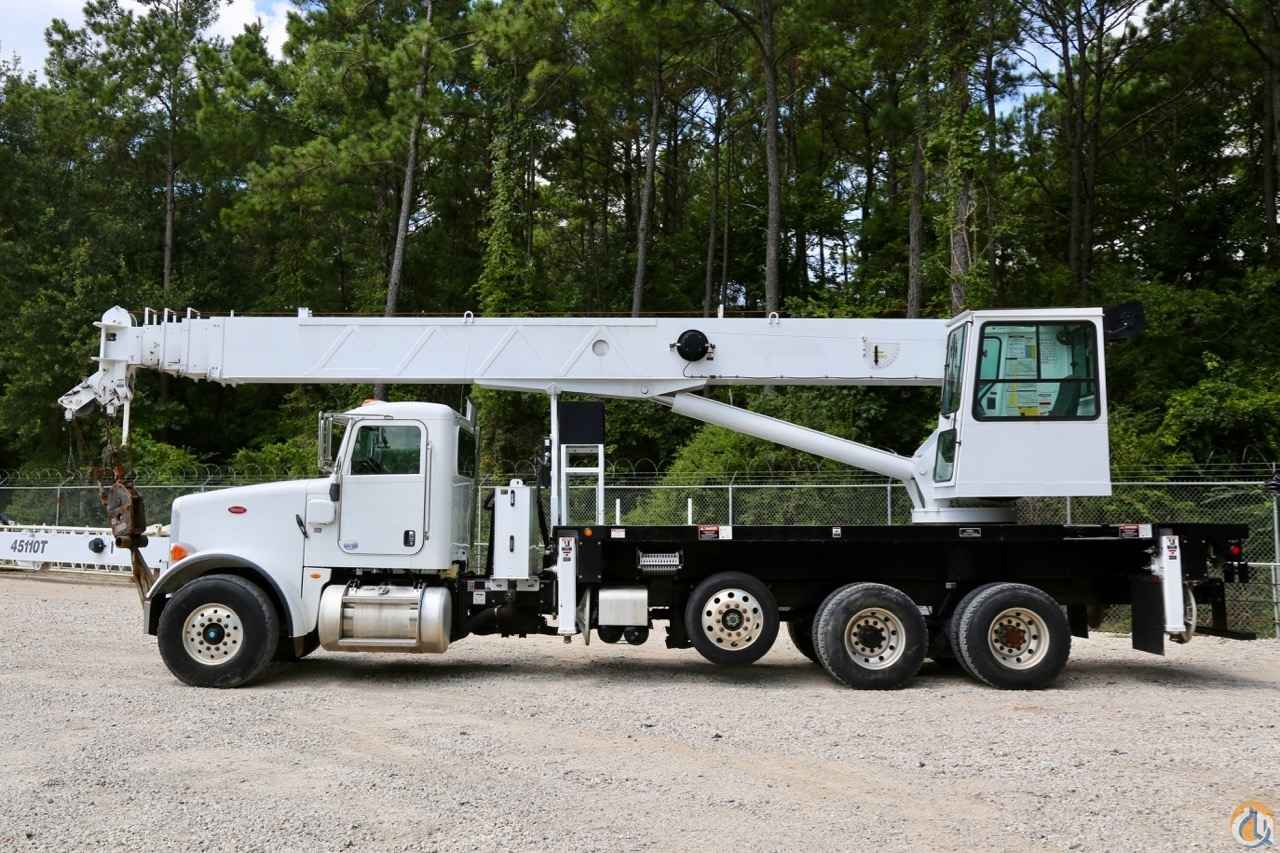

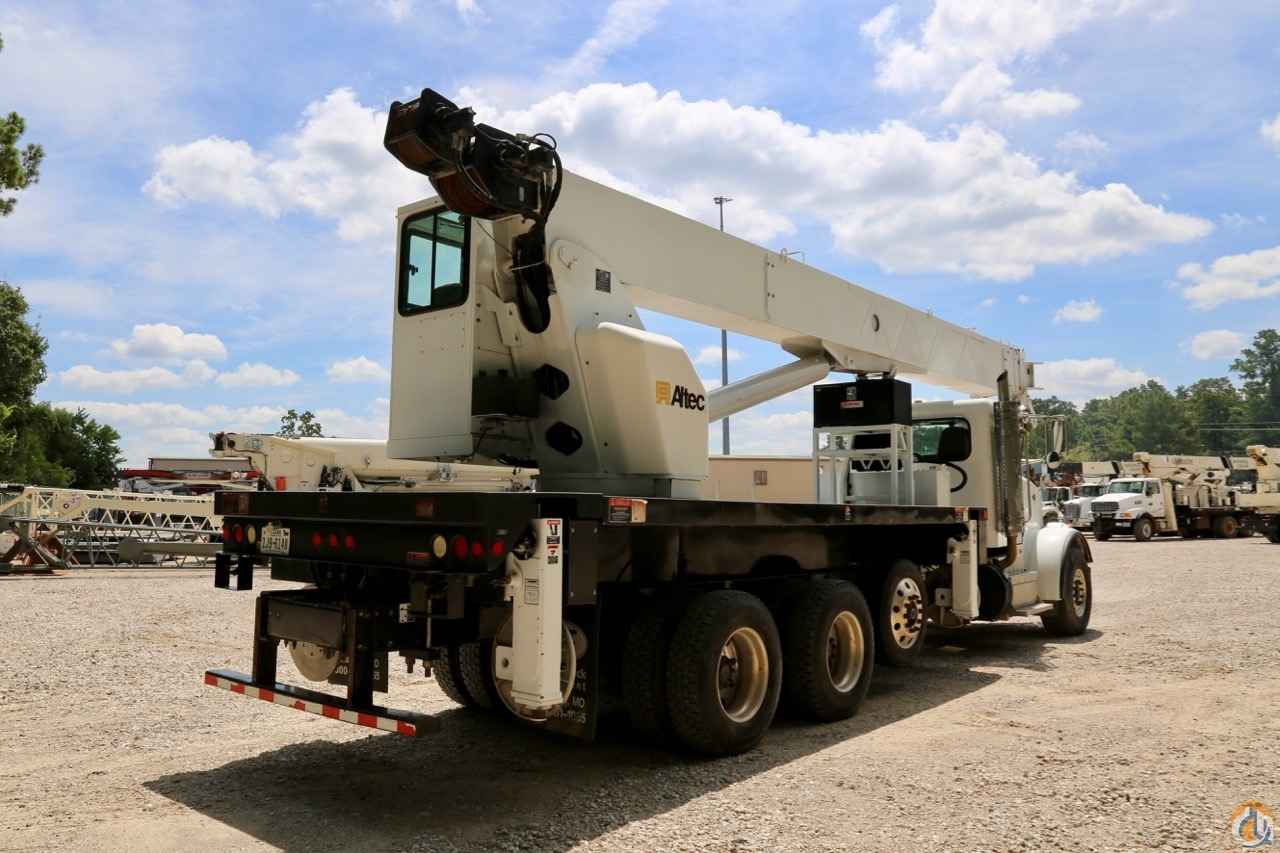

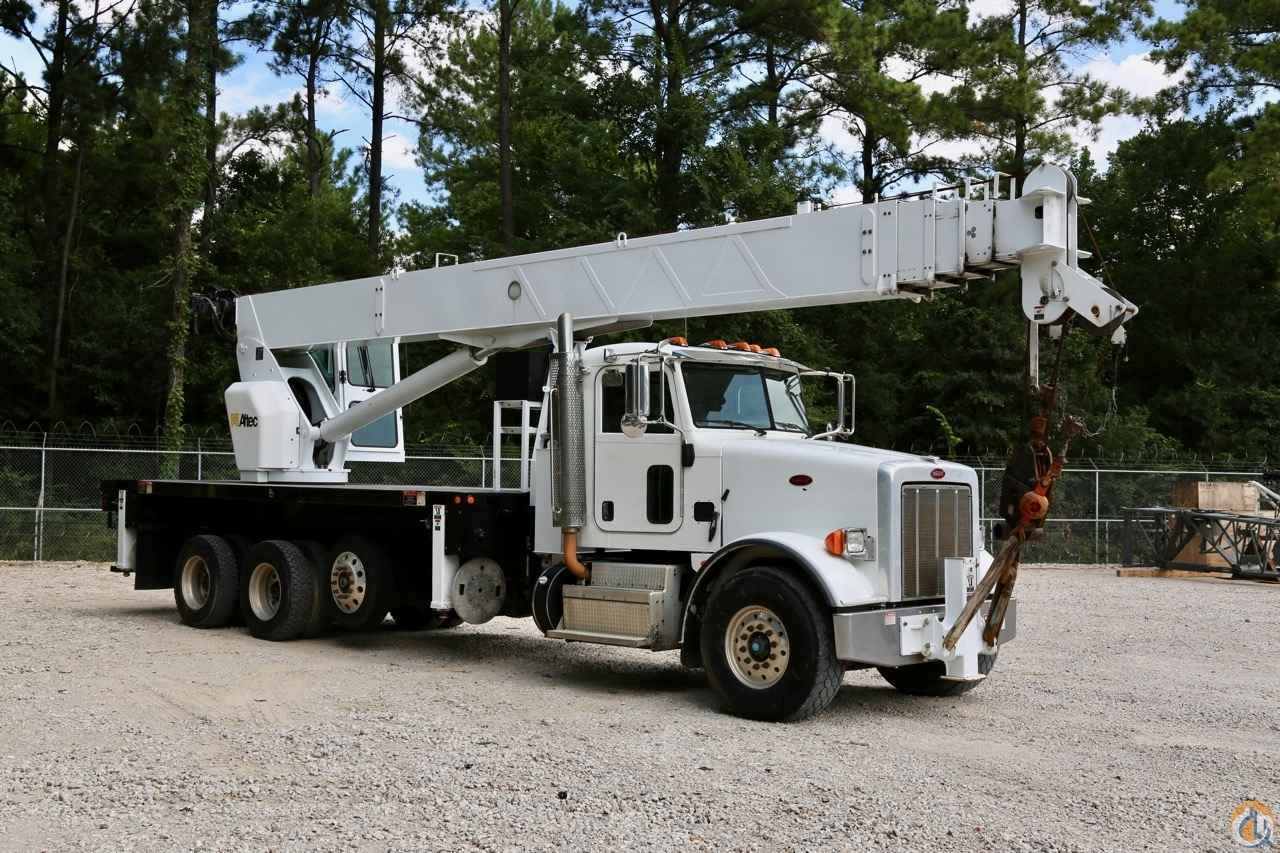

Standard Features

76,000 lb (38T) Maximum Lifting Capacity

127 ft (38.7 m) 5-Section Non-Insulated Boom

137 ft (41.8 m) Maximum Sheave Height

Stowed Travel Height of 12.9 ft (3.9 m)

Vehicle Travel Length of 38 ft (11.6 m)

Sequential Out-and-Down Outriggers

Full Span 24 ft (7.3 m) • Mid Span 15.75 ft (4.8 m) • Short Span 8.17 ft (2.5 m)

Hydraulic Pilot-Operated Control System

Continuous Rotation

Hydraulic Oil Cooling System

Life Cycle Tested for Reliability

Altec LMAP (Load Moment & Area Protection) System

Rated Capacity Limiter

Displays: Boom Length, Boom Angle, Load on Hook, Percent of Rated Capacity

Electronic Working Area Definition

Operator Defined Audible Alarm Set-Points for Boom Angle, Length and Rotational Position

Outrigger Boom Interlock System

Outrigger Motion Alarm

Back-Up Alarm

Emergency Stop at Operator Controls

Winch Drum Rotation Indicator

Anti-Two Block Device

Front Bumper Outrigger

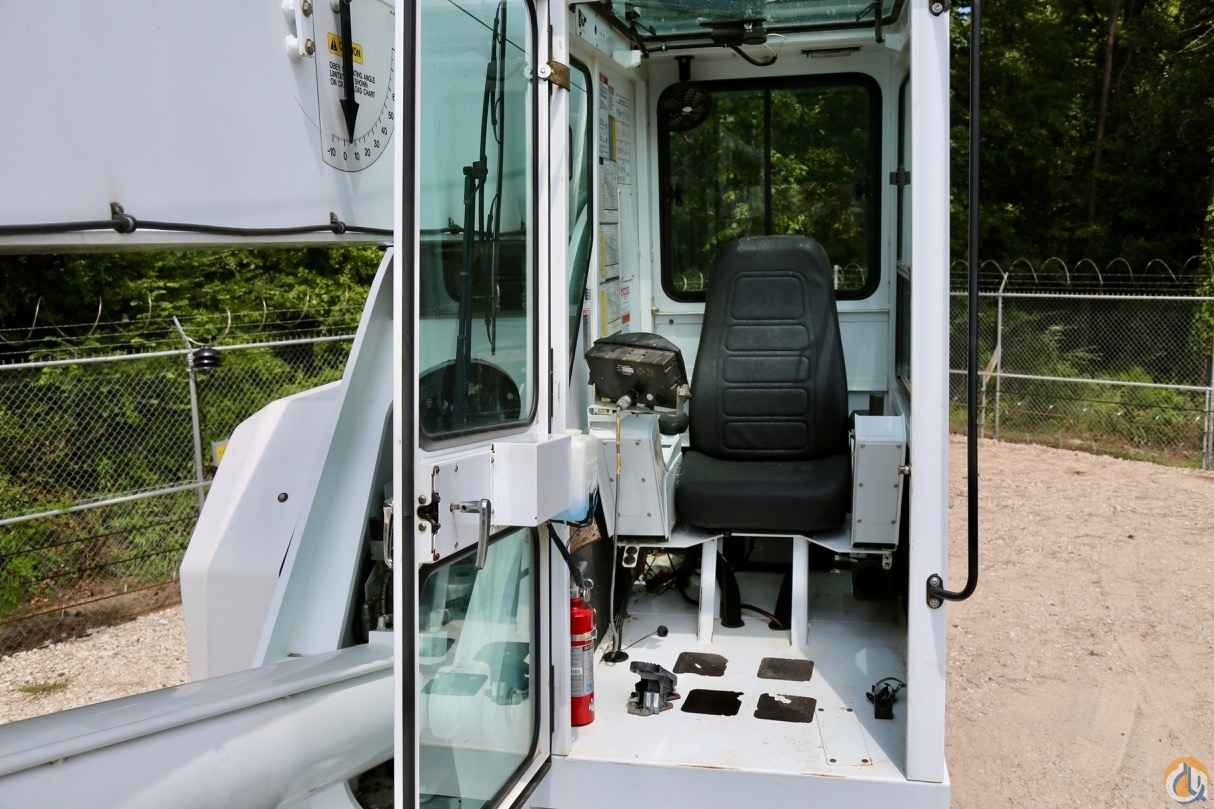

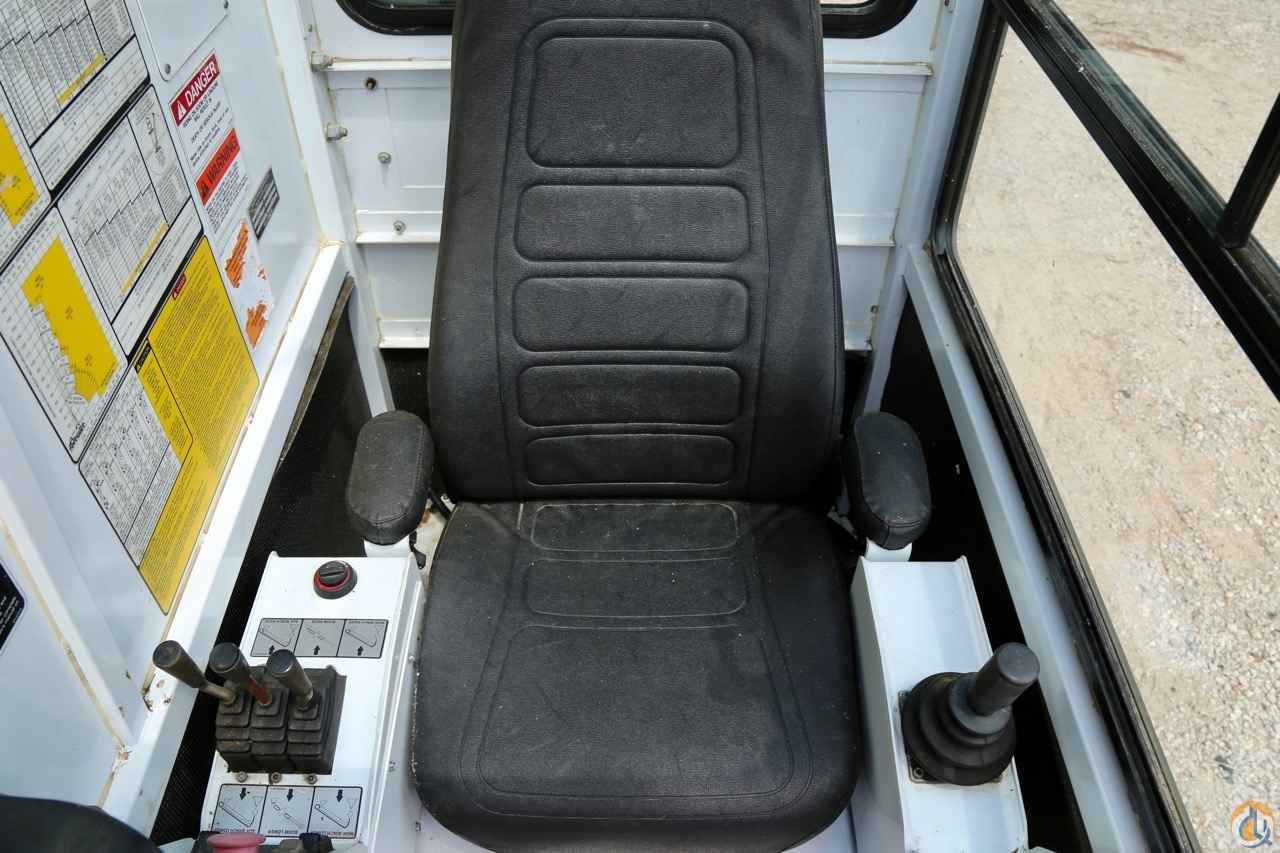

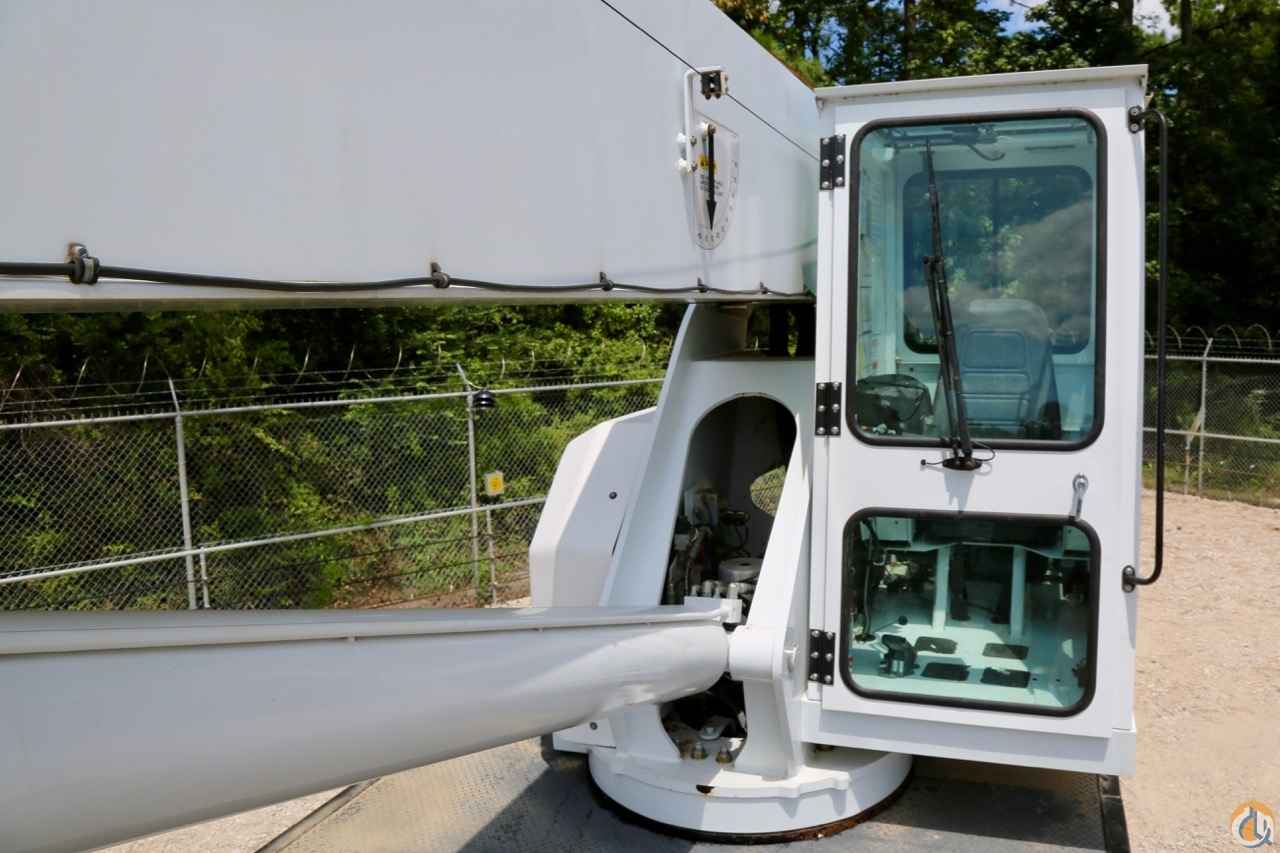

Altec Opti-View® Riding Seat Control Station

Included Items

Braden Aux Winch

22’6” Steel bed

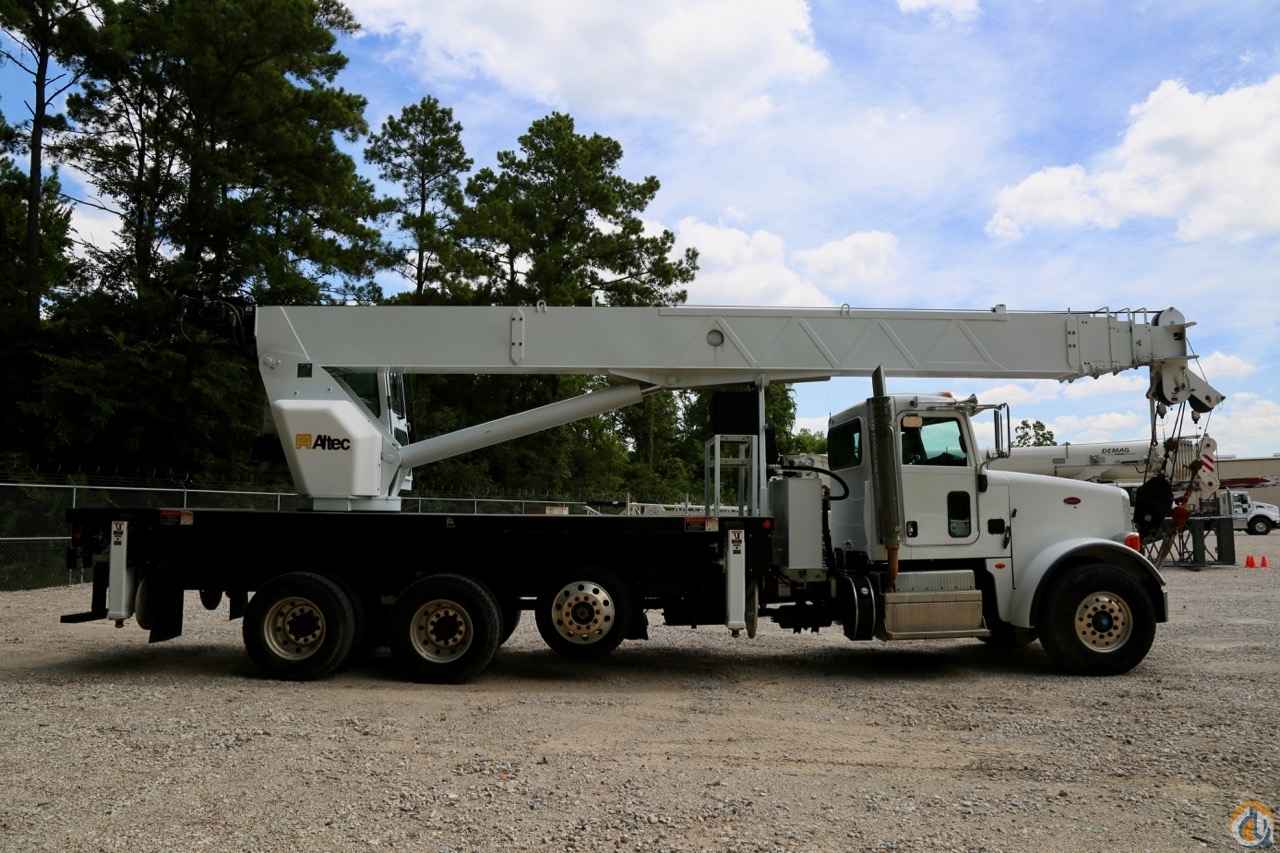

Truck

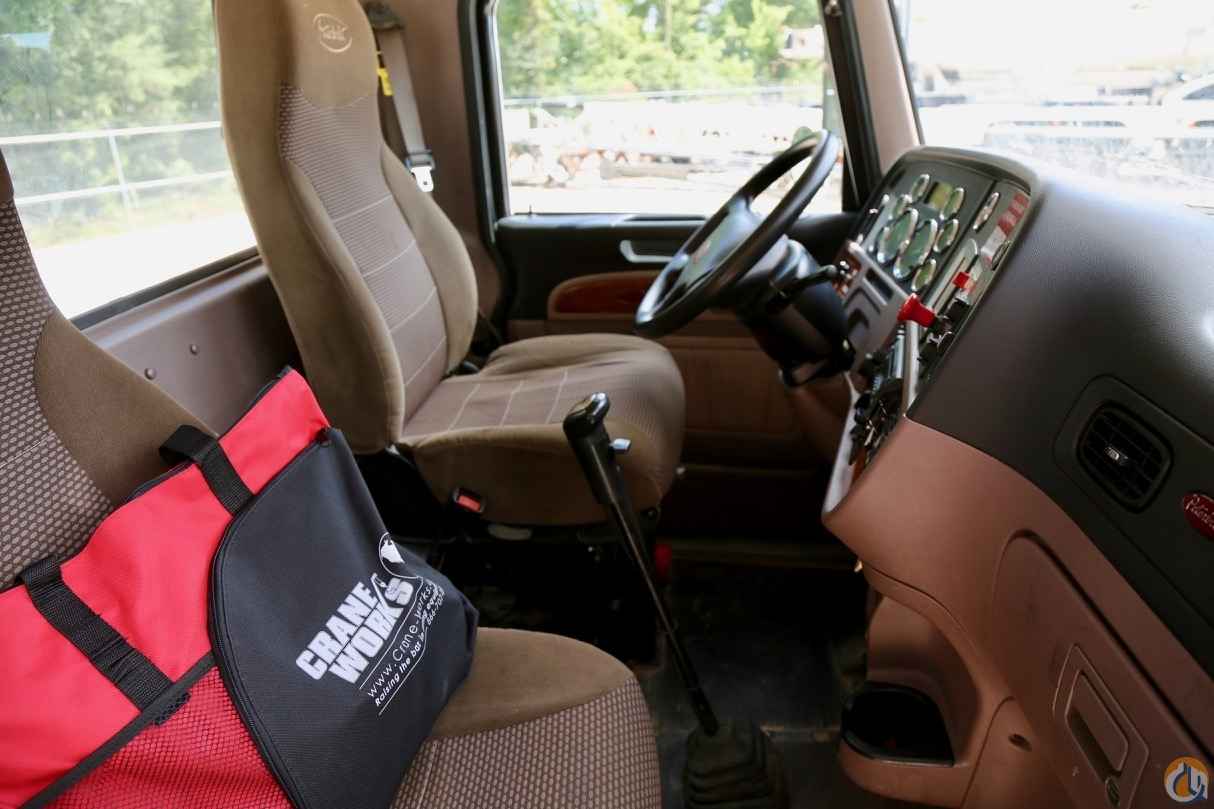

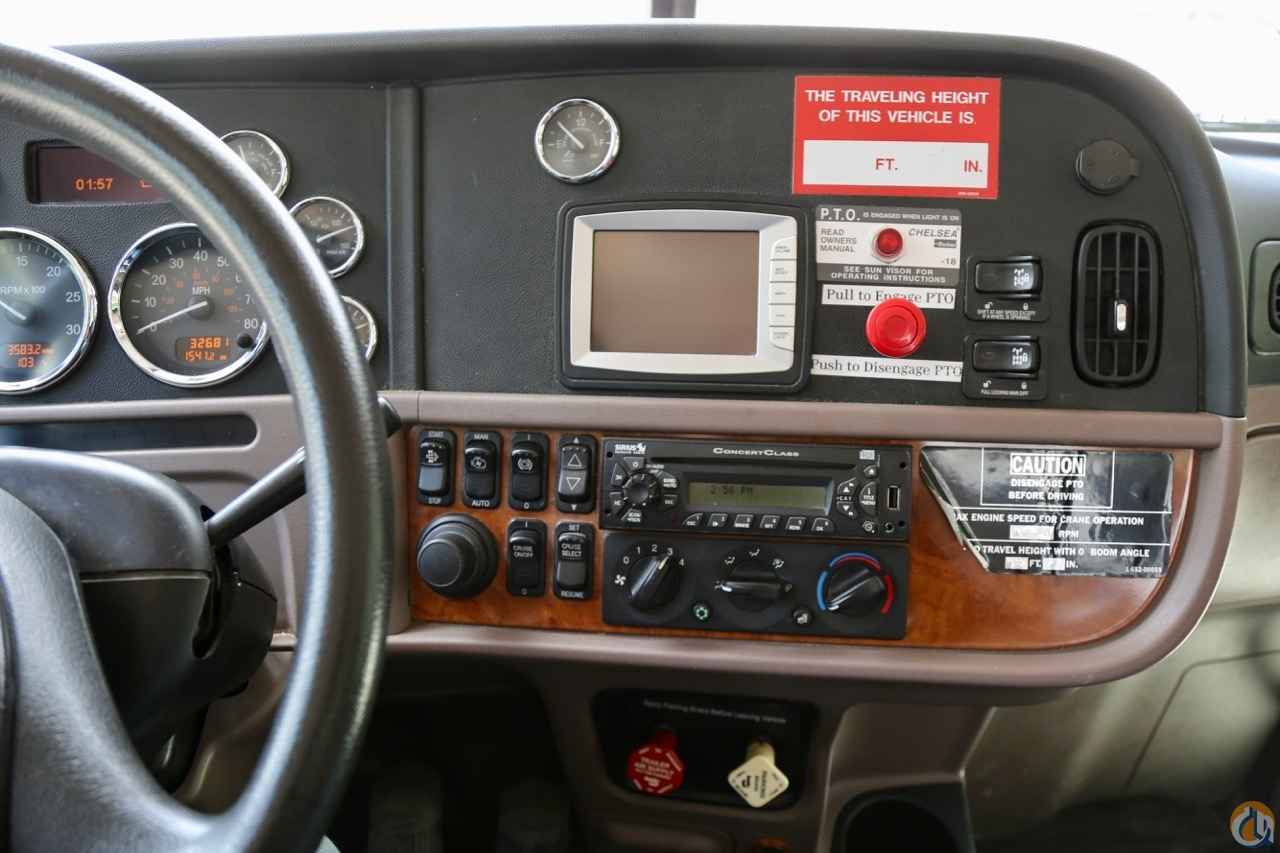

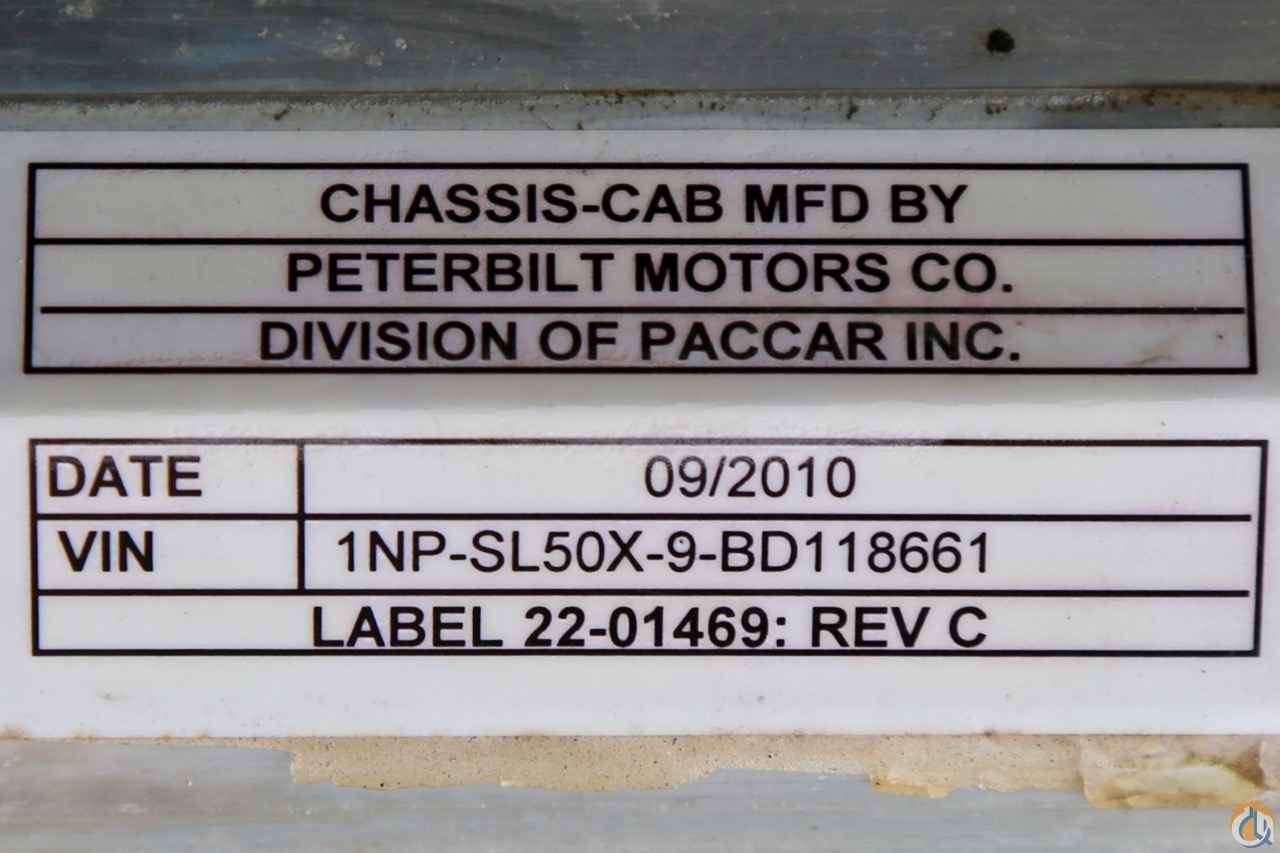

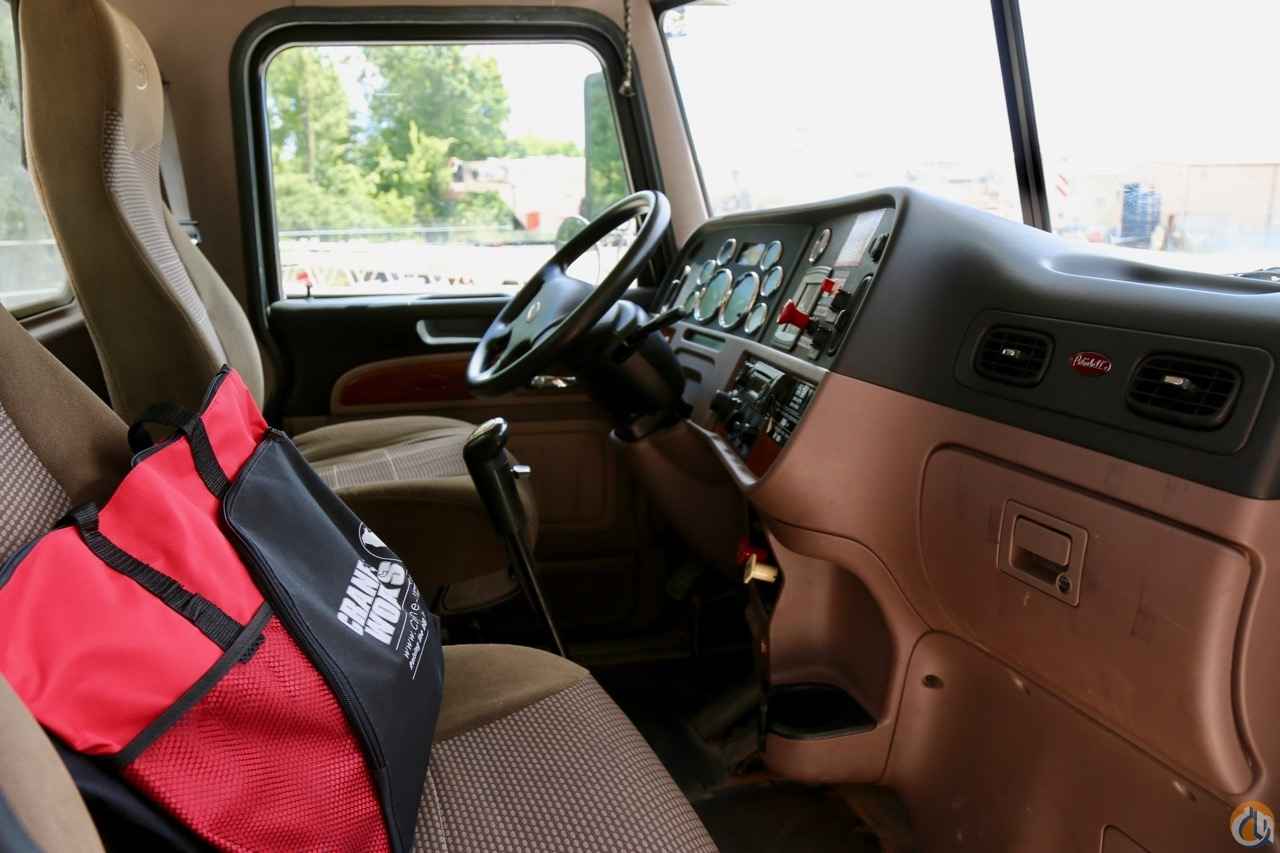

2011 Peterbilt 385 Daycab

Cummins 380hp Engine

Jake brake

Driver controlled differential wheel lock

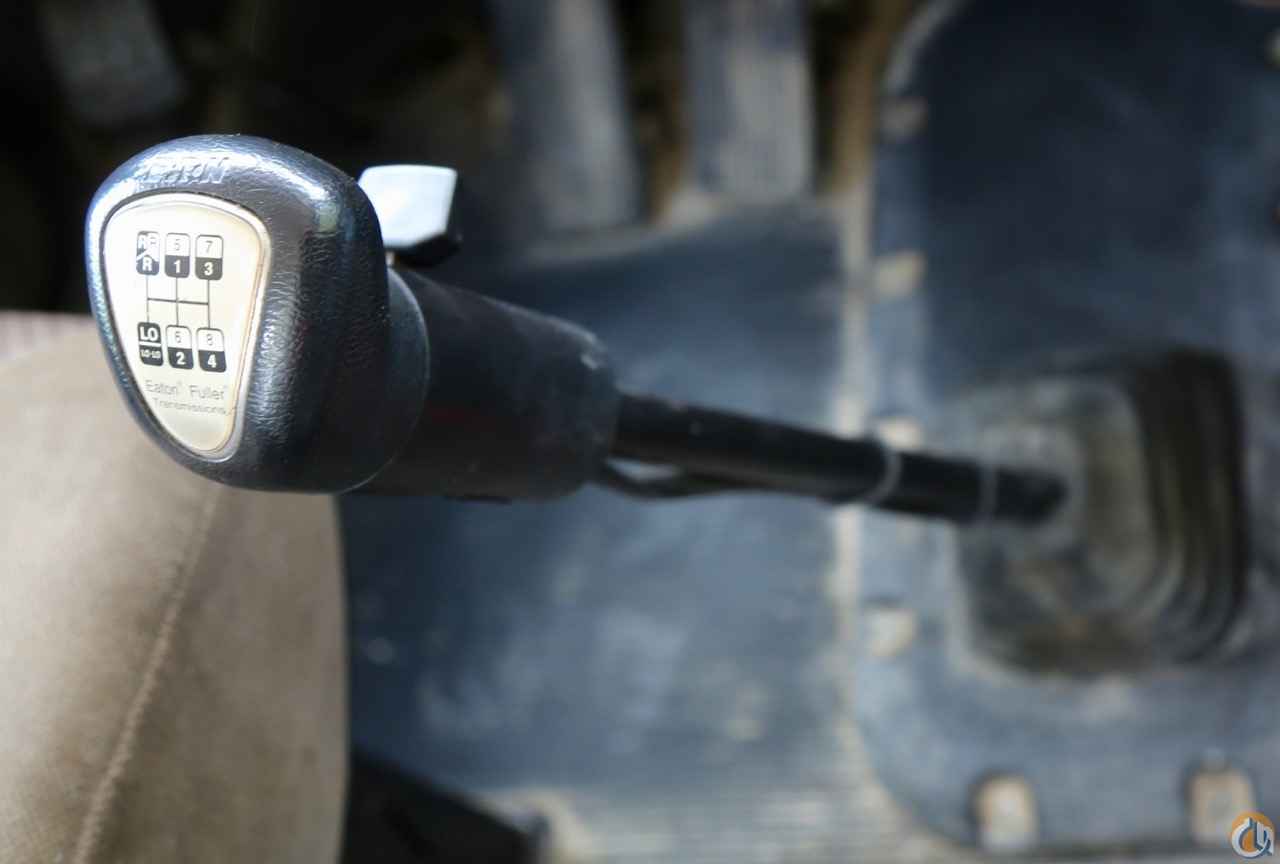

Fuller 1908LL 10sp manual transmission

Hendrickson Haulmaax spring suspension

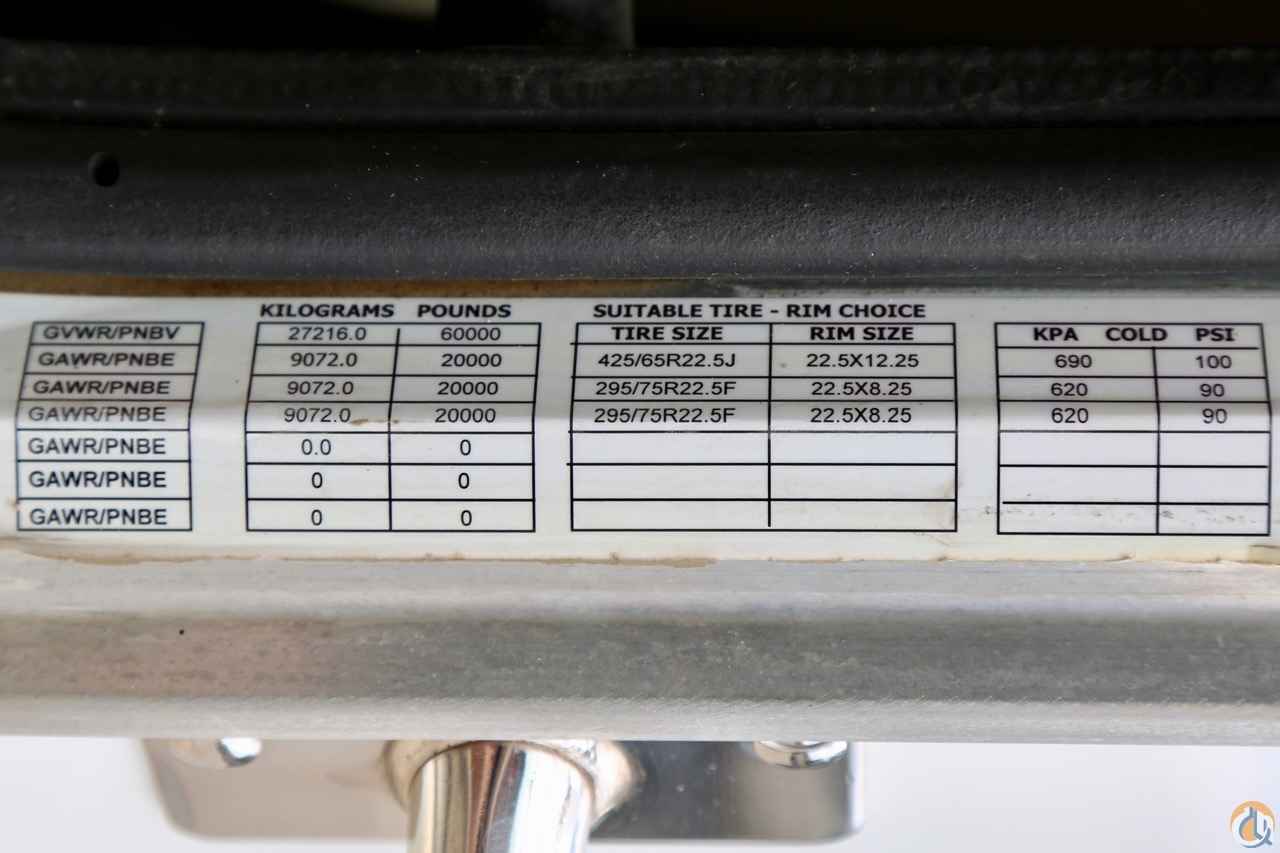

425/65R22.5 front tires on alum wheels

11R22.5 rear tires on steel disc wheels
