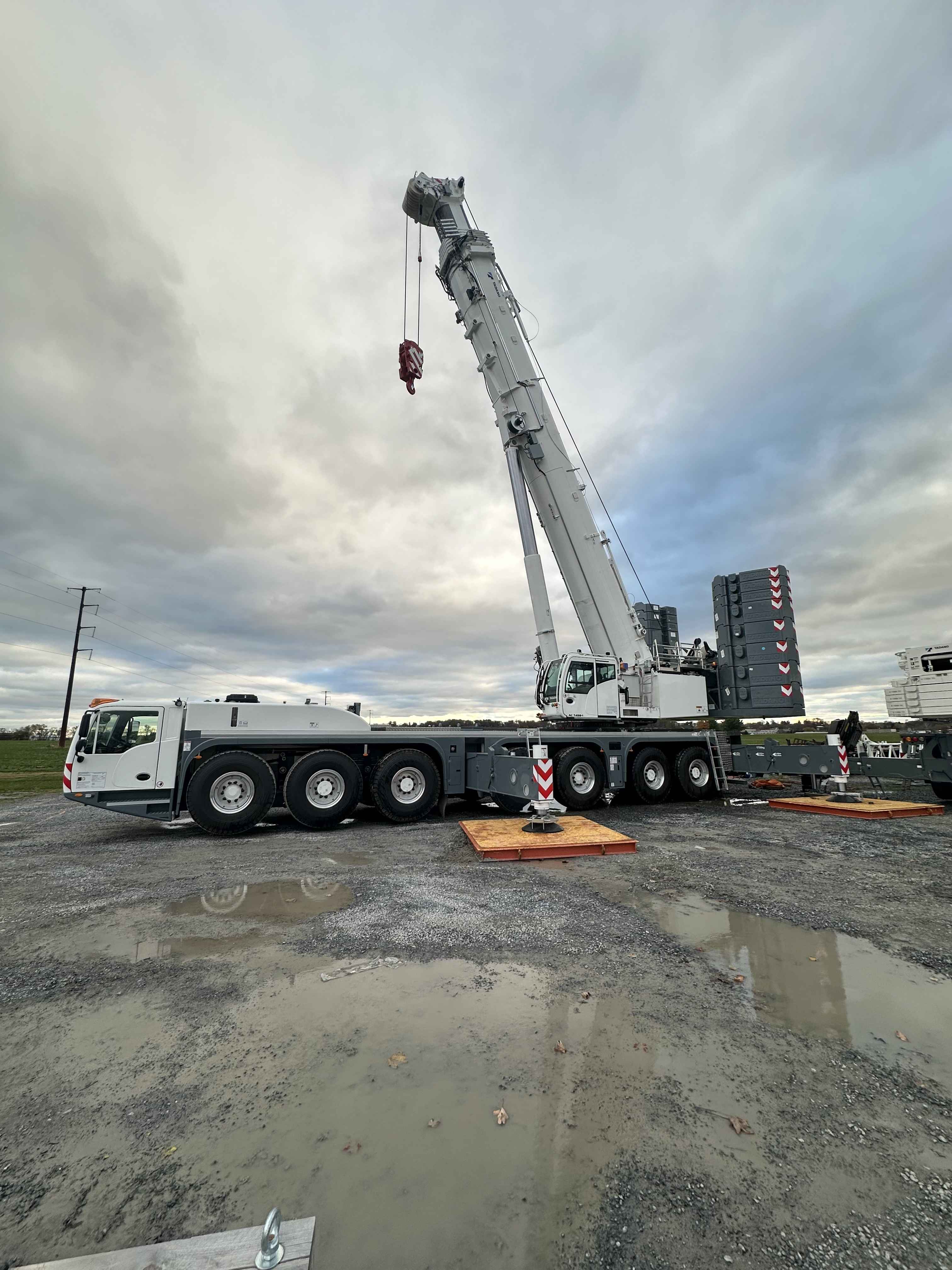

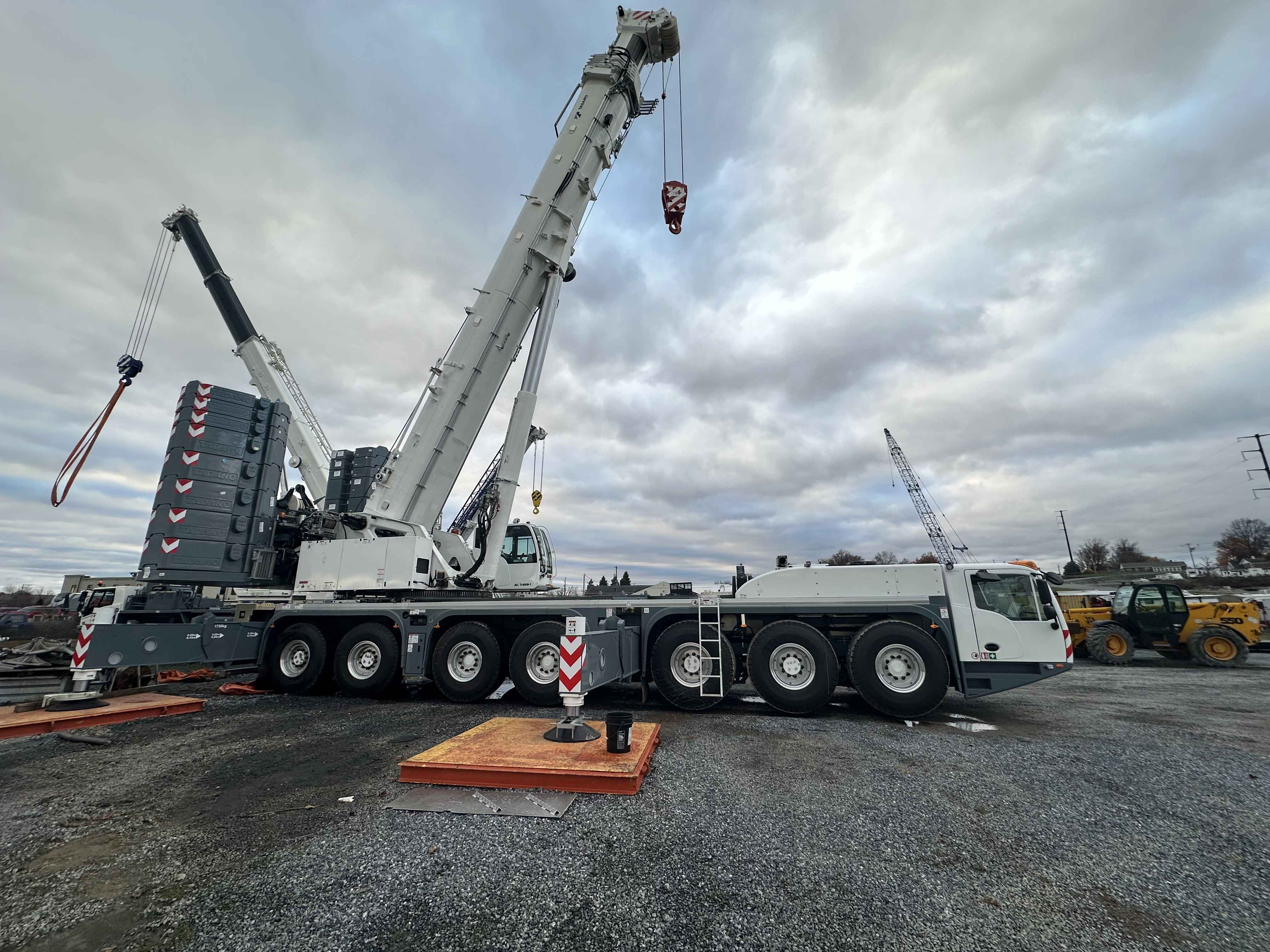

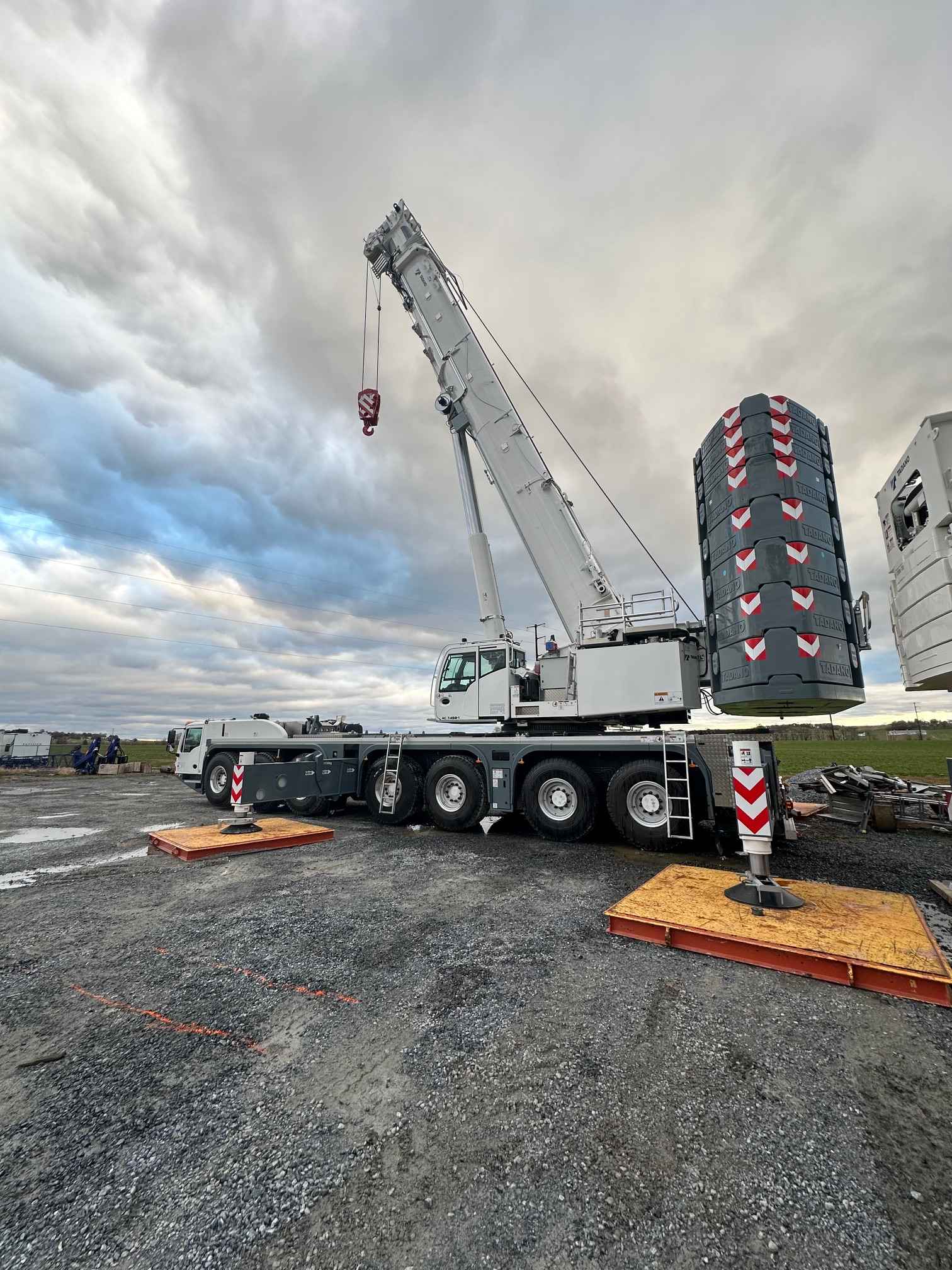

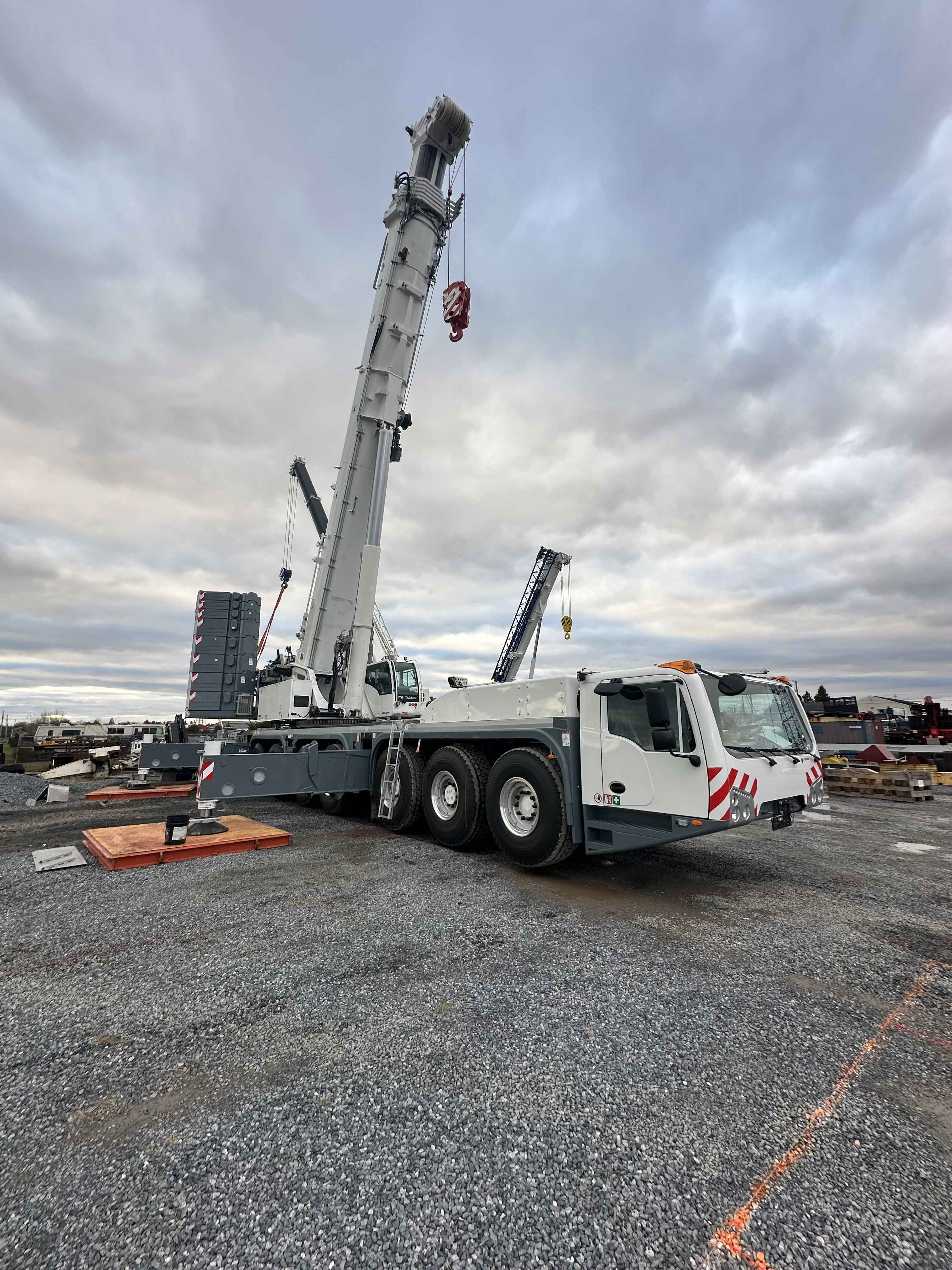

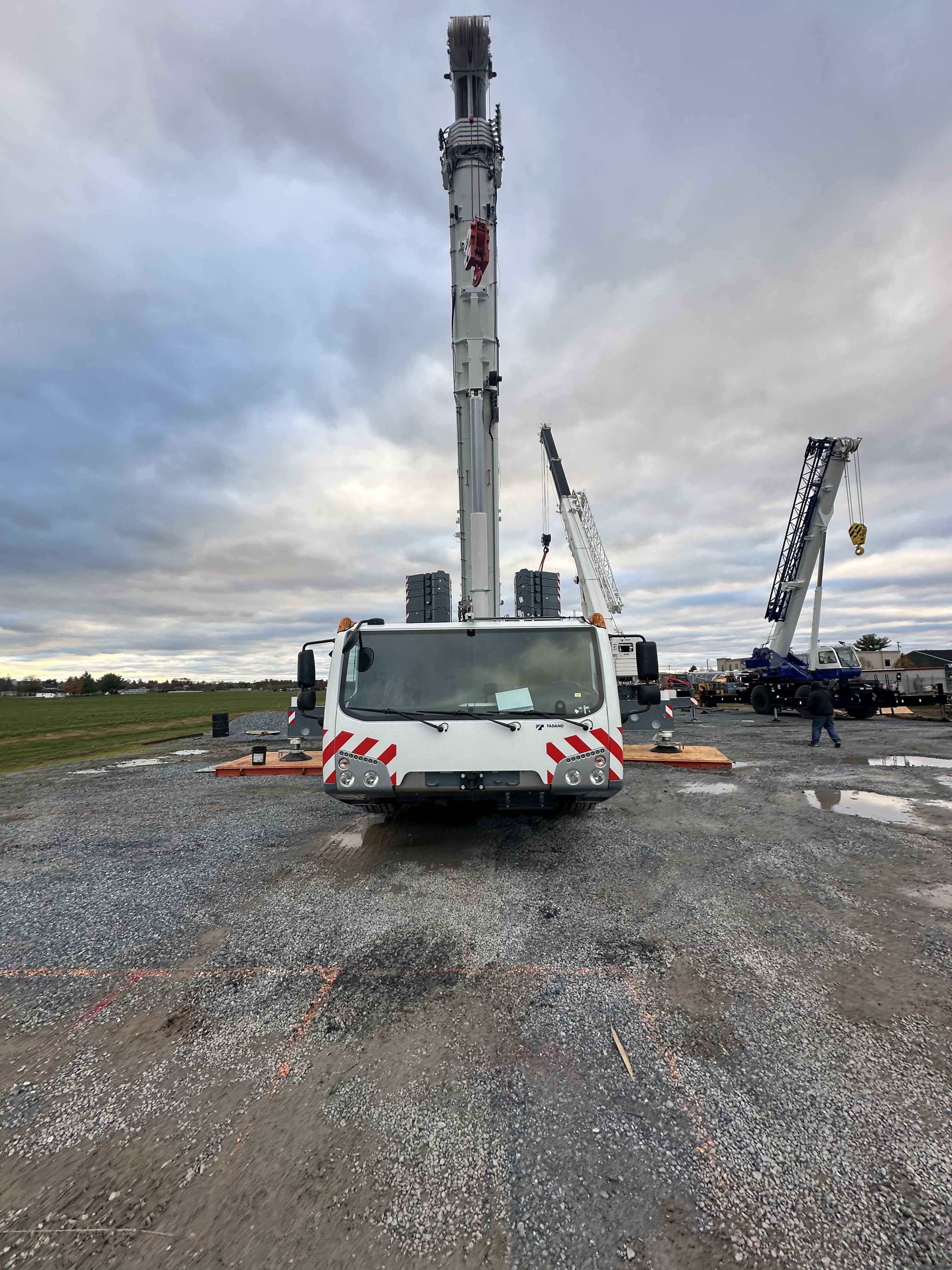

TADANO AC 7.450-1 ALL TERRAIN CRANE | 500 Ton Crane - AVAILABLE TODAY -

• Capacity: 500 US Ton
• Boom: 48.6’ – 262.5’ (6-sheave head, single cylinder telescoping system)
• Boom Extensions: F-A-HY 183.7 ft: fixed jib; hydraulic, stepless offset 0º & 40º; 3 sheave head; Enables configuration F-A-HY 36.1’ – 183.7’, LF 26.2’ – 55.8’
• Luffing Jib: WIHI 265.7 ft: 265.7’ luffing jib w/9.8’ increments including bridle; 3-sheave head. Enables configuration WIHI 78.7’ – 265.7’, LF 26.2’ – 193.6’, F-A-(-HY) 36.1’ – 183.7’.
• MS Runner: 6.6’ (jib w/fixed angle, 3 sheaves)
• Quick Connection Main Boom: fast boom/luffing cylinder assembly.
• Hoists: two
• Counterweight: 330,700 lbs. self-rigging w/semiautomatic rigging system
• CWT adapter frame: increased tailswing and lifting capacity (w/SSL)

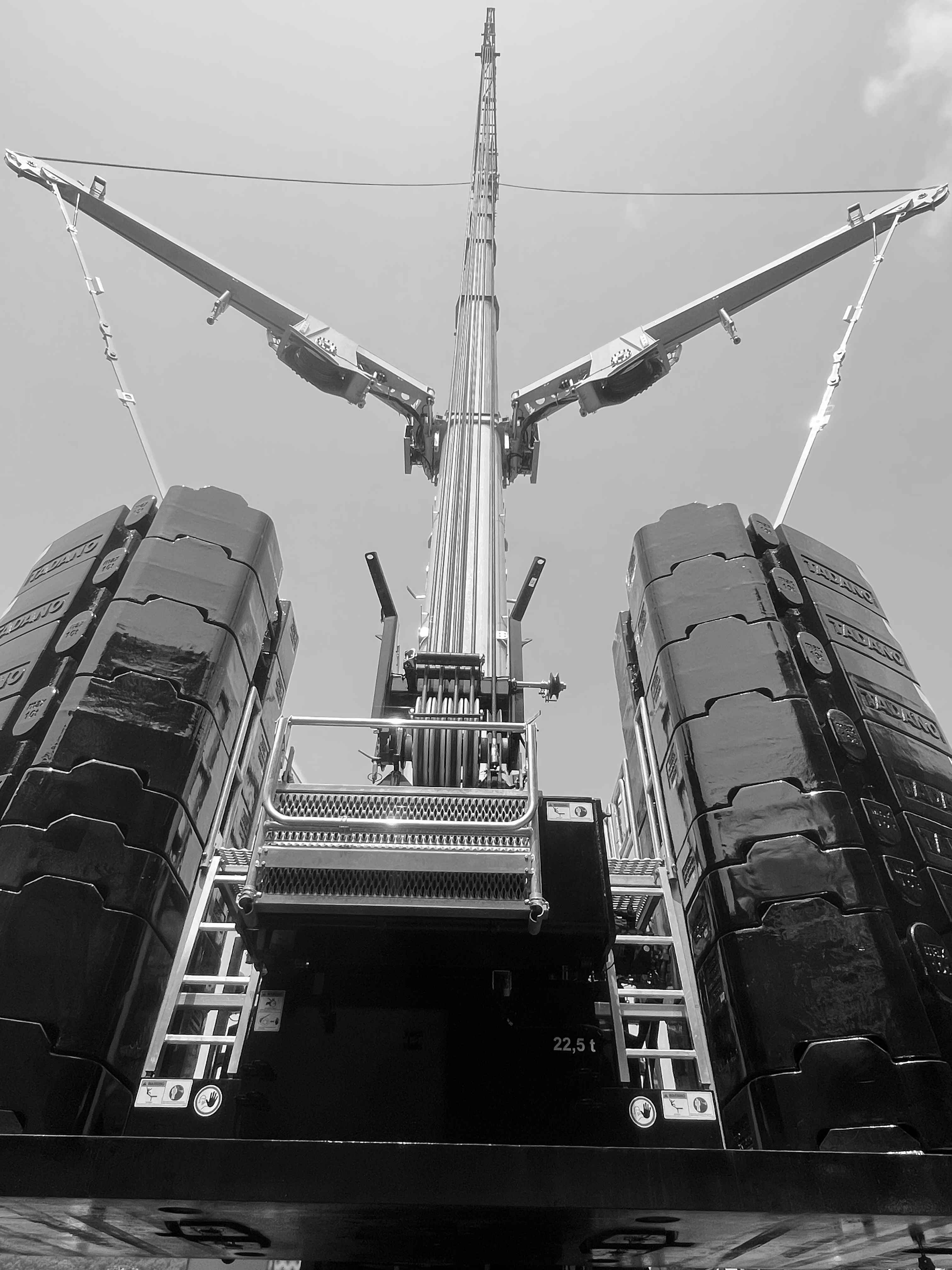

• Tadano SSL: Sideways SuperLift
• Fall-from-heigh protection system: for counterweight, superstructure and boom base section

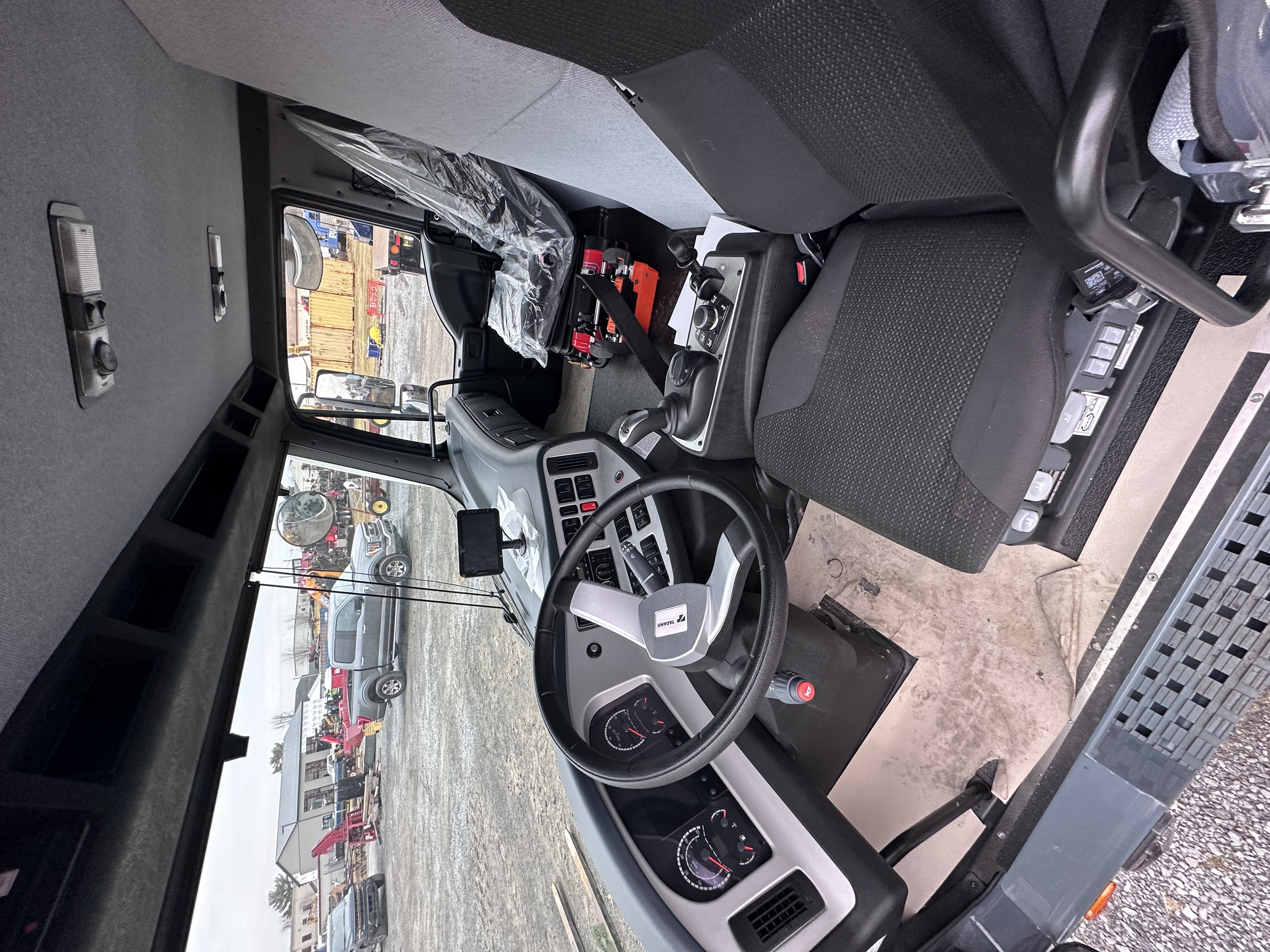

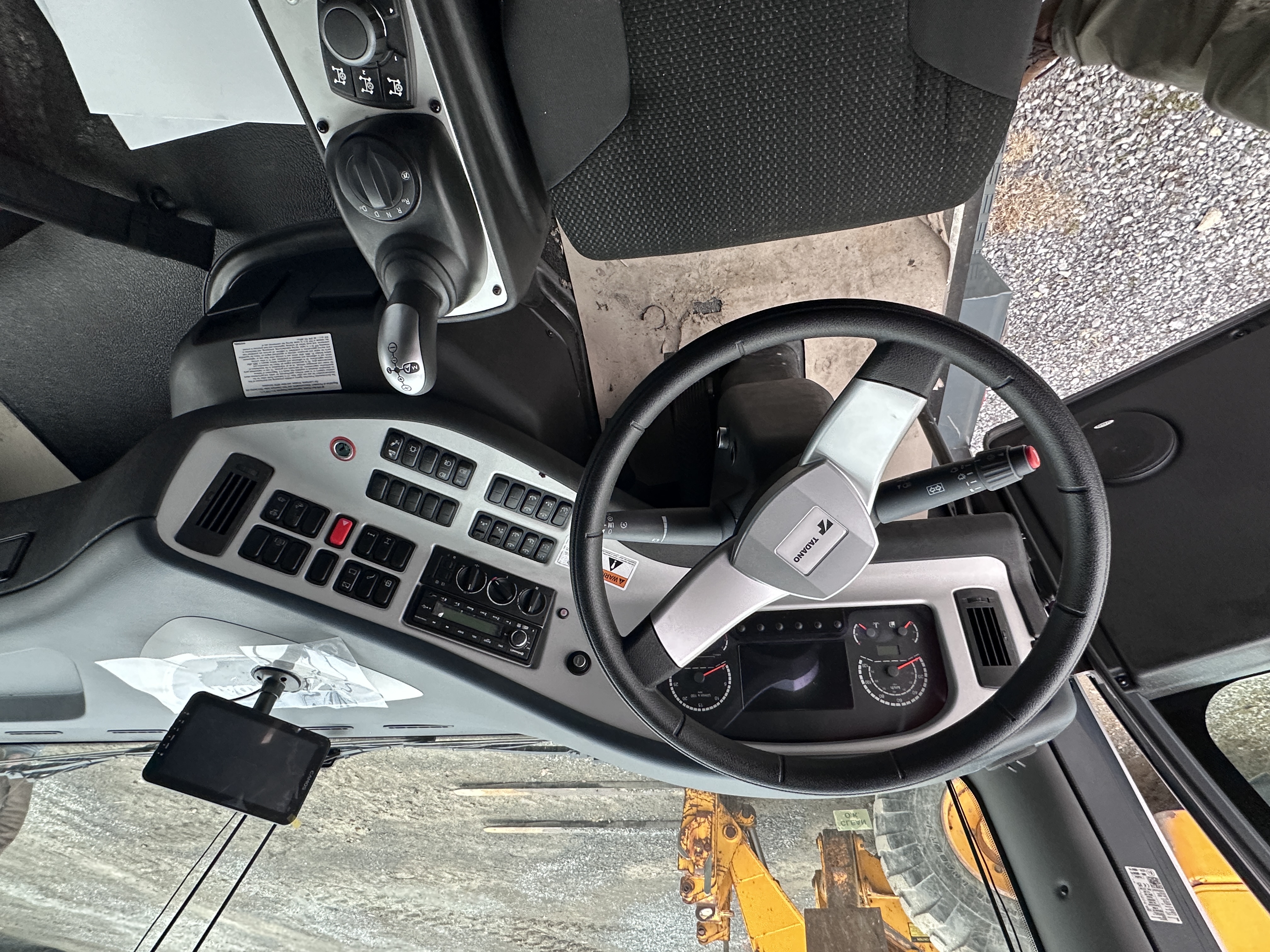

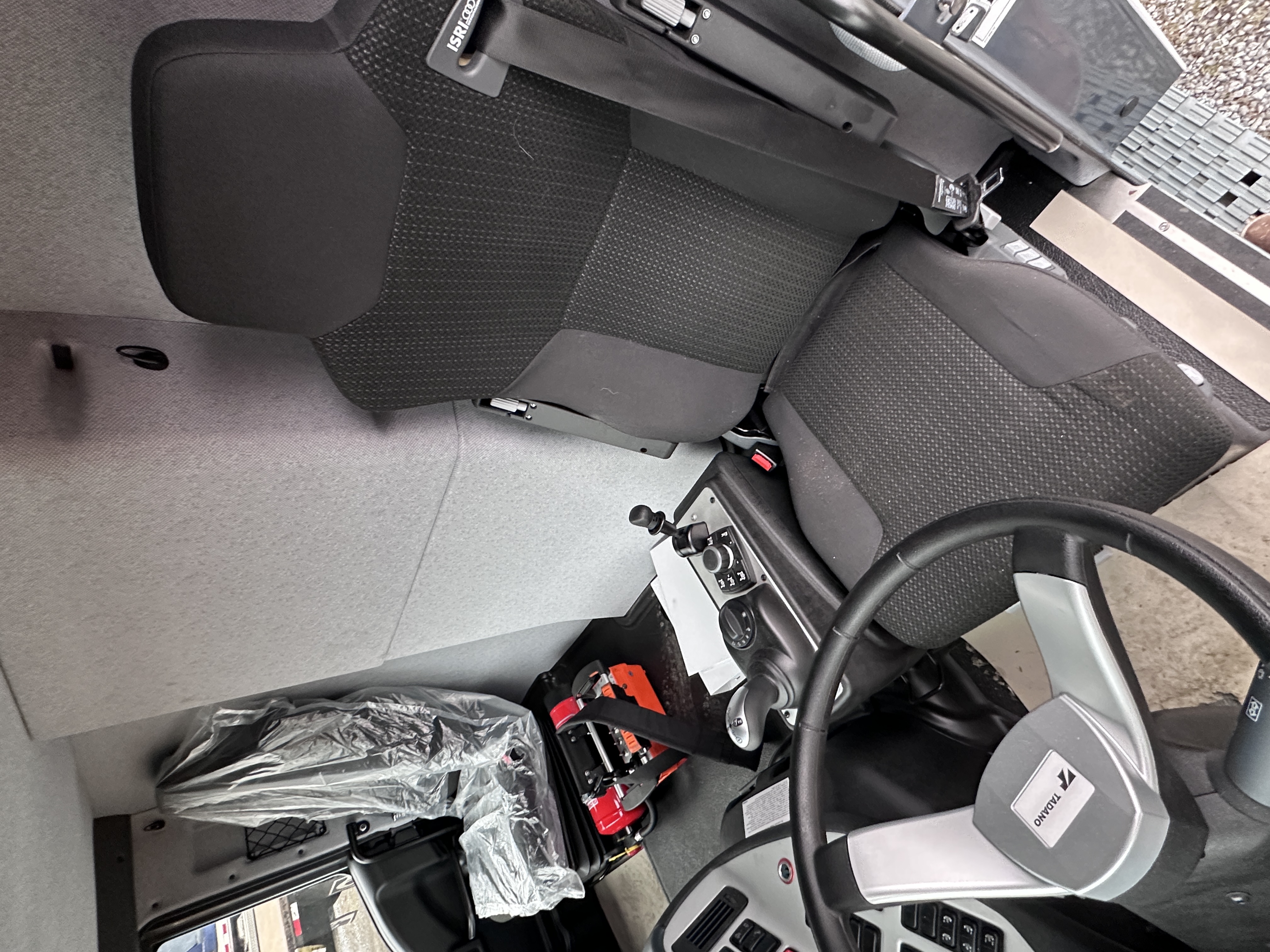

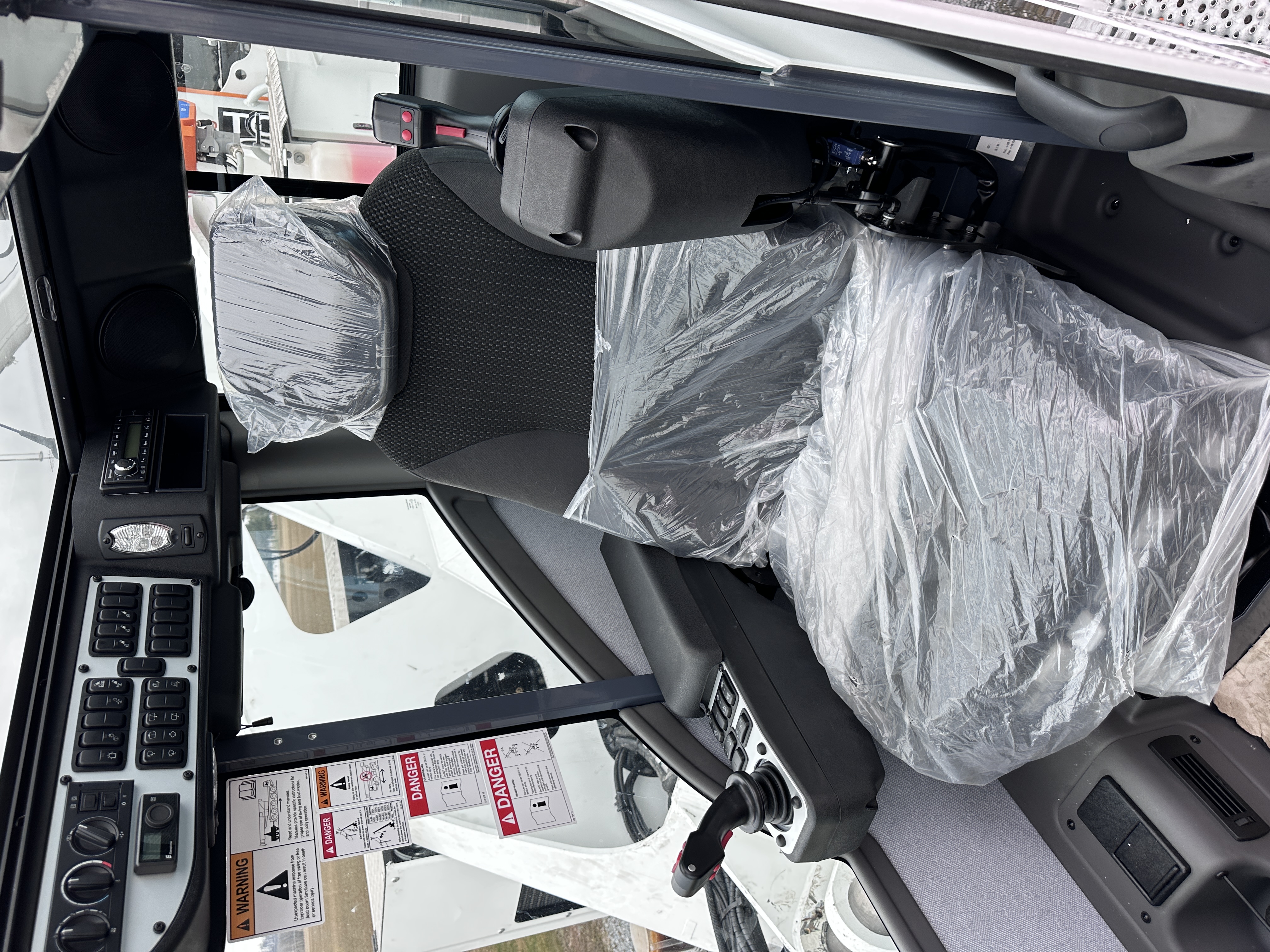

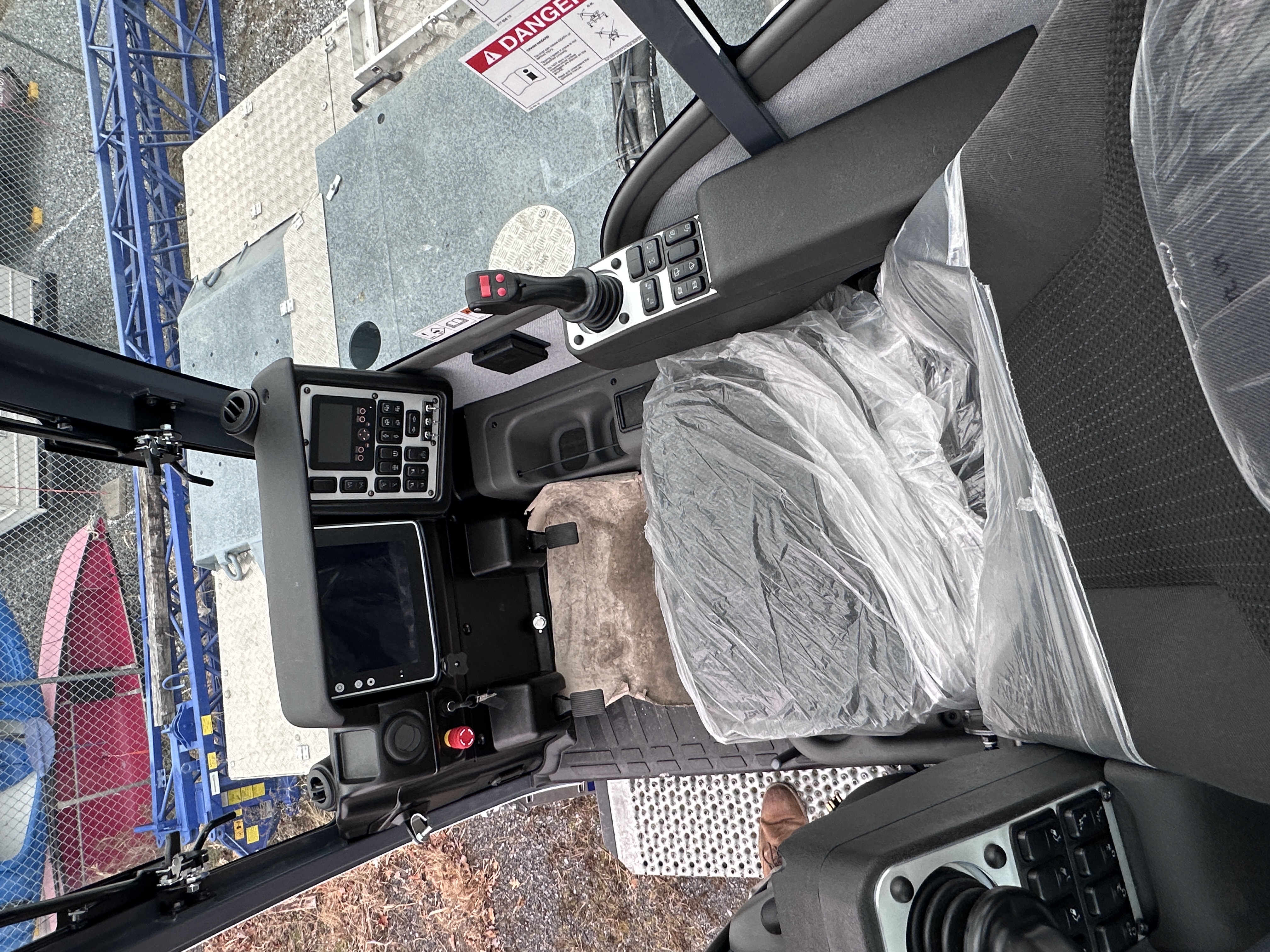

• Upper Cab: tilts up to 16º, fold-out front window, extendable front/side pedestals, radio, heated seat, climate controls (heat & a/c)
• Load moment indicator system: Tadano IC-1 Plus
• Tadano Surround View: camera system for travel, set up, cwt tailswing
• 5 Outrigger bases: 8.9’, 13.2’, 18’, 22.9’, 27.7’
• Outrigger quick connection: for fast assembly/disassembly
• Engine: Mercedes-Benz OM473 diesel: EU Stage V/Tier 4F
• Transmission: Mercedes-Benz G280-16TRC; 16 forward speeds / 4 reverse
• Axles: 7
• Tires: 385/95R25 (14.00R25); Steel rim 9,5-25/17”
• Dolly prepped
• Hook Blocks/Ball:
• 176 Ton, 7 sheave, 0.92” wire rope
• 137.8 Ton, 5-sheave, 0.92” wire rope
• 88 Ton, 3-sheave, 0.92” wire rope
• 44 Ton, 1-sheave, 0.92” wire rope
• 13.8 Ton, ball
• …And so much more!

Please contact the Exact Crane Sales Team for a formal quote. Want a closer look - scheduled to see the crane in person.

Exact Crane is a proud Tadano Dealer for Ohio, Michigan, Kentucky & W. Pennsylvania

--------------------------------------------------------------------------------------------------------------

• SHIP WORLDWIDE

• LOCAL SERVICE & REPAIR

• FINANCE PLANS

• PURCHASE, BARE RENT, RPO & TRADE-IN OPTIONS  (based upon approval)

• CRANES, PARTS, ATTACHMENTS & MAINTENANCE PRODUCTS

--------------------------------------------------------------------------------------------------------------
