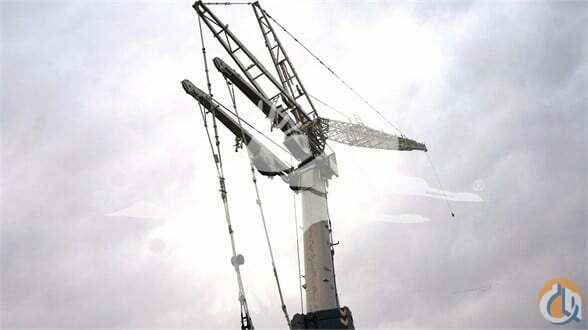

2024 TADANO AC 7.450-1 All Terrain Crane (Sold)

Basic crane comprising: Carrier Engine 460-5; EU Stage V / Tier 4F Mercedes-Benz OM473; Diesel engine; 460 kW/ 1600 1/min (617 HP), torque 3000 Nm / 1300 1/min; The engine complies with EU Stage V / Tier 4F; Exhaust system cpl. stainless steel with SCR catalyzer Fuel tank Fuel tank 600l Diesel (no RME/ Bio-Diesel); 95l Tank for AdBlue Transmission G280-16TRC Mercedes-Benz G280-16TRC ; Automated gearbox with turbo retarder clutch; 16 forward speeds and 4 reverse; 1-stage transfer case with switchable longitudinal lock Axles 14x8x14 14x8x14; 7 axles, axles 2, 3, 6 & 7 are driven and equipped with disengage able axle-differential lock; Axle 6 with a disengage able centre-differential lock; All axles steered Suspension Hydropneumatic suspension with axle load compensation; hydraulically lockable; Manual or automatic levelling alternatively Steering Dual-circuit steering system with independent rear axle steering; axles 1, 2, 3 mechanically connected, axle 5 and 6/7 electro-hydraulically connected, axles 6 and 7 mechanically connected, axle 4 stiff for road travelling; Active rear axle steering with different steering programs Brakes Pneumatic dual circuit service brake, acting on all wheels; Disc brakes; Hydraulic retarder integrated into transmission as wearless, sustained-action brake; Additional exhaust brake; Parking brake according to norms Wheels 385/95 R25 (14.00R25) Wheels 385/95R25 (14.00R25); Steel rim 9,5-25/1,7"; TechKing ETCRANE 170F; or similar; Incl. wheel nut indication Pneumatic tire inflating plug Pneumatic tire inflating plug for self-inflating of the wheels Cab Carrier Type 2,85m; Adjustable driver seat, armrests and pneumatic suspension; Steering wheel height and tilt adjustable; Seat heating driver's seat; Co-driver's seat; Power windows; Tinted glass; Power mirrors with heater; Fire extinguisher incl. holder Radio carrier Digital radio with USB input, Aux-In and Bluetooth® connection Heating carrier Engine-dependent warm water heating with 12kW nominal heating capacity Air-condition carrier Air-condition for carrier cab with 7KW rated cooling capacity Tachograph Display of the speed and analogue recording as per country-specific regulations Cruise control Automatic speed control, automatic brake control, tempo set function Rear view camera Display in driver's cab; Cameras installed on rear of vehicle Electronic immobiliser system Prevents uncontrolled carrier mobilisation; Incl. 3 ignition keys with transponder and 2 ignition keys without transponder Battery disconnecting switch Battery disconnecting switch for disconnection of the voltage source and the on-board power supply in carrier Driving lights Including low beams, high beams, daytime running lights, fog lights and cornering lights Illumination 2 x work lights on outriggers left, 2 x work lights on outriggers right Rotary beacons 2x LED beacons on carrier cab Central lubrication carrier Automatic central lubrication system for the lubricating points on the chassis Outriggers H-4-Point design; Vertical and horizontal movement fully hydraulic; Automatic or manual levelling alternatively on both sides of carrier; 5 outrigger bases of 2,73m, 4,02m, 5,52m, 6,98m and 8,48m Outrigger pads 038PA 4 round outrigger pads A=0,38m² Polyamide, with transport position at vertical cylinder Outrigger basis monitoring Surveillance of each outrigger beam for detection of horizontal stroke; Warning in case of anomaly in superstructure cab (Attention: There is no automatic linkage with the LMI-system) Outrigger load indicator The outrigger load is indicated in the operator cab and the outrigger control box Stowage carrier Storage compartment, with lid, for toolbox; Side compartment between the outriggers Trailer coupling front Trailer coupling for manoeuvring operations at front with manual fall bolt Heavy-duty batteries HD-batteries for optimal battery performance even under HD usage; Suitable for cold start Jump starting device Jump starting device as per NATO standards; Enabling jump start by using separate energy source Contour safety marking Continuous reflective strips on the sides of the chassis and in the back Emergency roadside kit Emergency roadside kit for crane operation and for public road access of trucks according to StVZO Toolkit Toolkit for light repairs and service Jumper cable NATO-NATO 10m 10m long jumper cable with both-sided NATO-plug, adequate for use with any jump starting device with NATO-plugs Stepladder Loose stepladder for misc. assembly work; Incl. transport storage Painting TADANO-BlueWhite Single basecoat, topcoat in TADANO-BlueWhite, chevron warnings in red-white Standard acceptance Standard acceptance test for carrier Superstructure Telescopic boom HA80 14,8m - 79.8m; Single cylinder telescoping system, automatic telescoping; Attachments for all equipment and extensions; 6 sheaves integrated in boom head for max. capacity of 134.3t Boom luffing 1 luffing cylinder with automatic lowering brake valve Rotary drive 1 slewing gear unit with spring-loaded multi-disc brake H1 Hoist with spring-loaded multi-disc brake; Resolver (hoist rotation indicator) CWT base frame 20t CWT base frame 20t; Self rigging with semi automatic rigging system, rigging storage on carrier front; Expandable to max. 150t Control system Enabling 4 simultaneous working movements; electric pilot controls via 2 two-axis joysticks Operator aids IC-1, with integrated load moment indicator acc. EN13000; Color display; Displaying of current operating conditions, load charts, fault indicator; Signal lights indicating LMI-load; Crane data logger IC-1 Plus (Asymmetric Outrigger Positioning) Calculation of lifting capacity subject to outrigger base and slewing angle of superstructure; Incl. Automatic counterweight detection; I.a. makes it possible to work with asymmetrically extended outriggers; Note: for HA operation only IC-1 Remote Crane is equipped with IC-1 Remote Working range limiter Displaying and programmability of the work range limits by IC-1 Hook height indication Displaying and programmability of the hook height H1 by IC-1 Hoist monitoring H1 Visualisation H1 by a camera system; Displayed on additional screen for the hoist monitoring in superstructure cabin; Includes one floodlight pointing at the hoists (H1 and H2) and 2 manually adjustable floodlights on superstructure cab to illuminate the forefield area Cab superstructure Type 0,875m; Infinitely tilt variable 16°; Sliding windows in rear and side window; Fold-out front window; Extendable side pedestal, front pedestal; Handrails; Tinted safety glass; pull-down sun visor and light curtains; Seat heating Radio superstructure cab Digital radio with USB input, Aux-In and Bluetooth® connection Engine-independent heating superstructure Engine independent warm water heating with 5kW heating power Air-condition superstructure cab Air-condition with 5KW rated cooling capacity Outrigger positioning from crane cabin Outrigger positioning from crane cabin Blind spot camera Camera covers the crane's blind spot on the right Remote control Control of rigging and superstructure operations via wireless remote control Anemometer Disconnect able, to allow use with all extensions Positioning light Disconnectable red LED beacon, to allow use with all extensions Double work floodlight Two adjustable LED floodlights, mounted at front of boom base section Illumination 1x work light for prefield at superstructure cab Rotary beacons 2x disconnect able on Superstructure tail Central lubrication superstructure Central lubricant distributor for luffing cylinder pins, hoist thrust bearing, slewing ring, and boom base pins Painting TADANO-BlueWhite Single basecoat, topcoat in TADANO-BlueWhite, chevron warnings in red-white Standard acceptance Standard acceptance test for superstructure Documentation Documentation includes 1x operating instructions digital and 1x printed, 1x lubrication and maintenance instructions digital and 1x printed, 1x spare parts catalogue digital, 1x load charts digital; Digital files delivered on USB stick Standard Options: 795-540-82 WIHI 81m 81m; Luffing jib with 3m increments incl. bridle; 3-sheave head; Enables configuration WIHI 24m - 81m, LF 8m - 59m, F-A(-HY) 11m - 56m (offset section required) Attention: Option '2. hoist (H2)' and 'Fall-from-height protection system for counterweight and superstructure' required; Not in combination with 'F-A 56m' and 'F-A-HY 56m' 1795-570-52 Hydr. offset section for F-A-HY Additional lattice jib section with hydraulic offset 0° - 40° for F-A-HY Attention: Option 'WIHI 81m' or 'LF 59m' required 795-680-12 MS (Runner) 2m; Assembly jib with fixed angle, 3-sheaved for max. capacity 46.6t; Possible in combination with HA, LF, F-A and WIHI 797-301-12 Hook block 160t, 7-sheaves Hook block type 160t for rope diameter 23mm; Max. capacity 155.1t; 1900kg; Double hook, red with white signal stripes Note: 'Heavy lift attachment' required for maximum reeving (max. 14 parts of line) 797-301-22 Hook block 125t, 5-sheaves (DH) Hook block type 125t for rope diameter 23mm; Max. capacity 123.7t; 1400kg; Double hook, red with white signal stripes 797-300-32 Hook block 80t, 3-sheaves (DH) Hook block type 80t for rope diameter 23mm; Max. capacity 80.3t; 1200kg; Double hook, red with white signal stripes 797-301-82 Hook block 40t, 1-sheave (SH) Hook block type 40t for rope diameter 23mm; Max. capacity 35.1t; 900kg; Single hook, red with white signal stripes 797-300-92 Hook 12.5t Hook type 12.5t; Max. capacity 11.8t; 500kg; Single hook; red 797-320-12 Heavy lift attachment 3x additional sheaves; For total 9 sheaves at boom head; Max. lifting capacity of 195.5t; Note: Additional sheaves integrated in main boom head 1 792-590-12 Removable outrigger box rear Removable outrigger box rear incl. hydraulically pinning system and quick connections 792-490-12 Outrigger quick connection Hydraulic & electric quick couplings for fast (dis-) assembly of outriggers Note: Self-assembly/disassembly not possible 793-140-82 TADANO Surround View 360° view during road travelling; Speed dependent; Indication in display of carrier cabin. Usable as assistance system when entering jobsite with indication of outrigger positions and tail swing of counterweight 792-410-12 Additional rear lights Additional flood light for illuminating the area behind the crane; On/Off buttons in carrier cab 792-420-12 Side Lights Lighting, facing backwards, on the sides of the crane, designed to enable the driver to see the crane's lateral limits in the mirrors when backing up. For work site operation only. 792-120-12 Engine-independent heating carrier Auxiliary, engine independent warm water heating system with 10kW rated heat output; With timer and remote start; Switchable between engine preheating and carrier cab heating; Attention: needed for cold start below temperatures of -20°C 795-060-12 Quick connection main boom (HA) Hydraulic bolt extractors and hydraulic & electric quick couplings for fast main boom and luffing cylinder (dis-) assembly; Incl. switchable suspension calibration for light travel configurations without HA Attention: only in combination with 'Fall-from-height protection system for counterweight and superstructure' 797-000-32 Additional counterweight 130t transport optimised Additional counterweight 130t; 10 x 10t and 6 x 5t; For max. 150t 797-100-12 CWT adapter frame (XL) CWT adapter frame for increased cwt tail swing; Increase in lifting capacity especially when working with SSL 797-080-12 CWT rigging device CWT rigging device for rigging of CWT slabs with quick connection in centre of gravity of CWT slabs 793-050-22 2nd Hoist (H2) 2nd Hoist; Integrated in CWT base frame; Spring-loaded multi-disc brake; Resolver (hoist rotation indicator); Incl. quick couplings, hoist monitoring and 2. hoist limit switch 797-330-12 Rope twist prevention H1 Rope twist prevention for rope diameter d=23mm; Avoids rope twist hoist 1 1 797-330-22 Rope twist prevention H2 Rope twist prevention for rope diameter d=23mm; Avoids rope twist hoist 2 795-660-12 SSL (Sideways Superlift) Sideways Superlift; Capacity increasing boom guy support; Incl. Fall-from-height protection system and transport stowage 795-660-14 SL (Super Lift Self Erect) Super Lift Self Erect bracket system rigging aid. 793-290-12 HR (Hydraulic reeving winch ) Hydraulic winch for reeving assistance, also for easy reeving of bridle; Removable; Icl. Quick connections 793-140-62 Camera CWT tail swing Camera covers the crane's CWT tail swing area 795-040-12 Dolly preparation Freewheel for slewing gear unit, luffing cylinder and accumulator for luffing cylinder, quick couplings for brake air & electrics (7 poles); incl. suspension for low axle loads Attention: not in combination with 'Removable outrigger box rear' 795-040-42 Dolly brackets 4-point 4-point support brackets welded to base section of main boom for usage of dolly Attention: only in combination with 'Dolly preparation' or 'Dolly preparation Duomatic' 792-370-12 Display Data Logger Display Data Logger; Data recorded by datalogger displayed on the display in the superstructure cabin 1 793-270-12 Fall-from-height protection system for counterweight and superstructure Platforms, handrails and mast as fall down protection at the counterweight and superstructure Note: Required for Netherland; Note: Required for luffing jib operation 793-270-62 Fall-from-height protection WIHI 81m Fall-from-height protection for manual operations on lattice parts of WIHI 81m 793-200-12 Emergency lowering system HY Hydraulic interface on crane in accordance with BG (German employers’ liability insurance association requirements) in case of engine failure; Makes it possible luffing, hoisting and slewing (no movements which increases the load moment); Emergency lowering System transformer not included; Optional emergency lowering System transformer required if not available; Can be worked e.g. via assist crane with hydraulic interface; Note: Incl. Donor Interface Attention: Should not be offered together with Emergency override HY 793-200-92 Emergency release for pinning of HA Emergency release for pinning unit of main boom in case of energy failure for retraction of main boom Special Options: 792-150-42 Wheels 525/80 (20.50R25) Bridgestone - Aluminum rims Wheels 525/80R25 (20.50R25); Aluminum rims; Bridgestone VHS 176F; Incl. carrier broadening to 3,12m instead of serial wheels 793-400-12 House lock Additional mechanical locking of superstructure and carrier in position 0° and 180° 799-060-12 Jumper cable NATO-Clamp 5m 5m long jumper cable NATO-plug & battery clamp, adequate for use with any external power supply e.g. batteries 1-270-22 Omit CE & EN13000 Built according to CE, but without CE documentation and without declaration of conformity; Deactivation of the specific EN13000 overload protection software 1 797-501-62 Customer painting multicolor Max. 3-coloured according to customer's choice; Incl. outrigger cylinder, counterweights only outer surfaces, drivetrain black/grey, aluminium rims (if applicable) will not be painted; Please note: No metallic coat, no clear coat, no fluorescent colour, no pearl effect 797-540-12 Conservation sea shipment Conservation sea shipment 799-010-22 Hydraulic-oil -25° Multigrade oil instead of standard hydraulic oil; Approved for ambient temperatures of -25°C to +50°C; Maximum allowed oil working temperature is +88°C. 1 799-040-12 Battery charger Battery chargers for carrier and superstructure with connection to external electric power source; Recommended for ambient temp. up to -30°C 1 792-030-12 Engine pre-heater - External (220 V) Engine pre-heater - External (220 V); Recommended for ambient temp. up to -30°C 793-110-12 Additional HY-oil cooler Additional hydraulic oil cooler for increased cooling performance when working in hot weather areas 1 -
