Features
Jobsite accessibility: Most compact crane in its capacity class with a total length of 14.3 m and a carrier width of 2.75 m
IC-1 Plus: Real time calculation of lifting capacities allows working in a higher capacity range with less counterweight; this increases versatility and reduces transport costs
Reduced operational costs: Single engine concept, start-stop function and an intelligent motor management system reduces operational cost and maintenance
Clean axle loads: The crane stays under the 12 t axle load limit, still being able to carry 450 kg of payload
Excellent maneuverability: All-axle steering, independent rear axle steering and dynamic launch control
Specifications
Capacity class: 130 t, 140 US-tons
Main boom length: 60 m, 197 ft
Maximum system length: 86,5 m, 284 ft

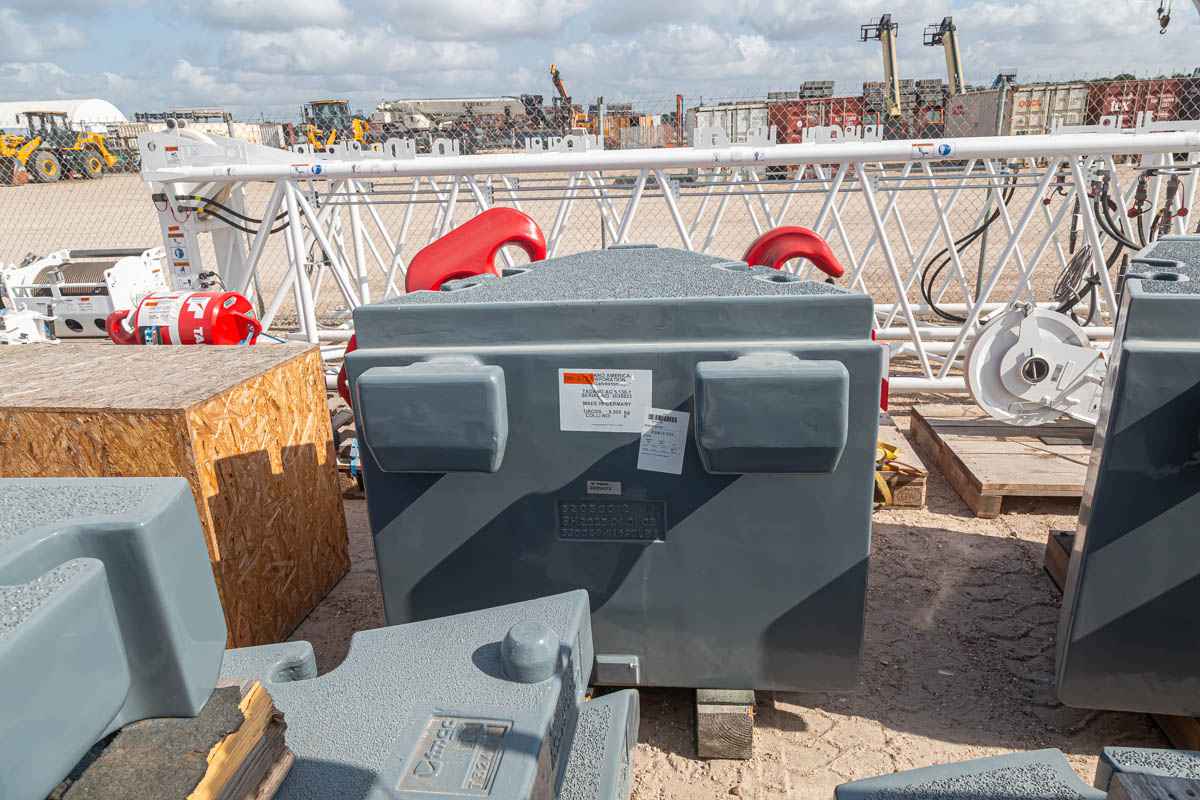

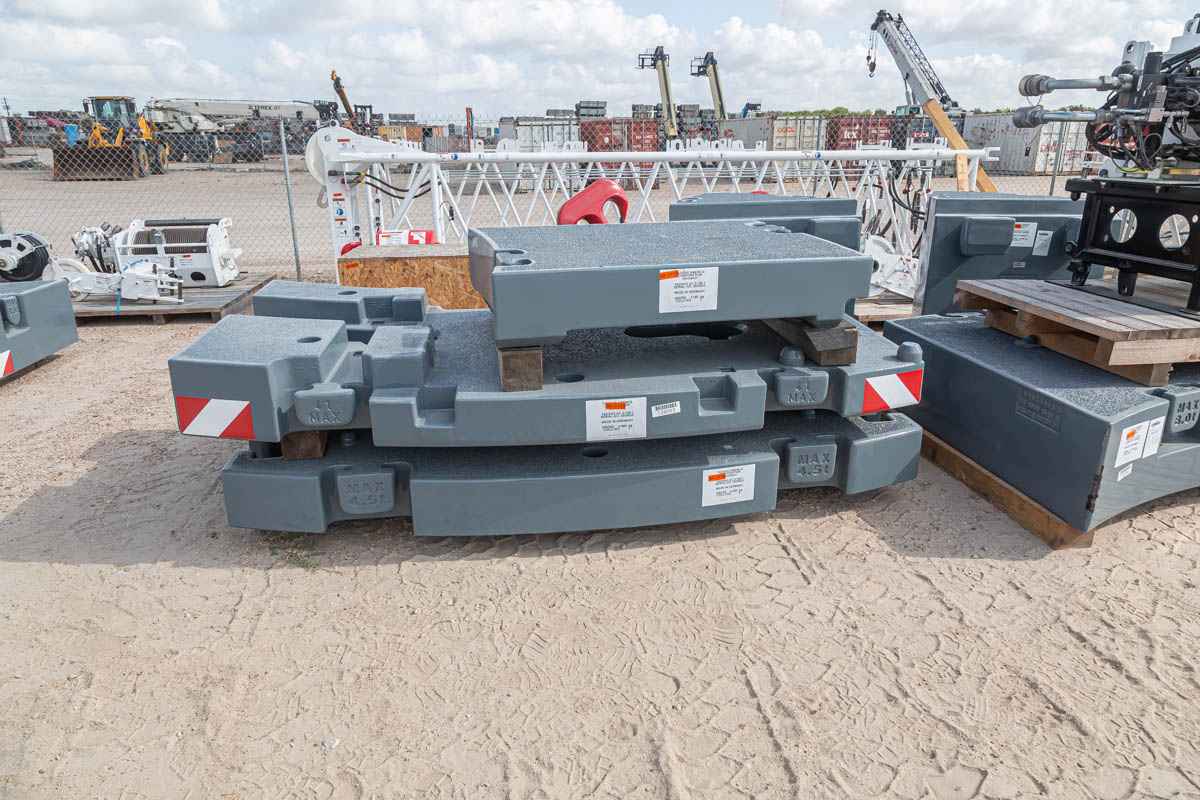

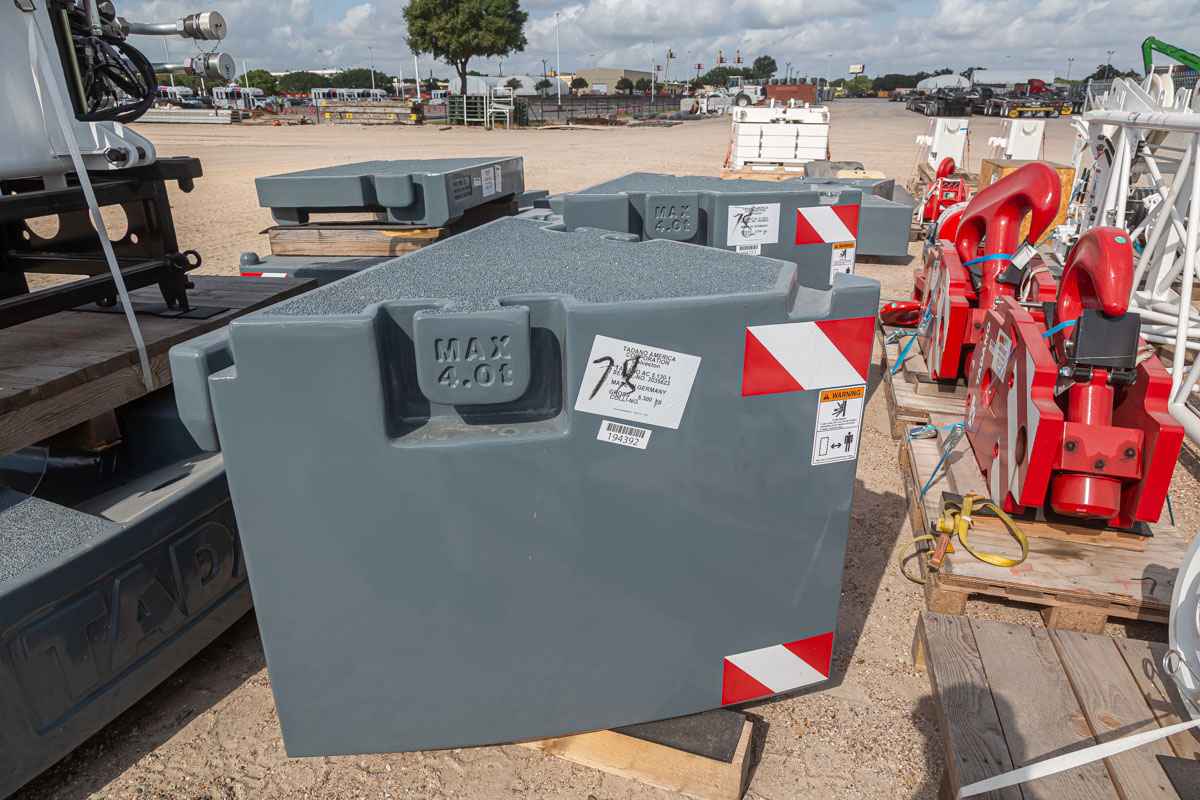

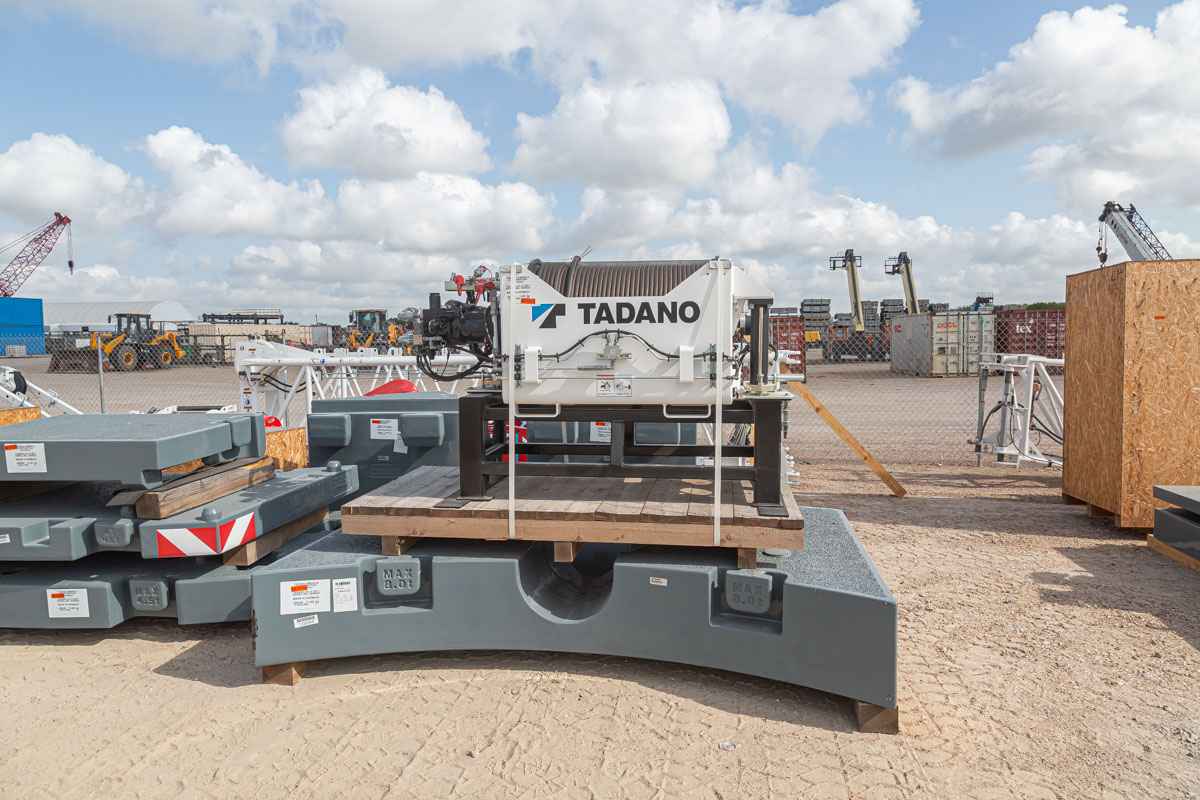

Maximum counterweight: 42,2 t, 46,5 US-tons
Overall length: 14,45 m, 47,4 ft
Carrier length: 12,17 m, 39,9 ft
Turning radius over cabin / all axle steered: 12,37 / 10,99 m, 40.6 / 36.1 ft
Carrier engine: 368 kW, 500 hp
Maximum travel speed: 85 km/h, 53 mph
Drive chain (optional): 10 x 6 x 10 (10 x 8 x 10)
Tires: 14.00 (16.00 / 20.5)
Maximum gradeability: 64%
