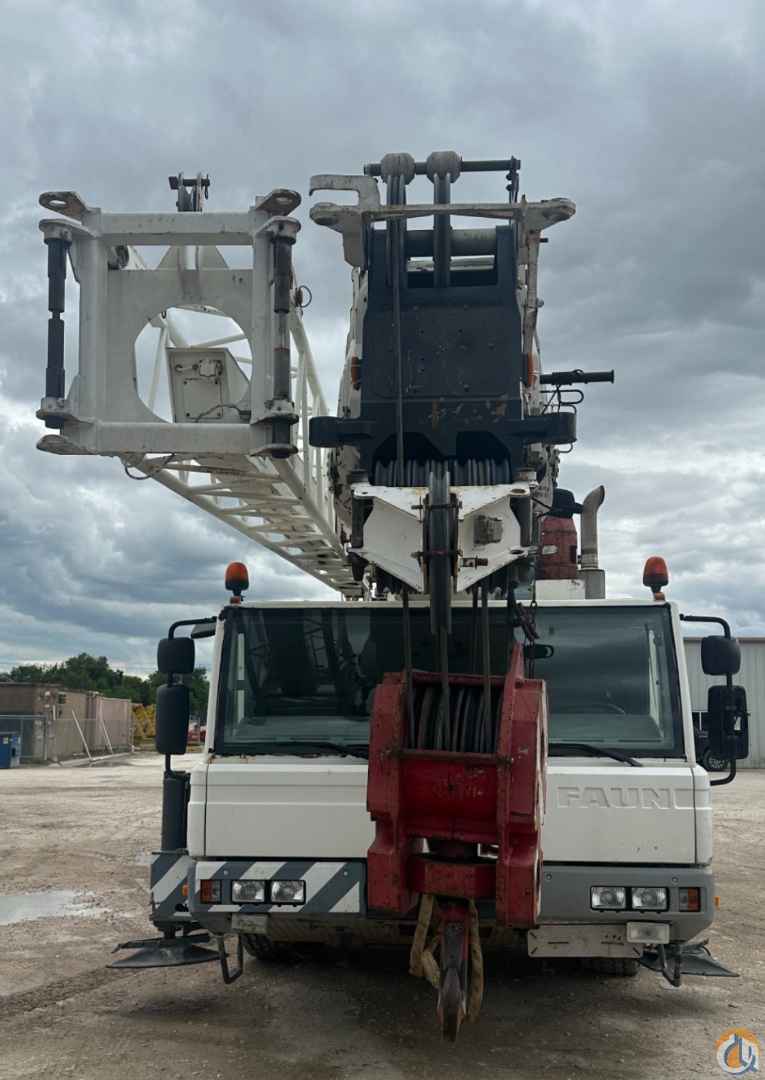

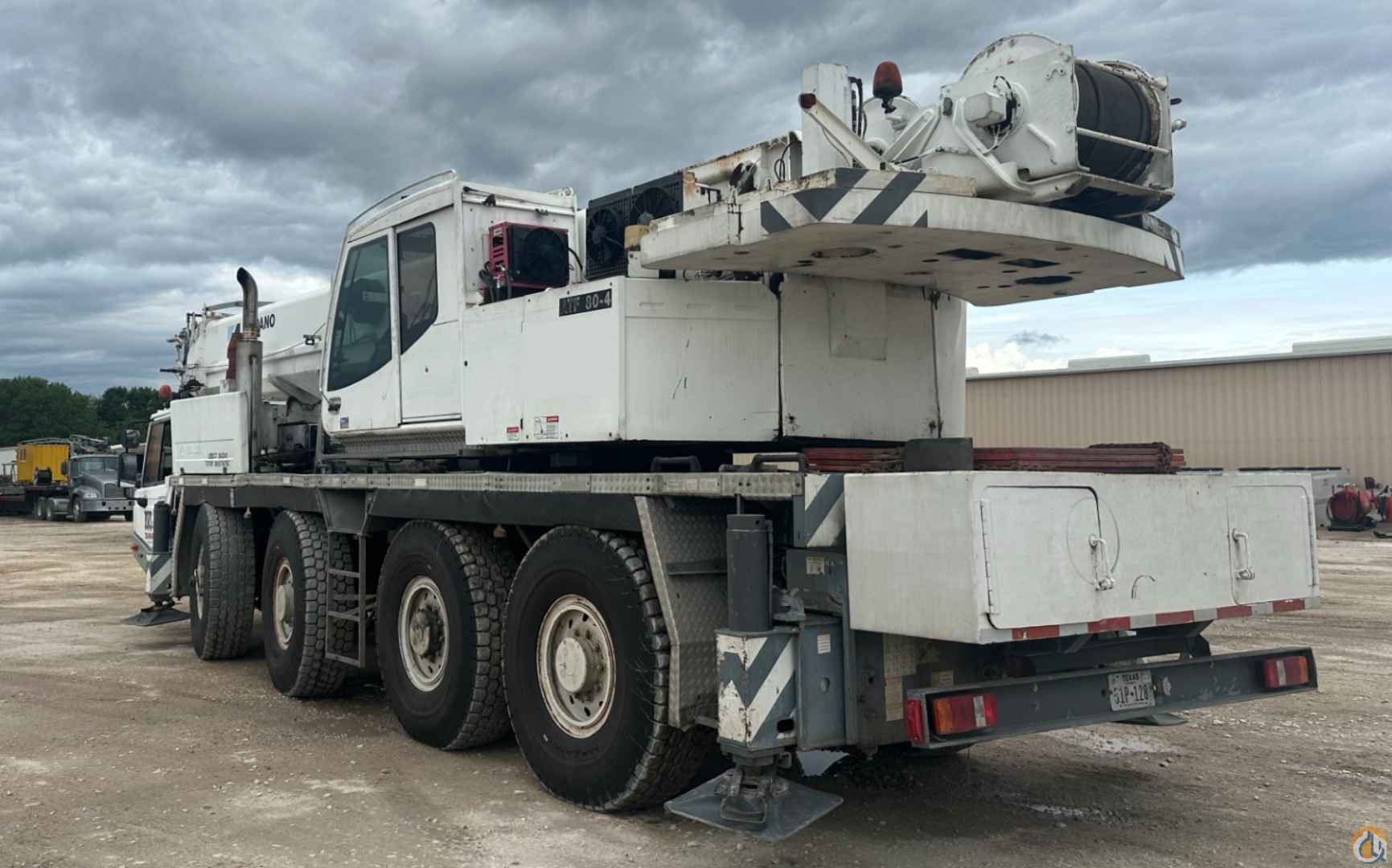

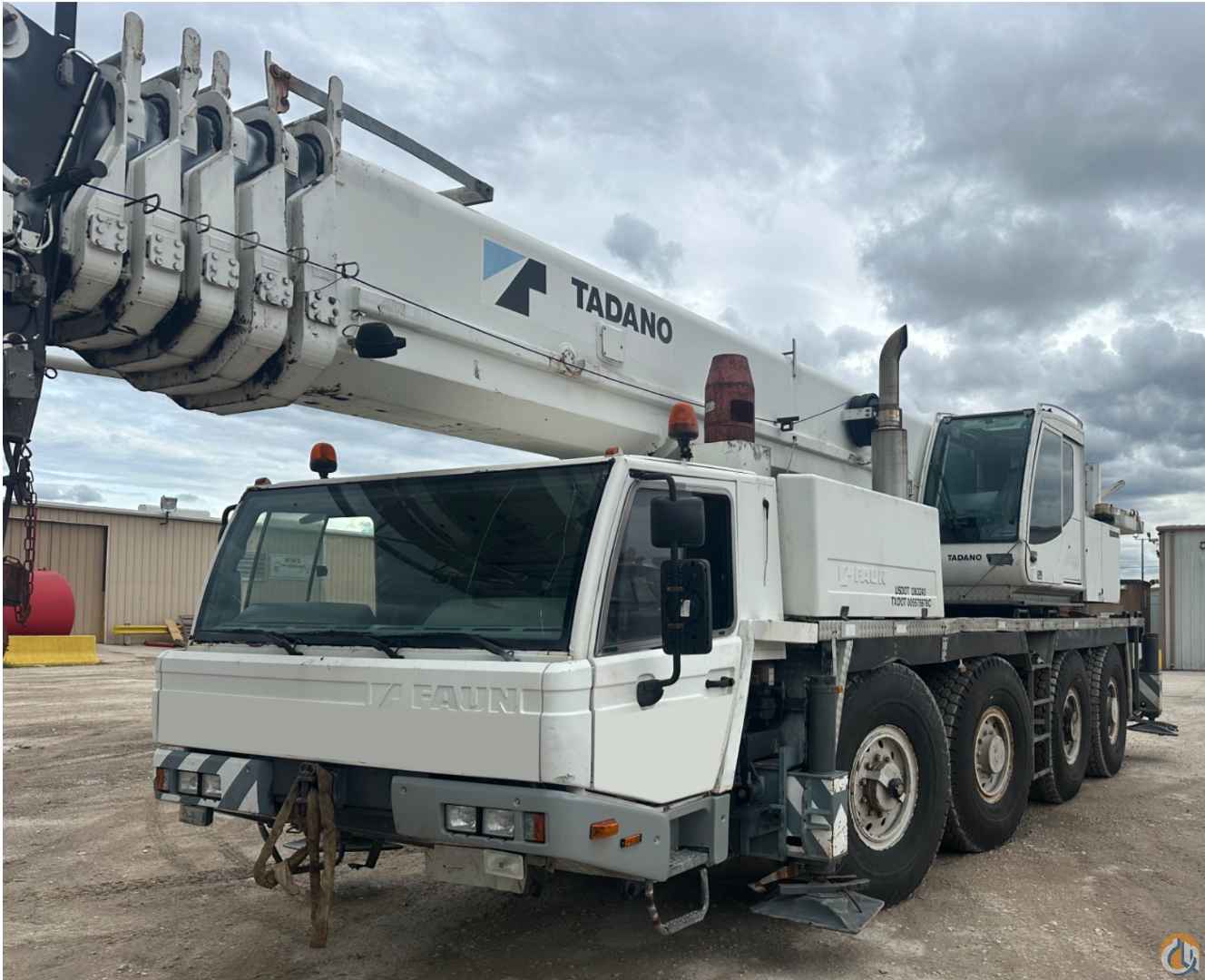

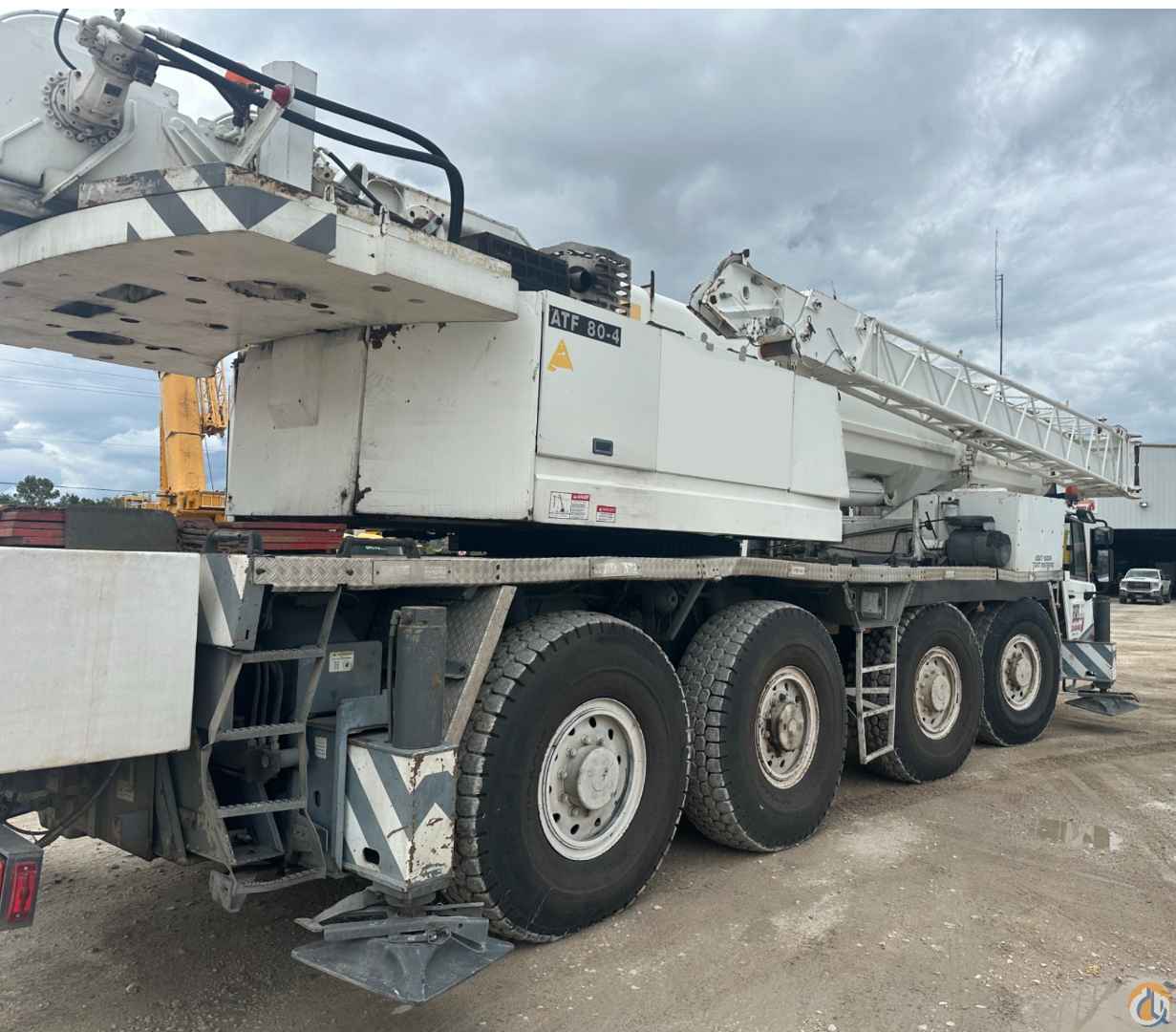

2007 Tadano ATF80-4, 100 Ton, All Terrain Crane; CranesList ID: 933,
- 35.43' - 159.12’ Six Section Boom - 1 base section and 5 telescopic sections extended by means of a single telescopic cylinder,
Auxiliary Lifting Sheave,
29.5' - 52.5' off-settable Jib,
Mercedes-Benz diesel engine UP
- Main and Auxiliary Winches with 0.70" (18 mm) wire rope,
- Load moment device (LMD), hoist limit switch, lower limit switch, drum turn indicator, safety valves against pipe and hose rupture. Holding valves on hydraulic cylinders with Anti-Two Block,
- 39,683# Counterweights divisible, assembled and disassembled by hydraulic cylinders controlled from crane cab.
- 6 Ton Headache Ball,
- 63 Ton Hook Block,
- RECENT UPPER SERVICE & REPAIRS: Crane Works 2020 - Resealed telescope cylinder, Resealed boom lift cylinders, Seller In House Repairs -Replaced 2 wiring harness from cab to boom 2023, Replaced precision length reel inside boom 2023, Replaced section 3 pinning mechanism 2023, Replaced electrical reel under boom 2024, Replaced hoses going to telescope cylinder 2024.

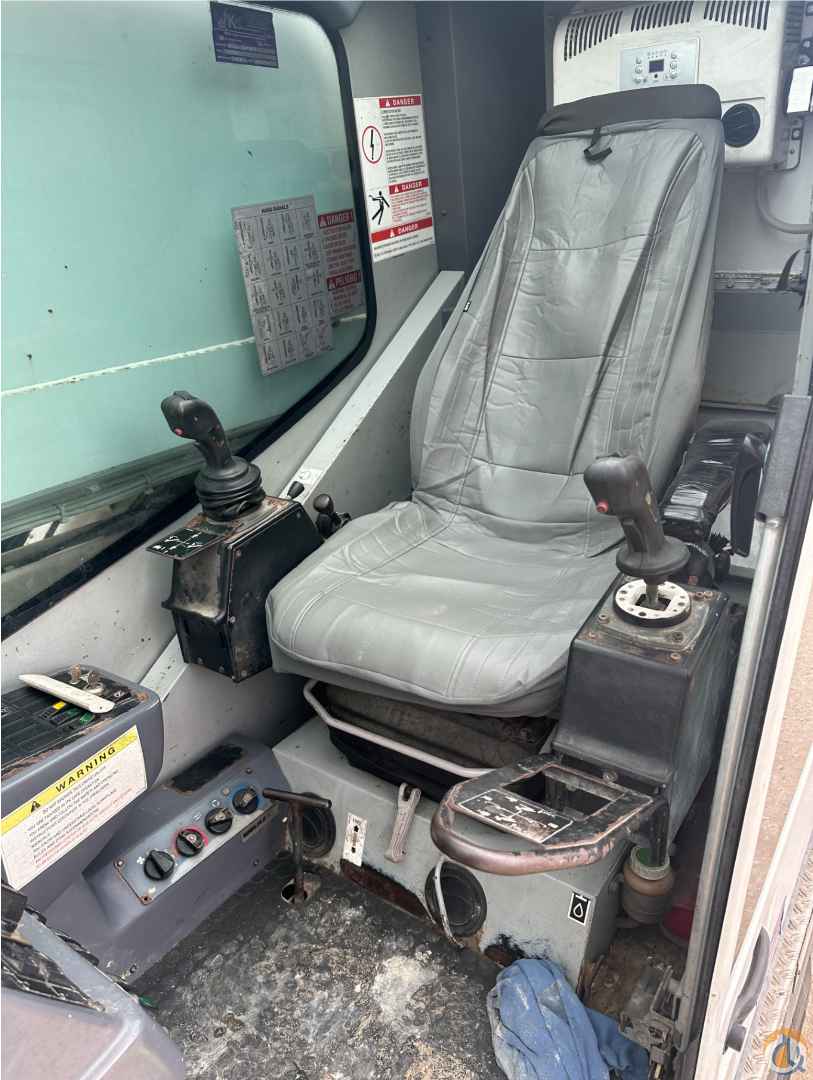

- Crane cab: Spacious all-steel panoramic cab with safety (tinted) glass windows, tiltable cockpit with hydraulically cushioned adjustable seat, one engine dependent hot water heater and one engine independent hot-water heater (with engine pre-heat). Complete controls and instrumentation for crane operation, on-site travelling and outriggers,

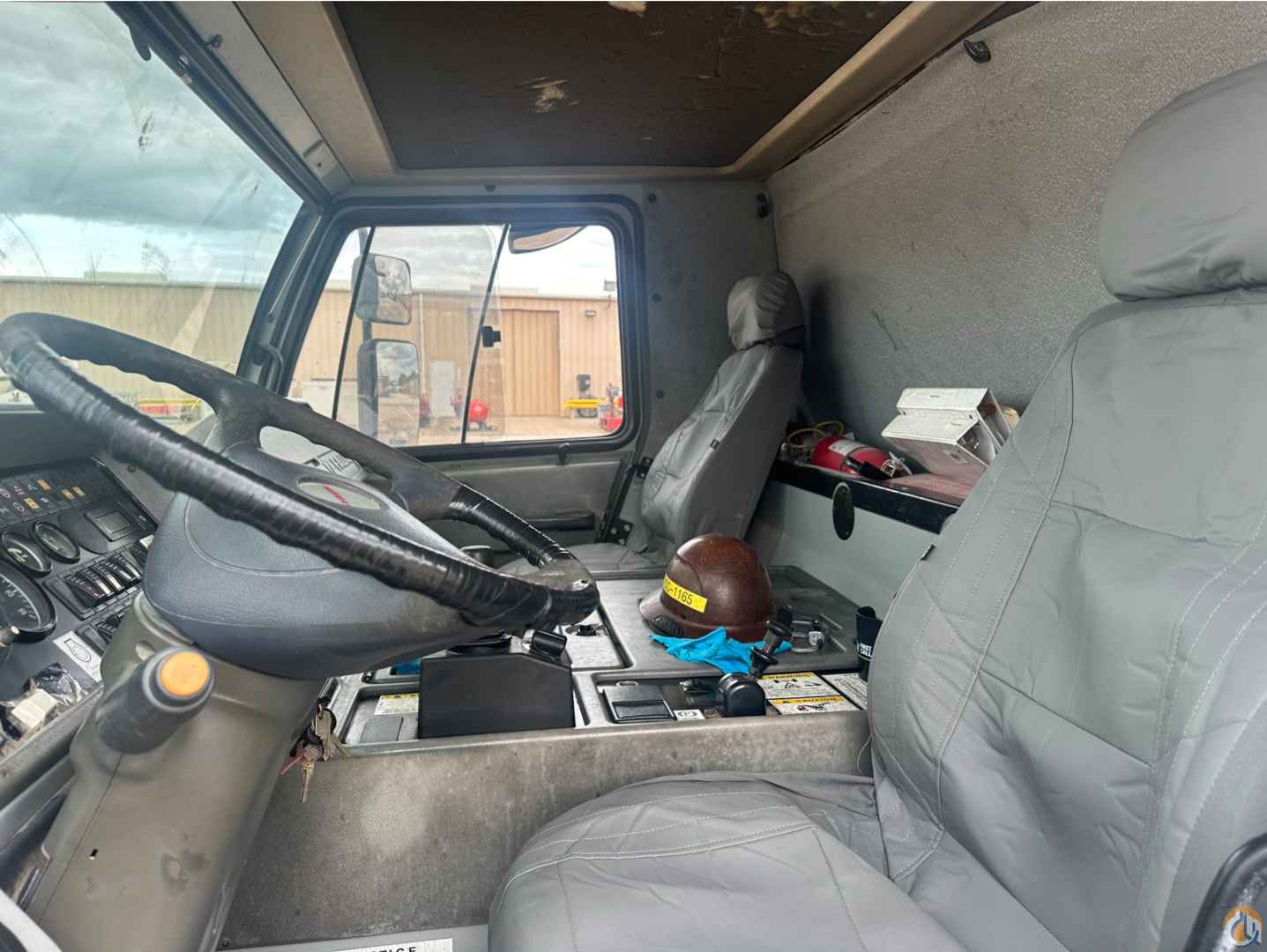

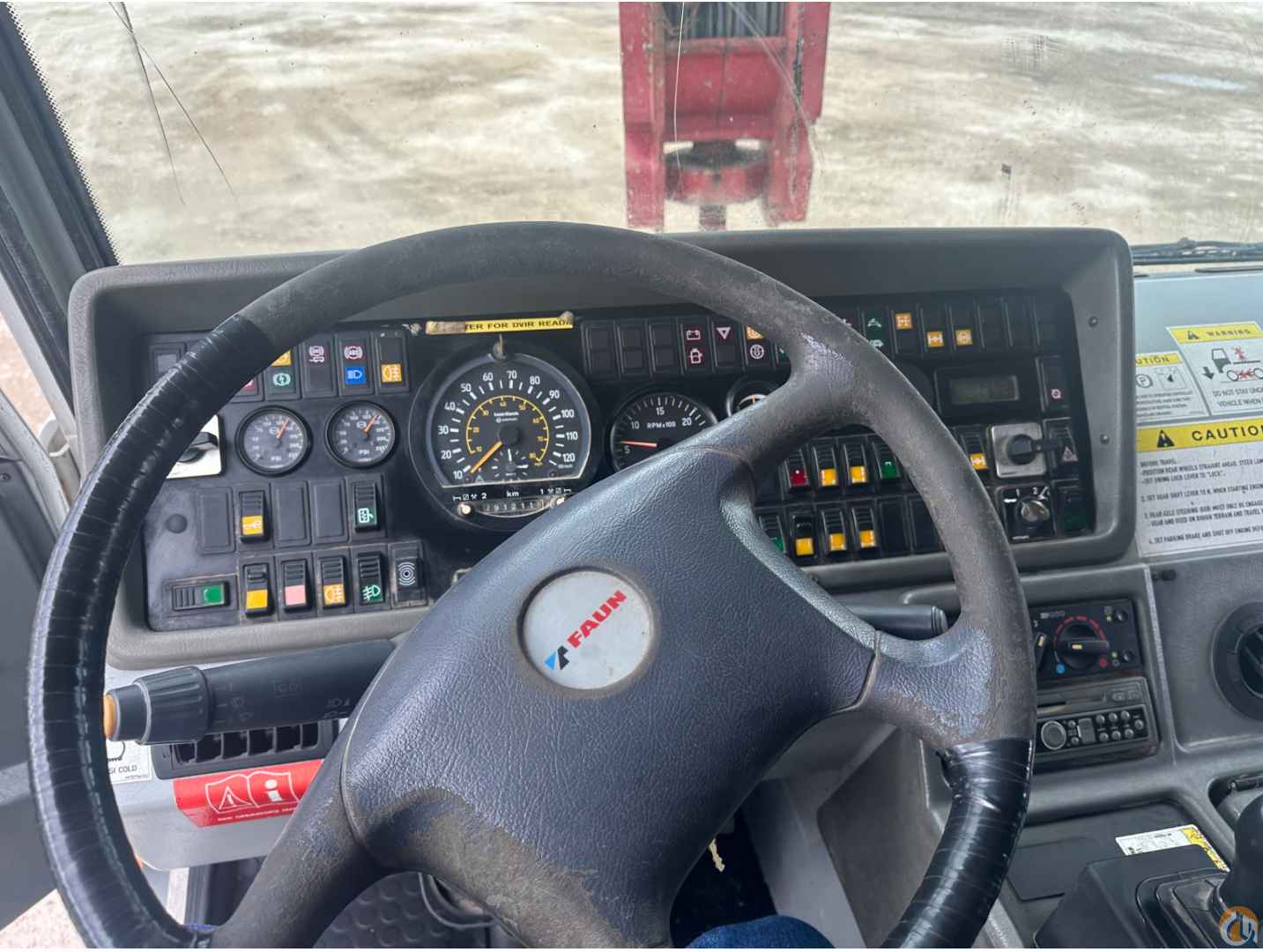

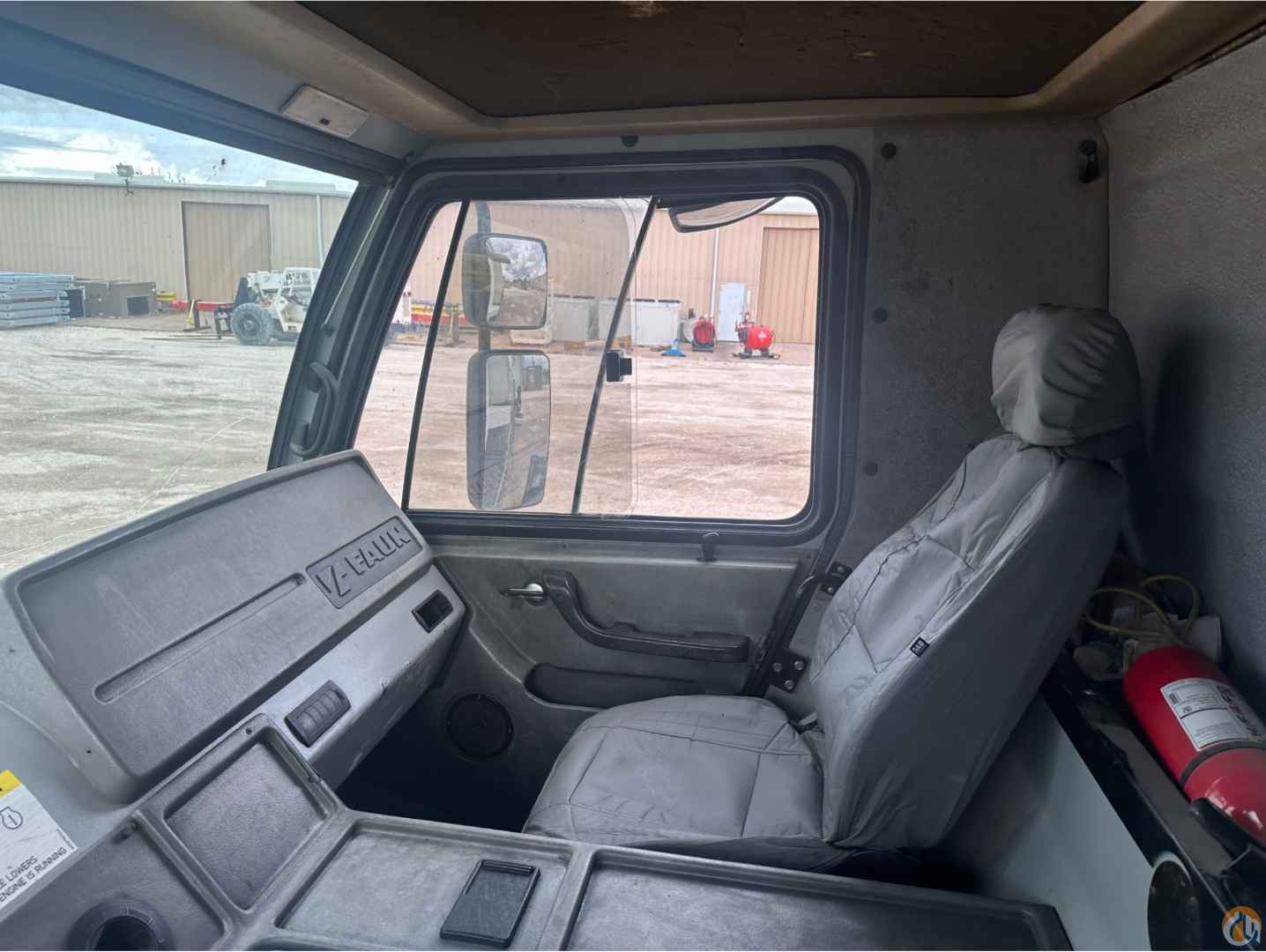

- 9' wide Tadano 8 x 6 Drive Carrier - Two man full width cab of composite (steel sheet metal and fibre glass) structure, with safety glass, air-cushioned adjustable seats, engine dependent hot-water heater. Complete controls and instrumentation for road travel. Speed control. (VIN) Vehicle Identification Number: WFN4RTYR572043207,
- Mercedes Benz Six Cylinder 428HP, model OM51 LA (EUROMOT2/EPA2) Water Cooled Diesel Engine,
- Interder,engine exhaust brake and constant throttle engine brake system,
- ZF-AS-Tronic 12 AS 2302 mechanical transmission with electro-pneumatically actuated dry-type clutch and automatic gear shifting with 12 forward gears and 2 reverse gears,
- Front and Rear Tires: 16.00 R25,
- Air Conditioning UP and Down,
- RECENT LOWER SERVICE & REPAIRS: Crane Works 2020 -Resealed all 4 outrigger jacks, Resealed all outriggers extend cylinders, Seller In House Repairs - Replaced brake shoes and drums on axle 1 & 2 2023, Replaced all headlights and turn signals on front of crane 2024, Resealed front driver side steer cylinder 2024, Replaced drop box 2024, Replaced water pump & thermostats on engine 2024, Replaced hydraulic pump coupler 2024, Replaced clutch 2024,
- Current 3rd Party Certification - Kempco Inspection Services.
http://www.CranesList.com
LOCATED IN TEXAS!
