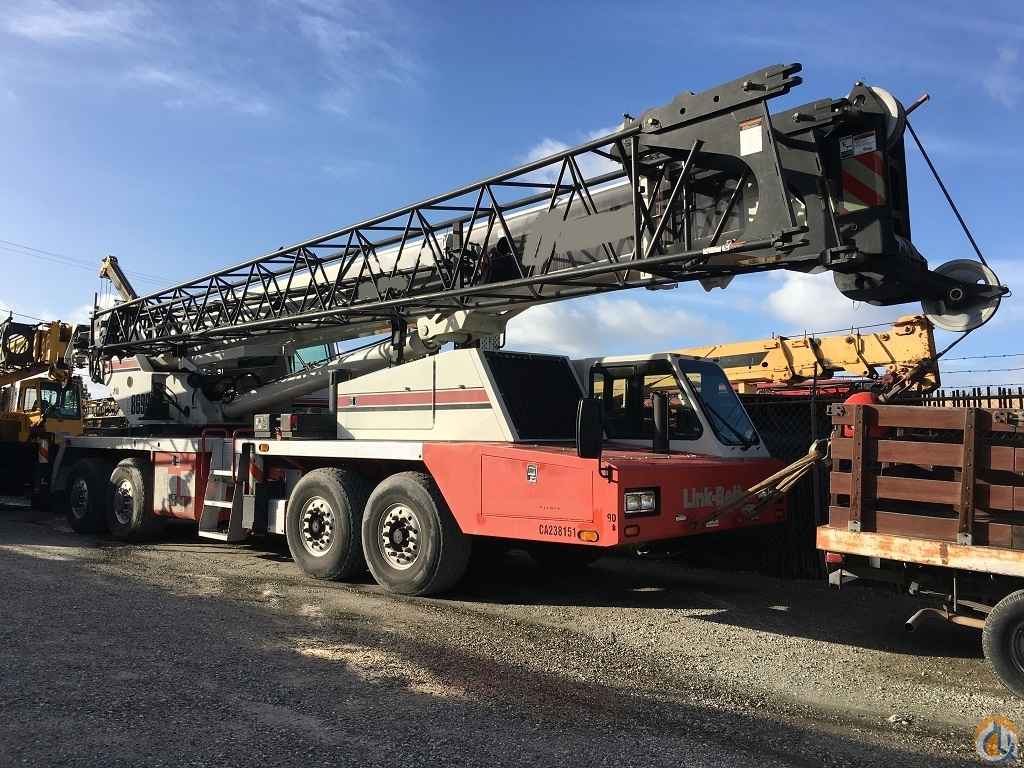

2008 Link-Belt HTT8690 Hydraulic Truck, CB&J#831,

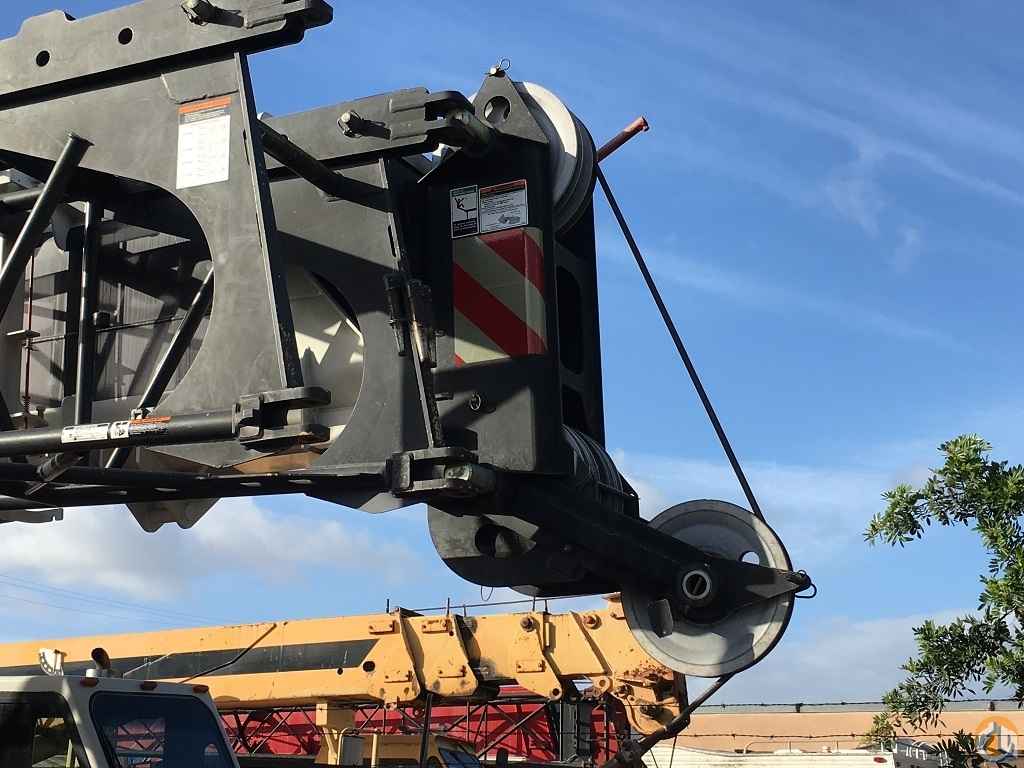

• 38' -140' Five section full power Latching Boom with quick reeve boom head and removable Auxiliary Lifting Sheave

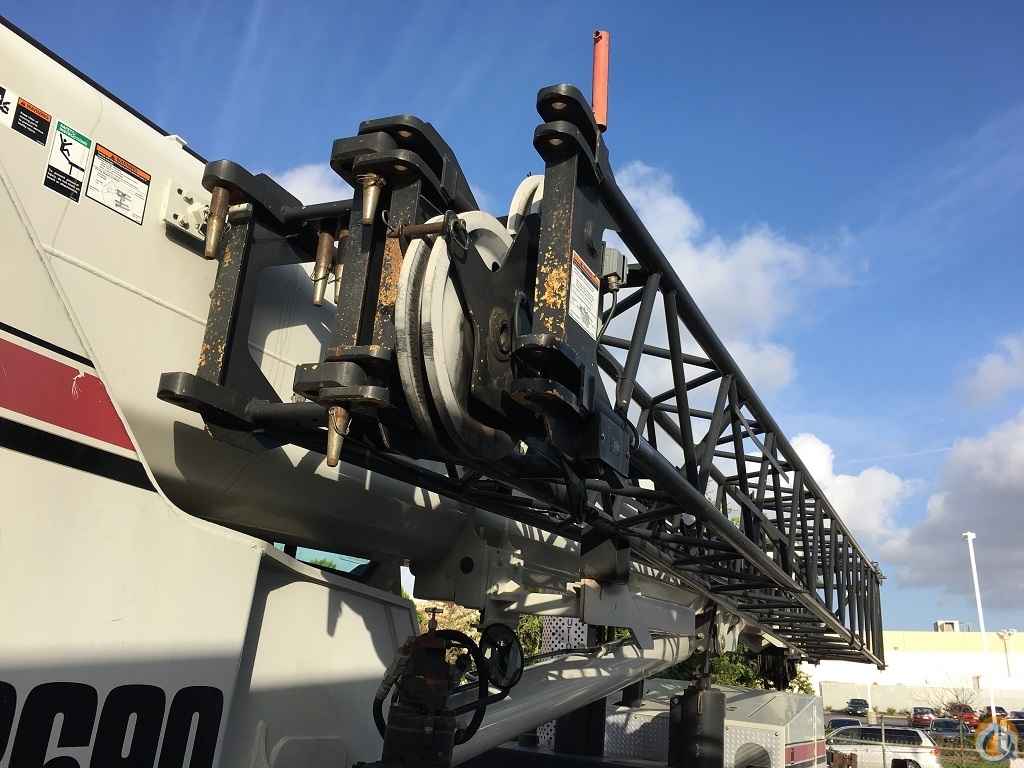

• 35'-58' Swing away Bifold Fly Jib Off-setable (0°,15°, 30°,45°)

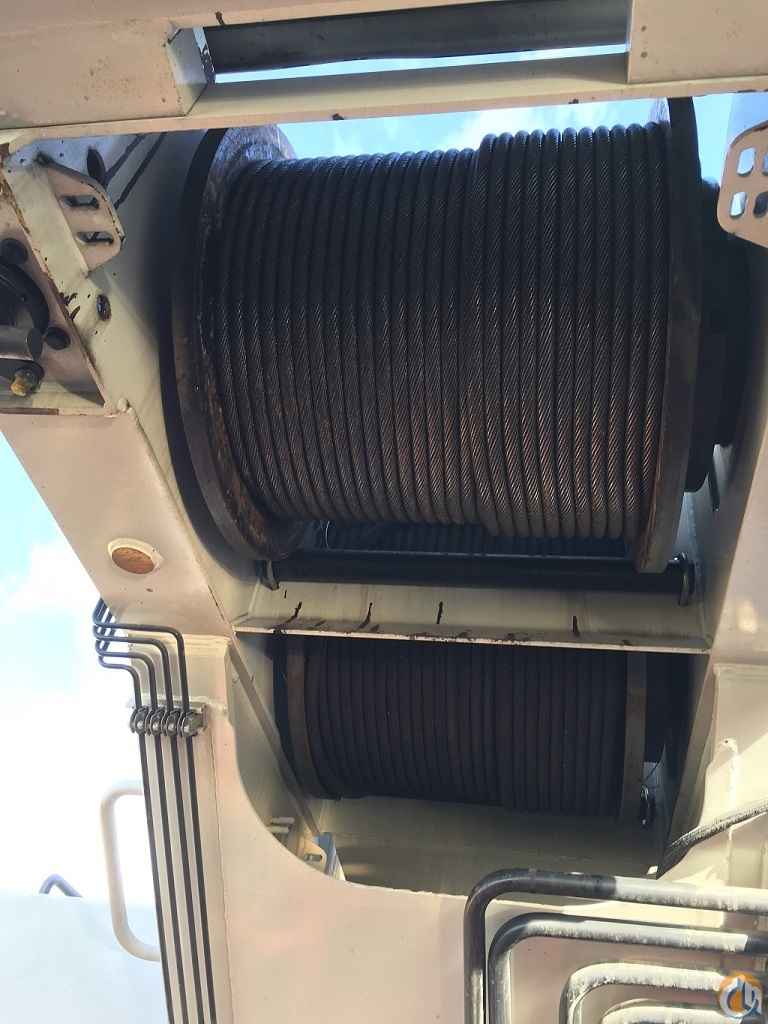

• Main and Auxiliary Winches with 3/4" Wire Rope

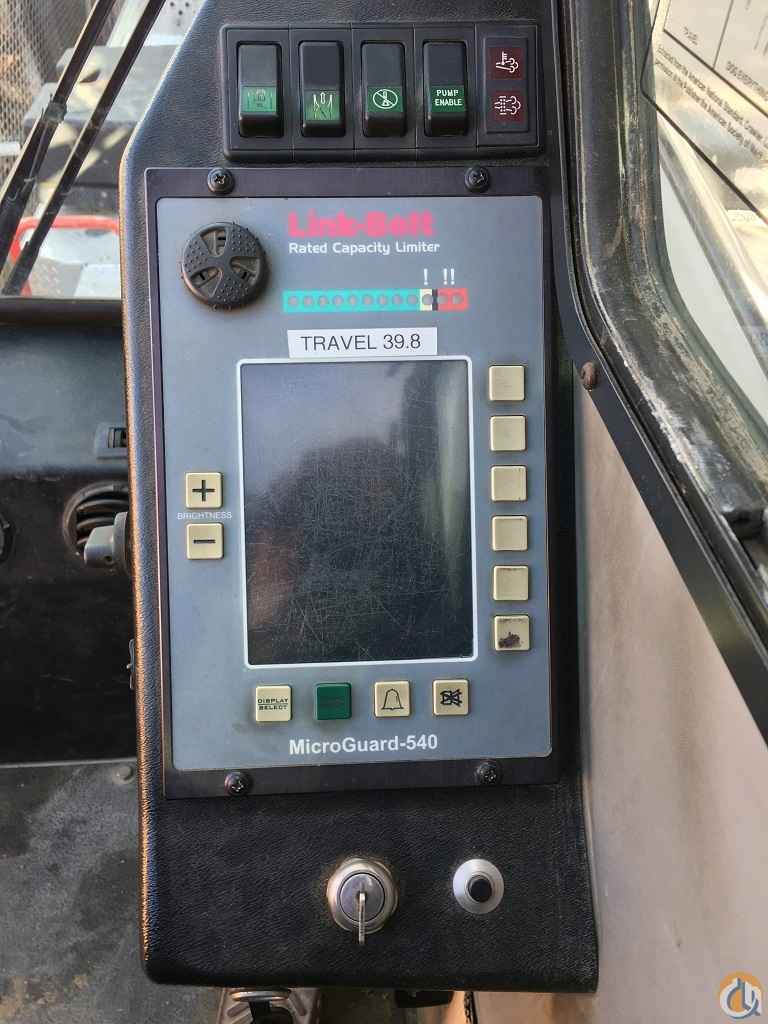

• Drum Rotation Indicator, 2 speed, Rated Capacity Limiter, Micro Guard 540 Color Graphic Audio-Visual Warning System Integrated into the Dash with Anti Two Block and Function Timer, RCL Bar Graph
• 60 Ton Four sheave Hook Block
• 8.5 Ton Hook Ball
• Boom Floodlight
• 8'6" wide 8 X 4 Link-Belt Carrier

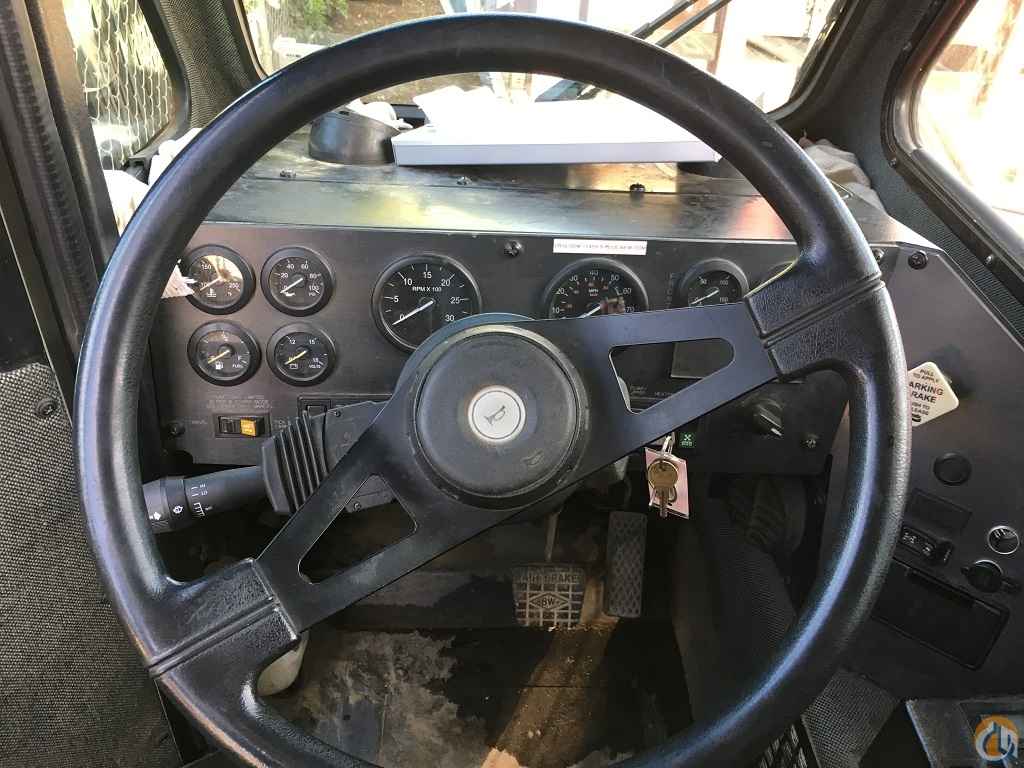

• Sheppard full integral master gear/slave gear steering system provides hydraulic assisted steering with mechanical link between steering wheel and wheels S Drive --- 8 x 4 for on/off---highway travel, S Axle 1 & 2 --- Tandem steered, non---driven, S Axle 3 & 4 --- Tandem steered, driven with reduction: 6.35 to 1, S Inter-Axle Differential Lock --- Traction adding device that locks axle 3 with axle 4. Operated by a switch from the carrier cab

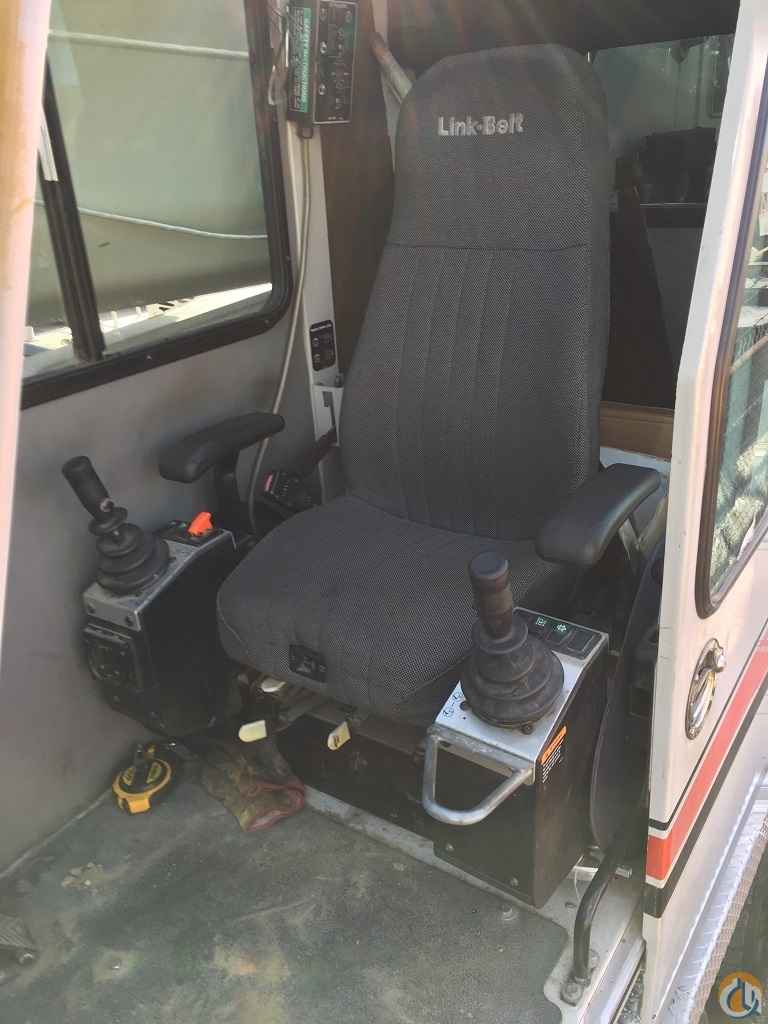

• Joystick Controls

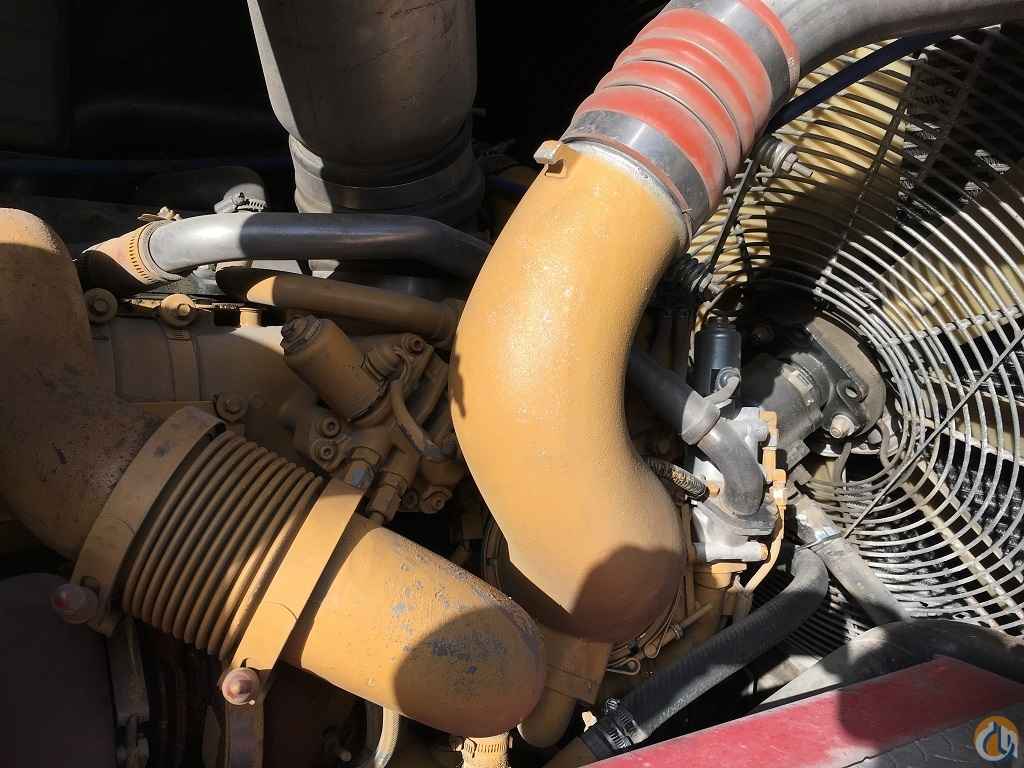

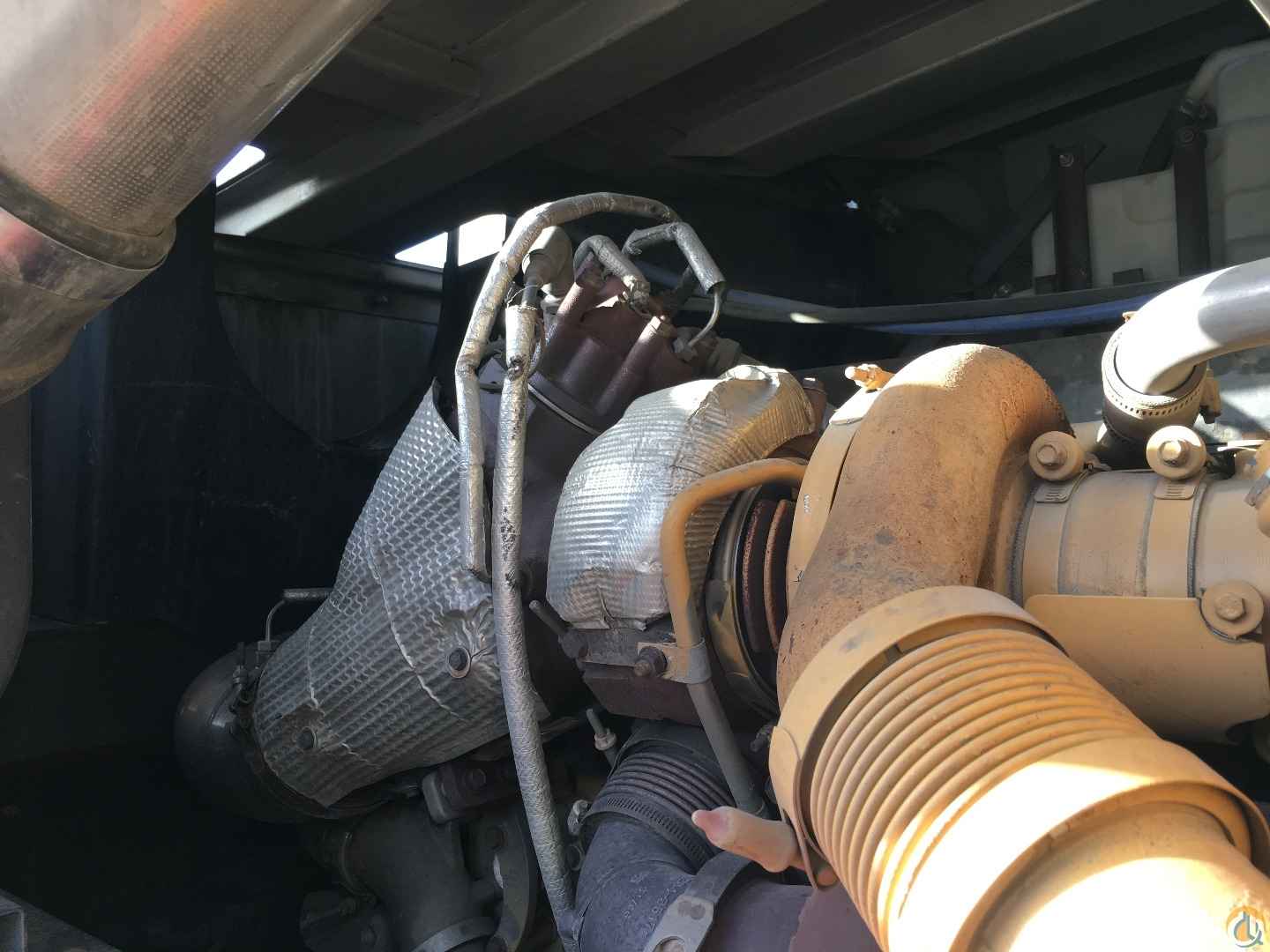

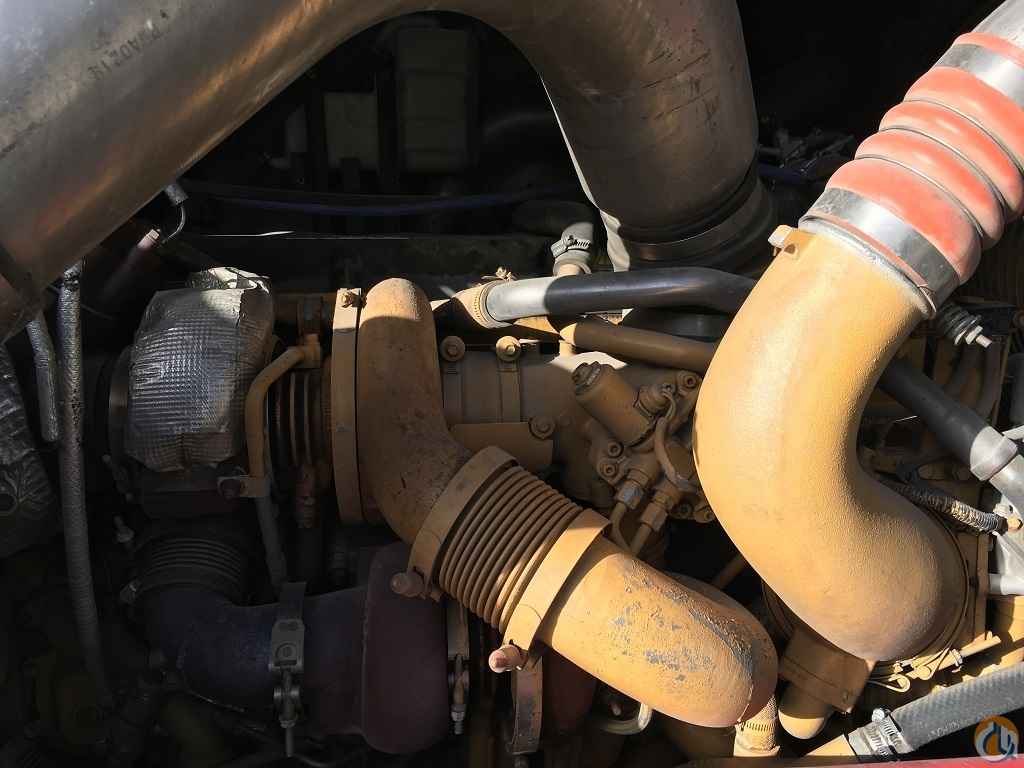

• CAT C13 430HP 6 Cylinder Diesel Engine

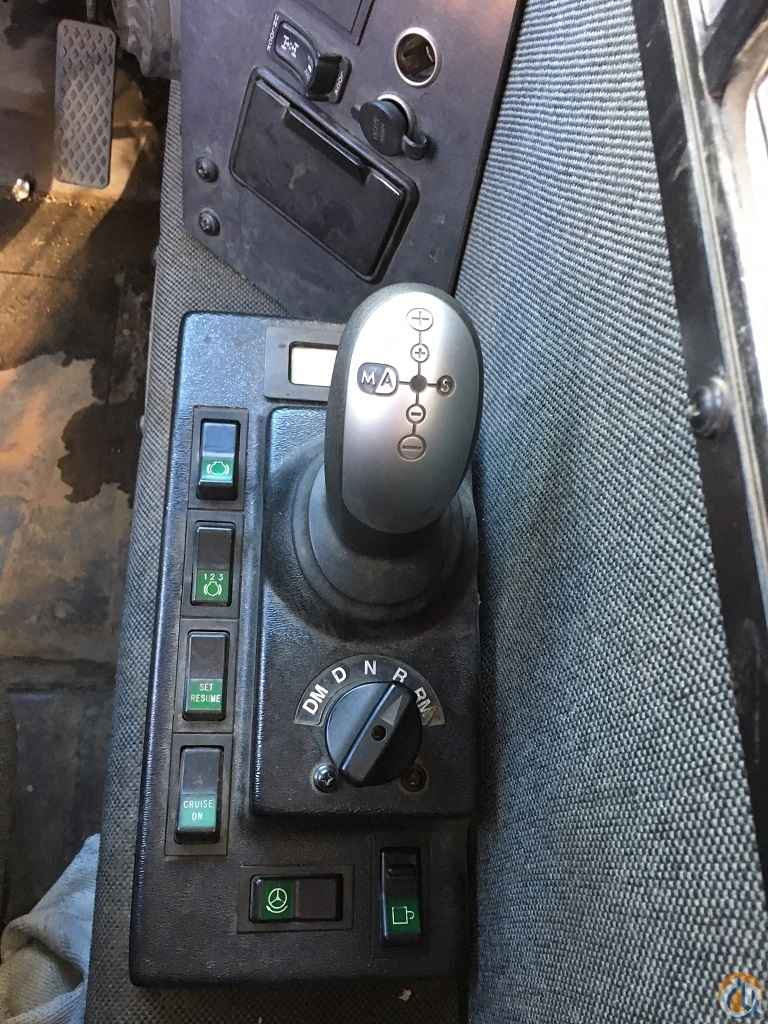

• ZF AS---TRONIC (no clutch pedal) Manual Transmission with 12 Forward and 2 Reverse Gears
• Air Conditioning and Heaters up & down
• 4 steering modes; independent front, independent rear, combination, and crab

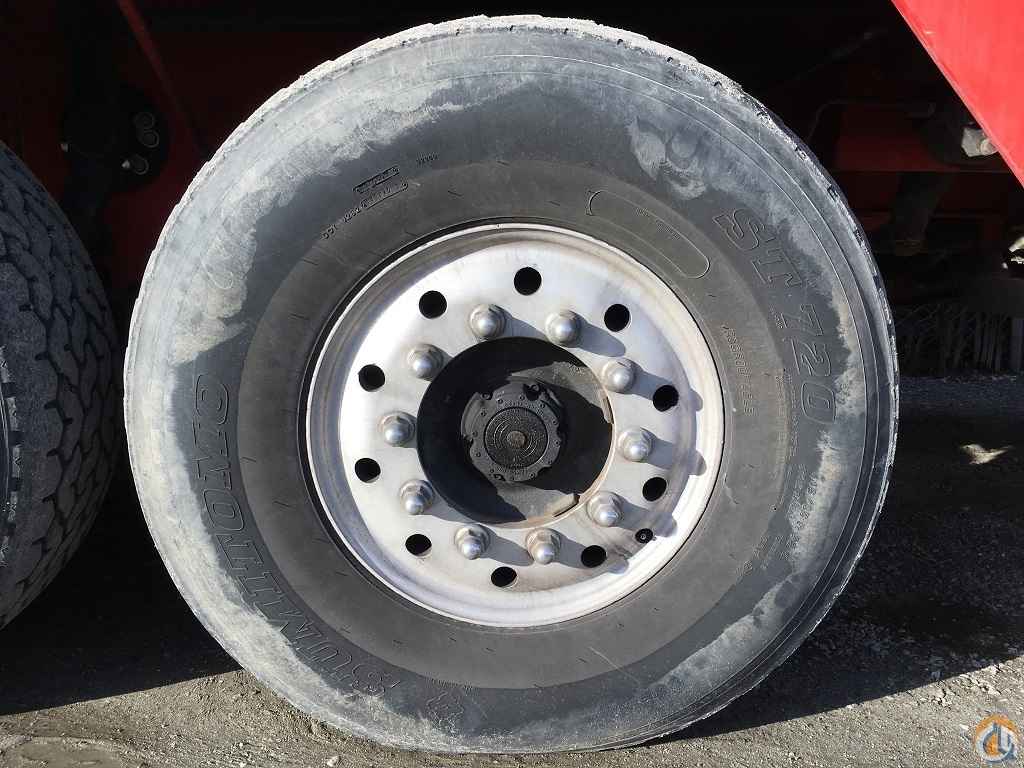

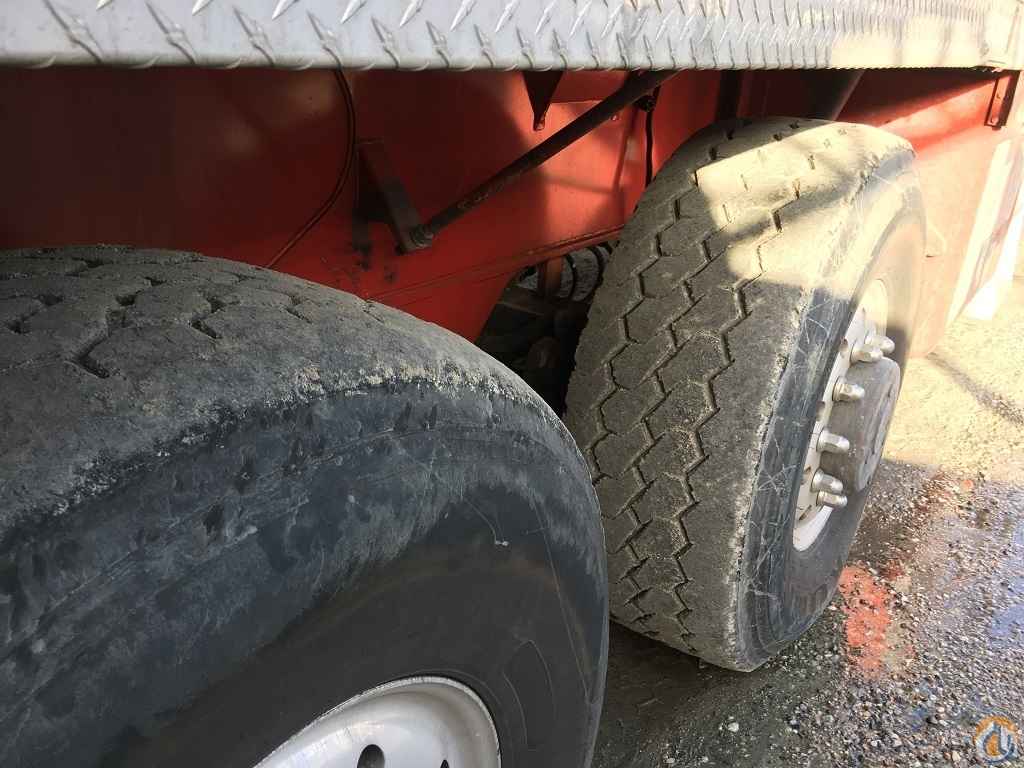

• Front Tires 445/65 R22.5 with 70-80% Remaining as of 1.2017

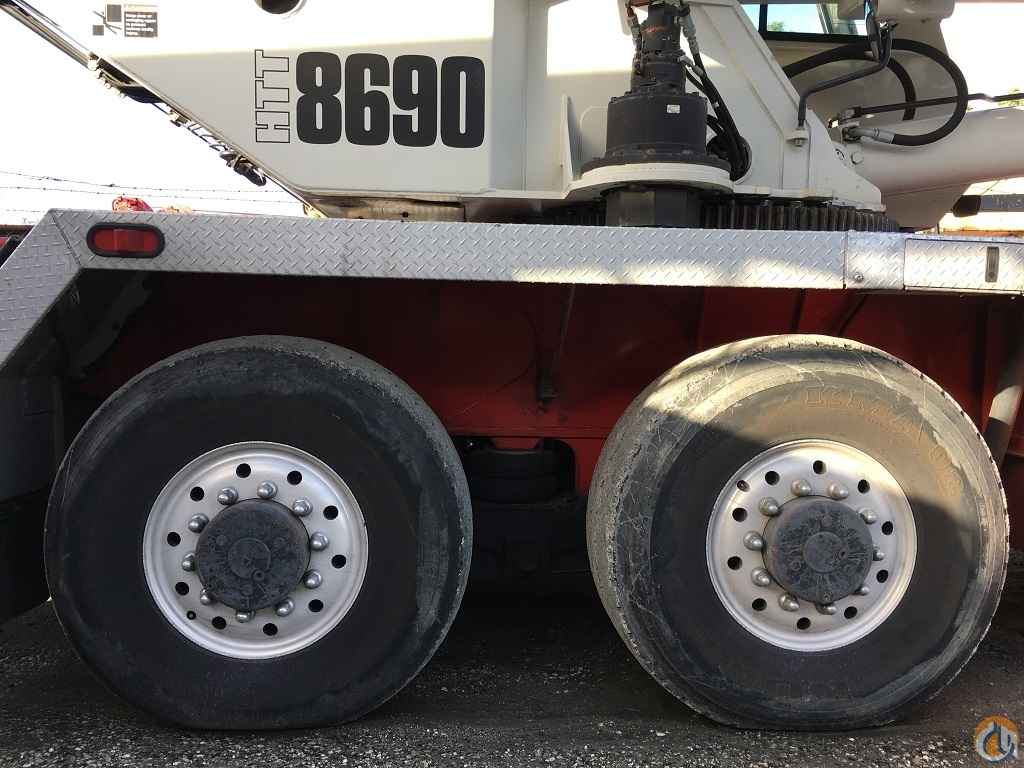

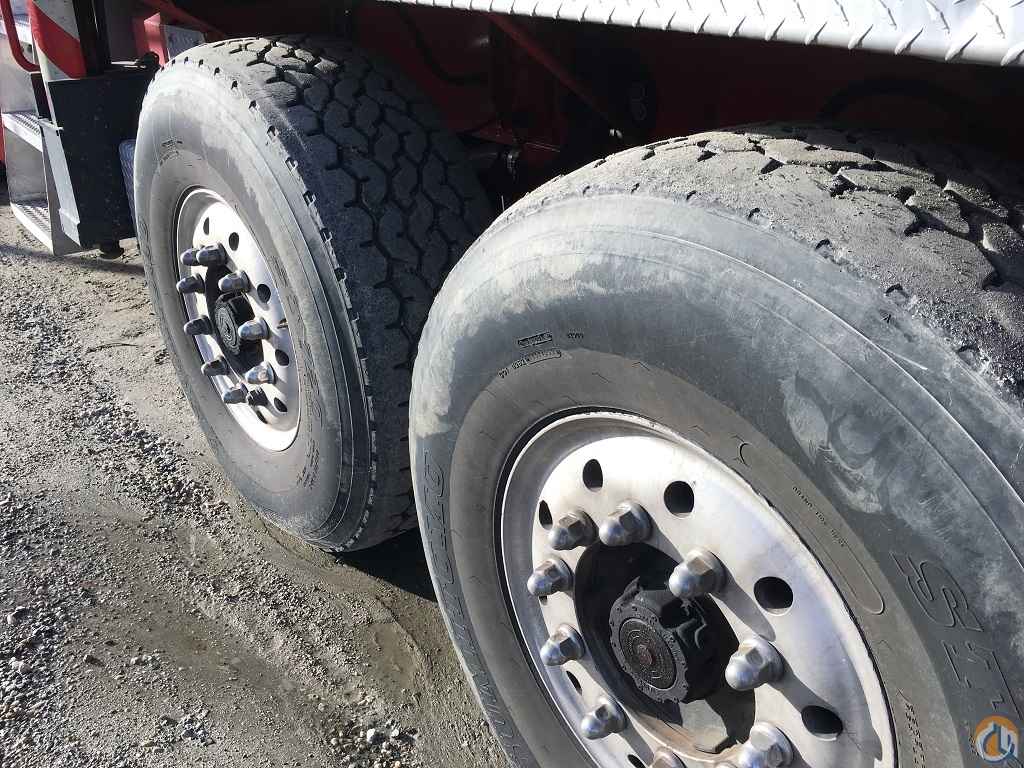

• Rear Tires 445/65 R22.5 with 50-60% Remaining as of 1.2017

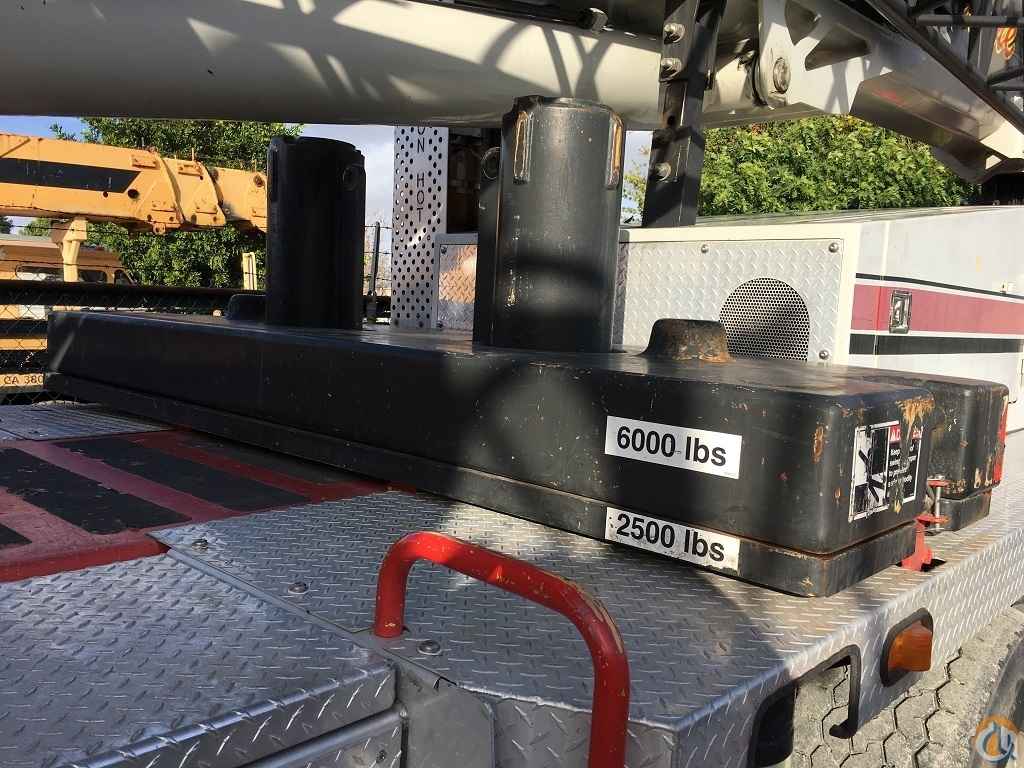

• Optional 39,500# Counterweights  - Assembled and disassembled by hydraulic cylinders controlled from the operator’s cab
• Air Ride Suspension front and back

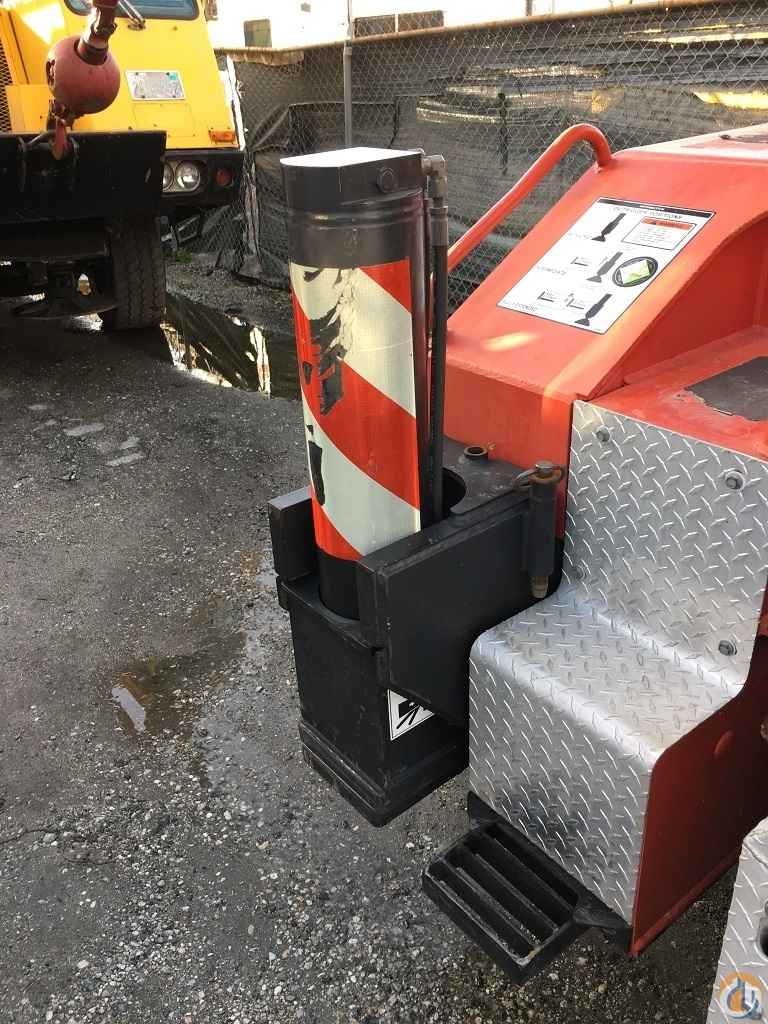

• 5th Front Hydraulic Outrigger
• Teflon Puck Ware Pads
• Tool box

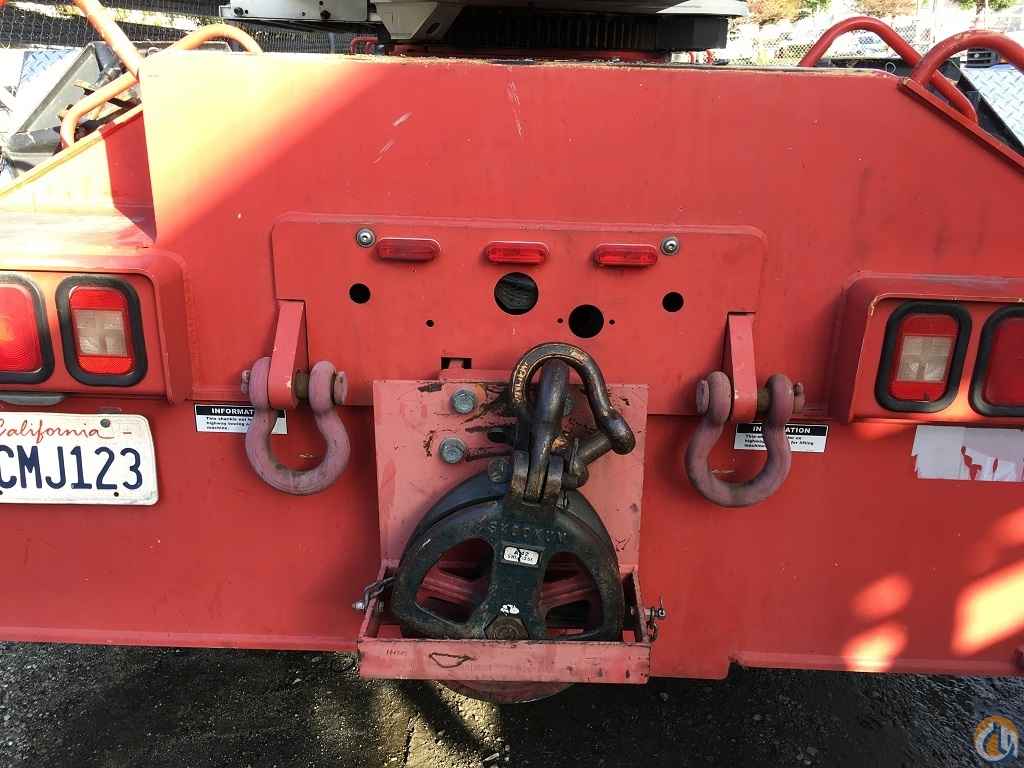

• Towing shackles
• Cosmetic Condition: Glass and sheet metal are straight with no cracks.
• Certification: Annual Expires 7.2017, Quadrennial Expires 7.2019
• Contact: Casey Dennehy 949.275.7167
