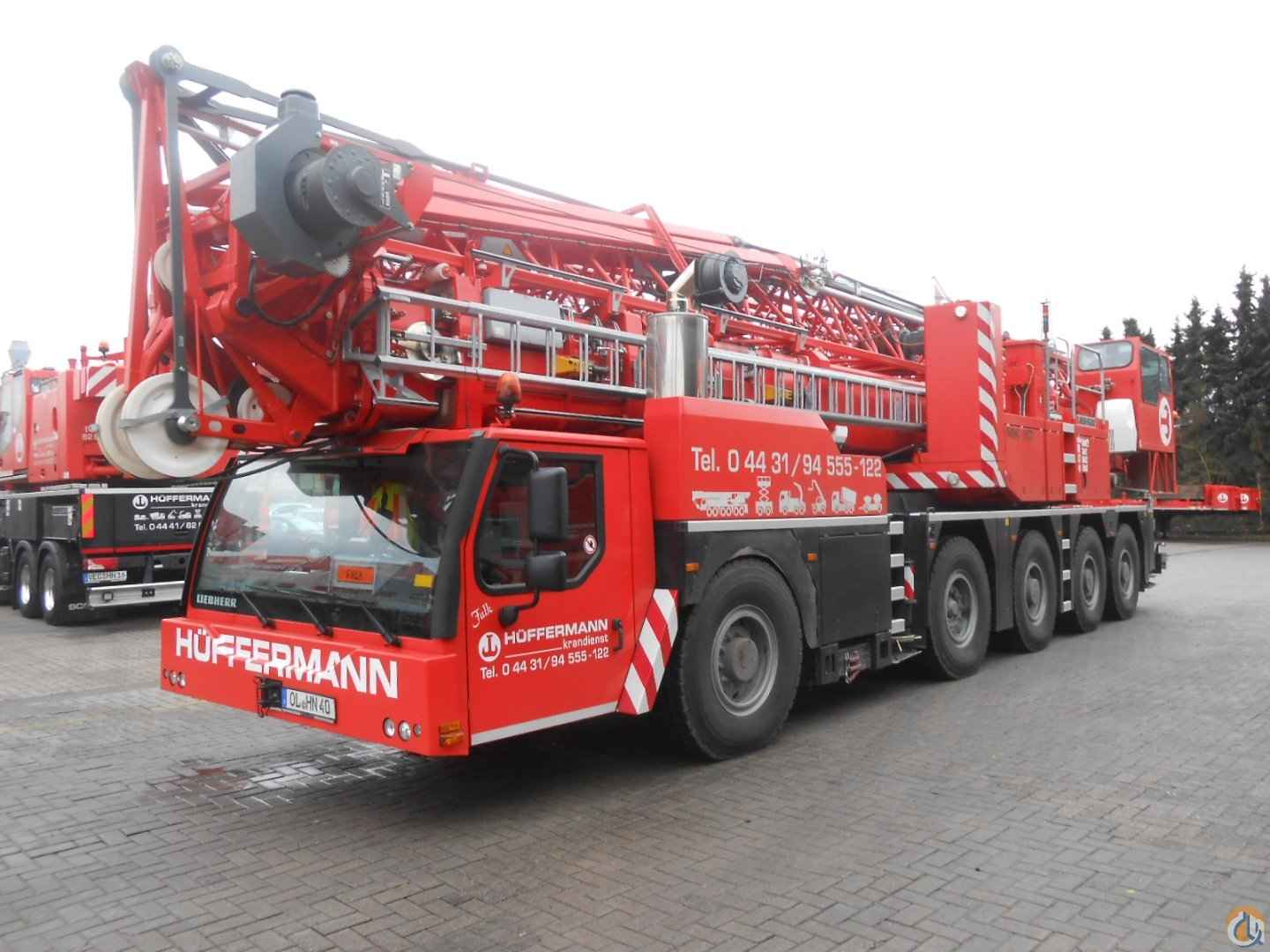

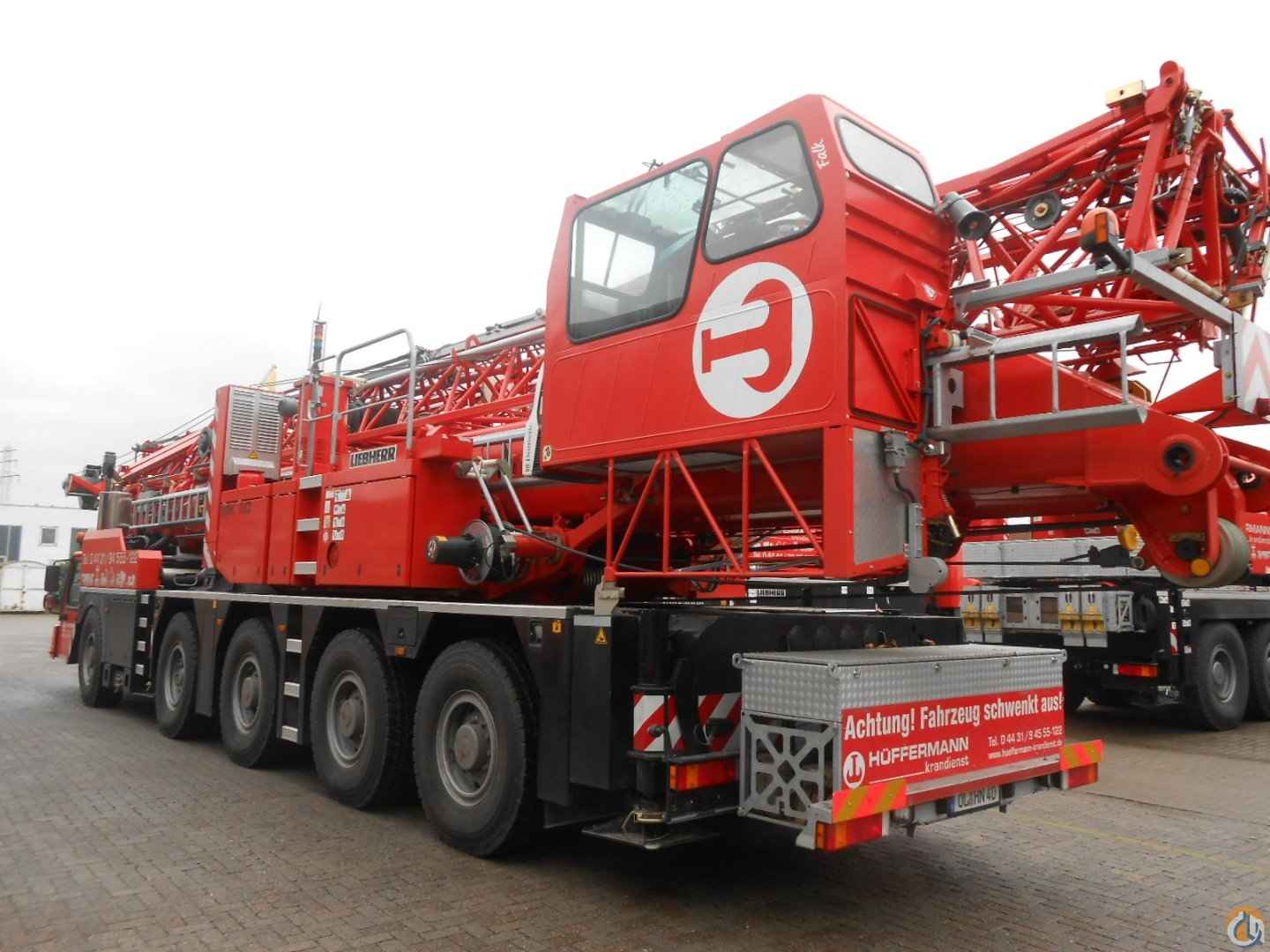

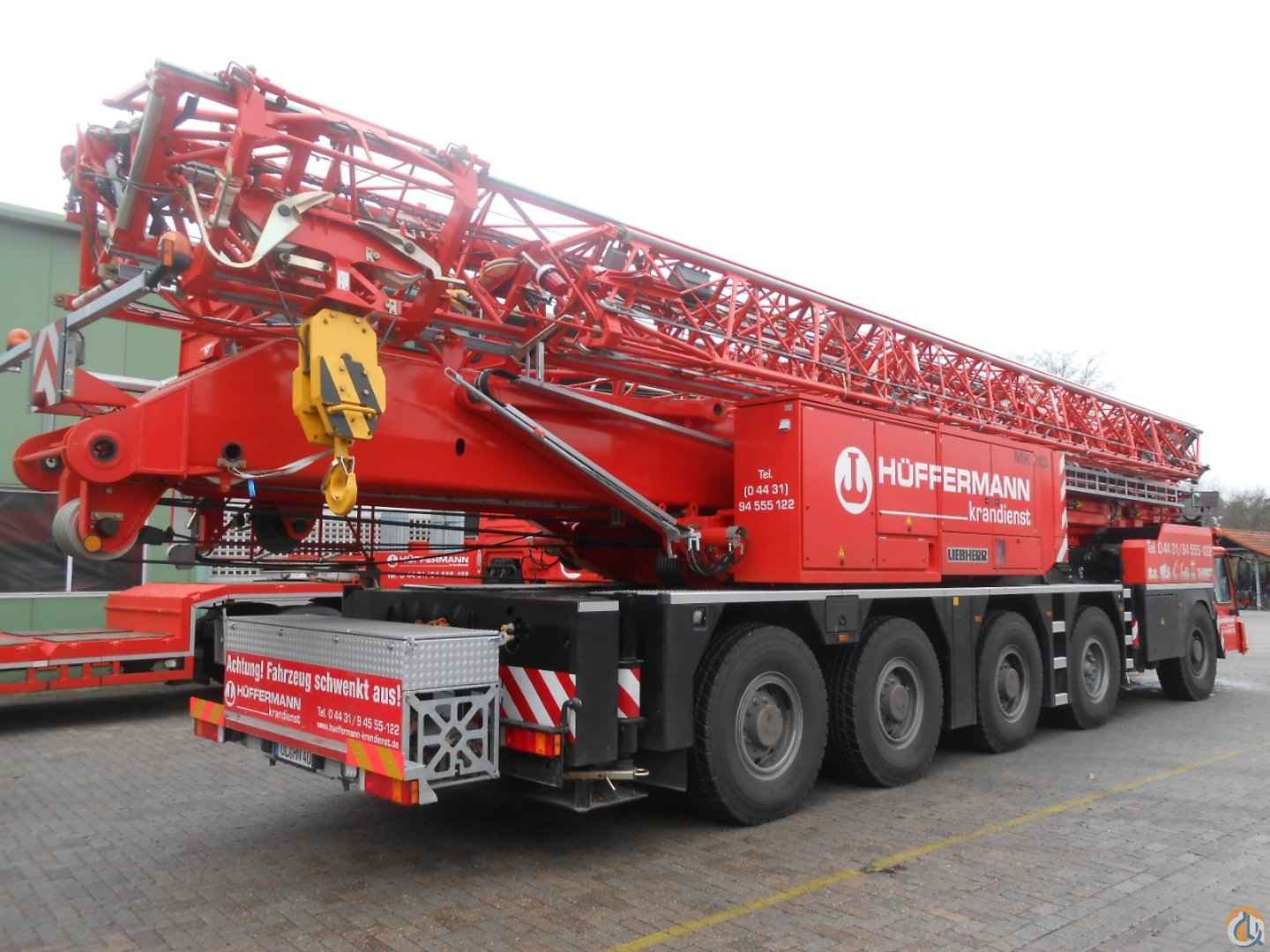

Liebherr MK 100 All Terrain Crane (Sold)

Our Ref.: ZG 15016

Manufacturer: LIEBHERR

Trade name: UMK 500

Registration date: 22.07.2014

crane configuration

Basic model - Reach 44.0 m and 52.0 m - hook height horizontal 33.0 m
consisting of:

Crane Chassis - Liebherr 5-axis-front handlebars-chassis shunting coupling in the front; 1 tool set

Traction motor - Liebherr in-line 6-cylinder diesel engine, power 370 kW (503 HP) exhaust system with integrated spark arrestor

Drive - Automated Manual Transmission ZF AS-Tronic, 12 forward and 2 reverse gears;

two-stage transfer case

Axles, drive 10 x 8 - axes 1, 3, 4 and 5 are driven;. Niveaumatic Suspension travel -100 / 100 mm

Hydraulic outriggers - operation both sides of the chassis 2 control panels, automatic leveling, electronic inclination display; supporting pressure indication

Tyres – Tyres 14.00 R25

Steering - All axles steered; Dual circuit system, active rear with a 5-driving program:

1. Road trip (all axes directed)
2. All-wheel steering (tightest cornering)
3. Crab
4. Reduced swing-out
5. independent steering

Brakes - Dual-circuit brake system with drum brakes on all wheels

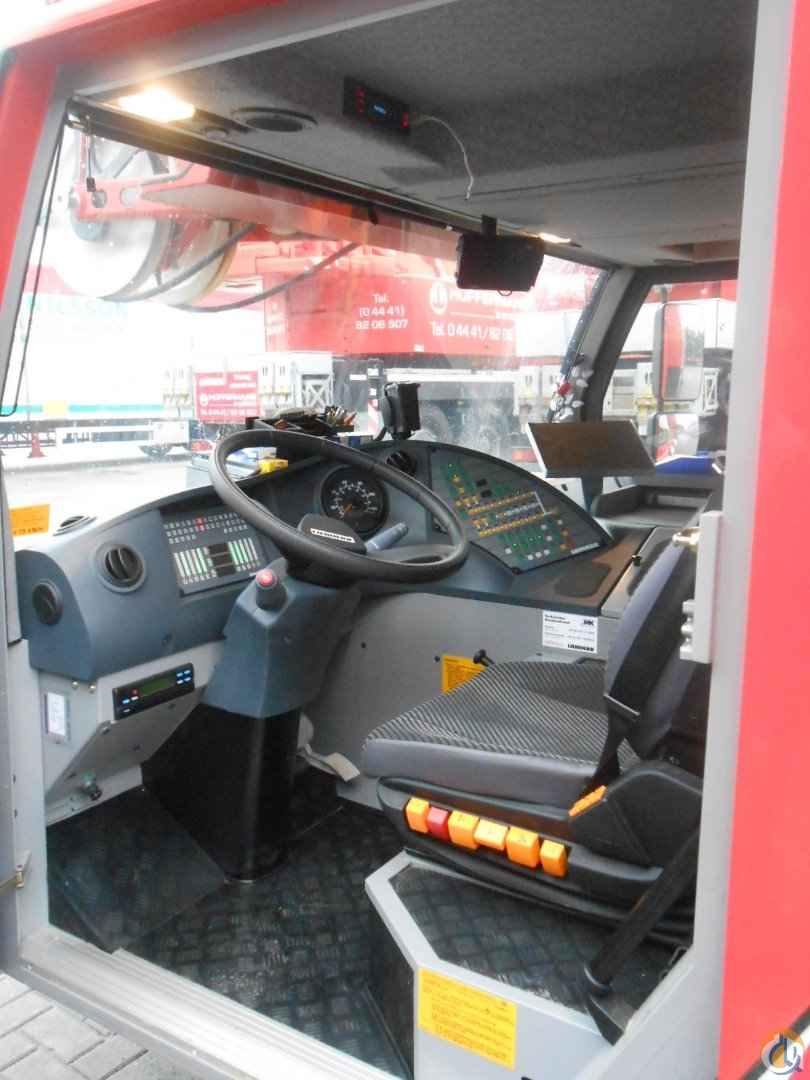

Carrier Cabin - heatable exterior mirrors; Primary mirror, electrically adjustable; electr. windows; Driver's seat pneumatic suspension with lumbar support; Steering wheel height and tilt infinitely variable adjustable; radio with CD player; 12V socket; additional heater independently of the engine including timer; 6 kg fire extinguisher

Electrical system - system 24 V DC, 2 batteries 170 Ah; 4 rotating beacons (yellow);

outrigger lights, 1 power socket at the rear (15-pin - 24 V); External power supply connection to the crane; Electrical distribution 1 x 32 A CEE, 2 x 16 A CEE, 3 x shockproof sockets with FI for
Foreign consumer connection; Battery charger for charging the battery chassis in aggregate and network performance; acoustic reversing alarm

Superstructure - Liebherr slewing ring with central lubrication system; Pantograph to the vehicle chassis; Telescopic tower in solid wall construction, 2-fold telescopic, standard intermediate hook height 25.0 meters; Telescopic ladder; 4-section boom in grid construction with telescopic boom for 44.0 and 52.0 m outreach; Boom Hydraulic swiveling; with boom air mounting 15 ° / 30 ° / 45 ° -

Boom steep adjustment; Equipment for construction site lighting with halogen lamps 5 x 1500 watts; Flight warning system switchable flashing light or continuous light; Hoist, trolley travel and slewing gear steplessly with Frequency converter, load oscillation damping and wind load control; Noise protection covers on the winch; electrical system with programmable logic (PLC) control; Data transmission Dial incl. Modem (without activation); Anemometer; Radio remote control with feedback

Elevator car infinitely height adjustable - with its own drive as a crane operator elevator; Crane operator chair with seat heating and seat contact switch with integrated joysticks; Radio with CD player; Outdoor intercom with microphone; Rescue equipment for emergency exit; Electronic Monitoring System (EMS)

Diesel Generator 48,0kVA

- GENERATOR - Diesel Generator 48.0 kVA with spark arrestor (included in the basic version)
- SIGNS - warning and information signs in German / English / French
- SAFETY DEVICE safety device - including two all-round lights
- AIR CONDITIONING - Air conditioning in elevator cabin, 1500 watts cooling and 800 watts of heat
- CONTROL PANEL – Control Panel with 15 m control wire
- WORK AREA limitation system ABB

Additional ballast

- FITTING KIT preparation for additional ballast MK 110
(Note: when using a non-adapted to the crane ballast are low optical
Impairments possible)

Crane Chassis

- support plates (1 set = 4 pieces) plastic (dimensions with 100x100x6cm, weight per 56 kg.)
- CAMERA - Rear view camera with color monitor, signal transmission into the Chassis Cabin of pantographs
- SUPPORT - Support for rear view camera
- Combination Case for vehicle rear MK 100/110
- Shunting coupling at the back

Offer without engagement. Without obligation or guarantee. Subject to prior sale.

For a reservation is a deposit of 10% of the purchase price required. Until the money is not on our account, there is no reservation and not a claim on availability. The purchase is not concluded, until the full payment is received on our account. The vehicle shall remain our property until full payment. We only accept payments in Euro without additional cost to the seller and only by bank transfer, cash or LC. No checks.

As a special service we additionally offer the delivery of the bought crane. With our location near the ports and with many years of experience in exportation we organise the whole overpass of the crane. Both by sea and by land - with Hüffermann you get a competent partner.

If you have any further queries, please do not hesitate to contact us - we help you with pleasure.
