LIEBHERR LTM 1350-6.1 2013

CRANE CARRIER

LIEBHERR 6 axle carrier with hydro-pneumatic NIVEAUMATIC-SUSPENSION with level adjustment. LIEBHERR
diesel engine with 450 kW {612. HP), exhaust emission acc. to 97/68/EC and EPA/CARB, spark arrestor. ZF TC-Tronic transmission wlth torque converter and retarder. Transfer gearbox. DRIVE 12X8X12. ZF-steering system -2 circuits with active rear-axle steering, all-wheel steering, crab walk. Compressed air servo brake system-2 circuits with disc brakes. Axles and suspension cylinders demanding low maintenance, drive shafts maintenance free. Spacious, dip-primed carrier cabin with engine-independent heating incl. timer and CD-radio. Hydraulic outriggers with rigidly mounted outrigger pads. Mobile operating and lndicating unit (BTI -Bluetooth Terminal} for comfortable support incl. electronic inclinometer, supporting pressure indication and automatic levelling. illuminatron of supporting area. Acoustic reverse drive alarm. Manoeuvring coupling at front and rear. Acceptance tests of carrier.

SUPERSTRUCTURE

LIEBHERR roller-bearing slewing ring connecting carrier and superstructure. Central greasing.
LIEBHERR diesel engine with 180 kW {245 HP), exhaust emission acc. to 97/68/EC and EPA/CARB,
spark arrestor. Hydraulic system with 5 axial-piston swivel pumps and double gear pump. Electronic
capacity control for hoisting and slewing ·gear with closed oil circuits, luffing and
telescoping gear with open oil circuits. Reeving-winch. Oil cooler. Electro-hydraulic control of
crane. Telescopic boom consisting of the pivot section and 5 telescope sections,. boom length
14.9 m - 70 m, TELEMATIK_ Non-corroding crane cabin with engine-independent heating incl..
timer and CD-radio, tiltable hydraulically backwards 20 degrees. Control of the outriggers from- crane
cabin. Counterw,eight 100 t. Safety devices including LICCON2 overload safety indicator (incl.
standard program) with electronic inclinometer, electronic supporting pressure indication. TEST
SYSTEM for servicing. LICCON-Lift Planner. Wind gauge. Flight warning light. Standard acceptance
tests of crane.

STANDARD PAINTING:

Carrier, rims

Cabins, superstructure, telescopic boom & counterweight

BASIC MACHINE:

Lattice-type luffing jib 78m (256 FT)

Attatchment parts for fixed jib mounting of the luffing jib

Winch 2 (auxilliary winch or winch for control of the luffing jib)

Additional counterweight 40 t (for total 140 t)

Y-type guyed telescopic boom

Excenter with extension of the telescopic boom 3.5 m (VE) to increase the lifting capacities at the lattice-type jibs.

Hookblock 156 t, 7 sheaves, double hook

Hookblock 80 t, 3 sheave, double hook (needed for the lattice-type luffing jib 12 m)

Hookblock 36,2 t, 1 sheave, single hook

Crane hook 12,2 t

Rooster sheave, foldable to the side

Runner 48 t (H), 2 sheaves

Second boom head top sheave

Addittional pulley block for loads up to 215 t

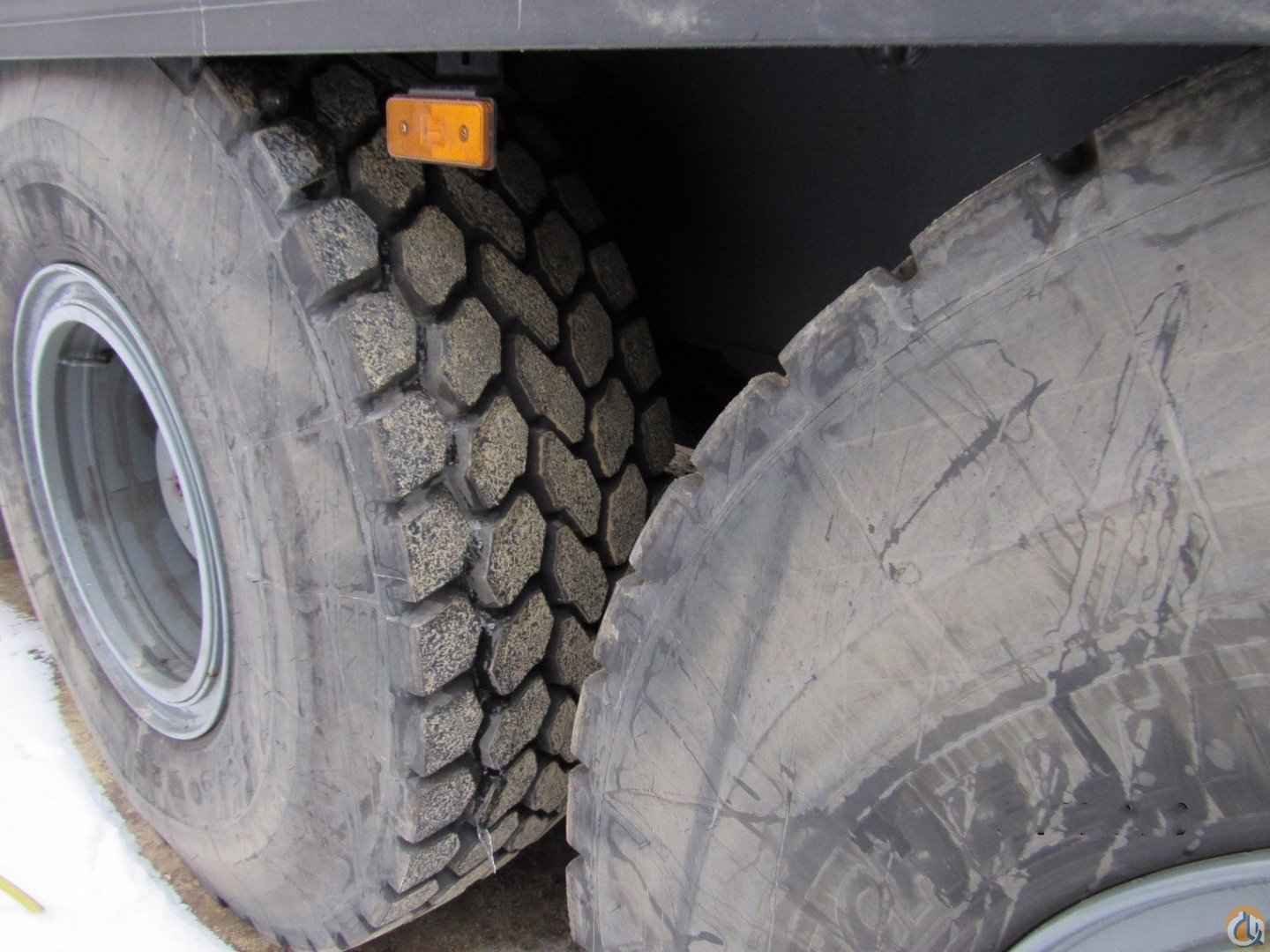

Tires 525/80 R 25 (20.5 R 25) – Michelin

Drive 12x8

Eddy-current brake type TELMA

Trailer coupling D-factor 26, incl. draw eyelets for 17 t

Supporting base detection

Air condition for carrier cabin

Camera system for reverse drive with colour monitor

Low temperature hydraulic oil

Engine shut down valve incl. overspeed protection for both engines.

Emergency shutdown button – carrier cabin & crane cabin

12 V-socket for carrier cabin

Fan heater for carrier cabin including 230 V connection

Calix engine-preheating for carrier, including 230 V / 110 V connection

External starting connection for carrier and superstructure incl. cable

Draw eyelets rear

Detatchable outrigger beams

Additional support at the vehicle rear end

Air condition for crane cabin

Working area limitation

Anti-twist device

Remote diagnosis with GSM-module

Second hoist limit switch at telescopic boom head

Two working floodlights at pivot section electrically adjustable (Xenon)

Flight warning, flashlight

12 V-socket for crane cabin

Fan heater for crane cabin including 230 V connection

Emergency operation of crane hydraulic

Hydraulic transformer for emergency operation

Calix-engine preheating for superstructure including 230 V / 110 V connection

Preparation for Dolly

LICCON Data Logger with evaluation software – Liftanalyser

LICCON – Lift Planner

Three-dimensional (3D) crane data for CAD-applications on compact disc (CD)

Cold weather package

Rear removable outrigger box

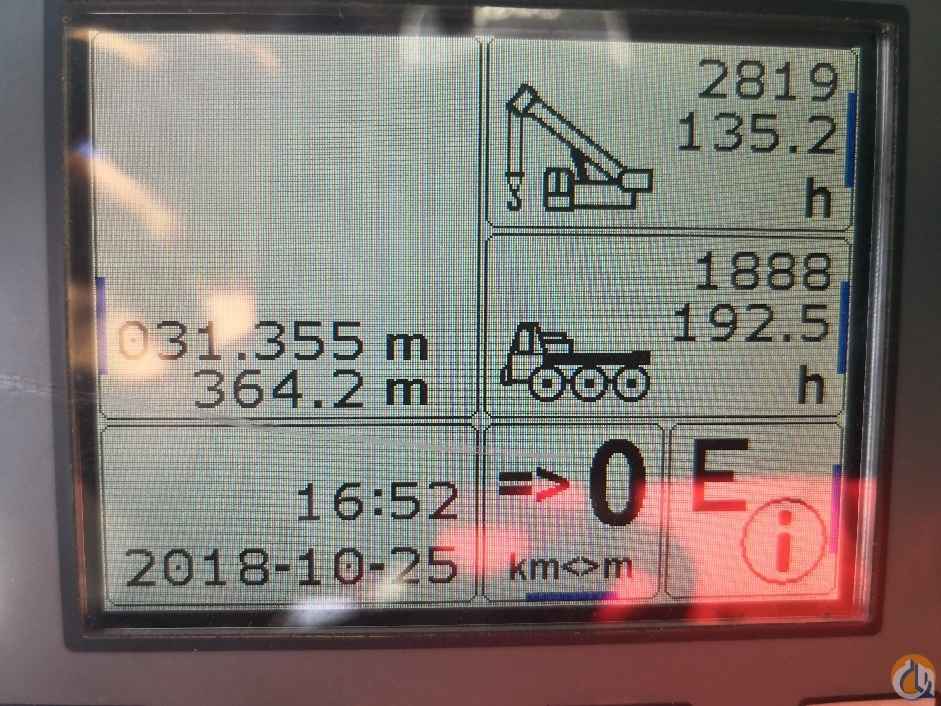

Upper hours 2816

Lower Hours 1888

Kilometres 45,586 (28,326 MILES)

SUBJECT TO AVAILABILITY
