2013 Grove GMK6350L All Terrain Crane
SOLD
Robert Basil: 818-991-9694
Last Updated: 30 Jul 2013
Capacity: 350.00
Boom/Jib: 80
Condition: Excellent

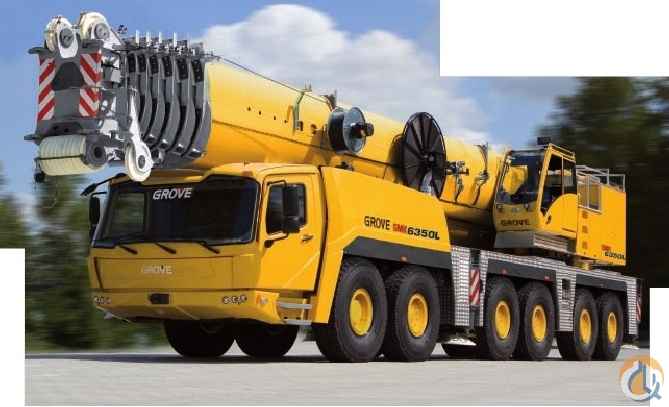

Grove GMK6350L-Stock Photo Brand New Grove GMK6350L All Terrain Crane
BASIL EQUIPMENT IS PLEASED TO OFFER A BRAND NEW GROVE GMK6350L ALL TERRAIN CRANE. FULL FACTORY WARRANTY. DELIVERY INCLUDED TO ANY EAST COAST UNITED STATES OR HOUSTON PORT.
Highlights:
54 metric tons of counterweight
21 meter hydraulic bi-fold jib with 8 meter straight section.
38 metric tons of additional counterweight
Boom Removal Kit
Dolly preparation
Remote Xenon Boom Spotlights
Outrigger Length Control
Second hydraulic Oil Cooler
Tier 4 Mercedes Diesel Engines
125 metric ton hook block
32 ton hook block
21 ton ball
80 meter/ 263 feet boom
Bi-Fold Jib
2 Winches
A/C in both cabs
20.5 tires on steel wheels
Imperial Load Chart
Please call for price
Includes delivery to East Coast US Port or Houston, Texas Port
Features:
Grove GMK6350L
Preliminary Product Guide
Features
• 15,6 m – 80 m (51 ft – 263 ft) seven-section full power
MEGAFORM™ boom with TWIN-LOCK™ pinning
• 12 m – 21 m (39 ft – 69 ft) hydraulic offset bi-fold swingaway
• 1 x 8 m (26 ft) intermediate lattice insert
• 92,5 t (203,900 lb) counterweight with hydraulic removal system
• MEGATRAK™ independent hydro-pneumatic suspension
Introducing the Grove GMK6350L
MEGATRAK™
The MEGATRAK™ suspension system is the best off road driveline available on the market today.
THE SYSTEM’S VERSATILITY AND PERFORMANCE ALLOWS THE GROVE GMK6350L TO OPERATE AS A TRUE ALL-TERRAIN CRANE.
The MEGATRAK™ independent suspension and all-wheel steer system allows wheels to remain on the ground at all times so stresses and weight are not continually transferred between axles.
MEGATRAK™ provides true ground clearance where others just raise the chassis.
Other benefits of the MEGATRAK™ system are:
• A reliable suspension system
• Excellent job site maneuverability with all-wheel steering
• Commonality among almost all models
• A driveline that remains aligned at all times
• A steering linkage system that is protected against damage
• Constant tire contact for equal tire wear
• Reduced maintenance
ECOS
Electronic Crane Operating System –
ECOSenables control of the entire crane’s principle operations. Simple programming eases lift planning and a supply of essential information allows full concentration on the lift itself.
TWIN-LOCK™
Boom pinning mechanism automatically pins the sections in position using two horizontal pins.
EKS 5
The EKS 5 monitors the lifting conditions of the crane at all times and provides a full graphic display, rear lighting, graphic of boom telescoping percentage, and load charts.
Grove GMK6350L Boom
15,6 m – 80 m (51 ft – 263 ft) 7-section, full power
MEGAFORM™ boom with TWIN-LOCK™ Pinning.
Maximum tip height: 83 m (272 ft).
Grove GMK6350L Boom elevation
Single lift cylinder with safety valve provides boom angle from -1.5° to 83°.
*Hydraulic offsettable lattice
Grove GMK6350L Extension
12 m – 21 m (39 ft – 69 ft) bi-fold lattice swingaway
extension, hydraulically offsettable and luffing under
load, 5°- 40°.
Maximum tip height: 104 m (341 ft)
*Lattice insert
1 x 8 m (26 ft) insert for use with lattice swingaway extension to increase length to 29 m (95 ft).
Maximum tip height: 112 m (367 ft)
Grove GMK6350L Load moment and anti-two block system
Load moment and anti-two block system with audio/ visual warning and control lever lockout provides electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two-block condition.
Grove GMK6350L Boom Nose
Nine nylatron sheaves, mounted on heavy duty tapered roller bearings with removable pin-type rope guards.
Quick reeve boom nose. Removable auxiliary boom nose with removable pin type rope guard.
Grove GMK6350L Boom elevation
Single lift cylinder with safety valve provides boom angle from -1.5° to 83°.
*Hydraulic off-settable lattice extension
12 m – 21 m (39 ft – 69 ft) bi-fold lattice swingaway extension, hydraulically offsettable and luffing under load, 5°- 40°.
Maximum tip height: 104 m (341 ft)
*Lattice insert
1 x 8 m (26 ft) insert for use with lattice swingaway extension to increase length to 29 m (95 ft).
Maximum tip height: 112 m (367 ft)
Load moment and anti-two block system
Load moment and anti-two block system with audio/ visual warning and control lever lockout provides electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two-block condition.
Grove GMK6350L Cab
All aluminum constructed cab with acoustical lining, hydraulic tilted to 20°. Includes tinted safety glass, adjustable operator’s seat, opening windows at side and rear, hinged windshield with wiper, sun visor and window shade. Other features include hot water heater/defroster, armrest integrated crane controls, ergonomically arranged instrumentation and radio/cd player.
Swing
3 planetary gear boxes with fixed displacement axial piston motors. Infinitely variable to 1.3 rpm. Free swing or hydrostatically engaged brake controlled by swing lever.
Swing brake selected by foot operated switch.
Grove GMK6350L Counterweight
92,5 t (203,900 lb) consisting of various sections with hydraulic installation/removal system controlled from the superstructure cab.
Grove GMK6350L Engine
Mercedes OM 926 LA six-cylinder
Horsepower: 210 kW (286 bhp) at 2200 rpm
Torque: 1120 Nm (826 ft/lb) at 1400 rpm
Engine emissions: EPA/CARB/EUROMOT (off road)
Fuel tank capacity
300 L (79 gal)
Electrical system
3 phase alternator: 28V/80A
2 batteries: 12V/170Ah
Hydraulic system
2 (two) separate circuits, 1 (one) axial piston variable
displacement pump (load sensing) with electronic power
limiting control for crane functions and 1 (one) double gear
pump for slewing. Thermostatically controlled oil coolers
keep oil at optimum operating temperature.
Hydraulic tank capacity: 1200 L (317 gal)
Grove GMK6350L Hoist
Main and auxiliary hoist are powered by axial piston motor with planetary gear and brake. “Thumb-thumper” hoist drum rotation indicator alerts operator of hoist movement.
MainAuxiliary
Rope length:350 m350 m
(1148 ft)(1148 ft)
Rope diameter:
Line speed:
22 mm
127 m/min
(417 fpm)
22 mm
127 m/min
(417 fpm)
93.5 kN
(21,020 lb)
Chassis
Box type, torsion resistant frame is fabricated from high
strength steel.
Outrigger system
Four hydraulic two stage outrigger beams with vertical
cylinders and outrigger pads, 700 mm (27.6 in) round.
Outrigger can be set in 5 positions:
Full:8,5 m (27.9 ft)
Partial: 7,4 m (24.3 ft)
Partial: 6,3 m (20.7 ft)
Partial: 5,0 m (16.4 ft)
Retracted: 2,7 m (9.0 ft)
Independent horizontal and vertical movement controlled from each side of carrier and the superstructure cab. Electronic crane level indicators. Hydraulic disconnect for all outrigger beams. Work light for each outrigger beam and outrigger pad load indicator with read out on both sides of carrier and in superstructure cabin.
Grove GMK6350L Transmission
Allison automatic 4500 SP, 6 speeds forward, 1 reverse
2 speed transfer case
Drive/steer
12x6x12
Axles
1st axle line – drive/steer
2nd axle line – steer
3rd axle line – steer (connects for all wheel steer)
4th axle line – drive/steer (connects for all wheel steer)
5th axle line – drive/steer (permanent drive with 12×6,
disconnects for highway with 12×8)
6th axle line – steer (optional drive)
Drive axles with planetary hub reduction and center
mounted gearing. Standard inter-axle and cross axle
differential locks.
Line pull:
93.5 kN
(21,020 lb)
SOLD
Basil Equipment, Inc.
www.basilequipment.comContact: Robert Basil, President
Phone: 818-991-9694
Alt Phone: 818-381-6896
Fax: 818-889-8905
THIS LISTING HAS SOLD
