Type: All Terrain Cranes
Make: Grove
Model: GMK6220
Year: 2005
Capacity: 220.00 Tons
Condition: Good

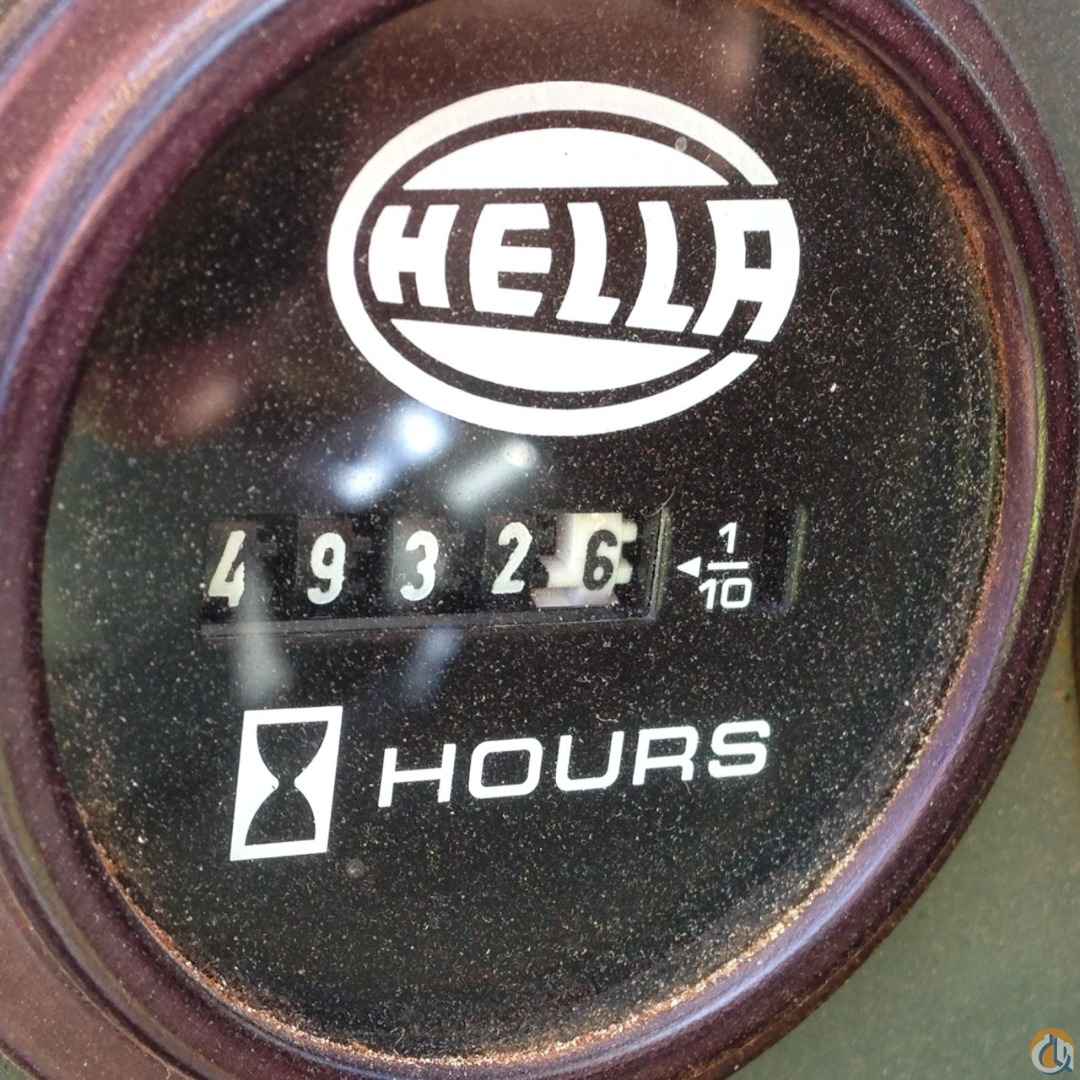

Hours: 4932
Location: Perth, Western Australia, Australia
Boom: 60

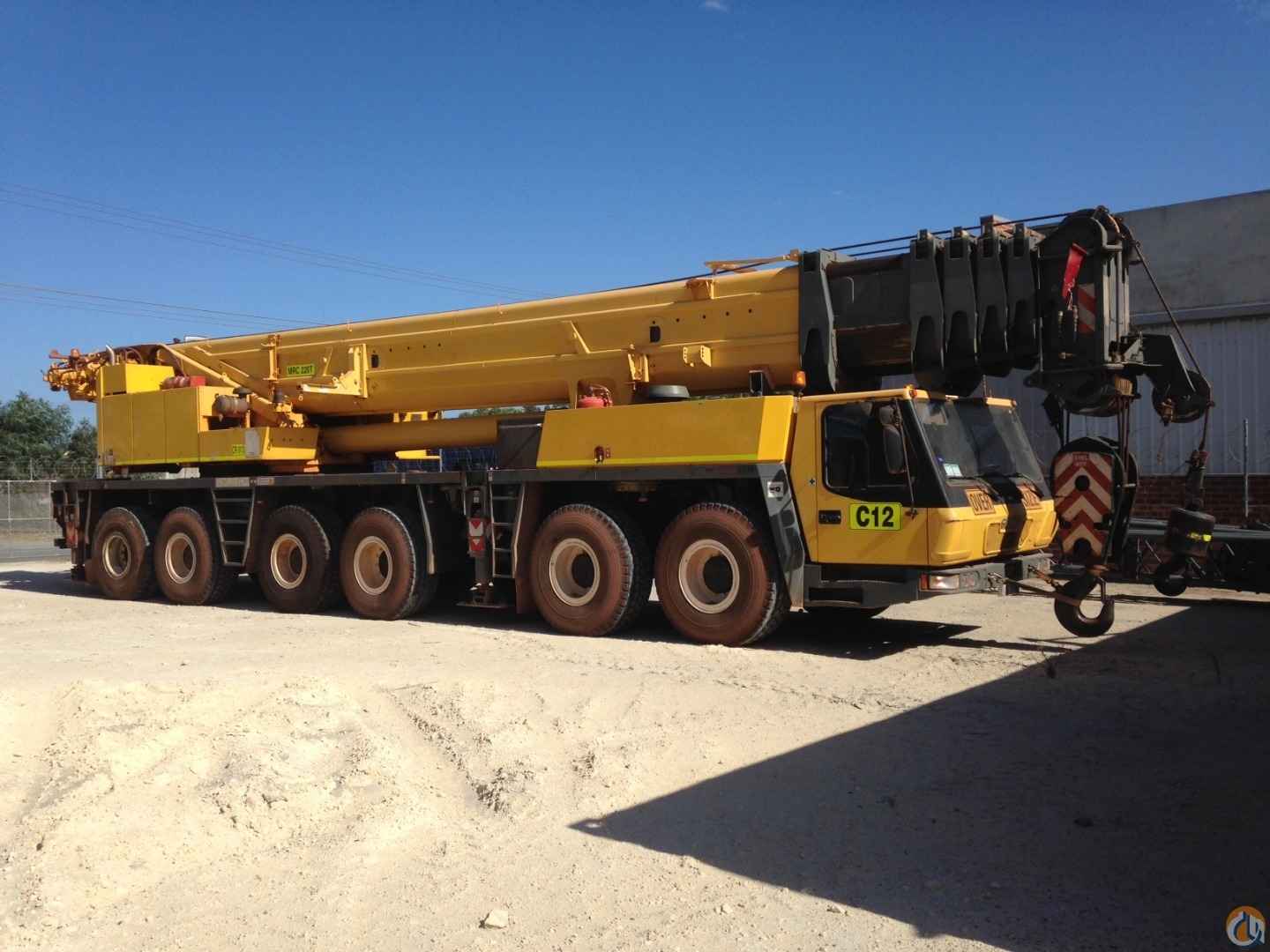

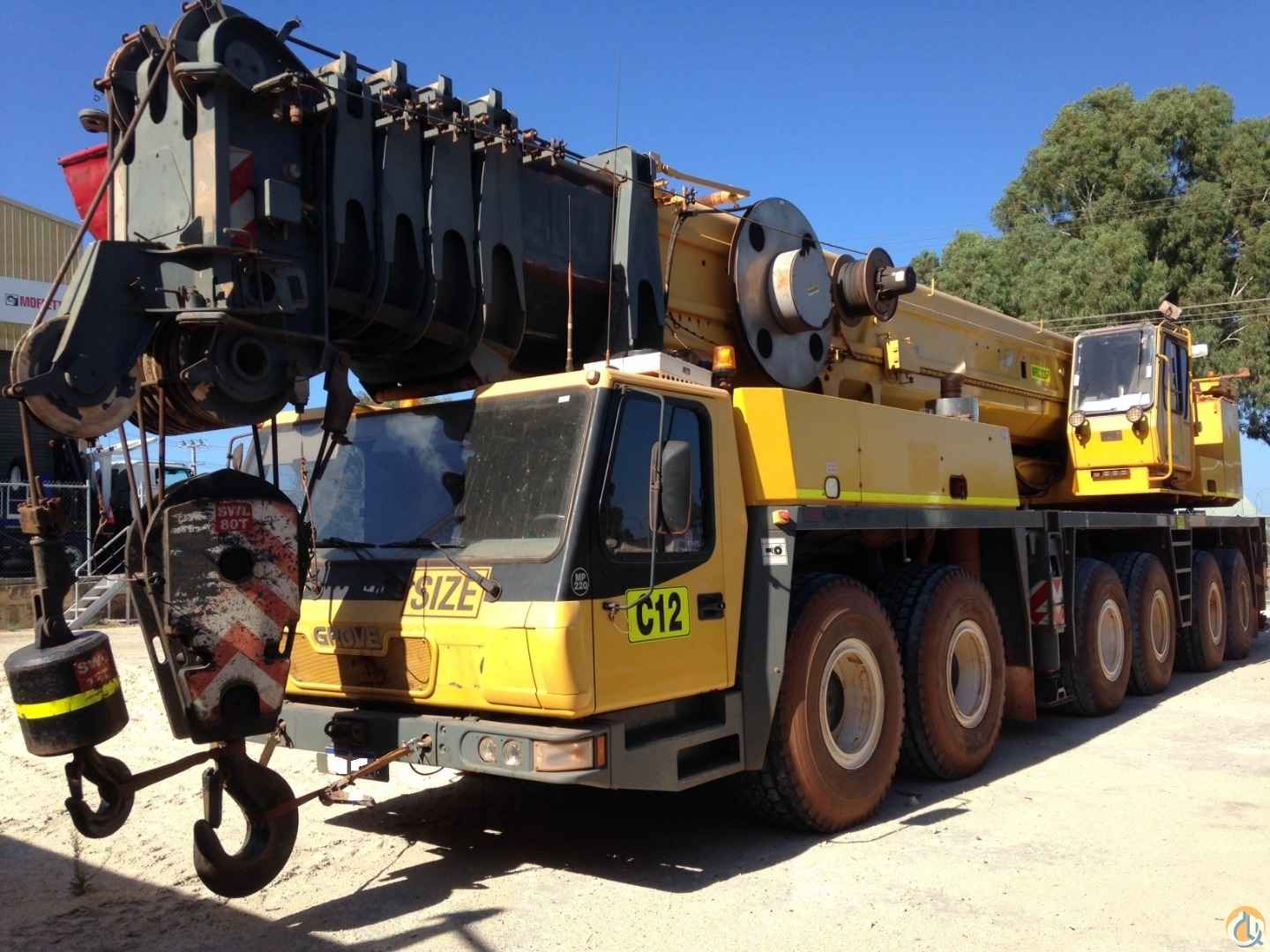

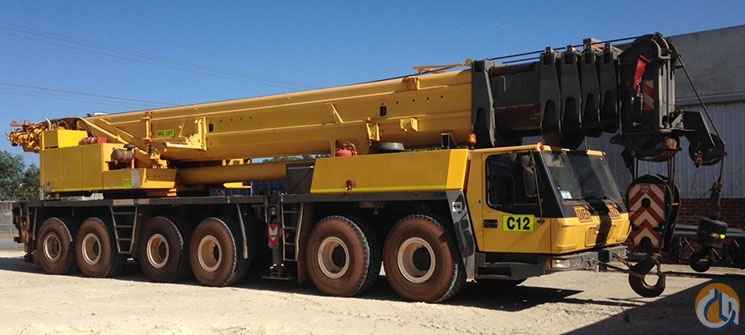

This is an absolutely solid, dependable 2005 model 220T Grove GMK6220 that's just become available. Finished in Grove's standard livery, the crane's many features include:
SUPERSTRUCTURE ENGINE
- Mercedes Benz OM 904 LA engine
- 4-stroke diesel direct fuel injection
- 4 cylinders, 122kW (166HP), 660 Nm torque
- Euro II emission
- 200 litres
SUPERSTRUCTURE HYDRAULIC SYSTEM
- 3 separate pump circuits for crane operation
- 2 axial piston pumps with power limiting control
- 1 axial piston pump for slewing gear
- Oil cooler
- Tank capacity 980 litres
SUPERSTRUCTURE CONTROL SYSTEM
- ECOS electronic crane control
SUPERSTRUCTURE MAIN HOIST
- Single line pull 93.4 kN
- Single line speed max 130 m/min
- Drum diameter 458mm
- Rope diameter 22mm
- Rope length 300m
- Drum rotation indicator
SUPERSTRUCTURE TELESCOPING BOOM
- 6 section welded structure made of high tensile close grain steel
- Boom lengths: 13.5m, 22.8m, 32.1m 41.4m, 50.7m, 60m

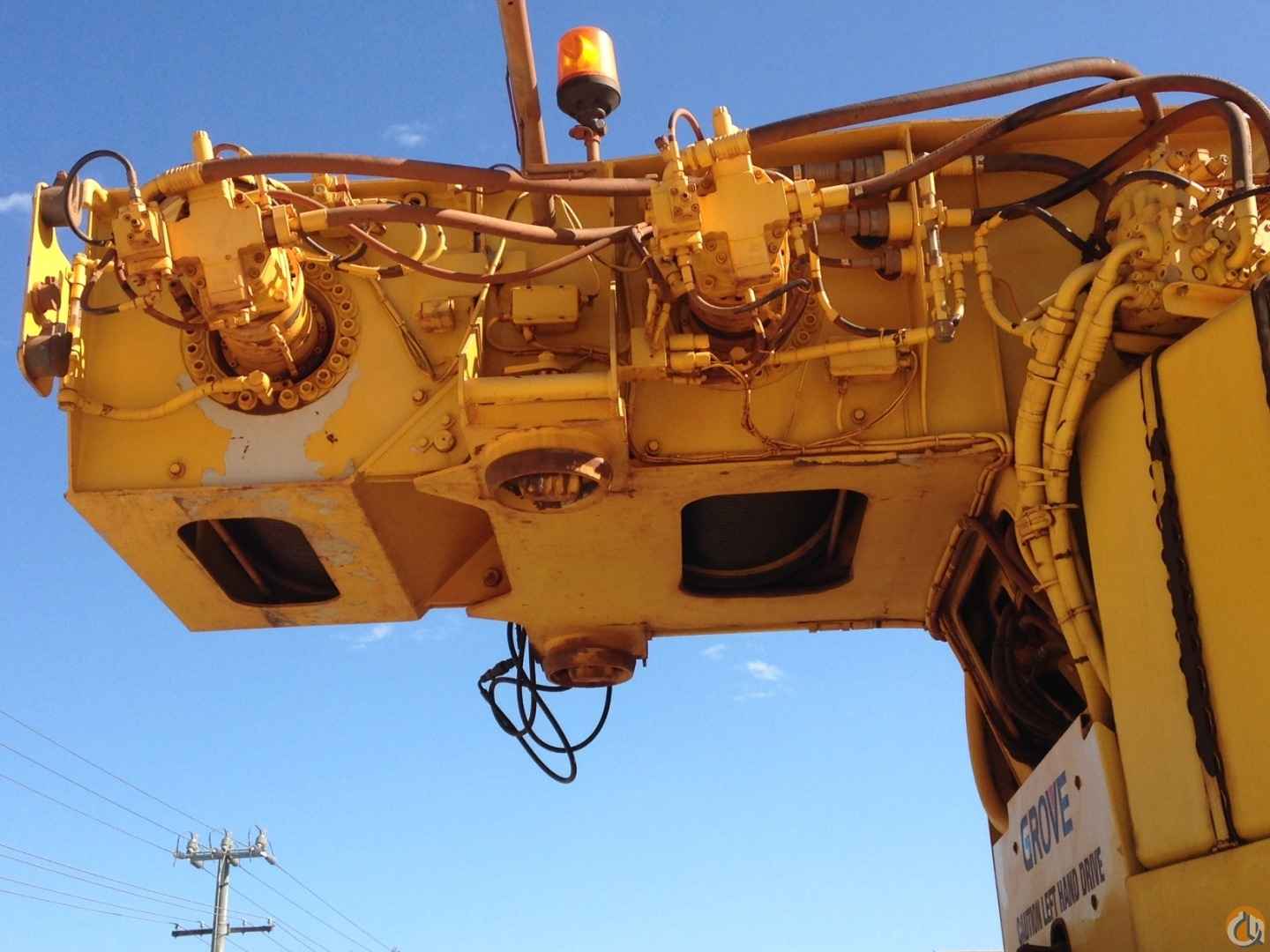

- Boom head with 9 sheaves
- Telescoping time 450 secs
- Manual and automatic operation possible

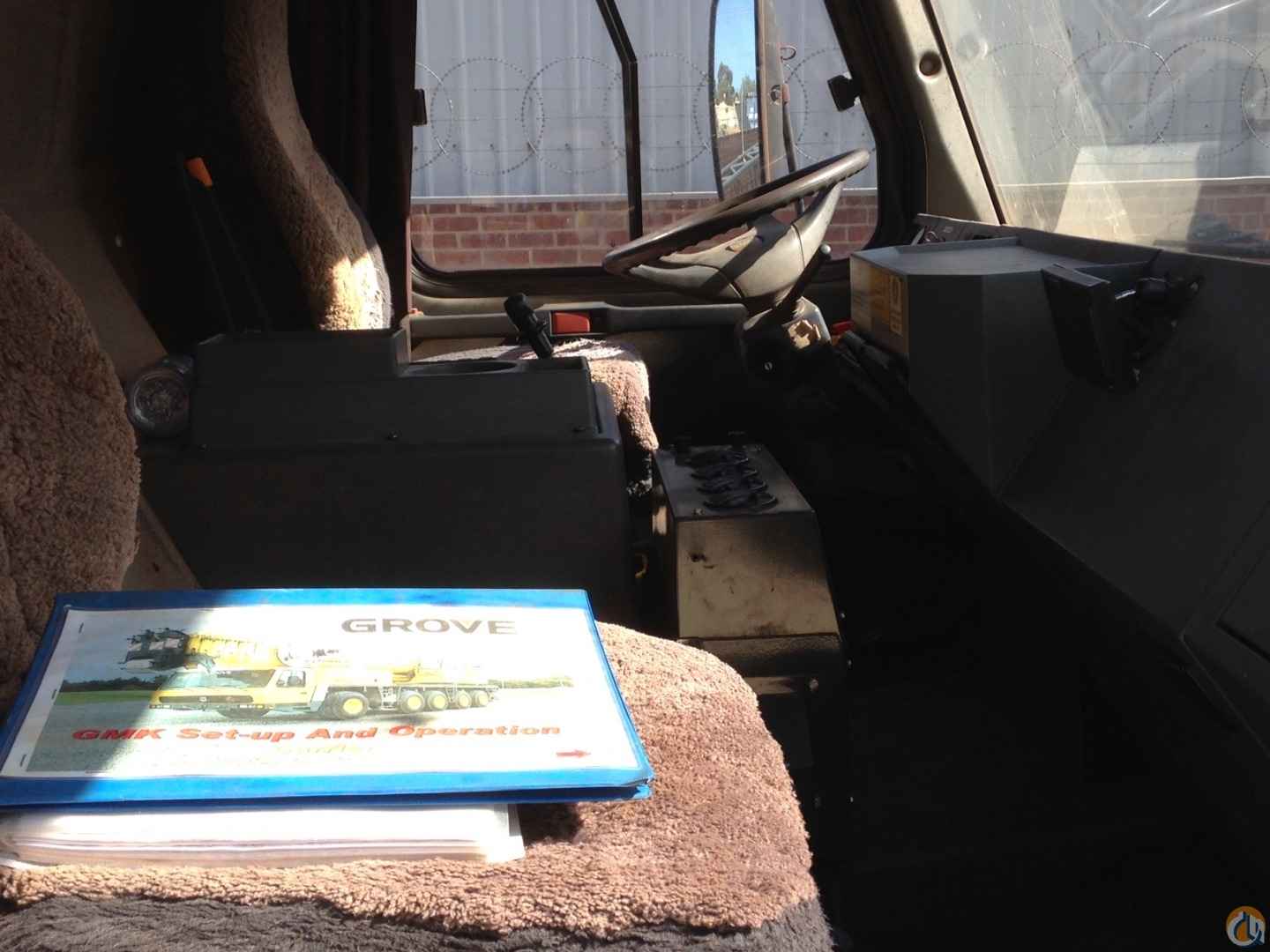

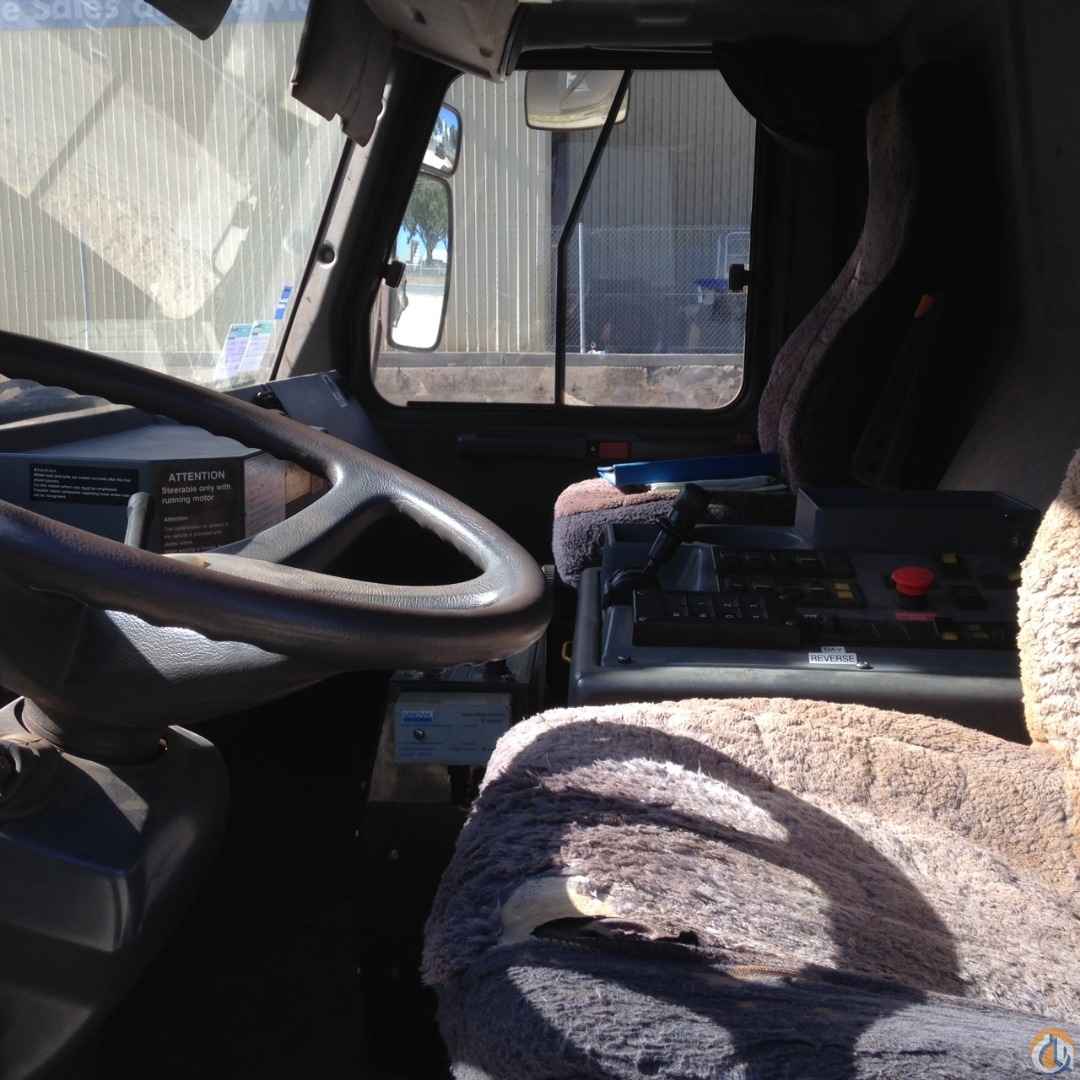

SUPERSTRUCTURE OPERATOR'S CAB
- Full vision aluminium cab on left side of turntable, approx 20 degrees tiltable, safety glass windows
- Window tint top window, all side and rear
SUPERSTRUCTURE ELECTRIC SYSTEM
- Three phase generator 28V / 80A
- 2 batteries 12V / 170Ah
SUPERSTRUCTURE SAFETY INSTALLATIONS
- Electronic safe load indicator with auto cutout
- Digital display for actual and admissible load, radius, telescoping and various working conditions
- User-friendly illuminated display
SUPERSTRUCTURE COUNTERWEIGHT
- 43t split into 6 sections for separate transportation (3.5t, 5.4t, 5.1t, 8.5t, 10.5t, 11t)
- 4 hydraulic cylinders for lifting the counterweight are integrated in the basic counterweight section (5.4t)
- Quick disconnect hydraulic couplings
CARRIER ENGINE
- Mercedes Benz OM 502 LA engine
- 4-stroke diesel direct fuel injection
- 8 cylinders, 420 kW (571HP), 2700 Nm
- Euro II emission
- 500 litres

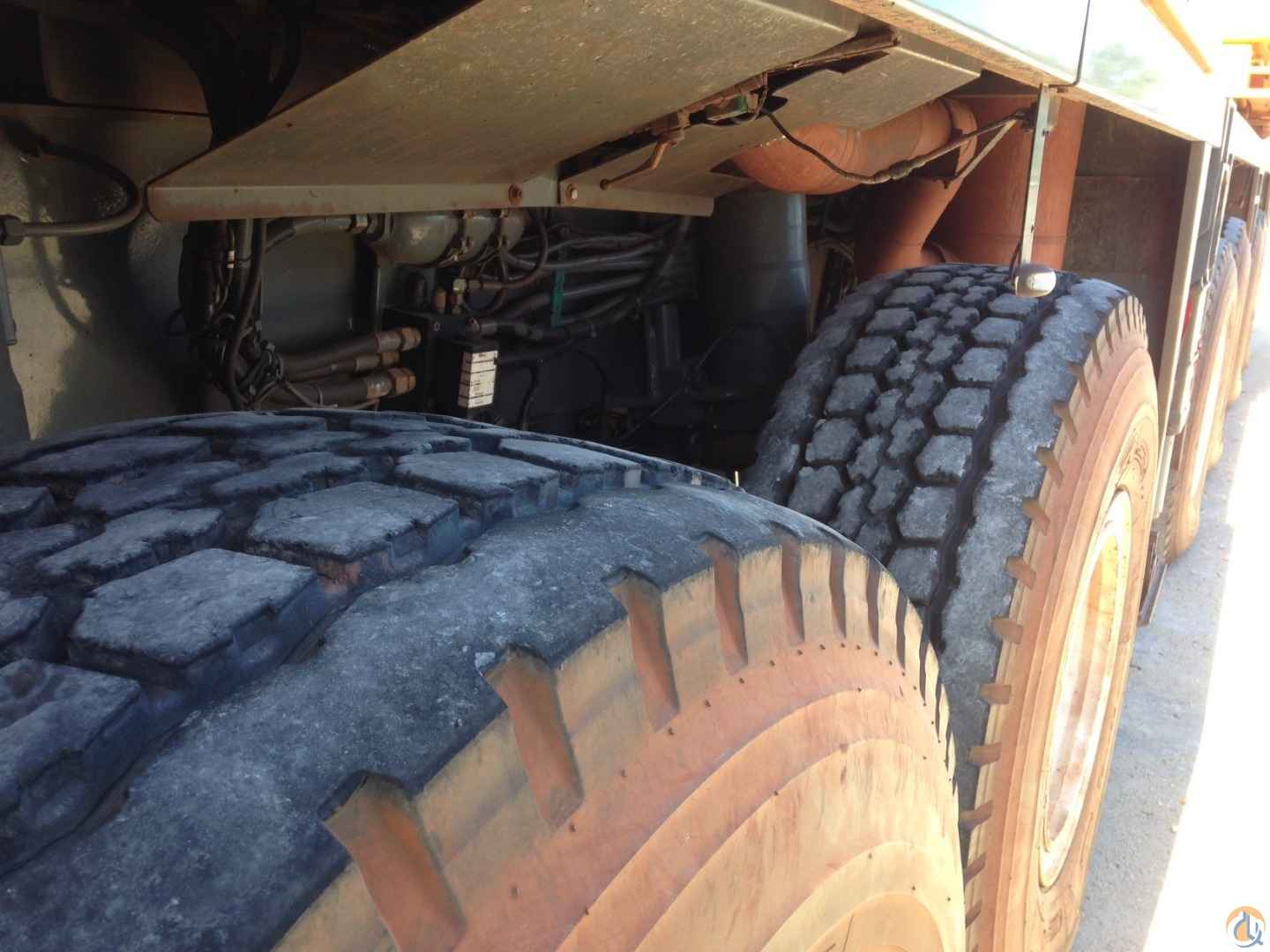

CARRIER TYRES
- 20.5R 25
- 25-17.00/1.7 rims
PERFORMANCE
- Travelling speeds: max 71 km/h (with 14.00 tyres) or 77 km/h (with 16.00 tyres)
ACCESSORIES INCLUDED

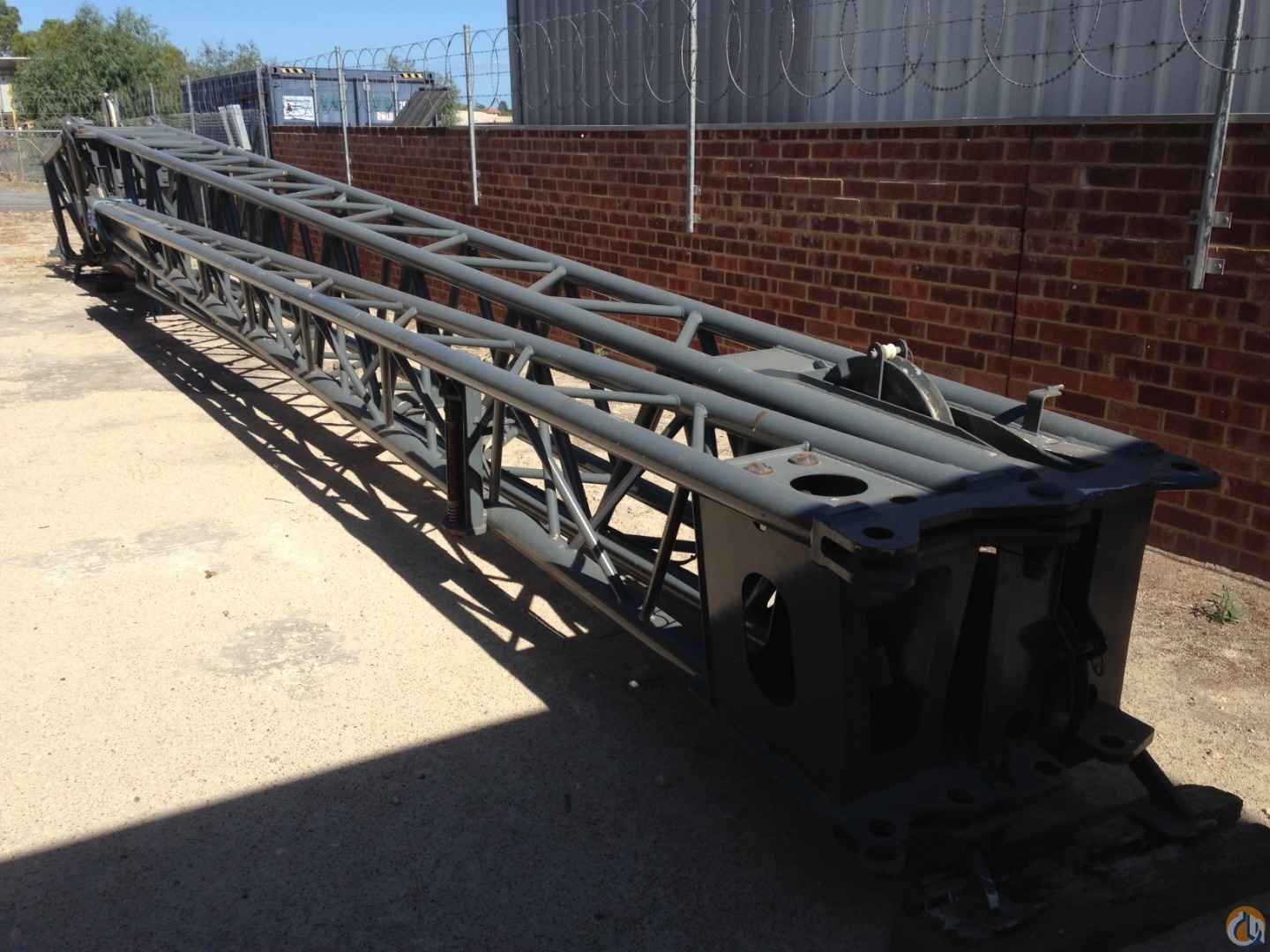

- 13-22m bi-fold swingaway fly jib
- Auxiliary hoist with 230m rope

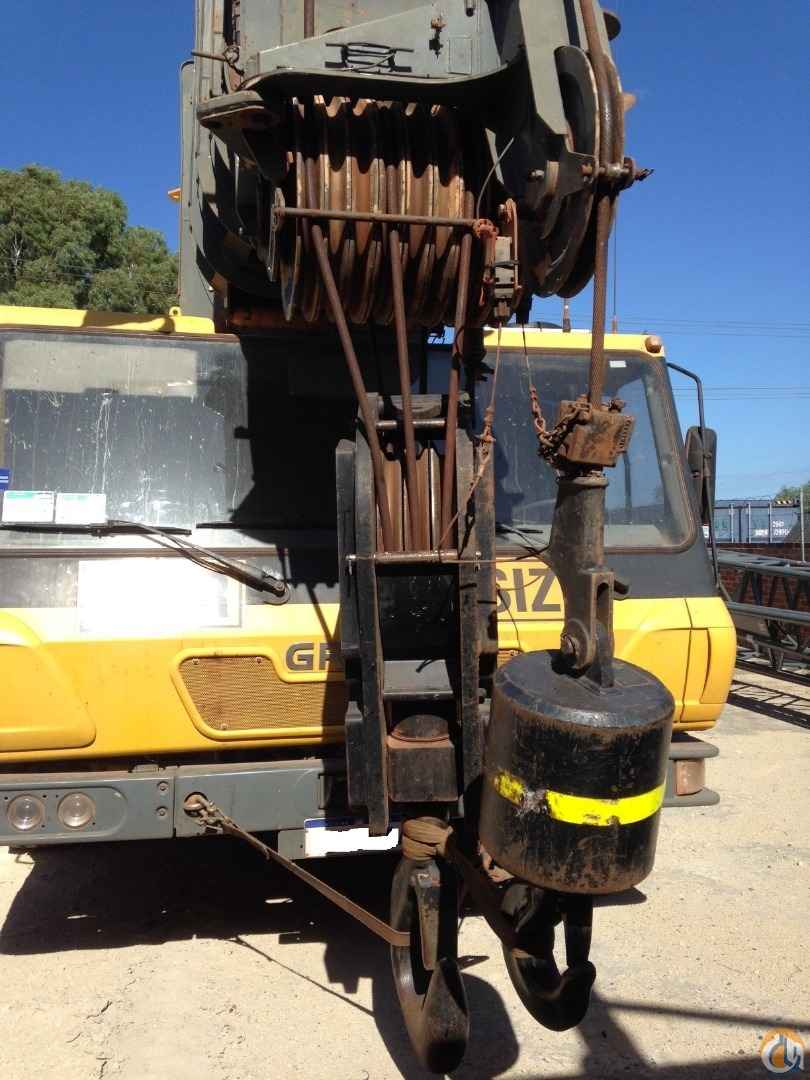

- 125t hook block, 5 sheaves
- 80t hook block, 3 sheaves
- 12t headache ball single line
- 26t additional counterweight (2 sections of 13t)
- Additional oil cooler for superstructure
- Spare 20.5 R25 wheel
- Driveline retarder
- Window tinting
- Airconditioning upper and lower
Inspections welcome. This crane is priced to sell at AUD $650,000 ex-works (or the equivalent in USD at the prevailing rate of exchange at time of transaction). WATM welcomes all inquiries from interested parties.
WATM Crane Sales and Services WA
Sales Dept: +61 8 9271 8000
Alt Phone: +61438927180
Fax: +61 8 9473 1530
Perth, WA, Australia
