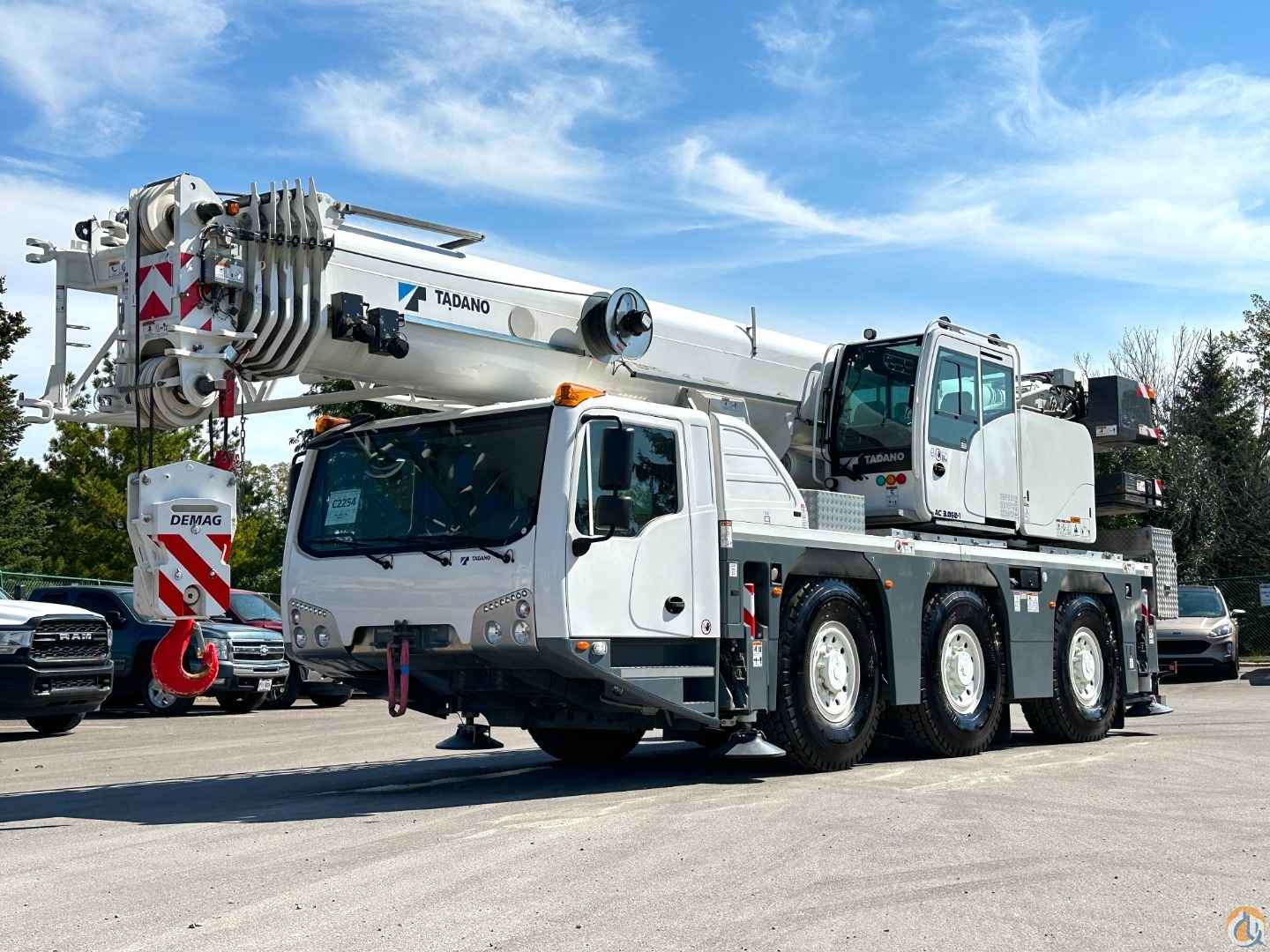

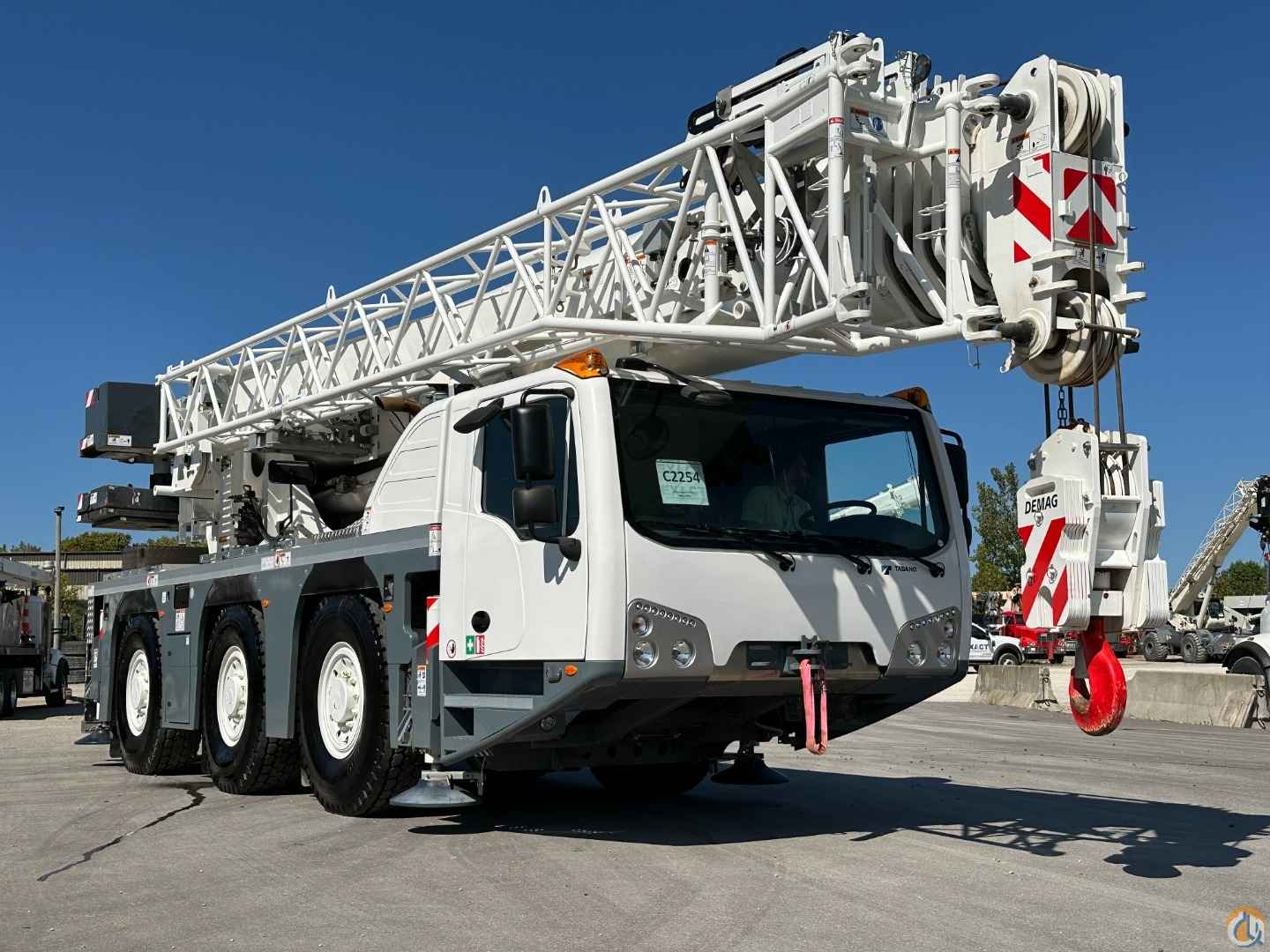

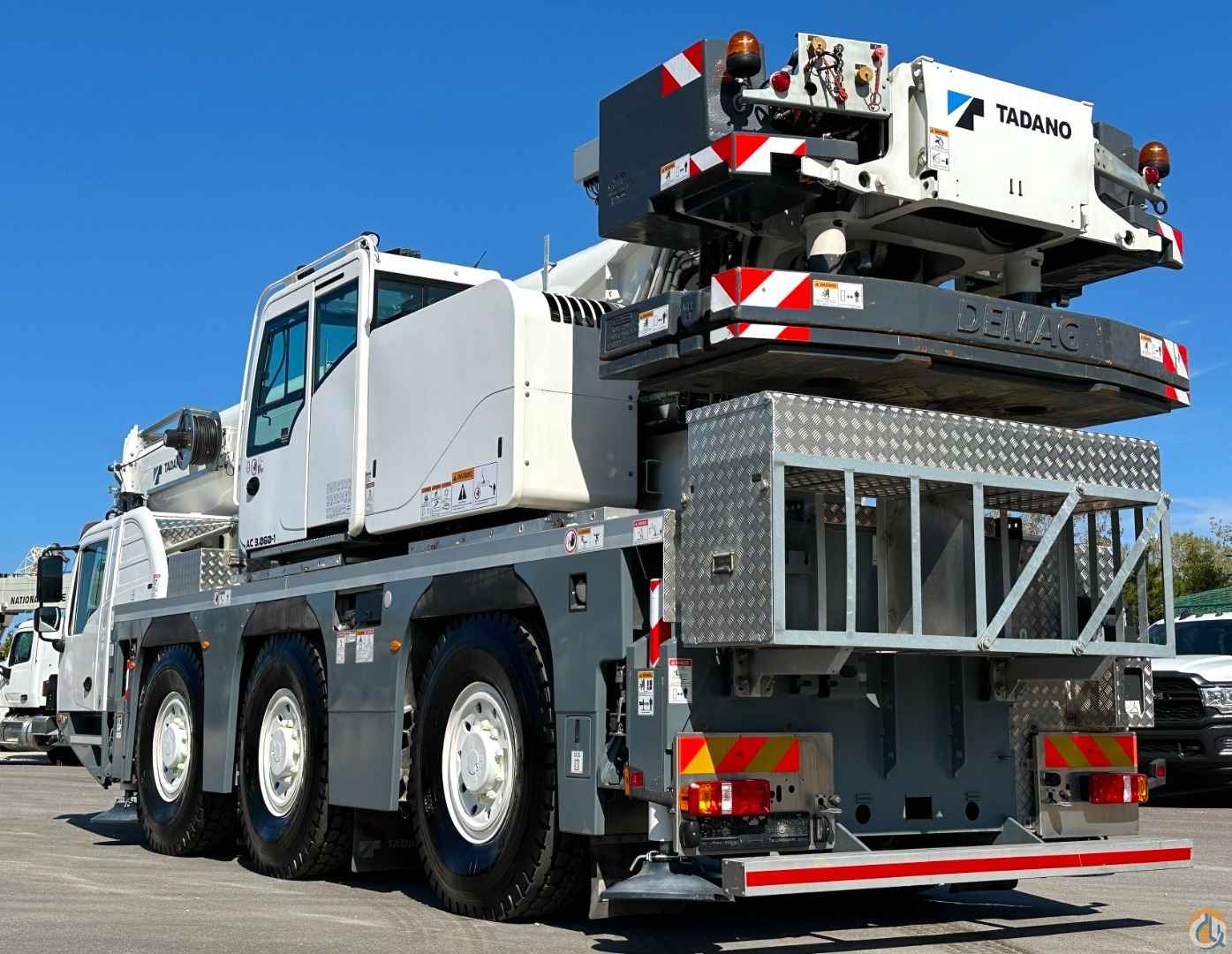

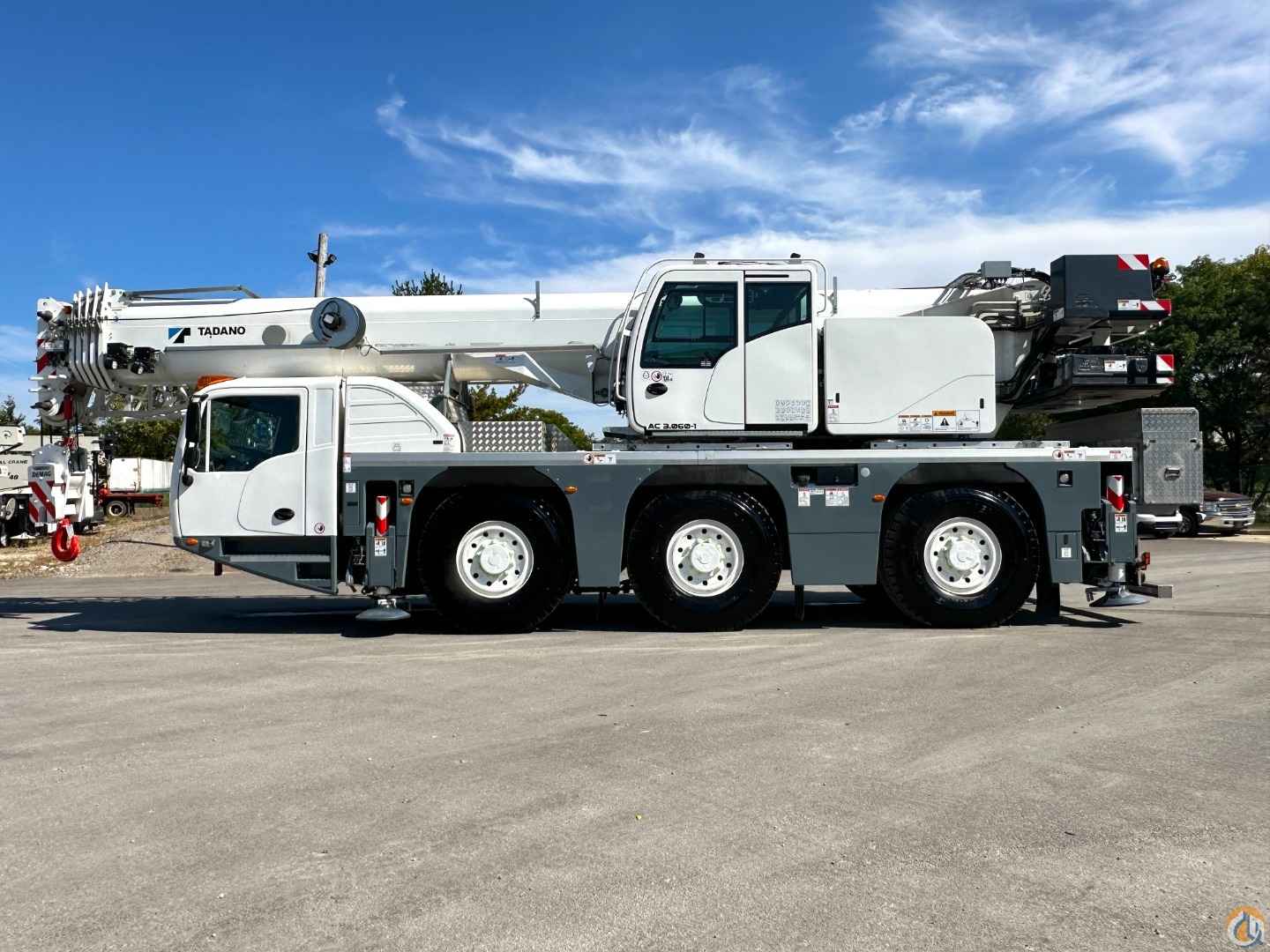

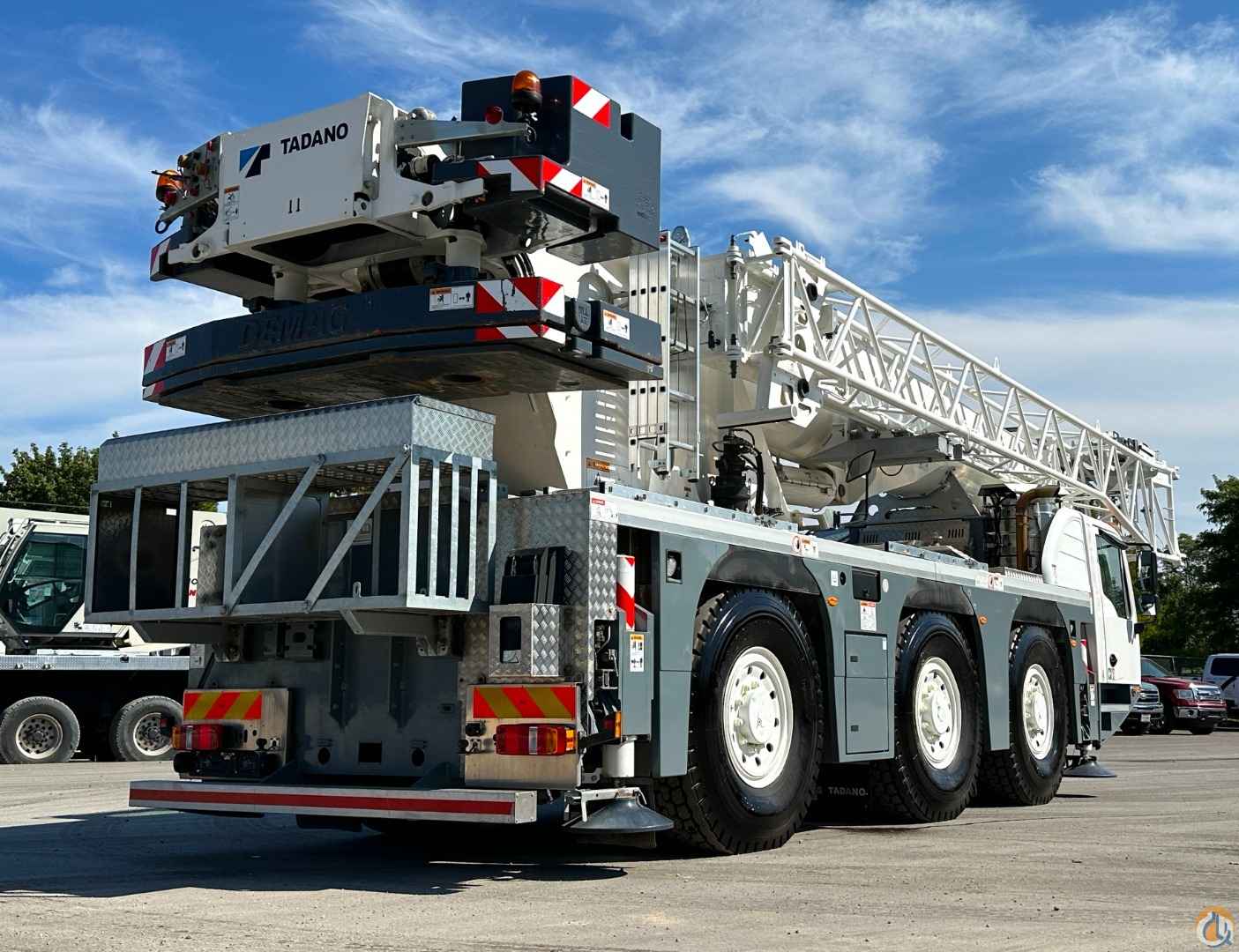

Tadano AC 3.060-1 / Demag AC 55
• Capacity: 65-tons
• Main Boom: 164 feet
• Max Tip Height: 223 feet
• Jib: 29.5 feet - 52.5 feet (lattice, swing away)
• Jib Offsets: 20º & 40º
• Counterweight: 26,700 lbs. (automatic rigging system!)
• Single Engine: Mercedes Benz OM936LA Diesel engine (Tier 4F)
• Transmission: Mercedes-Benz G230-12 (12 forward speeds & 2 reverse, 2 stage transfer case with switchable longitudinal lock)
• Load Moment Indicator System: IC-1 Remote Tadano Telematic System (Smart Crane System)
• Flex Base: yes (allows the outriggers to be extended to any point within range, providing the operator real-time determination for positioning)
• Outriggers: 4
• Outrigger load indicator: yes
• Automatic Central Lubrication System: yes
• Axles: 3
• Hook Block: yes (3-sheave)
Contact Exact Crane for a more features & any questions. Want a closer look? Ask for a video overview, or schedule to see the crane in person!
