Be one of the first in the USA to own a Demag AC 220-5

THIS LISTING HAS SOLD

Last Updated: 26 Jun 2017
Request a Quote
Email Seller
Save to Favorites
Print
Make an Offer

  • SOLD

  • Year: 2017
  • Capacity: 245.00
  • Boom/Jib: 255.9/108
  • Location: Texas, United States
  • Hours: Inquire
  • Condition: New

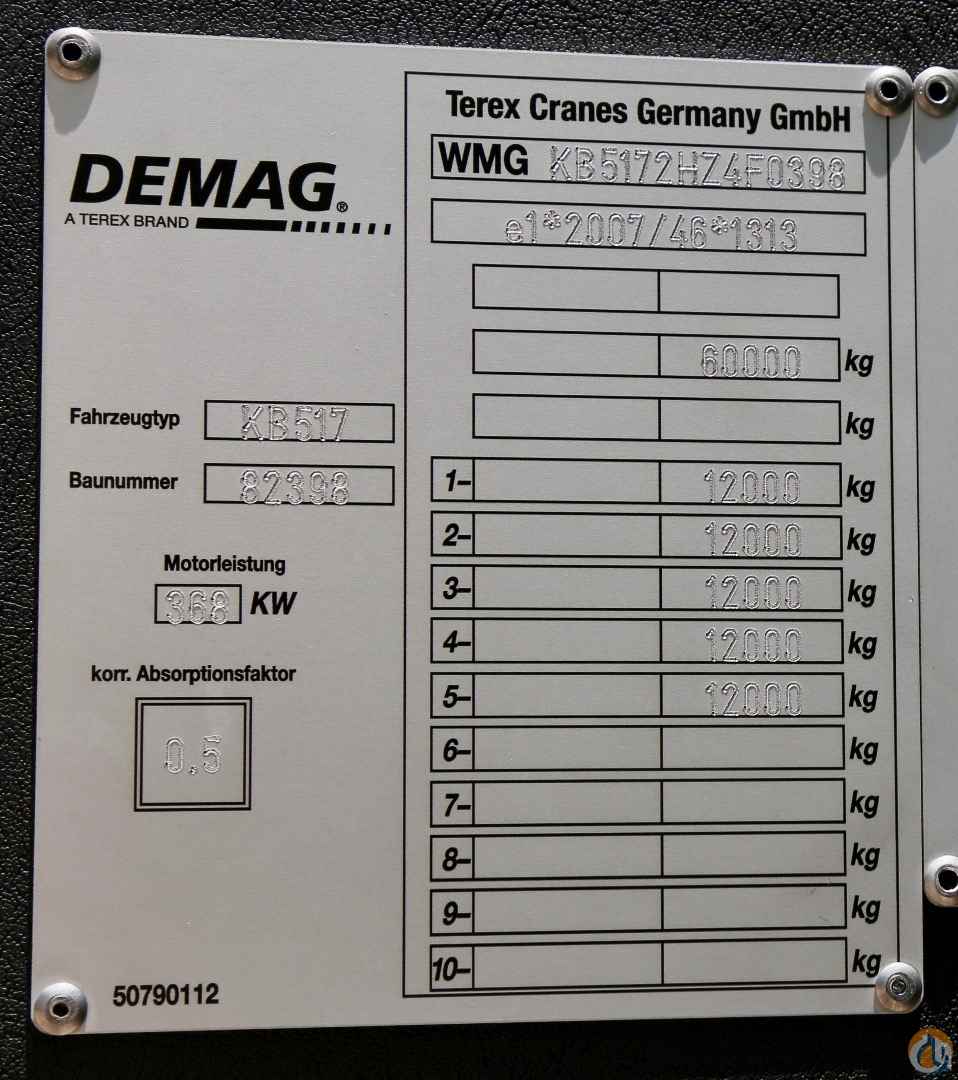

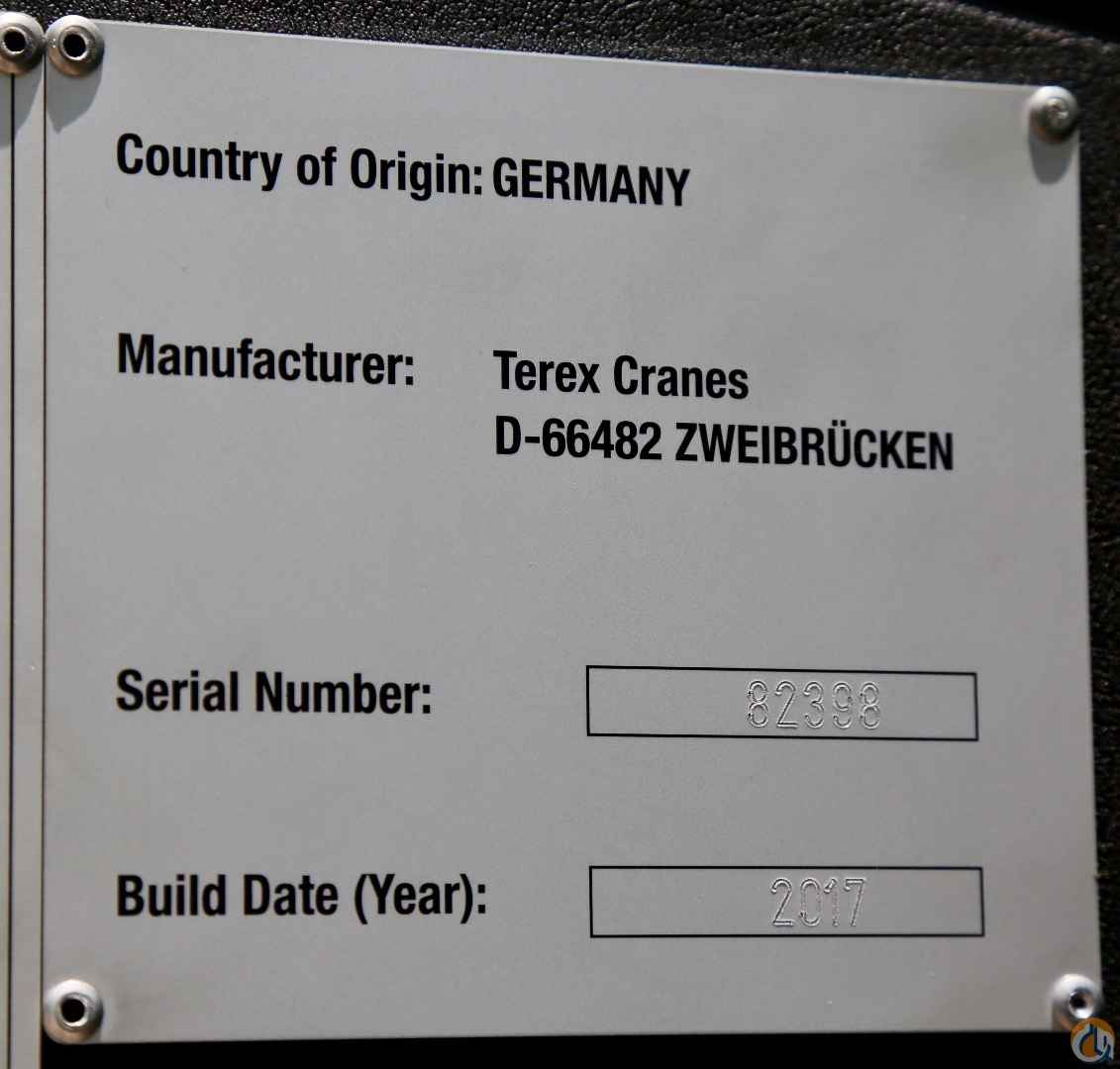

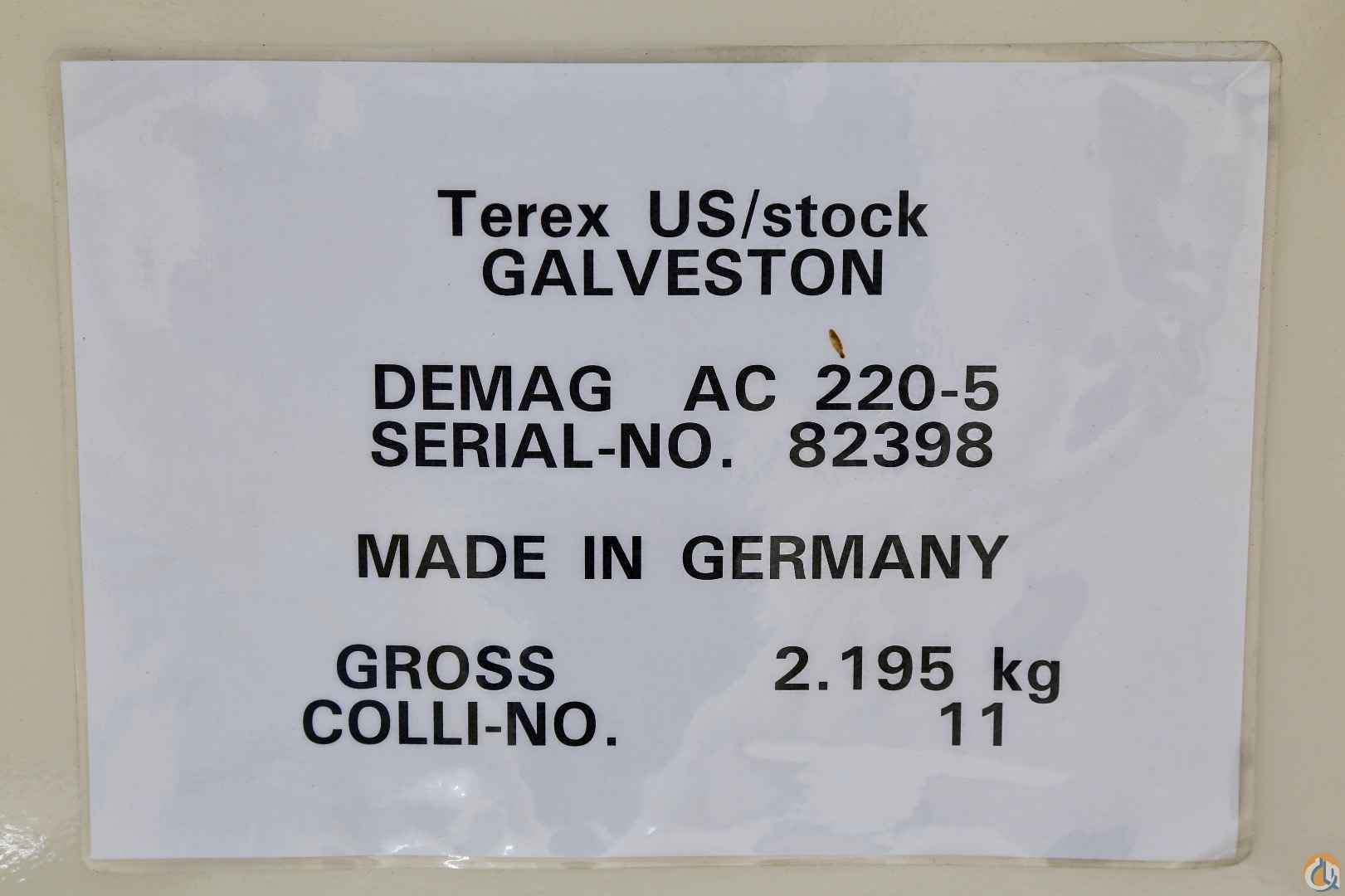

  • Serial #: 82398
  • Unit #: PO39408

THIS LISTING HAS SOLD

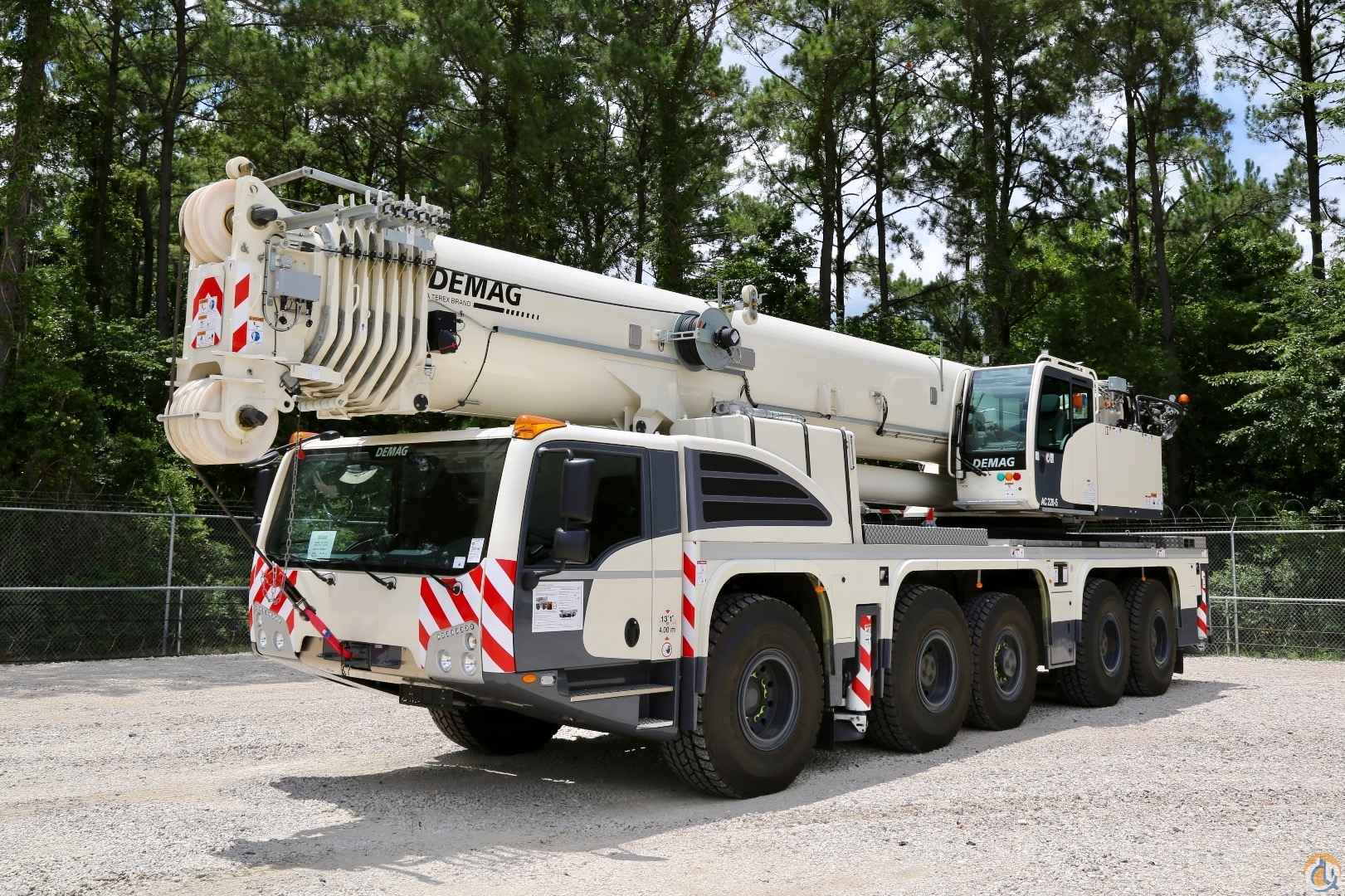

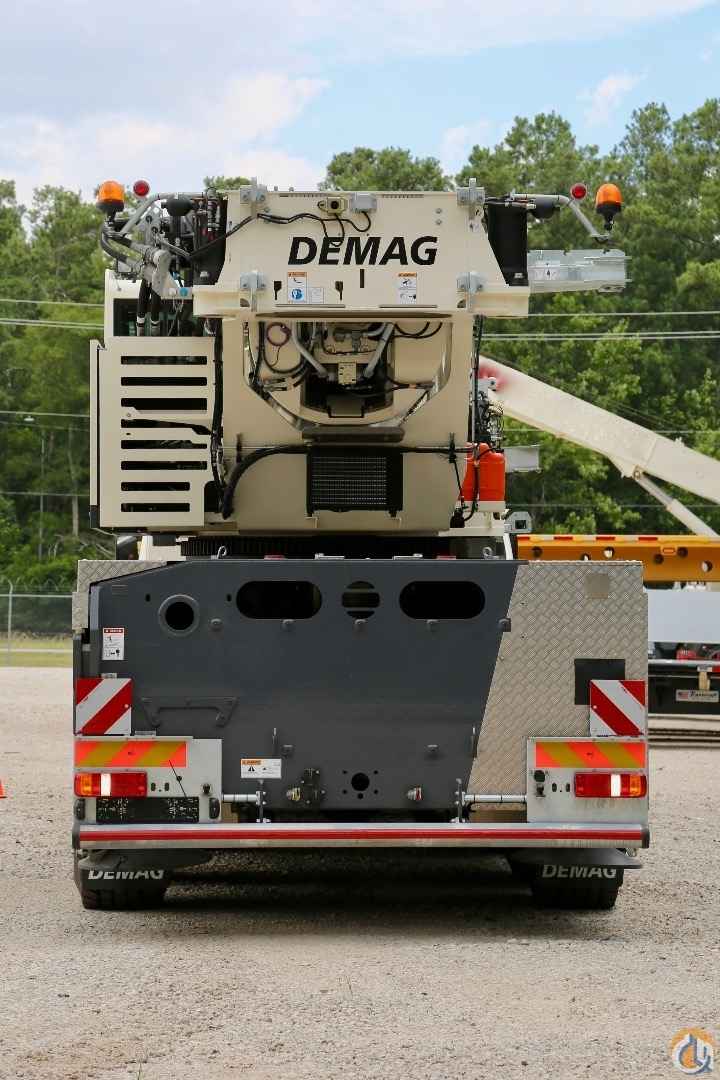

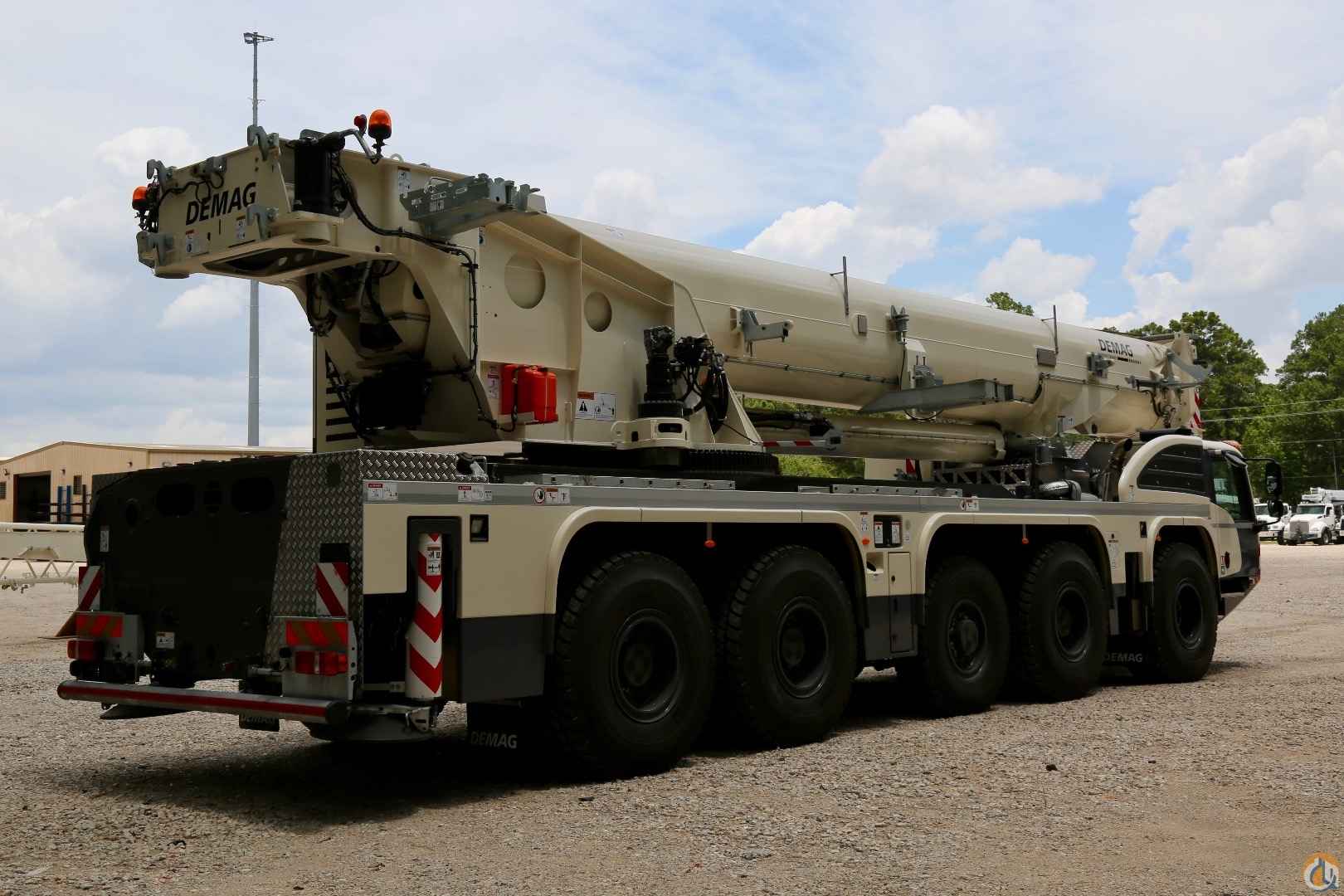

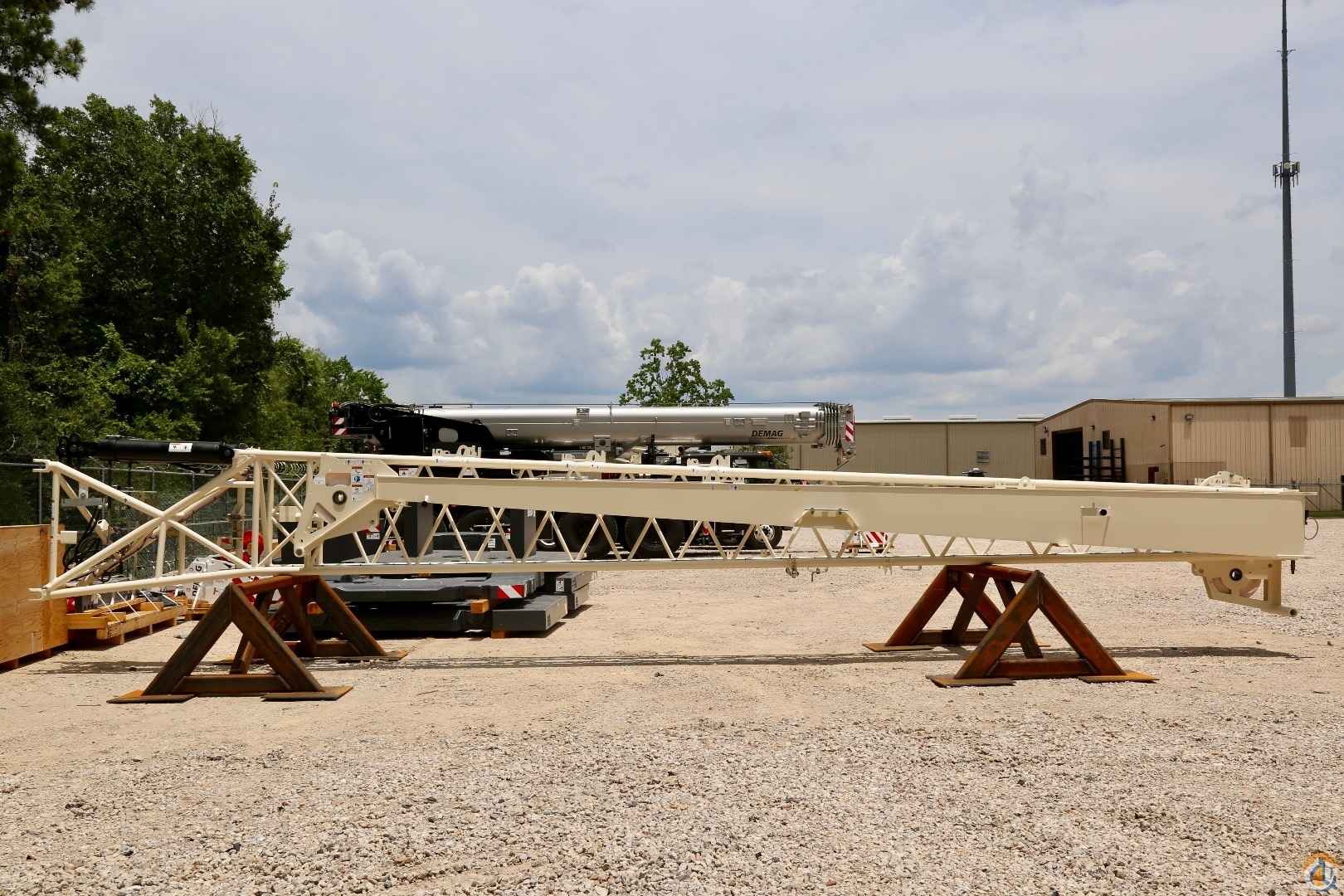

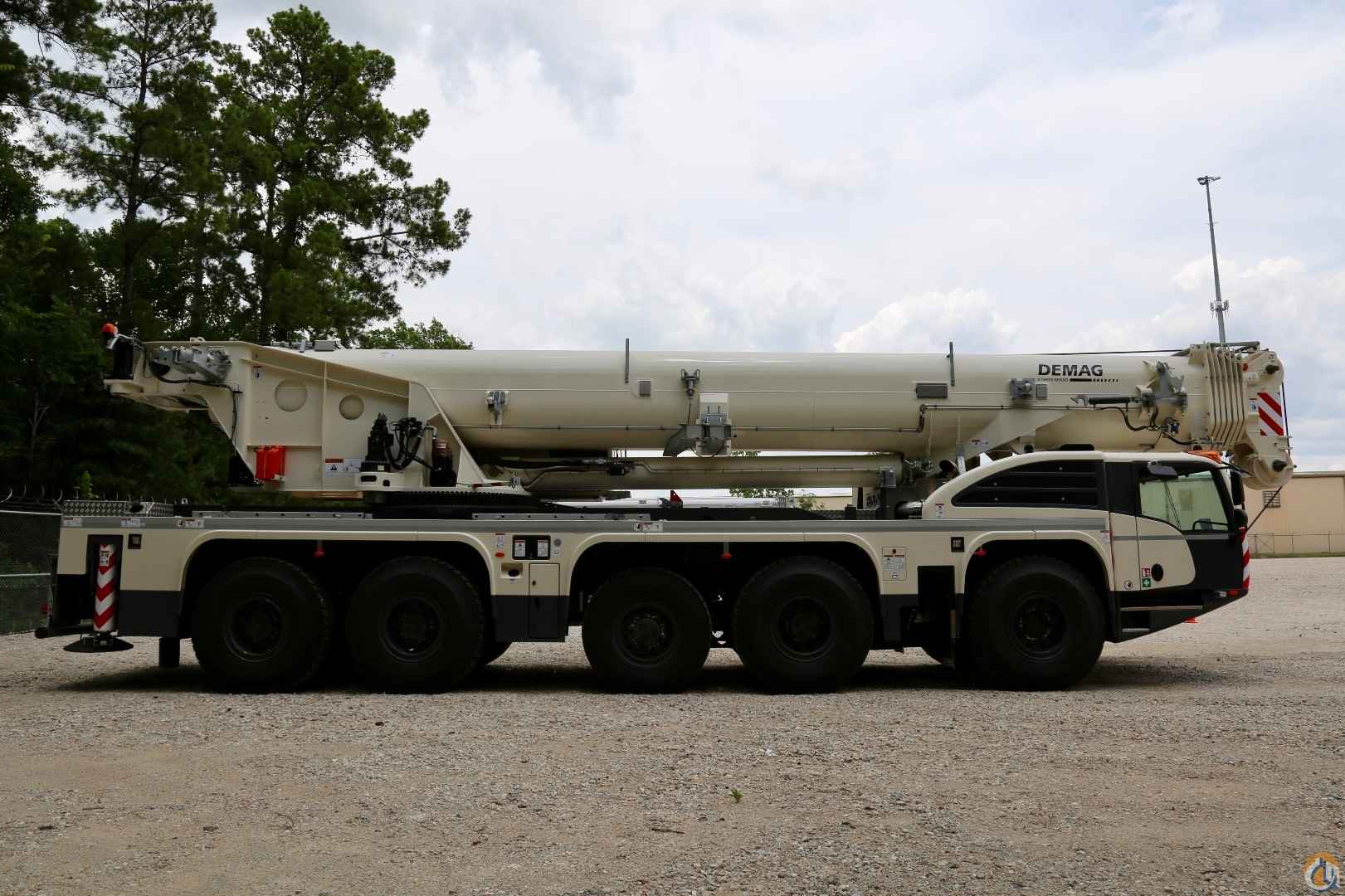

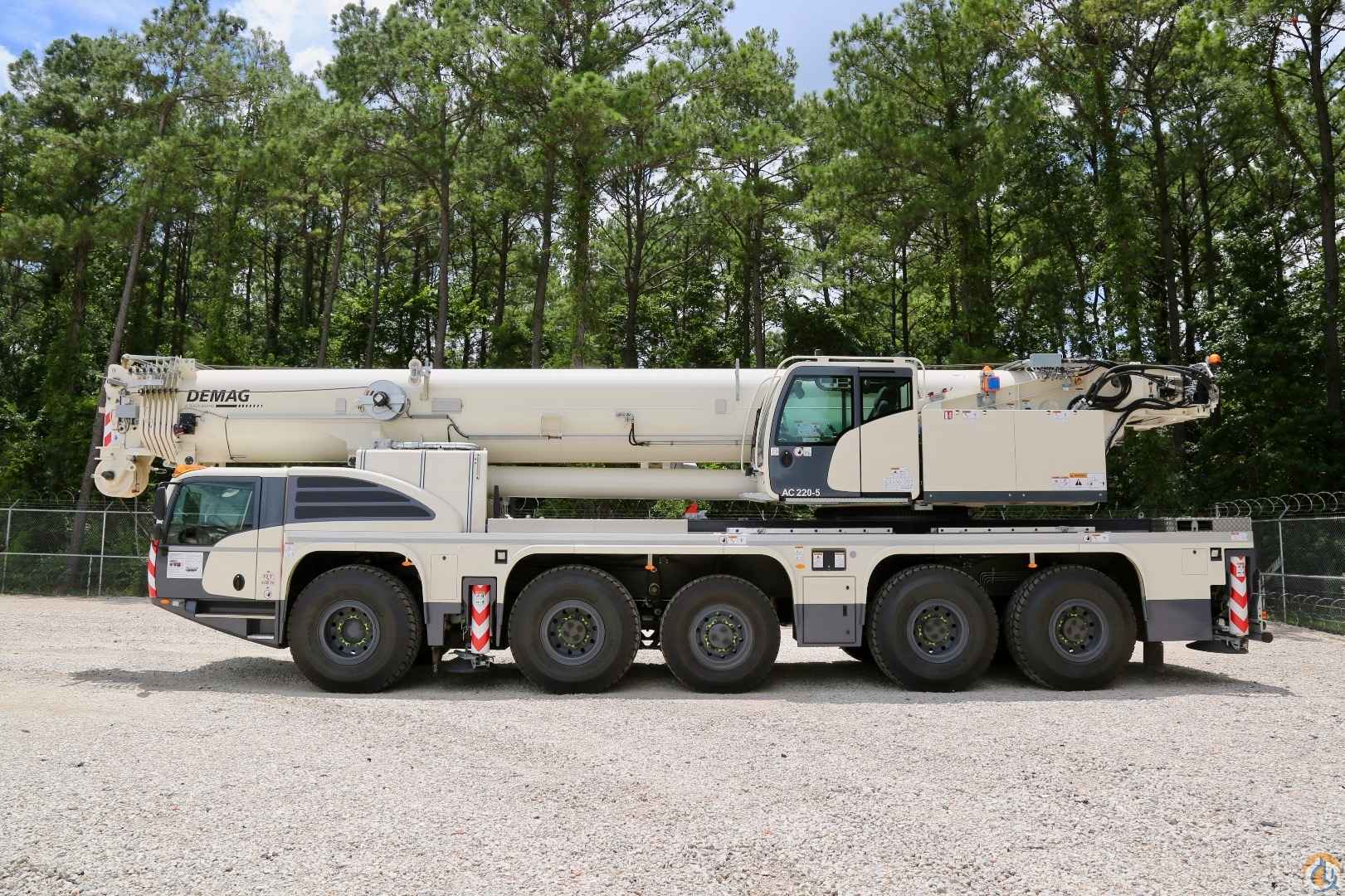

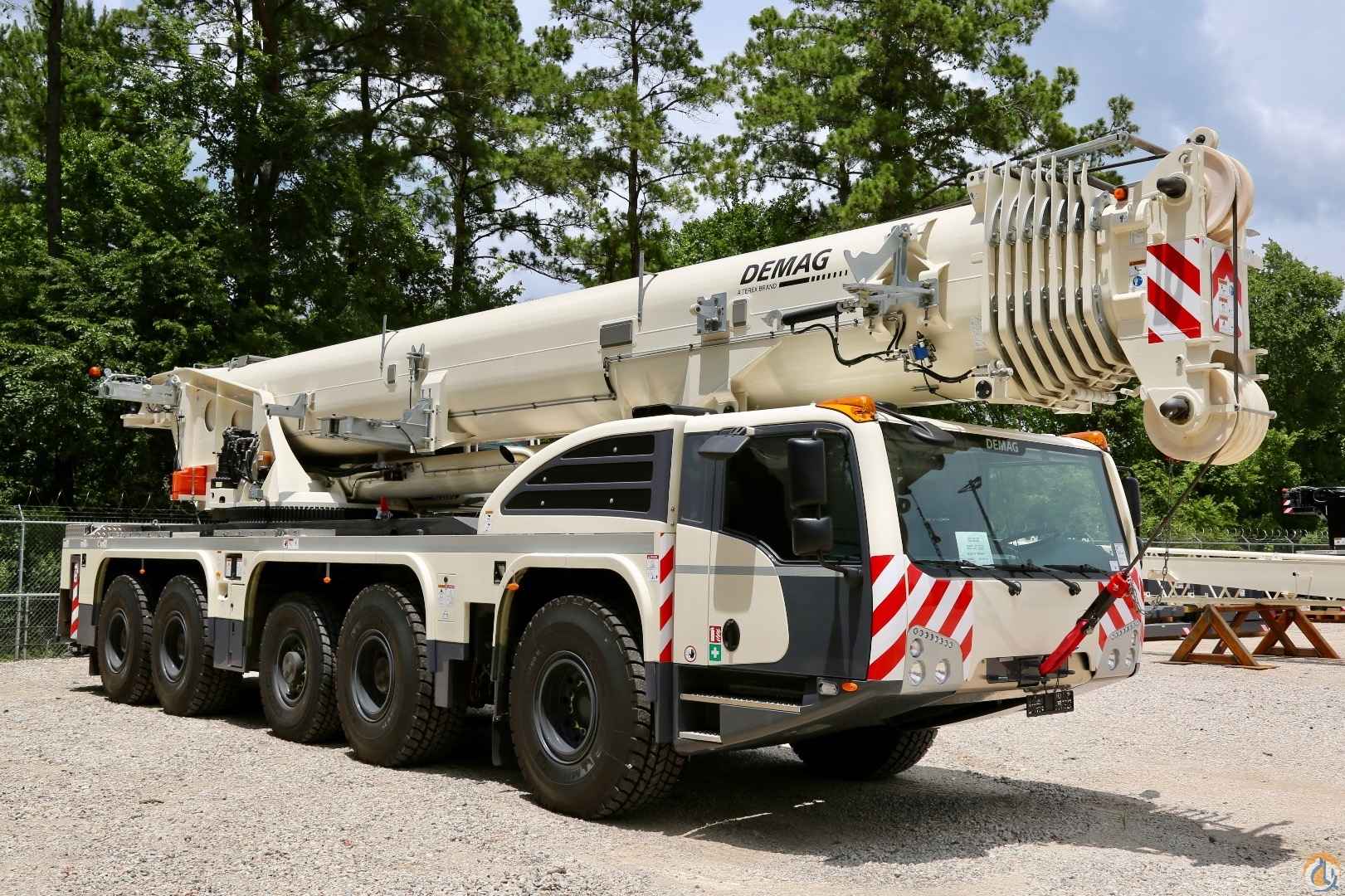

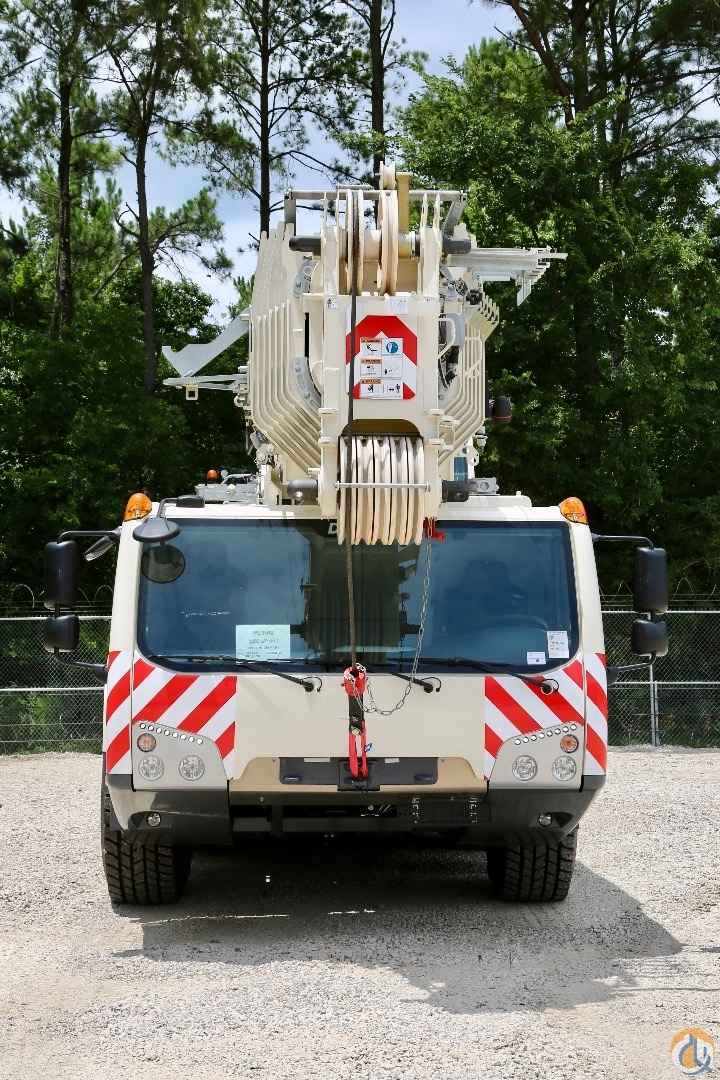

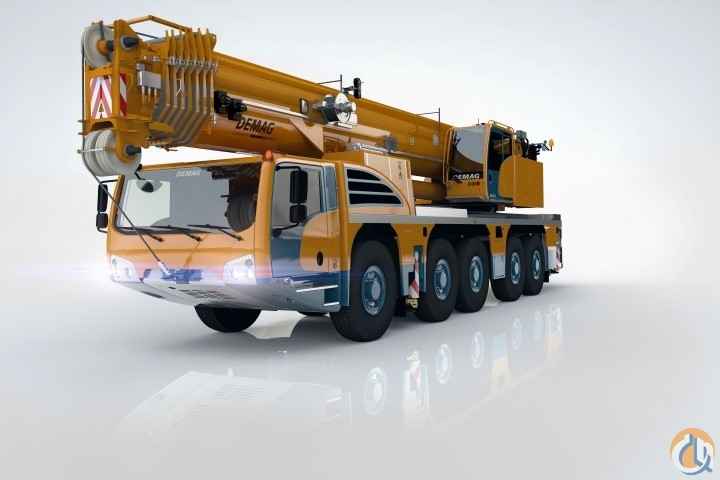

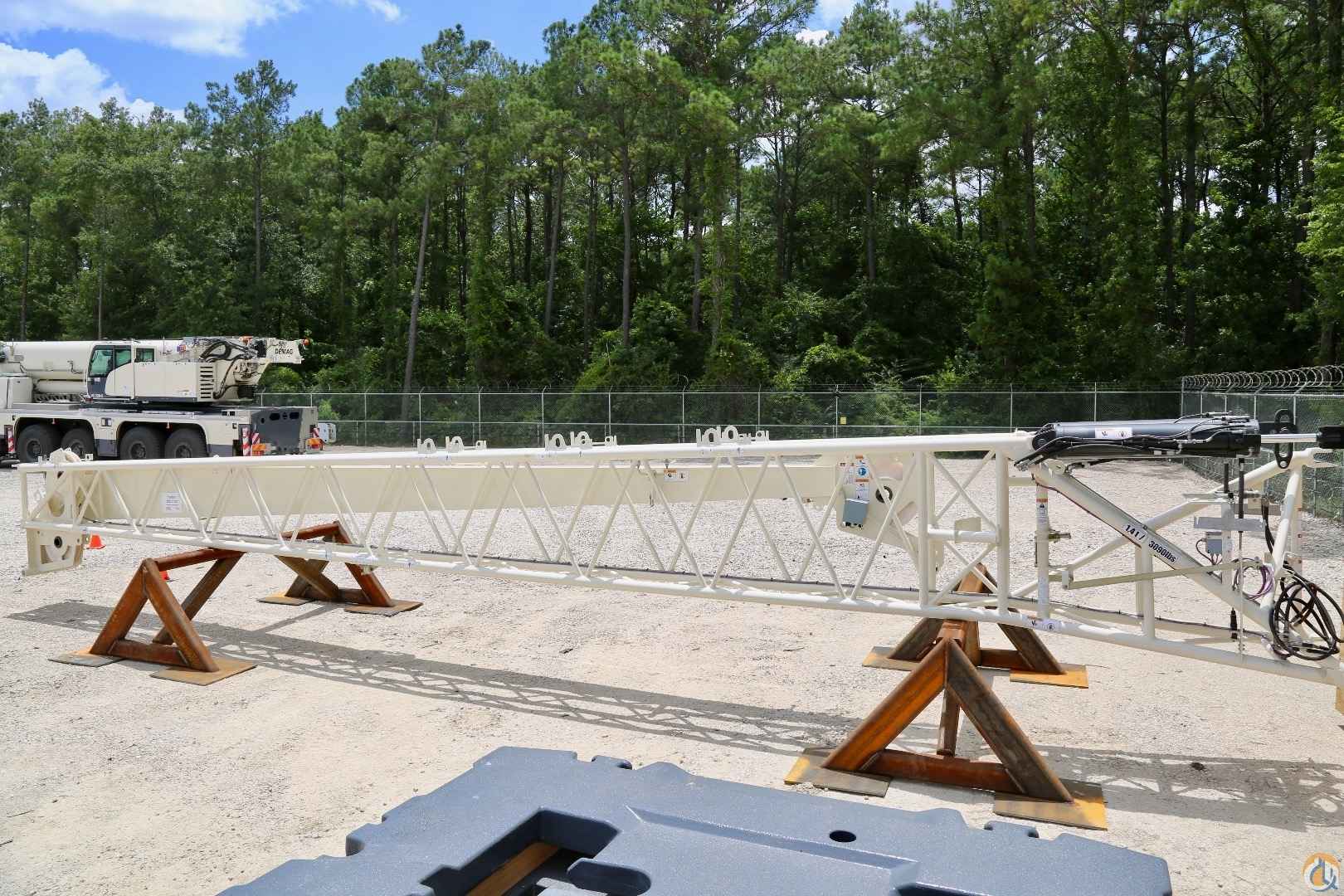

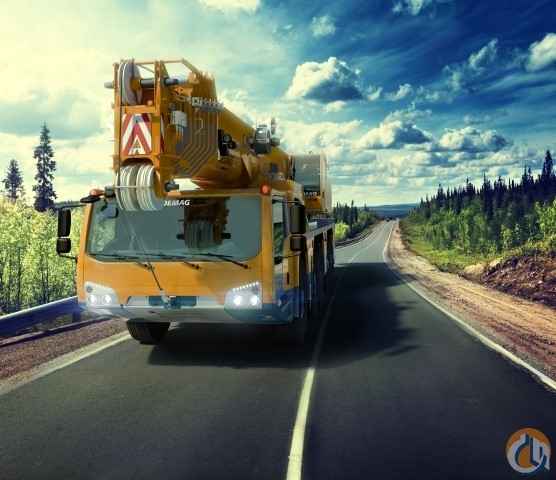

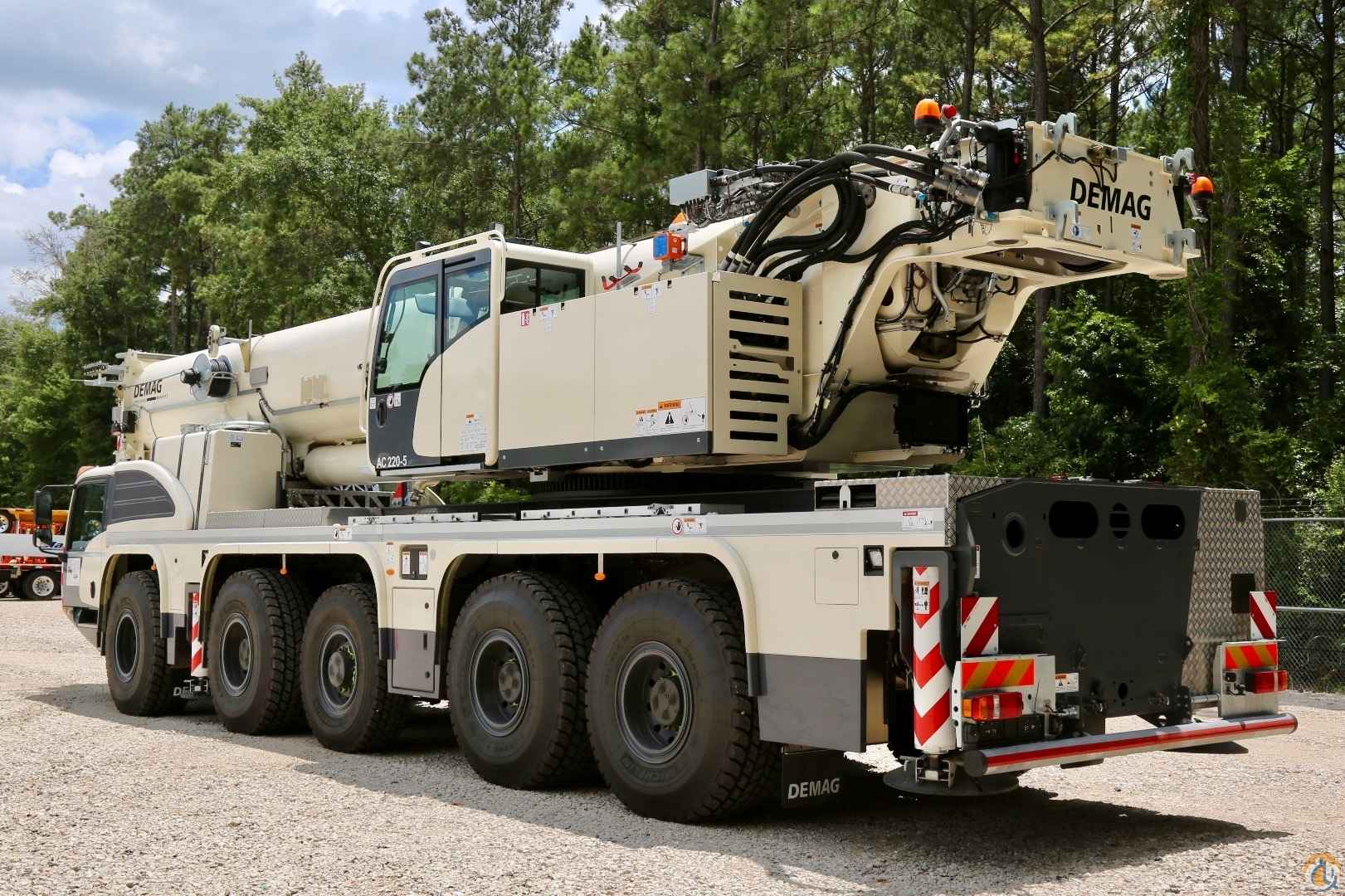

Crane fans in the United States haven’t had much chance to see the new Demag AC 220-5 all-terrain crane in person. The long wait is over as CraneWorks has one of the first AC 220-5 cranes in the US. First unveiled by Demag in 2016, the five-axle AC 220-5 reduces operational and maintenance costs through its single-engine concept with start-stop functionality and intelligent motor management system. With the longest boom of any five-axle crane on the market, no reach is too far; it has a 256-foot main boom that can be extended to a full 325 feet with jib extensions.

This 245-ton AC 220-5 in the CraneWorks sales fleet joins the 120-ton Demag AC-100 recently added to our rental fleet, giving our customers the ability to easily handle their toughest jobs.

The AC 220-5 is highly maneuverable with all-axle steering, independent rear-axle steering, and a dynamic launch control feature that helps the operator position the crane in confined spaces. The most compact crane in its class, it packs an impressive lifting capacity into a small frame (under 10 feet wide and 48 feet long), perfect for navigating through confined areas.

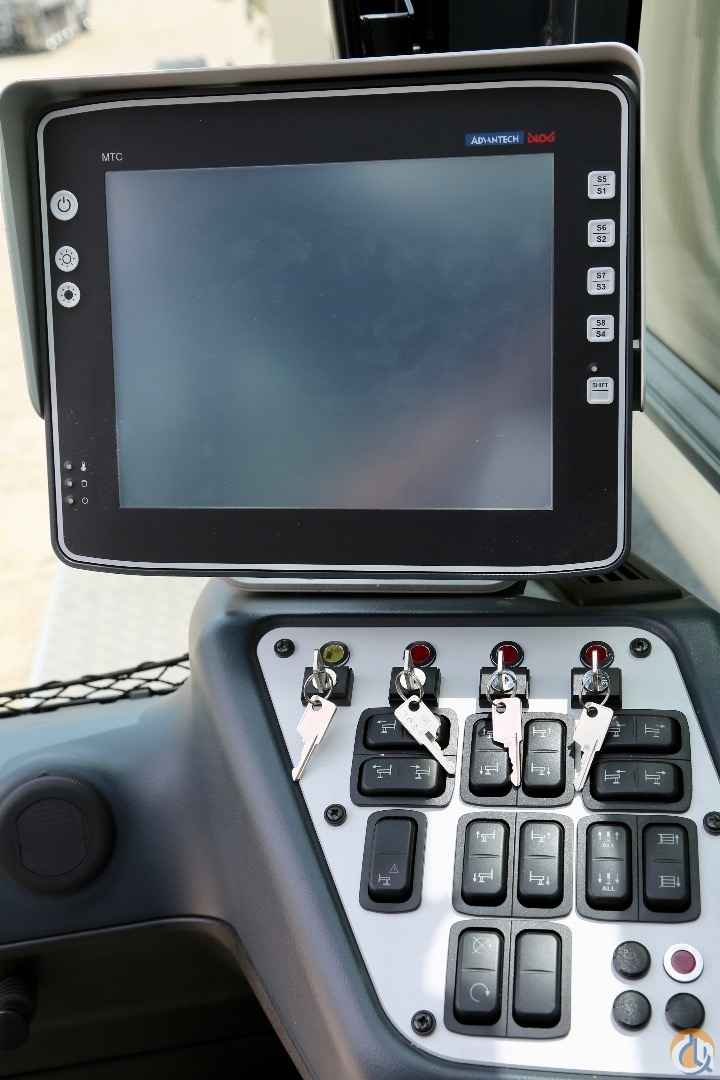

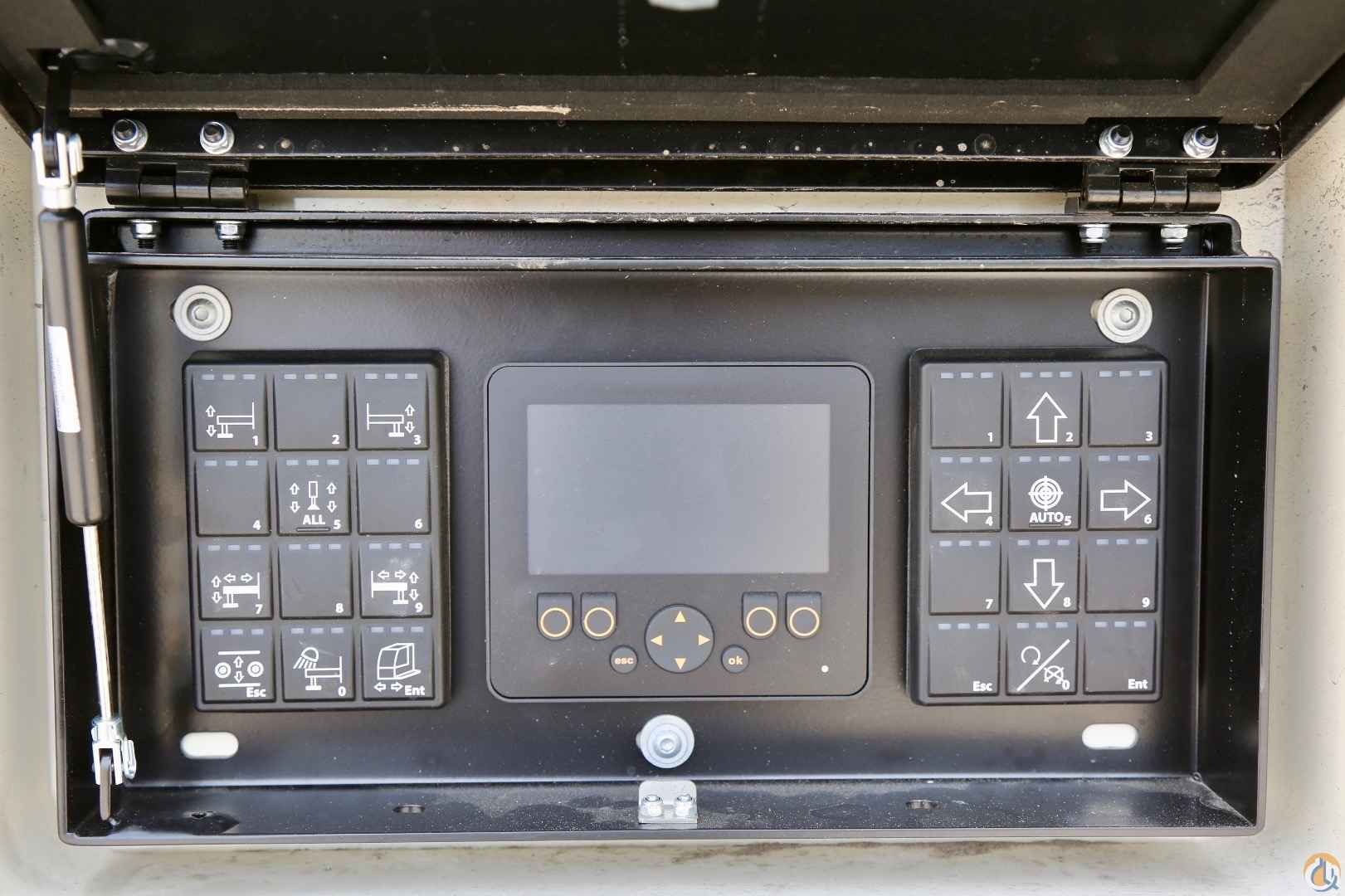

The crane is also equipped with Demag’s innovative IC-1 Plus control system, which calculates lifting capacities in real time for every position of the boom, subject to the slewing angle of the superstructure. This enables the maximum lifting capacity to be used in more situations, particularly when lifting over the outriggers. Ultimately, IC-1 Plus increases the crane's versatility and reduces transportation costs.

Specifications

Capacity class: 245 US tons

Main boom length: 255.9 ft

Maximum system length: 324.8 ft

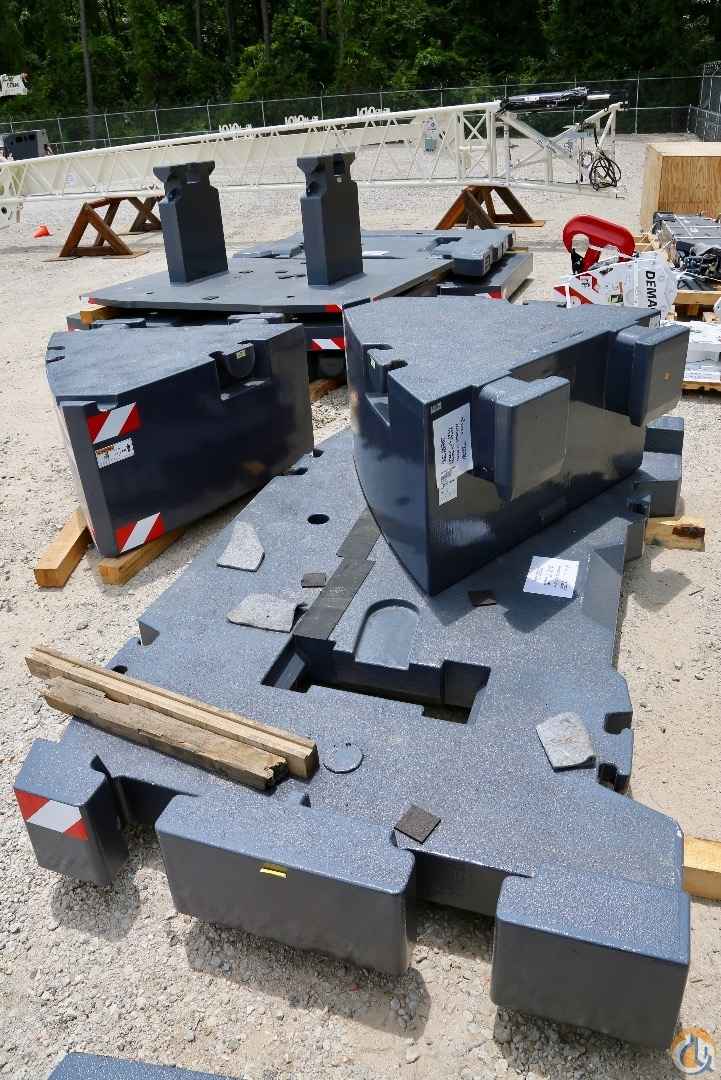

Maximum counterweight: 77.4 US tons

Overall length: 47.6 ft

Carrier length: 43.5 ft

Turning radius (over cabin / all axle steered): 39.3 / 37.3 ft

Carrier engine: 500 hp

Maximum travel speed: 53 mph

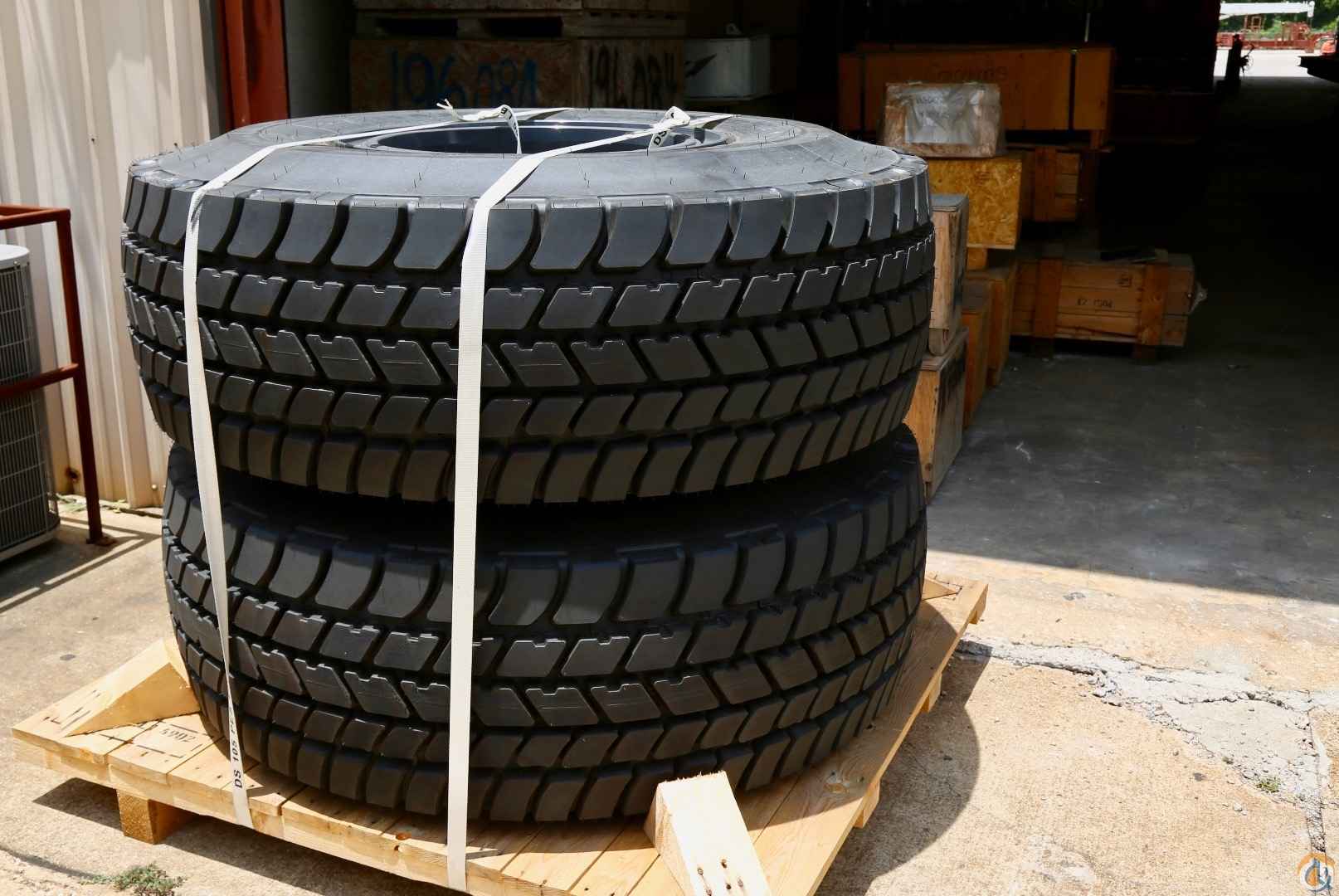

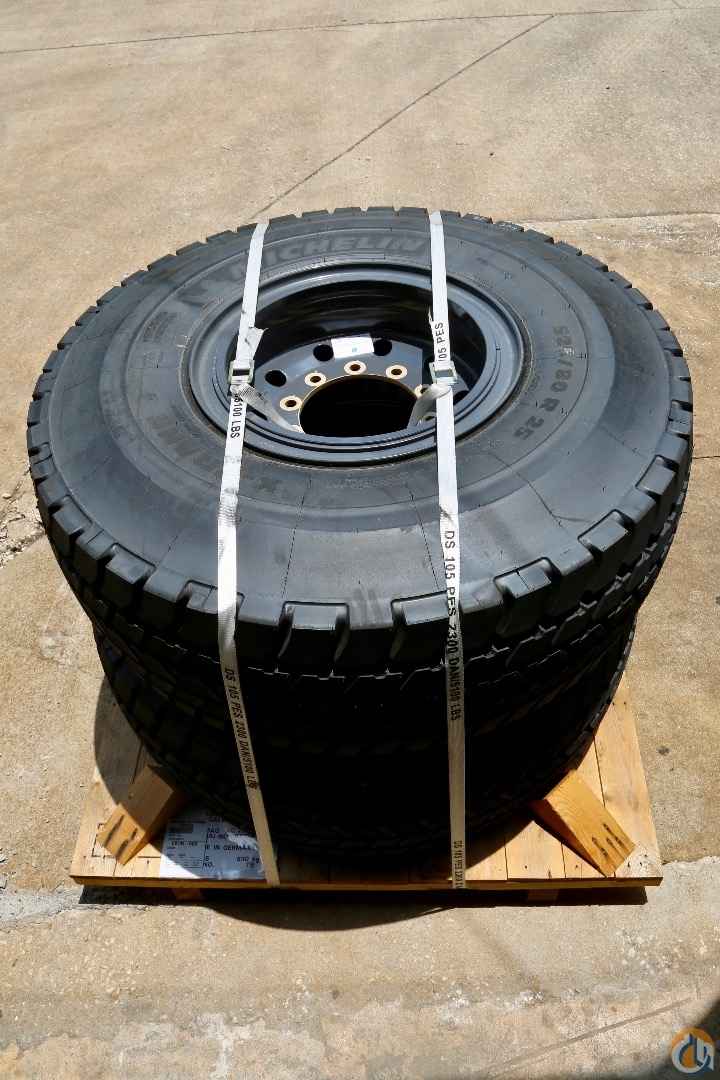

Tires: 14.00 (16.00 / 20.5)

Maximum gradability: 64%

Features

Outstanding reach: With 255.9 ft main boom length the AC 220-5 benefits from the longest main boom length of any 5-axle crane

IC-1 Plus: Real time calculation of lifting capacities allows working in a higher capacity range with less counterweight; this increases versatility and reduces transport costs

Reduced operational costs: Single engine concept, start-stop function and an intelligent motor management system reduces operational cost and maintenance

Jobsite accessibility: Most compact crane in its capacity class with a total length of 47.6 m and a carrier width of 9.8 ft



For more information on the Demag AC 220-5 or to make a purchase inquiry, contact CraneWorks today.

Ref no: PO39408

Email Seller
Phone: 1-866-458-5915
Fax: 713-491-9359

Address: 7795 Little York Road, Houston, TX 77016, USA
