CRANE CARRIER

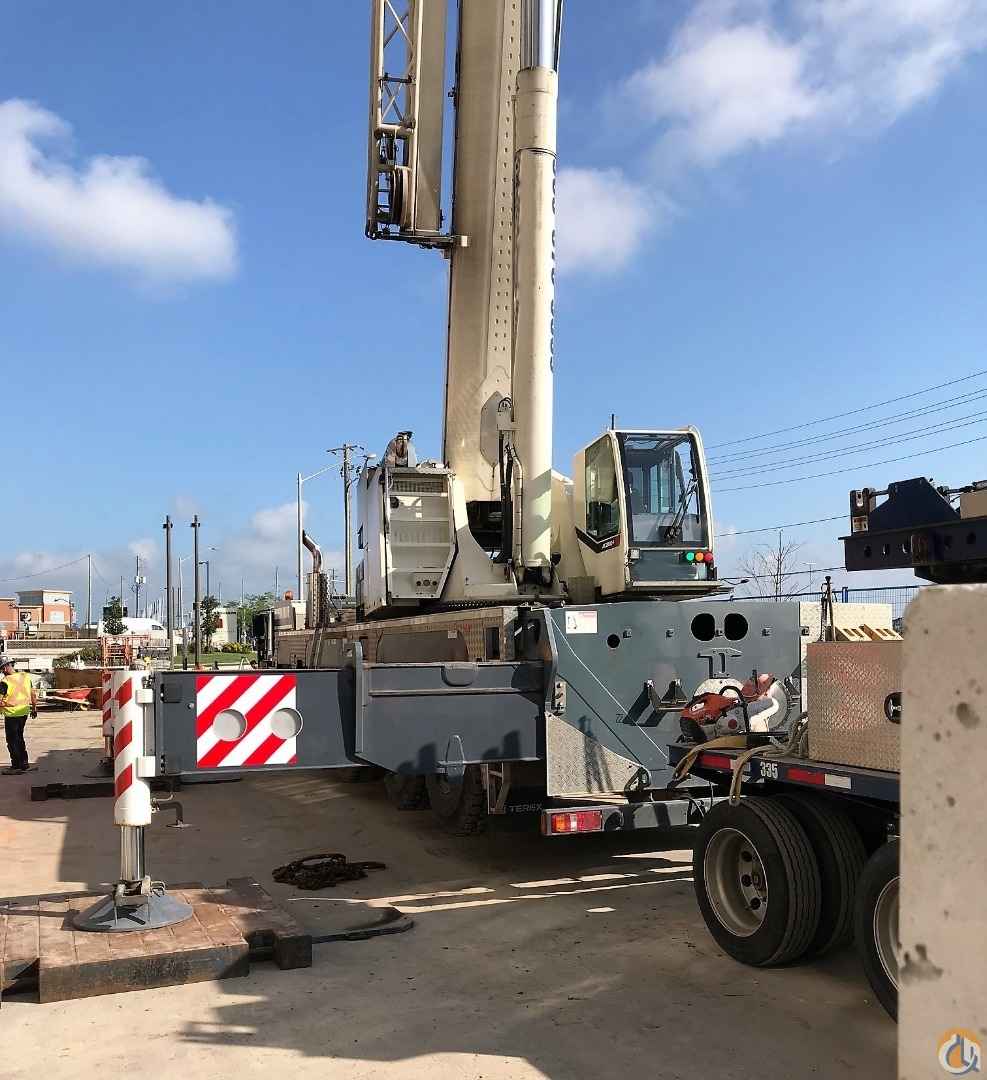

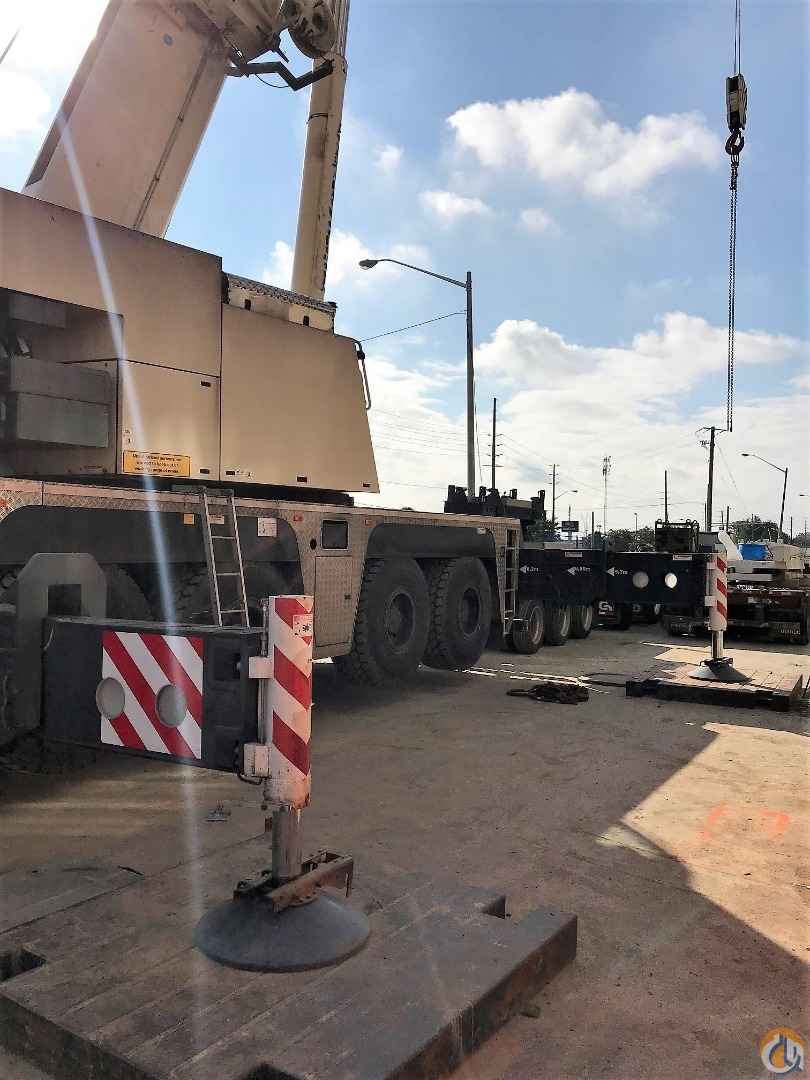

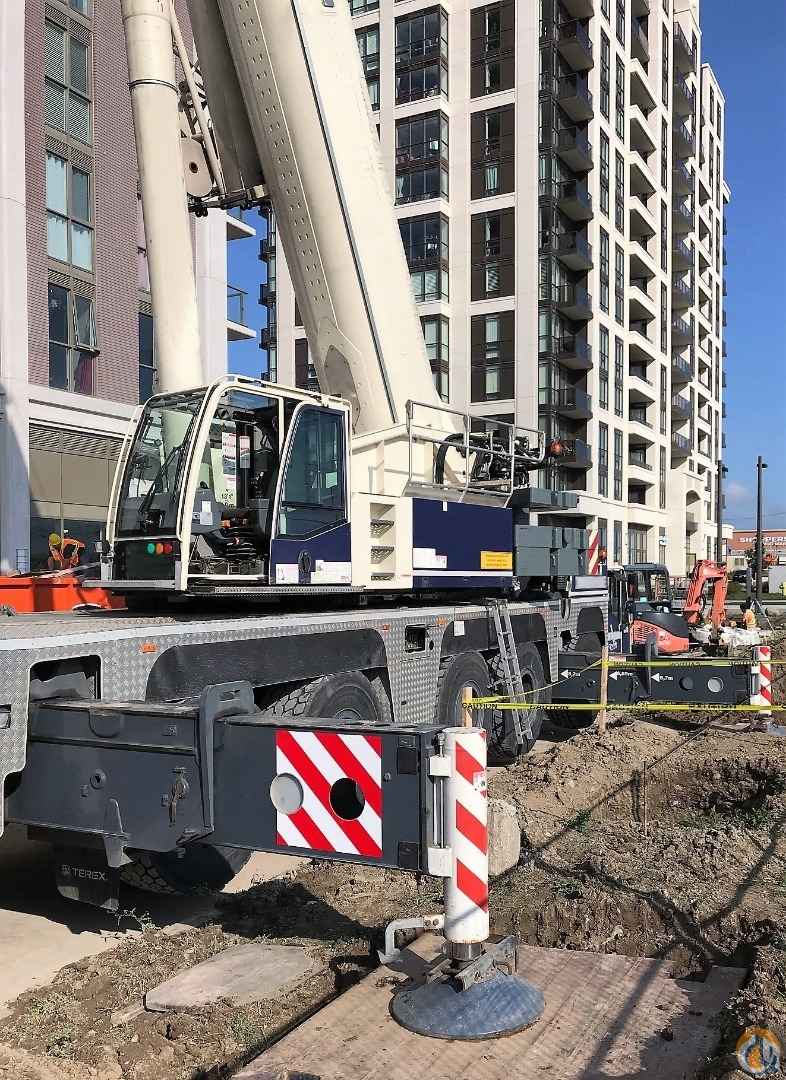

·         Outriggers: H-4-Point design; Vertical and horizontal agitation fully hydraulic; 4 loose outrigger pads incl. transport storage and stowage; Manual or automatic levelling alternatively; 4 outrigger bases

·         Engine: Daimler AG; Output 390kW (530HP), Torque 2400Nm, certifications in accordance with EURO MOT 3a, TIER 3, CARB; Exhaust system cpl. stainless steel, incl. spark arrester, certification in accordance with 94/4/EC (ATAX Directive) & EN1834-2

·         Fuel tank: 500l; Fuel: Diesel or alternatives (no RME/ Bio-Diesel); Supplies carrier and crane (50l buffer tank at crane)

·         Transmission: ZF AS-Tronic; Automated gearbox with integrated hydraulic retarder, 16 forward speeds and 2 reverse; 2-stage transfer case with switchable off-road gear

·         Axles. 10 x 8 x 8; 5 Axles, axles 2,3,4,5 driven and equipped with selectable transverse lock, axles 3,4 with selectable longitudinal lock; axles 1,2,4,5 steered, axle 3 liftable

·         Suspension: Hydropneumatic suspension with axle load compensation; Hydraulically lockable; Manual or automatic levelling alternatively

·         Steering: Dual circuit hydro semiblock steering with emergency steering pump; Active rear axle steering (axles 4,5) with 6 different steering programs

·         Brakes: Pneumatic dual circuit service brake with antilock system, acting on all wheels; Disc brakes; Hydraulic retarder integrated into transmission as sustained-action brake; Additional exhaust brake and constant throttle valve; spring-loaded parking brake

·         Wheels: 395/95R25 (14.00R25); Steel rims 9,5-25/1,7"

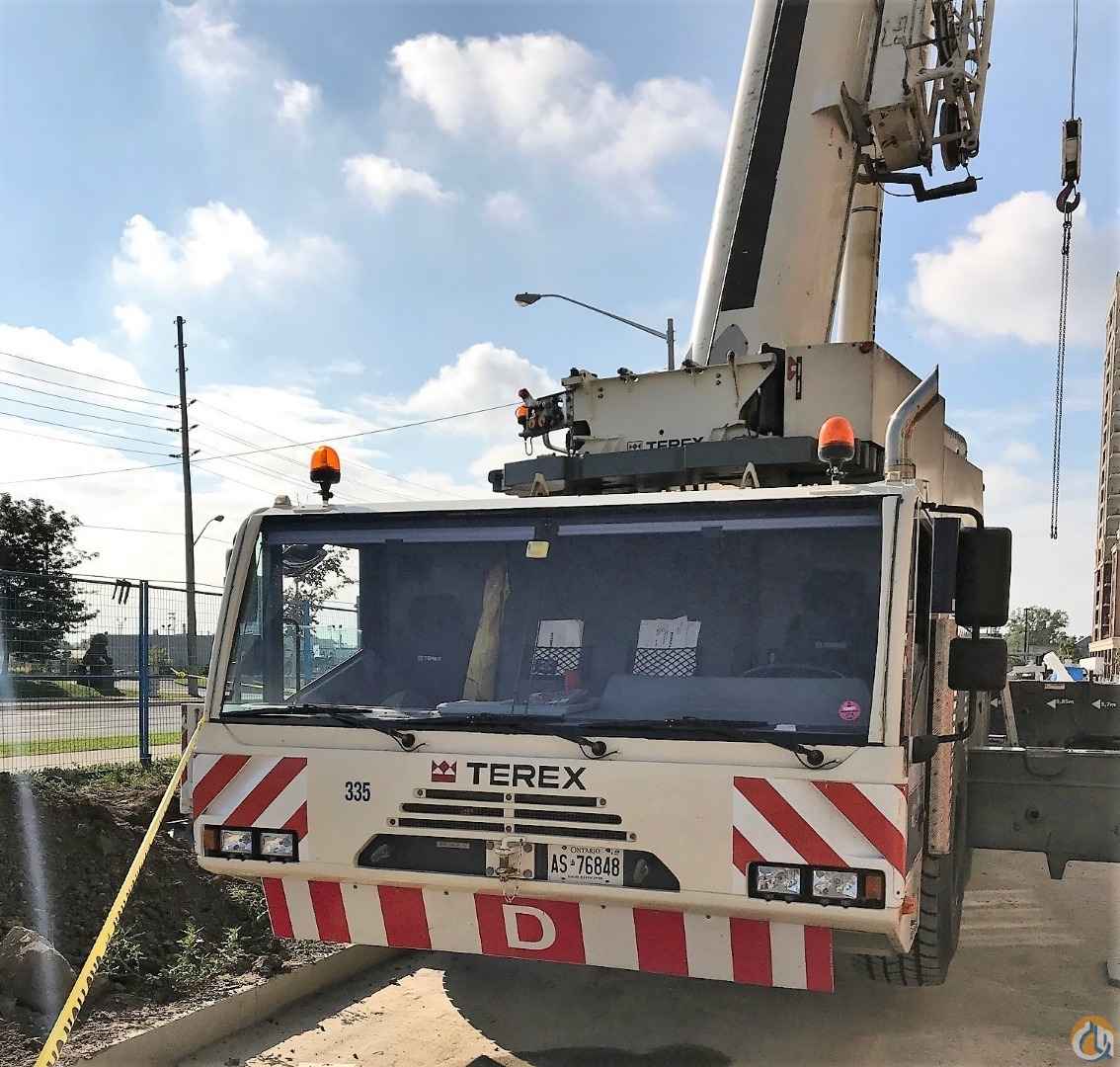

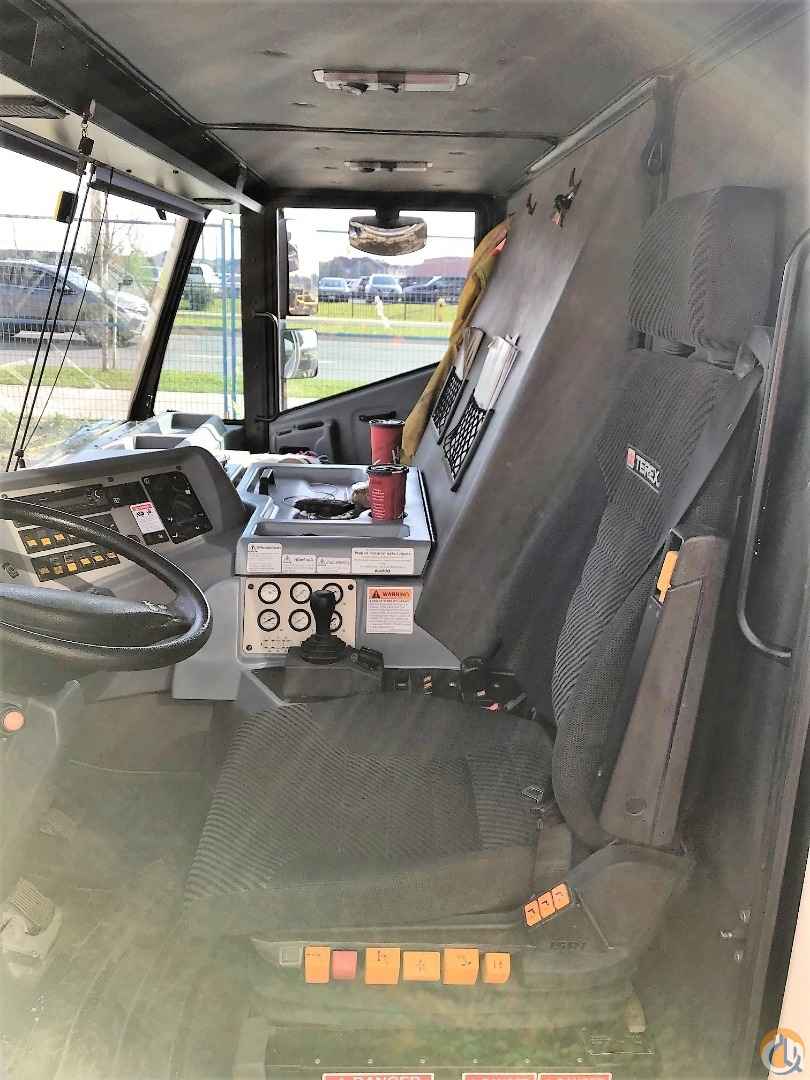

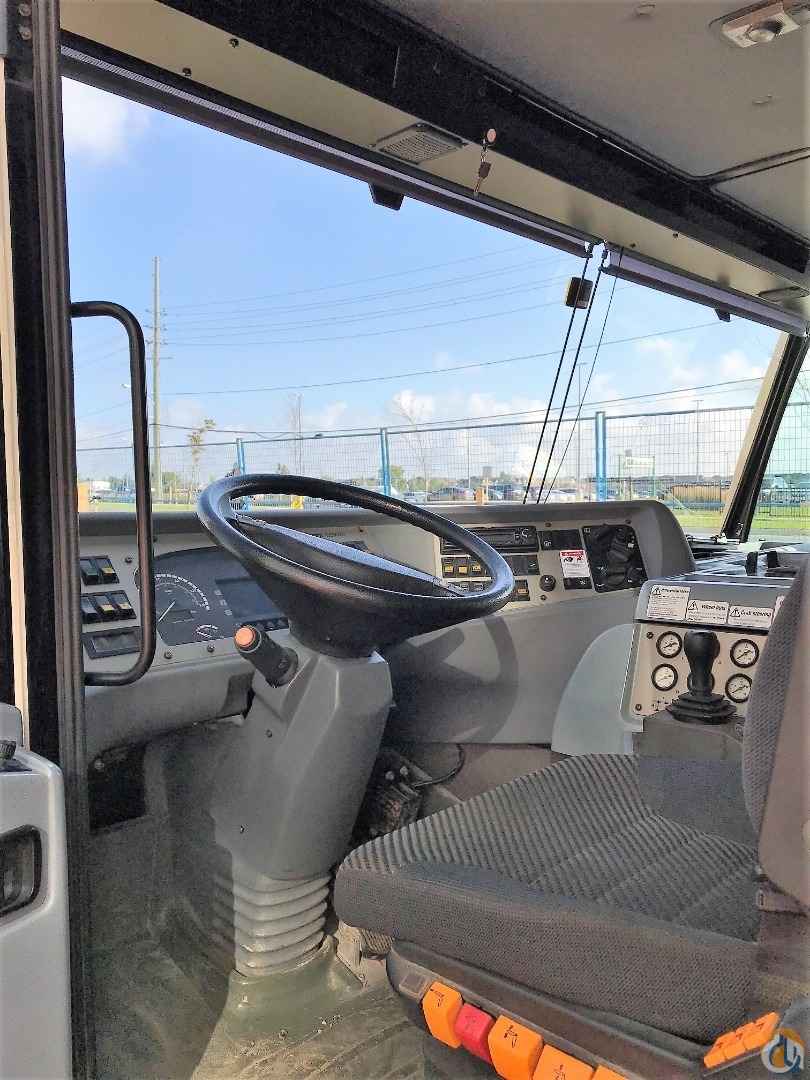

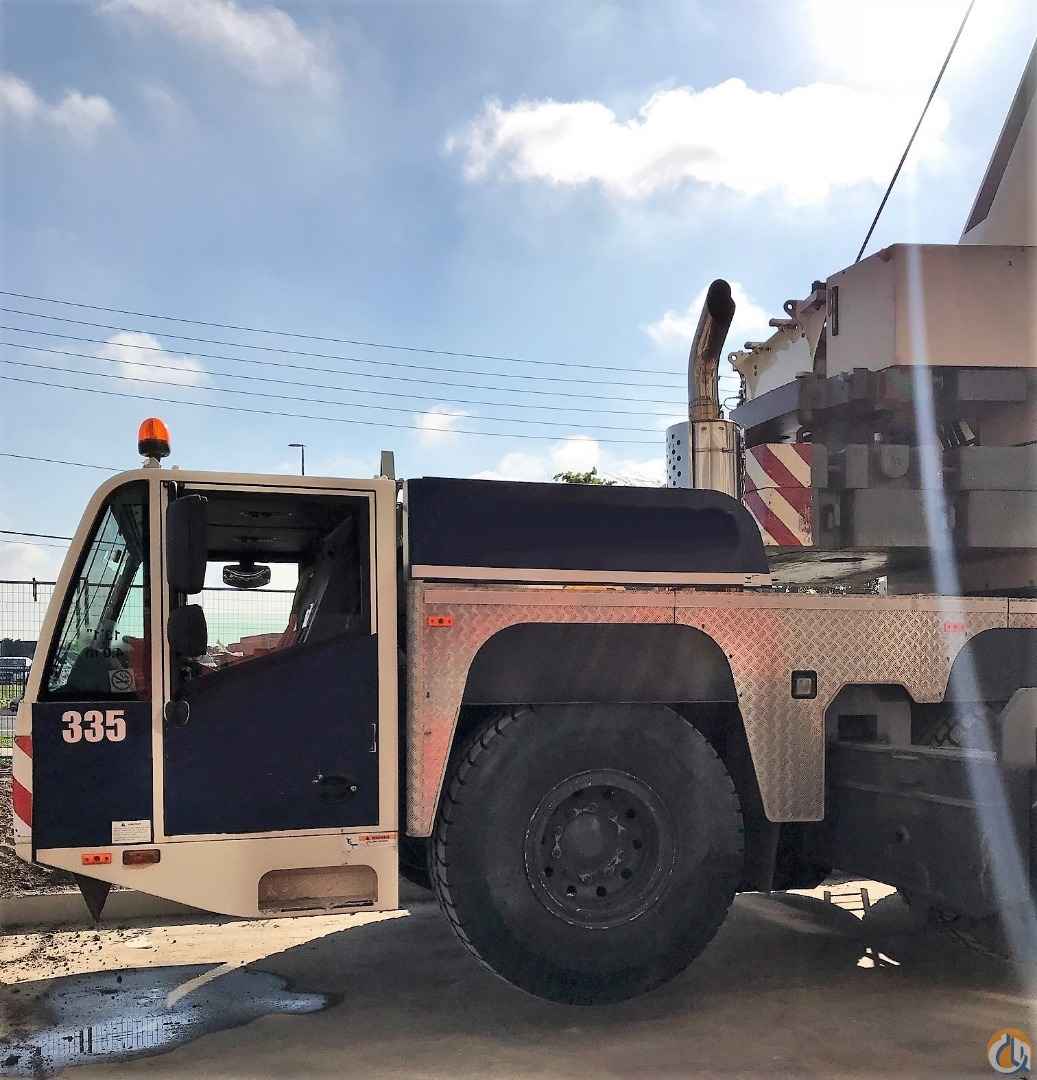

·         Cab: Wide version 2,88m; 2 adjustable seats with seat heating, armrests and pneumatic suspension; steering wheel height and tilt adjustable; Power door windows

·         Tinted safety glass; engine-dependent water heating; Fire extinguisher; Air condition; Radio CD-Player

·         Tachometer MTCO: Speed indication and analogue tracking on paper disc

·         Stowage: Open storage boxes for lifting accessories; Lockable compartments

·         Miscellaneous: Central lubrication; Ascendencies; Loose stepladder; Electronic immobiliser system incl. 3 keys; Speed control

SUPERSTRUCTURE

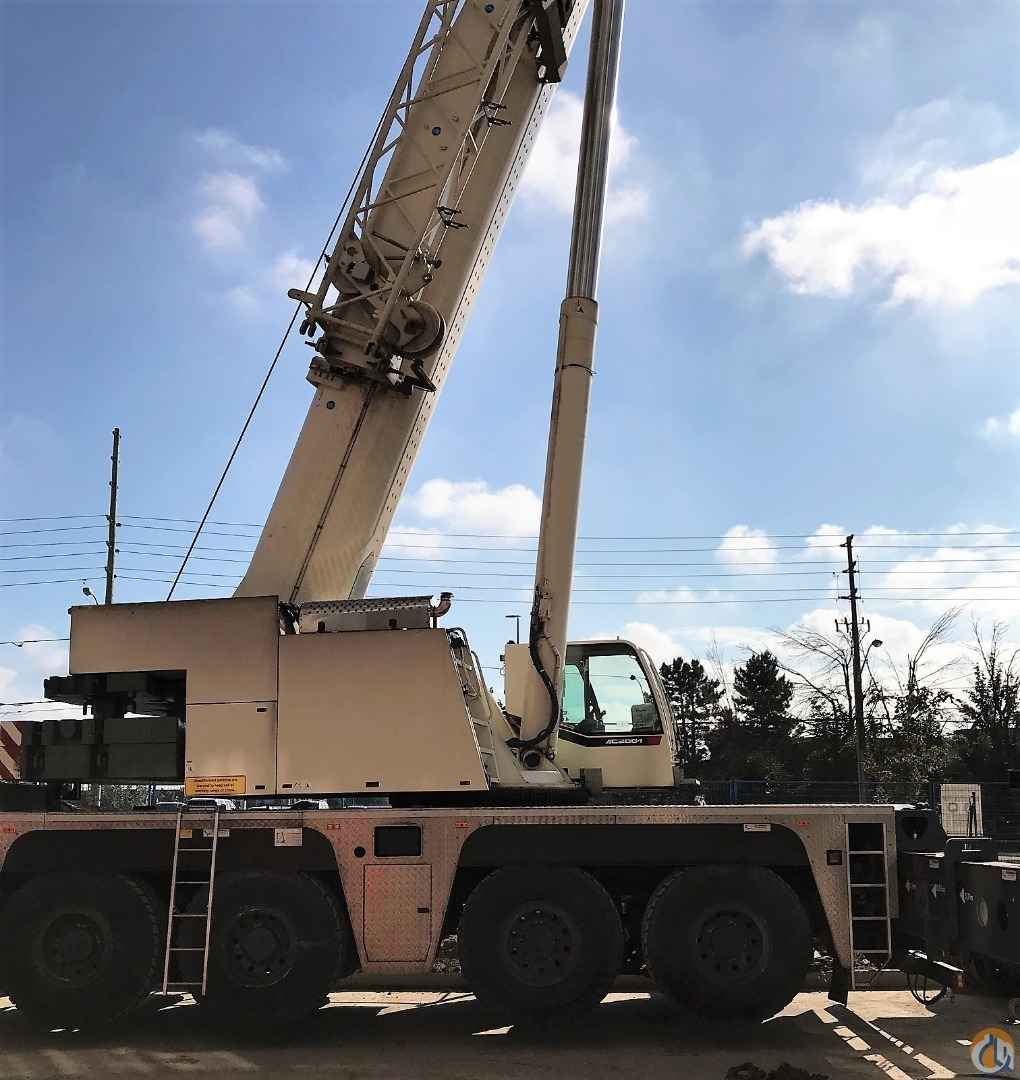

·         Telescopic boom HA: 12,5m - 67,8m; Single cylinder telescoping system, manual or automatic telescoping alternativly; Attachments for all equipment and extensions; 6 sheaves integrated in boom head for max. capacity of 112,6t

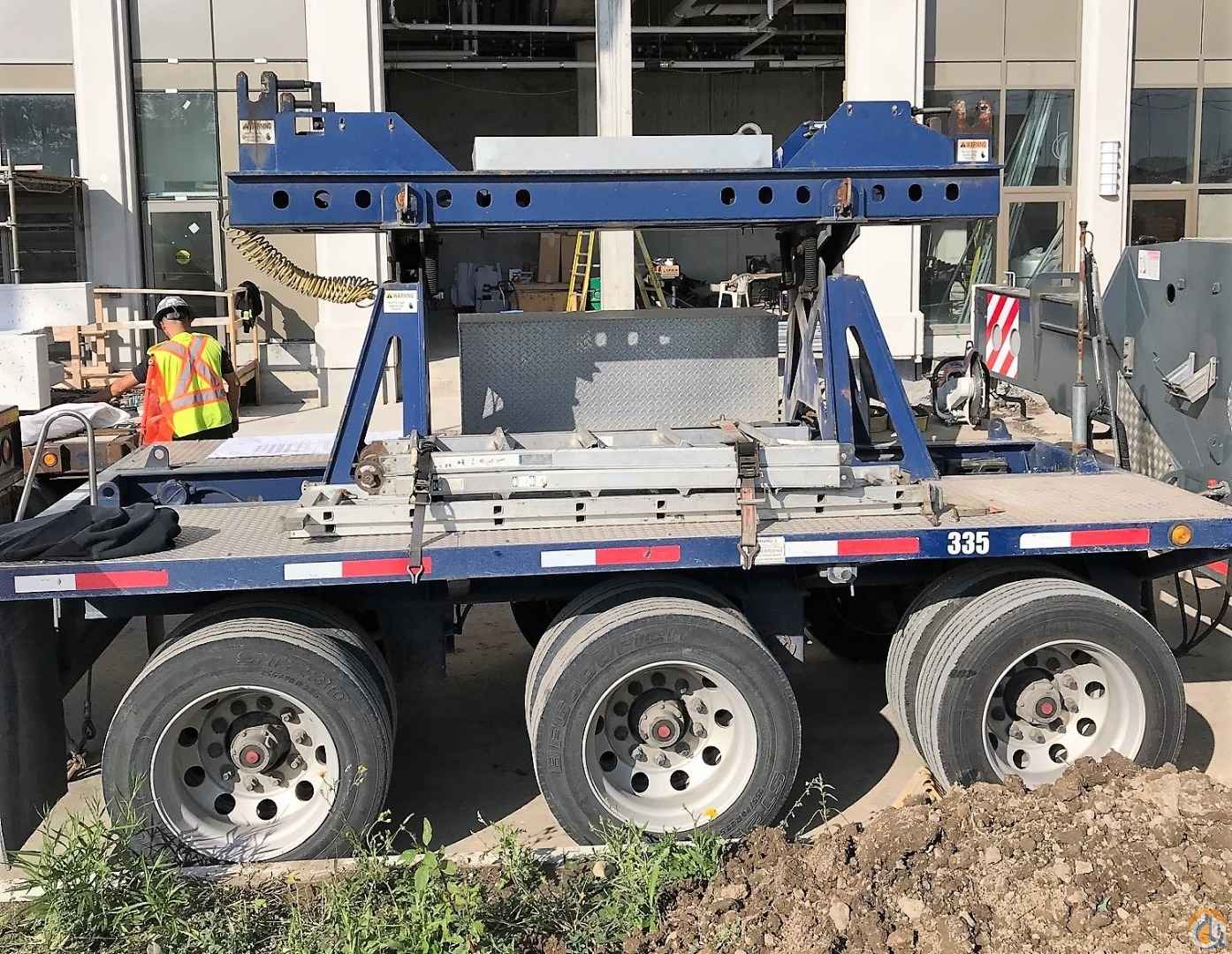

·         Counterweight: 68,5 t; Automatic rigging system; Max. 16,4t can be carried on board serially

·         Boom luffing: 1 luffing cylinders with automatic lowering brake valve

·         Rotary drive: 1 slewing gear unit with spring-loaded multi-disc brake; Different operating modes selectable

·         H1: Hoist with spring-loaded multi-disc brake; Resolver

·         Engine: Daimler AG; Output 170kW (231HP), Torque 820Nm, certifications in accordance with EURO MOT 3a, TIER 3, CARB; ; Exhaust system cpl. stainless steel, incl. spark arrester, certification in accordance with 94/4/EC (ATAX Directive) & EN1834-2

·         Drive: Hydraulic system with power control; Axial-piston dual pump and 2 separate pumps for rotary drive and auxiliary consumers; Hydraulic oil cooler

·         Control system: Pump control for 4 simultaneous working movements; electric pilot controls via 2 two-axis joysticks; different control modes selectable for hydraulic circuits; Memory for individual operator settings

·         Operator aids: Demag IC-1, with integrated electronic load moment indicator; Colour display; Displaying of current operating conditions, load charts, fault indicator; Outrigger load indicator; Working range limiter

·         Acoustical and optical (pre-) warning when approaching limit devices and conditions; Signal lights indicating LMI-load on crane cab; Crane data logger

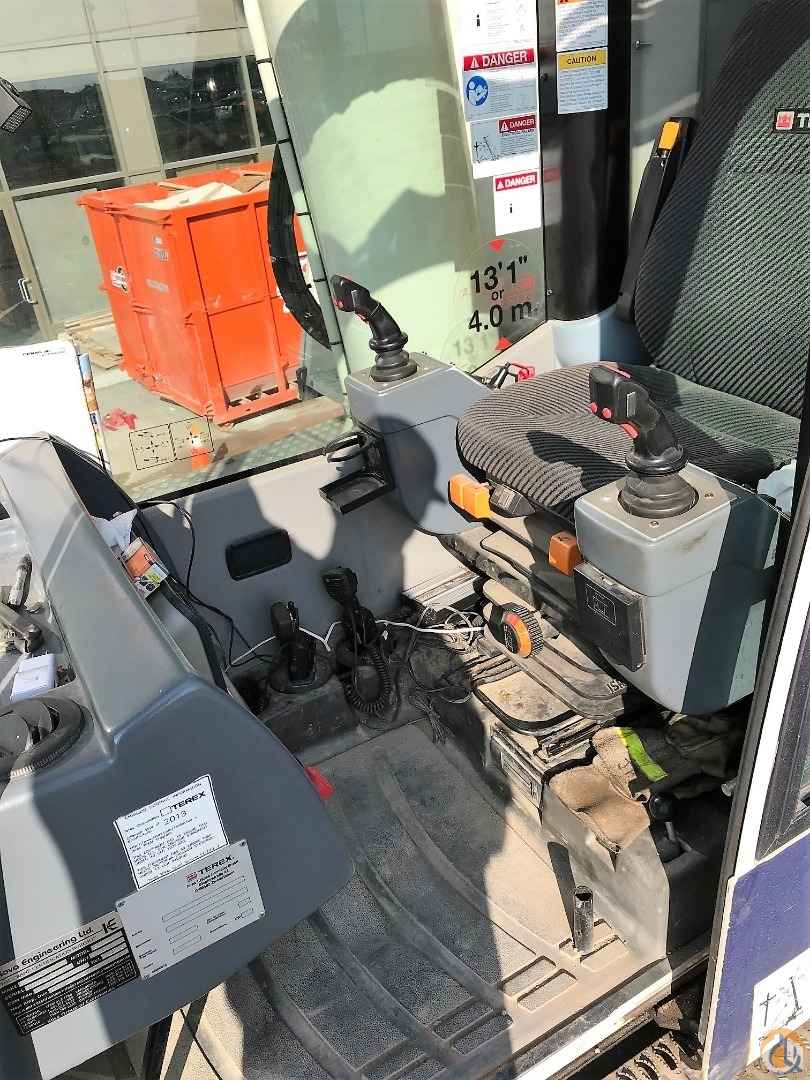

·         Cab: Version 0,88m; Tilt infinitely variable 20°; Seat heating; Sliding window in door and rear; Fold-out front window; Extendable side pedestal, foldable front pedestal; Handrails

·         Tinted safety glass; pull-down sun visor and light curtains; engine-dependent and independent heating with timer; Air condition; Radio CD-Player

·         Miscellaneous: Safety balustrade and handrails for crane cab access

·         Illumination: Work lights: 1 for hoists and rigging, 1 adjustable for work prefield at crane cab, 1x engine area crane, 4 for outriggers; Rotary beacons: 2x on carrier cab, 2x on crane tail

·         Anemometer: Disconnectable, to be used with all extensions

·         Toolkit

·         Painting T: Duplex basecoat, topcoat in Terex standard RAL 1013 "Pearl White" and RAL 7012 "Basalt Grey"
