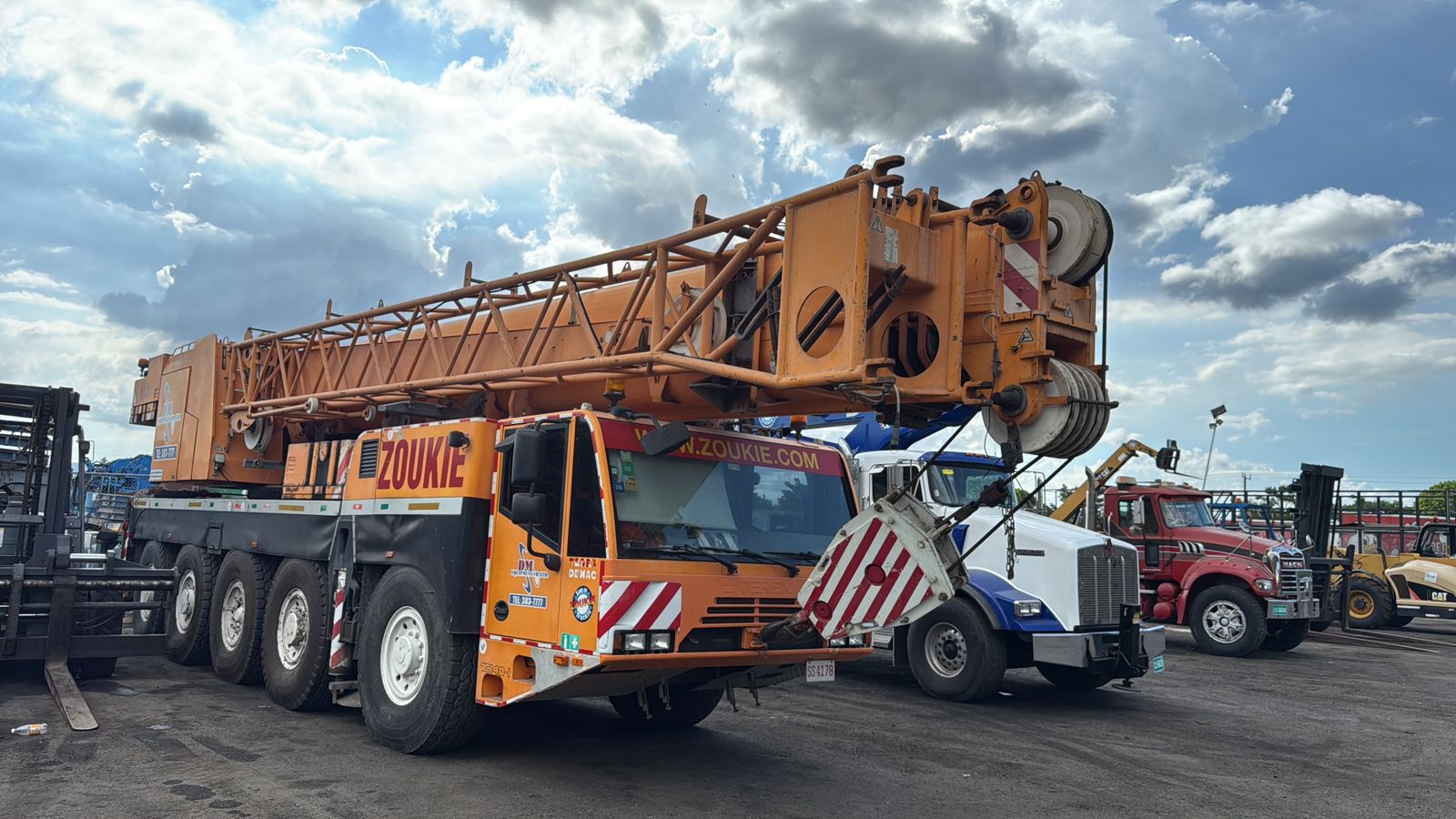

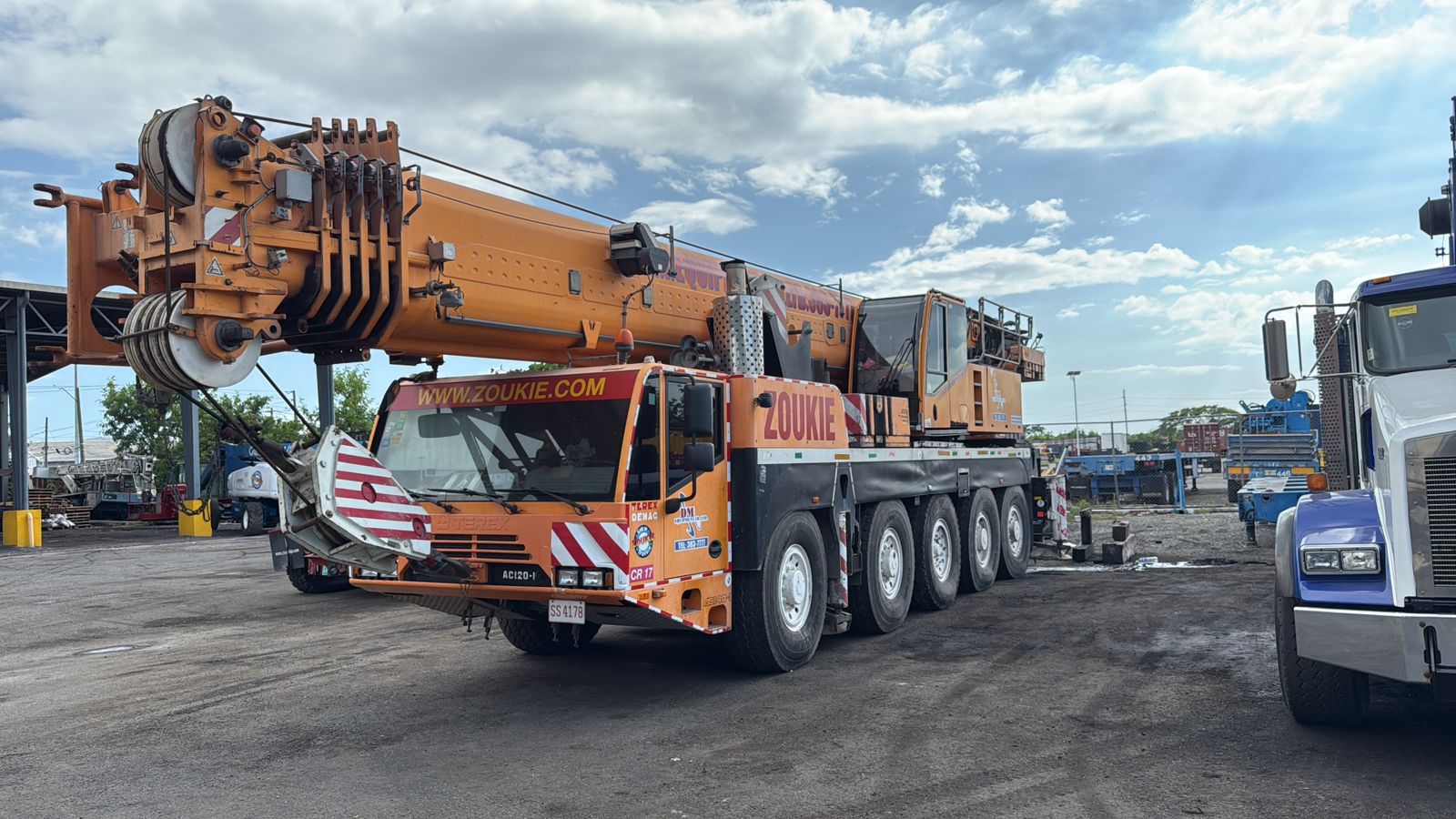

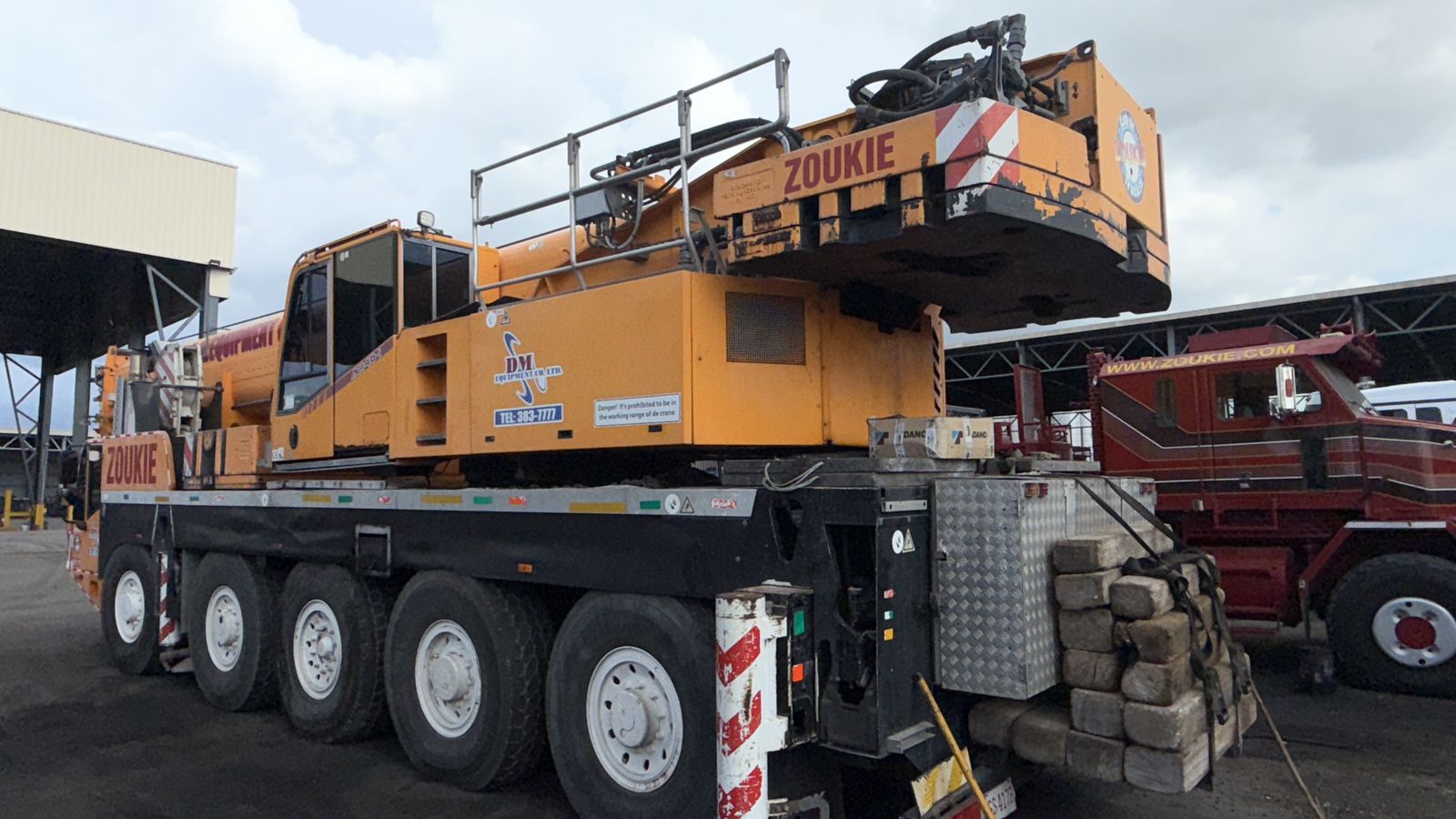

2009 Demag AC 140 COMPACT All Terrain Crane for Sale

Here are the key specifications for the Terex-Demag AC 140 Compact all-terrain crane (often referred to as AC140 Compact) — a 140 ton class crane with a very compact design and excellent mobility:

📊 General Crane Specs

• Crane type: All-terrain mobile crane (compact 5-axle design)

• Rated capacity: ~140 tons (metric) / ~154 US tons class

• Carrier configuration: 5 axles

• Total weight: ~60 t (approx.)

• Max. travel speed: ~85 km/h (road-legal travel)

📏 Dimensions

• Transport length: ~14.18 m

• Transport width: ~2.70 m

• Transport height: ~4 m

• Width with extended outriggers: up to ~7.2 m

🏗️ Boom & Reach

• Main (telescopic) boom: up to 60 m (~197 ft)

• Max. system (with jib): up to 93 m (~305 ft)

• Optional Jib: up to ~19 m in typical configurations

🔧 Drivetrain & Steering

• Engine (carrier): approx. 350 kW (476 PS) (MTU; example spec)

• Transmission: ZF AS-Tronic, 16 forward + 2 reverse gears

• Drive/steer: 10×6×(8 standard) with speed-dependent rear axle steering for tight maneuvering

• Gradeability: ~93 % (approx.)

⚙️ Performance & Features

• Compact design: Narrow width (~2.7 m) and short carrier length for tight jobsite access

• Outriggers: Extend wide for stable lifting footprint (base approx. 7.2 × 7.0 m)

• Steering systems: Multi-mode for improved on-site and road maneuverability

• Operator controls: Modern crane control system (touchscreen IC-1 or equivalent)
