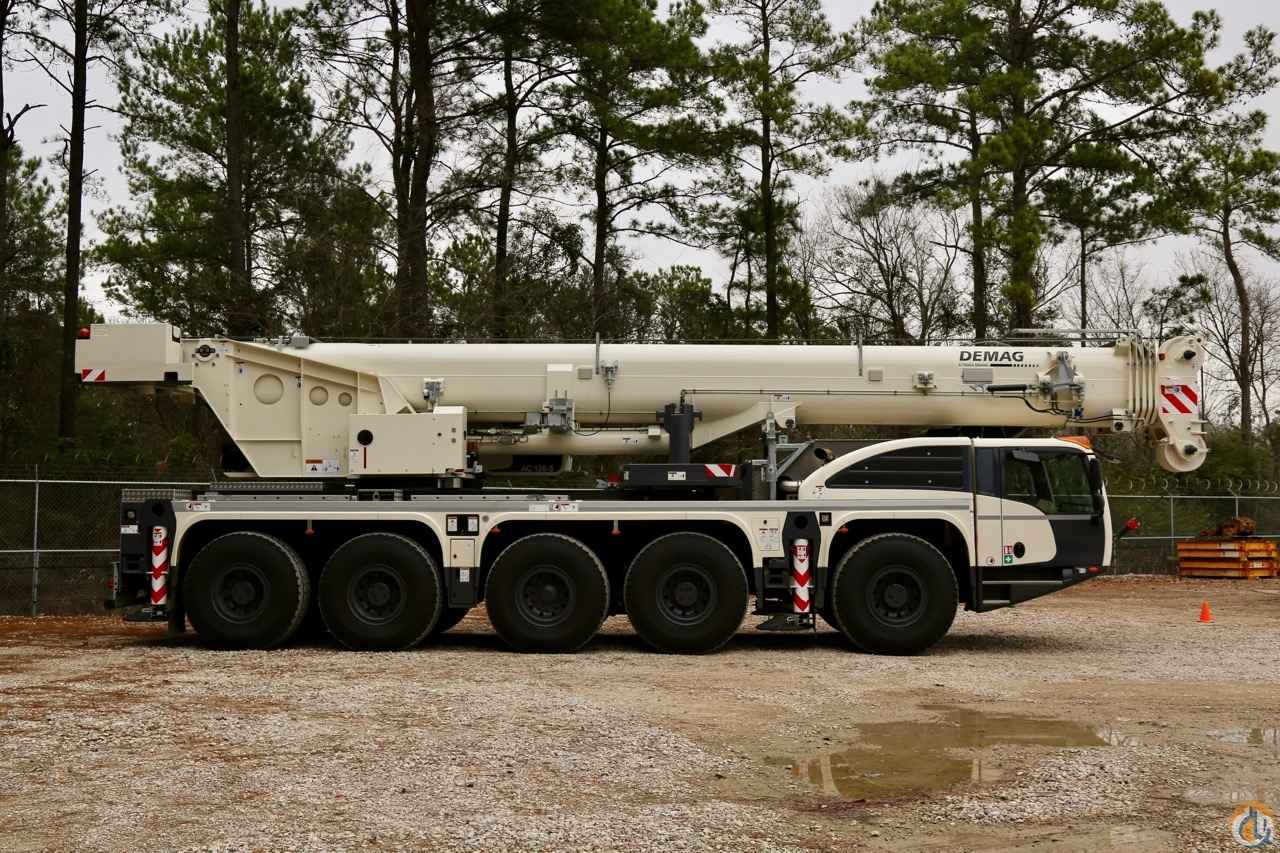

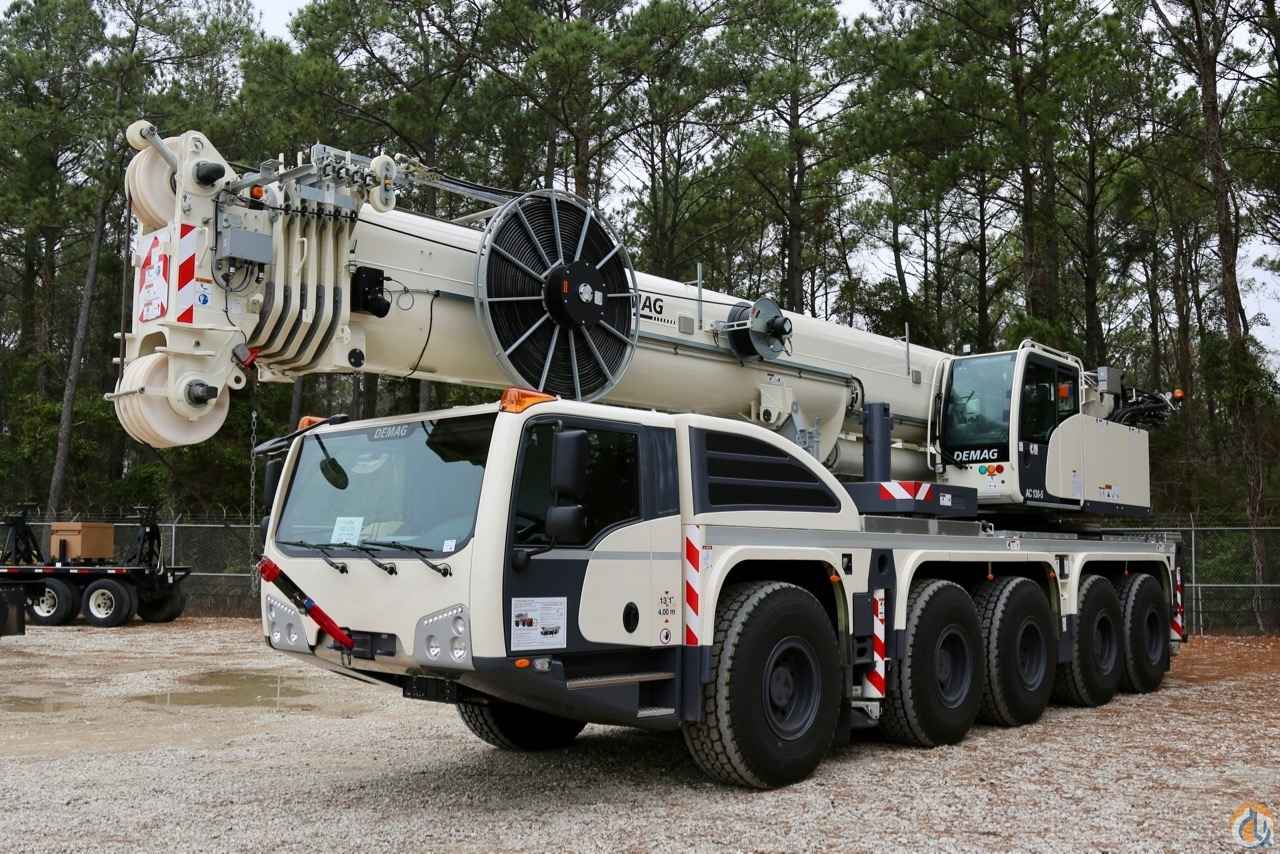

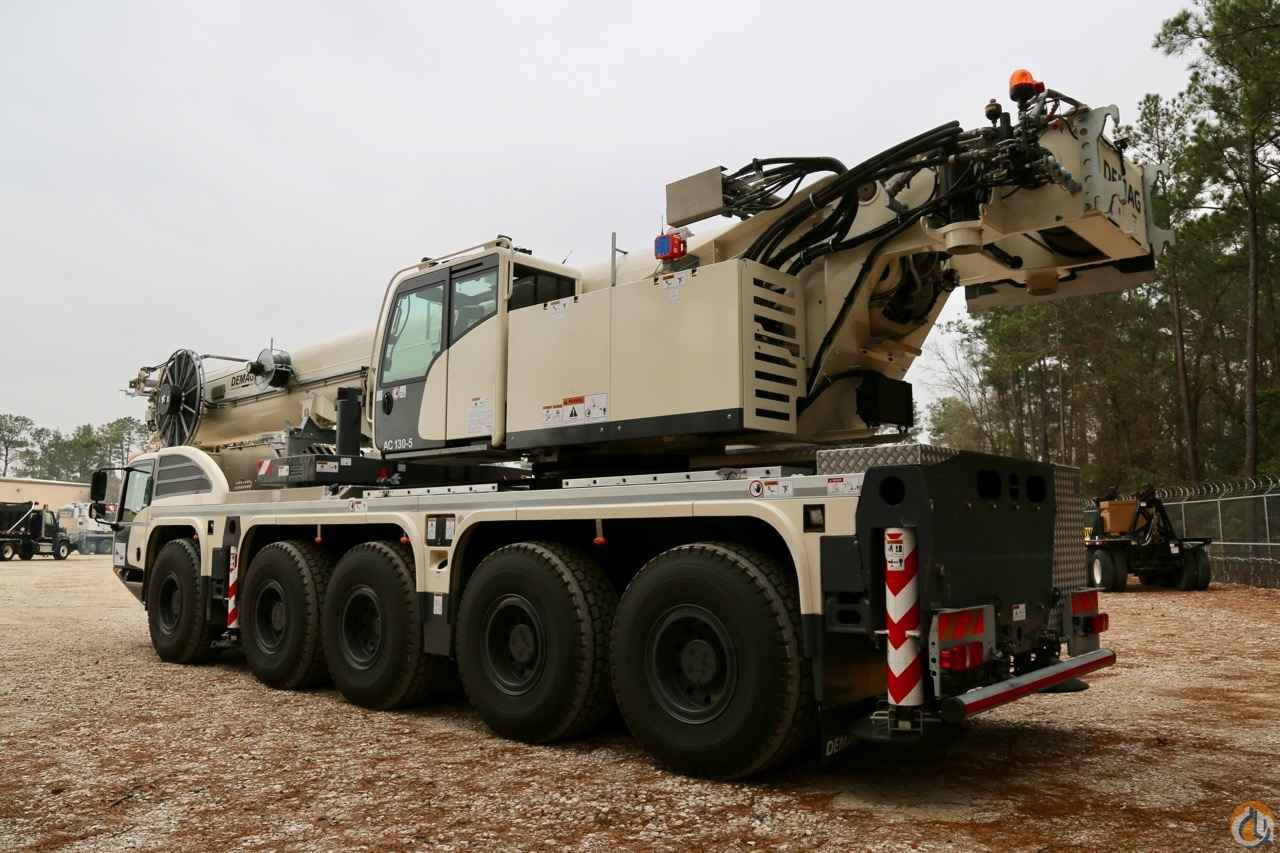

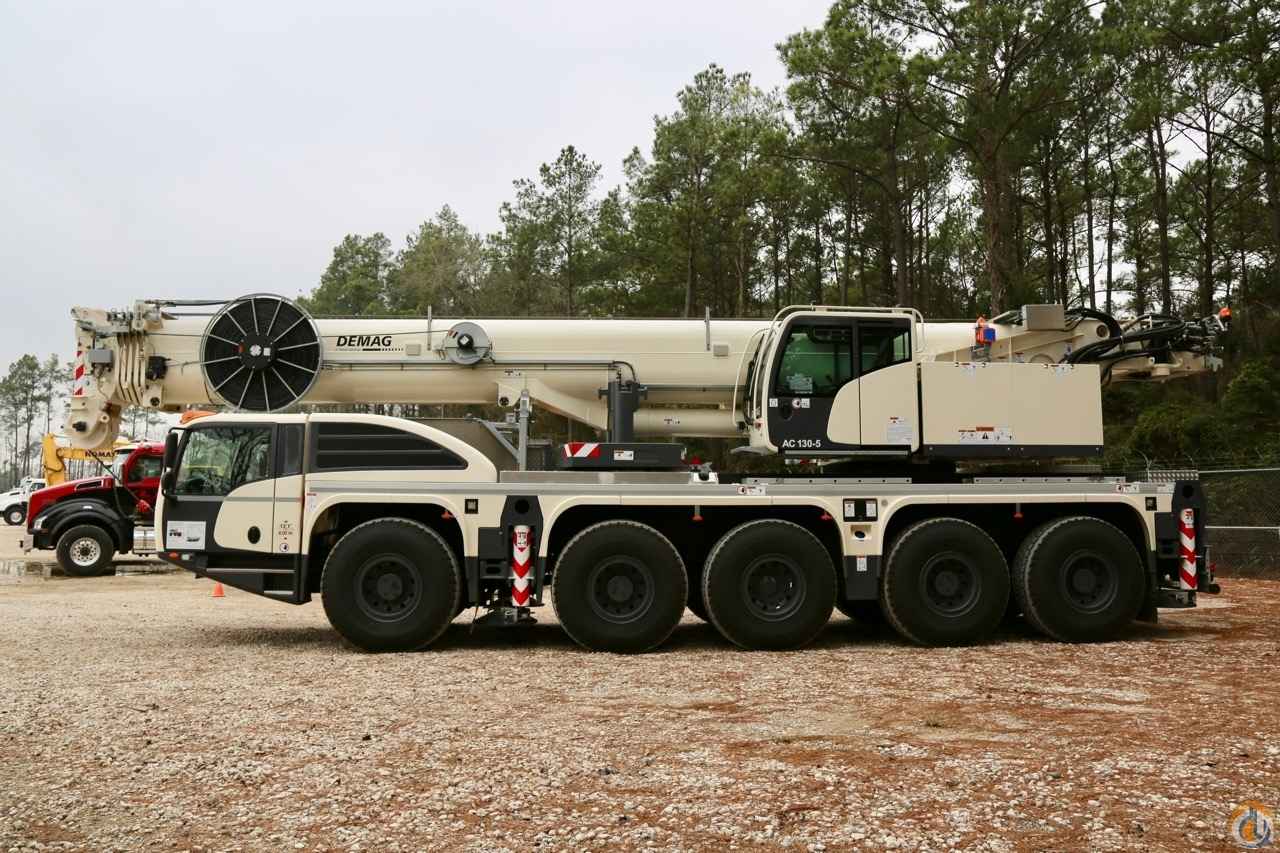

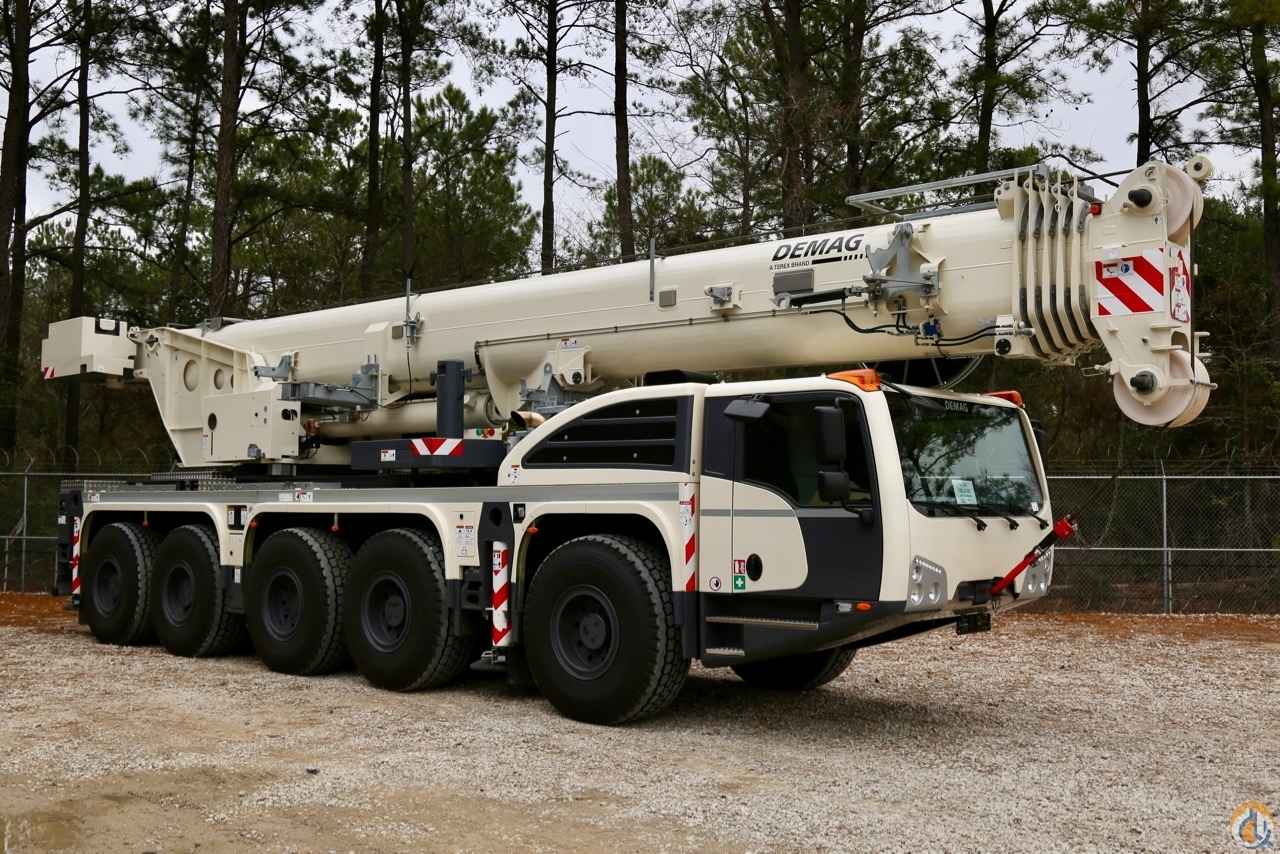

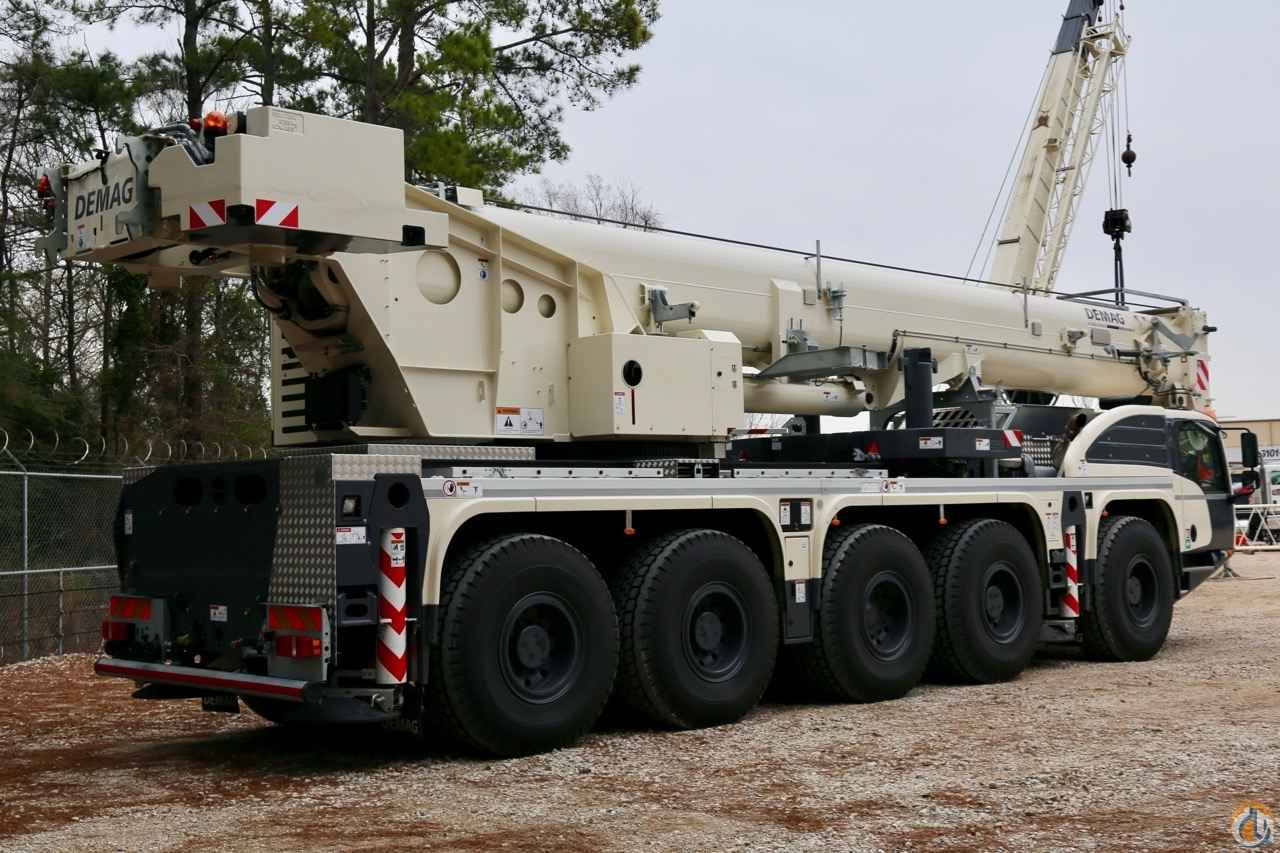

2018 Demag AC 130-5 All Terrain Crane
SOLD
Sales Dept.: 866-458-5915
Last Updated: 07 Nov 2018
Capacity: 140.00
Boom/Jib: 197
Condition: New

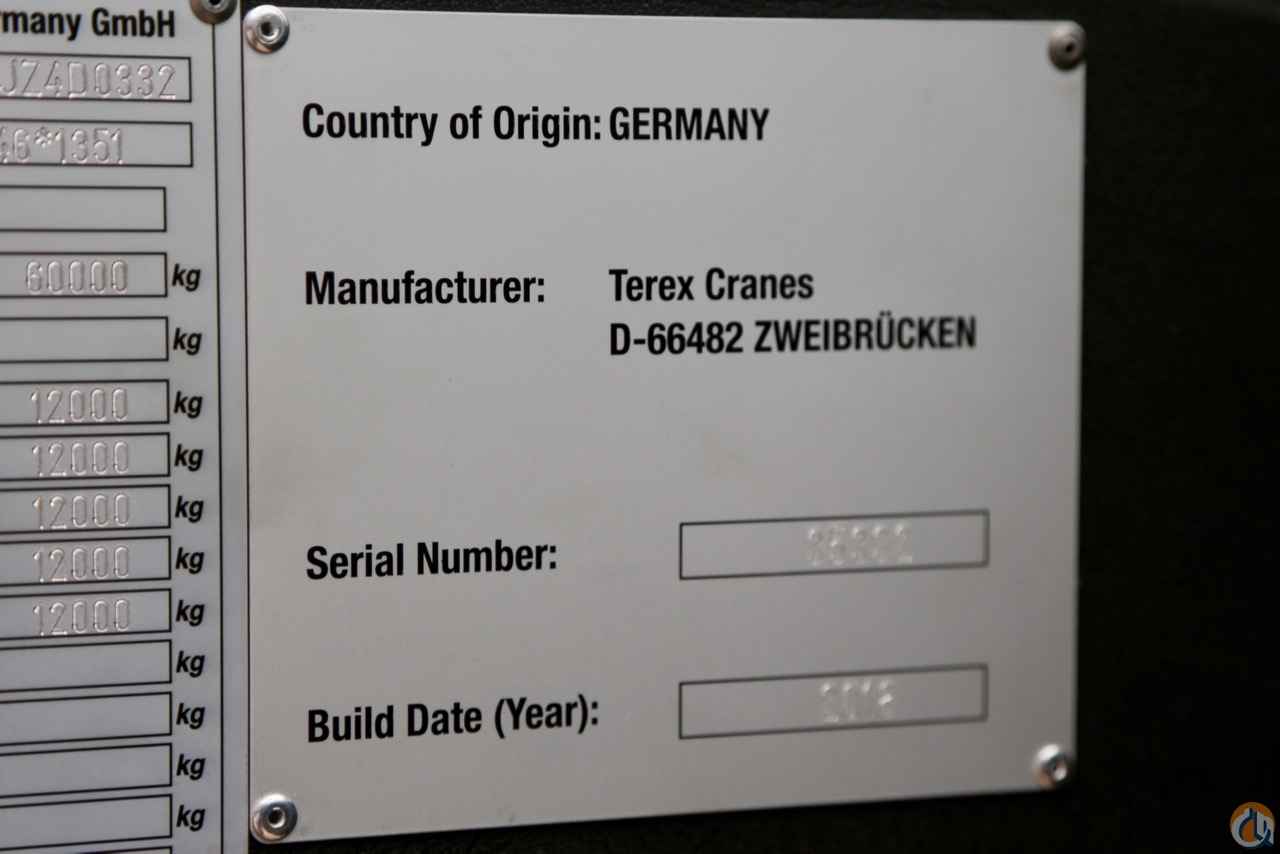

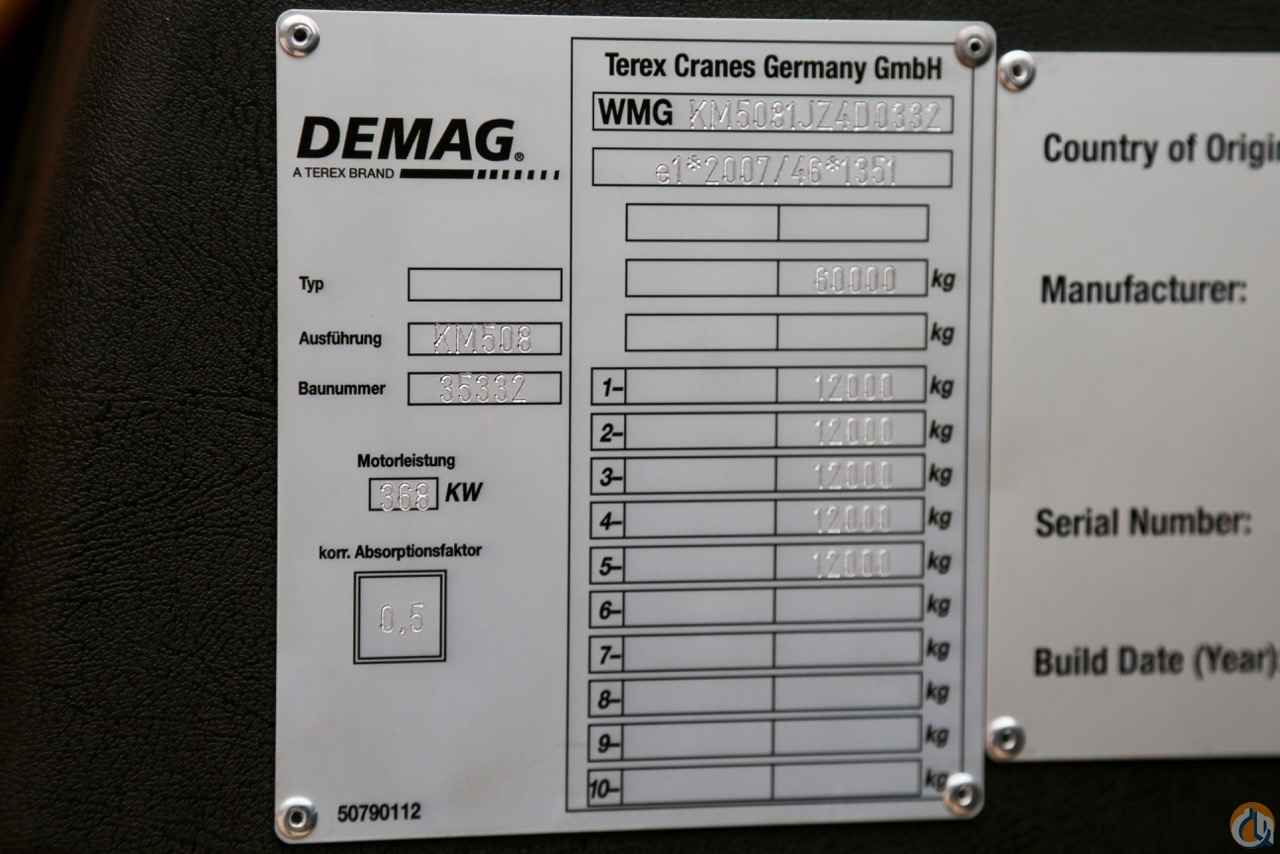

Serial #: 35332
Unit #: BM-2309
STANDARD FEATURES
Carrier Equipment
Engine 368-4; Euromot 4/Tier 4F: Euromot 4/Tier 4F: Scania DC13; Diesel engine; 368 kW/ 2100 1/min (500 HP), torque 2373 Nm / 1300 1/min; The engine complies with Euromot 4 / Tier 4F; incl. fuel filter heater; Exhaust system cpl. stainless steel
Fuel tank: Fuel tank 480l Diesel (no RME/ Bio-Diesel); 60l Tank for AdBlue

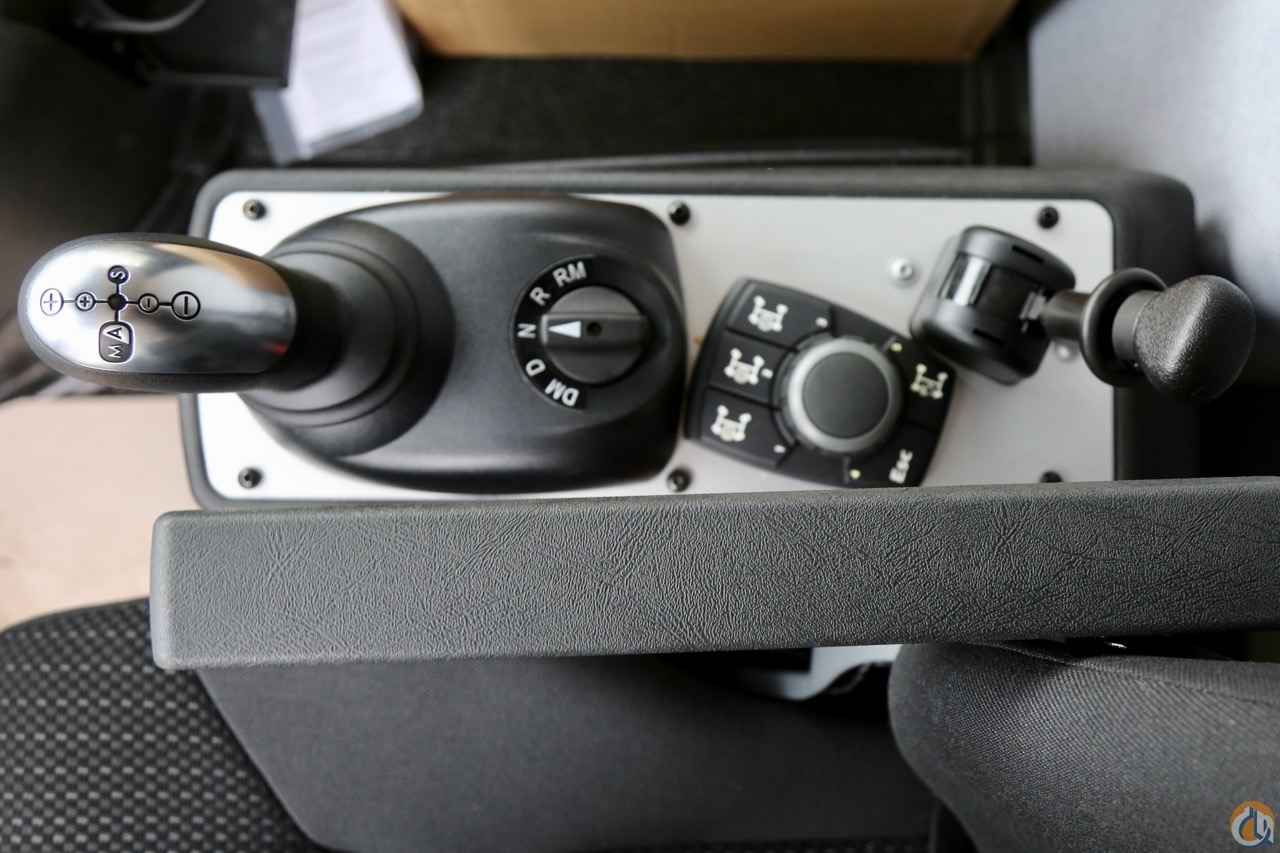

Transmission AS12INT: ZF AS-Tronic; Automated gearbox with integrated hydraulic secondary retarder brake, 12 forward speeds and 2 reverse; 1-stage transfer case with switchable off-road gear
Axles 10x6x10: 10x6x10; 5 axles, axles 2,4,5 are driven and equipped with disengageable axle-differential lock; Axles 4 with a disengageable center-differential lock; All Axles are steered
Suspension: Hydropneumatic suspension with axle load compensation; hydraulically lockable; Manual or automatic levelling alternatively
Steering: Dual-circuit steering system with independent rear axle steering; axles 1, 2, 3 mechanically connected; axle 4 and 5 electro-hydraulically connected; all axles steered with 6 different steering programs
Brakes: Pneumatic dual circuit service brake, acting on all wheels; Disc brakes; Hydraulic retarder integrated into transmission as wearless, sustained-action brake; Additional exhaust brake; Parking brake according to norms
Wheels 385/95 R25 (14.00R25): Wheels 385/95R25 (14.00R25); Steel rim 9,5-25/1,7"; Magna MA03 170F; or similar

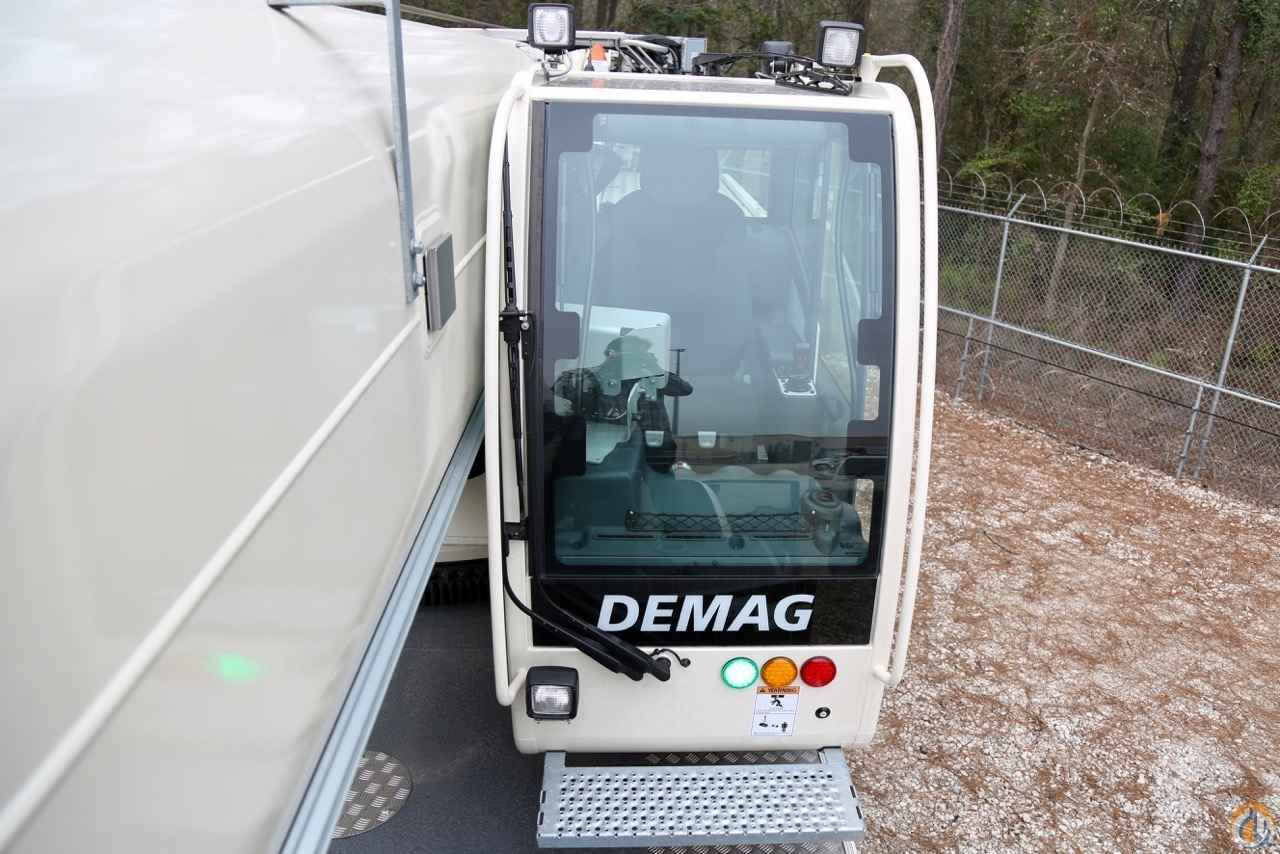

Cab Carrier 2500: S-PACE type 2,50m; Adjustable driver seat, armrests and pneumatic suspension; Co-driver's seat; Steering wheel height and tilt adjustable; Power windows; Tinted glass; Door locks; Power mirrors with heater; Radio-preparation
Heating carrier: Engine-dependent warm water heating with 12kW heating power
Driving Lights: Including low beams, high beams, daytime running lights
Tacograph: Display of the speed and record according to country-specific regulations
Fire extinguisher: With holder in carrier cabin
Stowage carrier: Storage compartment, with lid, for toolbox; Side compartment between the outriggers
Electronic Immobilizer system: Prevents uncontrolled vehicle mobilization; Incl. 3 electronic keys
Pneumatic tire inflating plug: Pneumatic tire inflating plug for self-inflating of the wheels
Heavy-duty batteries: HD-batteries for optimal battery performance even under HD usage; Suitable for cold start
Jump starting device: Jump starting device as per NATO standards; Enabling jump start by using separate energy source
Countour safety marking: Continuous reflective strips on the sides of the chassis and in the back
Emergency roadside kit: Emergency roadside kit for crane operation and for public road access of trucks according to StVZO
Stepladder: Loose stepladder for misc. assembly work; Incl. transport storage
Rotary beacons: 2x beacons on carrier cab
Illumination: 2x outriggers left, 2x outriggers right
Painting Demag: Duplex basecoat, topcoat in DEMAG standard, chevron warnings in red-white
Standard acceptance: Standard acceptance test for carrier
Superstructure Equipment
Telescopic boom HA60: 12,5m -59,8m; Single cylinder telescoping system, automatic telescoping; Attachments for all equipment and extensions; 4 sheaves integrated in boom head for max. capacity of 64,3t
Boom luffing: 1 luffing cylinder with automatic lowering brake valve
Rotary drive: 1 slewing gear unit with spring-loaded multi-disc brake; Different operating modes selectable
H1: Hoist with spring-loaded multi-disc brake; Resolver (hoist rotation indicator); Rope twist prevention is not included
Counterweight 31.6t: Counterweight 31.6t, 6 pieces (a-f); Automatic rigging system; Expandable to max. 42.2t
Outriggers: H-4-Point design; Vertical and horizontal movement fully hydraulic; Manual levelling; 3 outrigger bases of 2,52m, 5.3m and 7.5m
Outrigger pads 038PA: 4 round outrigger pads A=0,38m² Polyamide, with transport position at vertical cylinder
Outrigger basis monitoring: Surveillance of each outrigger beam for detection of horizontal stroke; Warning in case of anomaly in Superstructure cab (Attention: There is no automatic linkage with the LMI-system)

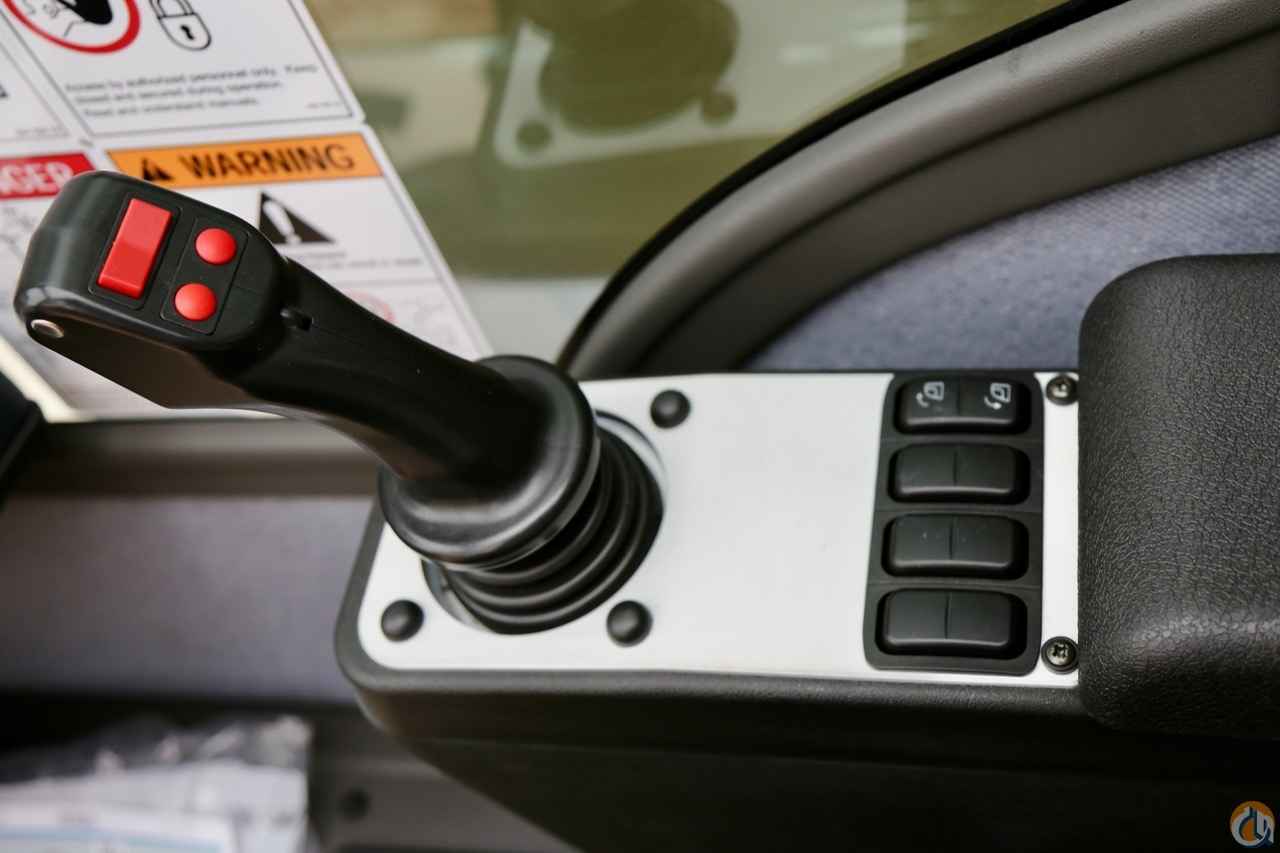

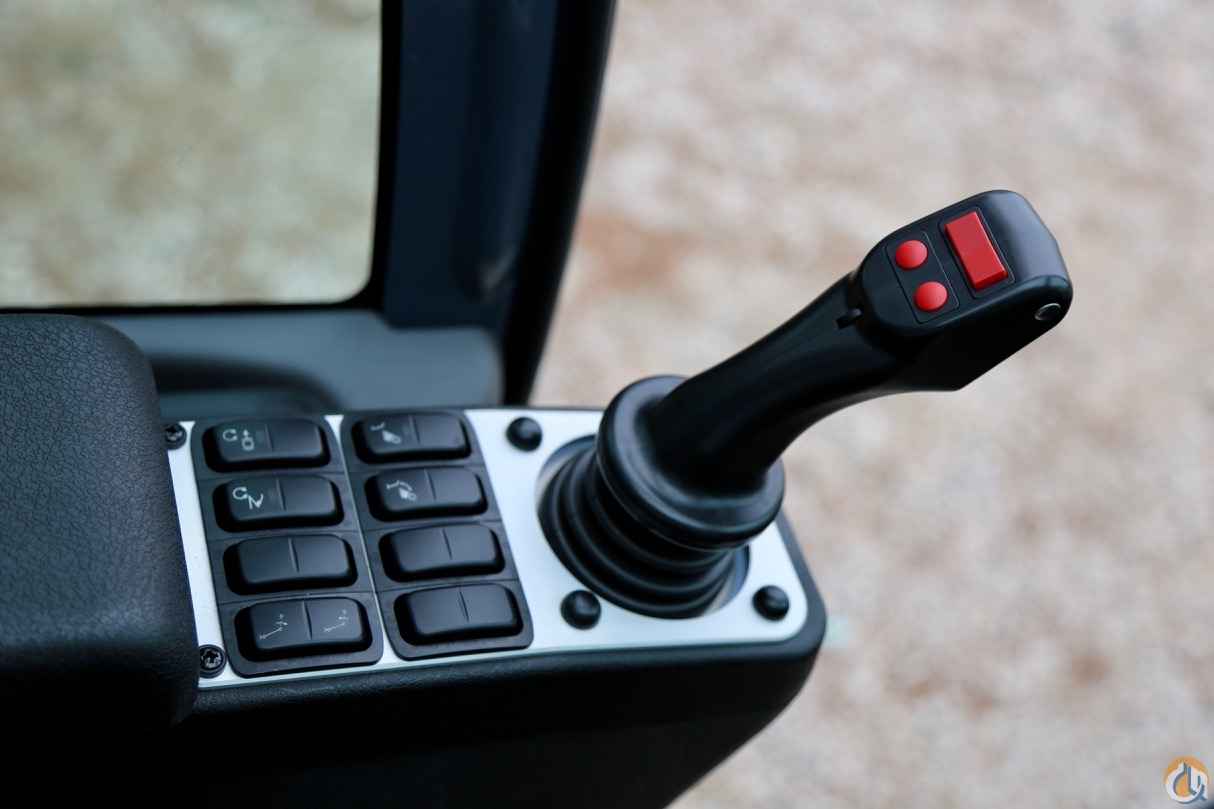

Control system: Enabling 4 simultaneous working movements; electric pilot controls via 2 two-axis joysticks; different control modes selectable for hydraulic circuits

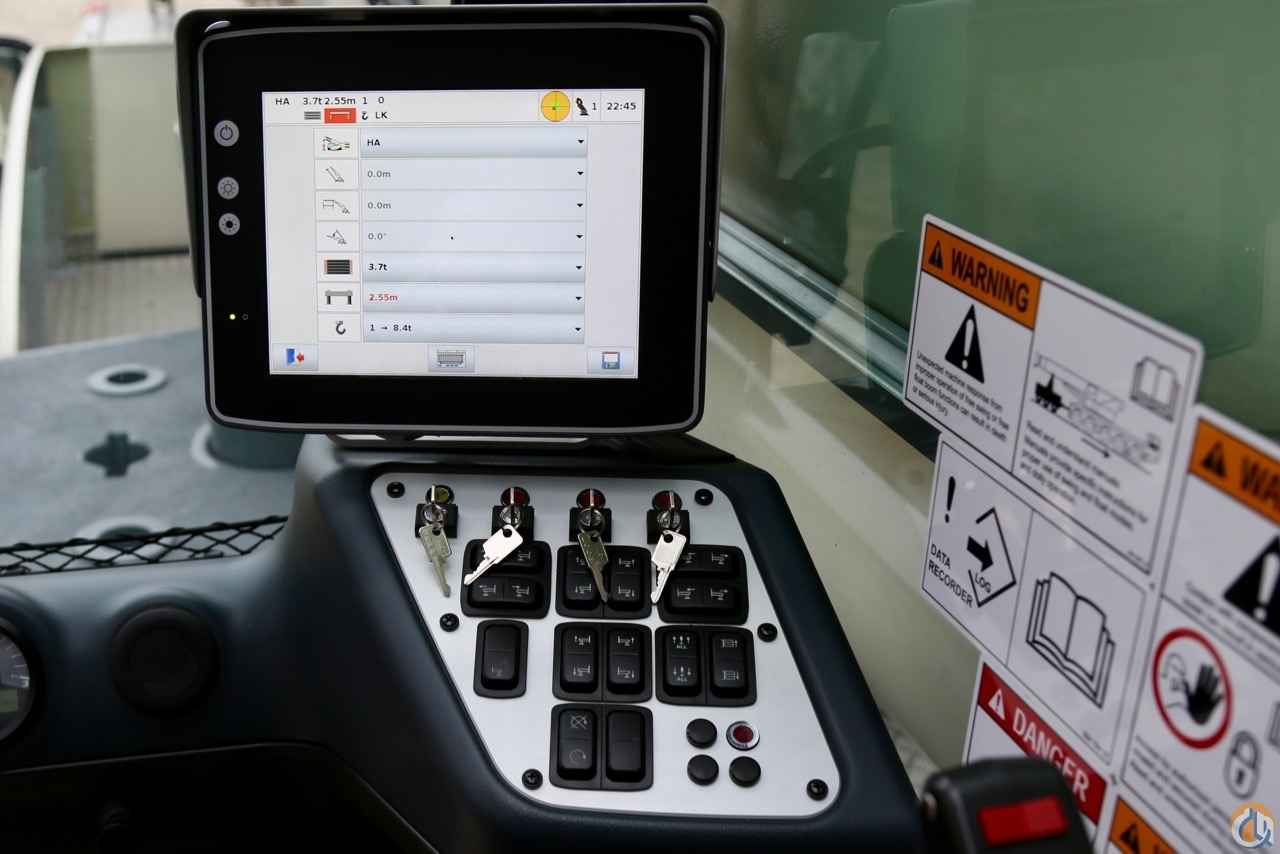

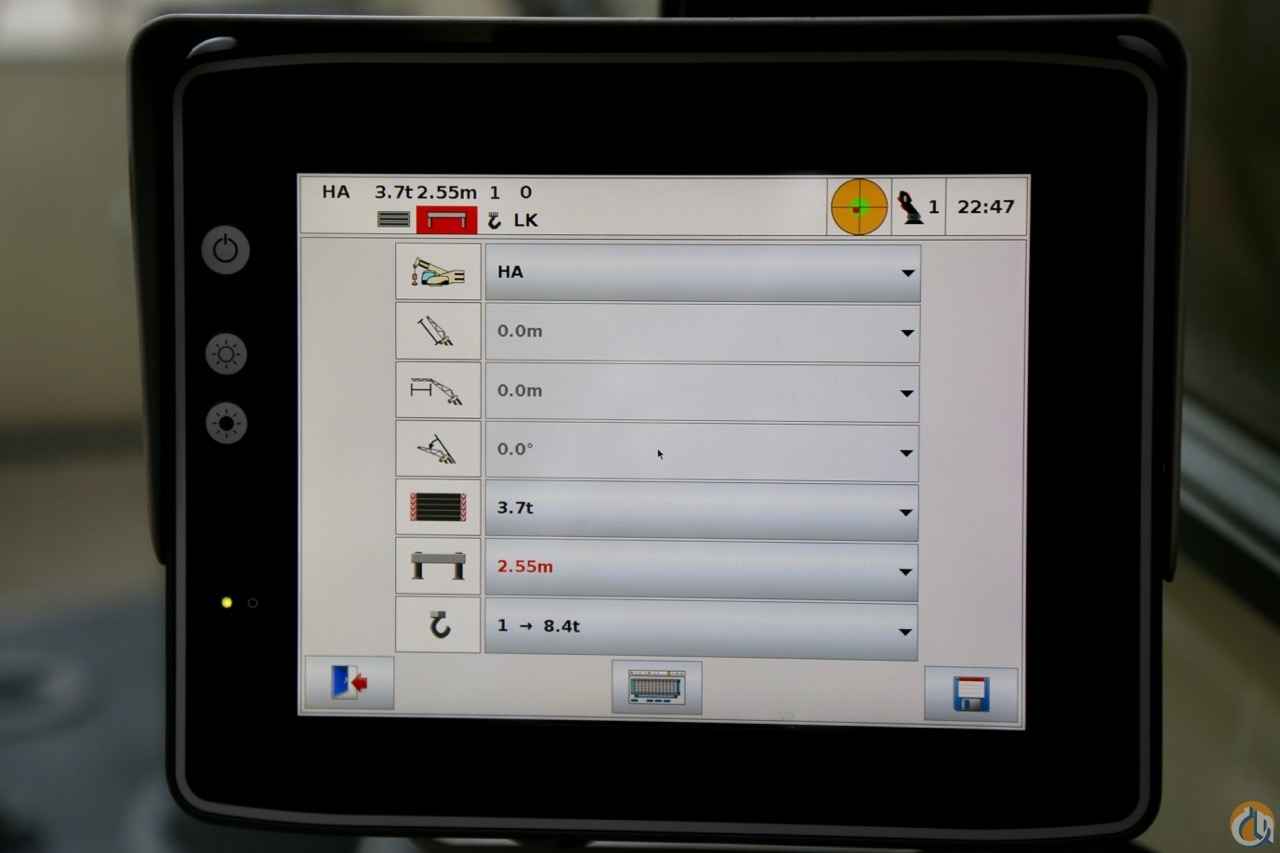

Operator aids: IC-1, with integrated load moment indicator acc. EN13000; Color display; Displaying of current operating conditions, load charts, fault indicator; Signal lights indicating LMI-load; Crane data logger

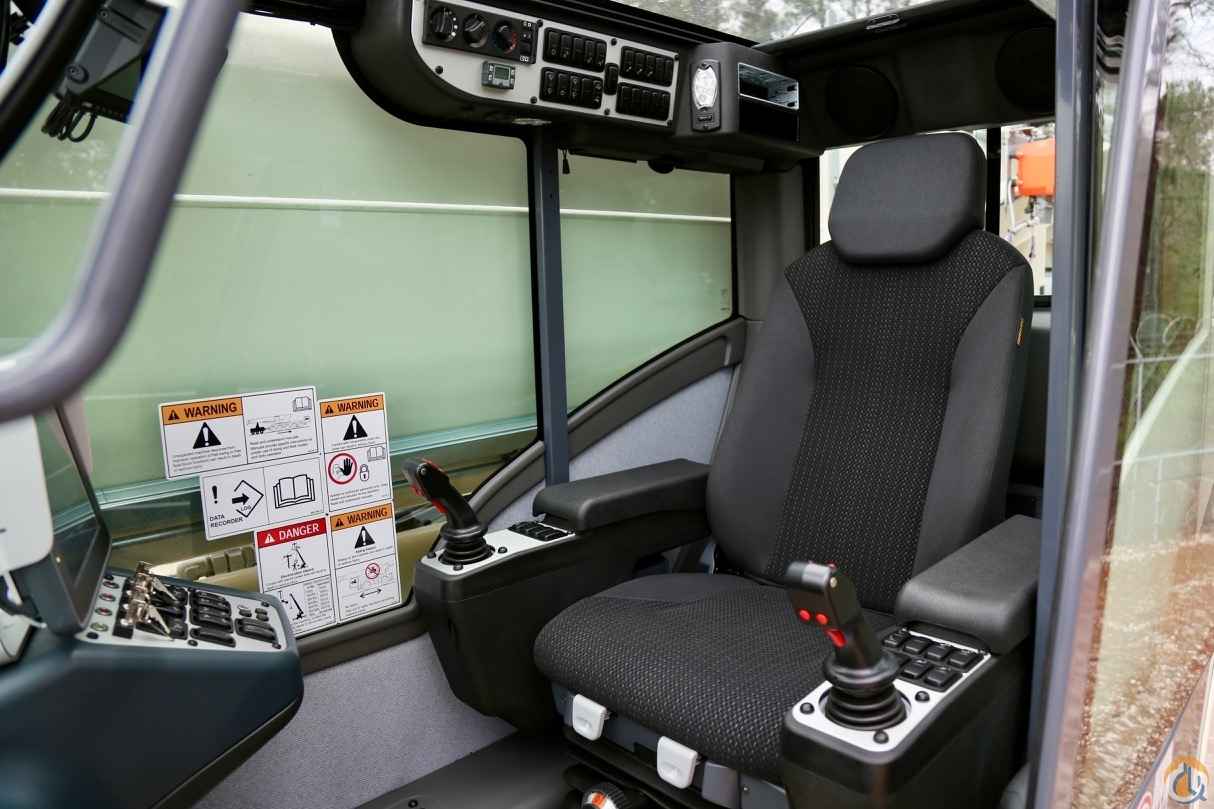

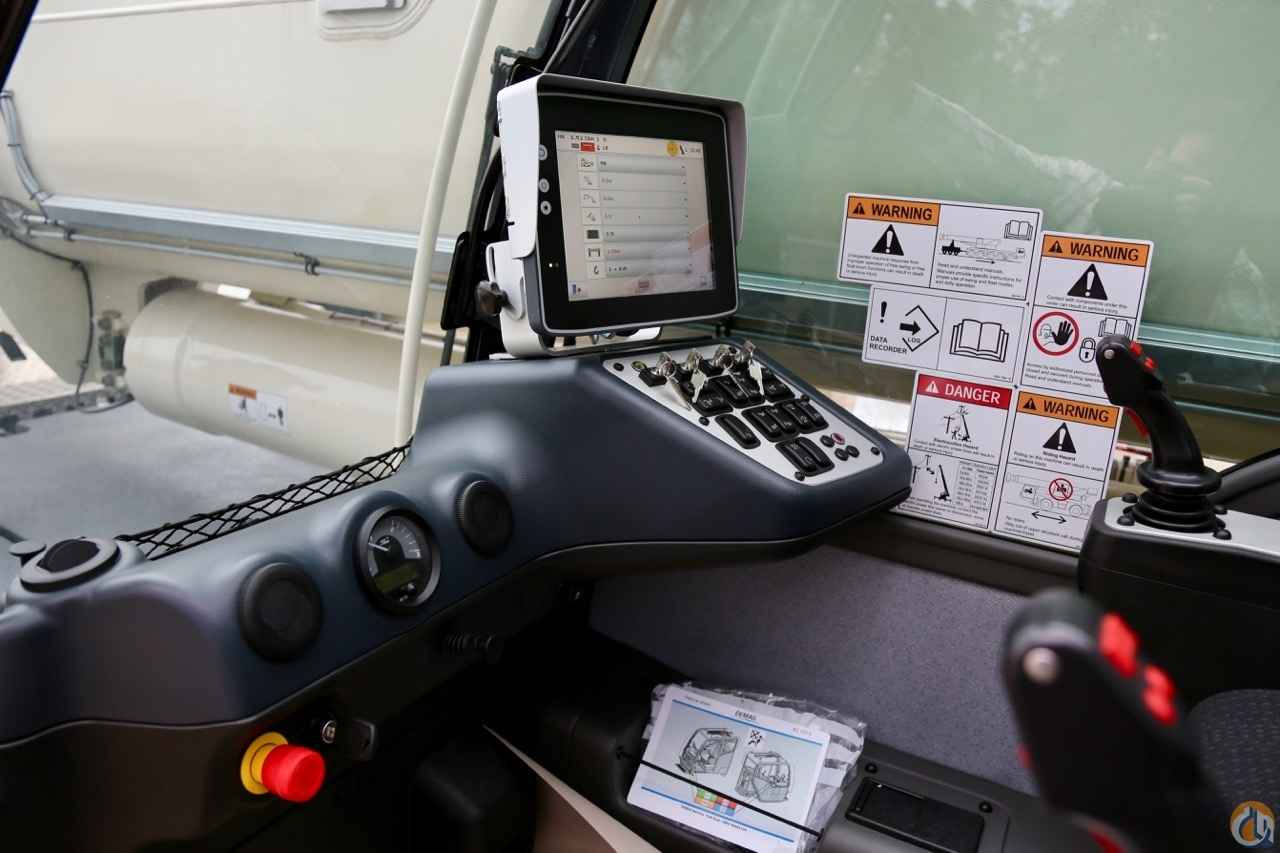

Cab superstructure 875: S-PACEType 875; Infinitely tilt variable 16; sliding windows in rear; Fold-out front window; Extendable side pedestal, front pedestal; Handrails; Tinted safety glass; pull-down sun visor and light curtains; Radio-preparation
Engine-independent heating superstructure: Engine independent warm water heating with 5kW heating power
Anemometer: Disconnectable, to allow use with all extensions
Rotary beacons: 2x disconnectable on Superstructure tail
Illumination: 1x work prefield at superstructure cab
Painting Demag: Duplex basecoat, topcoat in DEMAG standard, chevron warnings in red-white
Standard acceptance: Standard acceptance test for superstructure
INCLUDED ITEMS
Demag AC130-5
HAV-HY-VA 33m: 33m; Variable extension; 1 piece 12m Lattice section; with double folding swing-away jib, hydraulic offset 0°- 40°; 1-sheave head; Incl. transport storage for swing-away jib; Not transportable with 12t axle load limit; Includes HAV-HY 11m, HAV-HY 21m and HAV-HY-VA 23m
R1 (Swing away rooster sheave): Swing-away rooster sheave, incl. transport storage; For single-reeving high speed operation with elevated hook height
Hook block 125-5-21-D-1125: 125-5-21-D (1125kg); Hook block with ramshorn hook; with white red signal stripes; Note: S1 Heavy lift attachment stage 1 is required
Hook block 80-3-21-E-850: 80-3-21-E (850kg); Hook block with single hook; with white red signal stripes
Hook block 32-1-21-E-600: 32-1-21-E (600kg); Hook block with single hook; with white red signal stripes
Hook 12-0V-E-350: 12-0V-E (350kg); Single hook; red
S1 Heavy lift attachment stage 1: 2 additional sheaves; Dis-/connectable; For total 6 sheaves at boom head; Max. lifting capacity of 111t
Axles 10x8x10: 10x8x10; 5 axles, axles 1,2,4,5 are driven and equipped with disengageable axle-differential lock; Axles 2 and 4 with a disengageable center-differential lock; All Axles are steered
Rear view camera: Display in driver's cab; cameras installed on rear of vehicle
Central lubrication carrier: Automatic central lubrication system for the majority of the lubricating points on the chassis
Radio CD carrier: Radio with CD-player with USB input, Aux-In and Bluetooth® connection
Aircondition carrier: Aircondition for carrier cab with 7KW rated cooling capacity
Axle load display: Axle load display on screen in the carrier cabin
ABS with hill-start aid holder function: ABS with hill-start aid for hill starts without downhill moving
Fog and cornering lamps: Front fog and cornering lamps
Lifting 3rd axle: Lifting the axle number 3 in order to fulfill the road regulations in some of the states in USA
2nd Hoist (H2): 2nd Hoist; Spring-loaded multi-disc brake; Resolver (hoist rotation indicator); Incl. quick couplings; Rope twist prevention is not included
Self-rigging H2: Makes it possible to mount H2 without assist crane; With transport frame; H2 is not included
Single Xenon work floodlight: One adjustable xenon floodlight, mounted at front of boom base section
Positioning light: Disconnectable LED obstruction light, to allow use with all extensions
Central lubrication superstructure: Central lubricant distributor for luffing cylinder pins, hoist thrust bearing, slewing ring, and boom base pins
Radio CD superstructure cab: Radio with CD-player with USB input, Aux-In and Bluetooth® connection in superstructure cab
Aircondition superstructure cab: Aircondition with 5KW rated cooling capacity in Superstructure cab
Outrigger positioning from crane cabin: Outrigger positioning from crane cabin

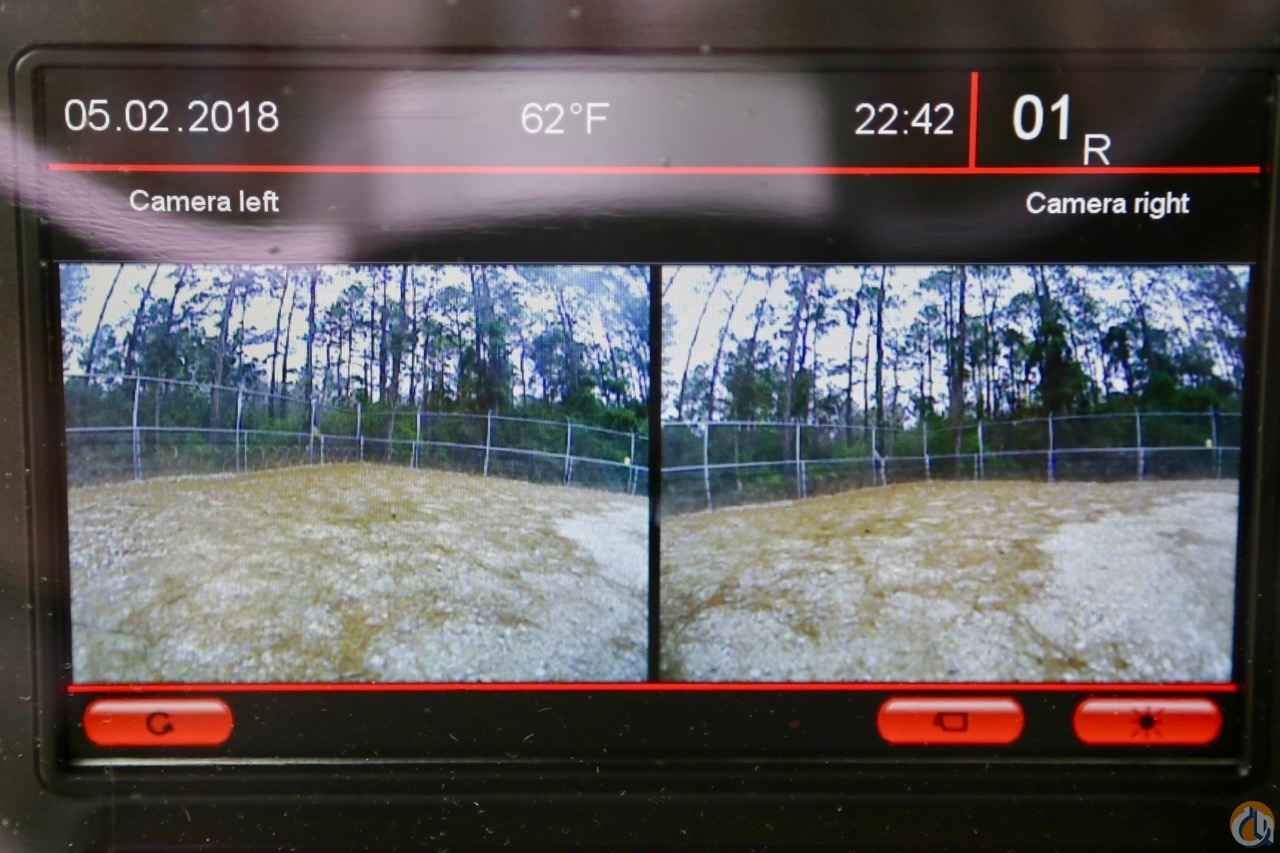

Display screen: Display screen for the different cameras enable for monitoring in superstructure cabin; Attention: Should be selected if any camera option selected

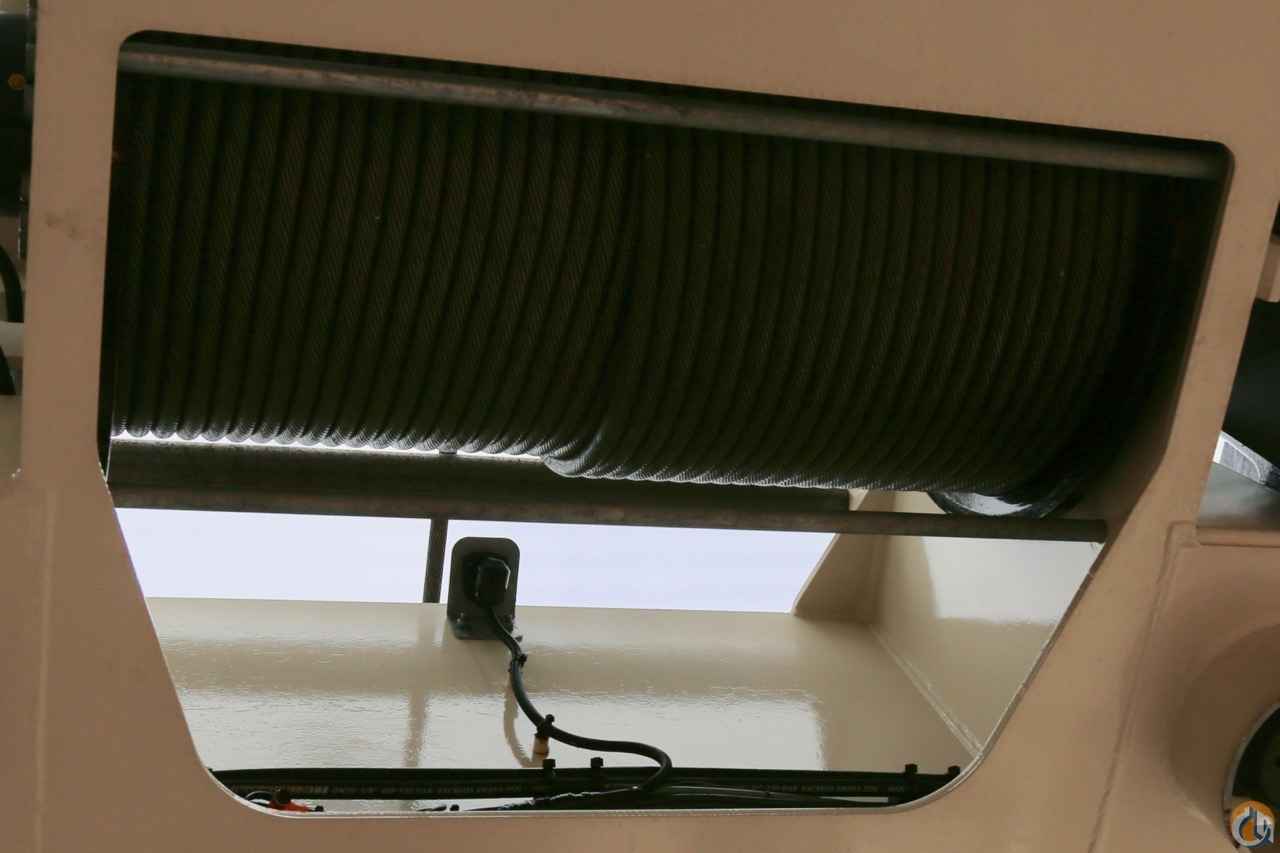

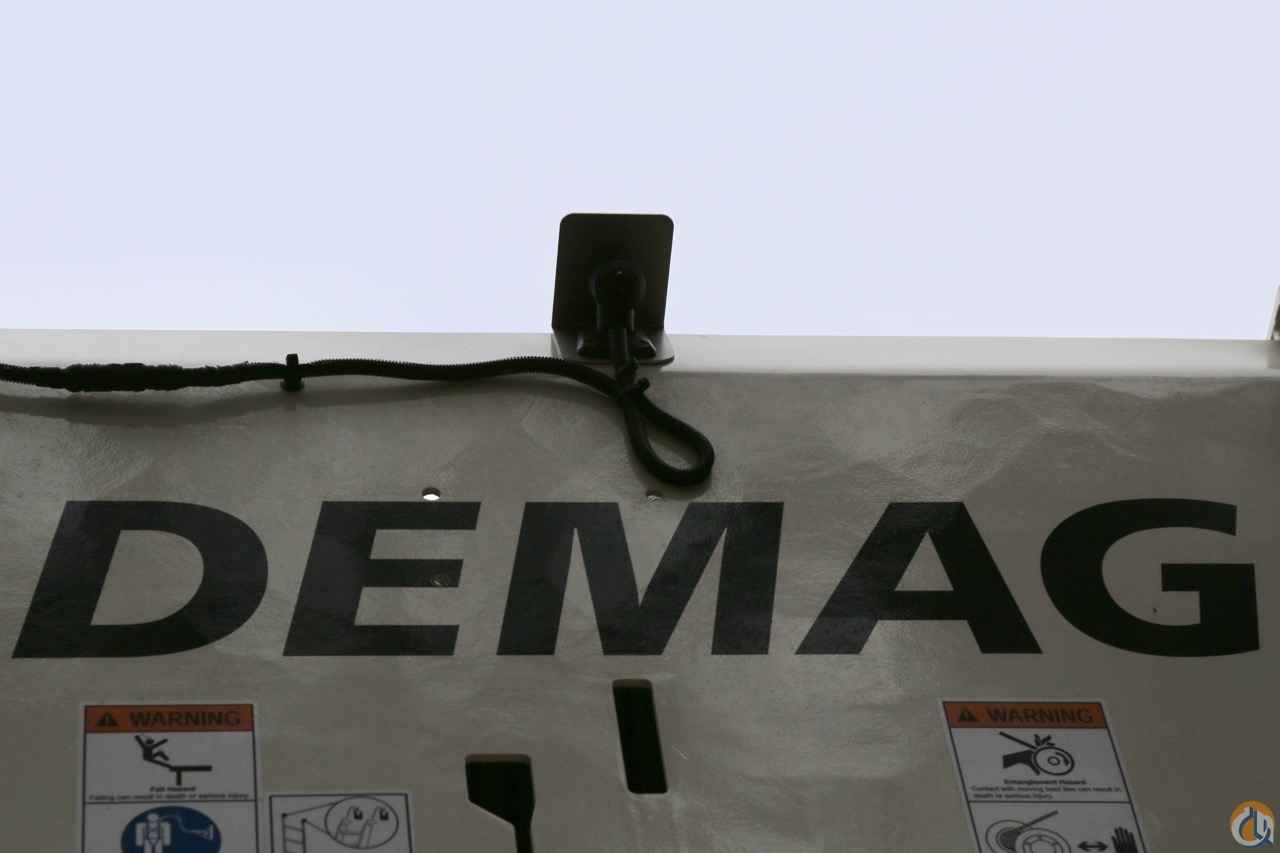

Hoist monitoring H1: Visualization H1 by a camera system; Displayed on additional screen for the hoist monitoring in superstructure cabin; Includes one floodlight pointing at the hoists (H1 and H2) and 2 manually adjustable floodlights on superstructure cab to illuminate the forefield area; Attention: Option Display screen must be selected
Hoist monitoring H2/Superstructure rear camera: Camera covers the crane's entire rear area behind the counterweight or H2; Displayed on screen for the hoist monitoring in superstructure cabin; Attention: Attention: Option Display screen must be selected
Blind spot camera OW: Camera covers the crane's blind spot on the right; Attention: Can not be combined with Side mirror OW; Attention: Option Display screen must be selected
Dolly preparation 4-point variable (4PV): 4-point support brackets enable individual positioning of a dolly; Incl. freewheel for slewing gear unit and luffing cylinder, quick couplings for brake air & electrics; Dolly and dolly adapter are not included
Additional counterweight 10.6t: Additional counterweight 10.6t; 2 pieces; For max. 42.2t à 8 pieces

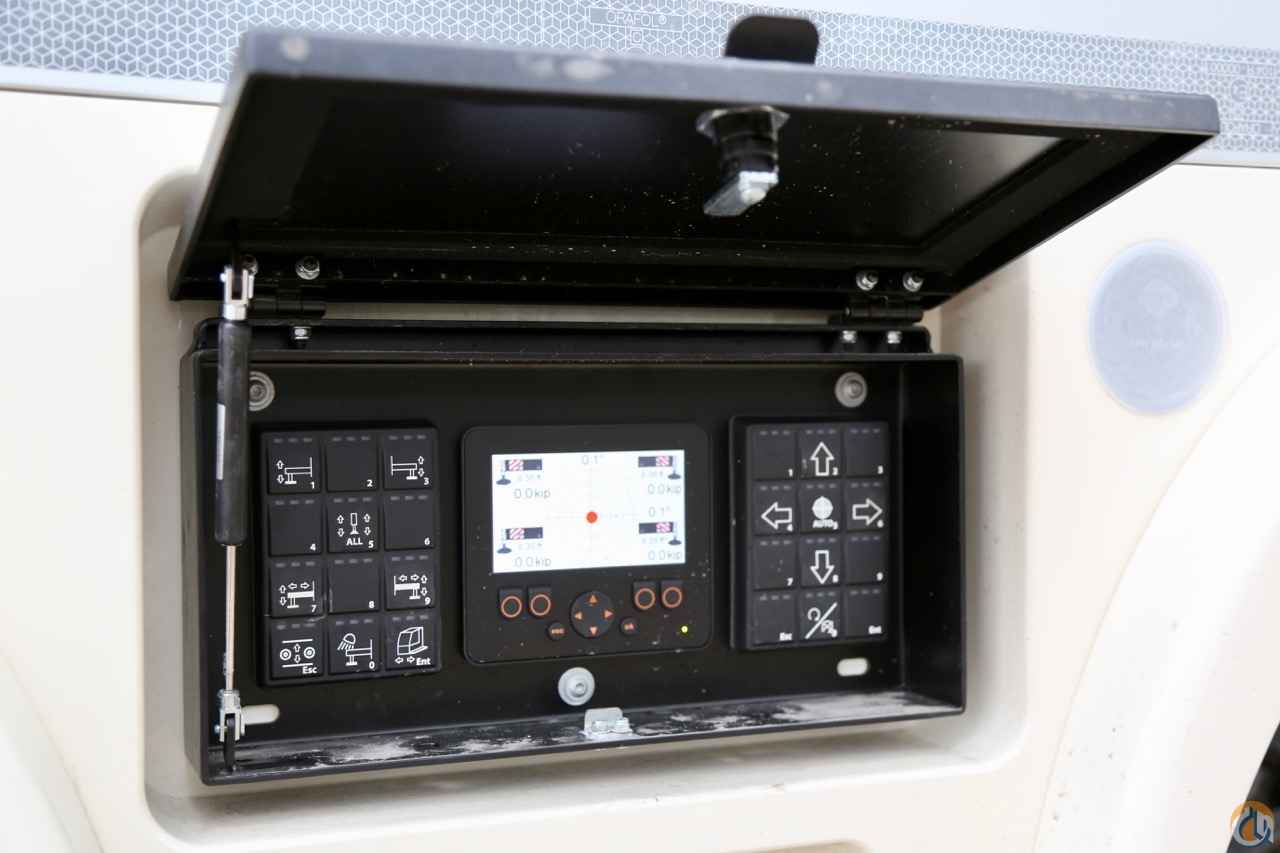

Remote Control: Control of rigging and superstructure operations via wireless remote control
IC-1 Plus (Asymmetric Outrigger Positioning): Calculation of lifting capacity subject to outrigger base and slewing angle of superstructure; Incl. Automatic counterweight detection and Outrigger load indicator; I. A. makes it possible to work with asymmetrically extended outriggers. Note: for HA operation only
Working Range Limiter: Displaying and programmability of the work range limits by IC-1
Fall-from-height protection system for Counterweight: Fall down protection at the counterweight ; Note: Country regulation for Netherland
Battery disconnecting switch: Battery disconnecting switch for disconnection of the voltage source and the on-board power supply in carrier
Wheels 525/80 (20.50R25) Bridgestone VHS 176F: Wheels 525/80R25 (20.50R25); Steel rim 17-25/1,7"; Bridgestone VHS 176F instead of TechKing ETGC 170F or similar 385/95 (14.00R25); Incl. carrier broadening to 2,85m
Toolkit: Toolkit for light repairs and service
Jumper cable NATO-Clamp 6m: 6m long jumper cable NATO-plug & battery clamp, adequate for use with any external power supply e.g. batteries
Omit CE & EN13000: Built according to CE, but without CE documentation and without declaration of conformity; Deactivation of the specific EN13000 overload protection software
Jumper cable NATO-NATO 10m: 10m long jumper cable with both-sided NATO-plug, adequate for use with any jump starting device with NATO-plugs
Paiting TEREX (Instead of DEMAG): Single basecoat, topcoat in TEREX standard instead of DEMAG standard, chevron warnings in red-white
EXWORKS GULF PORT (HOUSTON, TX)
OSHA / DOT / In-Service at CW-Houston Yard
AVAILABLE OPTIONS (ADDITIONAL COST)
CBC-30ST - BOOM DOLLY, 30 TON
CraneWorks, Inc.
www.Crane-Works.comContact: Sales Dept.
Phone: 866-458-5915
Fax: 713-491-9359
THIS LISTING HAS SOLD
