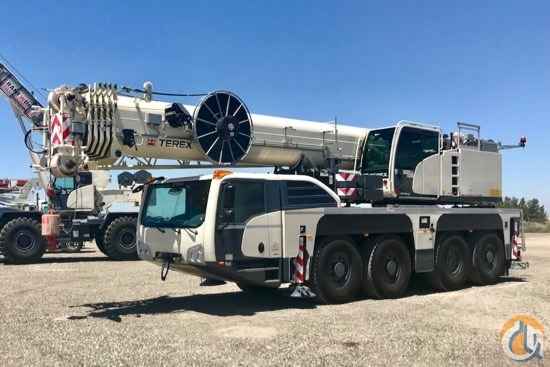

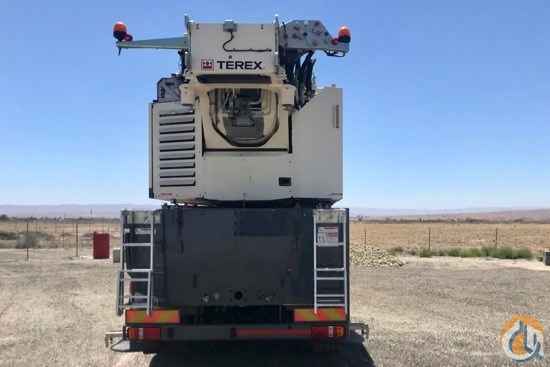

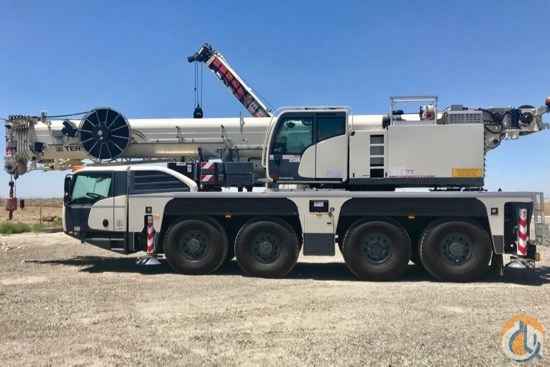

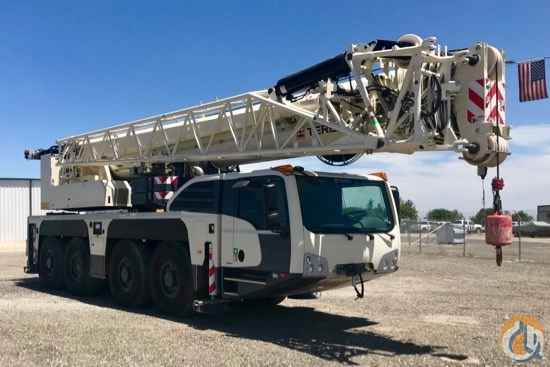

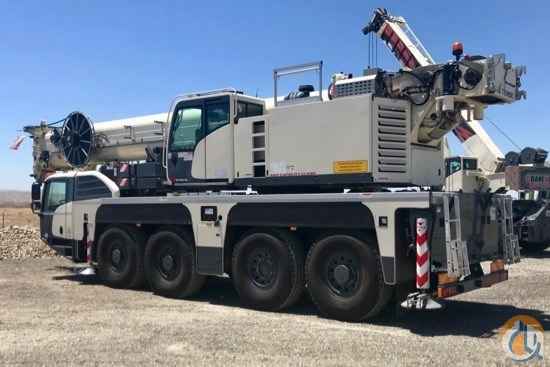

Used 2016 Demag AC 100-4L all terrain crane All Terrain Crane (Sold)

Standard Features

EUROMOT 4, TIER 4F

For carrier: MTU 6-cylinder, water cooled, diesel engine type OM 6R1300; 340kW (462 HP) at 1700 1/min, torque 2200Nm at 1300 1/min; The engine complies with EUROMOT 4, EPA TIER 4final; MTU exhaust system made of stainless steel with SCR catalyser For superstructure: MTU 4 cylinder, water cooled, diesel engine type OM 4R1000; 129kW (175HP) at 2200 1/min, torque 750 Nm at 1200-1600 1/min; The engine complies with EUROMOT 4, EPA TIER 4f and Carb regulations; MTU exhaust system made of stainless steel with SCR catalyser

Fuel tank carrier

Fuel tank carrier 410l Diesel (no RME/ Biodiesel)

Transmission AS12INT

ZF AS-Tronic; Automated gearbox with integrated hydraulic secondary retarder brake, 12 forward speeds and 2 reverse; 2-stage transfer case with switchable off-road gear and switchable longitudinal lock

Axles 8x6x8

8x6x8; 4 axles, axles 1,2,4 driven and equipped with selectable transverse lock; All 4 axles steered

Suspension

Hydropneumatic suspension with axle load compensation; Hydraulically lockable; Manual or automatic levelling alternatively

Steering

Dual circuit hydro servocom steering with emergency steering pump; Active rear axle steering (axles 3&4) with 6 different steering programs

Brakes

Pneumatic dual circuit service brake with antilock system, acting on all wheels; Disc brakes; Hydraulic retarder integrated into transmission as wearless, sustained-action brake; Additional exhaust brake and constant throttle valve; spring-loaded parking brake

Wheels 38595 (14.00R25)

Wheels 385/95R25 (14.00R25); Steel rim 9,5-25/1,7"; Magna MA03 170F; or similar

Wheel nut indication

Wheel nut caps with arrow enable optical check of wheel nut position

Cab Carrier 2550

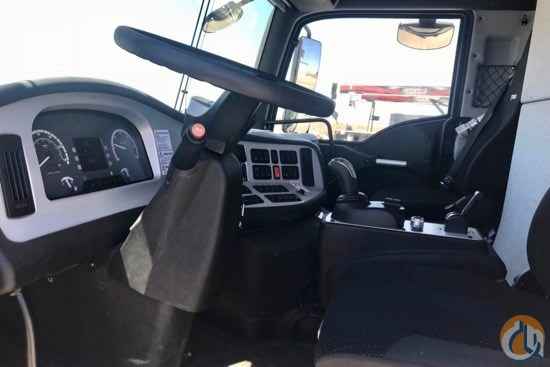

Type 2,55m; Adjustable driver seat with seat heating, armrests and pneumatic suspension; steering wheel height and tilt adjustable; Power door windows; Tinted glass; Aircondition- & radio preparation; 2 integrated rotary beacons; Storage area

Co-driver's seat

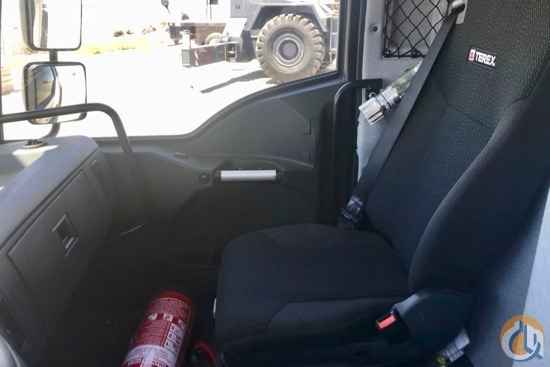

Comfort seat for co-driver

Heating carrier

Engine-dependant warm water heating with 12kW heating power

Radio CD carrier

Radio with CD-player; For carrier cab

Air-conditioning carrier

Aircondition for carrier cab with 7KW cooling power

Drive lights

With low beam, upper beam, daytime running lights , fog lights and cornering lights

Tachograph

Tachograph; Speed indication; Tracking according to country-specific regulations

Cruise control

Automatic speed control including automatic brake control

Fire extinguisher

With holder in carrier cabin

Stowage carrier

Storage compartments integrated in topsite of the carrier for lifting accessories partially lockable; Lockable sideways compartments

Electronic immobiliser system

Prevents uncontrolled carrier mobilisation; Incl. 2 electronic keys and 4 ignition keys

Pneumatic tire filling plug

Pneumatic tire filling plug for self-filling of the wheels

SUPERSTRUCTURE

Telescopic boom HA60

12,0m - 59,4m; Single cylinder telescoping system, automatic telescoping; Attachments for all equipment and extensions; 5 sheaves integrated in boom head for max. capacity of 64,6t

Counterweight EG 21t / 20t

With EuroMot 3a/Tier 3 Engine: Counterweight 21,3t, 6-pieces; Automatic rigging system; Expandable to max. 26,1t; 4,7t fixed at crane tail With EuroMot 4/Tier 4f Engine: Counterweight 20,2t, 5-pieces; Automatic rigging system; Expandable to max. 25,2t; 4,5t fixed at crane tail

Outriggers

H-4-Point design; Vertical and horizontal movement fully hydraulic; Manual levelling alternatively carrier sideways; 4 outrigger bases. 4 outrigger pads A=0,28m² polyamid, with transport position at vertical cylinder

Boom luffing

Single luffing cylinder with automatic lowering brake valve

Rotary drive

Single slewing gear unit with spring-loaded multi-disc brake

H1

Hoist with spring-loaded multi-disc brake; Resolver (hoist rotation indicator)

Outrigger basis monitoring

Surveillance of each outrigger beam for visual comparison with the programmed outrigger basis; Displayed in LMI Superstructure cab (Attention: There is no automatic linkage with the LMI-system)

Fuel tank superstructure

Fuel tank superstructure 200l Diesel (no RME/ Biodiesel)

Drive

Hydraulic system with power control; Hydraulic oil cooler

Control system

Enabling 4 simultaneous working movements; electric pilot controls via 2 two-axis joysticks

Operator aids

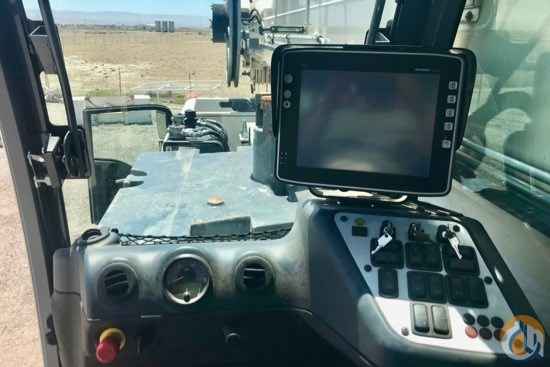

IC-1, with integrated load moment indicator acc. EN13000; Colour display; Displaying of current operating conditions, load charts, fault indicator; Signal lights indicating LMI-load; Crane data logger; Dead man switch in joysticks and seat superstructure cabin

Working range limiter

Displaying and programmability of the work range limits by IC-1

Cab superstructure 0875

Type 0,875m; Tilt variable 20°; Seat heating; Fold-out front window; Extendable side & foldable front pedestal; Handrails; Tinted safety glass; pull-down sun visor and light curtains; Aircondition- & radio preparation

Radio CD superstructure

Radio with CD-player; For superstructure cab

Heating superstructure

Engine-dependant warm water heating with 12kW heating power

Engine-independent heating superstructure

Auxiliary, engine independent warm water heating with 5kW heating power; With timer; Switchable between engine block and superstructure cab

Air conditioning superstructure

Aircondition in crane cab with 7KW cooling power

Preparation for R1 (Swing away rooster sheave)

For later swing away rooster sheave retrofitting

OTHER FEATURES

Illumination

1x work prefield at superstructure cab, 2x outriggers left, 2x outriggers right

Rotary beacons

2x integrated on carrier cab, 2x disconnectable on crane tail

Anemometer

Disconnectable, to allow use with all extensions

Heavy-duty batteries

HD-batteries for optimal battery performance even under HD usage; Suitable for cold start

Jump starting device NATO

Jump starting device for carrier and crane according to NATO-standard; Enabling jump start by using 2nd engine or separate energy source

Jumper cable NATO-NATO 10m

10m long jumper cable with both-sided NATO-plug, adequate for use with any jump starting device with NATO-plugs

Contour safety marking

Continuous, yellow reflecting bands at carrier sides and tail

Emergency roadside kit

Emergency roadside kit for crane operation and for public road access of trucks according to StVZO

Stepladder

Loose stepladder for misc assembly work; Incl. transport storage

Climate layout standard

For operation under the following climate conditions: -20°C up to +40°C; Up to 2000m over zero; 0% up to 95% humidity

Painting T Terex

Duplex basecoat, topcoat in Terex standard, chevron warnings in red-white

Included Items

Basic Crane

Including all of the above features

HAV-HY 27m

27m; Variable extension with double folding swing-away jib, hydraulic, stepless offset 0°-40°; 1-sheave head; Incl. transport storage; Includes HAV-HY 19m

R1 (Swing away rooster sheave)

Swing-away rooster sheave, incl. transport storage; For single-reeving operation with elevated hook height

Hook block 80-5-18-D

80-5-18-D (650kg); Hook block with ramshorn hook; white with red signal stripes

Hook block 20-1-18-E

20-1-18-E (350kg); Hook block with single hook; white with red signal stripes

Hook 8-0V-E-170

8-0V-E (170kg); single hook with vertical swivel; red

Rear view camera

Monitor in carrier cab

Central lubrication carrier

Central auto lube for all lubrication points at carrier

H2X

2. hoist; Spring-loaded multi-disc brake; Resolver (hoist rotation indicator); Incl. quick couplings and transport frame; Self-rigging

Outrigger load indicator

Display of outrigger forces in LMI superstructure cab; Enables in addition to the manual levelling, an automatic levelling function via the control panel on both sides of the carrier

Xenon work floodlight 1

Out of superstructure cab adjustable xenon floodlight, at front support boom base section

Positioning light

Disconnectable red beacon, to allow use with all extensions

Central lubrication superstructure

Central auto lube for all lubrication points at Superstructure

Counterweight NEG 21t (Instead of EG 21)

21,4t counterweight, seven pieces; Version for countries with special road regulations; Enables self-downrigging to a total vehicle weight of less than 40t and axle loads of under 12t; Automatic rigging system, expandable to max. 26,1t

Additional counterweight 5t

For EuroMot 3a/Tier 3 Engine: Additional counterweight 4,8t, 2-pieces; For max. 26,1t counterweight with 8-pieces For EuroMot 4/Tier 4f Engine: Additional counterweight 5,0t, 2-pieces; For max. 25,2t counterweight with 7- pieces

Toolkit

Toolkit for light repairs and service

Wheels 44595 (16.00R25) Bridgestone VHS 174F

Wheels 445/95R25 (16.00R25); Steel rim 11-25/1,7"; Bridgestone VHS 174F

Display Screen

Display screen for the different cameras enable for monitoring in superstructure cabin; Attention: It should be selected if any camera option offered

Hoist monitoring H1

Visualisation H1 by a camera system; Displayed on additional screen for the hoist monitoring in superstructure cabin; Attention: Optional additional work lights on superstructure cab required

Hoist monitoring H2

Visualisation H2 by a 2nd camera system; Displayed on additional screen for the hoist monitoring in superstructure cabin; Attention: Optional additional work lights on superstructure cab required

Battery disconnecting switch

Battery disconnecting switch for disconnection of the voltage source and the on-board power supply in carrier and superstructure

Dolly preparation 4-point variable (4PV)

4-point support brackets enable individual positioning of a dolly; Incl. freewheel for slewing gear unit and luffing cylinder, quick couplings for brake air & electrics; Dolly and dollyadapter are not included

Rope H1 US JP

Alternative rope 2160 for H1; US-specific; Japan

Rope H2 US JP

Alternative rope 2160 for H2; US-specific; Japan
