Features

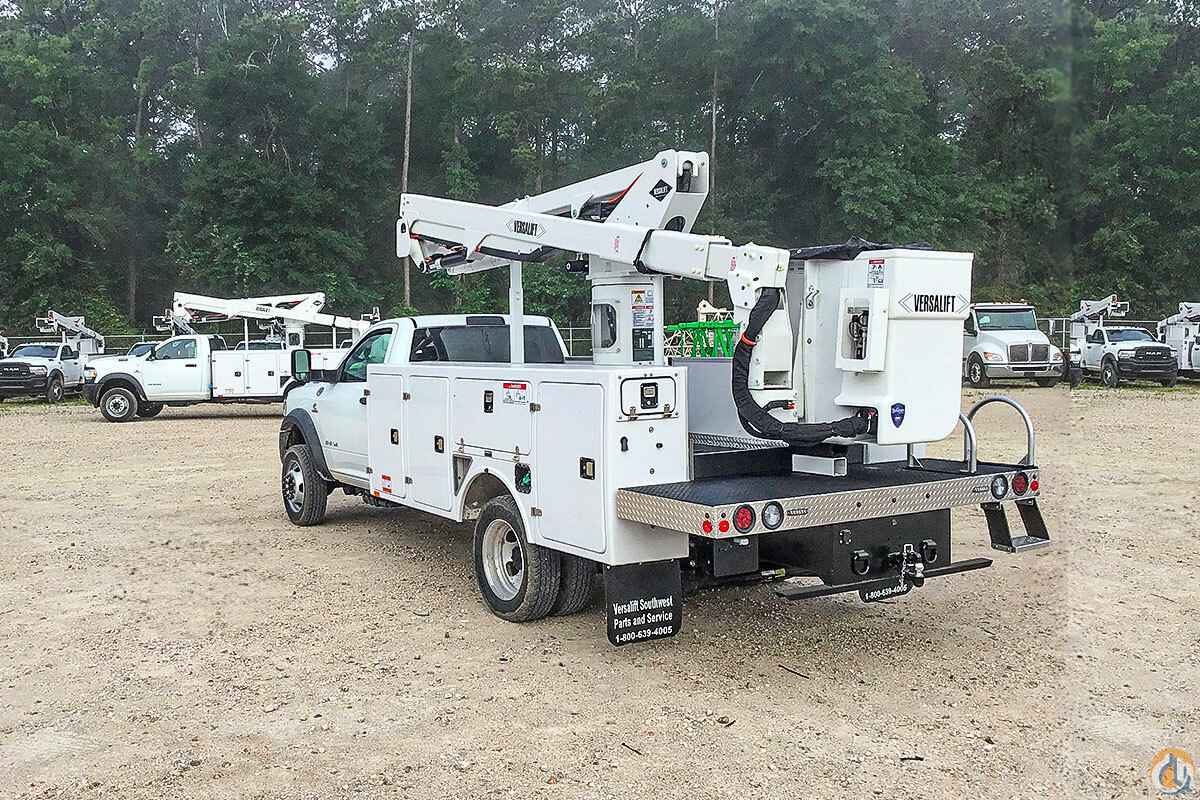

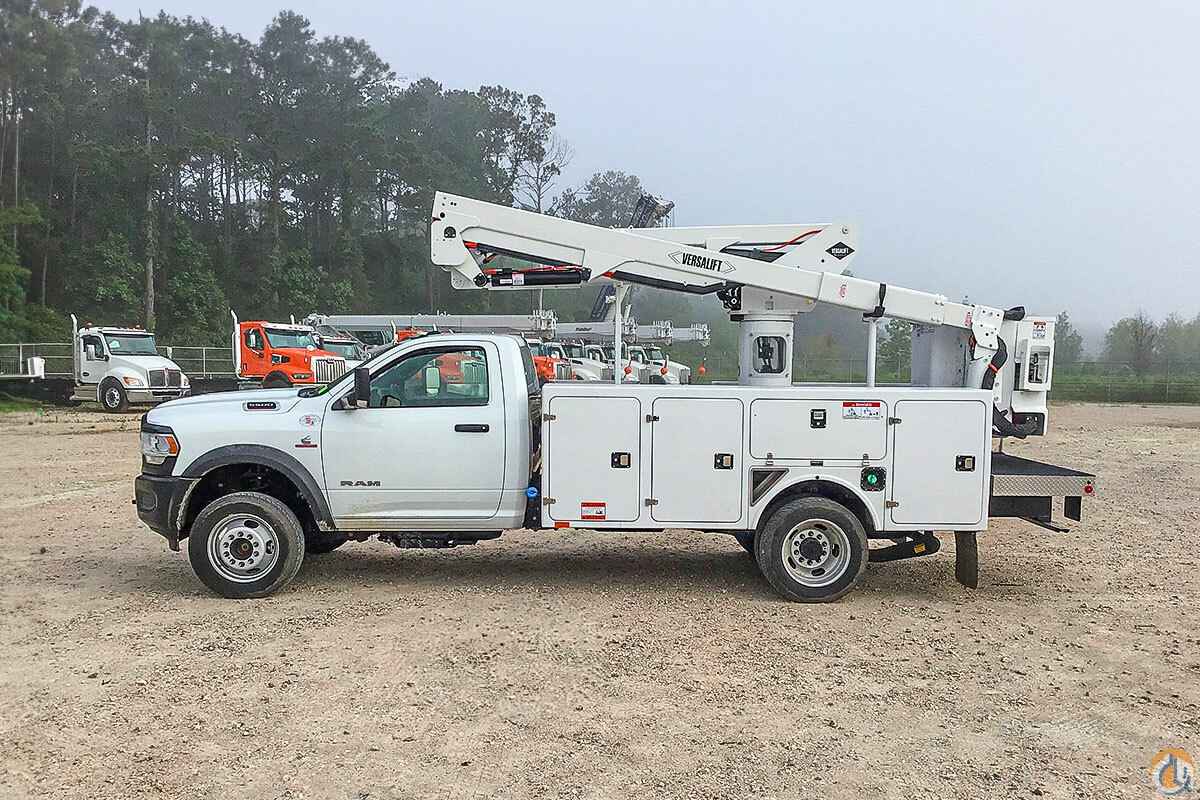

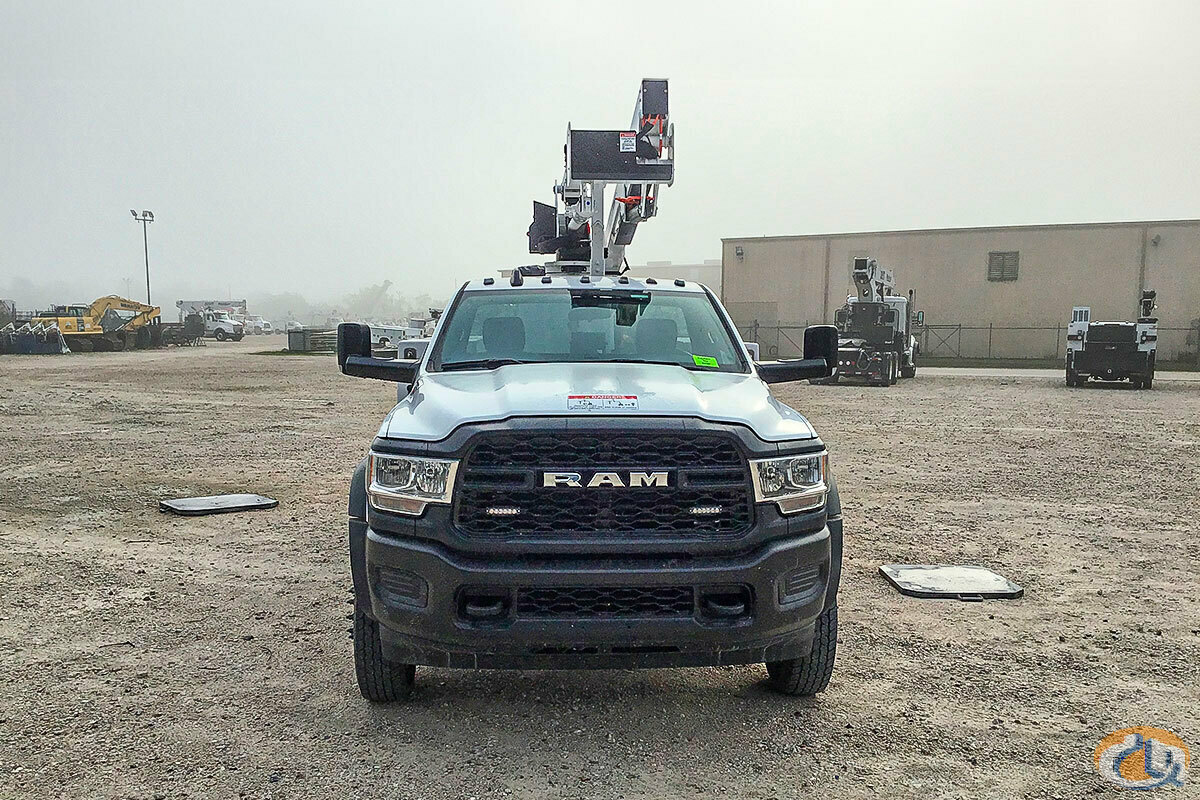

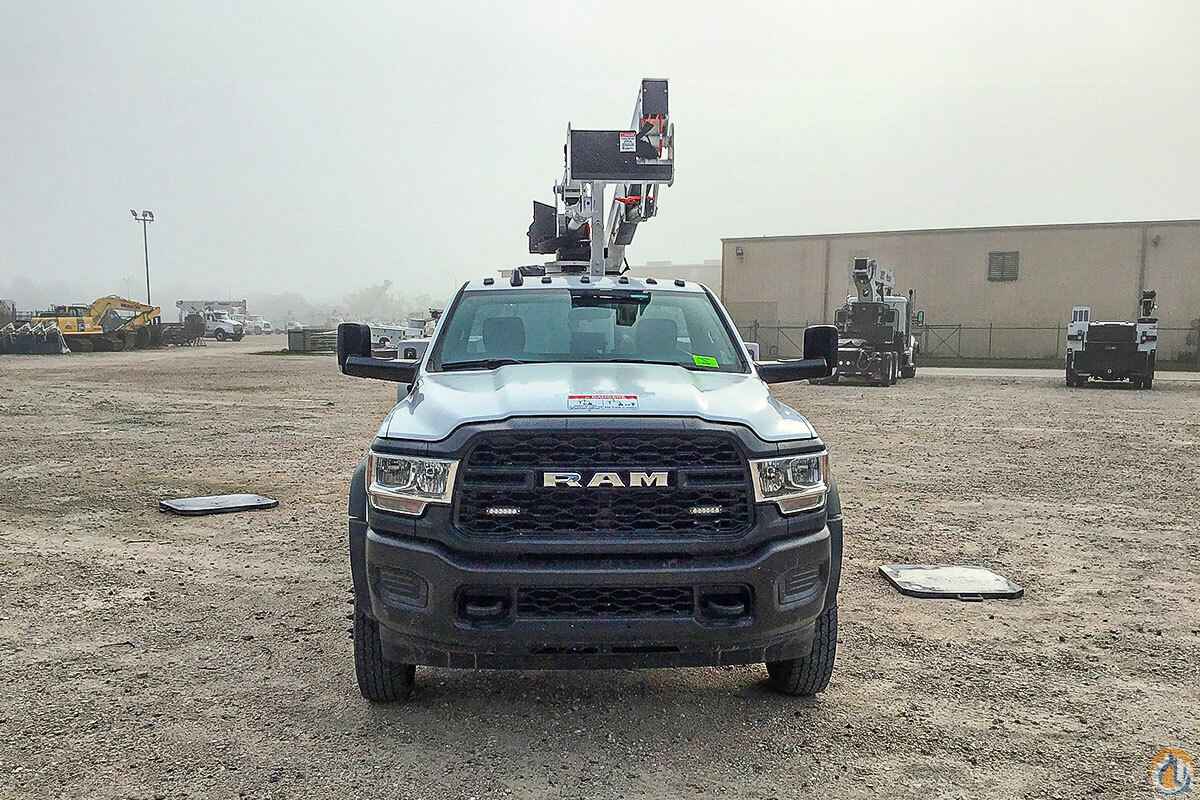

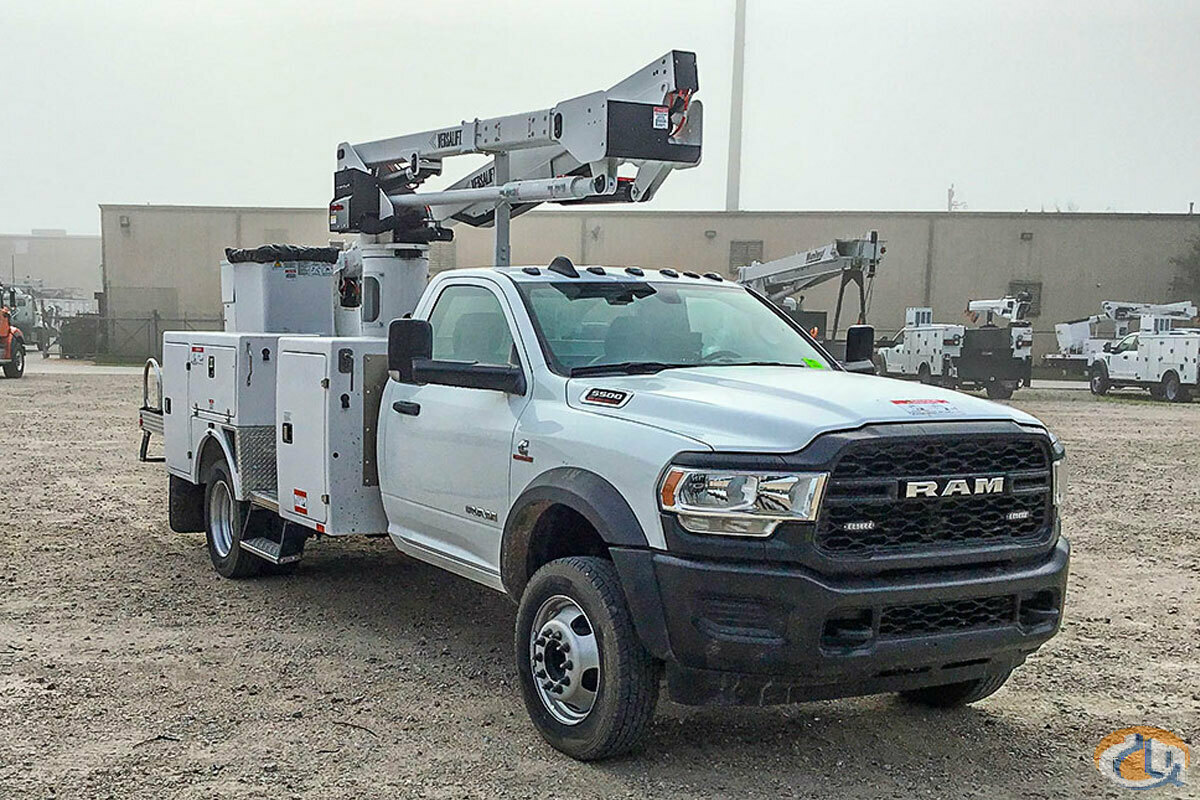

Product Overview
Working Height: 45 ft (13.72 m)
Height to Bottom of Platform: 40 ft (12.19 m)
Horizontal Reach: 27.75 ft (8.23 m)
Stowed Travel Height: 10.33 ft (3.05 m)
Platform Capacity: 450 lbs (204.12 kg)
Insulated or Non-insulated: Insulated
Material Handling: No
Included Options

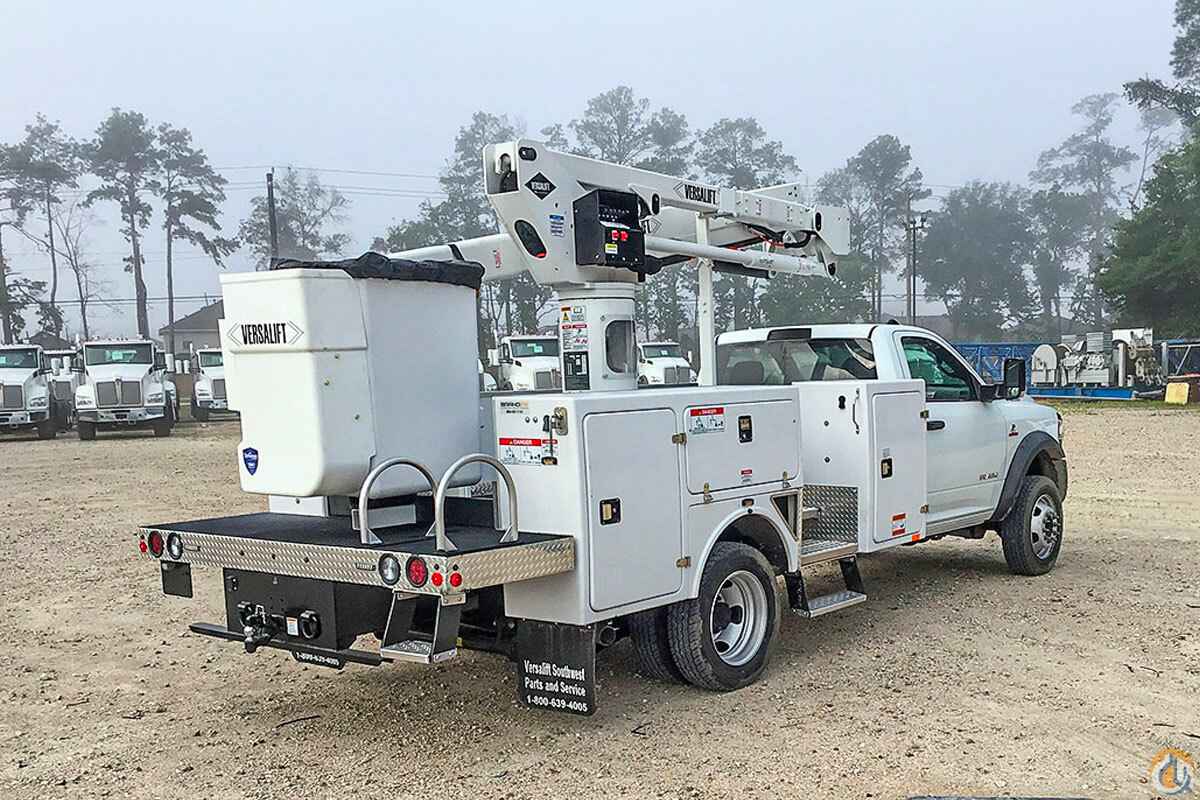

Dakota Steel Bed
132” long x 40” high x 94” wide service body including the following:
· 30 inch tread plate platform extension
· LED lighting package installed in tail shelf with additional cutouts for strobe lights
· Cable access step at rear and side access.
· Two (2) chrome grab handles at side access and two (2) pool type grab handles for rear tail shelf.
· Wheel chock storage with pendulum retainers and outrigger pad holders.
· Master door lock hook and loop system on each door with two (2) spring loaded door handles. Excludes 1st vertical curbside
· Grey Zolatone paint on the interior of compartments.
· 40” High Street side compartments as follows
· 1st Vertical: Two (2) adjustable shelves with dividers and cutout for outrigger
· 2nd Vertical: Two (2) adjustable shelves with dividers
· Horizontal: One (1) removable shelf with dividers
· Rear Vertical: Two (2) adjustable shelves with dividers
· Hot stick shelf with rear access door.
· 40” High Curbside compartments as follows
· 1st Vertical: Two (2) adjustable shelves with dividers and cutout for outrigger
· 2nd Vertical: Gripstrut access steps to bed area with removable composite side gate.
· Horizontal: One (1) adjustable shelf with dividers
· Rear Vertical: Five (5) fixed material hooks 1-3-1
Installation to include the following:
· Install VERSALIFT SST-40-EIH, mounting hardware, PTO and pump.
· Install rear torsion bar and ballast
· Install and paint service body and accessories.
· Install combination pintle hitch with 2" ball, D rings and 7 prong trailer connector
· Install two (2) amber strobe lights in tail shelf and two (2) strobes lights in front grill
· Install mud flaps, back up alarm and park brake interlock system.
· Furnish fire extinguisher, 3-piece triangle reflector kit and wheel chocks.
· Test ride completed unit for 1 hour.
· Test and certify per ANSI A92.2
