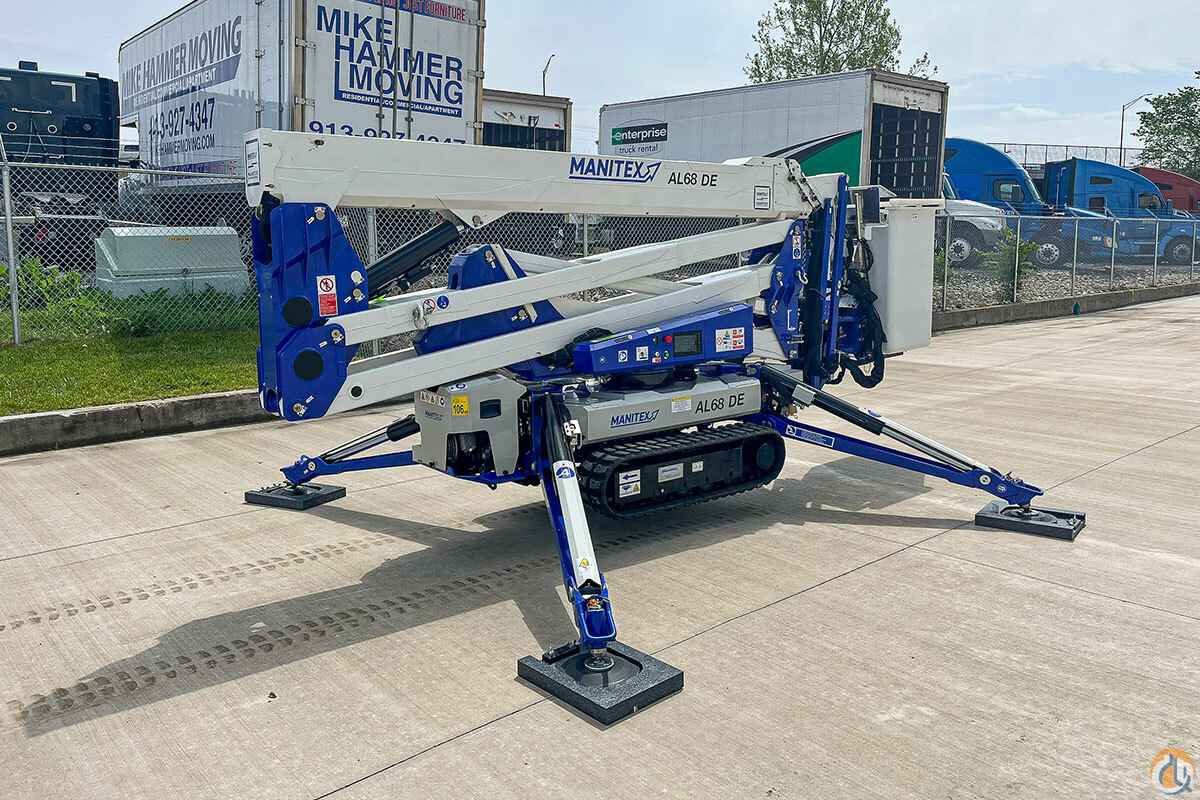

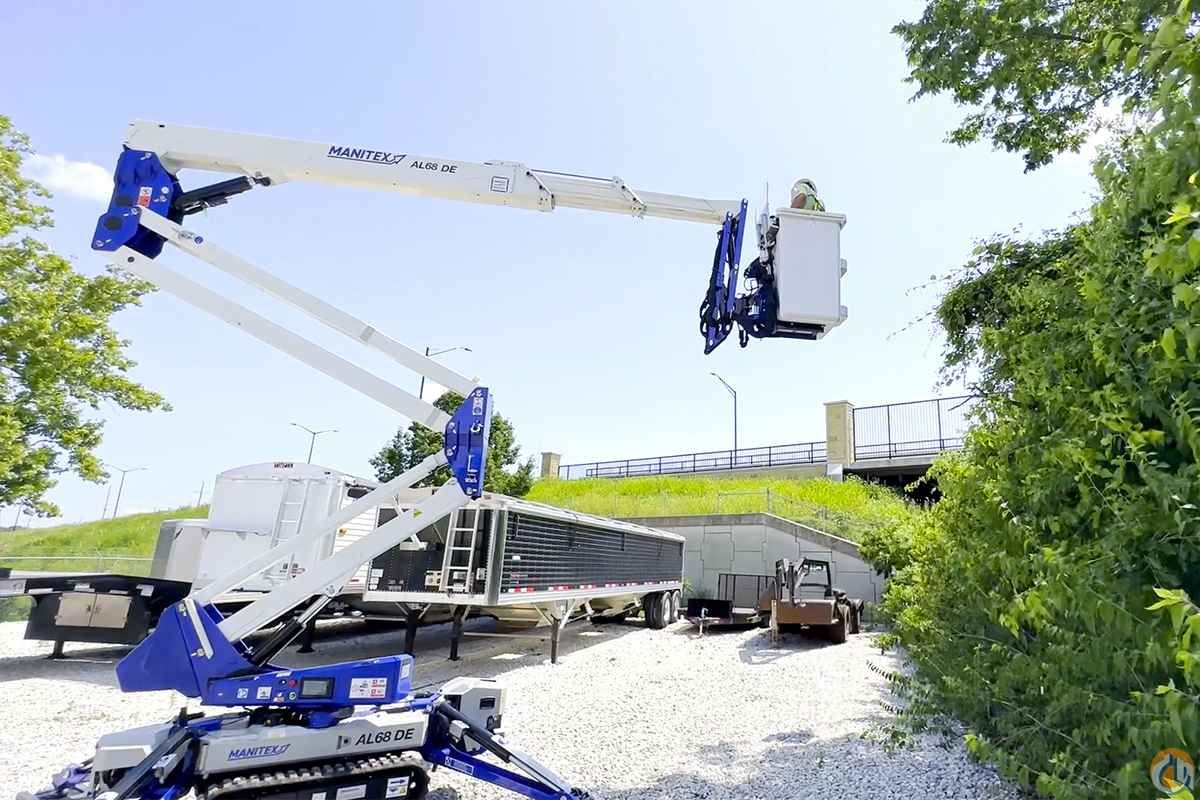

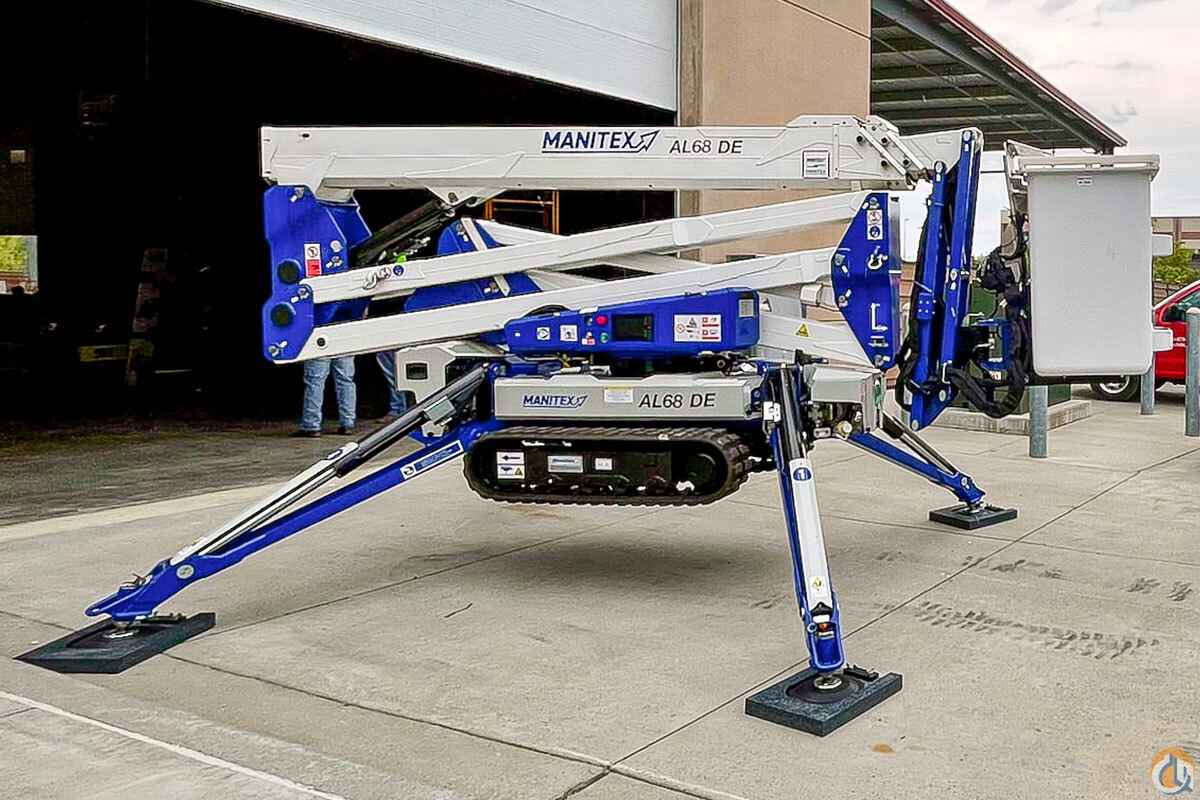

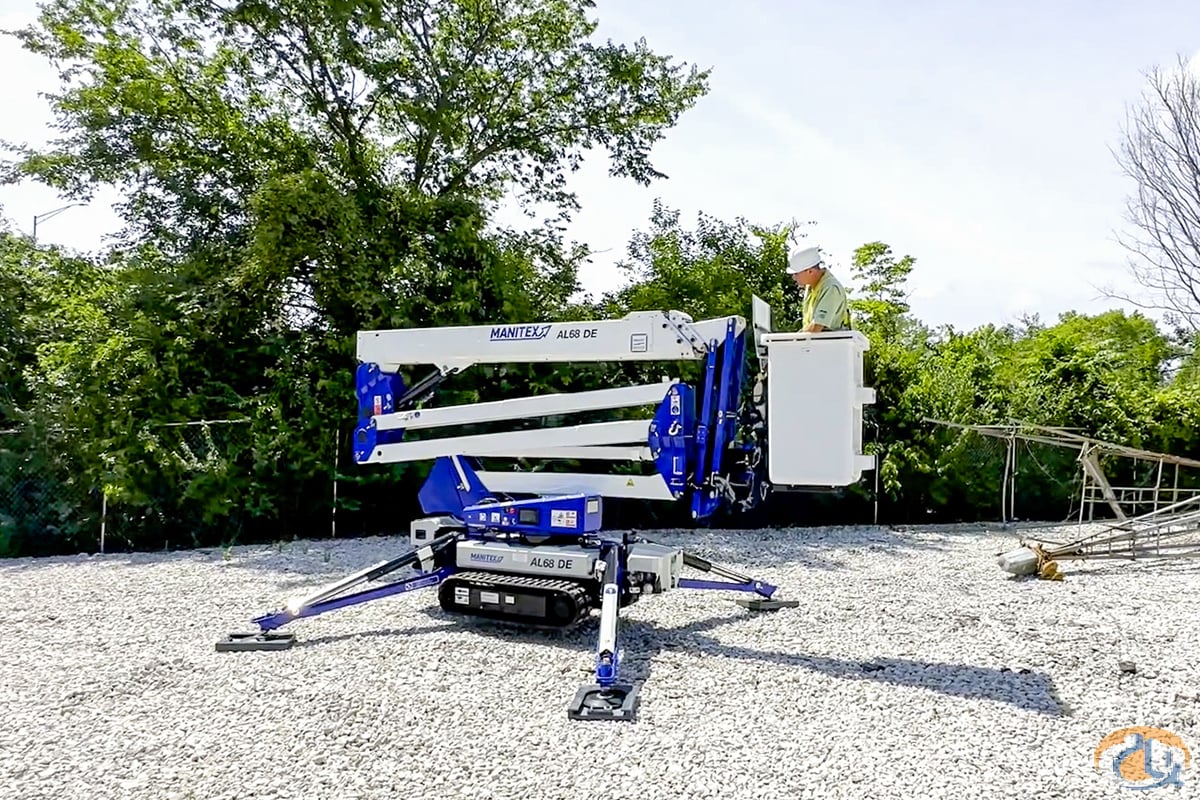

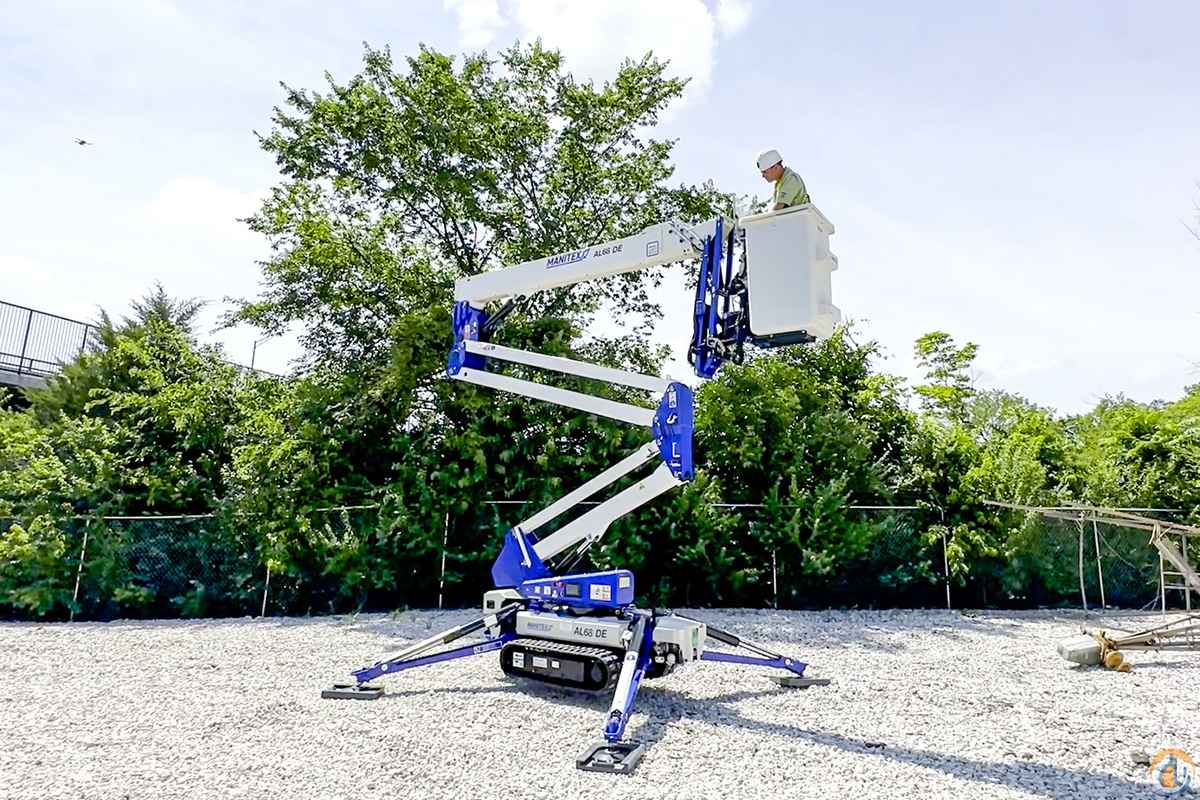

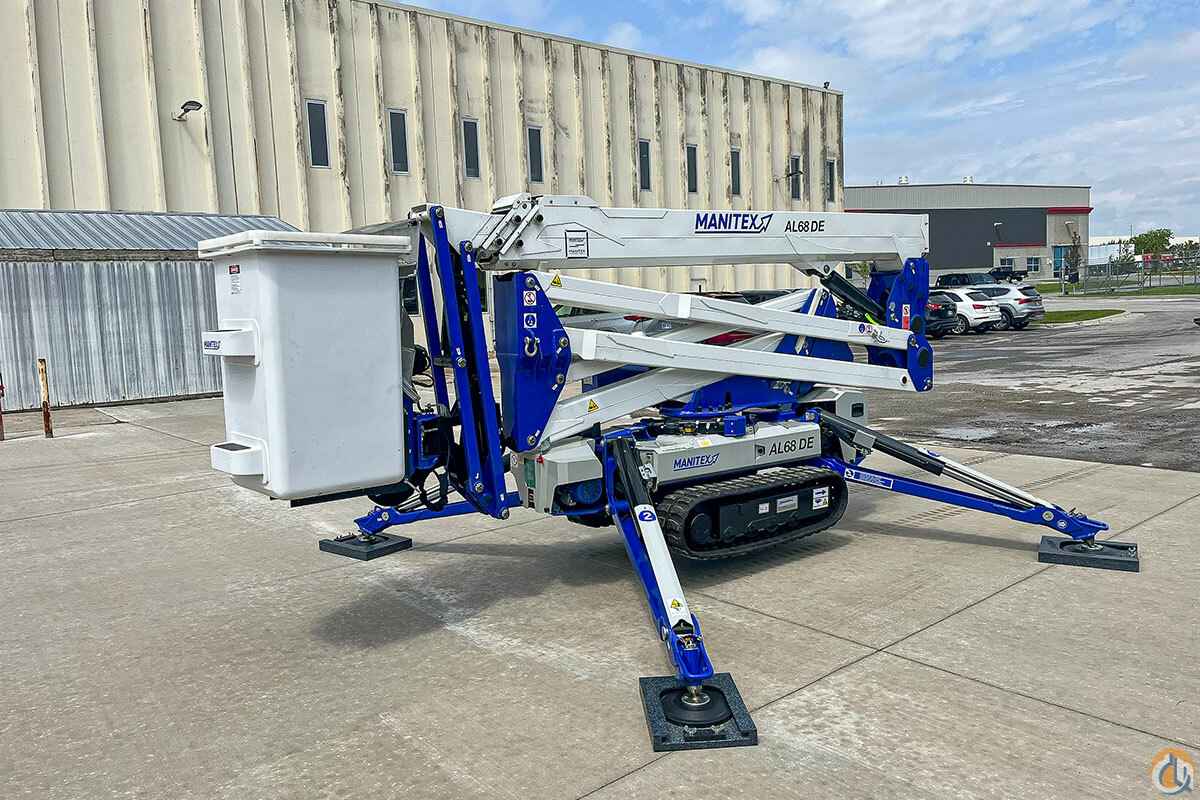

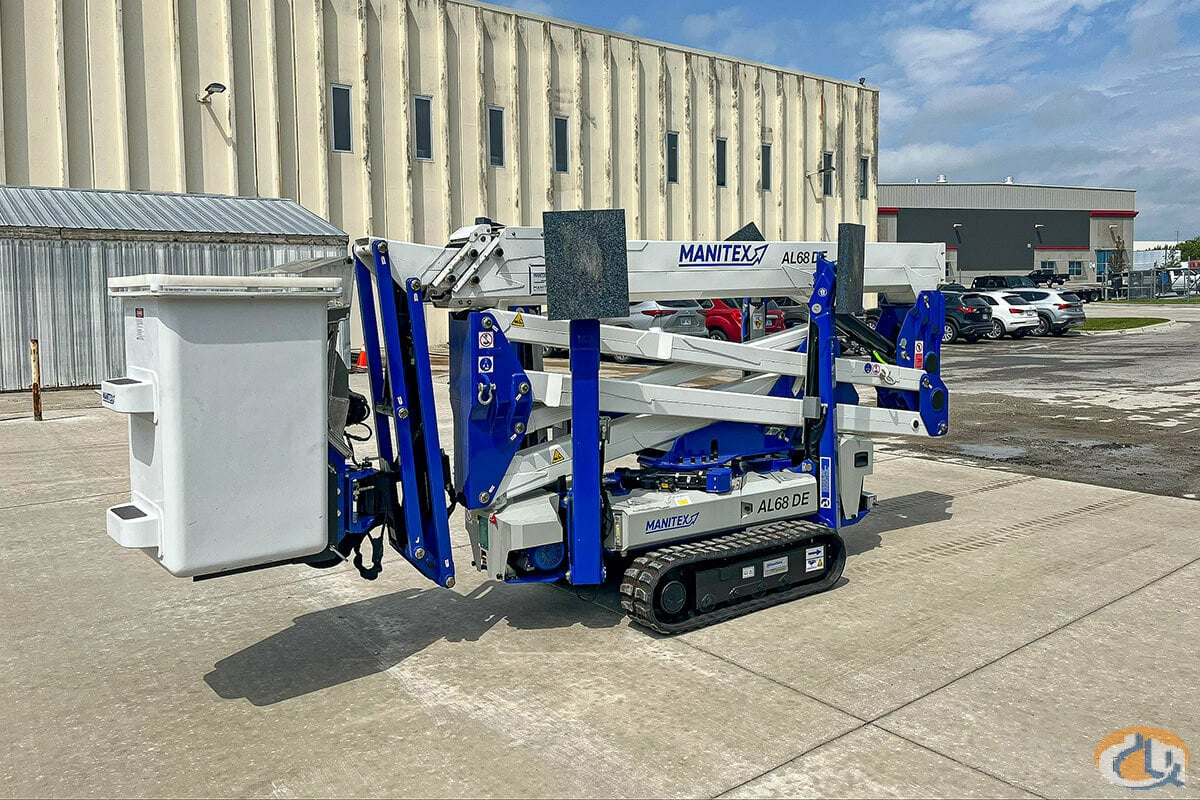

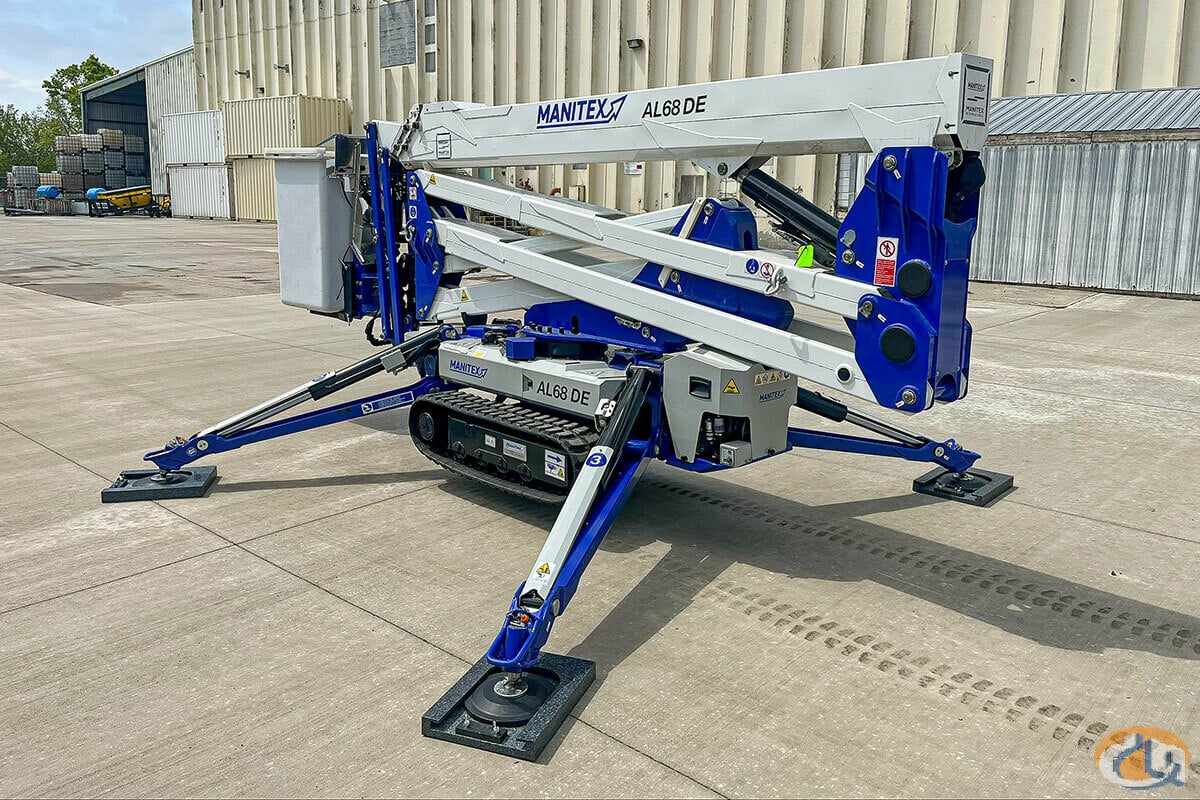

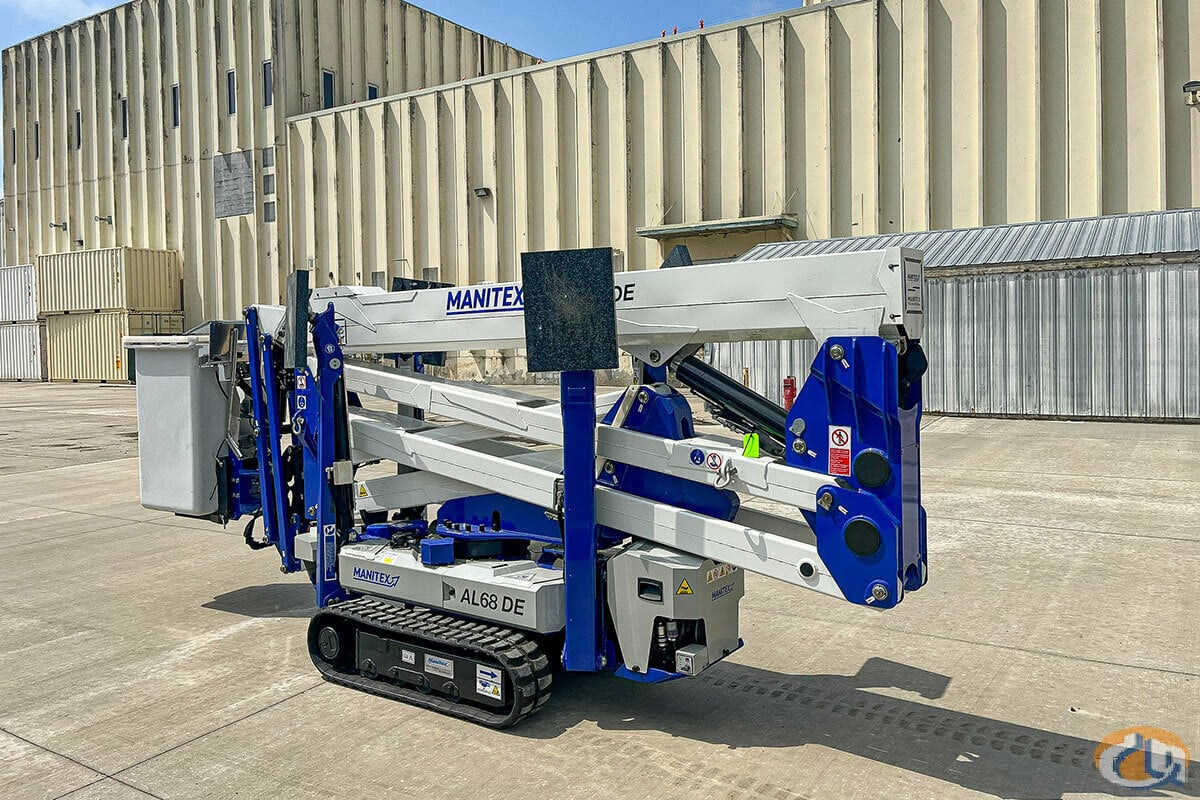

Manitex AL68 Track Mounted Aerial Lift with Diesel/Electric Power Specs - Capacity: 550 lbs - Max Working Height: 68' - Starting Battery: 95 Ah AGM - Basket Rotation: 150° - Power: Diesel (Hatz 10HP) / Electric (110V – 12A) - Boom: Pantograph Movement with a wide range of work area. 68 feet working height - Operator Basket: 55″ Long, 28″ Wide, Aluminum Basket. - Safety belt: Fasteners inside the basket for safety harness tie off points. - Basket Leveling: Automatic and manual control to level the basket. - Controls System Features: Hydraulic controls that can run several functions at simultaneously. - Outriggers: 4 Self leveling outriggers with high penetration. Tracks will be 25″ off the ground. - Basket Controls: Proportional hydraulic controls are located in the basket, protected by fixed guards. Hand pump for emergency lowering. Located in the column. Standard Equipment - Proportional controls with wired remote - Tracks driven by variable displacement motors and braking system - Tracks can be widened by 15” to increase stability while traveling - 95 Ah AGM Starting Battery - 11.5 US gal oil tank - Easy access throughout the unit with quick remove doors and covers - Automatic stabilization and slope sensor - Emergency lowering valves and hand pump - 4’ 6” wide aluminum basket with integrated ladder - 110V socket in the basket - USB plug in the basket - High durability tracks - 4” Display on the ground control station - All wiring inside to boom to protect from damage - Jib stow function to increase departure angle - Electronic speed control - 3 travel speeds - Engine start/stop switch on the ground control station - Manual controls on the ground control station - Bypass key to override the safety features in case of emergency - Quick remove basket with built-in caster wheels - Master/Slave hydraulic basket leveling - Engine Start/Stop from the Ground Control or the Remote - Holding valves on all cylinders - Pressure relief valves Hour meter
