Features
Specs
Type of Articulation Telescopic
Number of Booms 3
Boom Angle -15° / + 75°

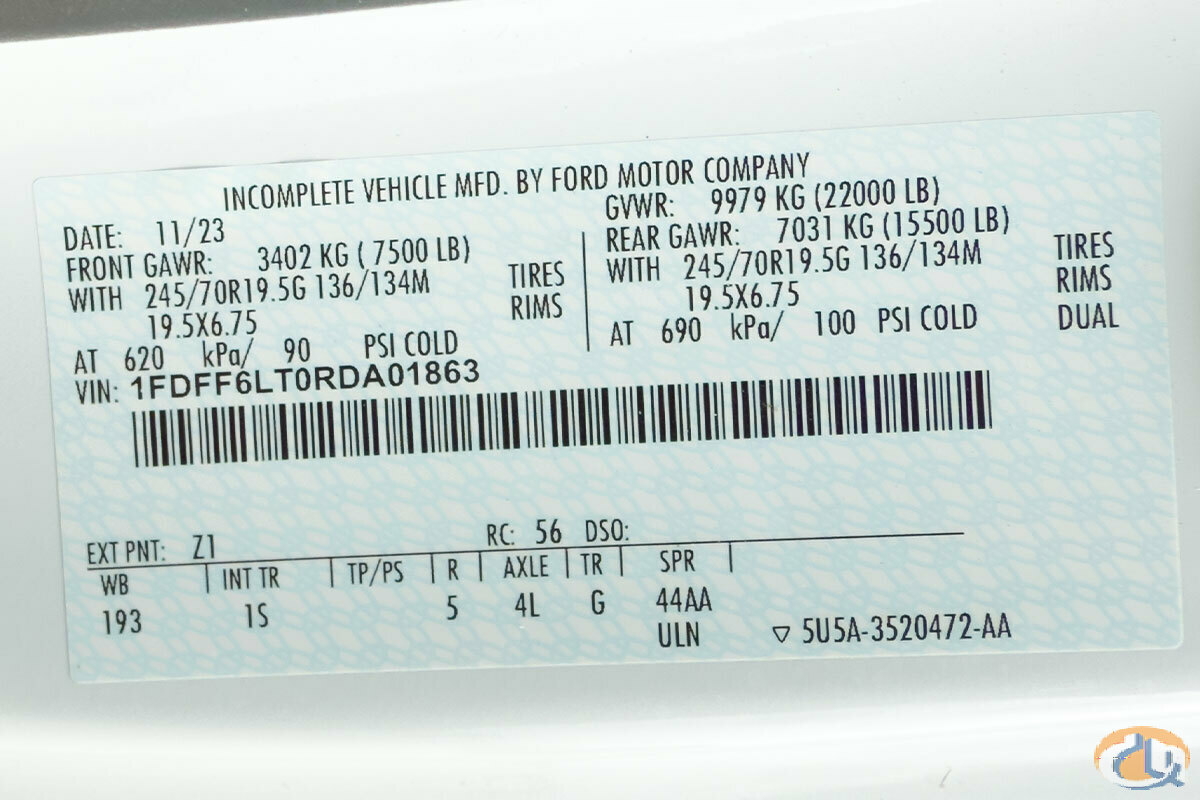

Chassis Requirements GWVR (lbs) 15,400
FAWR (lbs) 7,000
RAWR (lbs) 14,700
Max Capacity (lbs) 550
Max Height floor of bucket (ft) 56
Working height (ft) 62
Outreach (ft) 38
Front Outrigger Fixed - A shape

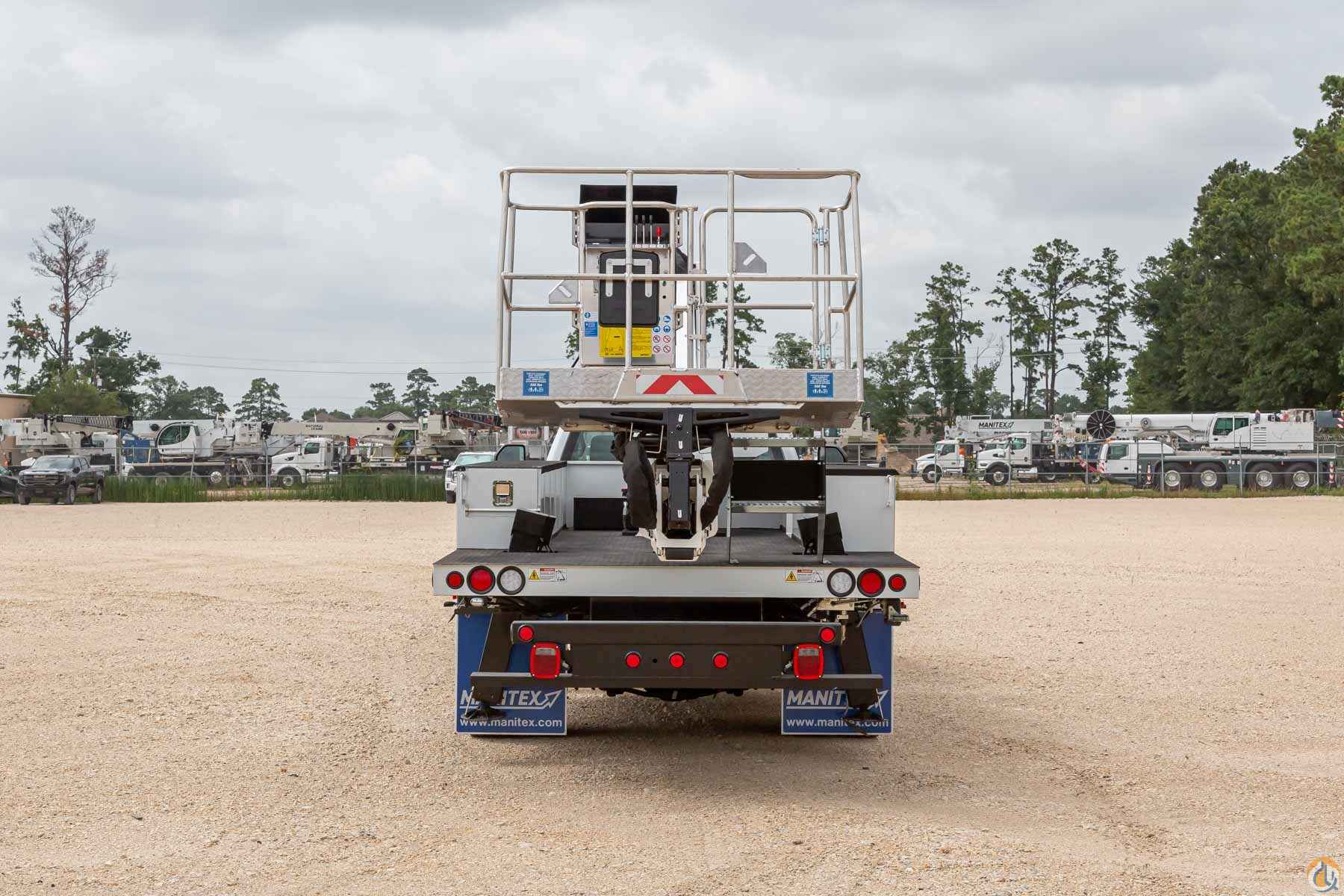

Rear Outrigger Fixed - A shape
Hoses and cables Inside booms
Cylinder of extension Inside booms

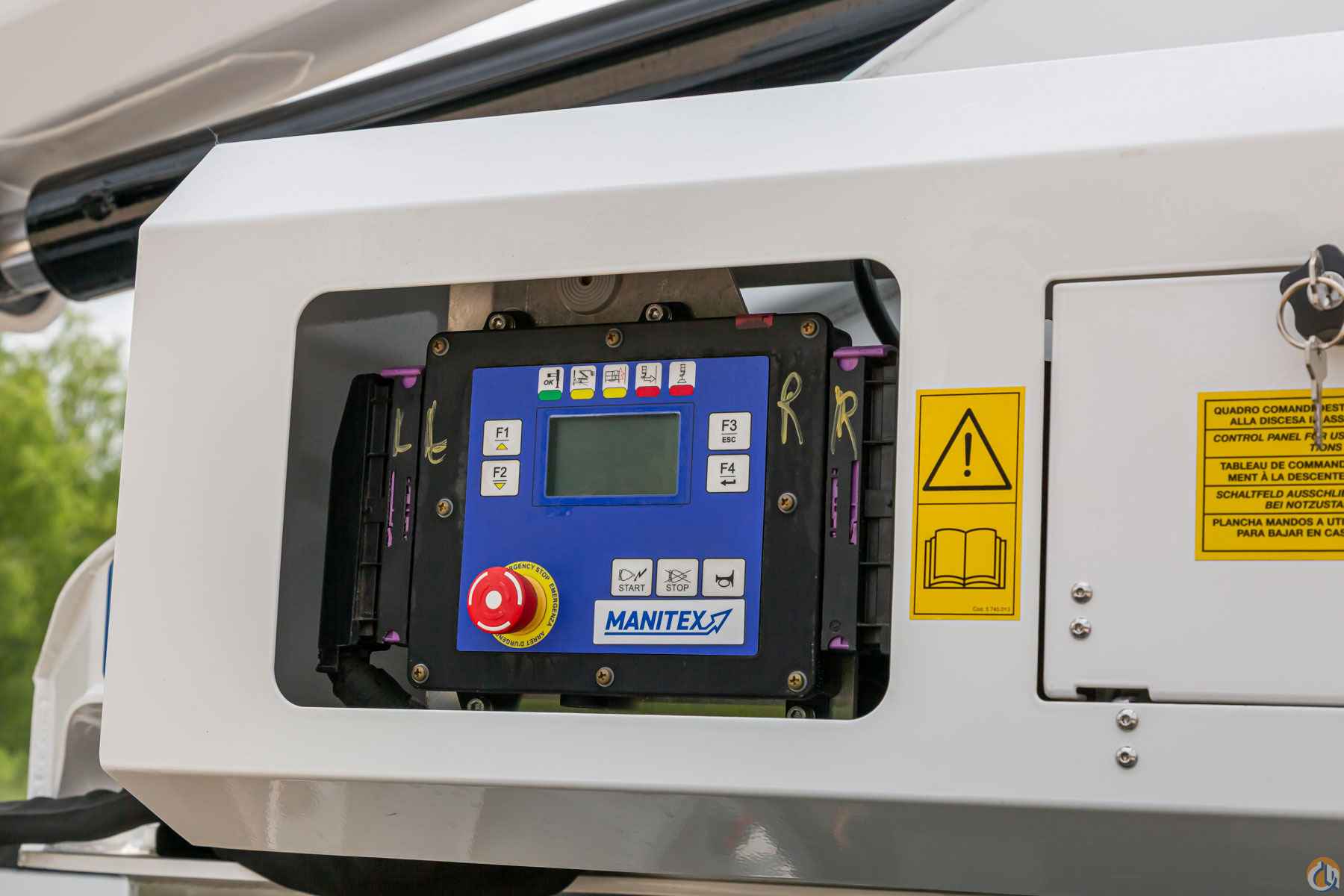

Position and angle control yes
Size of basket (mm) 67 x 28 x 43 Inches [aluminum]
