Elliott L65R Aerial Lift equipped as follows:

- 65’ working height

- 56’ 6” side reach

- Continuous rotation

- Oil reservoir mounted to back of turret box

- Out and down, individually controlled rear main outriggers – 17’ 0” spread, electric-over-hydraulic controlled

- Out and down secondary outriggers behind cab – 12’ spread

- Automatic Rotation Lockout - Prevents boom from rotating to side where outriggers are not fully extended horizontally

- Steel three section hydraulically telescoping boom with one double acting 6” lift cylinder

- Hydraulic self-leveling and rotating 40”x60” EZR work platform with remote level from platform and 160° platform rotation

- USB outlet at upper controls

- Convenience bundle – One button operation for extended platform stow, platform unstow, chassis auto-level, and outrigger stow

- Platform capacity 600 Lbs.

- 110-volt line to platform

- Remote start/kill switch in platform for customer-supplied & installed welder/generator

- Welder leads to platform – two (2) 1-gauge cables

- Mounting bracket above 8’ crossbody box for customer-installed welder generator

- Two (2) sign forks on platform

- Electronic proportional joystick controls on platform

- Platform mounted jib with hydraulic winch drum in floor with 500# capacity. Jib stows in platform

- 5,900# planetary winch w/anti-two block switch, horn, two-part hook & 3/8” cable & retainer lug

- 12-volt emergency pump with switch at upper and lower controls

- 14’ aluminum bed with grip deck coating and tie down rail

- Platform walkway

- LED lights to include all bed marker lights, stop, tail, and turn

- ICC rear bumper w/ 3 angled steps and grab handles

- 98” x 36” x 24” aluminum crossbody box

- Hot shift PTO

- PTO hour meter

- Backup alarm

- Two body harness and lanyard

- Safety triangle kit

- Painted red

- Unit certified to ANSI A92.2

MOUNTED ON:

2025 Ford F750 equipped as follows:

- 33,000 GVWR

- 270 hp 6.7L V8 diesel engine

- Engine block heater

- Ford Torqshift 10-speed automatic transmission

- 12,000# front axle

- 21,000# rear axle

- 50 gallon aluminum fuel tank

- 11R22.5 front and rear tires

- Aluminum wheels

- Hydraulic brakes

- Air conditioner

- Fixed driver seat

- Two-man passenger bench seat

- Power locks and windows

- Heated and motorized mirrors

- AM/FM radio with Bluetooth

- Cab color: white

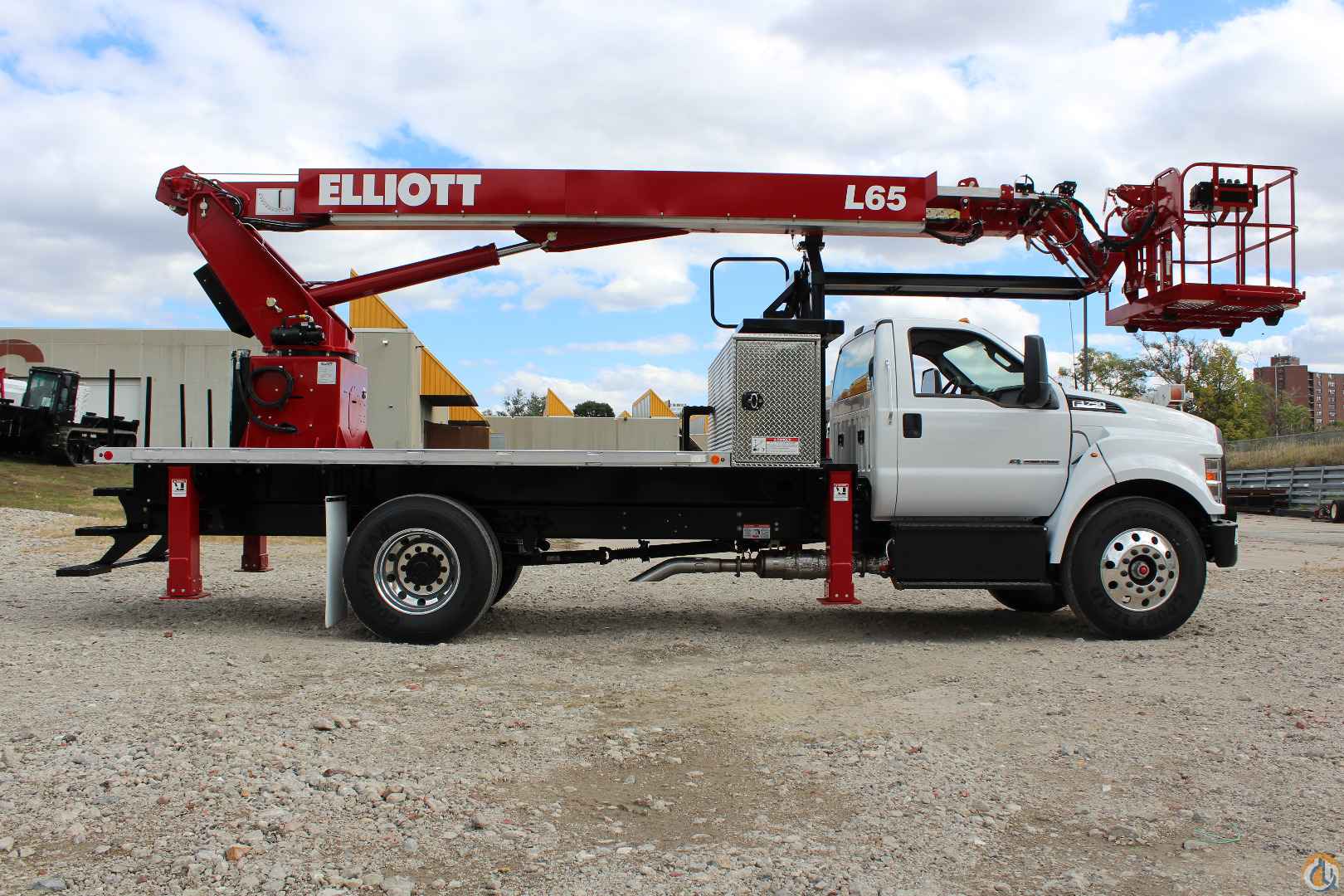

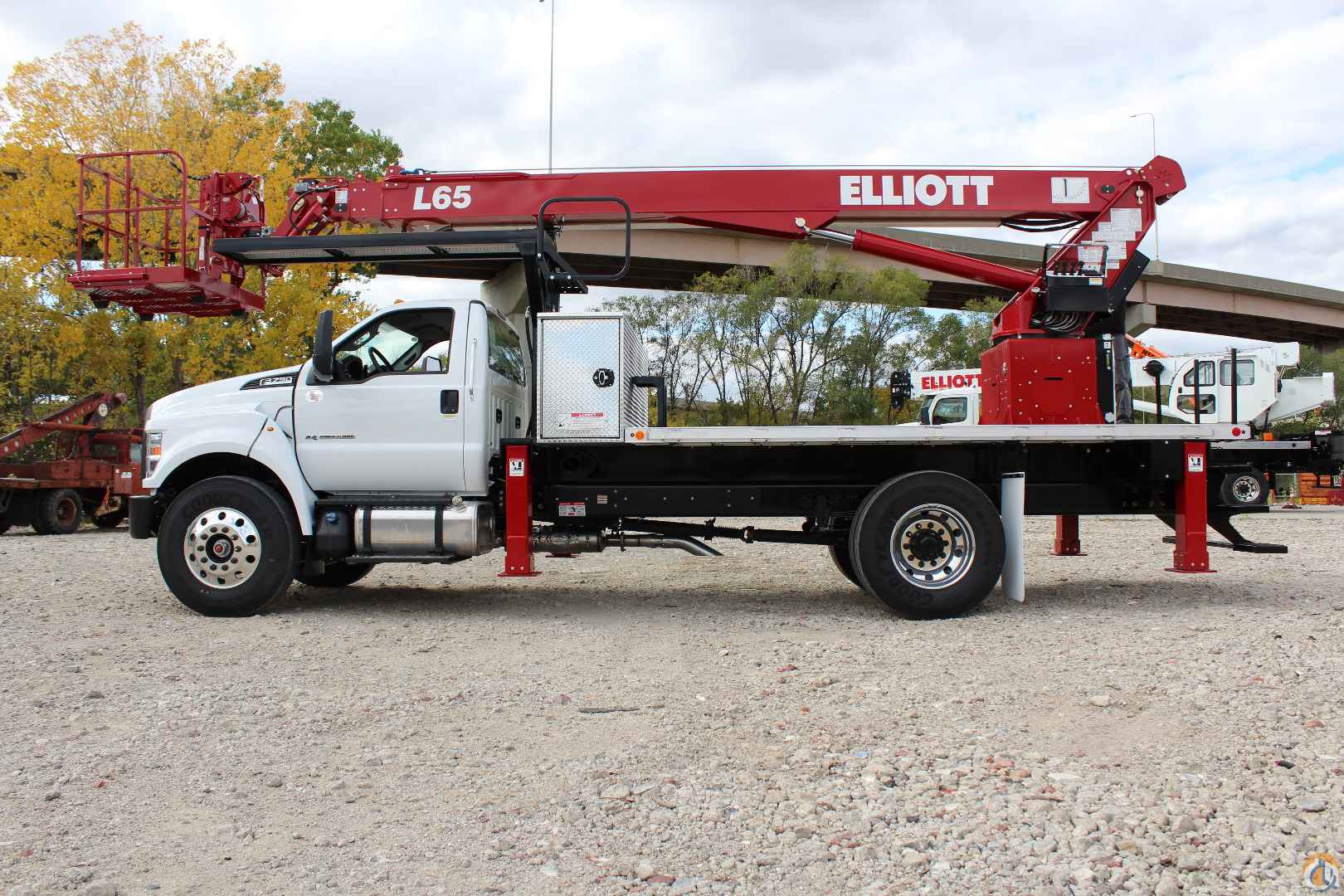

STOCK PHOTOS
