Standard Features

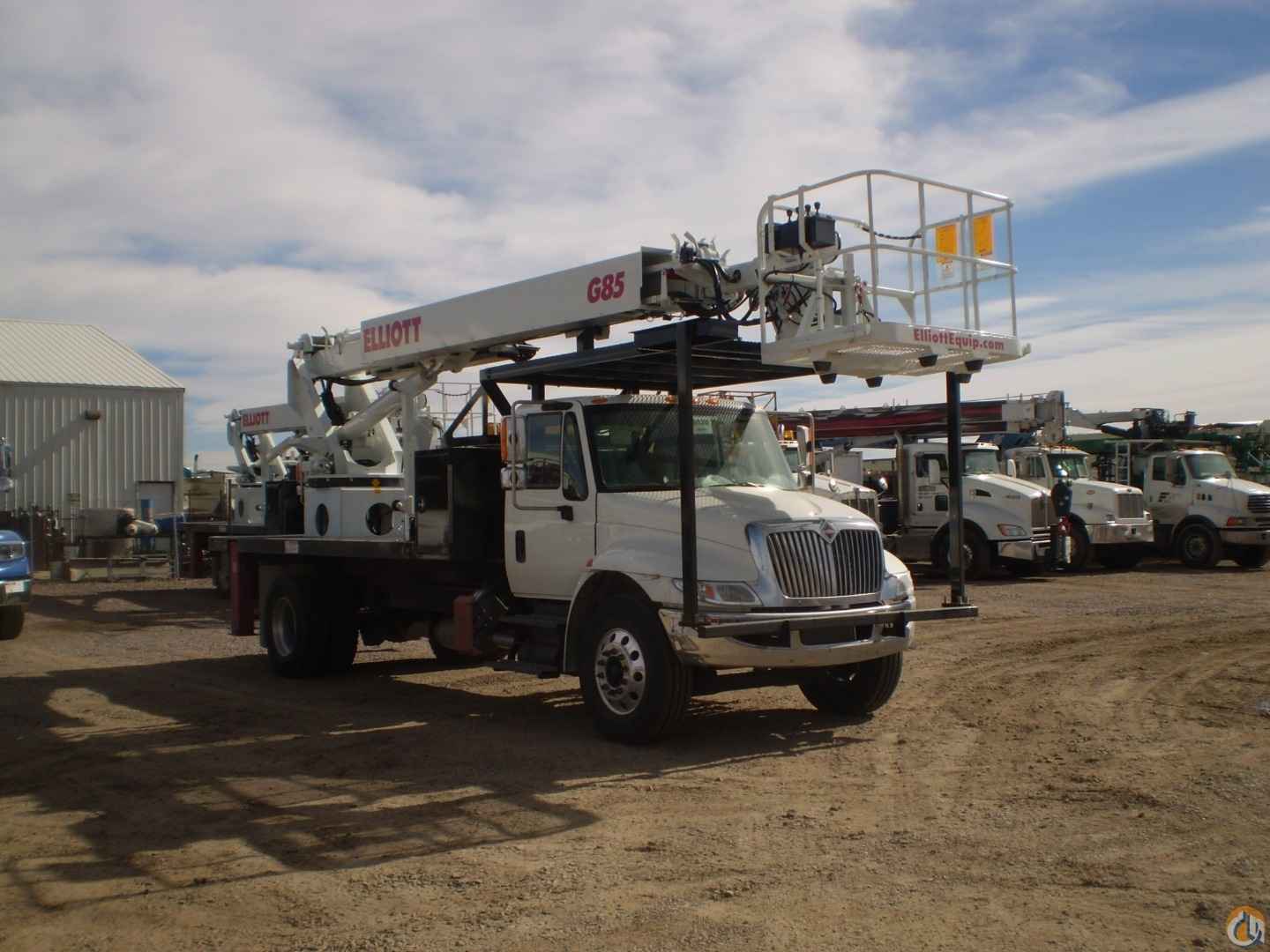

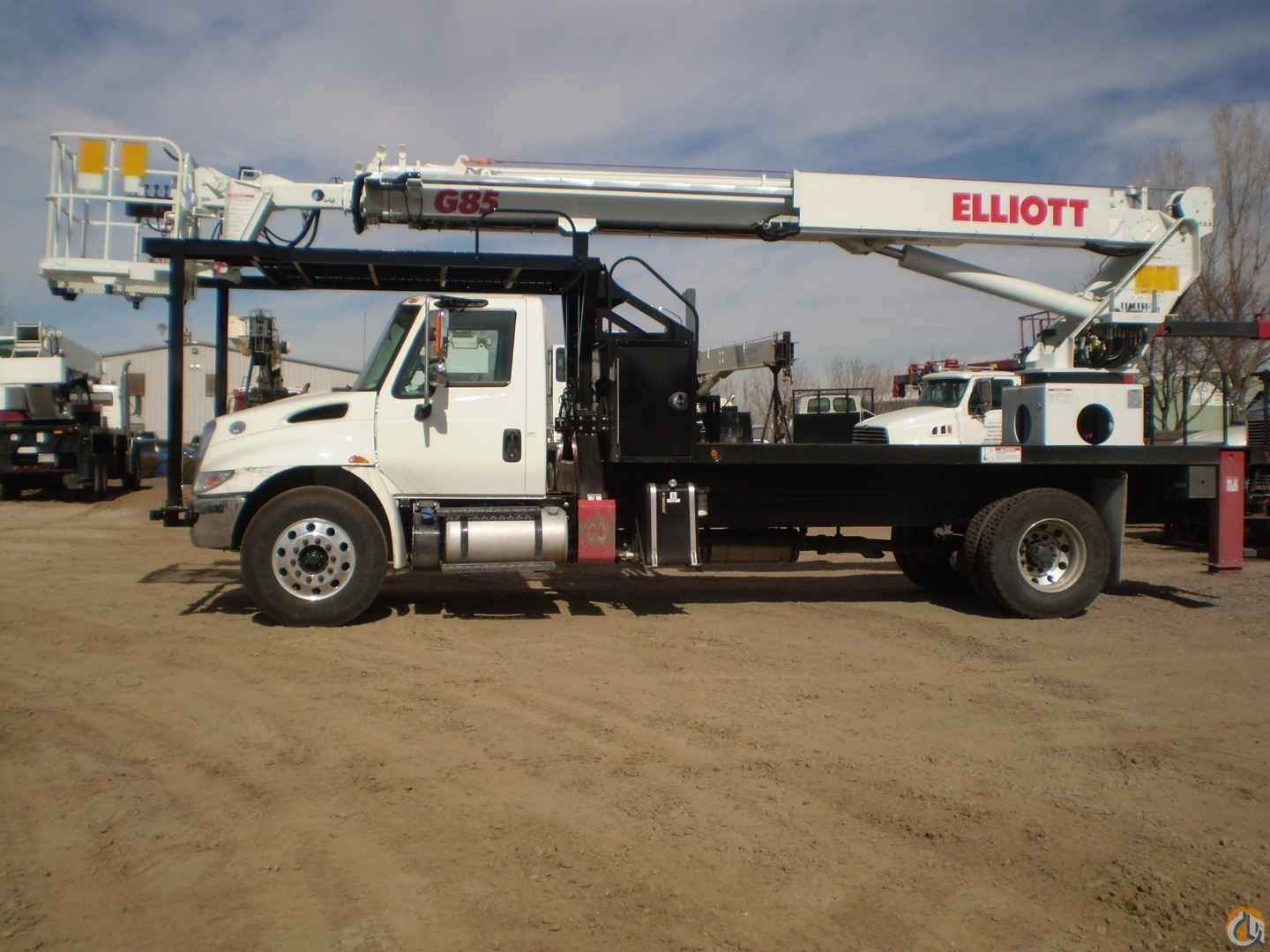

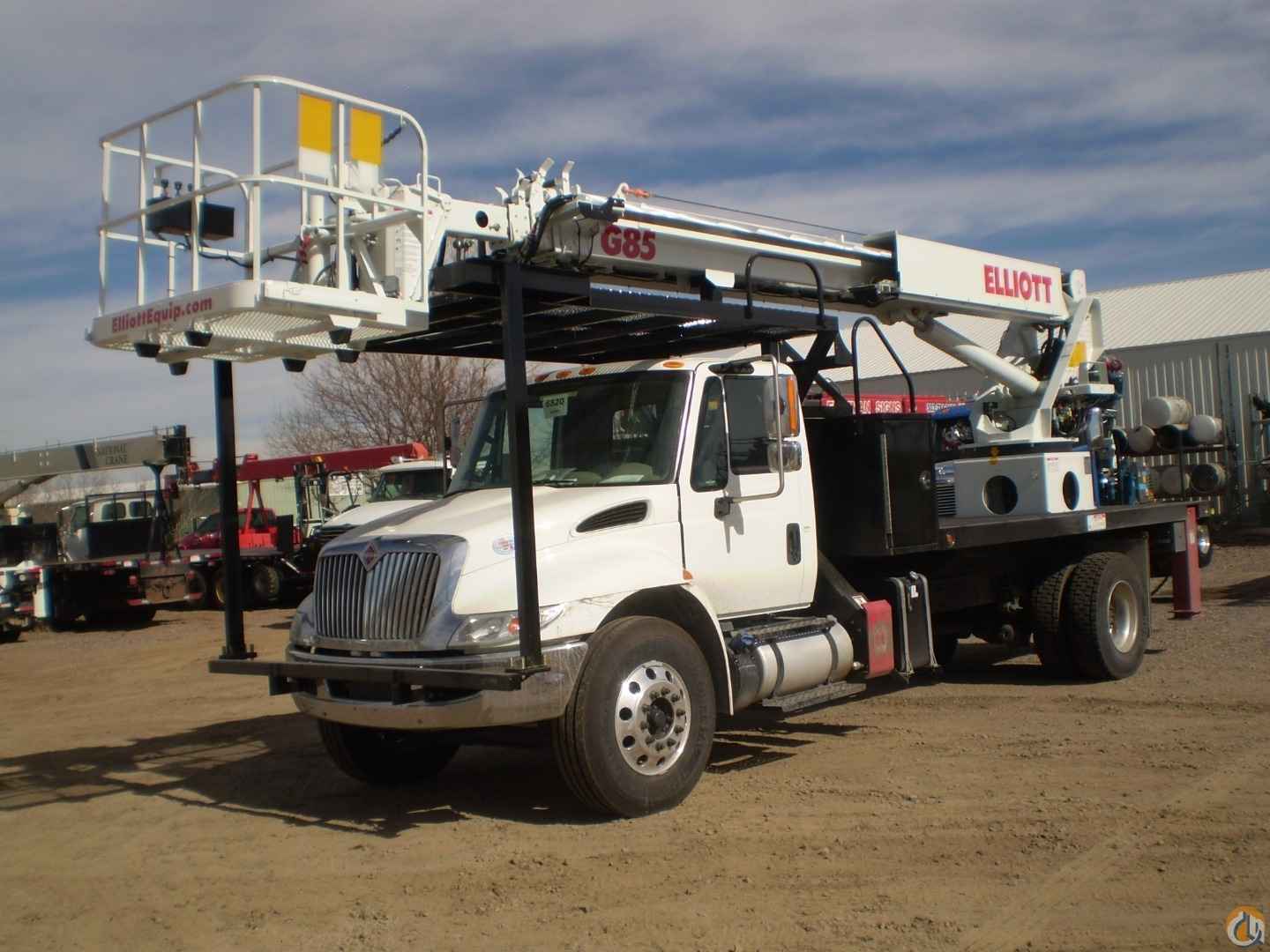

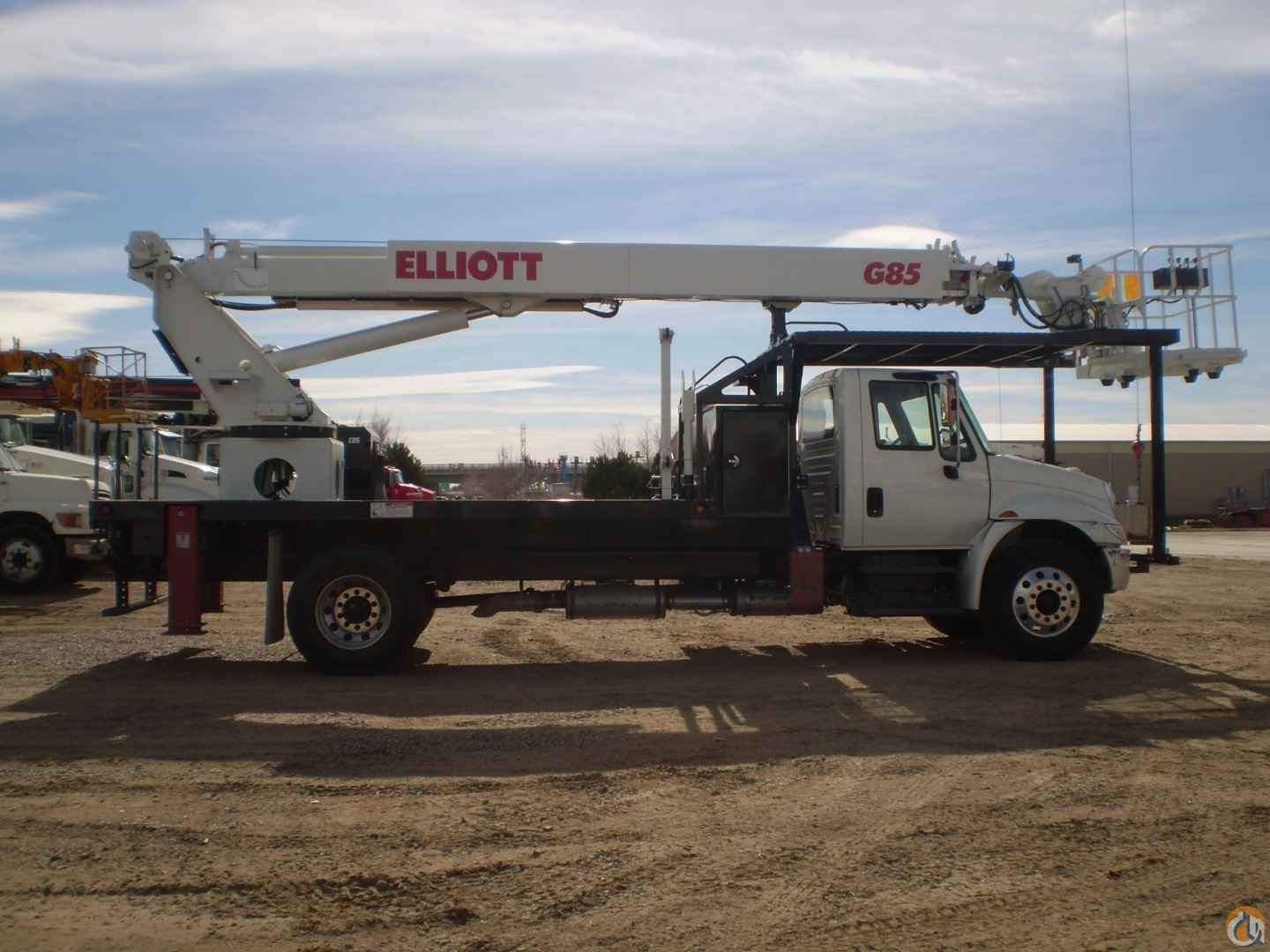

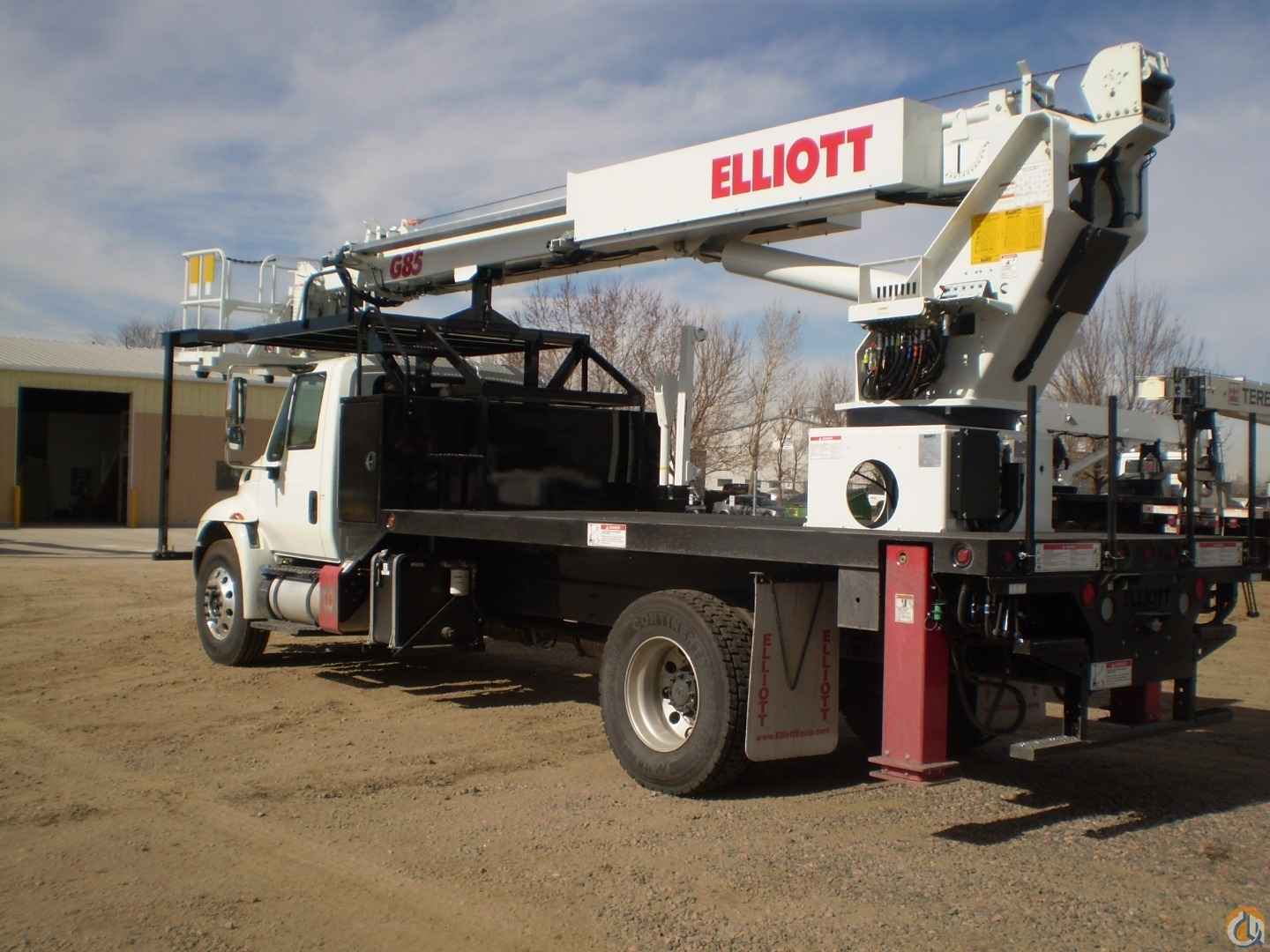

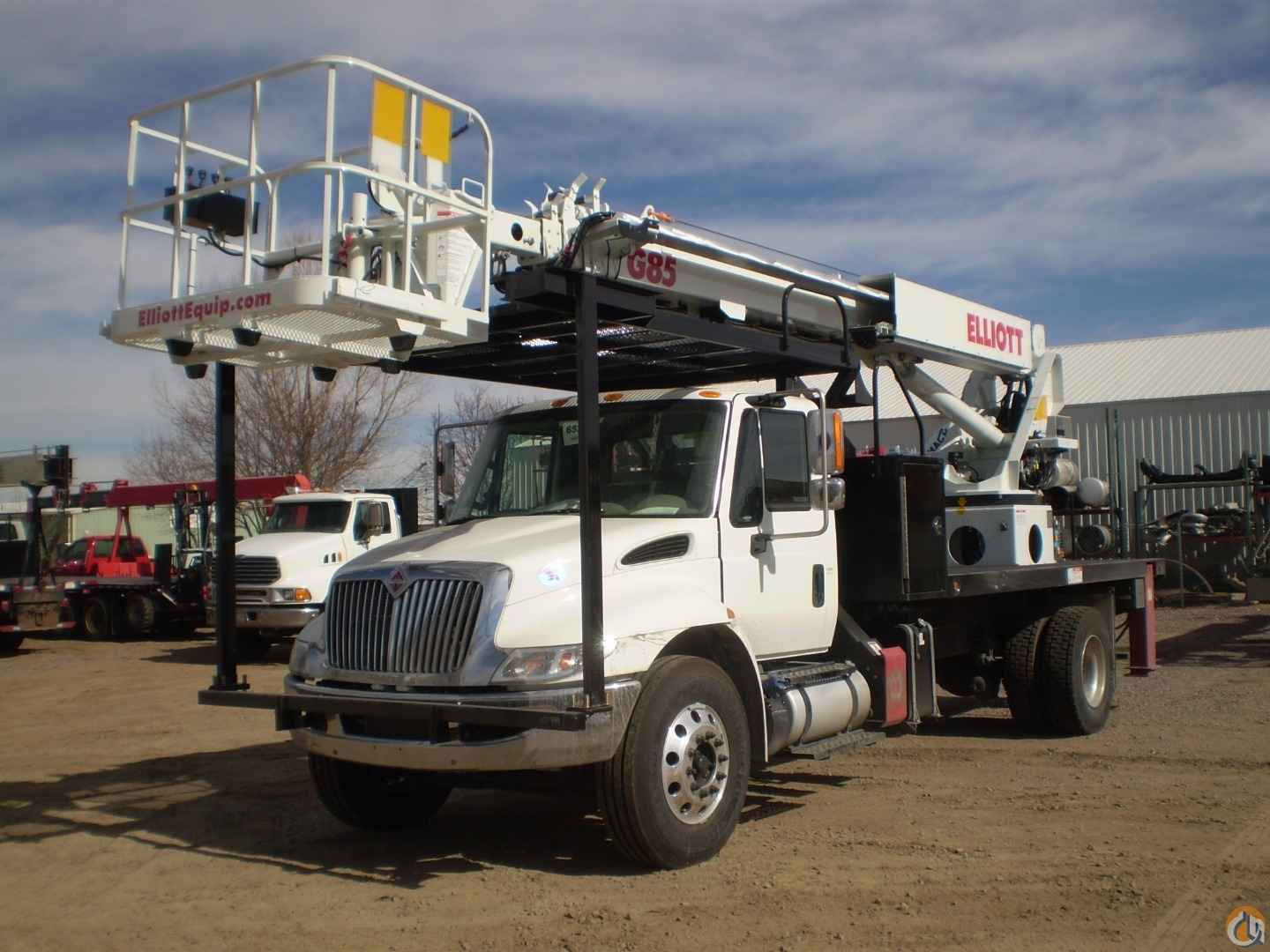

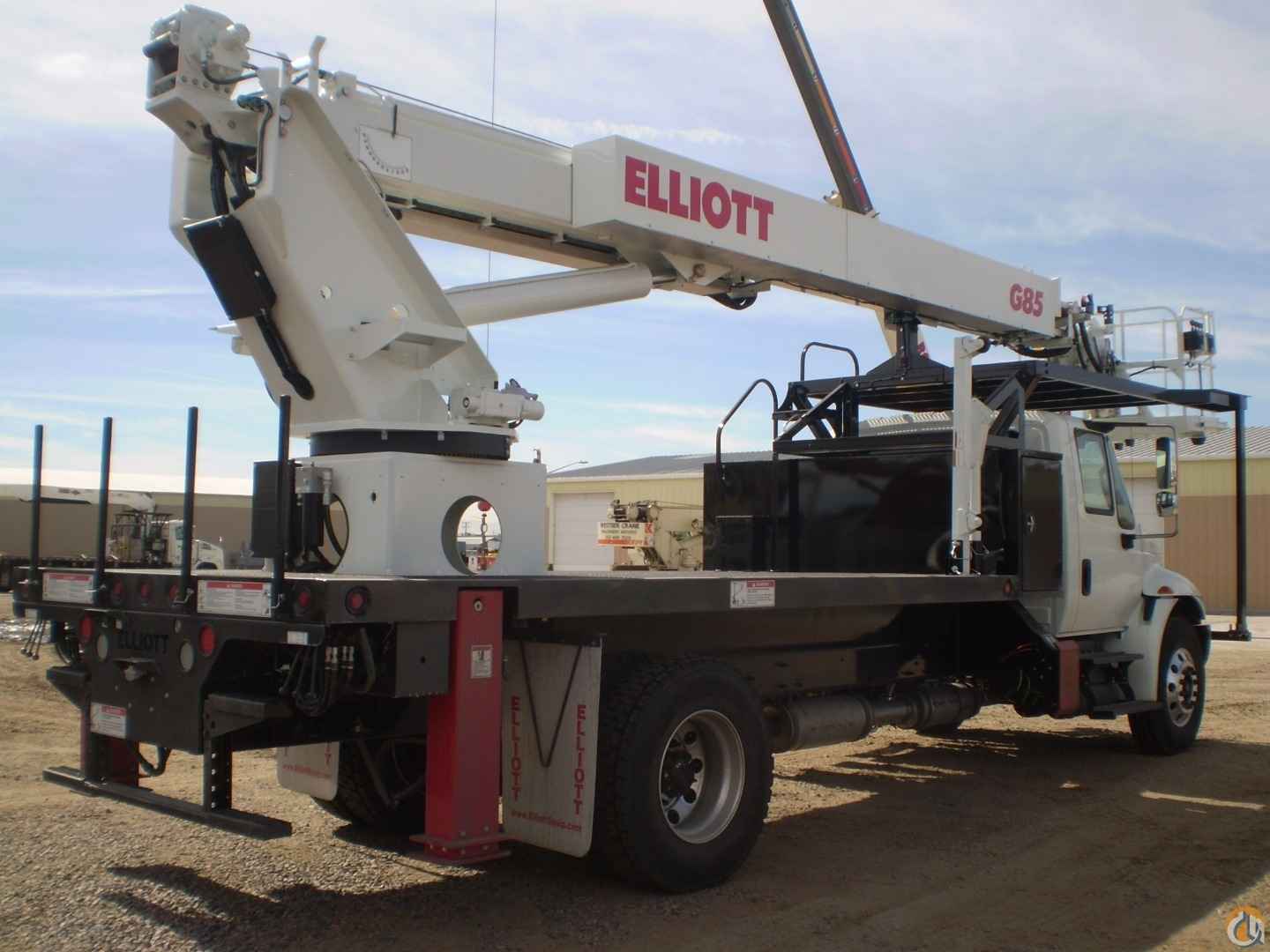

Elliott HiReach G85R, having a 85' working height. Basic unit includes base assembly supporting rear mounted rotating turret, hydraulically powered continuous rotation mechanism, oil reservoir mounted to truck frame, oil, and manual hydraulic controls mounted to turret. Electronic proportional three stick remote controls on platform. Base mounted "MH" type hydraulically powered, individually controlled rear main outriggers and “A” secondary outriggers behind cab. High strength steel four section hydraulically telescoping boom with one double acting 7" lift cylinder plus (1) 2 1/2" piggyback and (1) 3" extension cylinder. Two exposed cable carriers to boom tip. Hydraulically self-leveling and rotating 40" x 60" EZR work platform with remote leveling from platform. Power take off and pump drive, pressure gauge, pump and holding valves on all cylinders. Remote start/stop at upper and lower controls, 12-volt emergency pump with switch at upper and lower controls, PTO hour meter, backup alarm, fire extinguisher, safety triangle kit, and two body harness and lanyards. L.E.D. lights to include all bed marker lights, stop, tail and turn. Installed on chassis, tested and ready to operate. Unit certified to ANSI A92.2 for Vehicle-Mounted Elevating and Rotating Aerial Devices. Platform capacity 500 lbs.

Included Items

• Elliott G85R
• 16' Steel Bed With LED Lights and Grip Deck Coating (For Use With Crossbody Box)
• Standard ICC Rear Bumper With Steps and Grab Handles
• Automatic Safety Rotation Lockout - Prevents Boom from Rotating to Side Where MH Outriggers Are Not Fully Extended Horizontally. ("A" Outriggers Remain Fully Extended)
• 5,900 lb. Planetary Winch With Anti-Two-Block Switch, Horn, Two Part Hook & 210' 3/8" Cable & Retainer Lug
• 500 lb. Platform Mounted Jib With Hydraulic Winch Mounted in Platform Floor
• 110 Volt Line to Platform
• Hot Shift PTO For Automatic Transmission
• (2) Sign Forks On Platform
• 98" x 36" x 24" Steel Crossbody Box (Requires 2' Shorter Bed)
• Steel Cable Carrier Covers
• Cab Guard From Back of Cab to Front Bumper (Reg Cab)
• Mounting Bracket Above 8' Crossbody Box for Customer Installed Welder/Generator (Miller Bobcat 225)
• HiReach Unit Painted Red, Subframe Painted Black, Outriggers Painted Red (STD)
• Upfitting Preparation Charge for Customer Supplied Chassis (Net Price)

Truck

• 2016 International 4300 SBA 4X2 (MA025)
• 33,000 lb GVWR
• 13,000 Lb Front Axle
• 20,000 Lb. Rear Axle
• International Vari-Rate Spring Suspension, 23,500 Lb.
• Cummins ISB 260 260HP Engine
• Allison Automatic Transmission
• Air Brakes
• Power Steering
• Block Heater
• Panasonic AM-FM Stereo
• Driver’s Seat: National, Air Ride
• Rider’s Seat: Two Man Bench with Under Seat Storage Compartment
• Air Conditioner
• Front Tires: 11R22.5 on Aluminum Wheels
• Rear Tires: 11R22.5 on Aluminum / Steel Wheels
• 50 Gallon Aluminum Fuel Tank

Ref no: BM-2001, PO97802R1

97802R1
