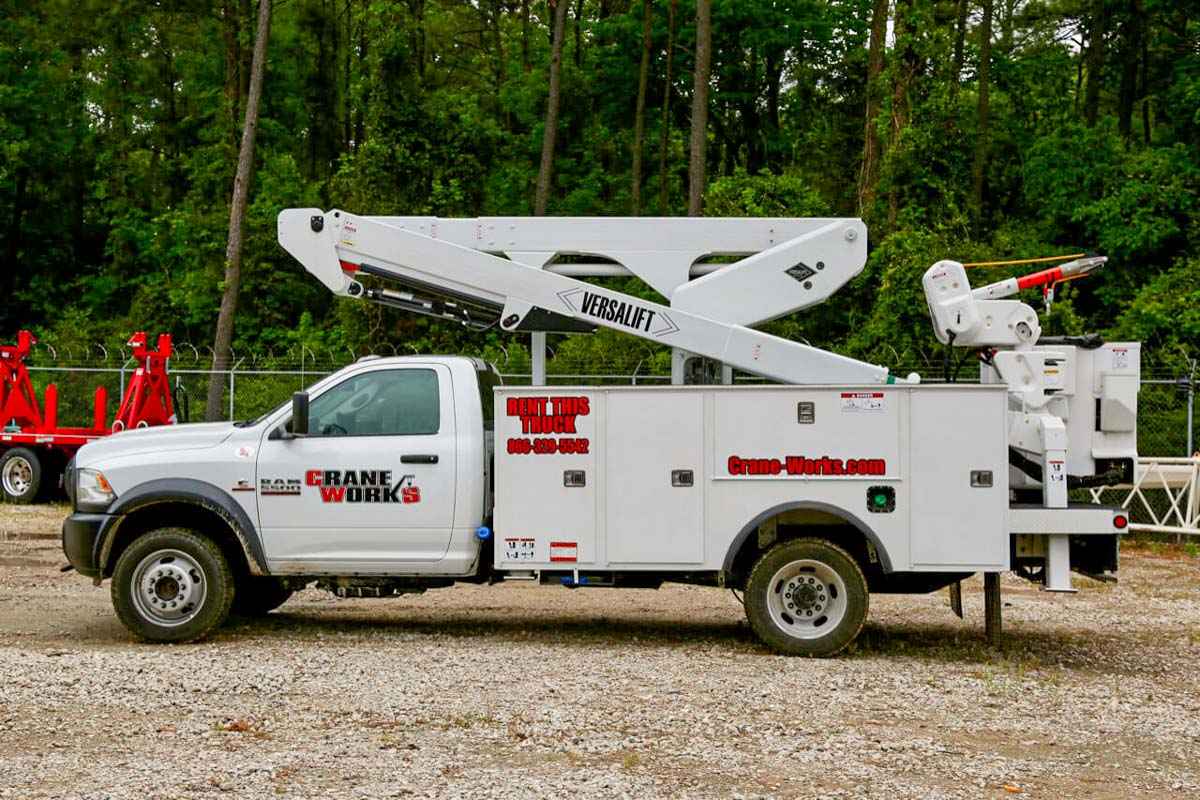

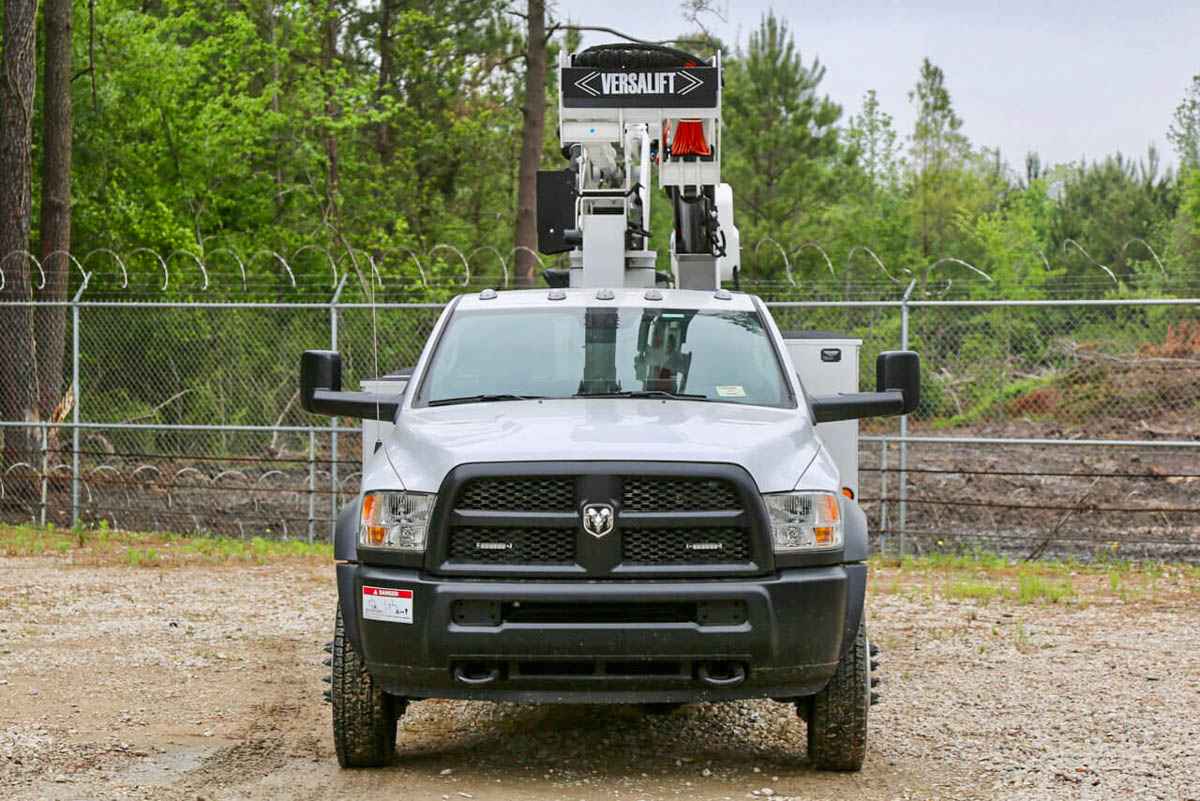

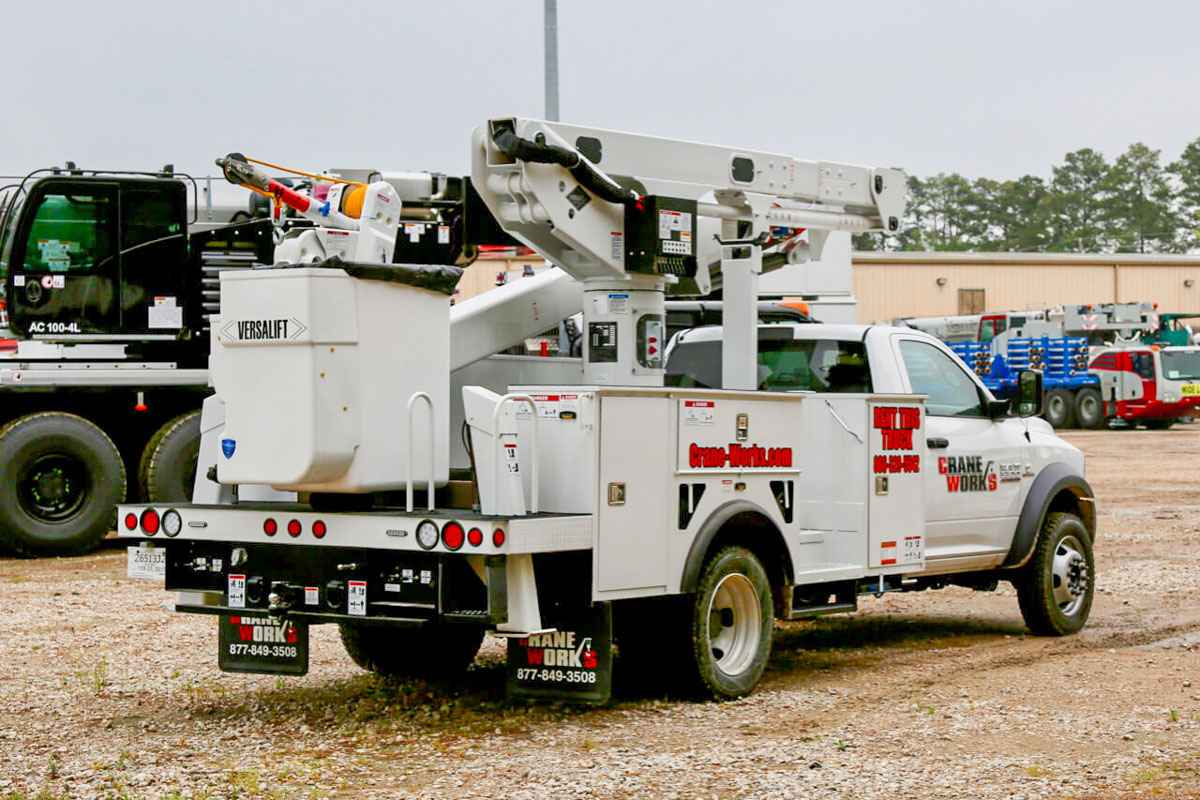

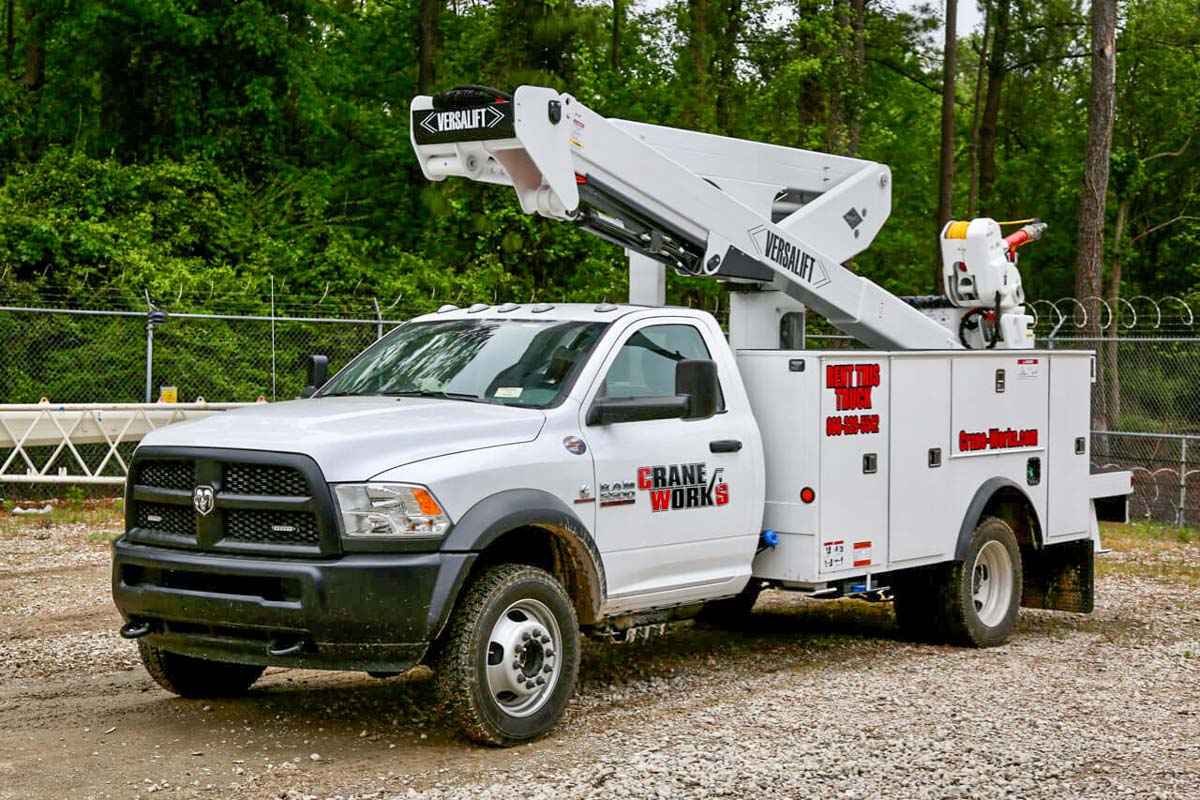

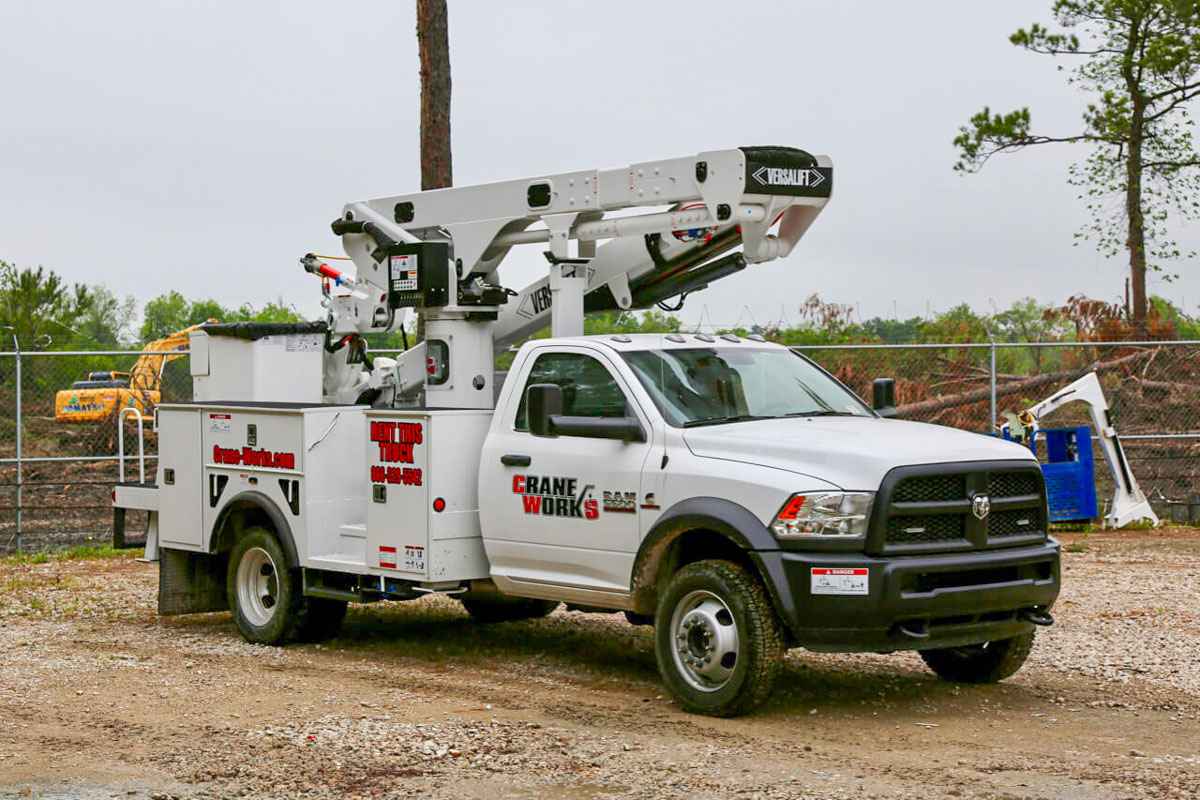

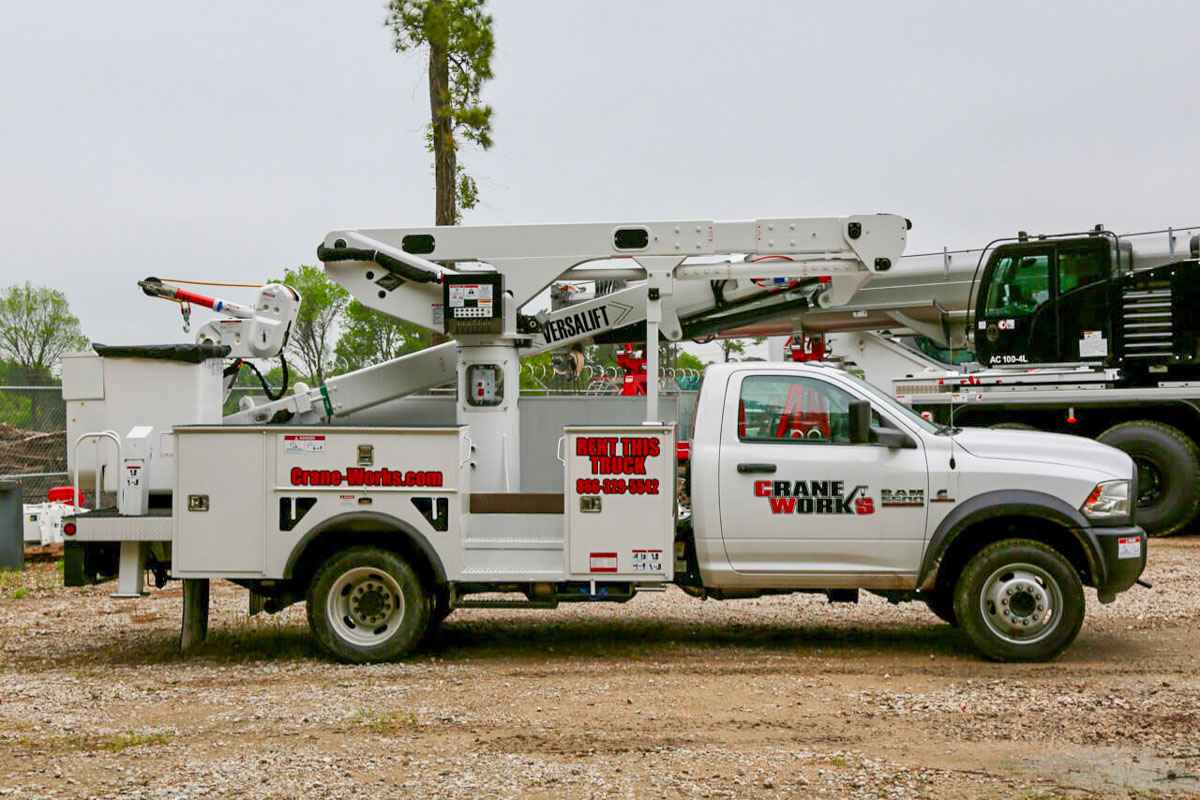

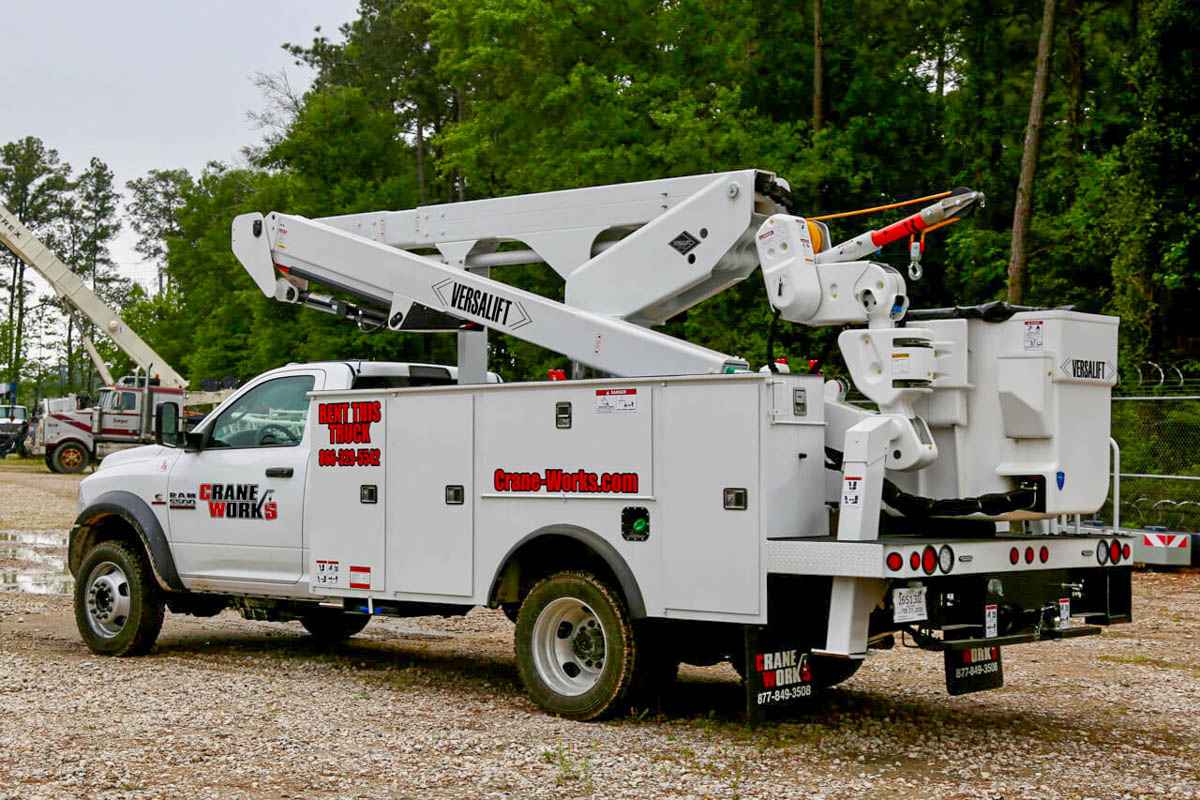

2018 VERSALIFT VST-47-I Aerial Lifts Crane for Sale

Features

PRODUCT OVERVIEW

• Working Height 51.83 ft (15.54 m)
• Height to Bottom of Platform 46.83 ft (14.02 m)
• Horizontal Reach 30.75 ft (9.14 m)
• Stowed Travel Height 11 ft (3.35 m)
• Platform Capacity 500 lbs (226.8 kg)
• Insulated or Non-insulated: Insulated
• Material Handling: No

SPECIFICATIONS

HYDRAULIC SYSTEM

• Hydraulic Controls N/A
• Operating Pressure 3000 psi (210.92 kg/cm²)
• Flow Rate 6 gpm (22.71 lpm)
• Filtration10 micron return | 100 mesh suction
• System Type: Open Center
• Power Source: PTO Pump

BOOM

• Lower Boom Articulation 0 to +84°
• Inner/Outer Boom Articulation -25° to +85°
• Inner Boom Extension 103 in (2.62 m)
• Upper Boom Insulation Gap 64 in (1.63 m)
• Lower Boom Insulation Gap 12 in (0.3 m)
• Lower Boom Lift Eye Capacity 1000 lbs (453.59 m)
• Boom Rotation: Continuous
