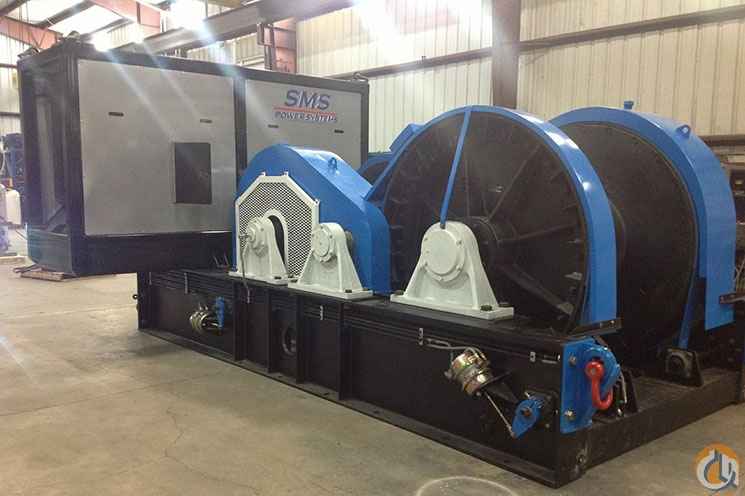

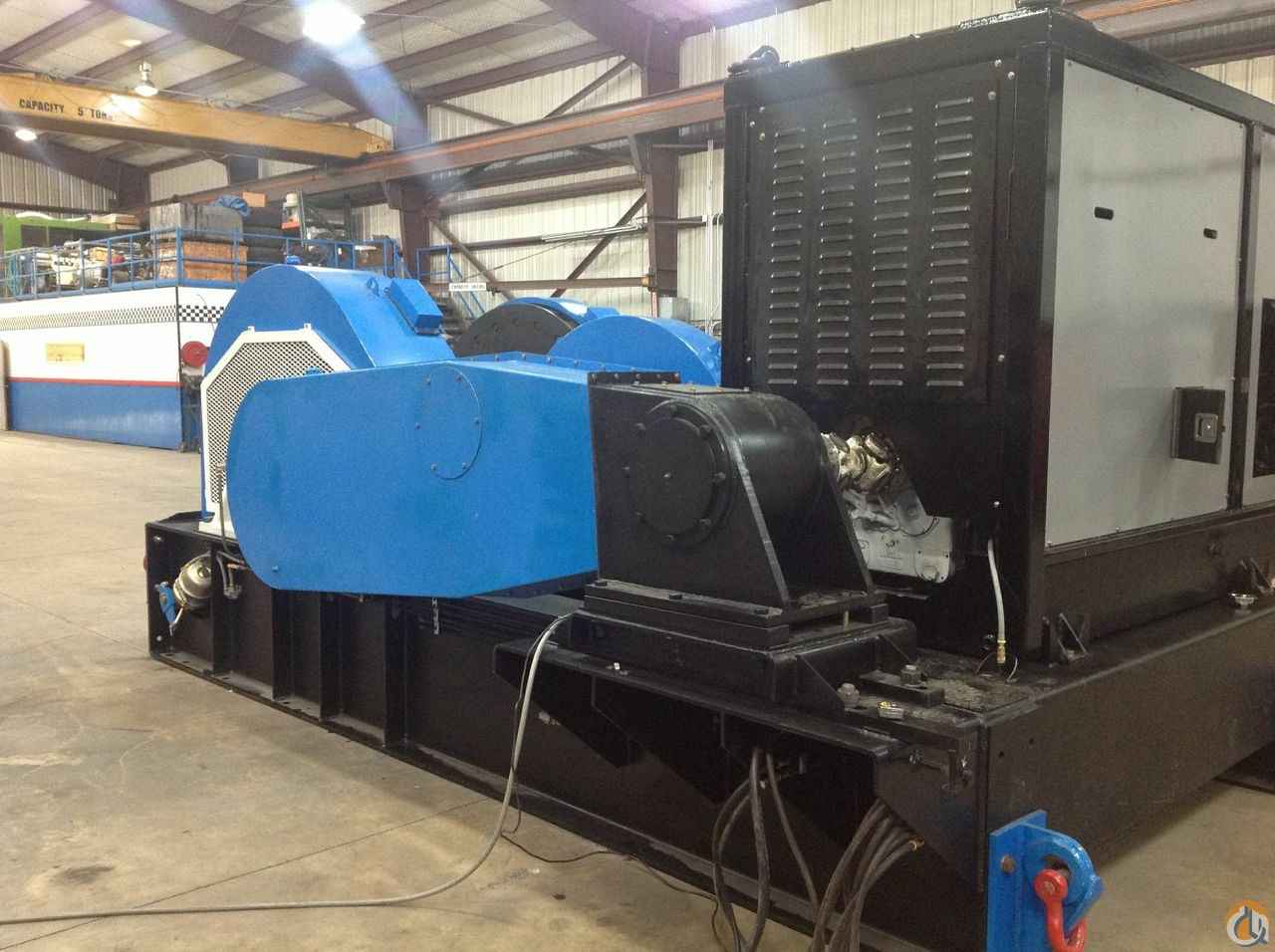

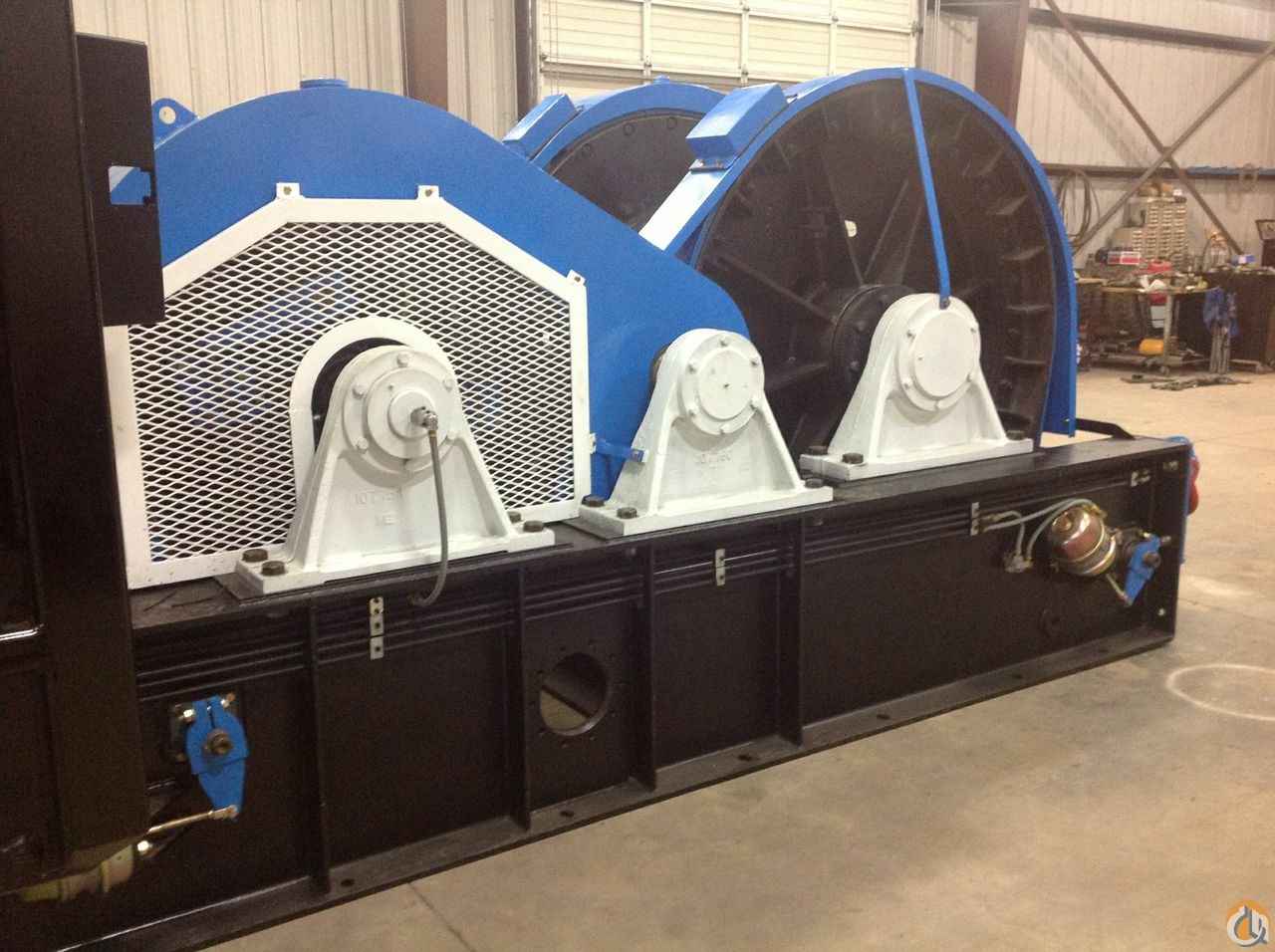

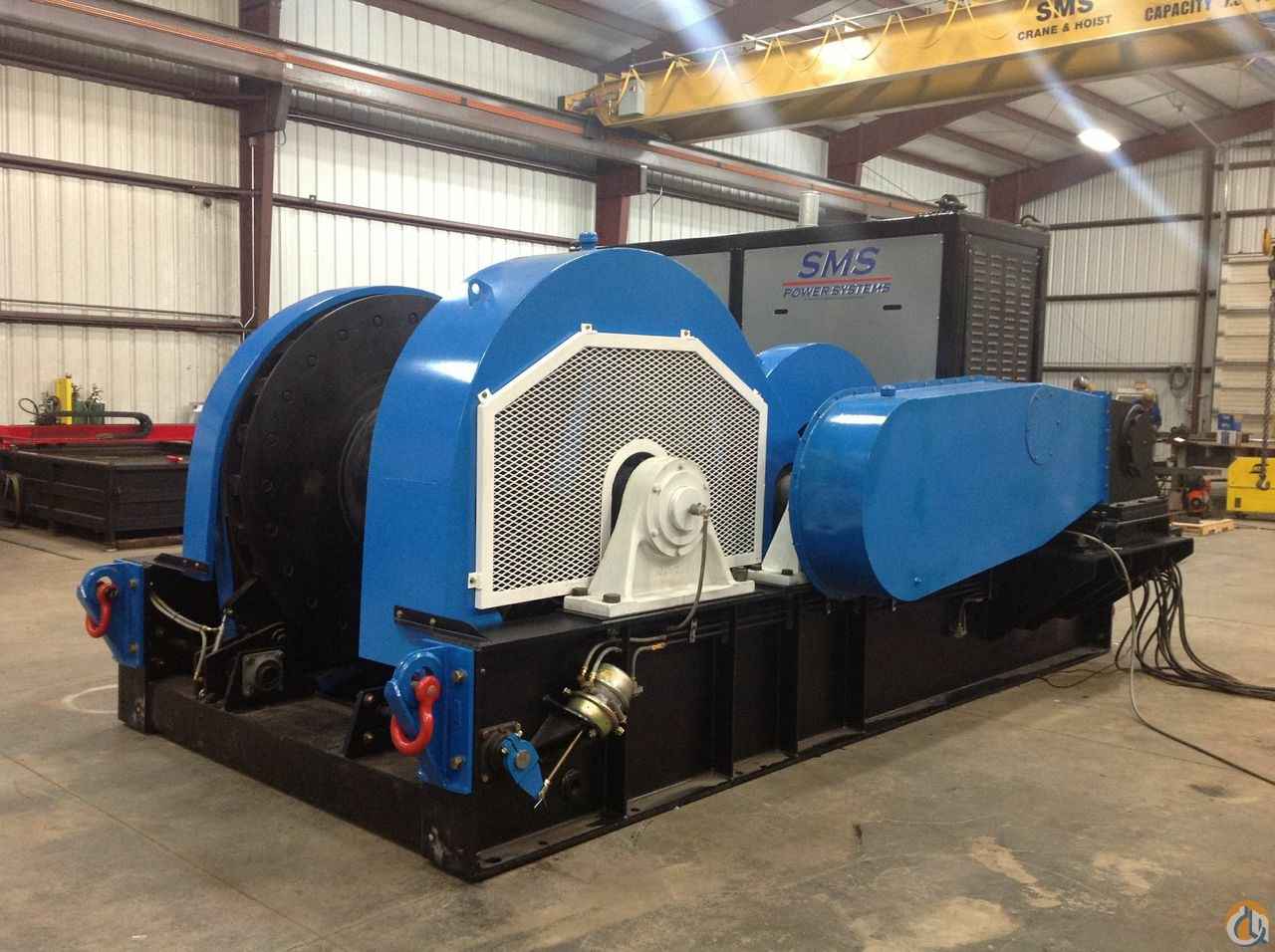

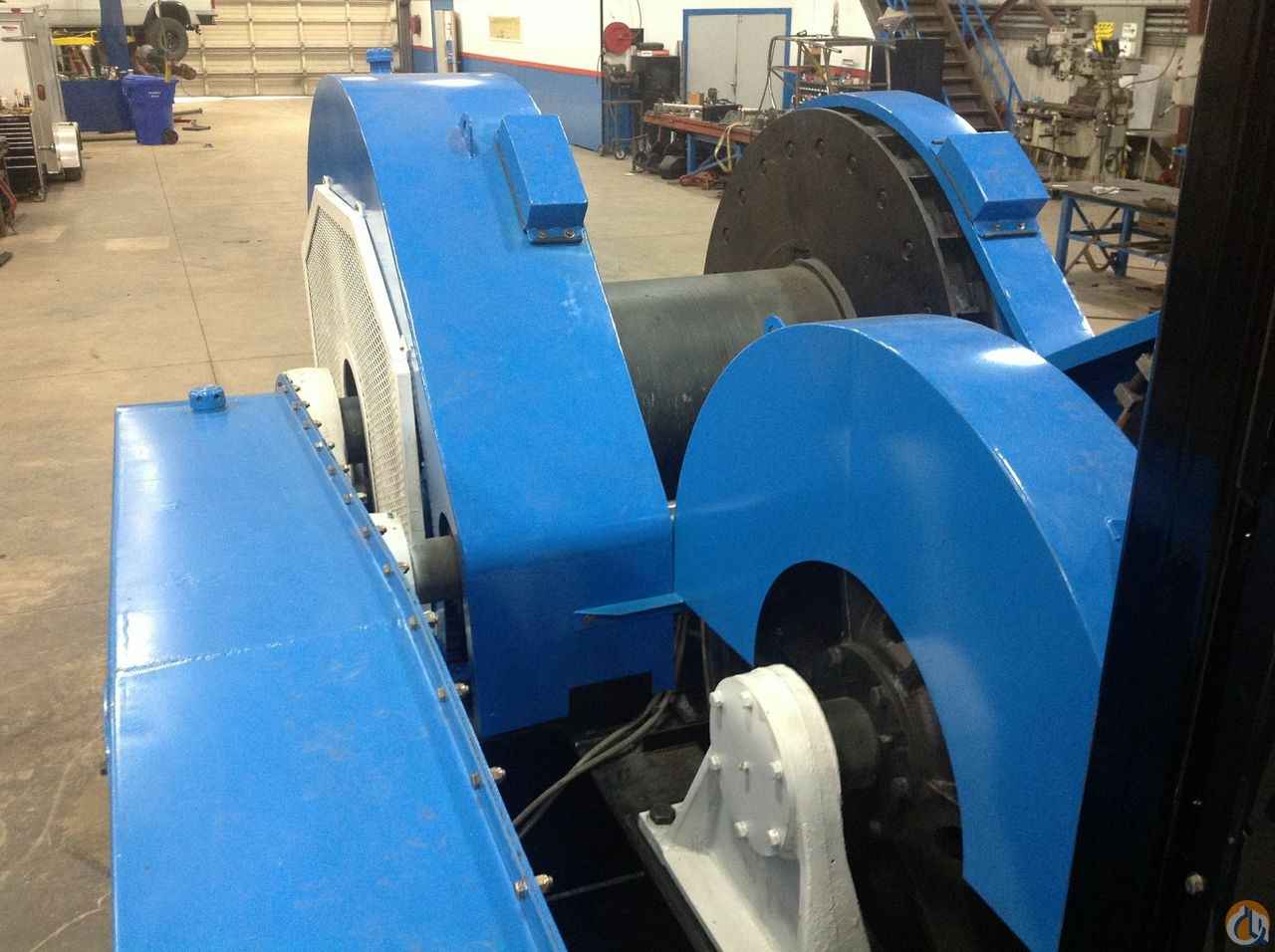

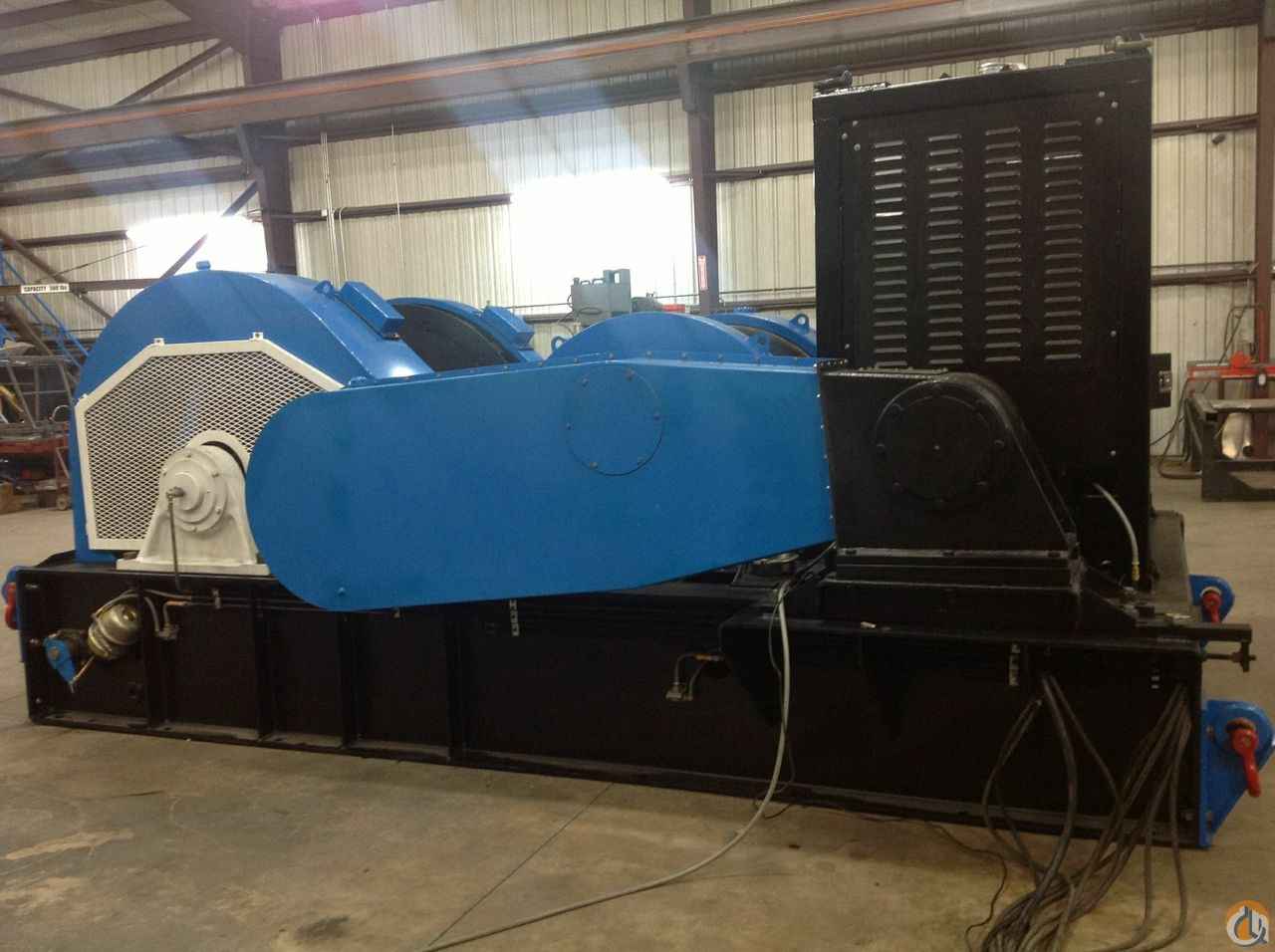

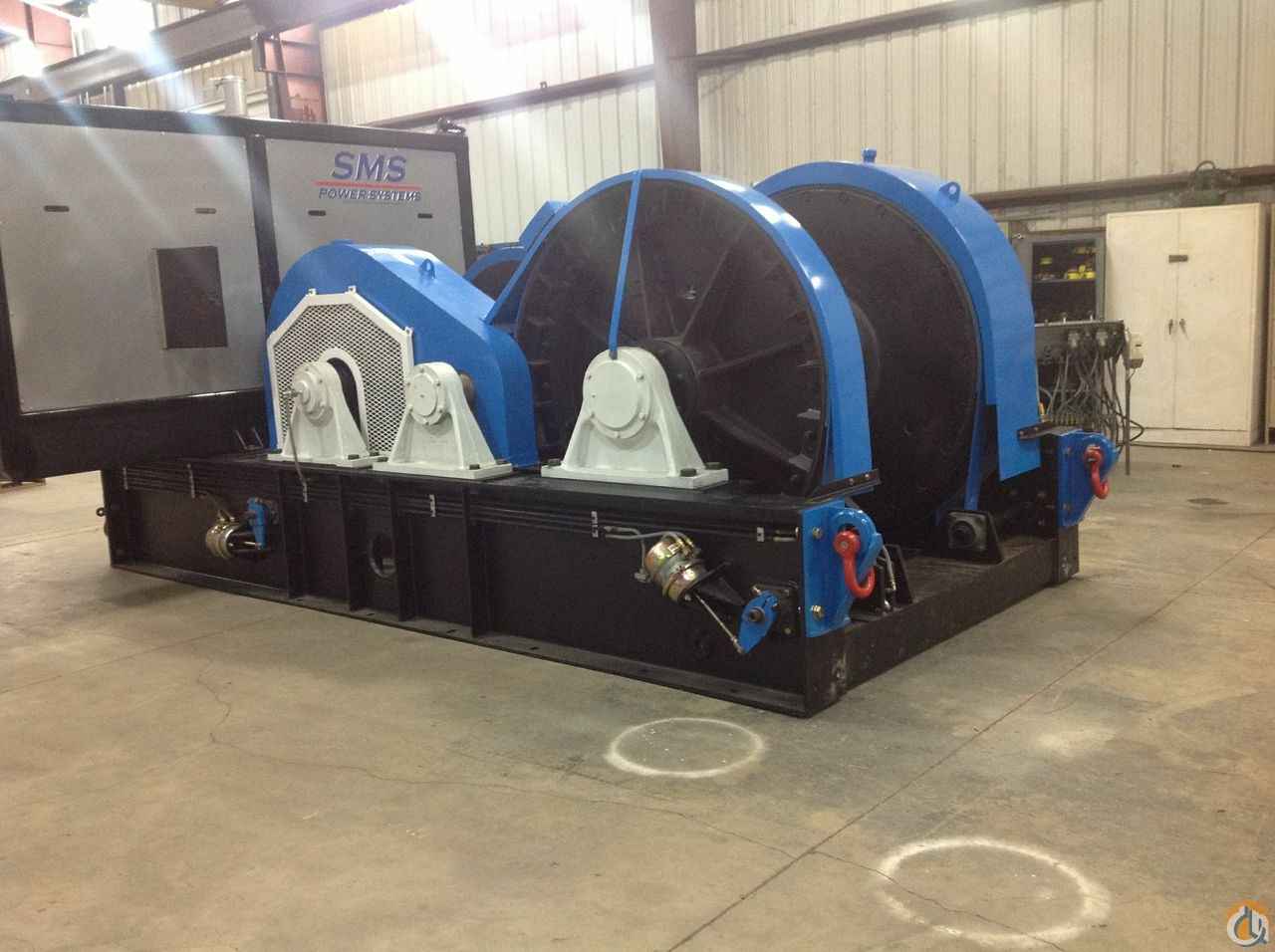

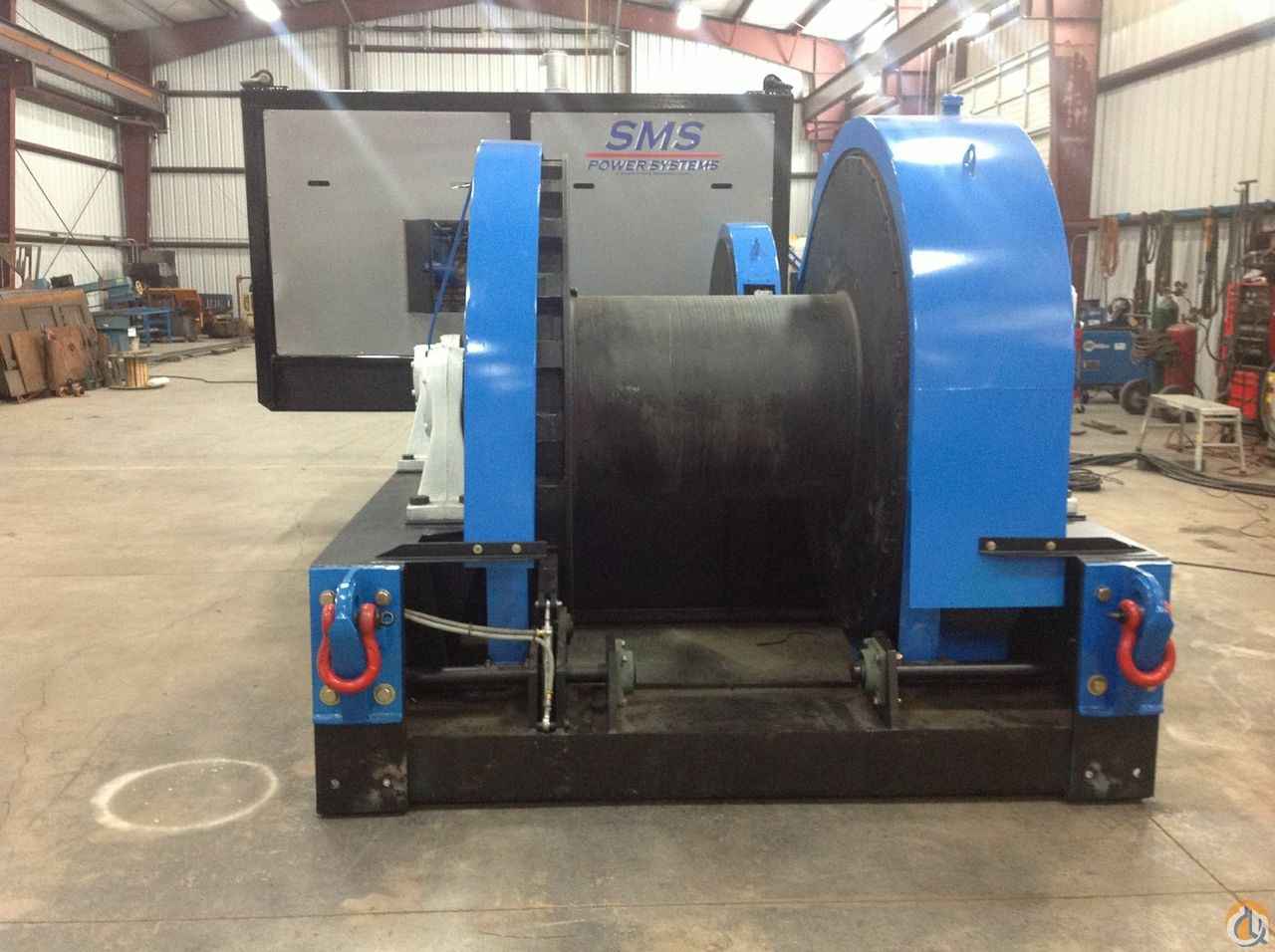

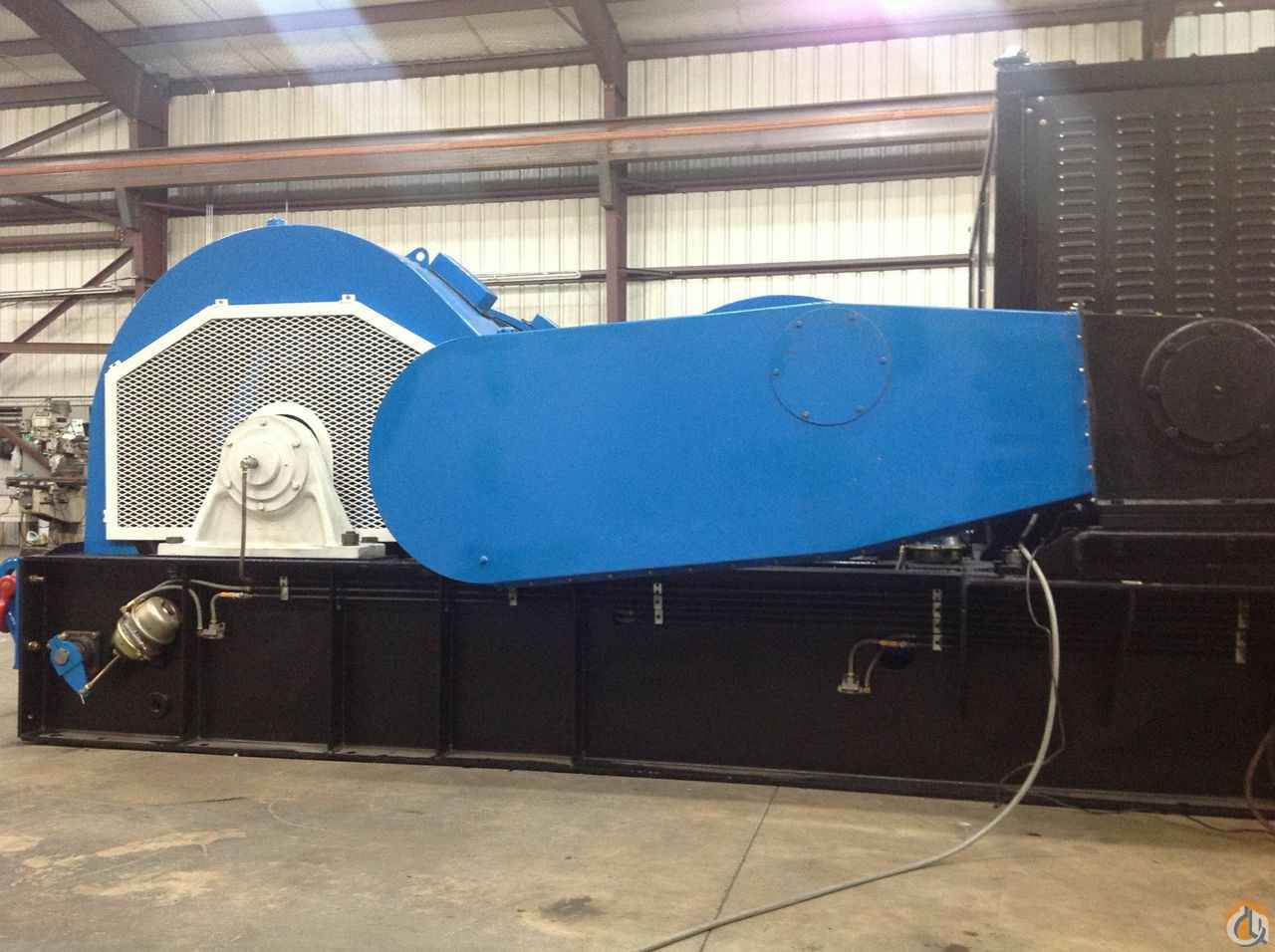

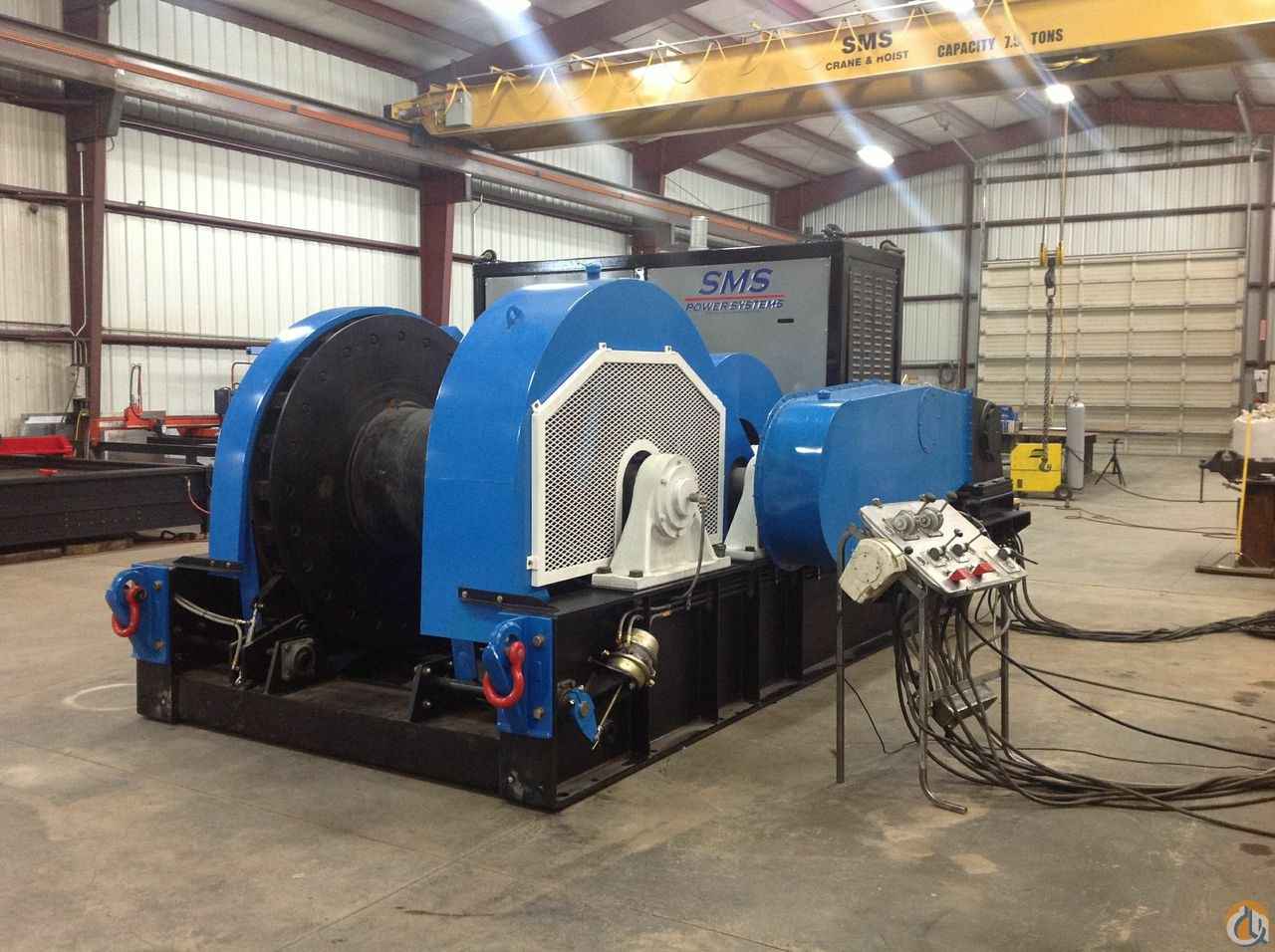

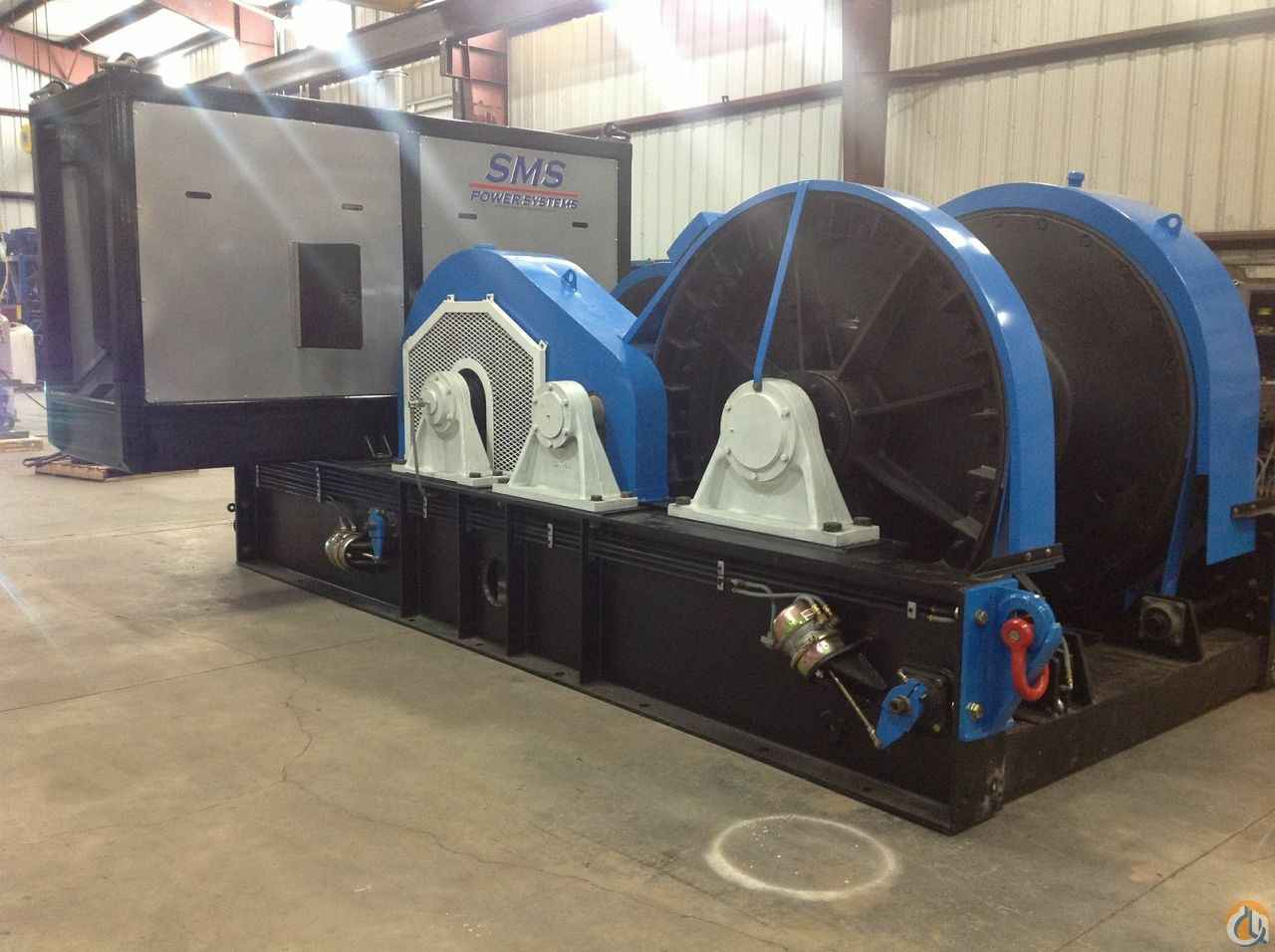

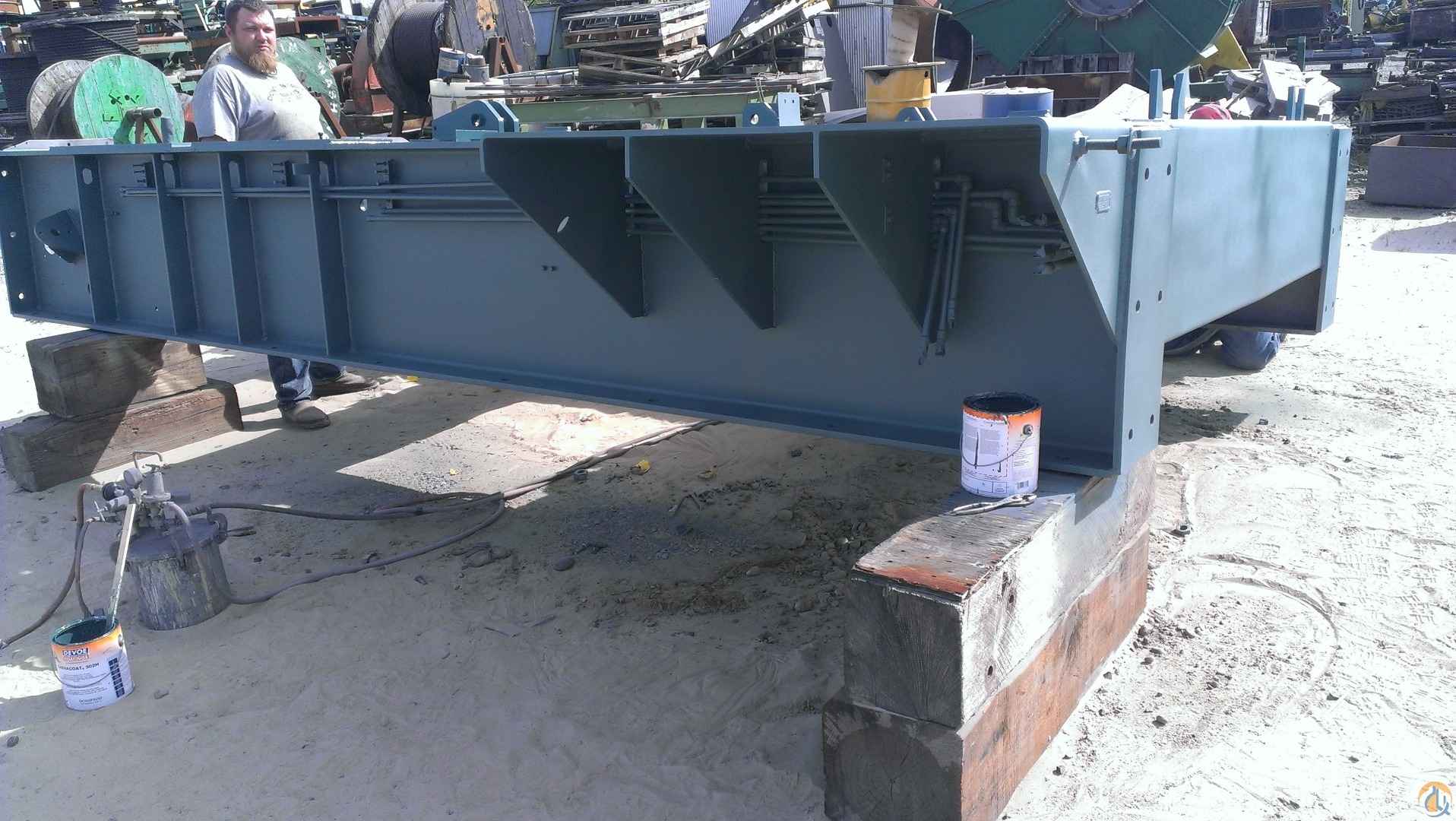

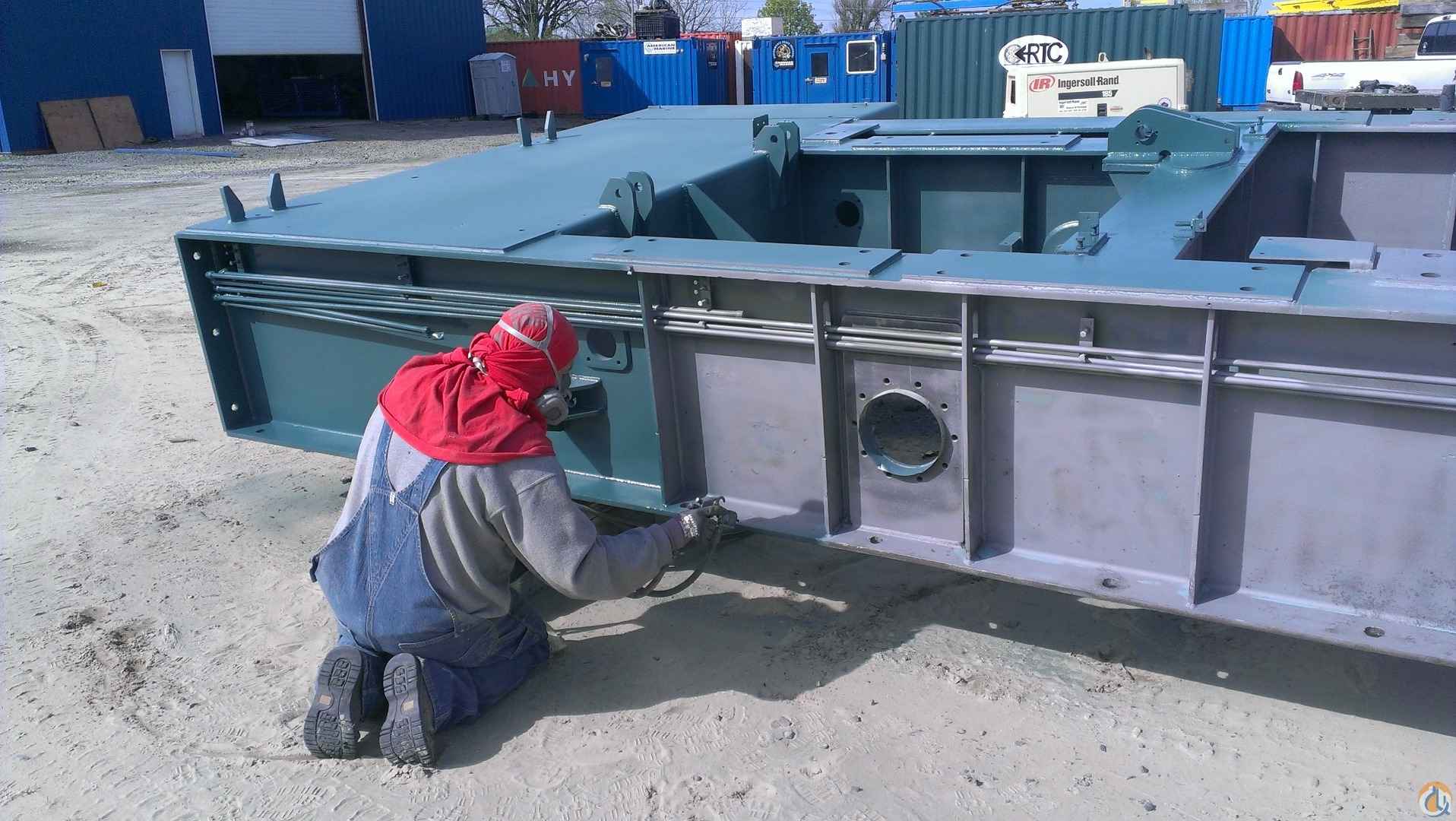

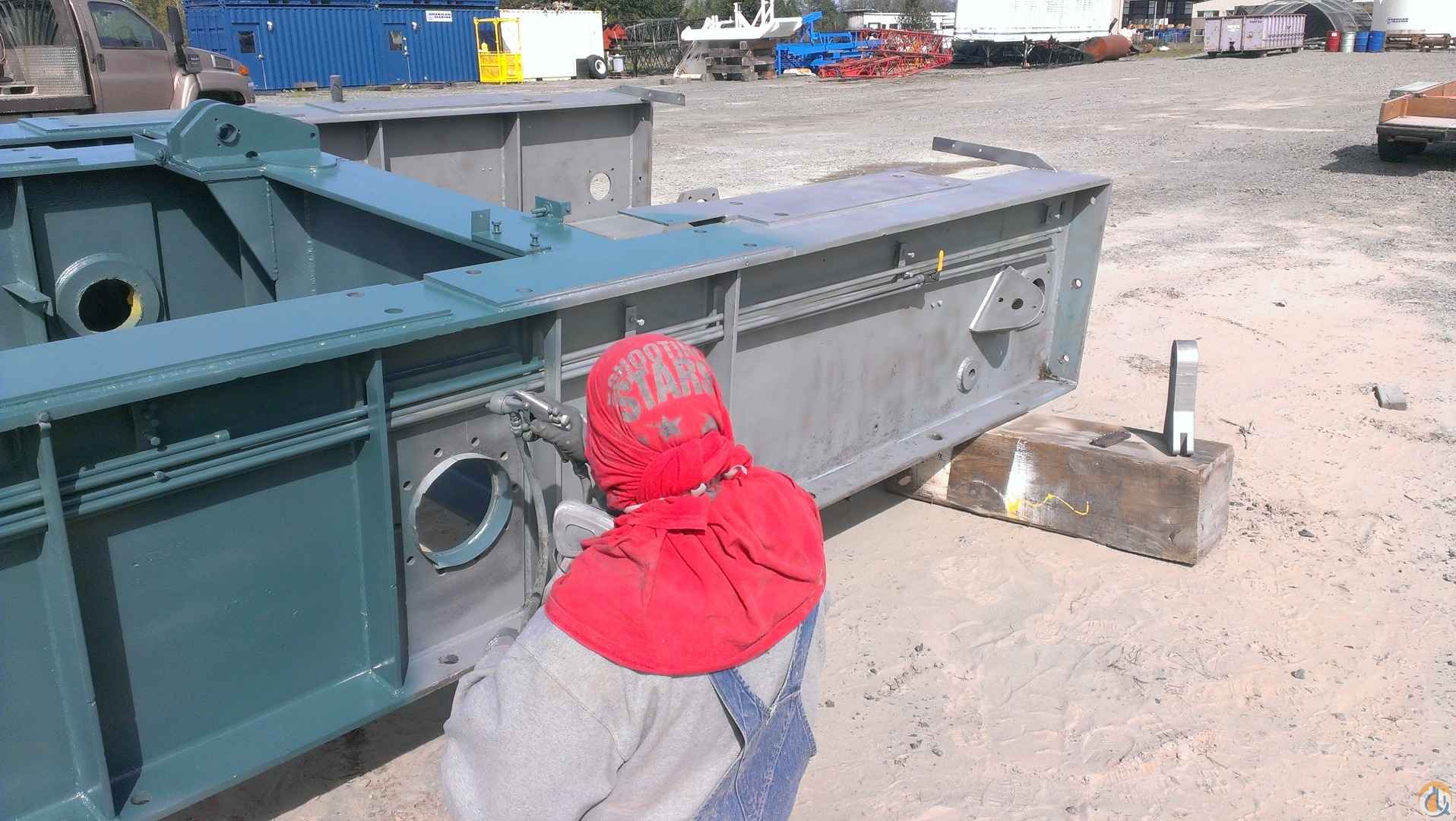

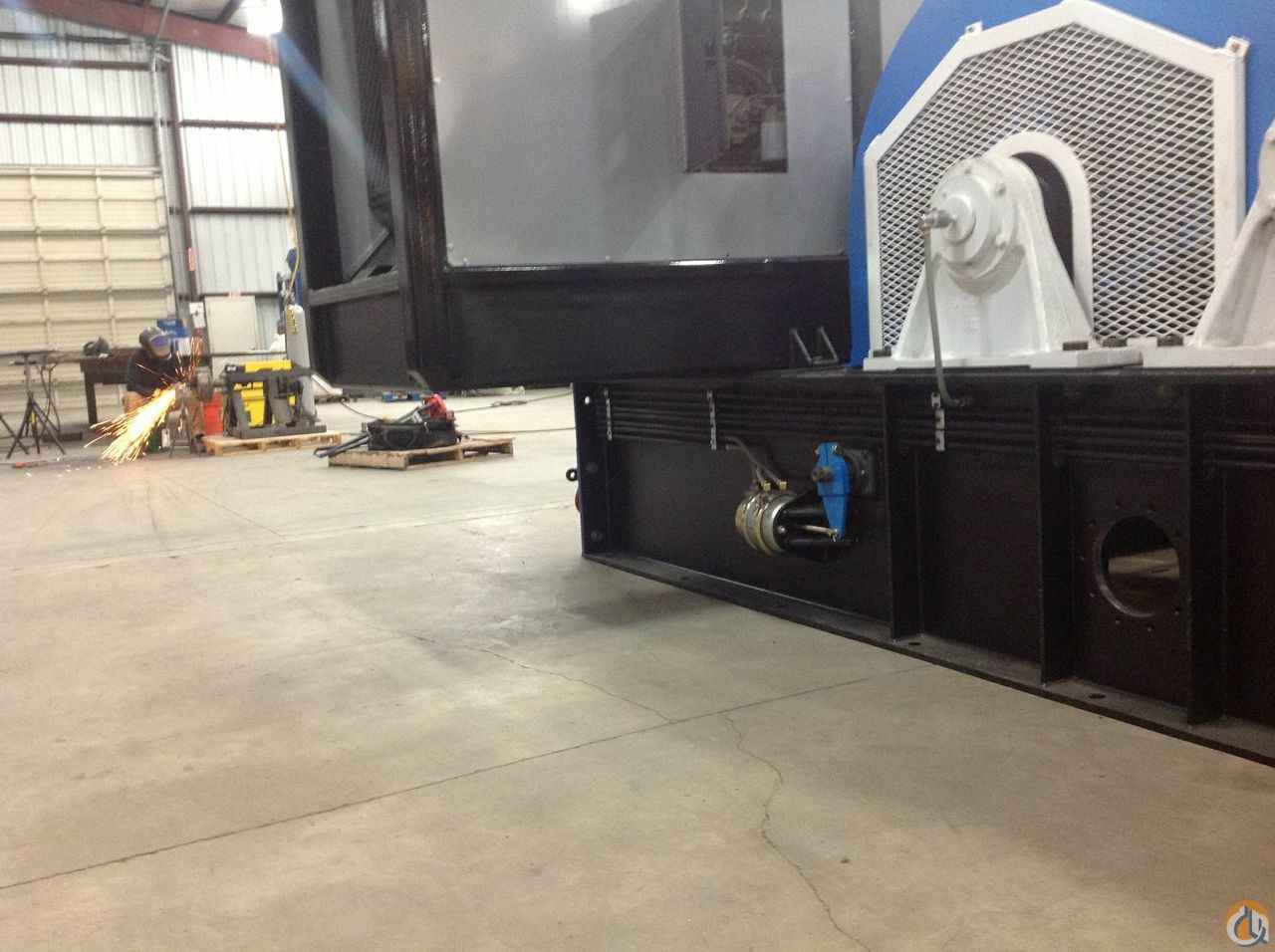

Clyde Frame 12 with Frame 9 Auxiliary
1. Power: Cummins 855 BC CPL#449 @ 400HP @ 0 hrs
2. Transmission: Twin Disc, 5 Speed w/ reverse; Model TAC-51-1304 w/ 4 to 1 Low and reverse. Dana / air engaged PTO driving Commercial Shearing P37X378BA pump (for auxiliary use). Spare transmission available w/ dyno sheets.
3. Transmissions were gone through and dyno tested at Mill Log Equipment, located in Coburg, OR. (Twin disc factory representative).

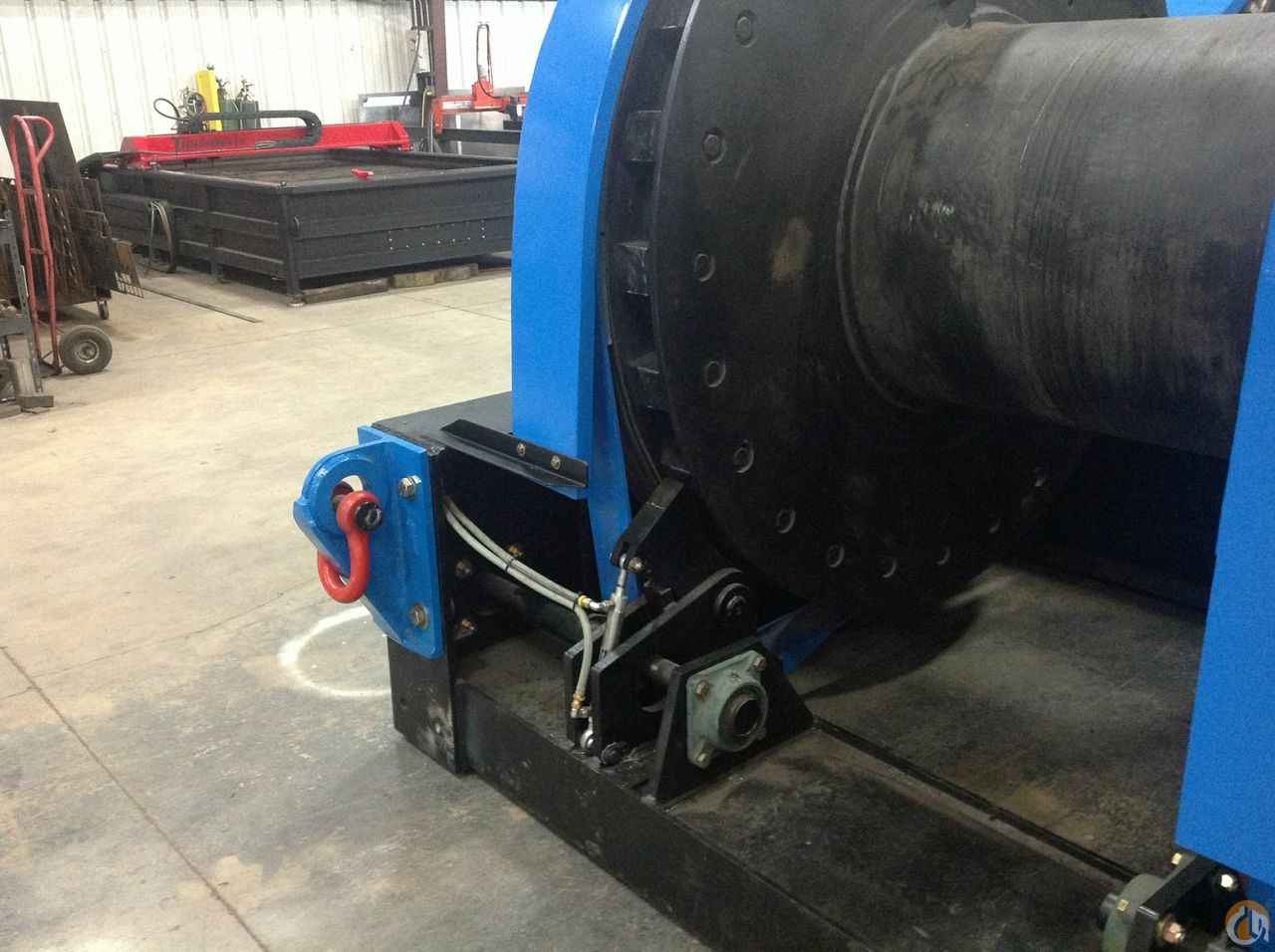

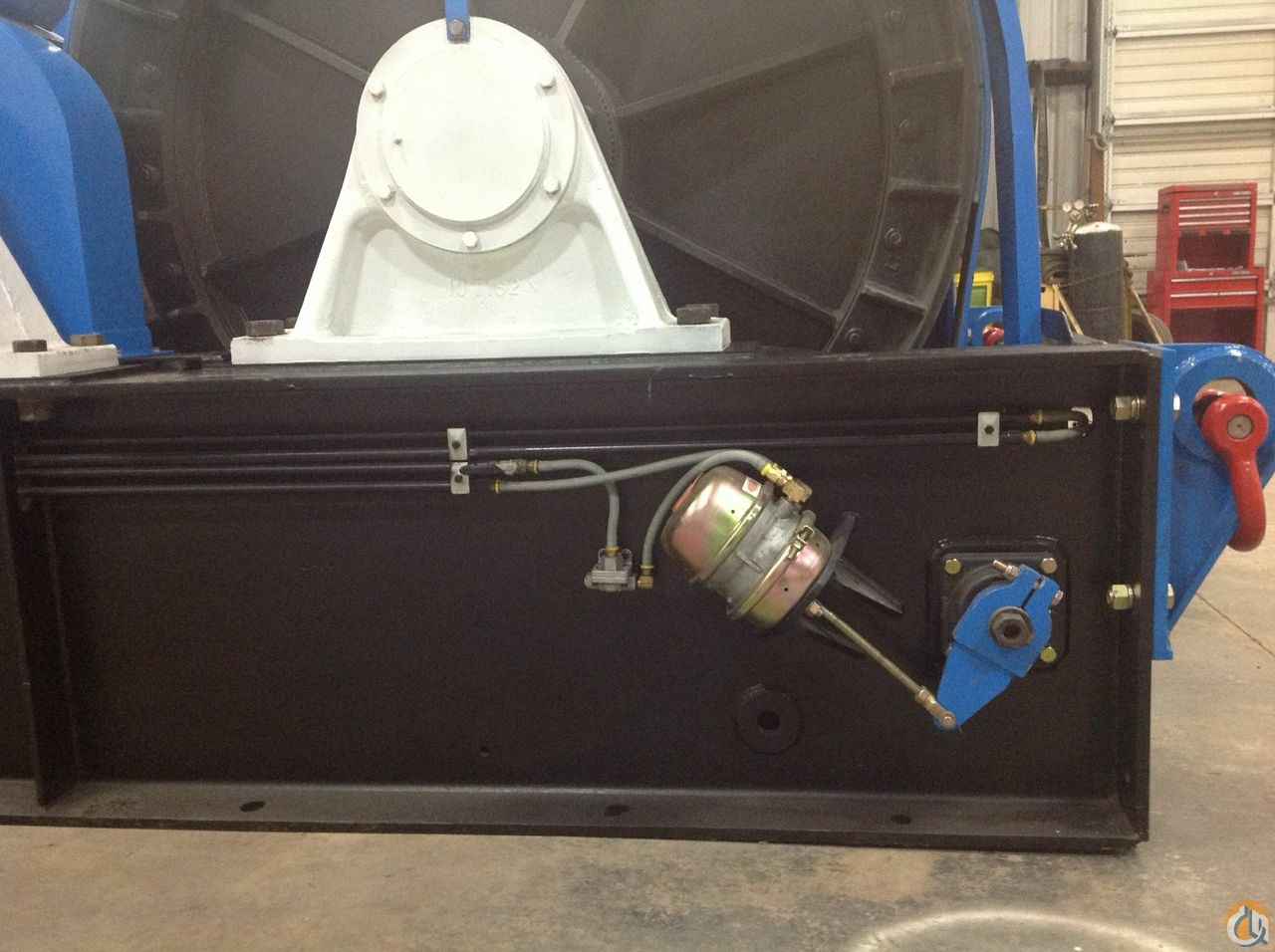

4. Brakes: Dual Bands both drums; Main Drum: 5" times 2 bands Auxiliary Drum: 3.5" times 2 bands
5. Dogs: Air operated in and out (Stainless Steel Cylinders)
6. Paint: Devoe 302 Cathcoat w/ Devoe 235 top coat.
7. Factory Drawings and specs available.

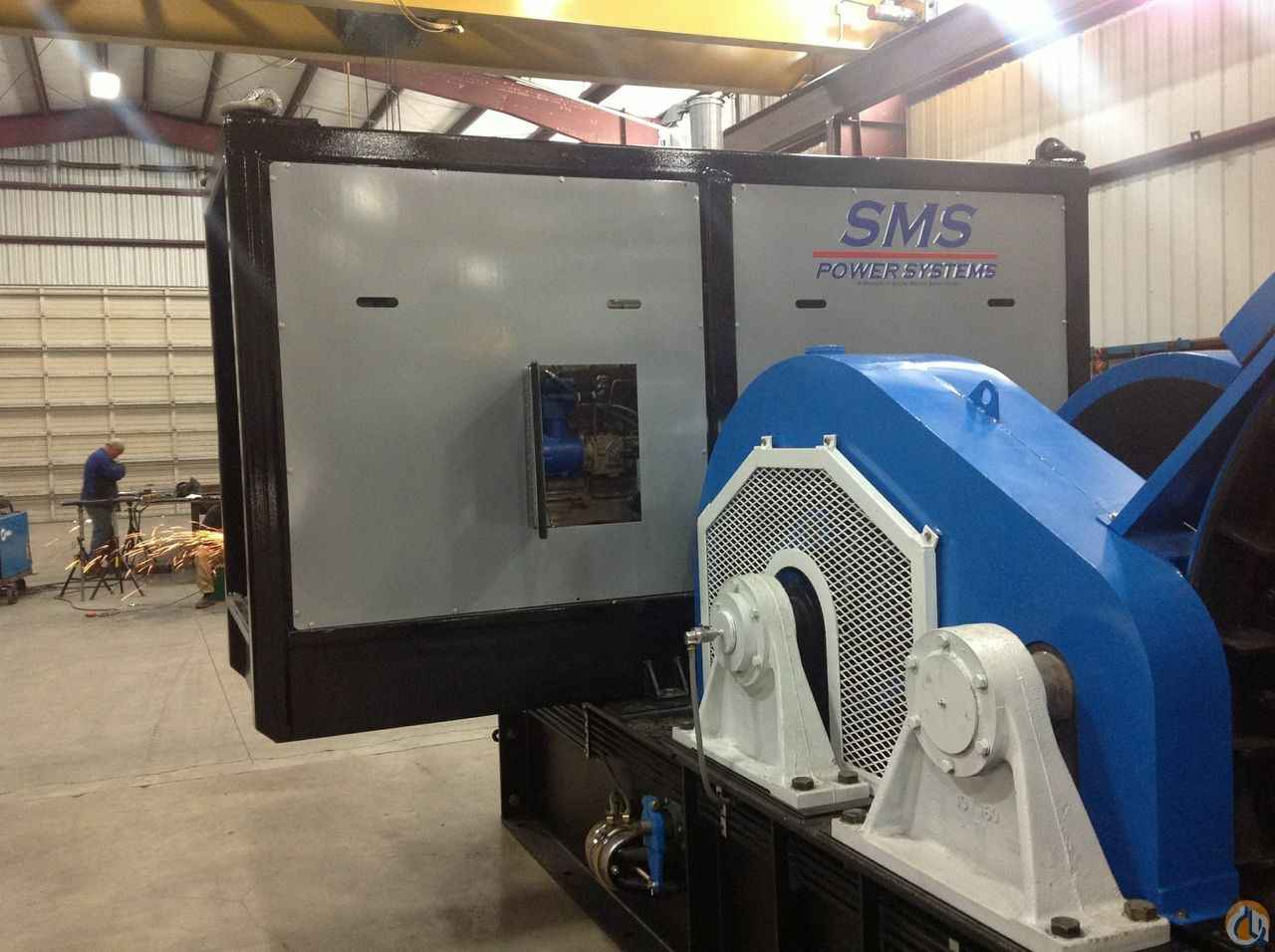

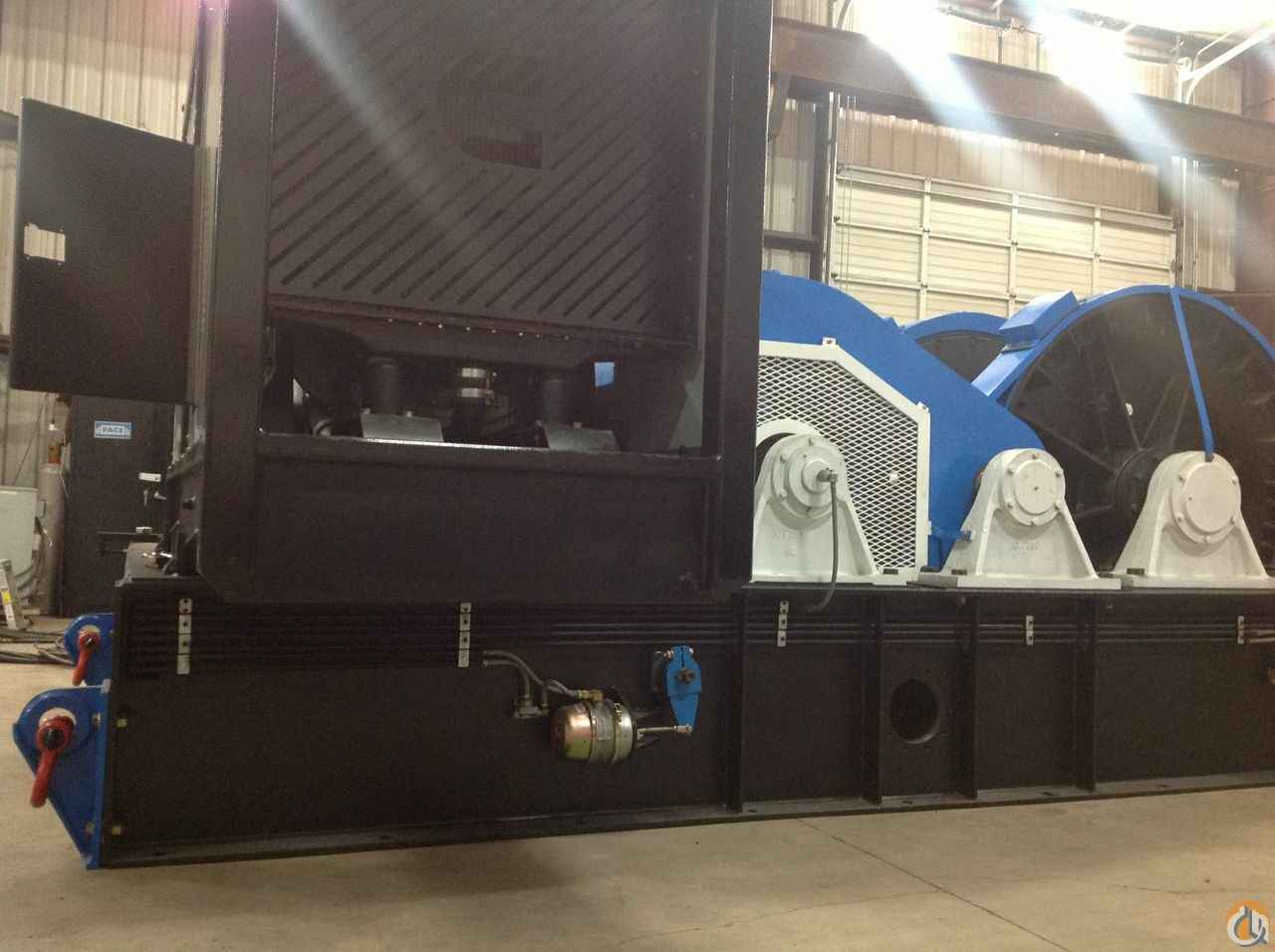

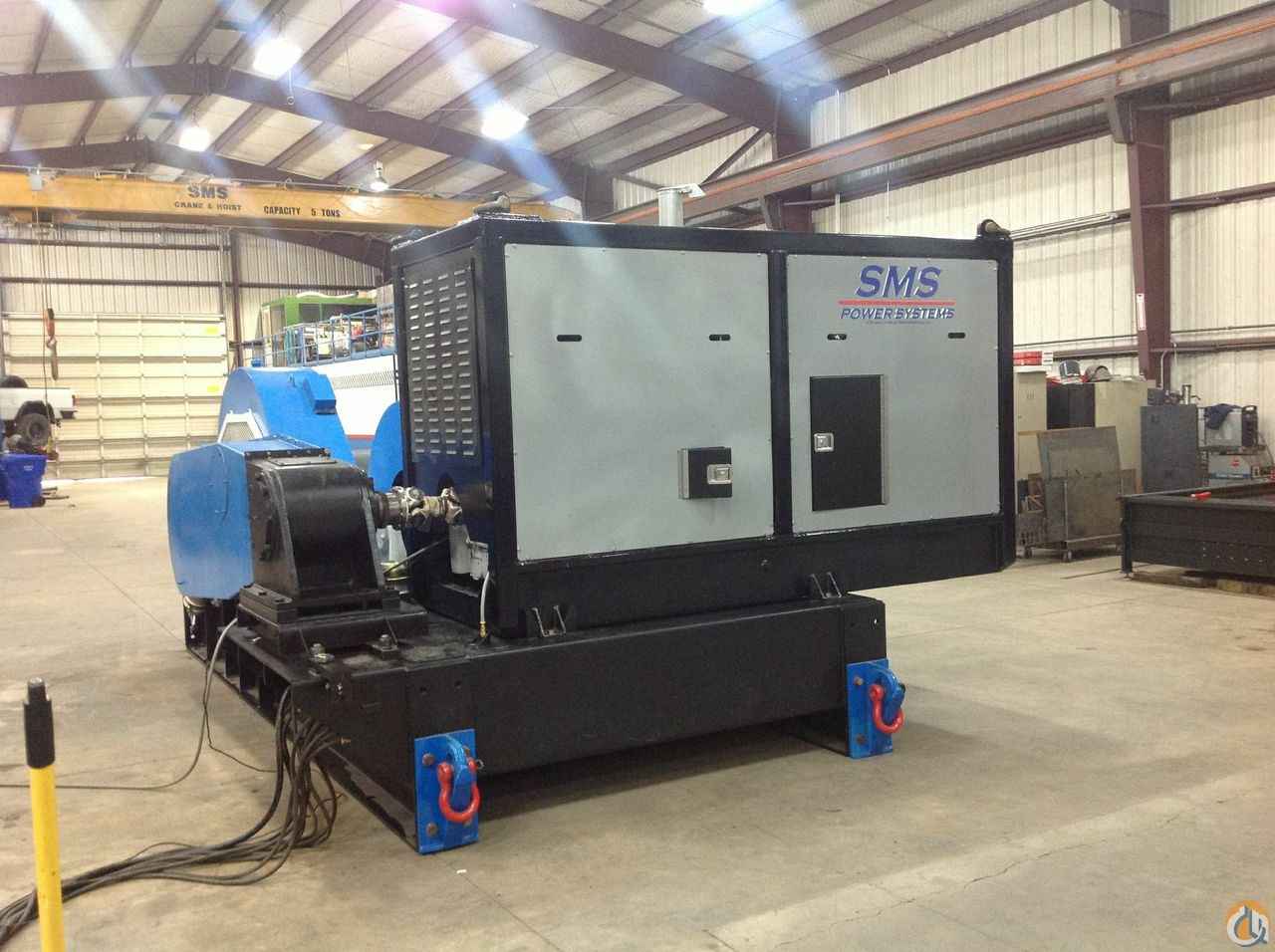

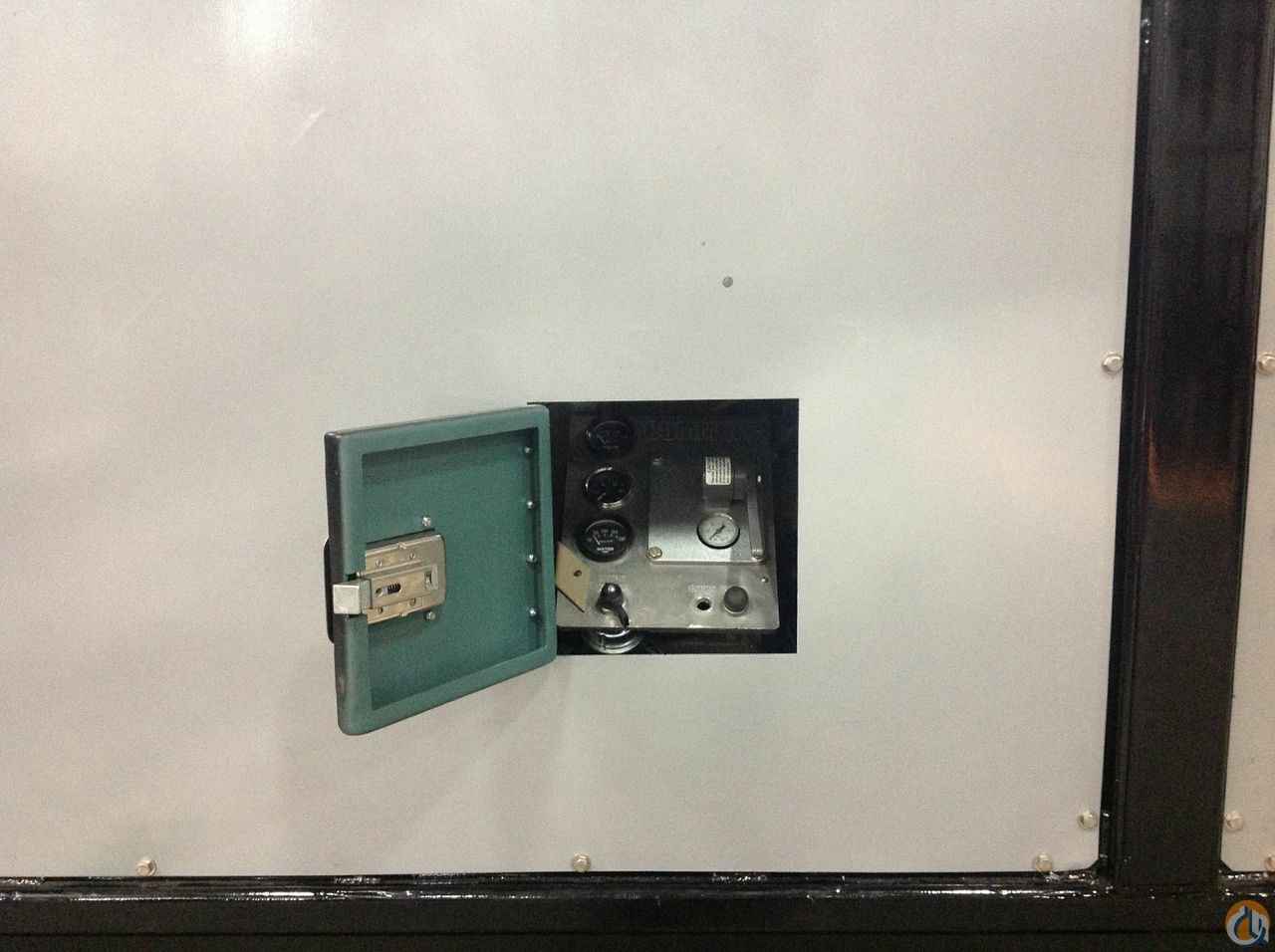

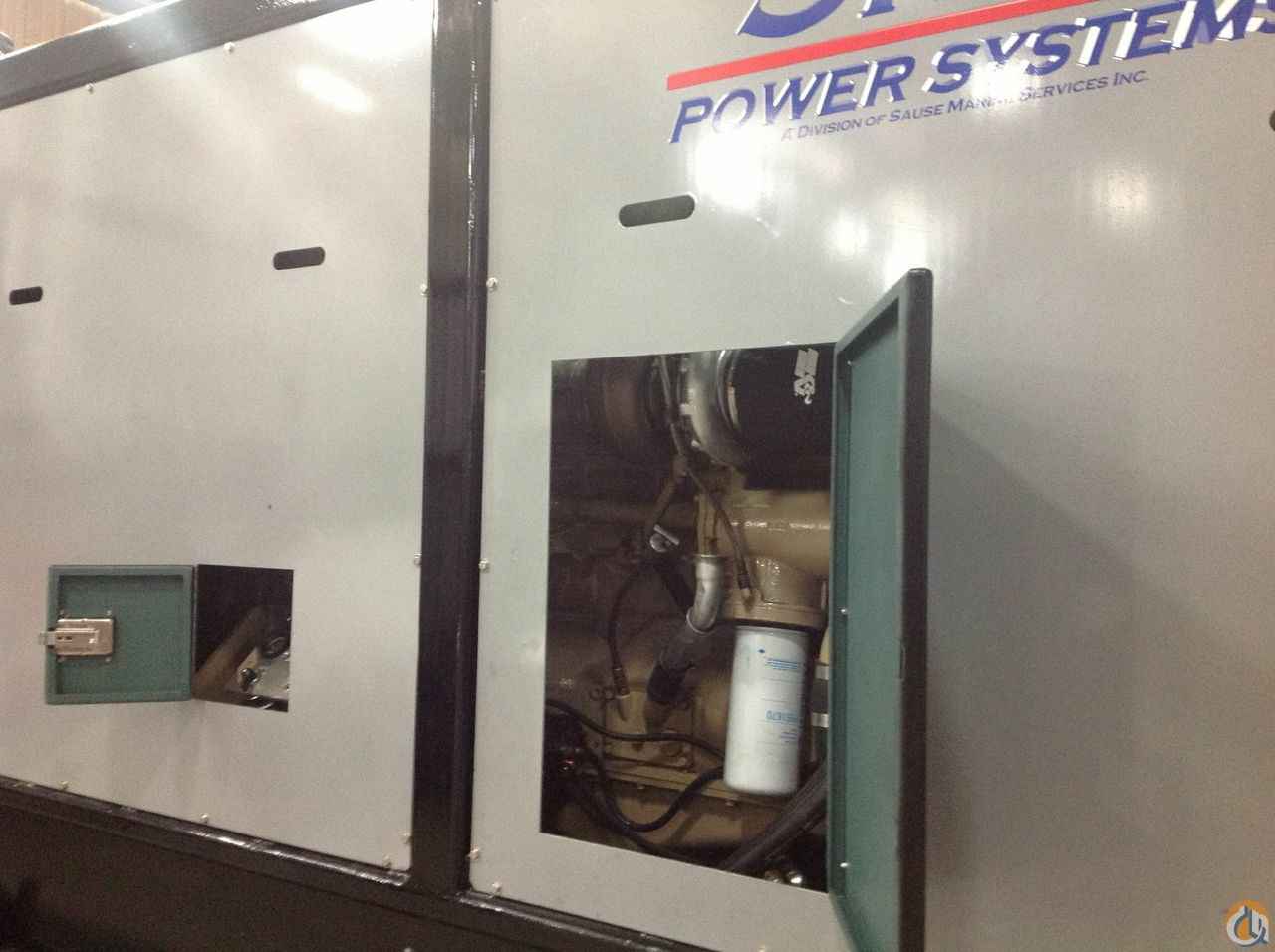

8. Power unit: Self-contained, removable w/ quick connect coupler on controls.
9. Line Pull: Main Drum: Frame 12-Approximate line pull @ second layer = 73,640 lbs @ 103 FPM Auxiliary: Frame 9-Approximate line pull @ second layer = 36,880 lbs @ 205 FPM
10. Drum Capacities: Main Drum: Frame 12 w/ 1.25" wire rope = 6,346 ft. w/ 1.5" wire rope = 4,221 ft. Auxiliary Drum: Frame 9 w/ 1.25" wire rope = 2,670 ft. w/ 1" wire rope = 4,318 ft.
11. Dimensions: Winch: (WLH) 9' 10" x 18' 9" x 7' 2" Power Unit: (WLH) 3' 11" x 10' 5" x 6' 6"
*Full line pull and FPM chart available.
*All specifications are based on 90 tooth primary chain sprocket in first gear.
*Chart w/ 120 tooth primary chain sprocket also available
