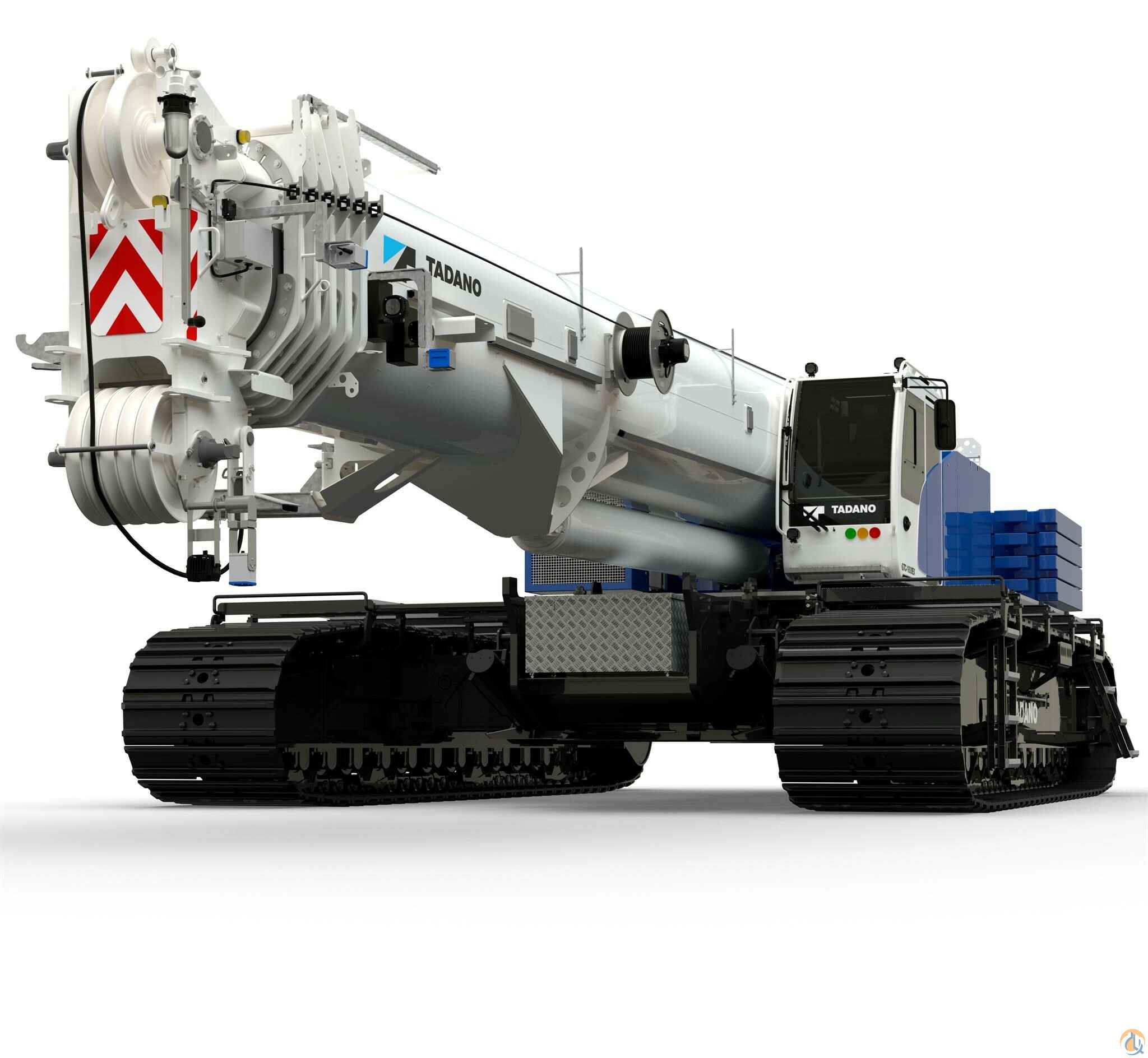

STOCK PHOTO USED
CRANE CAPACITY
172 US ton
BOOM
6-section, 42.3 ft – 196.9 ft
DIMENSION
Overall Length51’4”
Track Width (continuously variable)11.5-19.7 feet
Outer width with retracted tracks15’10”
Outer width with extended tracks24′
MASS
Gross Vehicle Mass (Standard Equipment Package)326,405 lb
Maximum CounterweightUpper: 99,225 lb
Carbody: 33,080 lb
PERFORMANCE
Travel SpeedUp to 1.4 mph
Gradeability50%
Winch Line Pull30,700 lb
Winch Line Speed446 ft/min
ENGINE
Mercedes-Benz diesel, type OM 936 LA, 6-cylinder, 308 HP at 1800 rpm
Key Features
172-tons pick-and-carry capacity through 360°.
Lifting capacities up to 4° roll/list angle
Lifting capacity is calculated automatically for any ground inclination; fixed load charts for 0.3°; 1°; 2°; 3°; 4°
Boom extension/Jib: 16.4 ft / 36.1 ft / 55.8 ft / 75.5 ft
Double hook operation with rooster sheave or jib
The IC-1 Plus crane control system makes it possible to carry out lifts with asymmetrical track widths
Powerful, robust and versatile undercarriage with smart and comprehensive access concept
Fully self-rigging operation
Remote control for all rigging and operating functions
Best in class traction force (326,000 lbf)
Removable extension beams for reduced base crane weight (main load)
Car body geometry suits to any trailer (low bed, goose neck, double beams, etc)
Lift points and Tie down points
16.4ft Jib can be folded to side of main boom for transport
