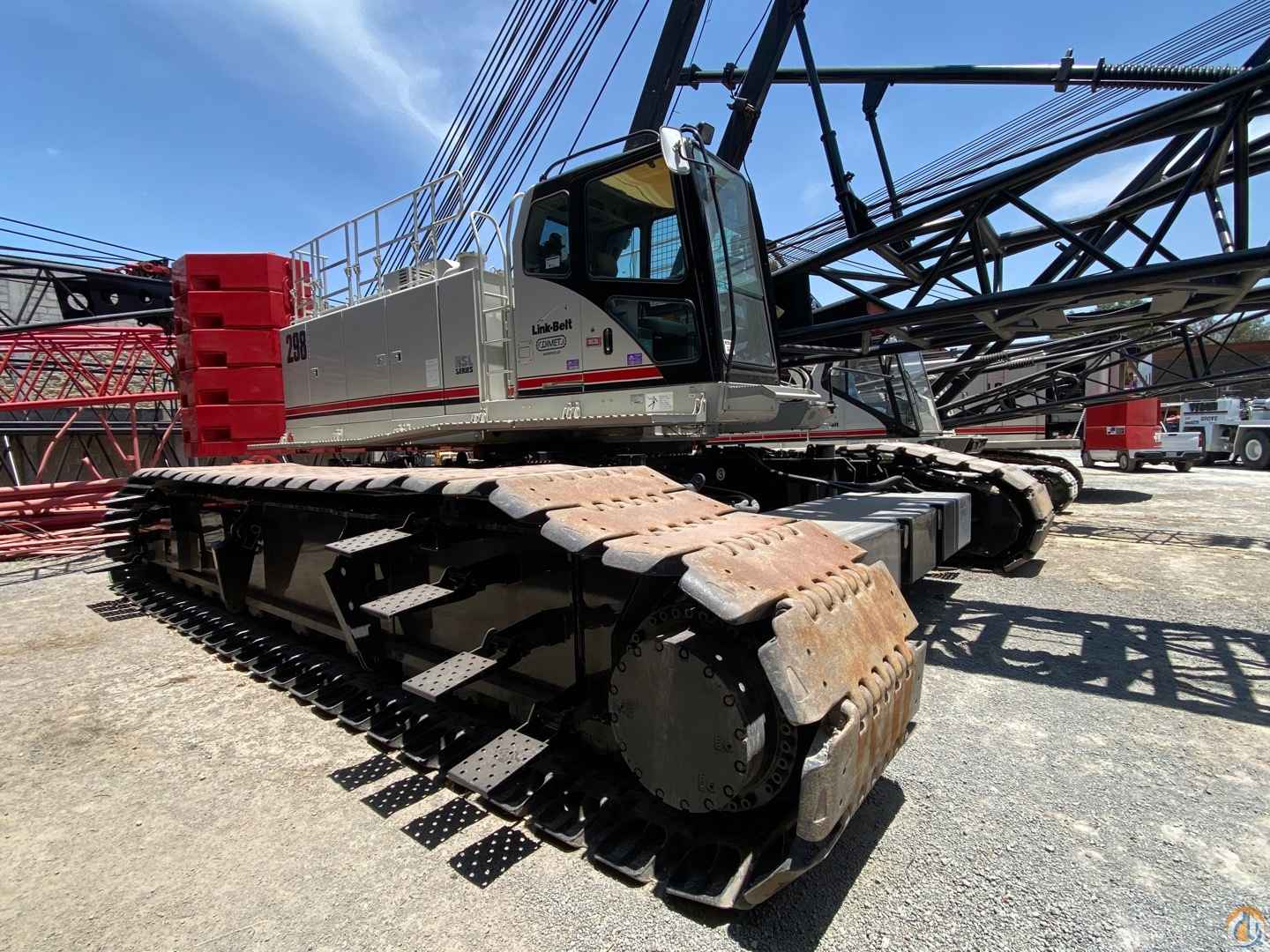

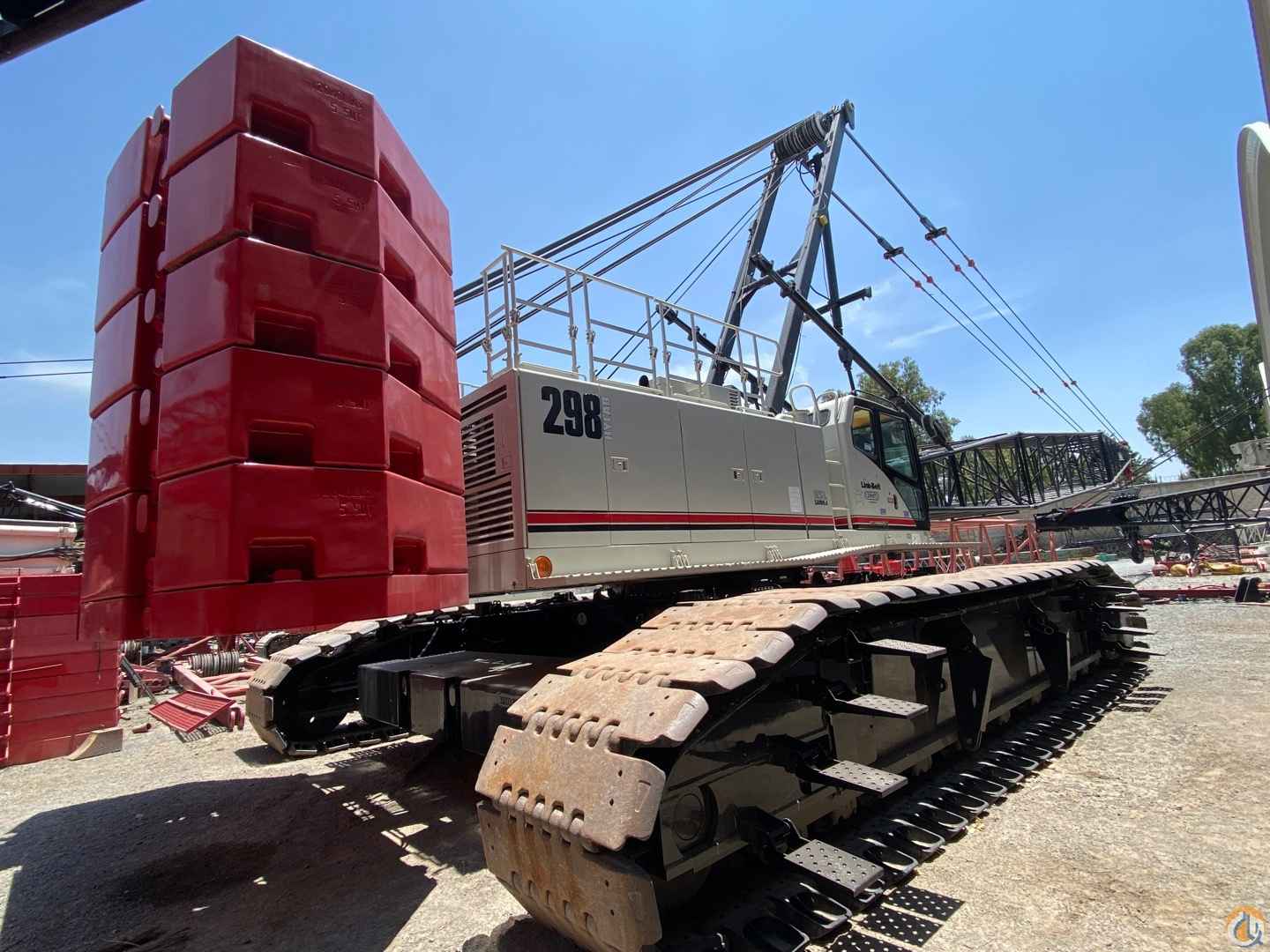

2013 Link Belt LS298HSL, 250 Tons, Lattice Boom Crawler Crane; CranesList ID: 703,

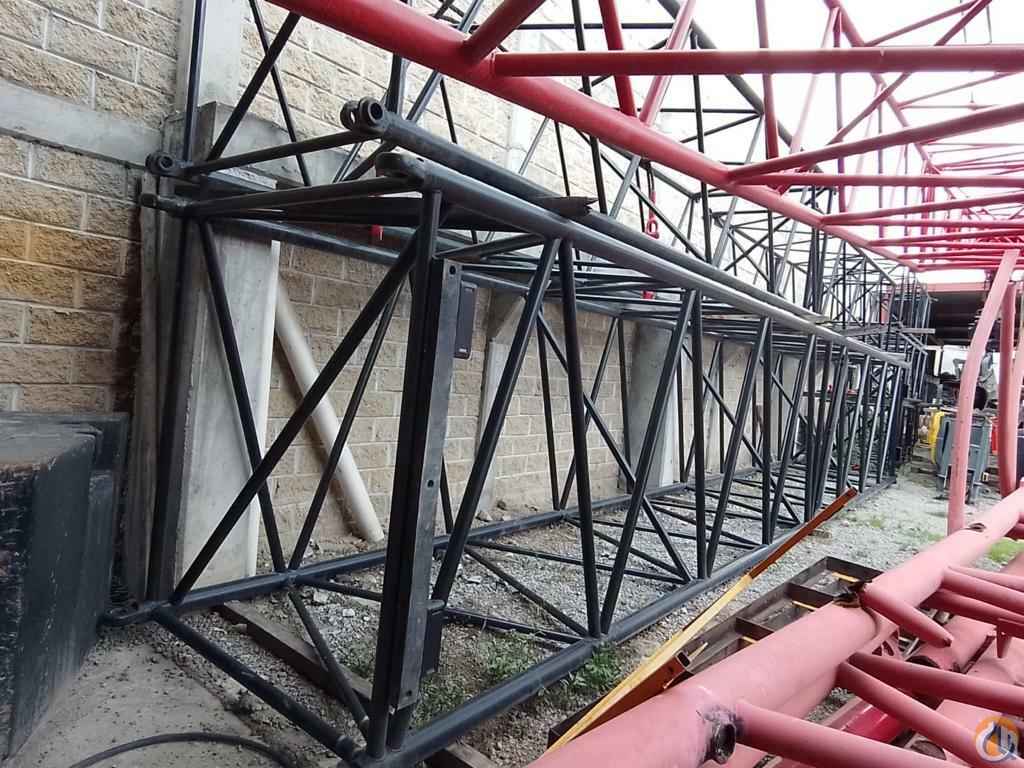

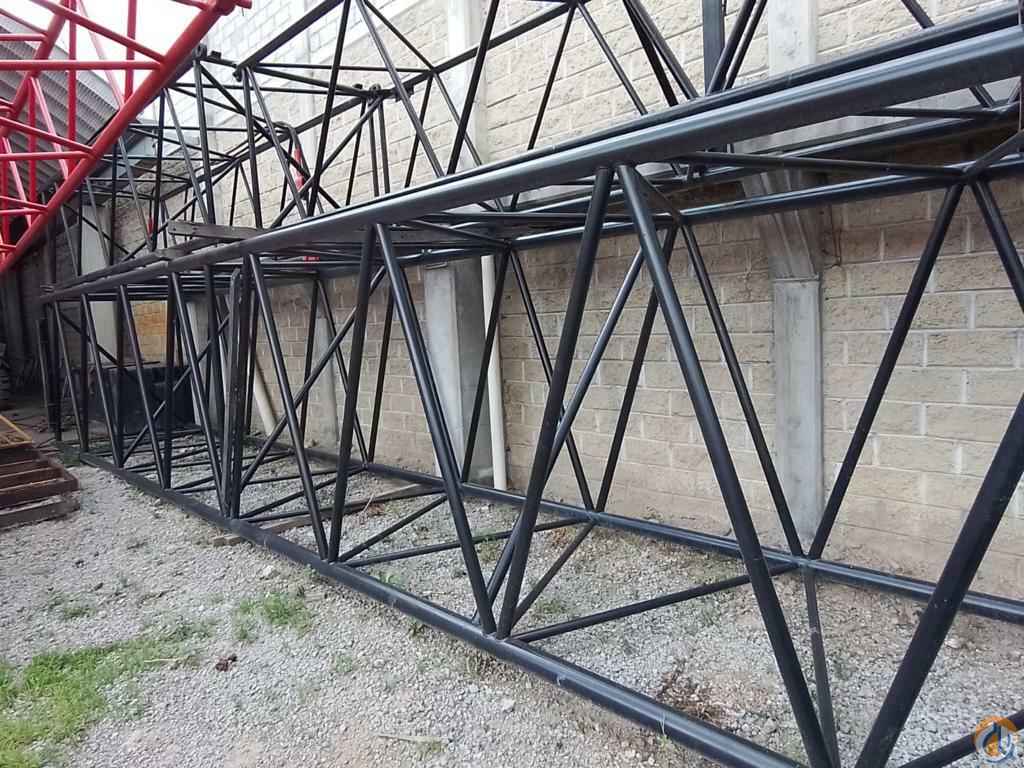

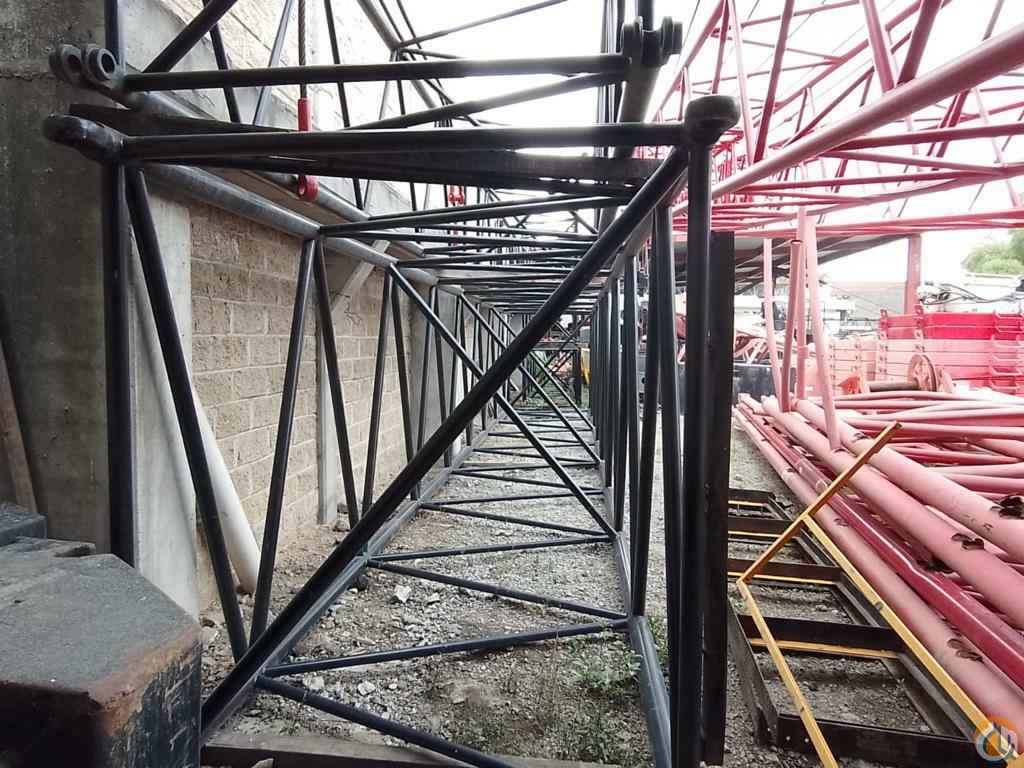

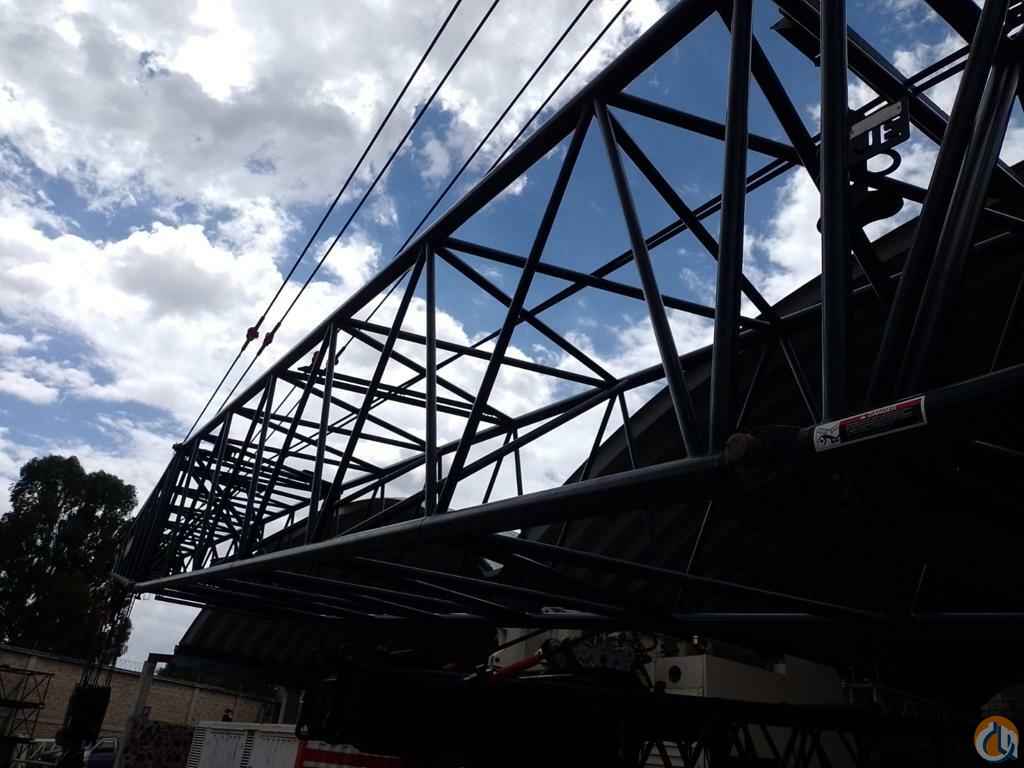

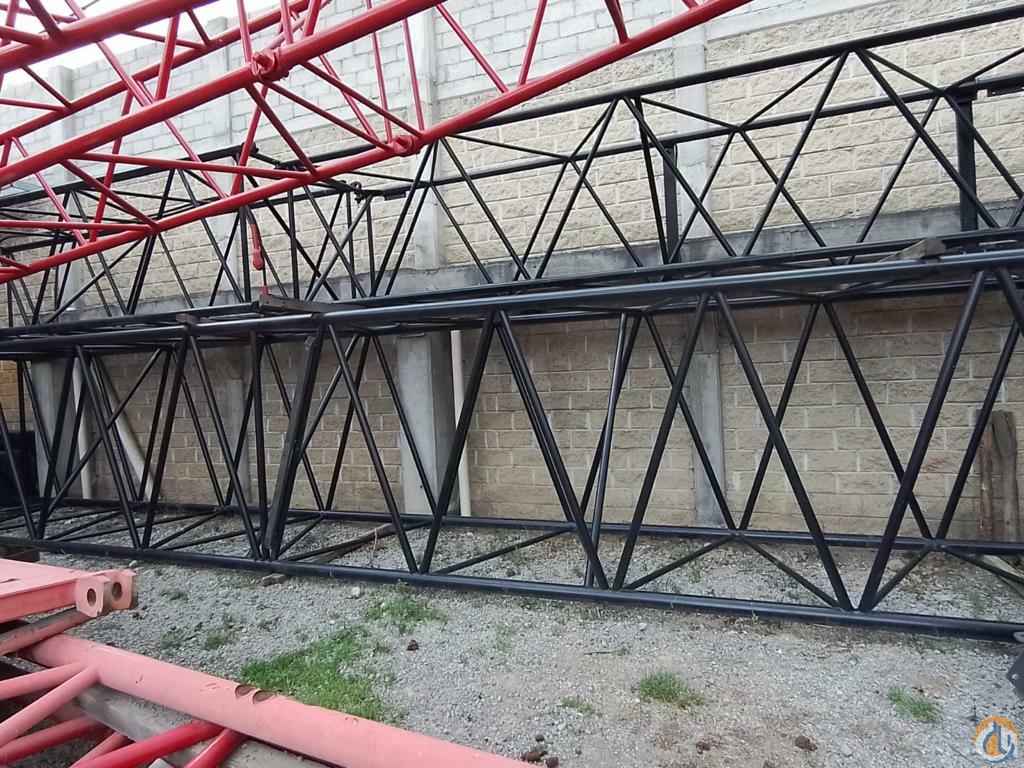

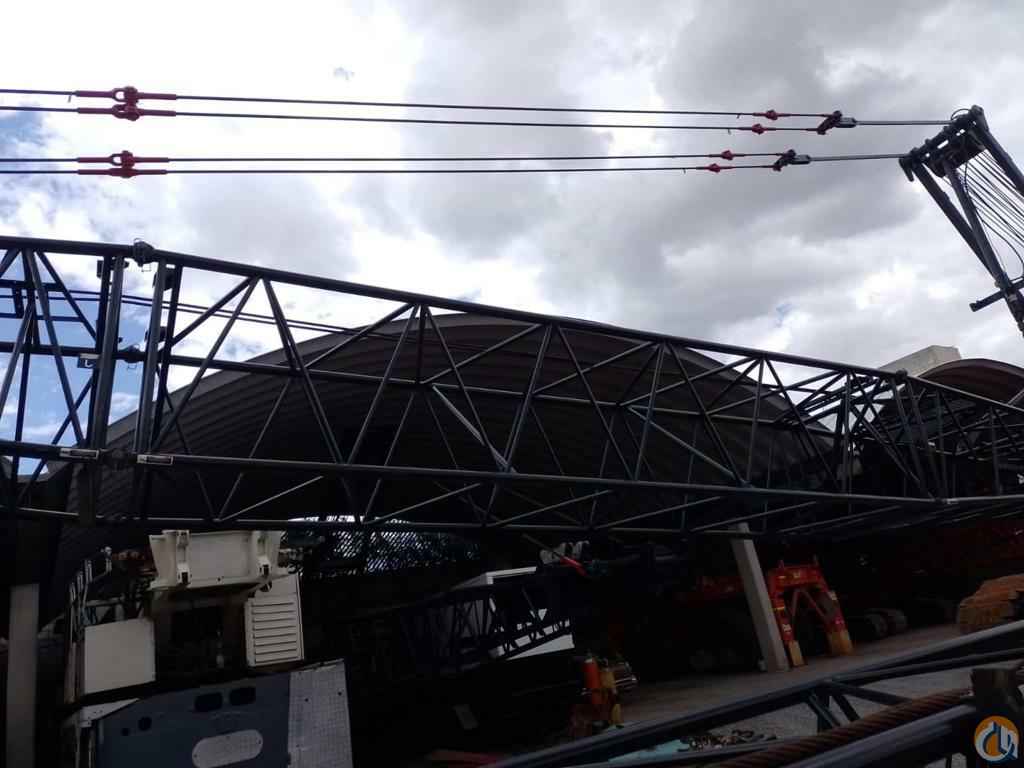

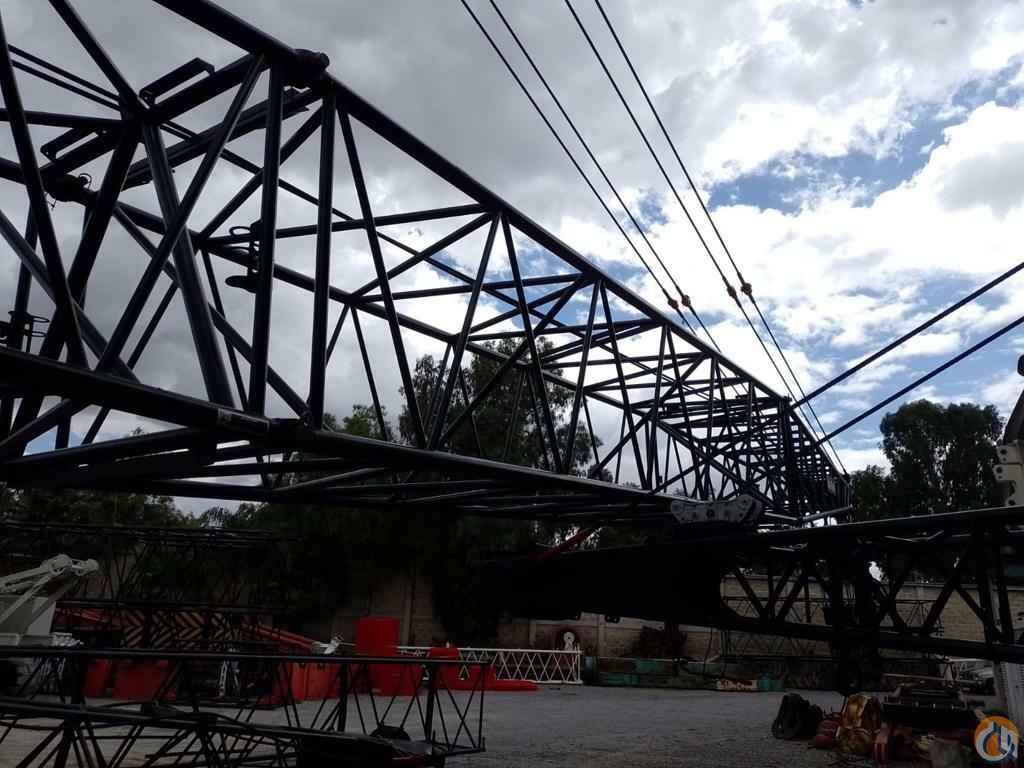

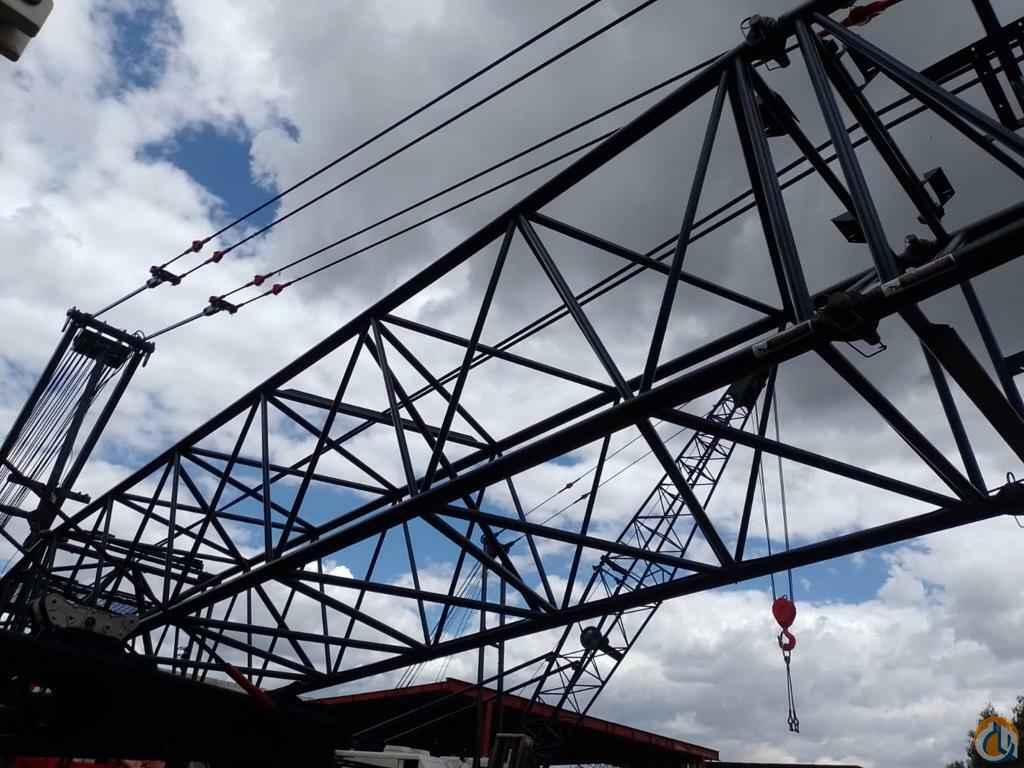

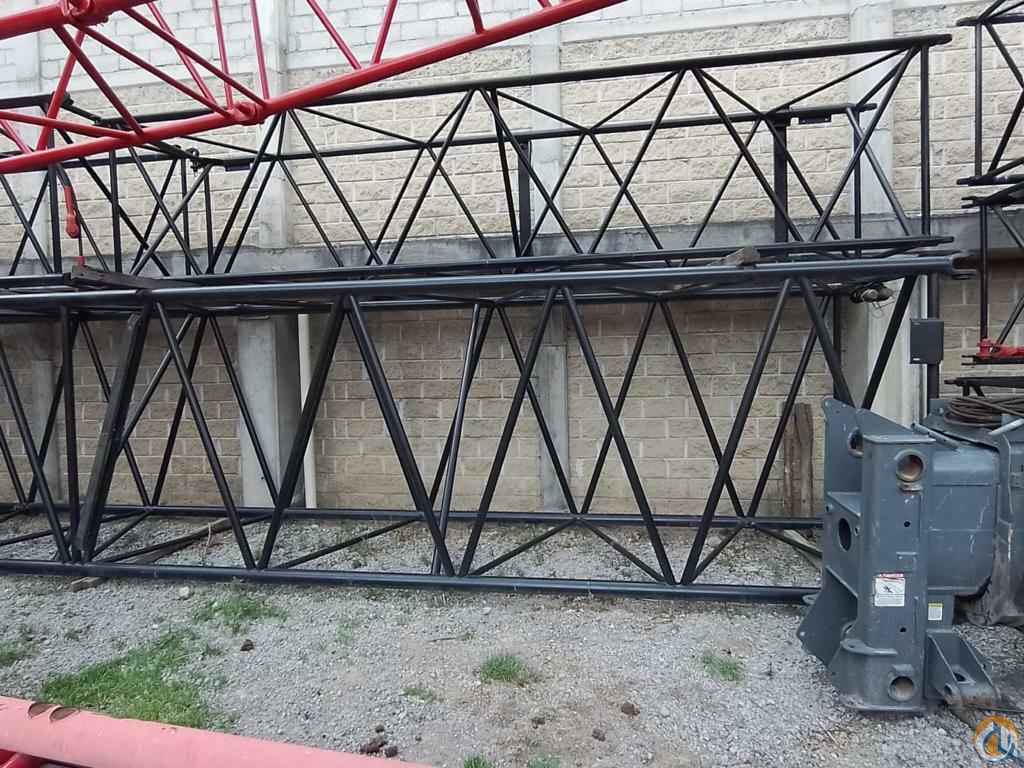

- 130' Tubular Main Boom consisting of: 1 x 30' Base, 1 x 30' Tip, 1 x 30' inserts, 1 x 40' insert,
- No Jib,

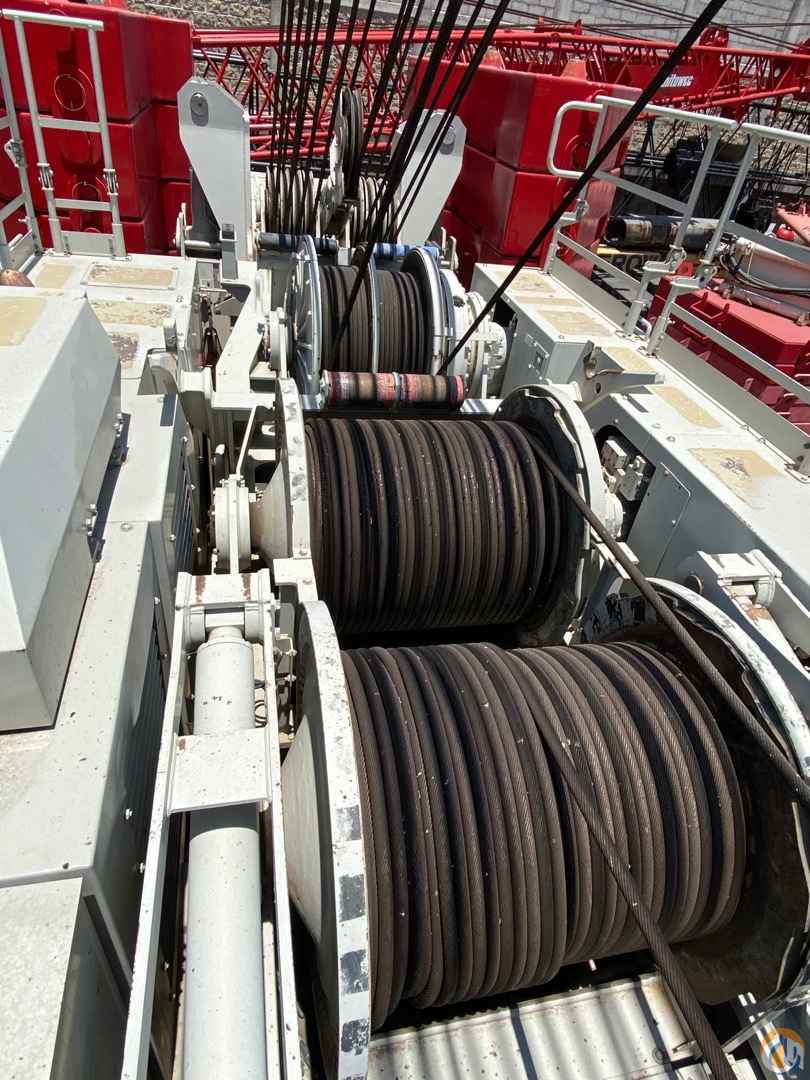

- Main and Auxiliary winches with 28mm Wire Rope with a Third Drum,
- Drum rotation indicators, Load Moment Indicator with Anti–Two block warning & function limiters,

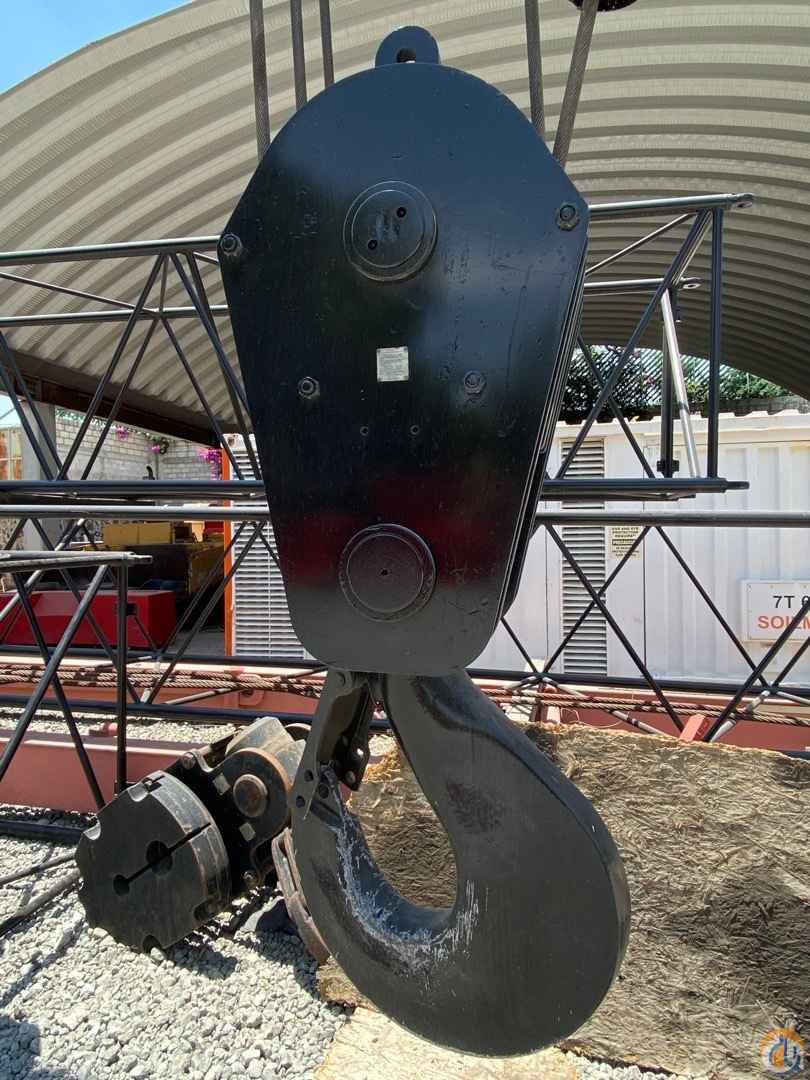

- 200 Ton Johnson Hook Block,
- Quick Draw single hydraulic cylinder mounted in live mast is used for assembly and disassembly,

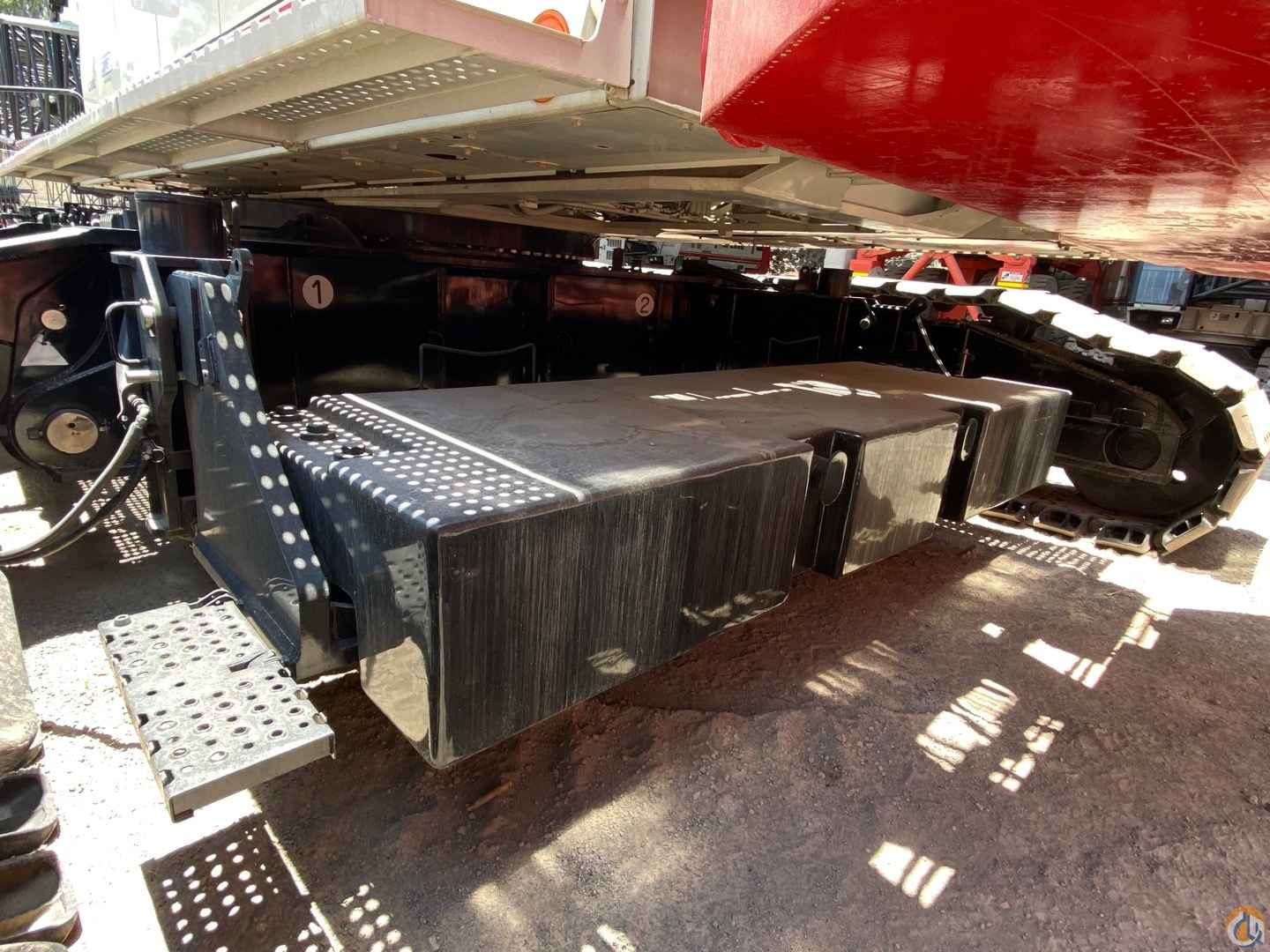

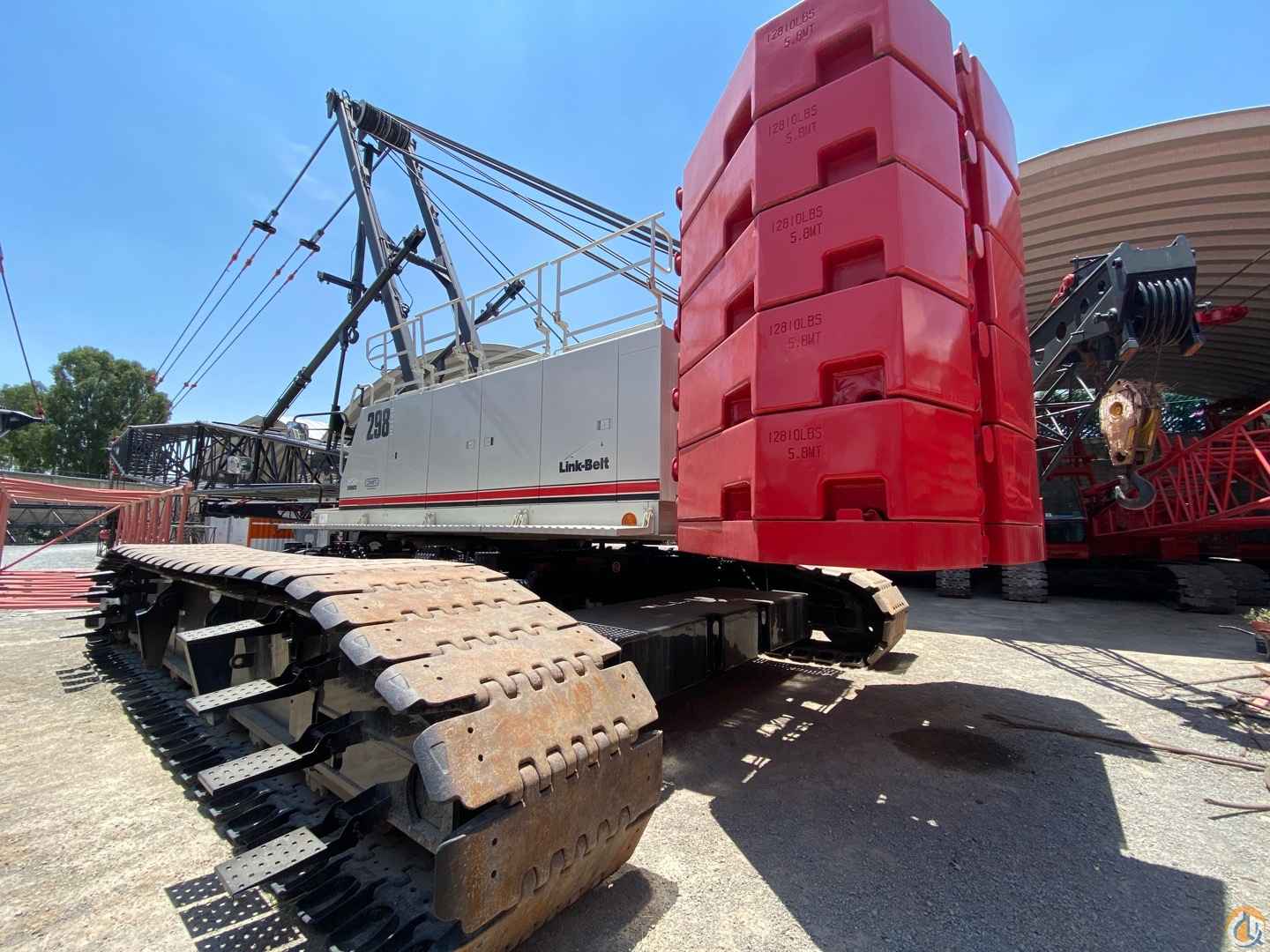

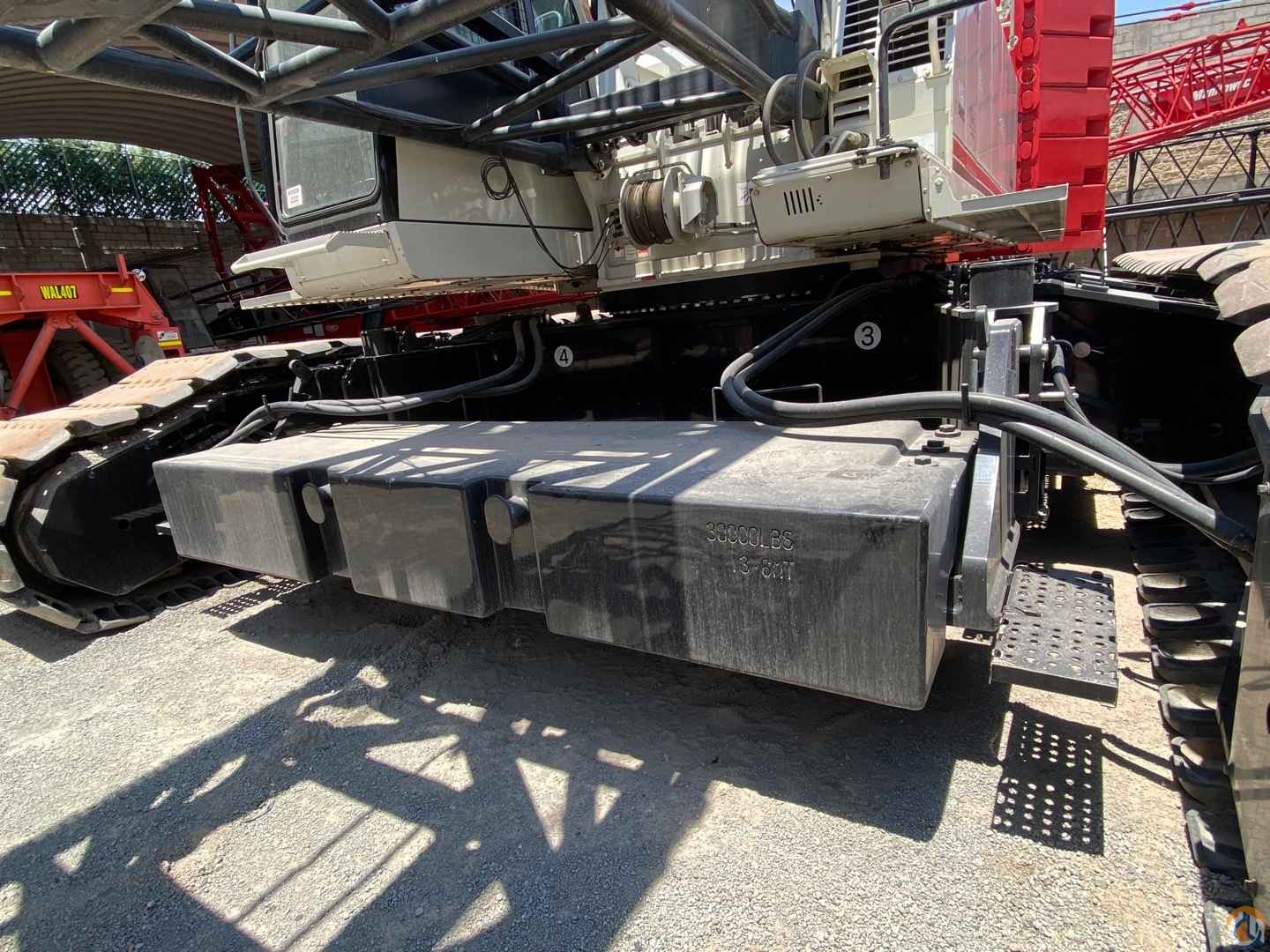

- 220,000# Total Complete counterweights: Eleven Piece design that can be easily lowered to the ground using the removal cylinders. “ABCDE” total upper counterweight is 160,000# + Two carbody counterweights 30,000# each,
- Catwalks: Standard on right and left sides. Catwalks are removable for reduced travel width.

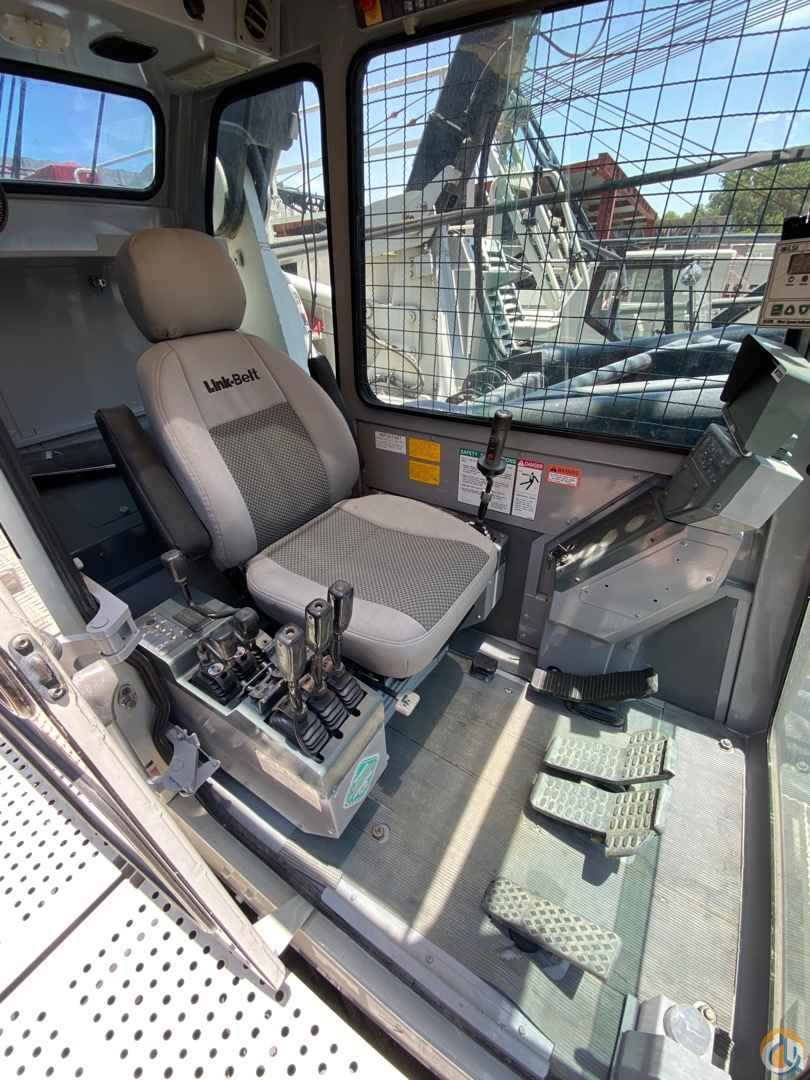

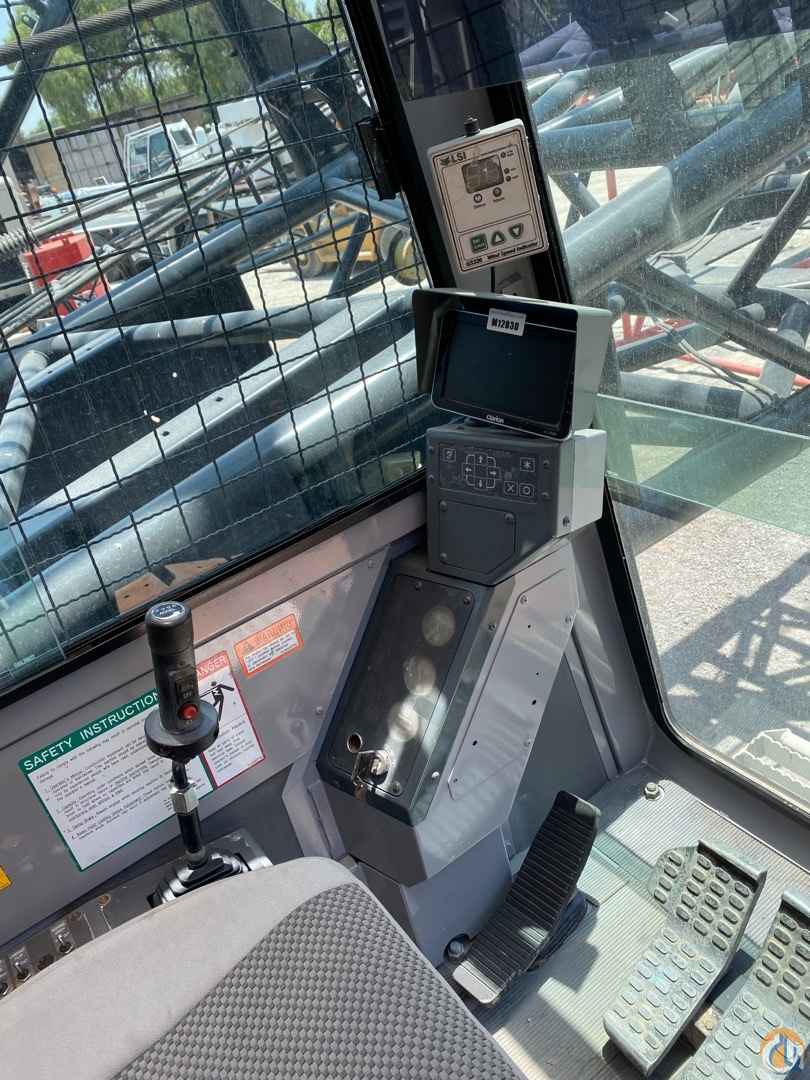

- Operator's Cab: Fully enclosed modular steel compartment is independently mounted and padded to protect against vibration and noise with 18,600 BTU Air Conditioner and 19,000 BTU Hot Water Heater,

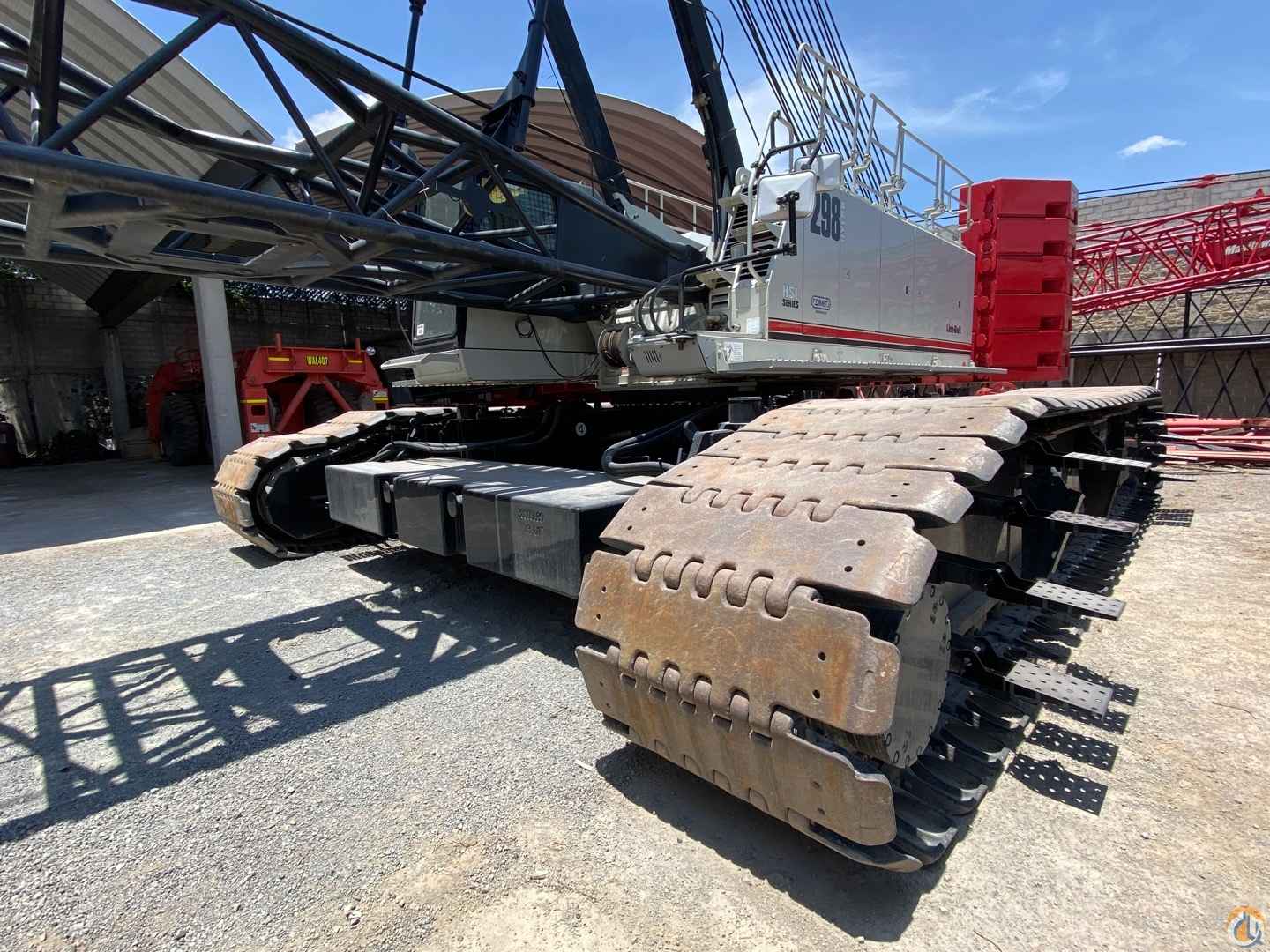

- 15' 5" Link-Belt Lower - 25’ 3.5” total width with crawlers,

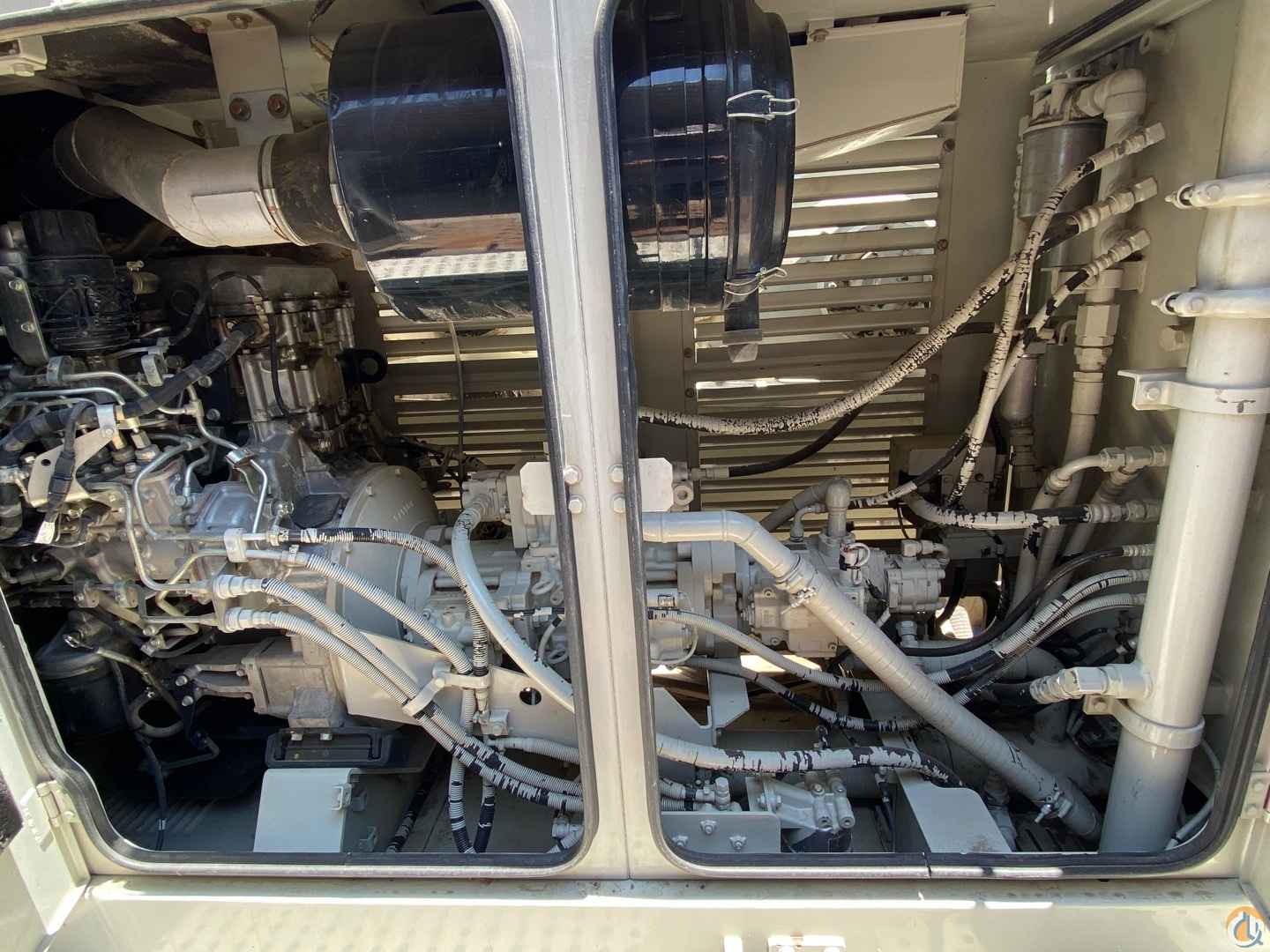

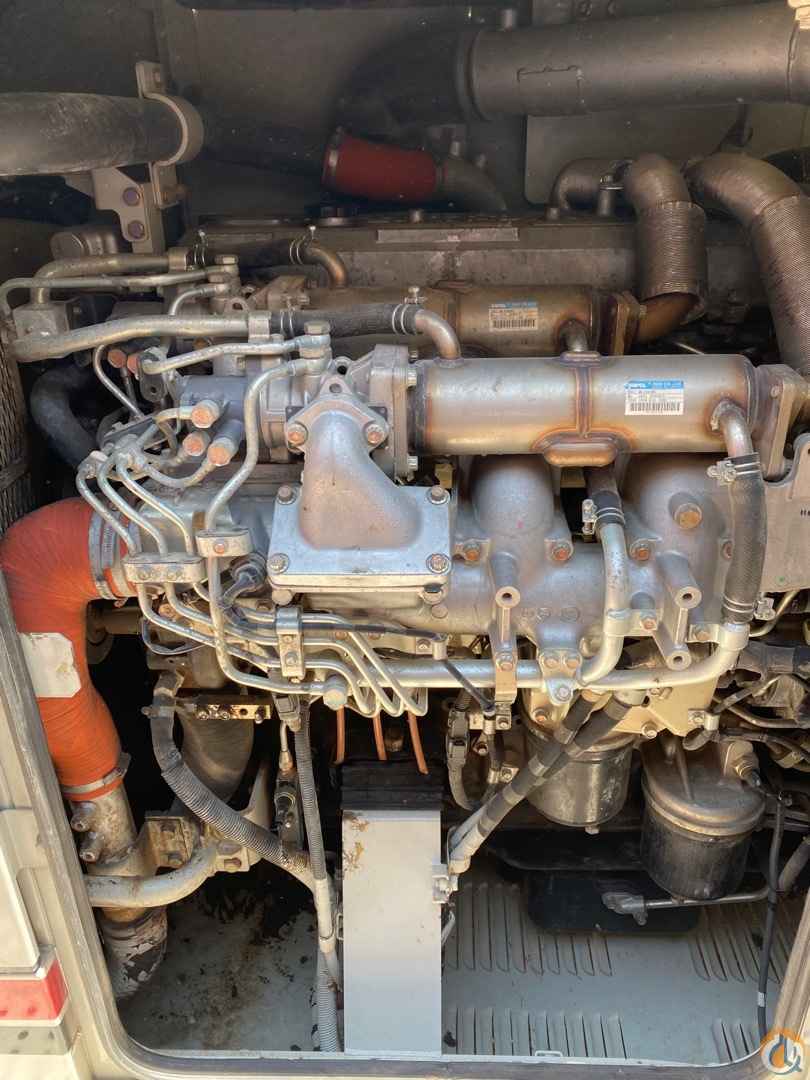

- Mitsubishi 6M70-TLA3A Six Cyylinder Diesel Engine - Conforms to EPA 2010,
- 27' 9" Long side frame,
- 48” Wide Shoes,
- 55 shoes per side frame,
- Certified by CE&O April 2025 - including a load test (around 85% of its capacity),
- SELLER IS MOTIVATED...PLEASE MAKE BEST REASONABLE OFFER!
http://www.CranesList.com,
LOCATED IN MEXICO!
