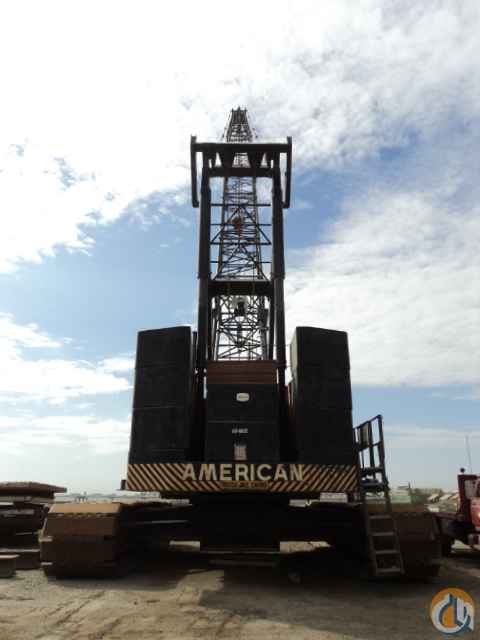

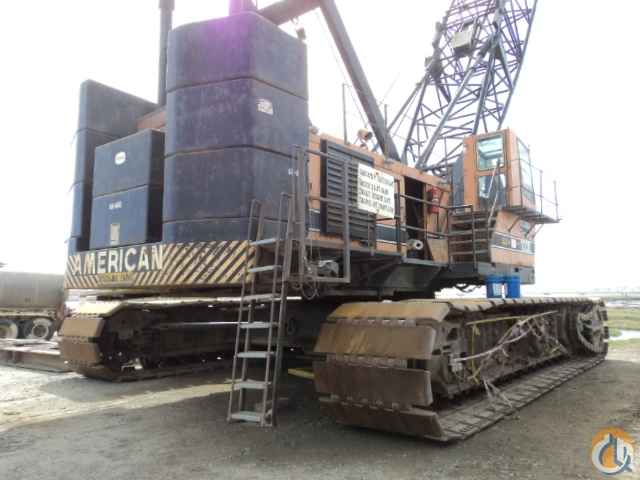

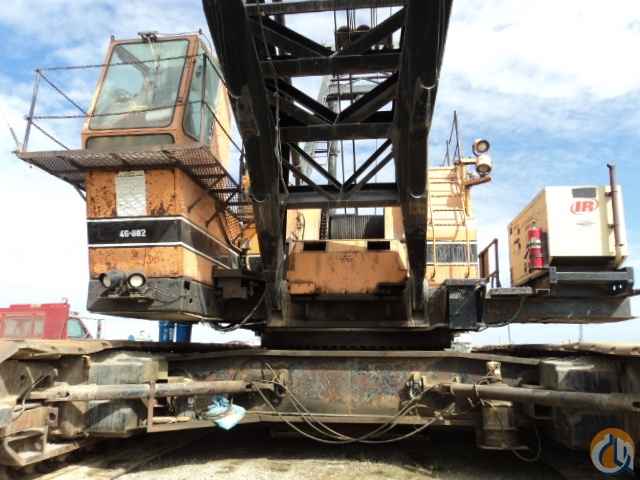

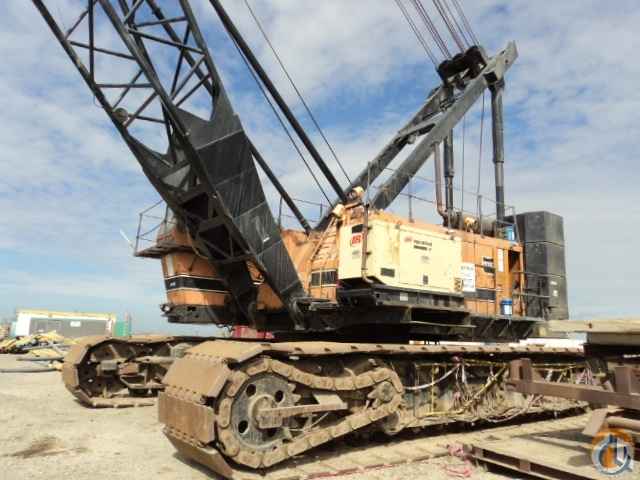

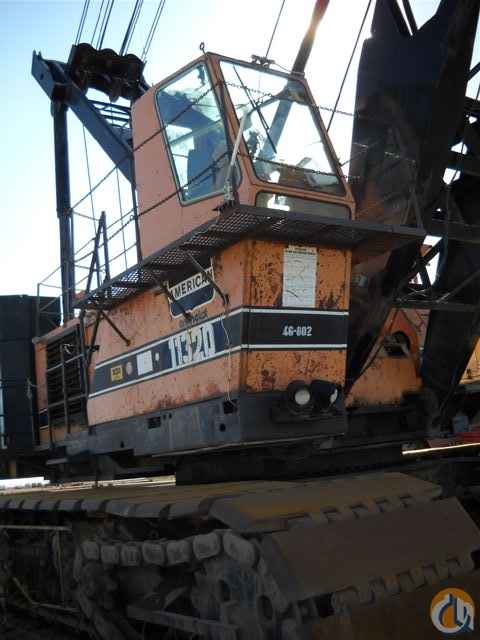

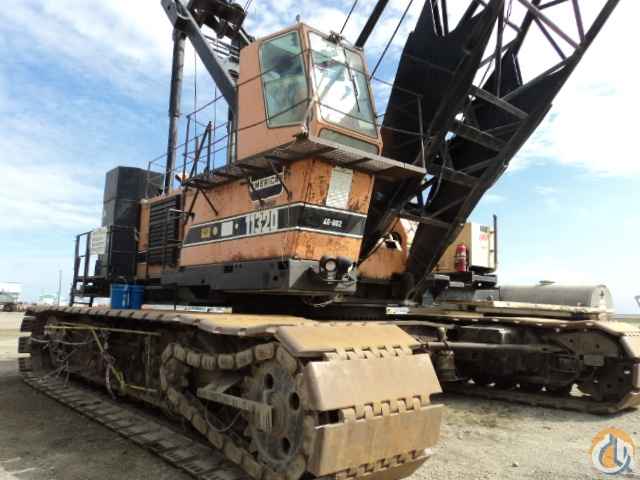

1982 American Lattice Boom Crawler Crane. Model 11320. Serial number 8205A03010. Hours: 20,477. This crane has a 900,000 lbs capacity, with 230,000 lbs of counterweight. It has 160 feet of 94H tubular chord boom. The main load line is reeved to an 8-part line of 1.25" diameter rope, with a gross lifting capacity of 400,000 lbs based on a line pull of 50,000 lbs on a single line. There is a headache ball on a single line on the rooster jib attachment, on a 1.125" diameter rope, with a line pull of 37,140 lbs. There is an additional boom section of 50'. The crane was fitted in 2007 with a Crane Smart LMI version R6.
