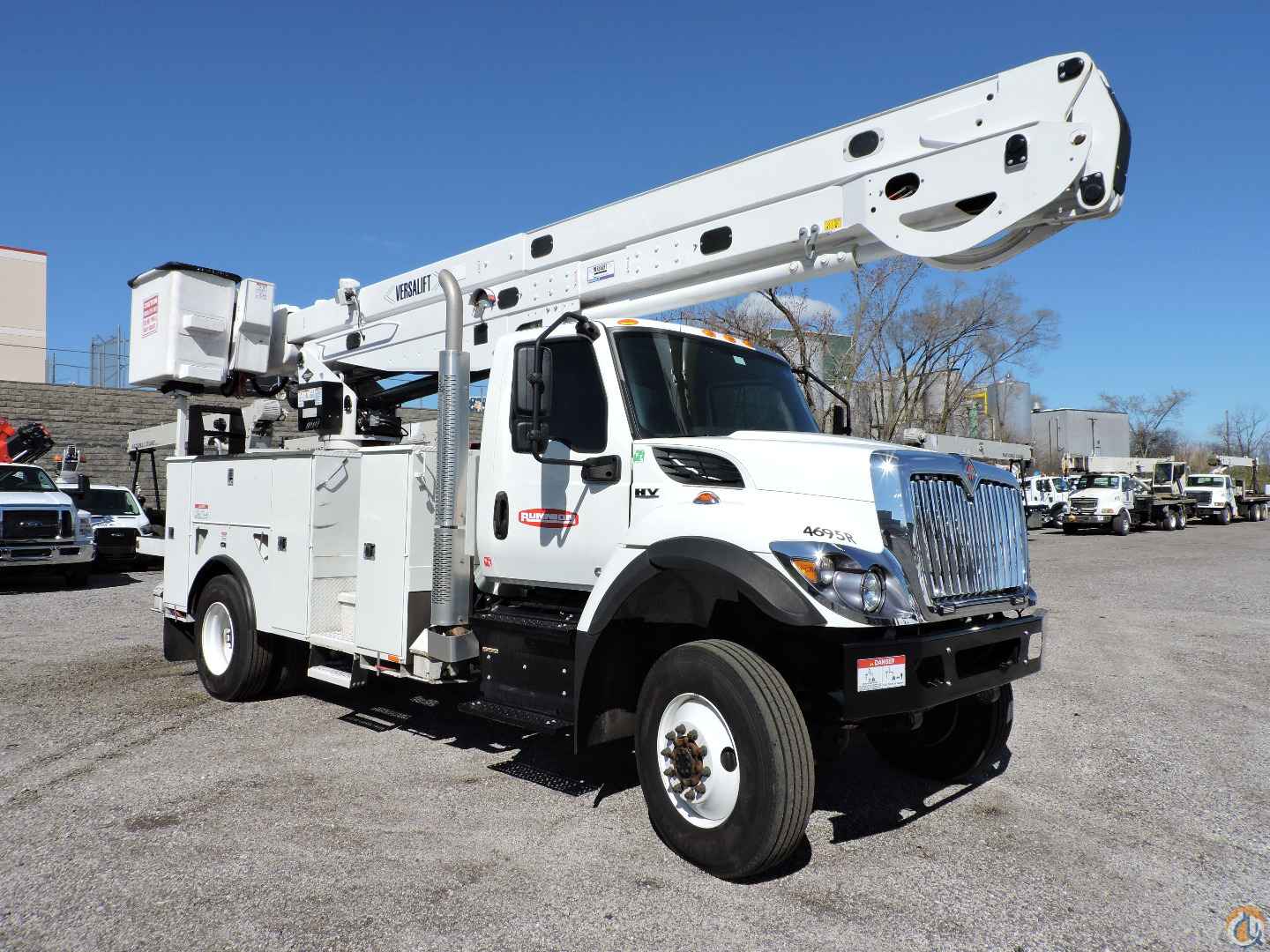

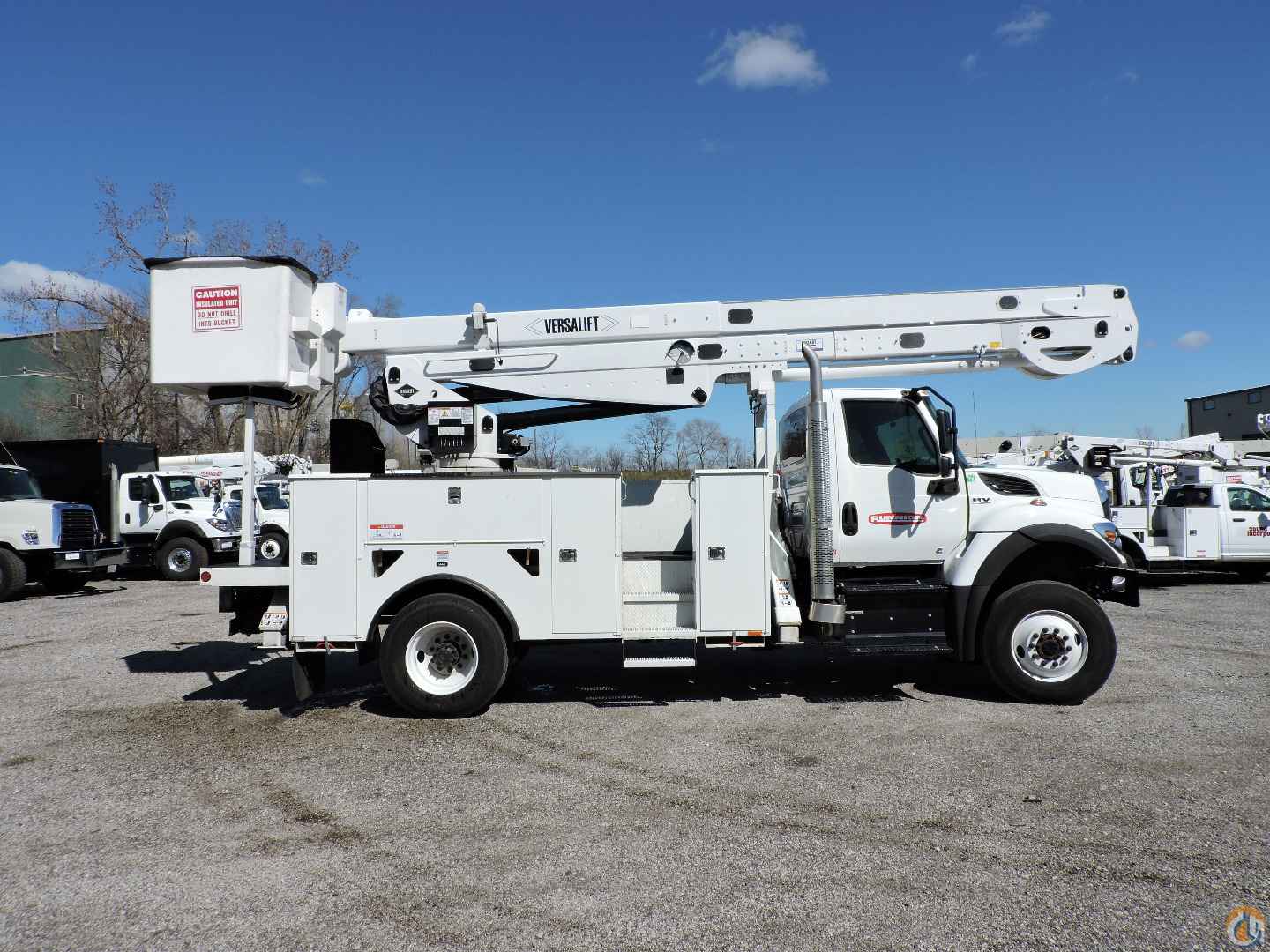

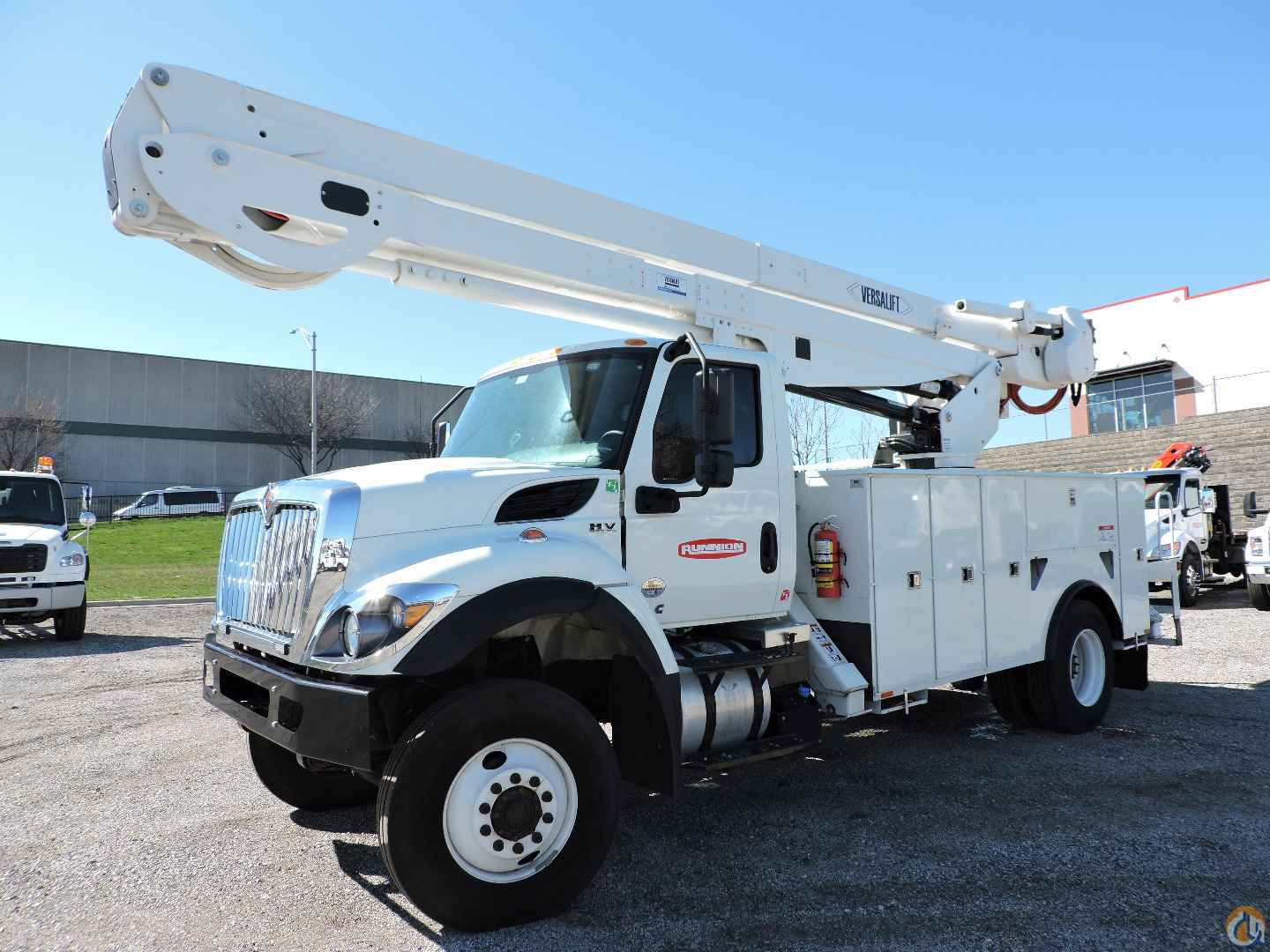

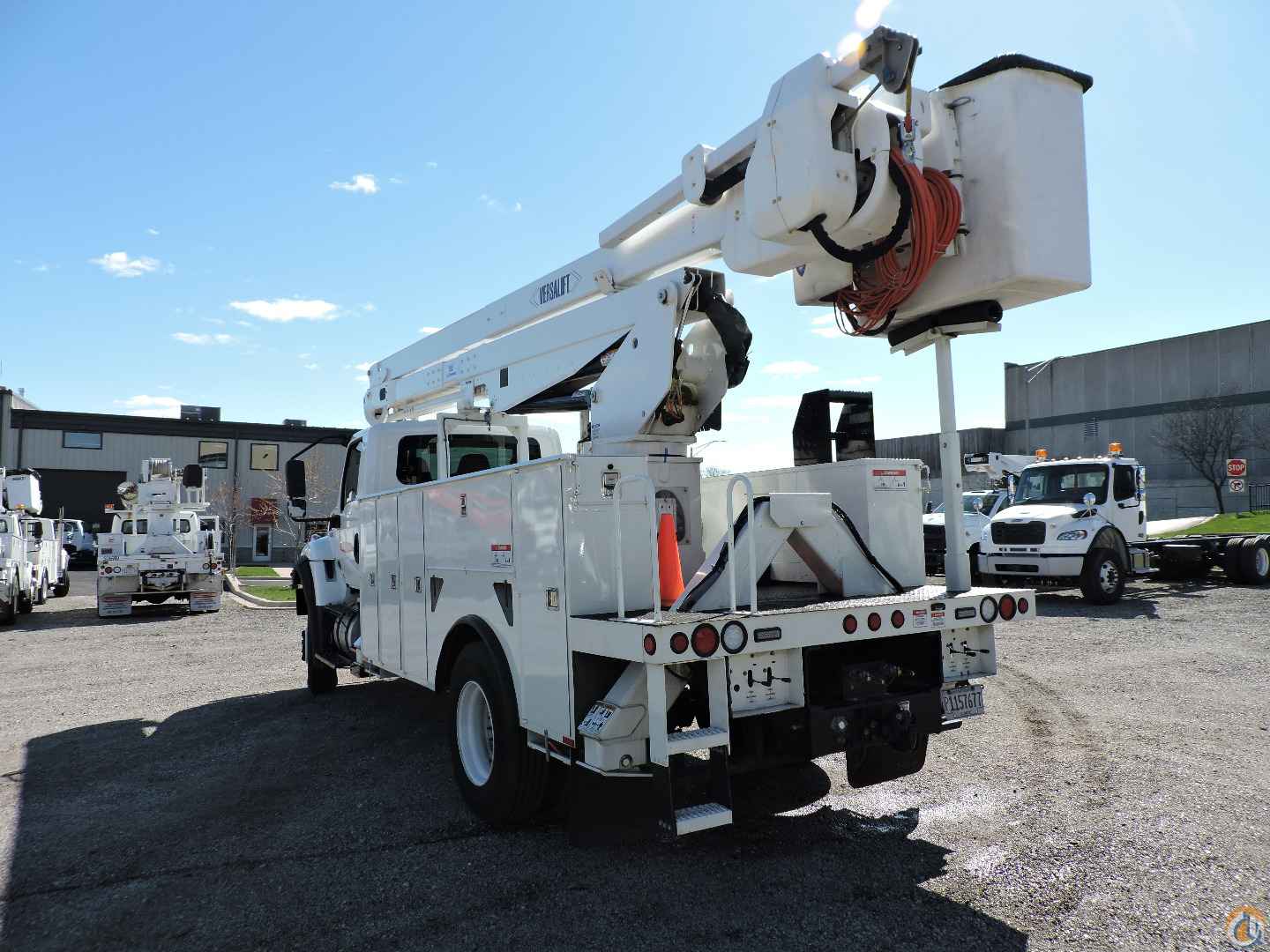

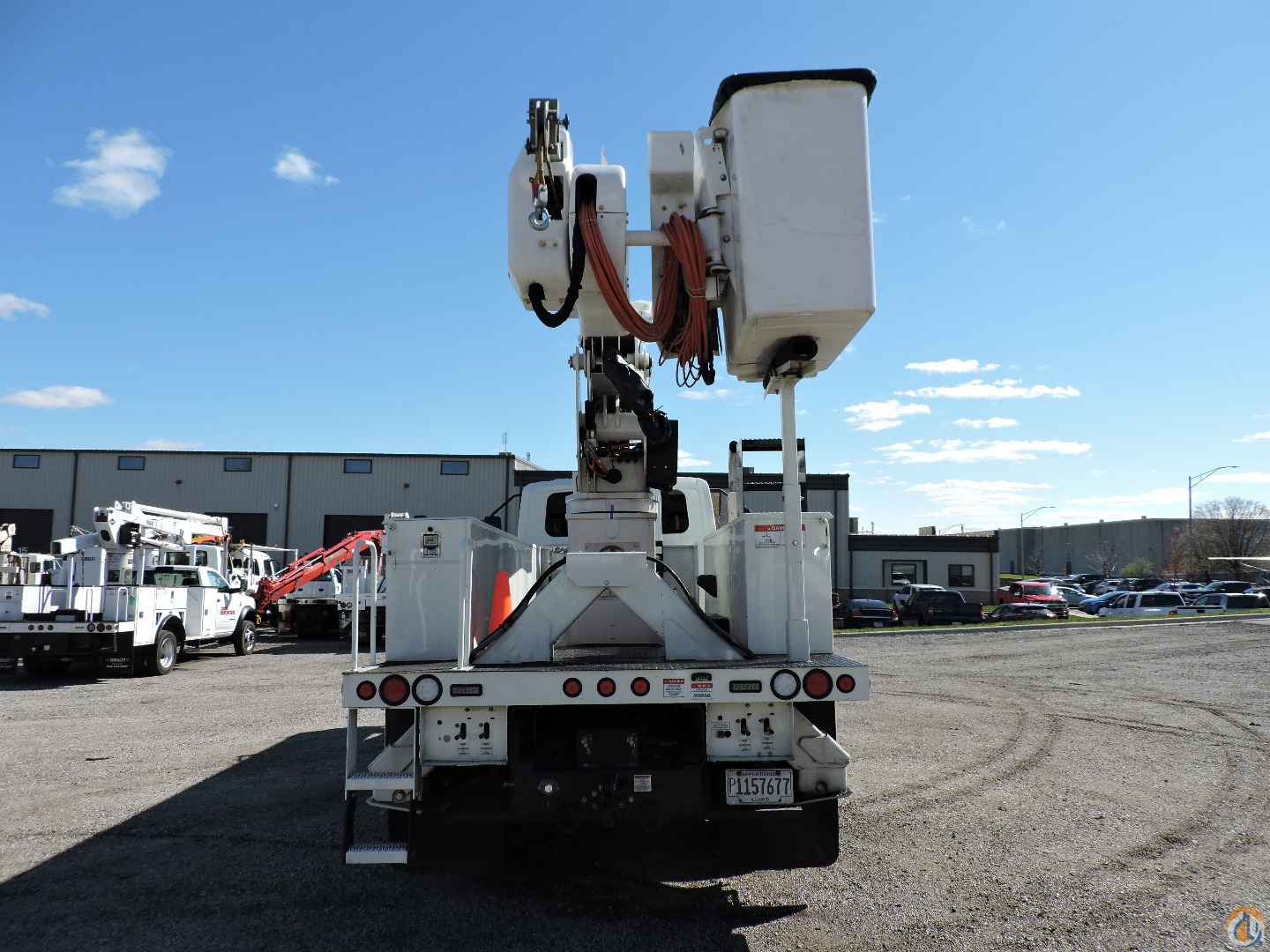

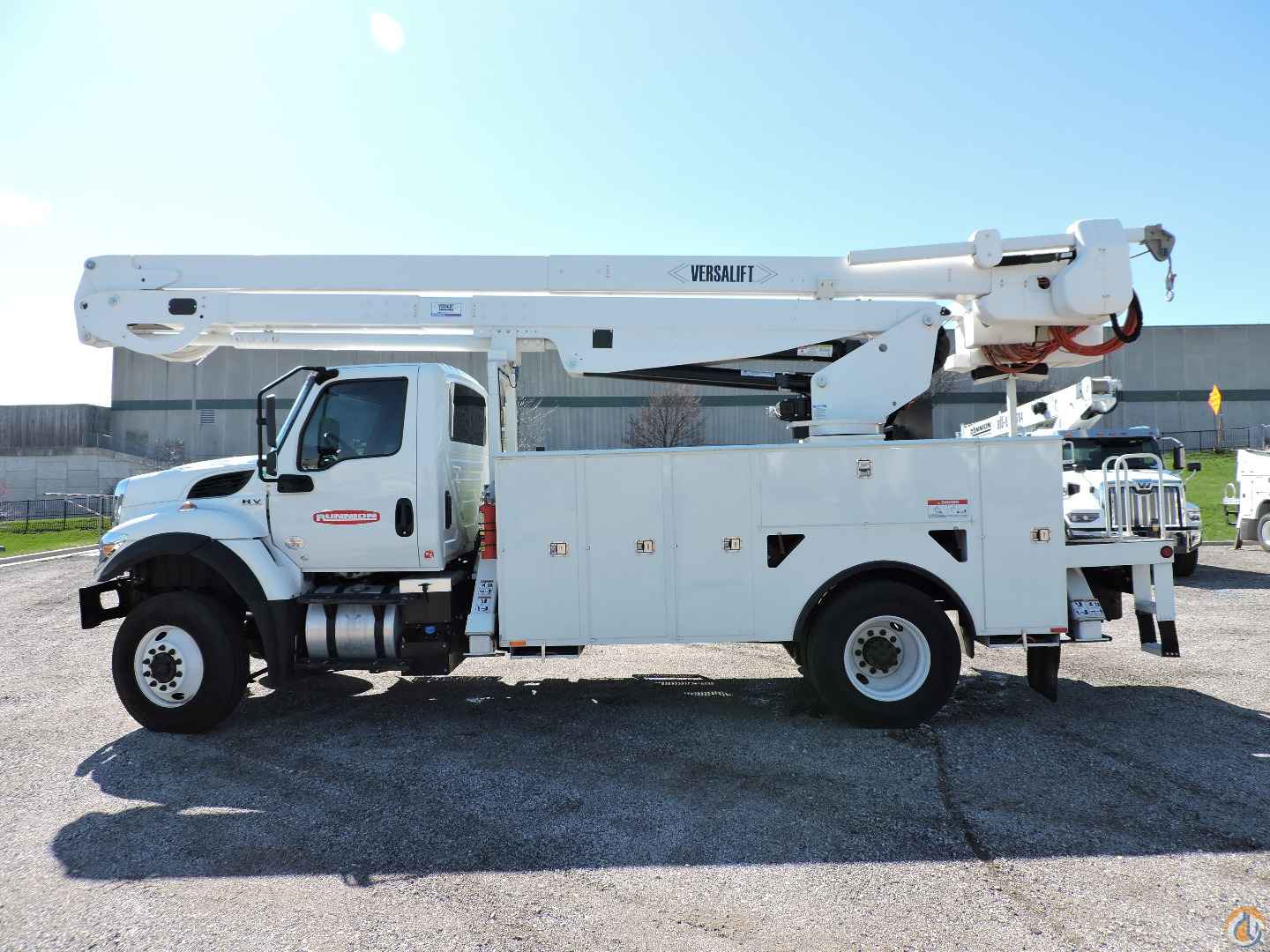

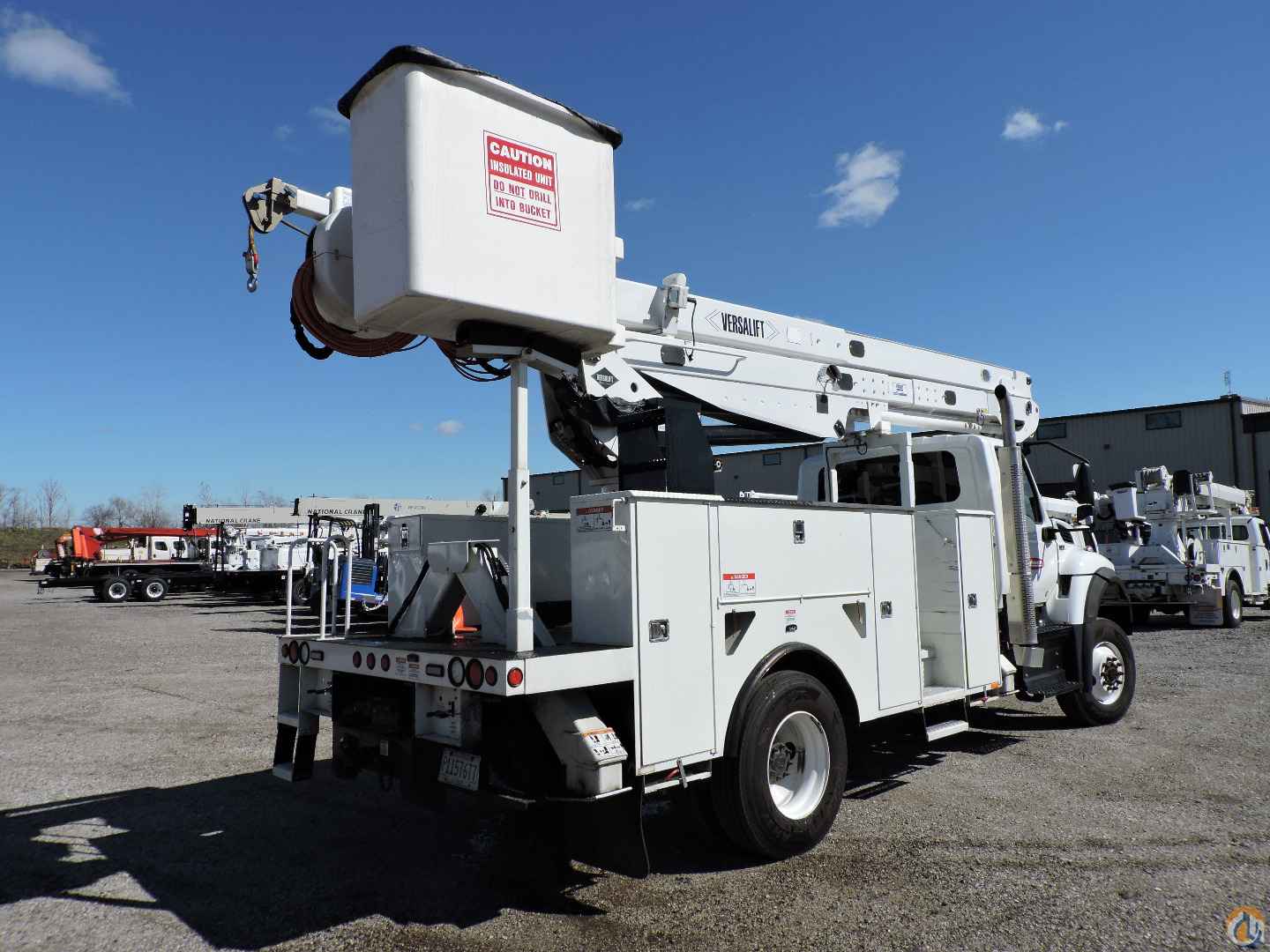

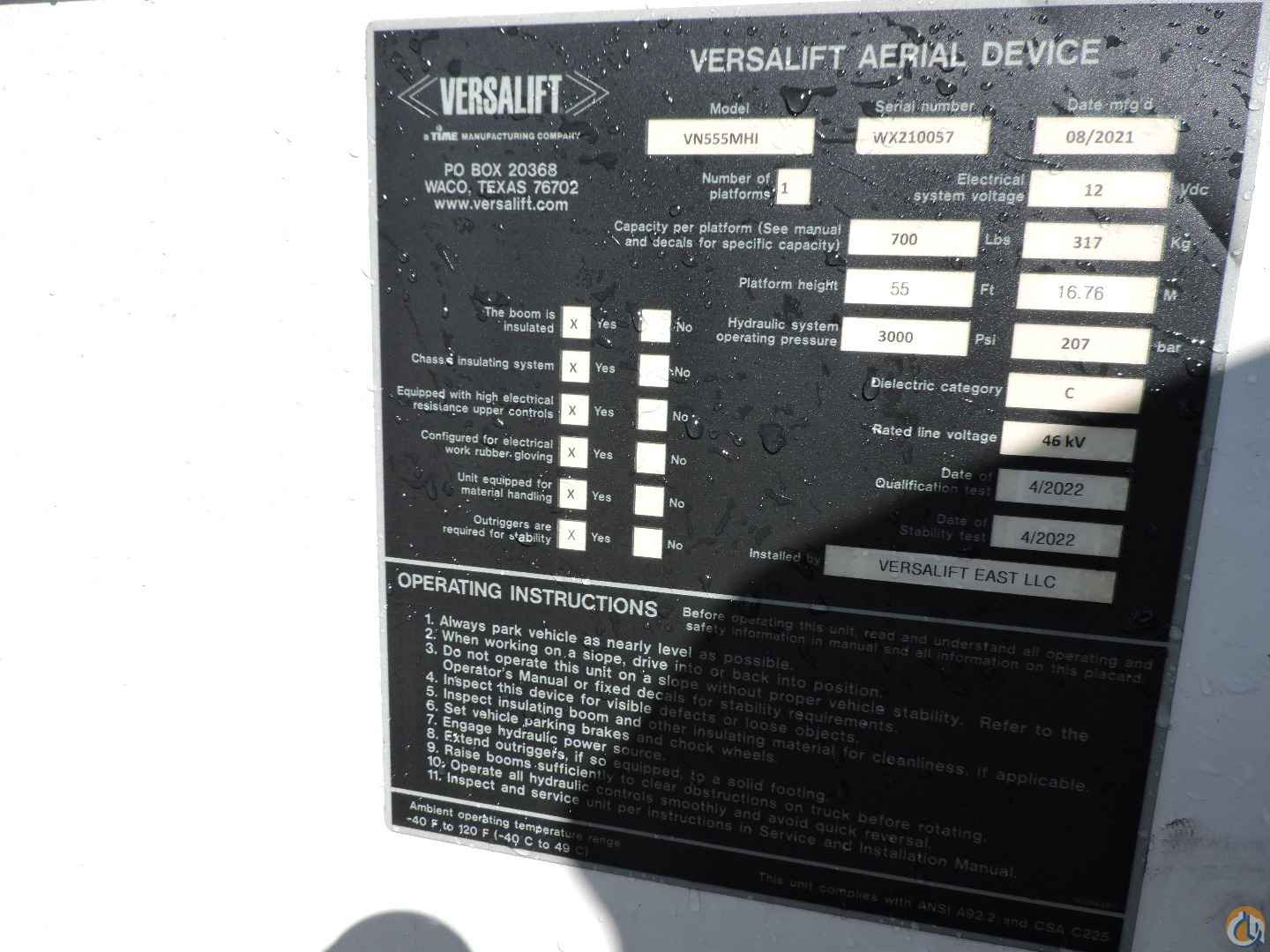

VERSALIFT VN-555-MHI equipped as follows:

-          Insulated 55’ 3” non-over center, articulated aerial platform lift

-          60’ 3” working height

-          42” 10” horizontal side reach

-          Platform capacity 700 lbs.

-          Vinyl platform cover

-          Liner for 24 in. x 48 in. x 42 in. platform.

-          (1) two-man 24” x 48” x 42” deep closed fiberglass basket with two steps.

-          UNITROL single-stick mounted on curbside between boom and platform with integral safety trigger and emergency stop control.

-          Primary TruGuard dielectric isolating system with single stick control. All control handles are isolated and tested per ANSI 92.2. The high resistive dielectric system is protected from direct environmental and job related contamination. TruGuard technology incorporates the use of full hydraulic controls with durable metal handles and linkages.

-          Automatic throttle control activates with trigger at single stick

-          Full pressure turret mounted controls with override.

-          Engine start/stop from platform and lower controls

-          Auto throttle disable valve at platform.

-          Continuous rotation

-          Engine start/stop

-          12 volt backup pump.

-          Open center hydraulic system providing 8 to 12 GPM and 3000 psi

-          6.5 ft. jib and winch with 2000 lbs. capacity.  Hydraulic jib articulation and extension is included.  Includes 75 ft. of 9/16 inch diameter synthetic load-line.

-          Lift eye on lower boom with 2500 lbs. capacity.

-          90° hydraulic platform rotation with hydraulic tilt for cleanout or rescue.

-          Fiberglass upper boom tested per ANSI A92.2 for Category C

-          Lower boom articulation 120° with upper boom articulation 192°
relative to lower boom

-          Vacuum flashover prevention system.

-          Chassis insulating system (lower boom insert) providing 18” insulation
gap including accommodations to bridge insulation gap for testing per
ANSI A92.2

-          White urethane over white gel coat on fiberglass upper boom and lower boom insert.

-          Two (2) sets of hydraulic tool outlets at platform with 2000 psi reducing valve

-          External reservoir with a 30-gallon capacity and sight level gauge.

-          Dual A-frame outriggers with 158 in.) spread with outrigger boom interlock system

-          Automatic boom latch. The rotary auto boom latch works off the lift hydraulic pressure to open and close.

-          Full length sub frame and mounting hardware for cab and chassis.

-          Standard Time white paint.

-          Two safety harnesses and lanyards

-          (2) operators and two (2) service manuals.

-          Manufactured and tested per ANSI A92.2

Steel line body equipped as follows:

-          Stainless steel automotive rotary type door latches and hinges.

-          Chain stops on all doors.

-          Rubber rolled crown type fenders and automotive bulb type weather stripping.

-          Master door lock system.

-          Outrigger pad storage holders with pendulum retainers.

-          Street side compartments:

-          1st vertical:    (5) fixed material hooks (1-3-1).

-          2nd vertical:   (2) adjustable shelves with dividers

-          3rd vertical:   (2) adjustable shelves with dividers

-          Horizontal:     Adjustable dividers installed in compartment bottom

-          Rear vertical: (2) adjustable shelves with dividers.

-          Hot stick shelf: 156 in. long with rear dropdown access door.

-          Curbside compartments:

-          1st vertical:    (5) fixed material hooks (1-3-1).

-          2nd vertical:    Tread plate access steps to bed area with grab handles

-          3rd vertical:   (2) adjustable shelves with dividers

-          Horizontal:     (1) removable divider shelf with dividers

-          Rear vertical: (2) adjustable shelves with dividers.

-          Tail shelf: 30 in. tread plate tail shelf.

-          Rear lighting: Lamp light bar installed at rear of tail shelf and rubber mounted recessed rear lighting kit with LED lights.

-          Wheel chock storage: (1) each side built into wheel wells.

                        Installation includes the following:

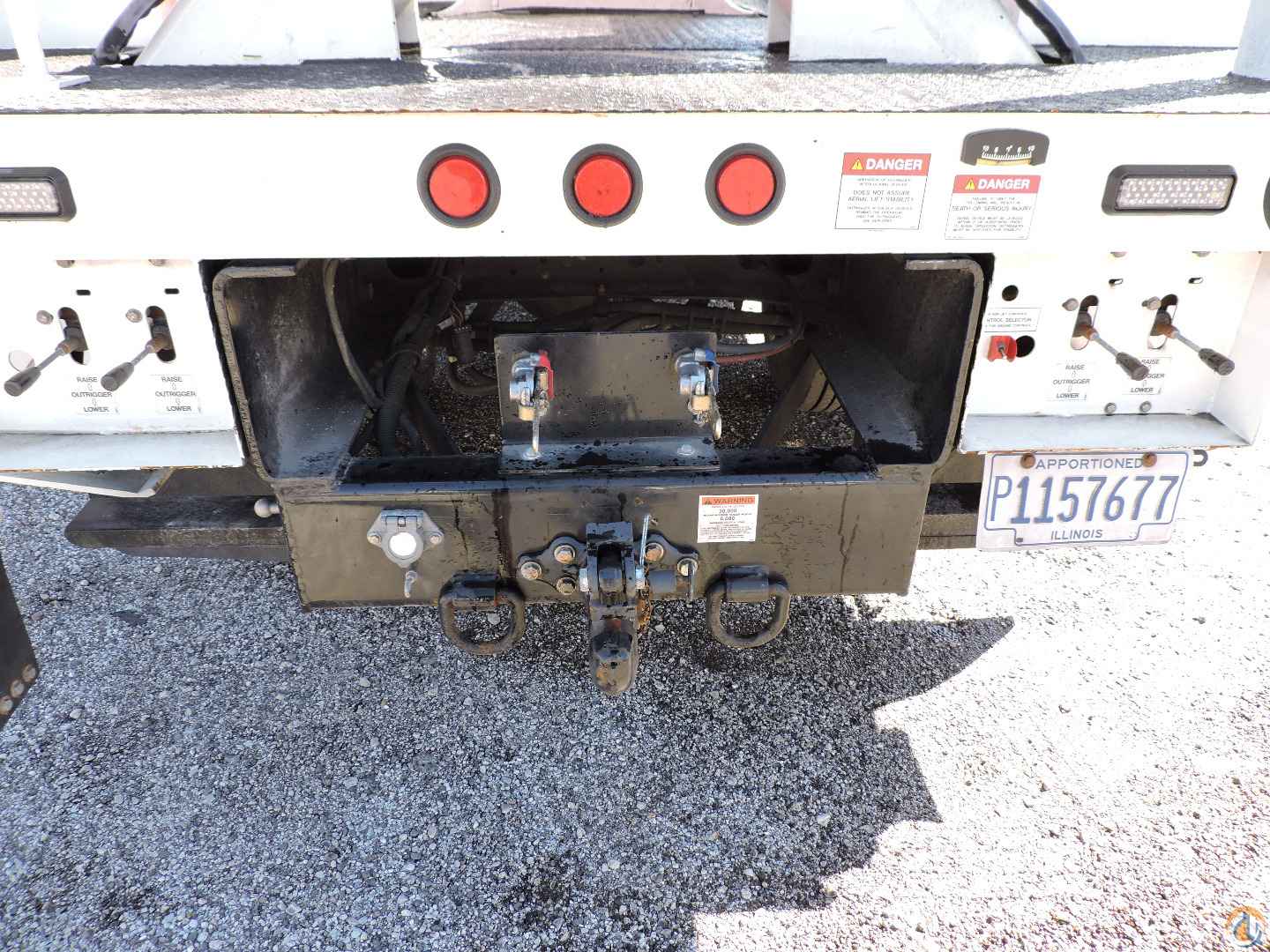

-          BP-100A pintle hitch, reinforcements, and 7 prong trailer connector

-          (2) strobe lights in front grill

-          (2) amber strobe lights in rear tailshelf

-          Outrigger pads with holders

-          Slope indicators,

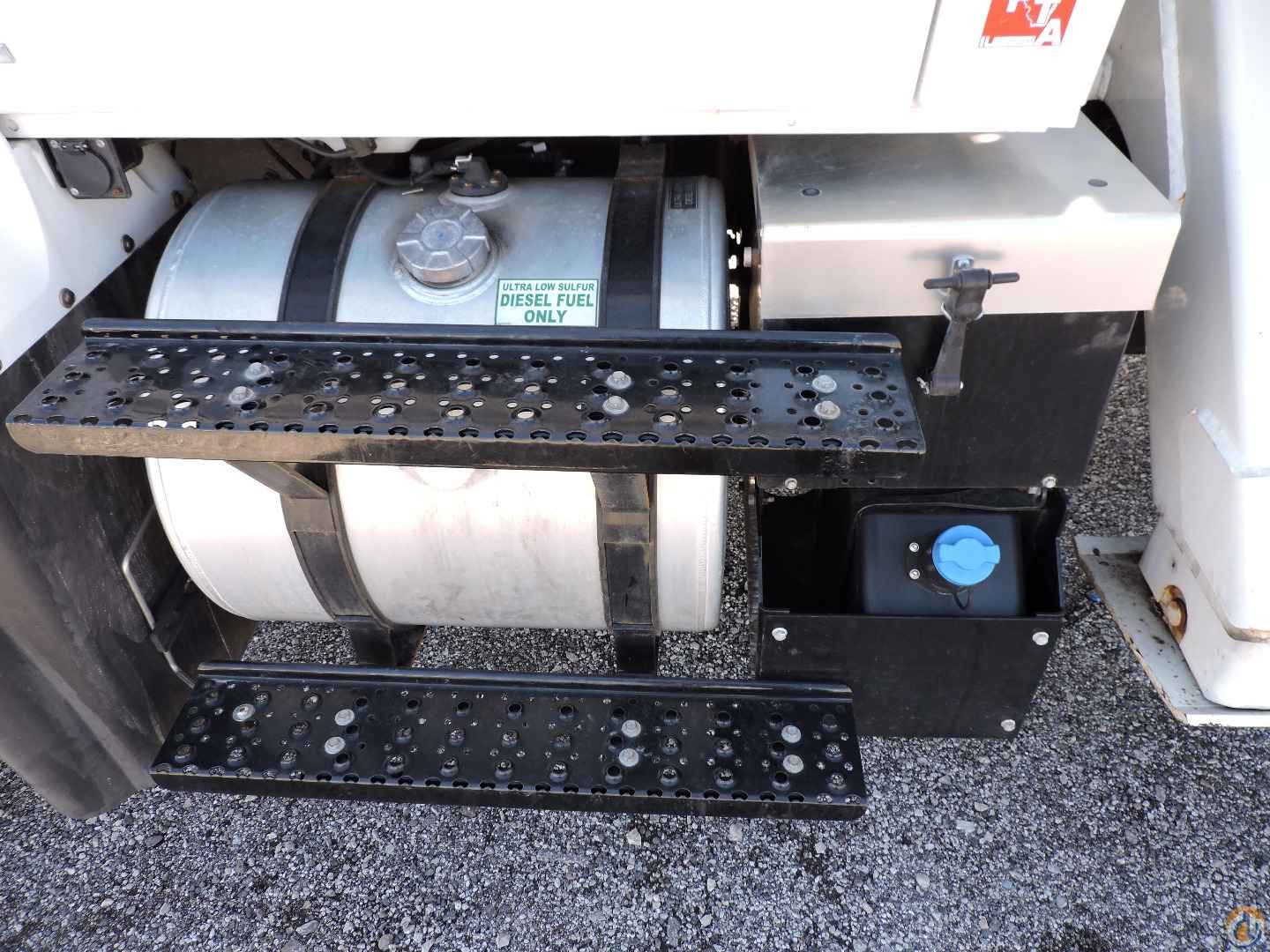

-          Access steps and handrails.

-          Paint black non-skid on body floor.

-          Wheel chocks

-          fire extinguisher

-          3-piece triangle reflector kit.

-          Test and certify per ANSI A92.2

2022 International HV507 4x4 equipped as follows:

-          Cummins B6.7 - 325 HP diesel engine @ 2400 RPM,725 lb-ft Torque @ 1800 RPM

-          Allison 3500 RDS automatic transmission

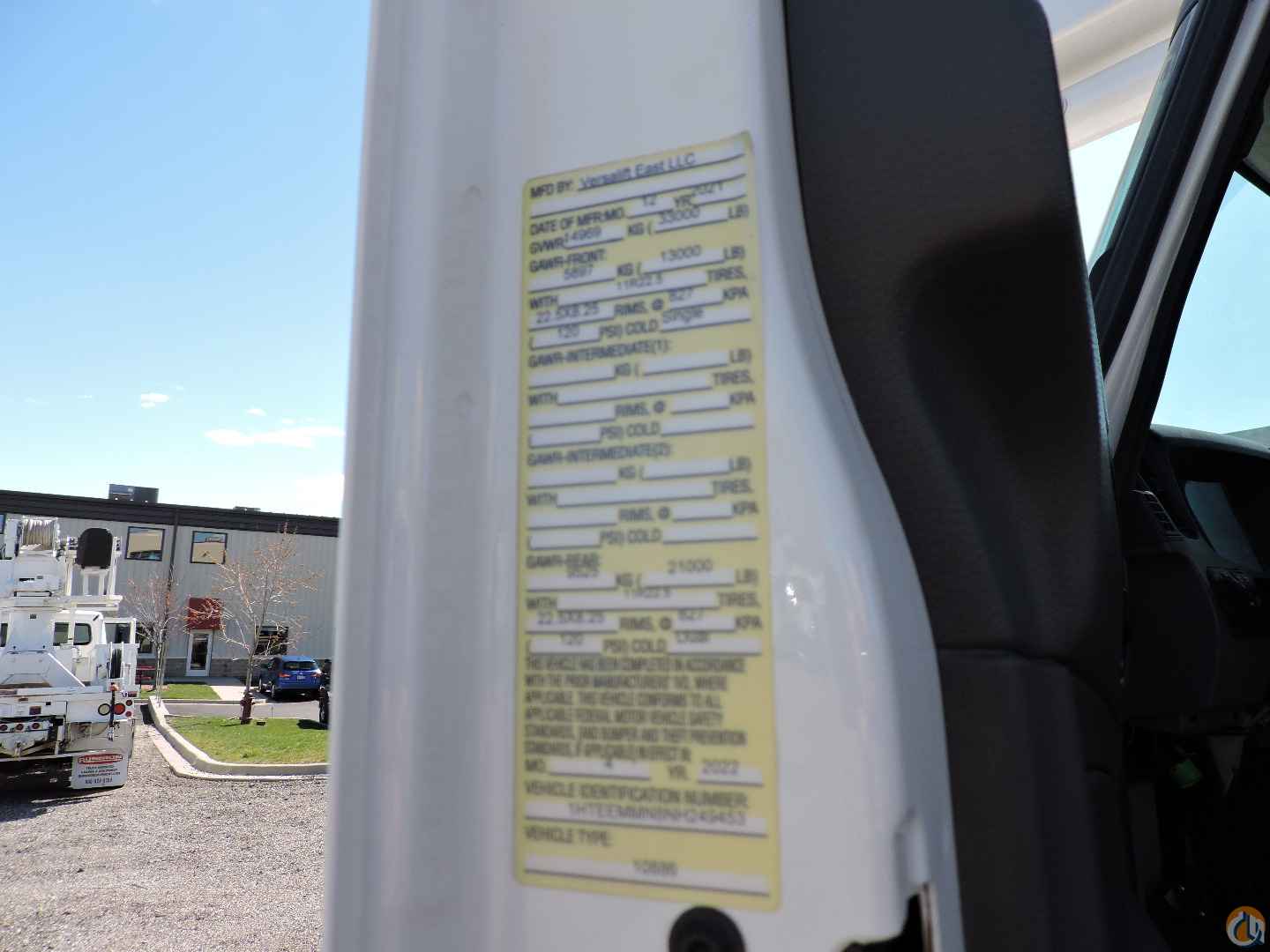

-          33,000 lb. GVWR:

-          13,000 lb. front GAWR

-          21,000 lb. rear GAWR

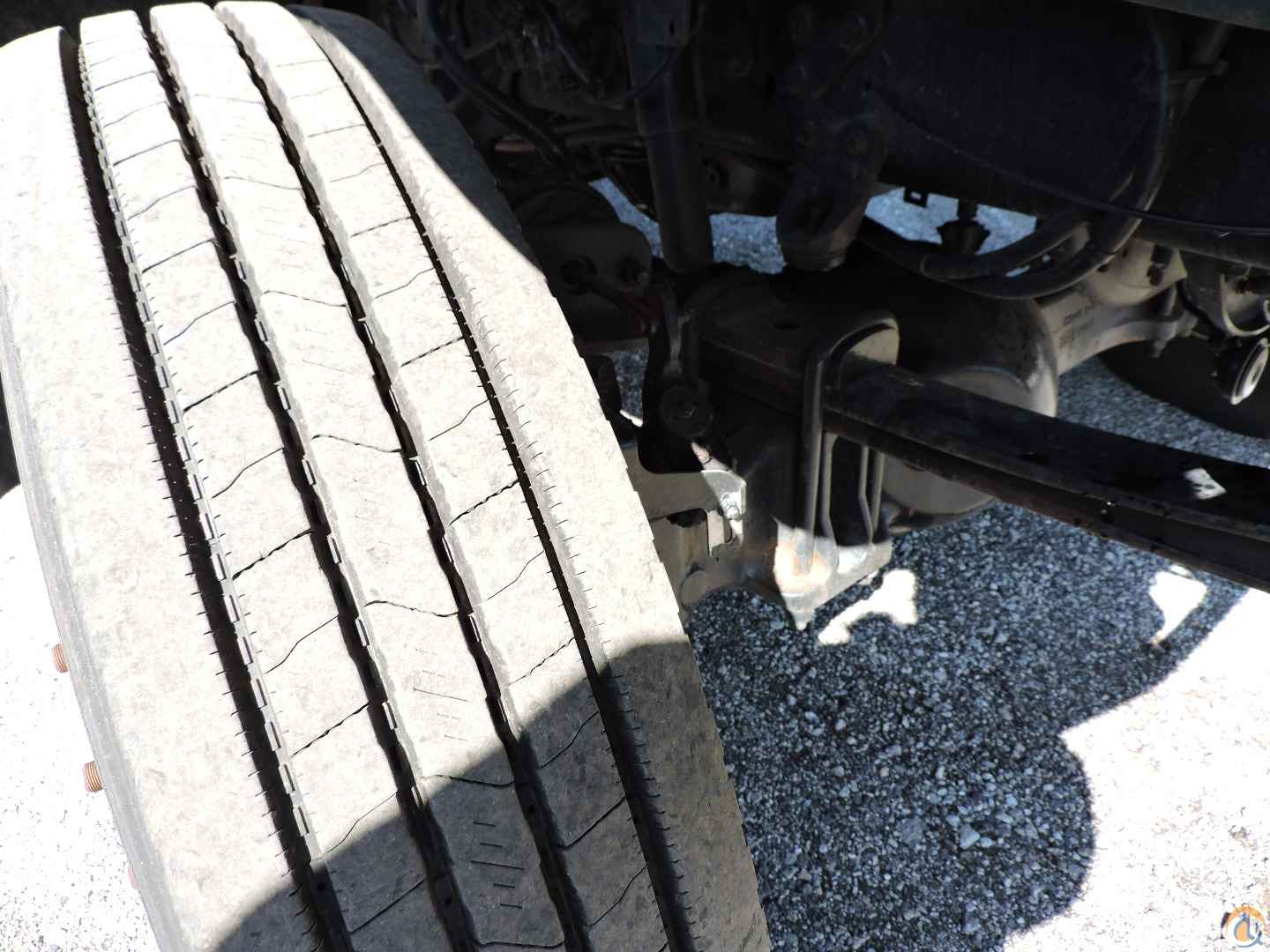

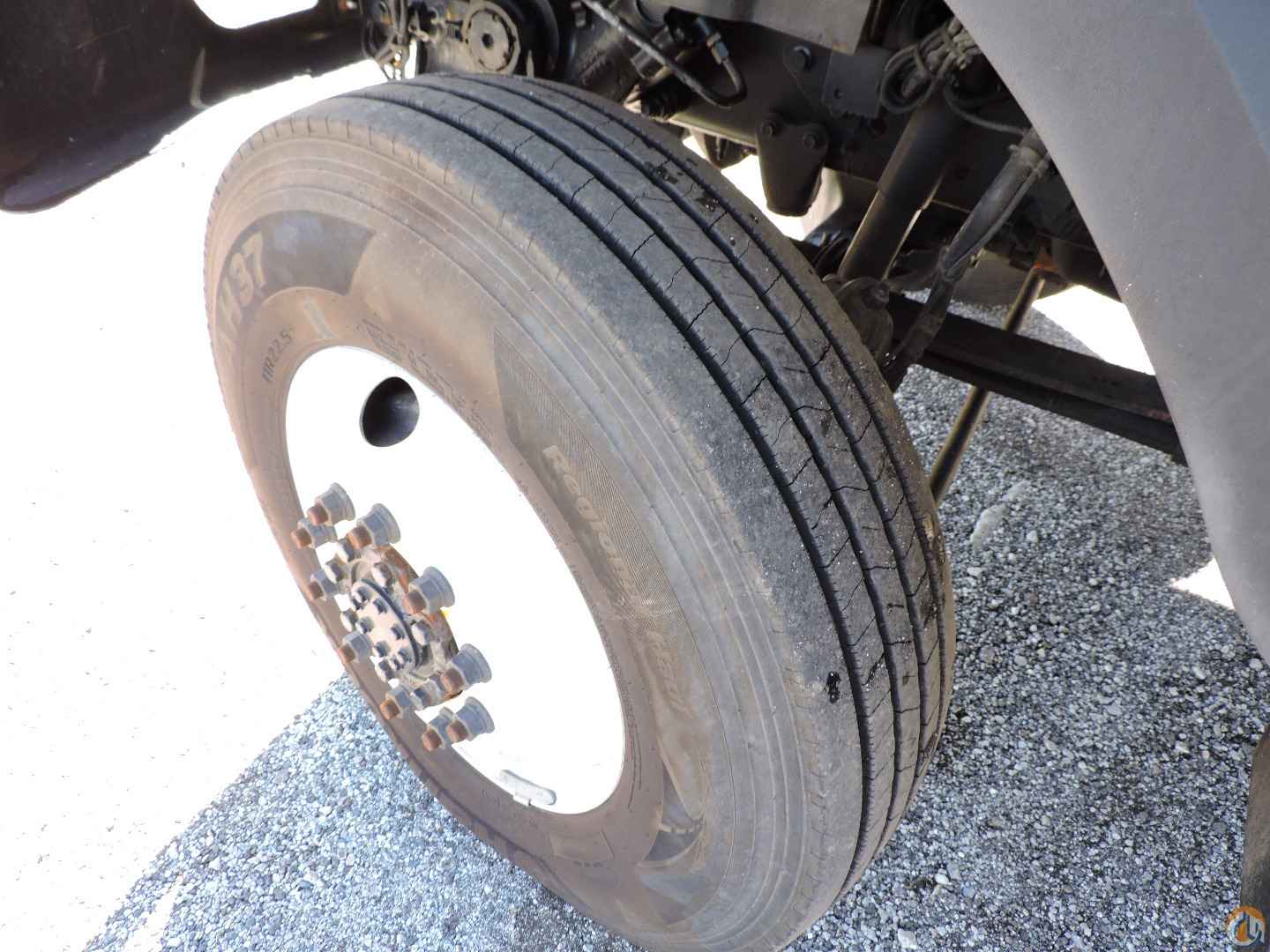

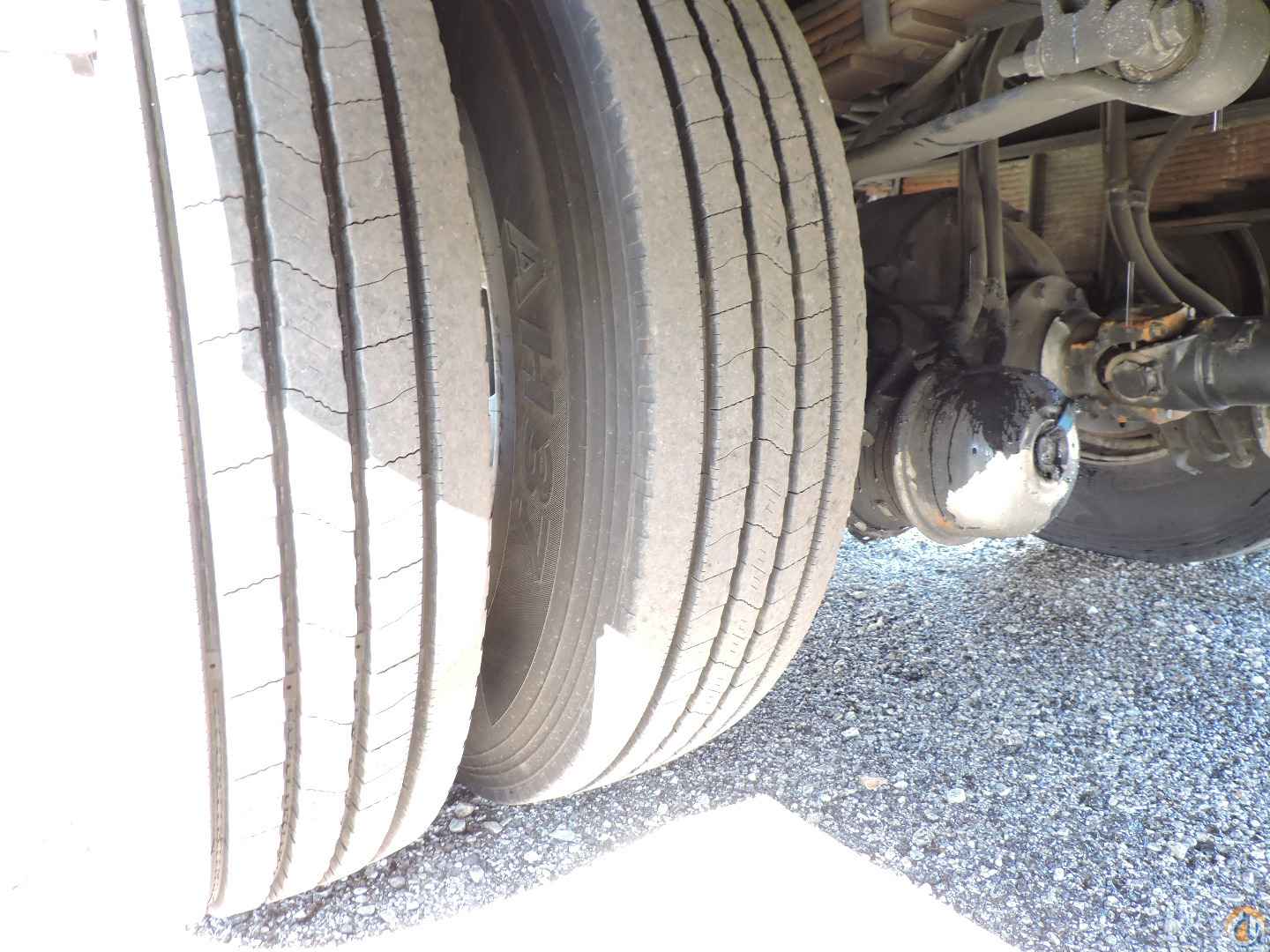

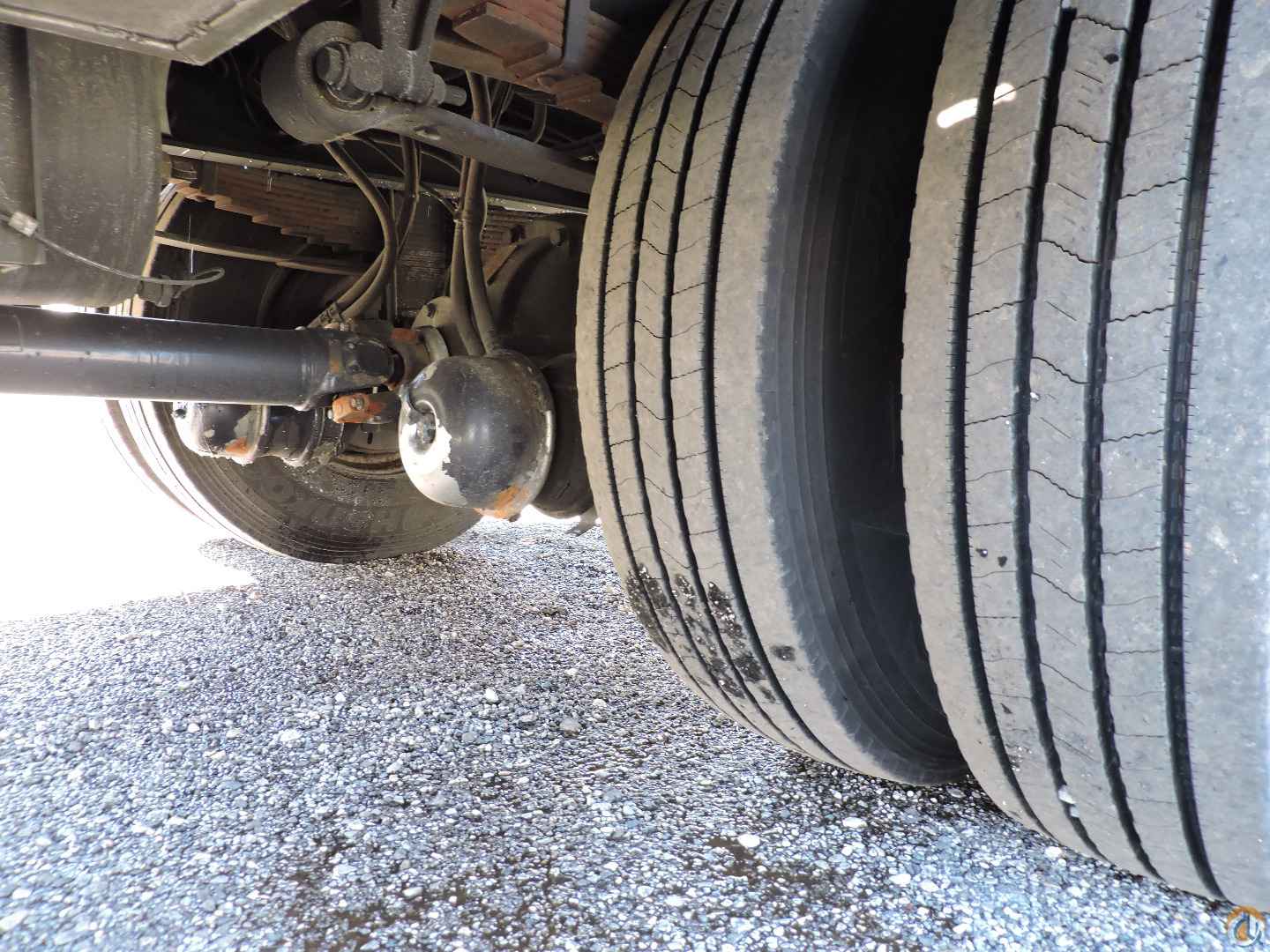

-          22.5x8.25 powder coated steel disc wheels with 11R22.5 tires.

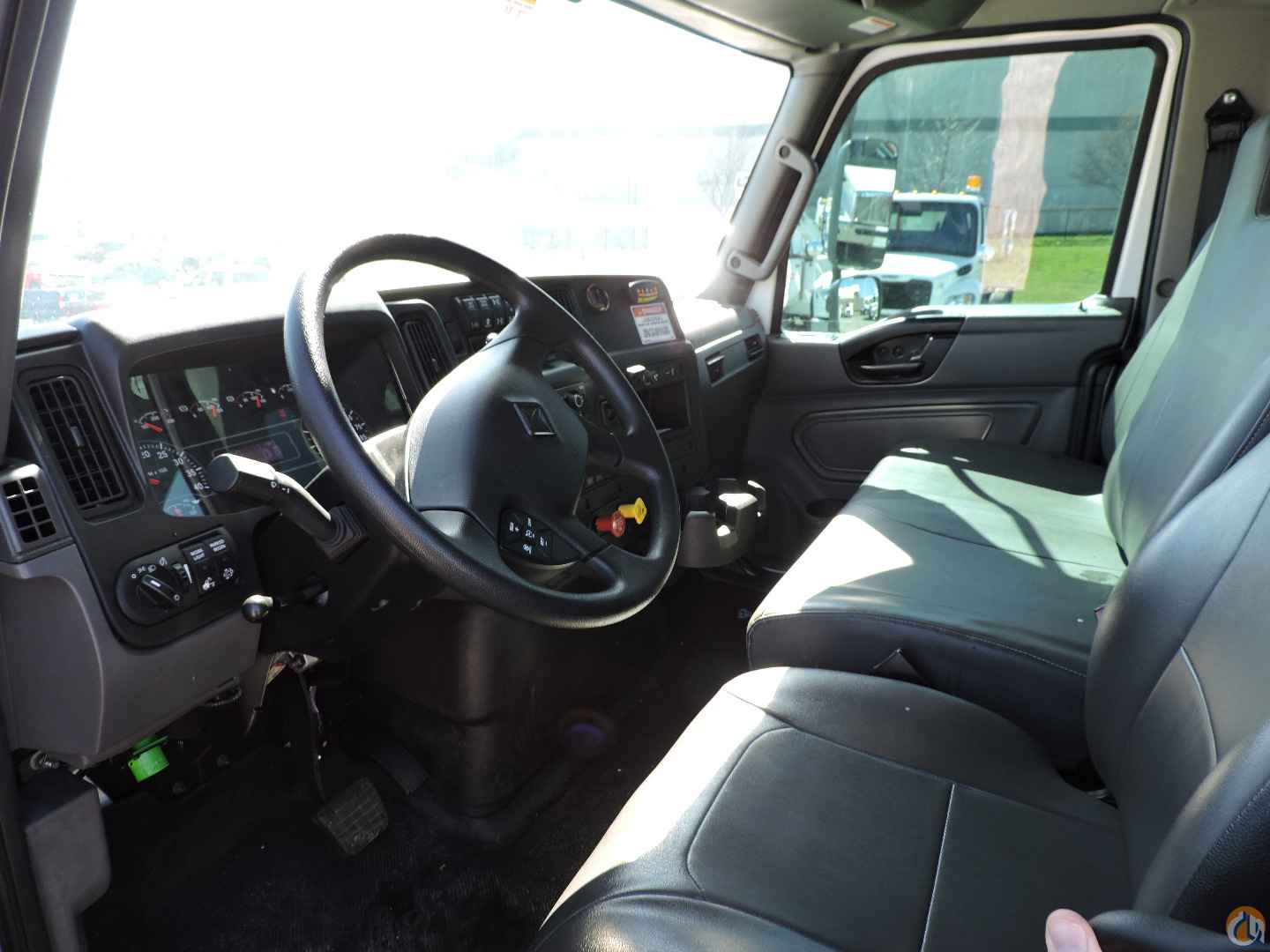

-          Driver seat air suspension, passenger fixed two-man bench seat

-          Engine block heater 120V/1000W

-          Air brake system

-          Back up alarm

-          Power windows and locks

-          Air conditioning and AM/FM radio

-          Painted Winter White
