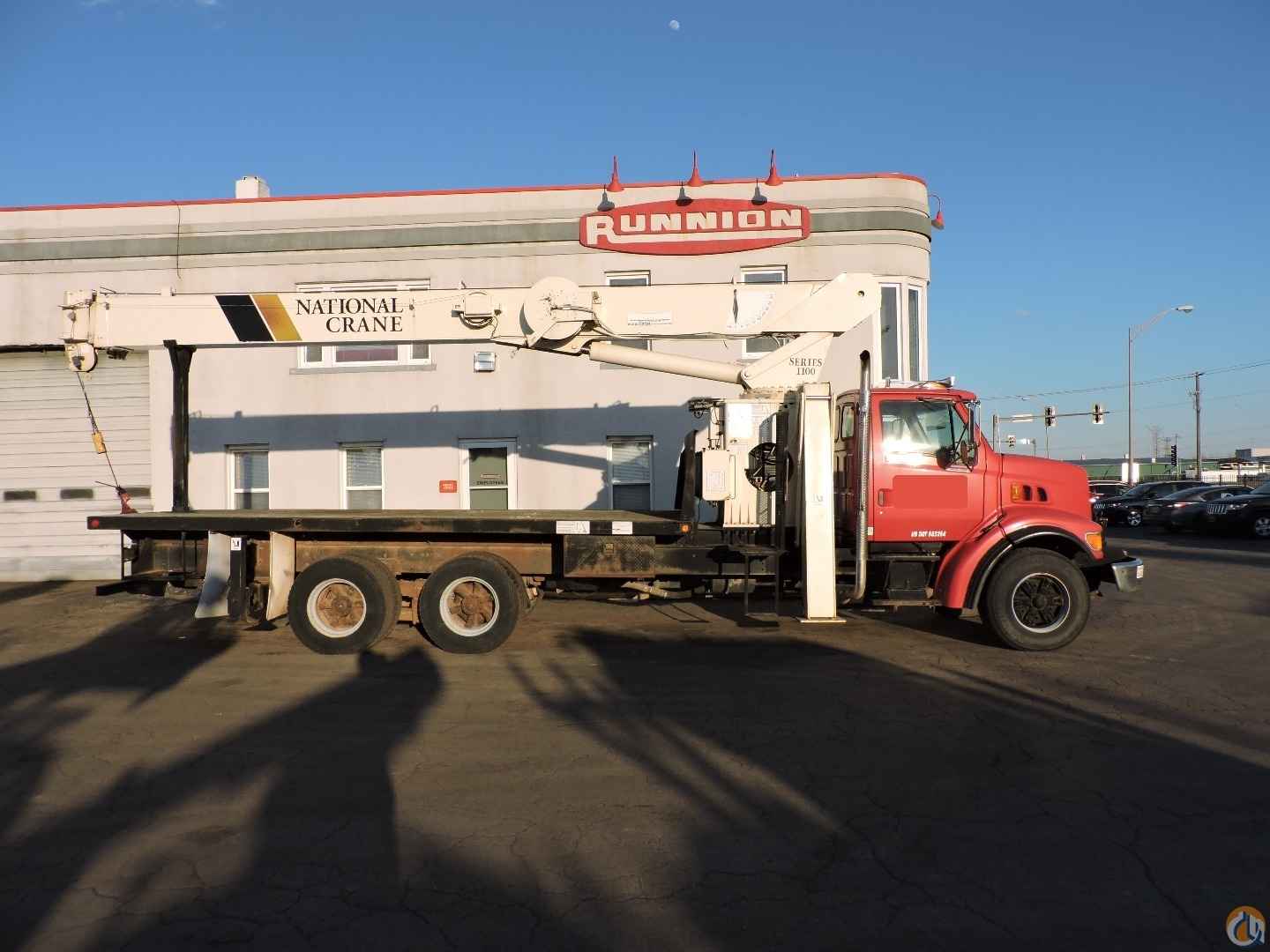

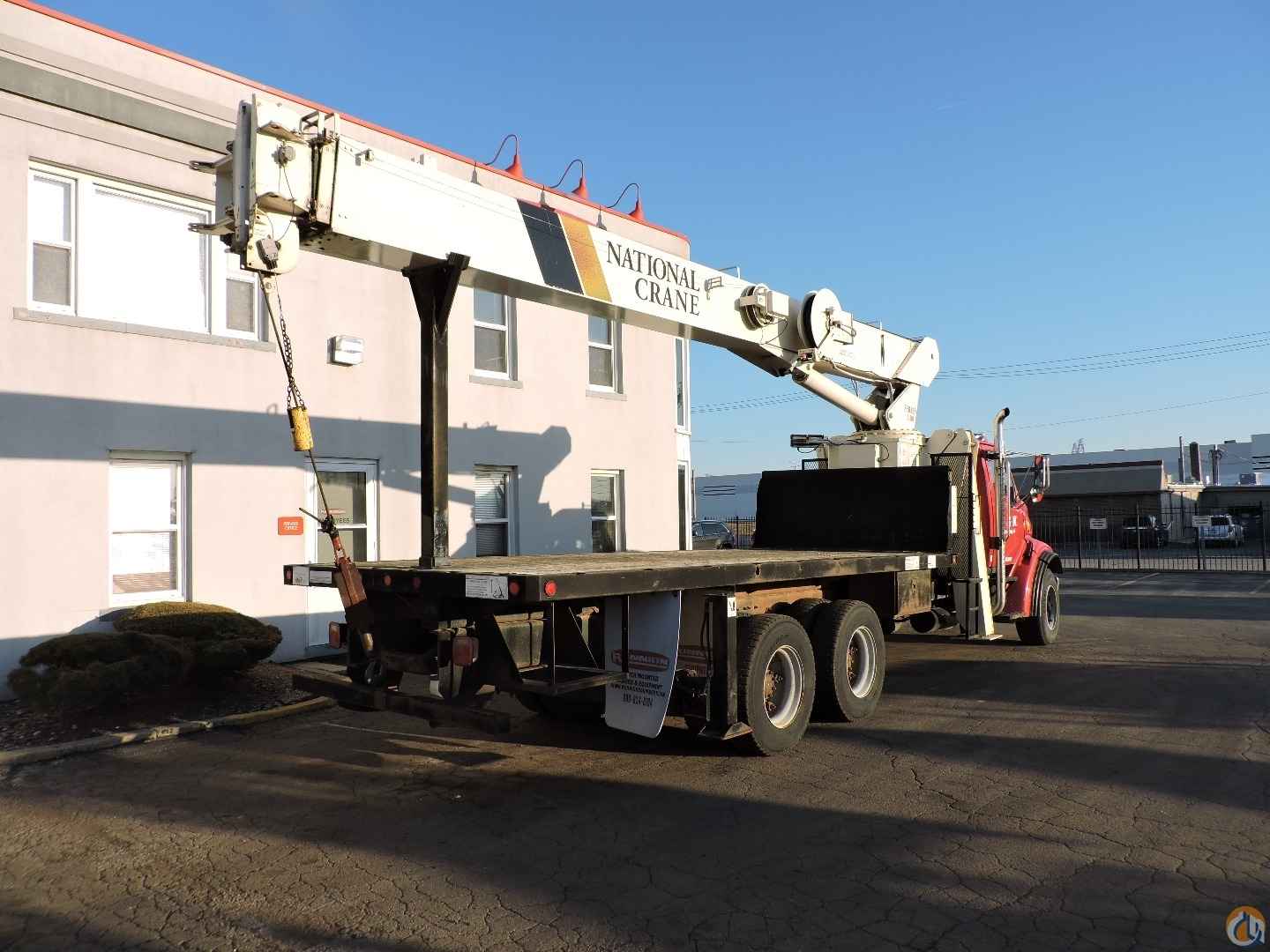

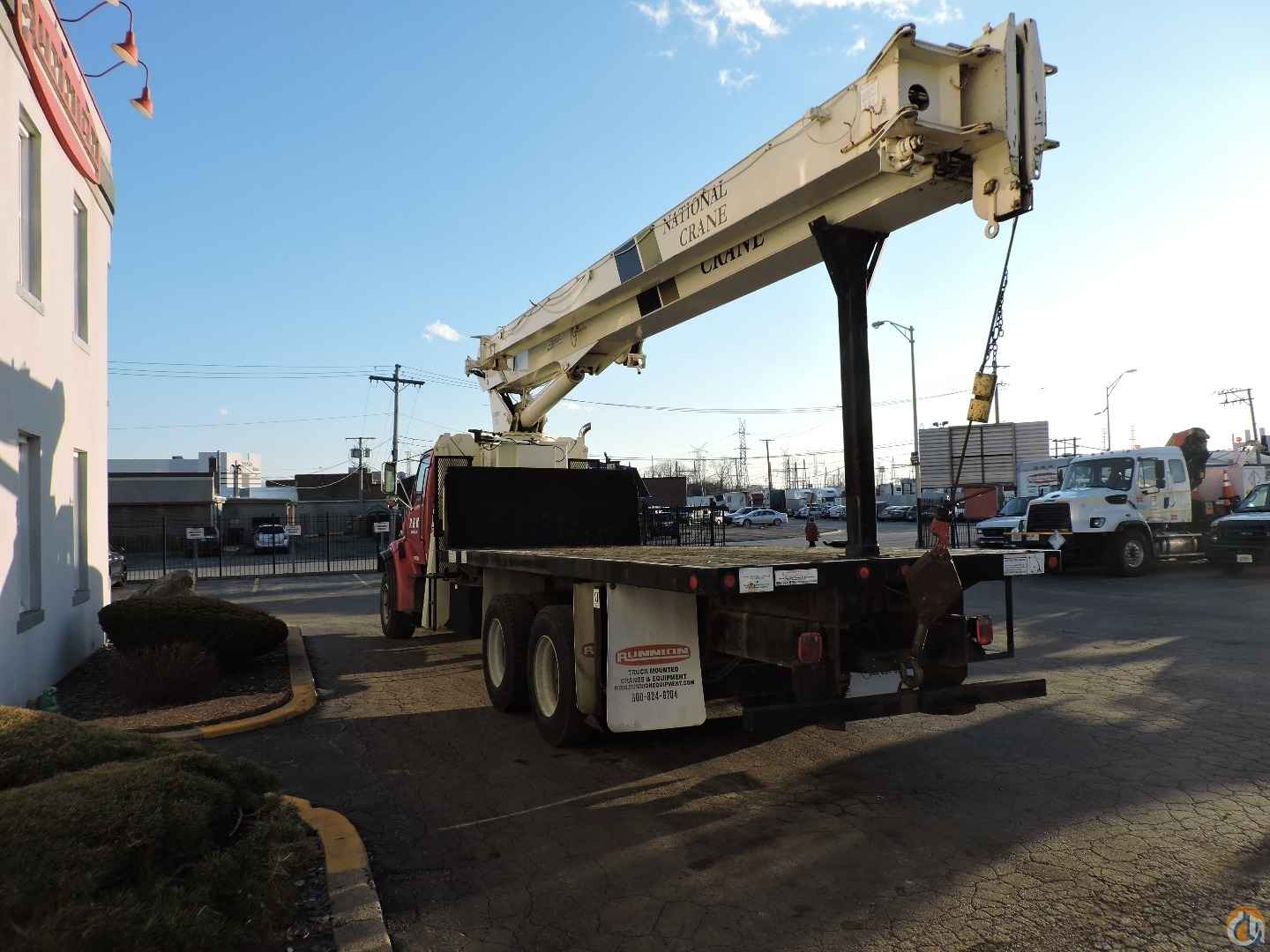

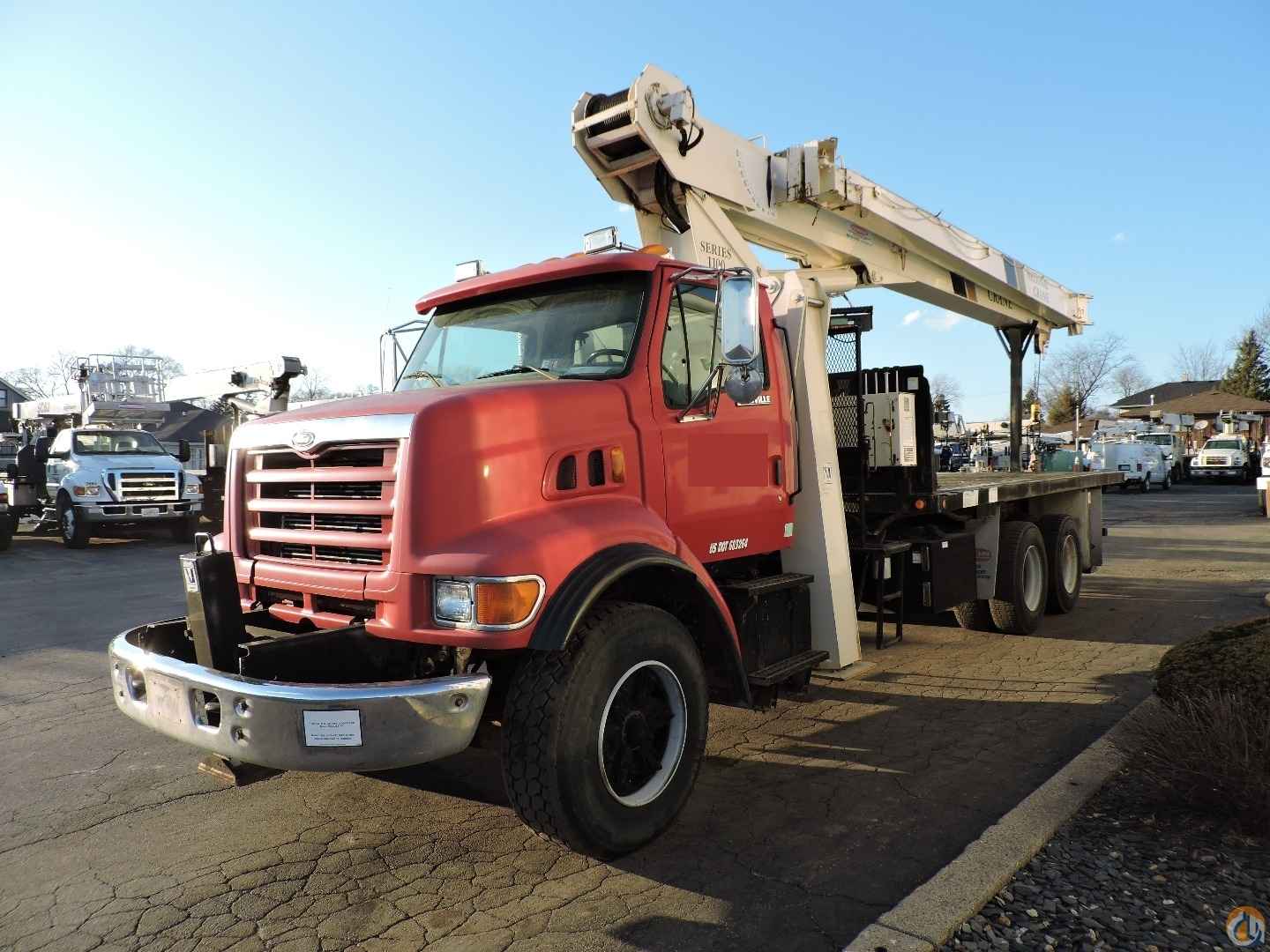

Used National Crane Model 1100 equipped as follows:
- 28 ton capacity
- 28’ to 95’ four (4) section boom – 105’ sheave height
- 27’ to 44’ side fold and stow jib – 147’ sheave height, jib sheave head accepts 2 man steel basket
- “A” type box slide outriggers in front 23’ span
- Out and down rear hydraulic stabilizers with 14’ span
- Single front folding outrigger

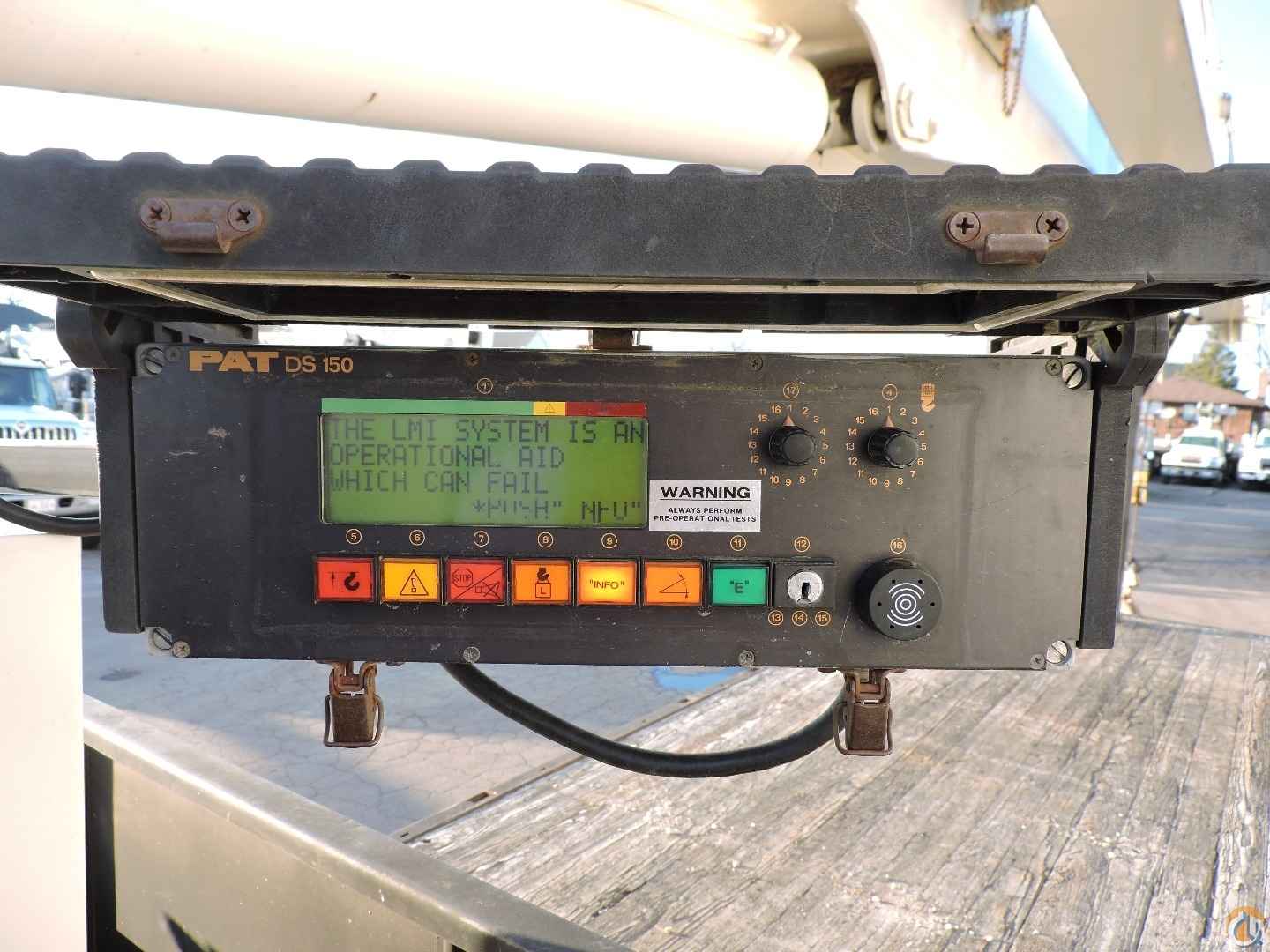

- Anti-two block safety device; shuts off telescope out and winch up controls and does not allow hook to be pulled into sheave case
- Hi-performance planetary winch with 9/16” spin resistant wire rope, downhaul weight and hook
- Burst-O-Speed winch with 164 fpm and 265 fpm line speed
- Dual side controls with operator platforms, foot throttles, horn and kill switches. Operator platform 40” above ground for maximum visibility
- 375 degree planetary rotation
- Heavy duty hydraulic system with triple pump, provides three (3) separate hydraulic circuits for independent operation of winch, swing and crane functions
- 75 gallon hydraulic tank with return oil diffuser and sight gauge

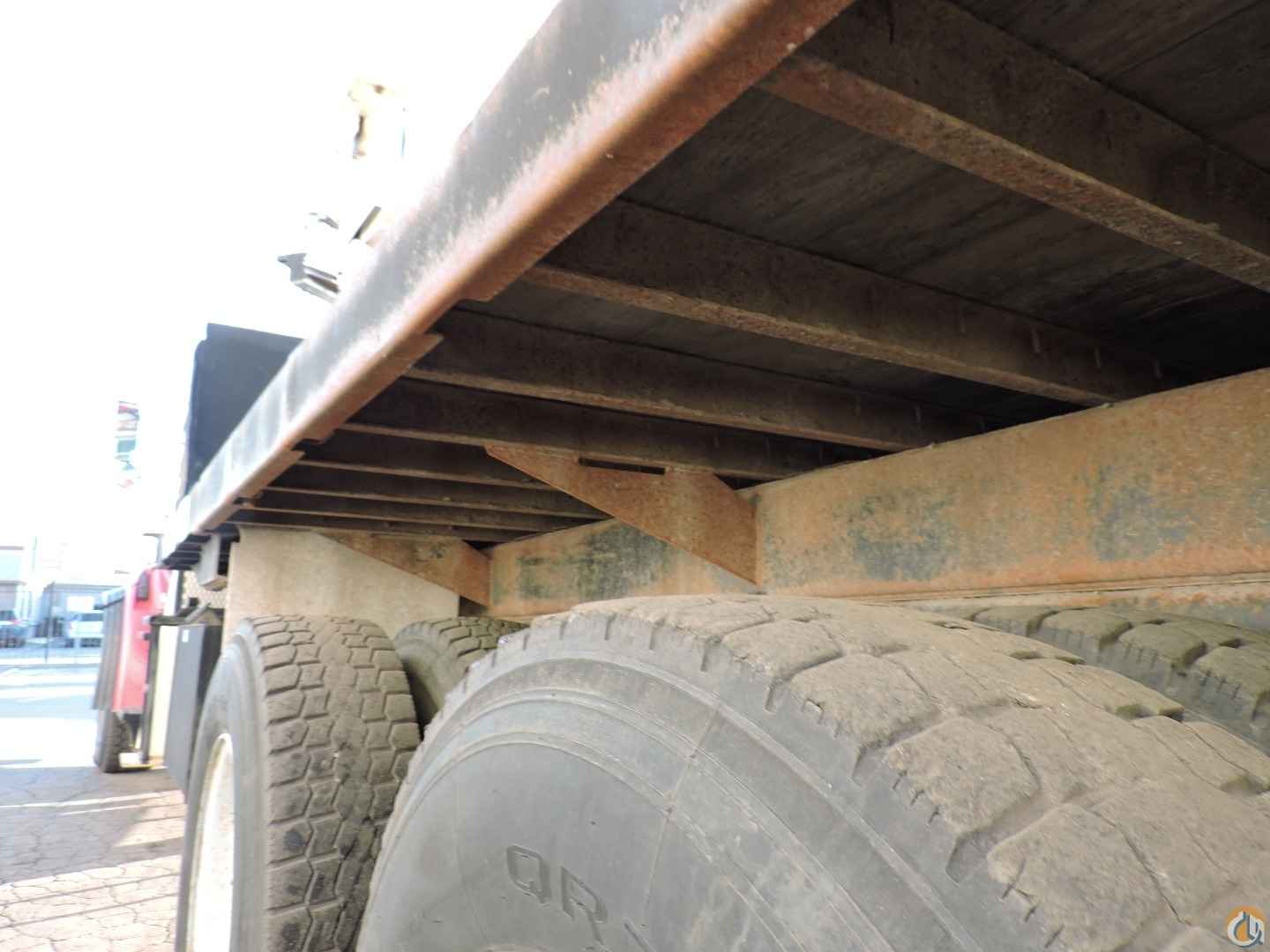

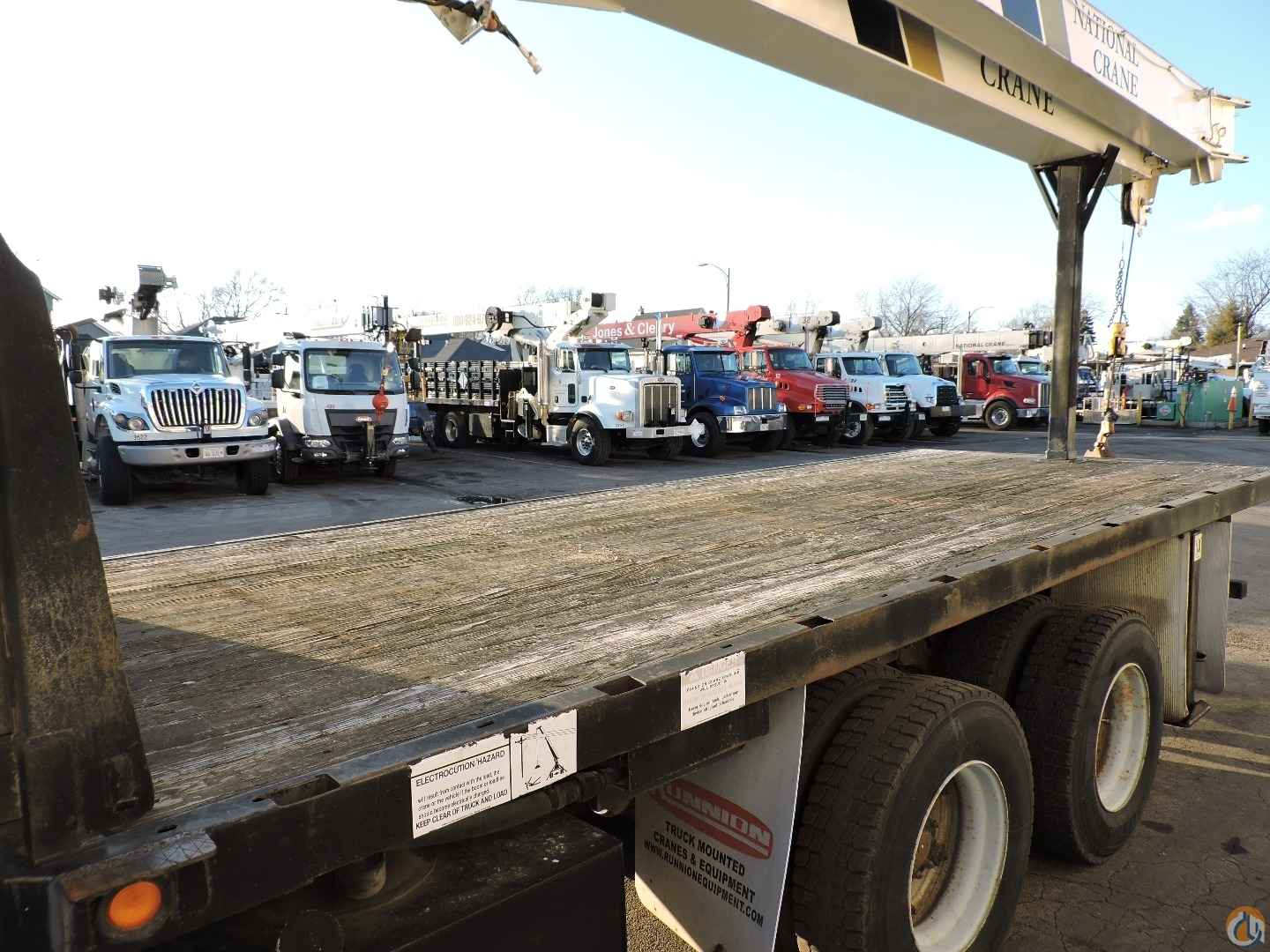

- One 20’ heavy duty wood bed
- One 36” tool box
- One removable boom rest
- Rear bumper under ride protection

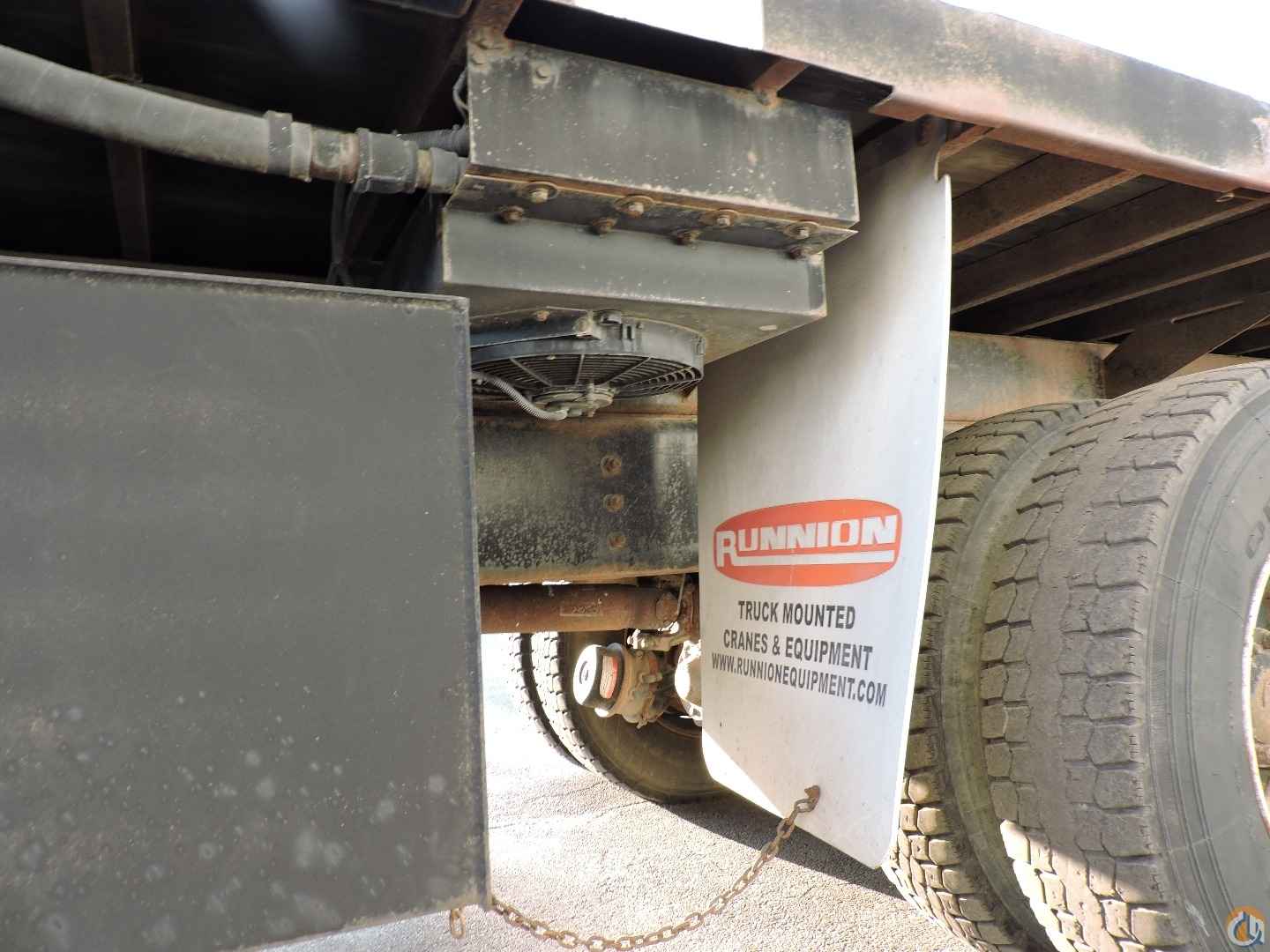

- Hydraulic oil cooler
- Hydraulic hose reel
MOUNTED ON:
Used 1997 Ford LT8501 equipped as follows:
- Maximum GVW rating 58,000#

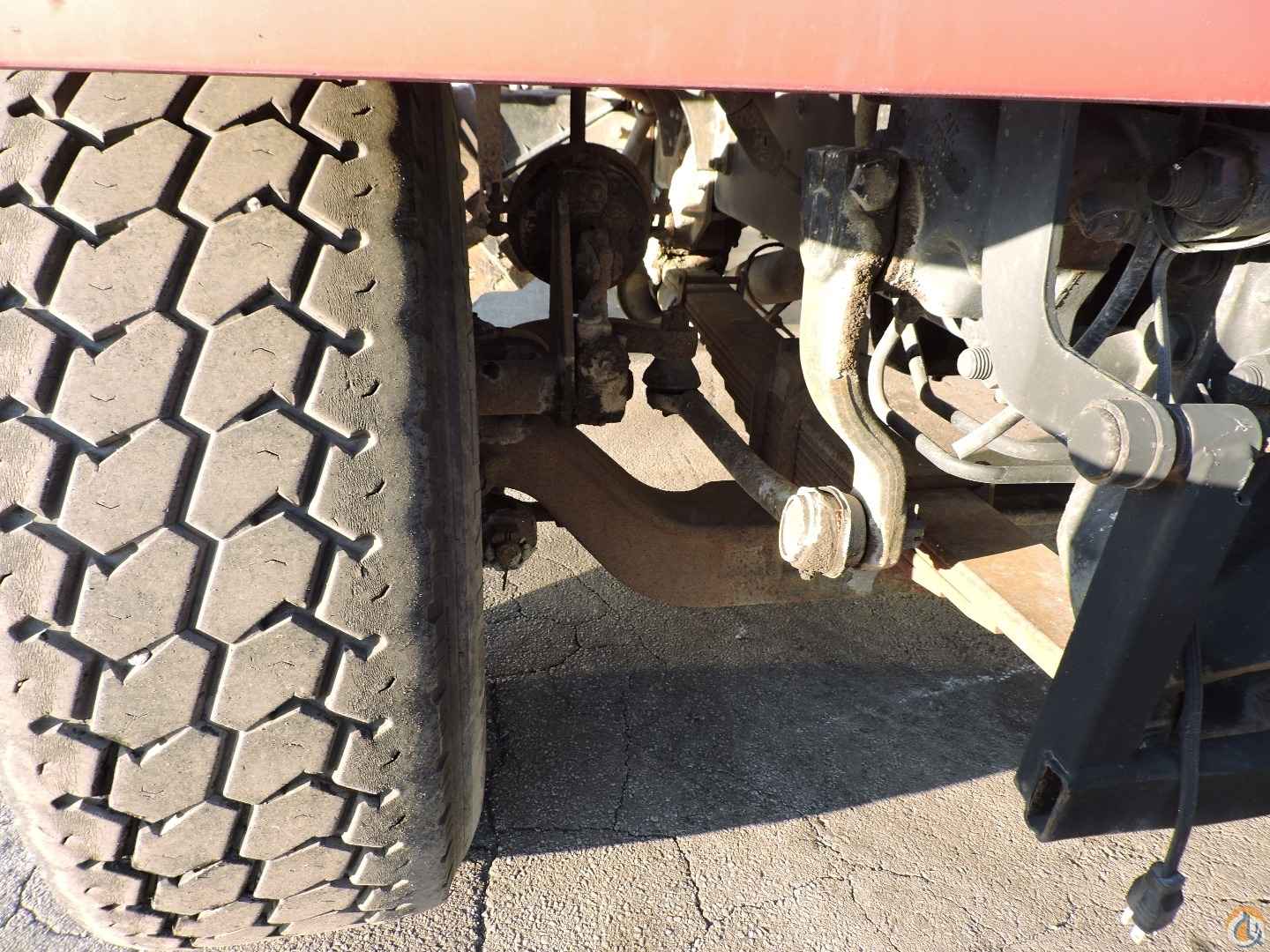

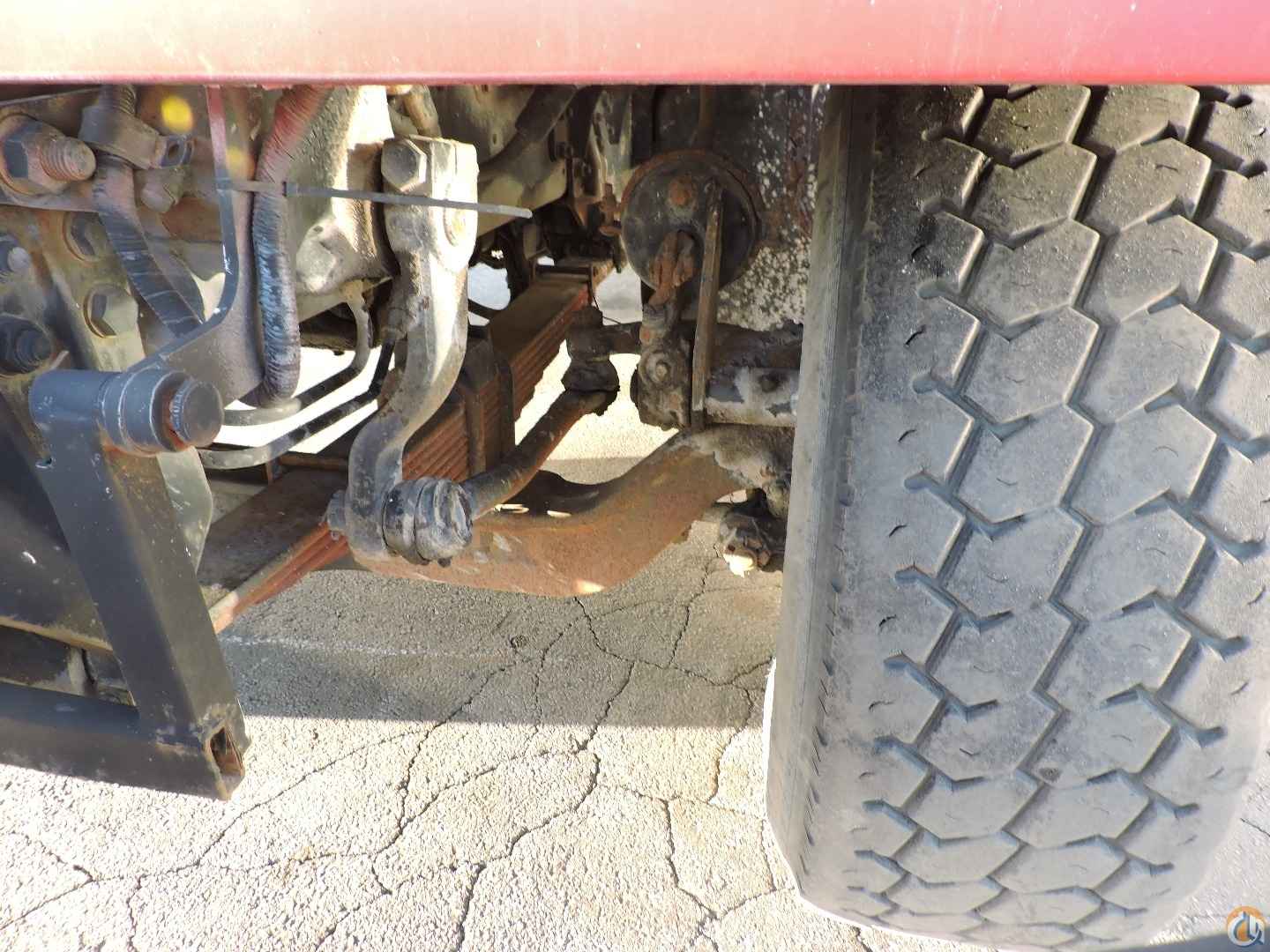

- 18,000# front axle with 18,000# front suspension

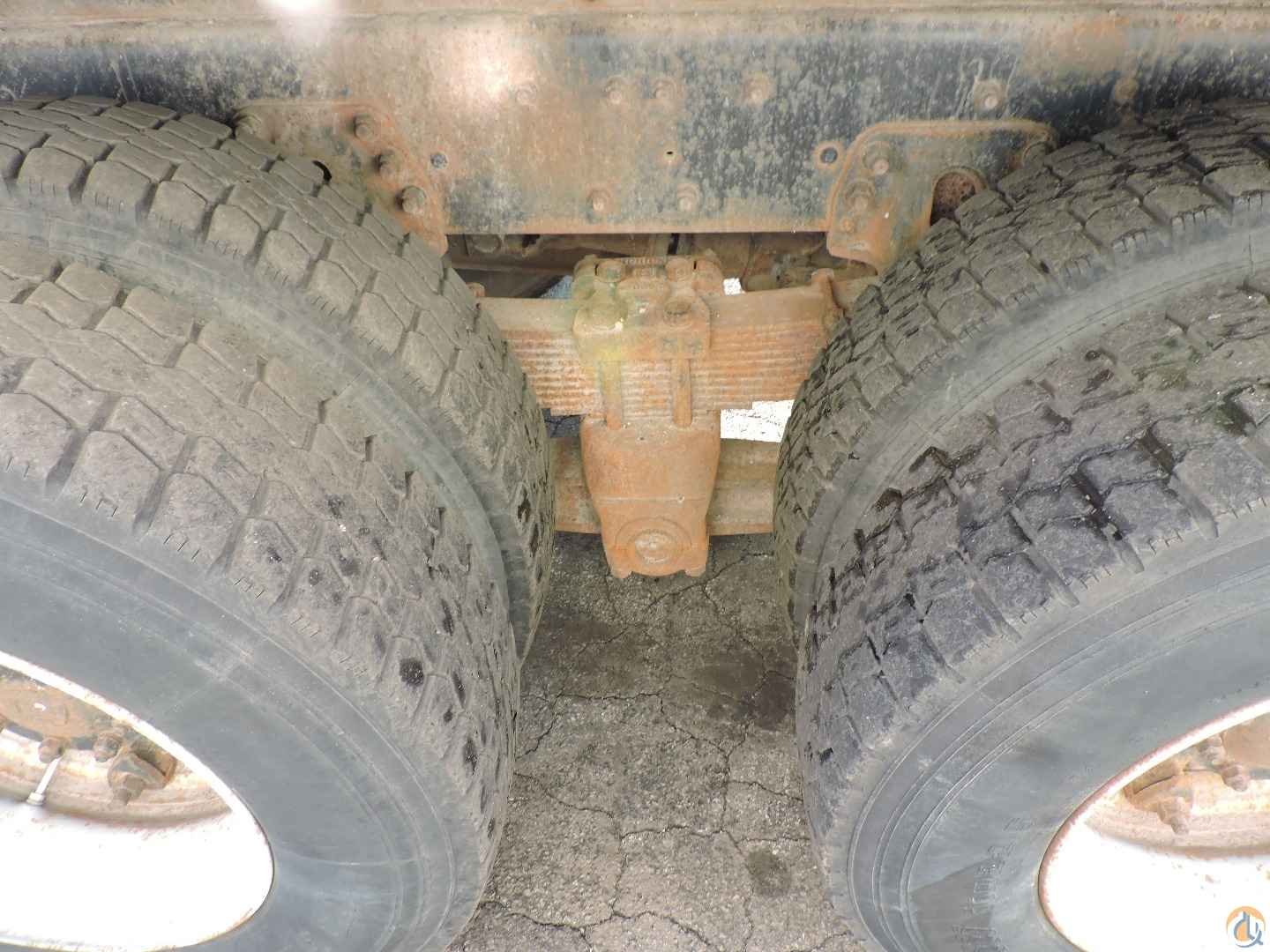

- 40,000# rear axle with 40,000# Hendrickson suspension
- Air brakes
- Differential full locking, driver control
- Differential inter-axle full lock driver
- Front wheel seals
- Dual air horns and dual stainless western mirrors
- Sun visor – exterior – fiberglass
- AM/FM ,CD radio
- National lo-back air driver seat
- Fixed passenger seat
- Cummins FD1460 275 hp diesel engine
- Fuller RT-7608LL 10-speed transmission
- 60 gallon LH “D” style step tank
- Tires, front 385/65R 22.5
- Front wheels, 22.5 x 12.25
- Tires, rear 11R22.5
- Rear wheels 22.5 x 8.25 one (1) piece
- Full width steel chrome plated bumper
- Front tow hooks

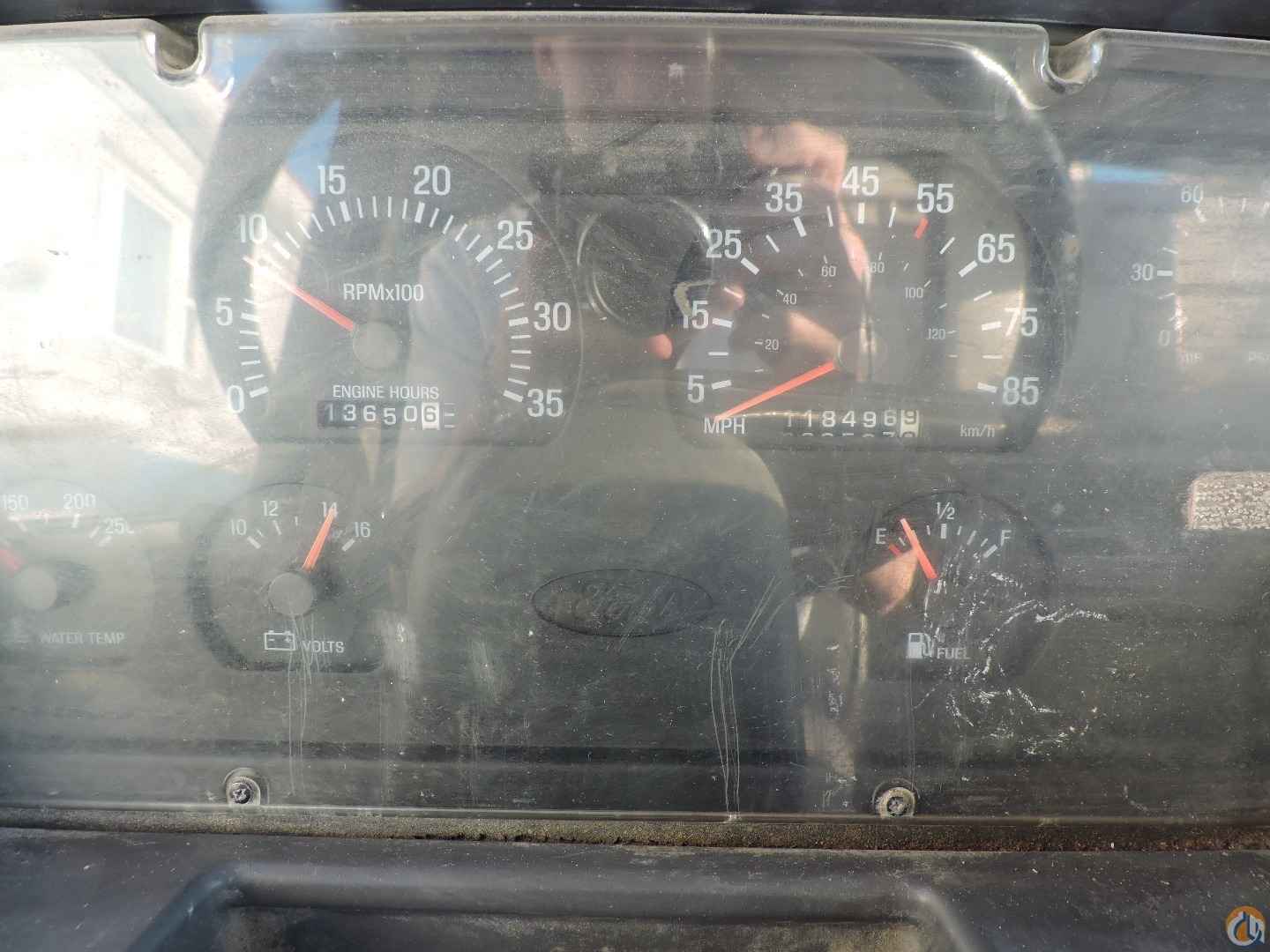

- 118,495 miles, 13,641 hours as of 1/2018
- Painted red
