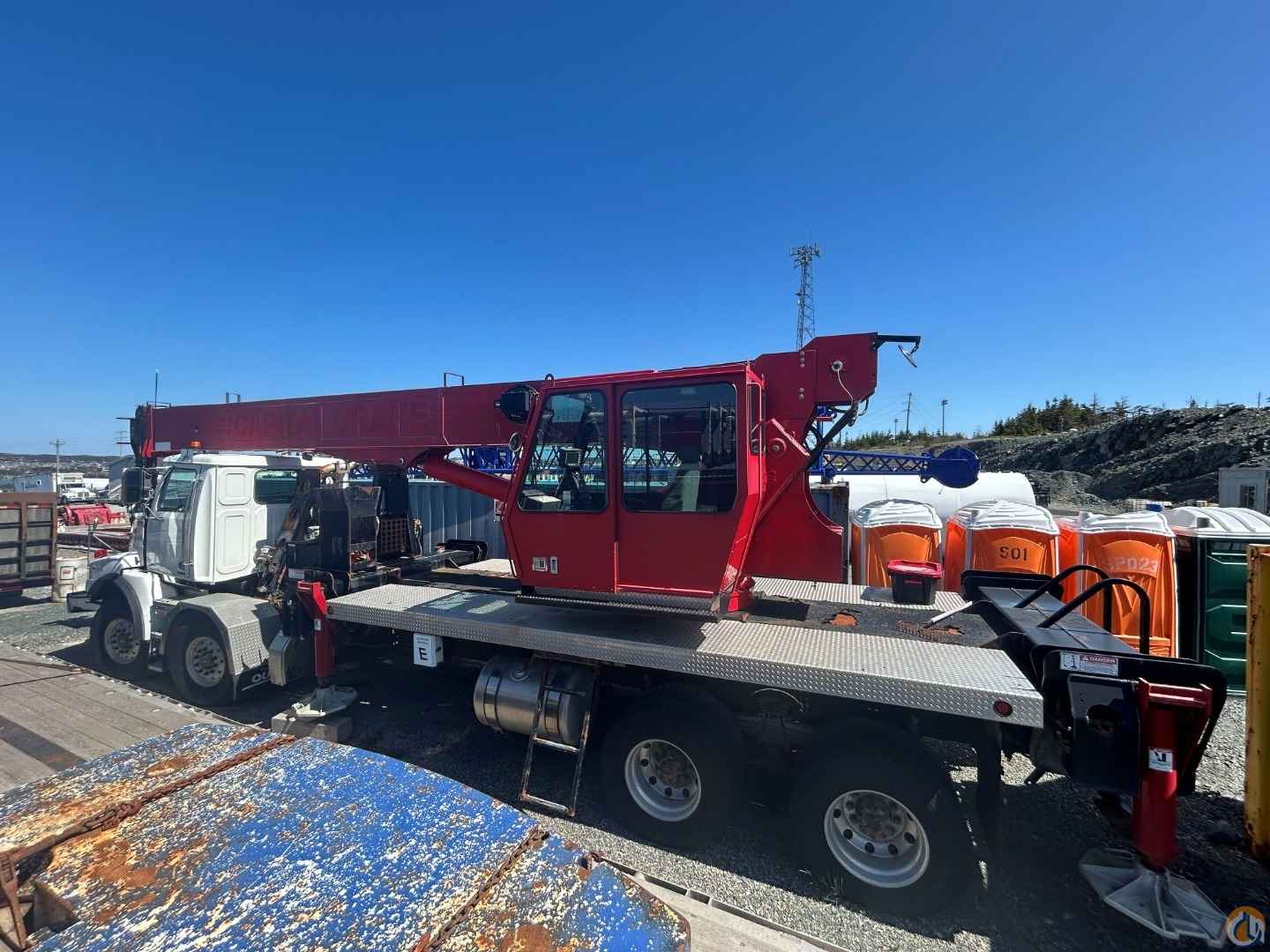

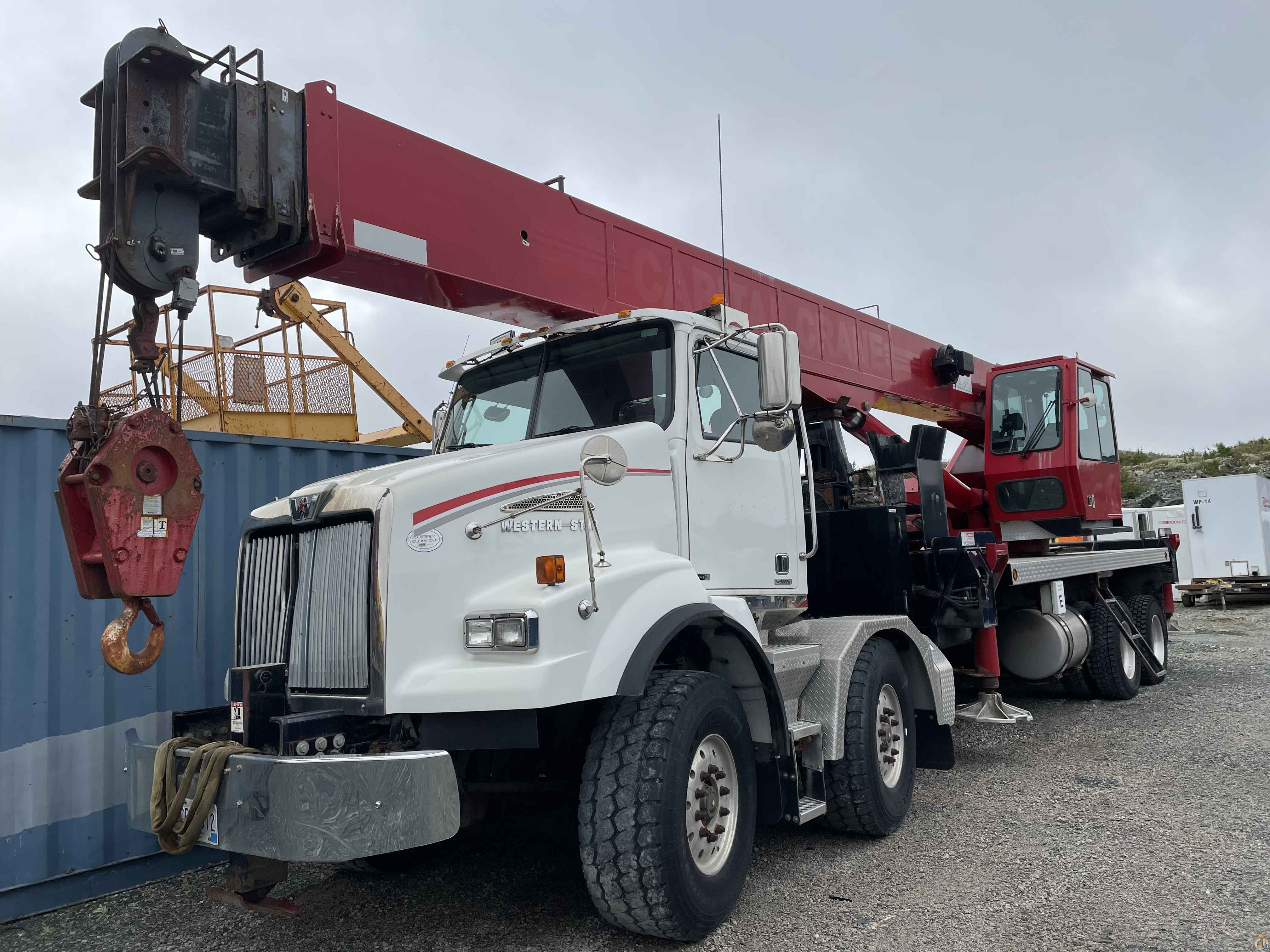

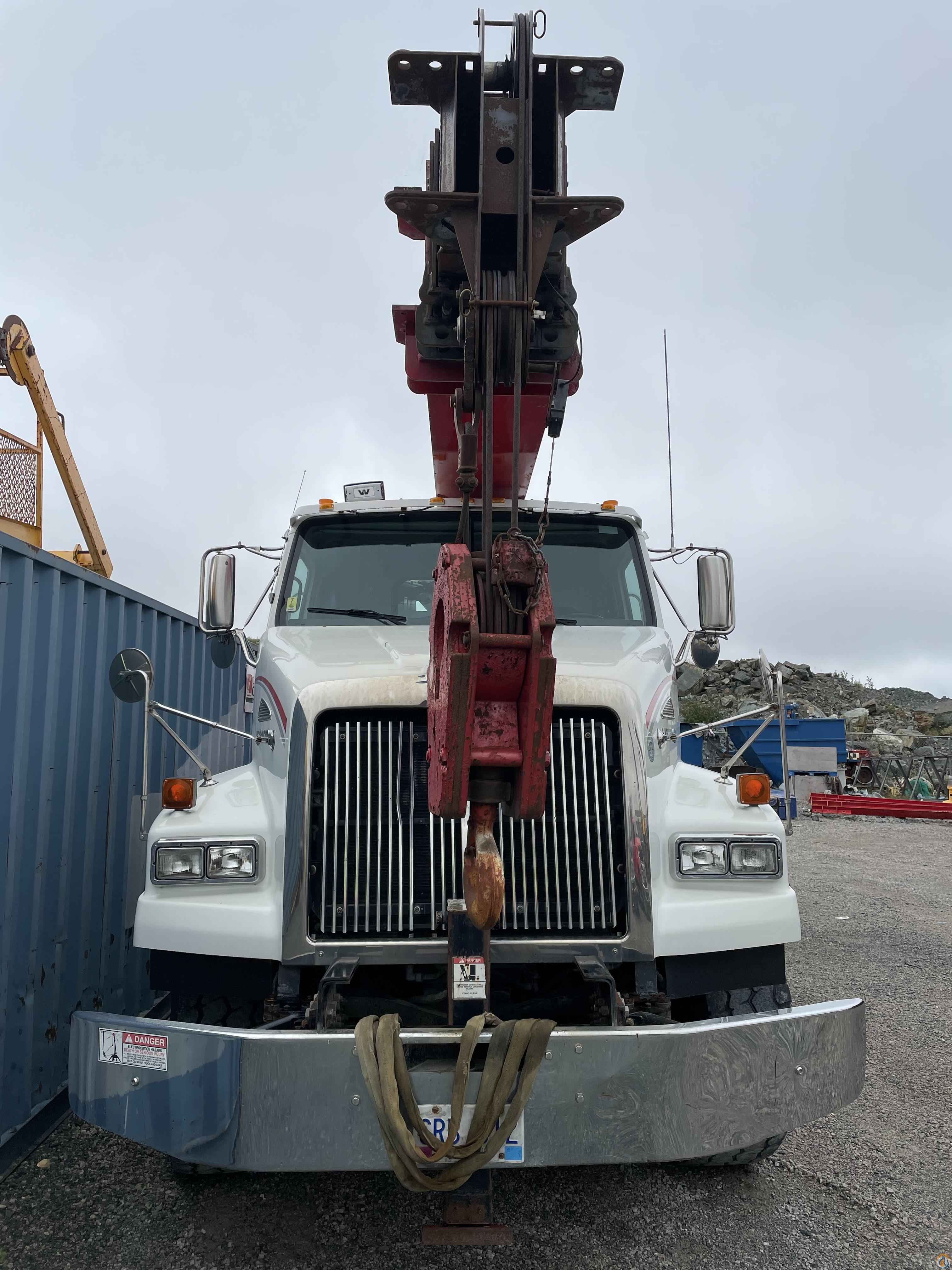

2013 ELLIOTT Model 50105 Rear Mount:
100,000 LB capacity @ 5'Radius!
105' ft high strength 4 - Section Boom - proportionally extended
116' Maximum Tip Height Vertical Main Boom, ( 165' with optional 49' Jib)

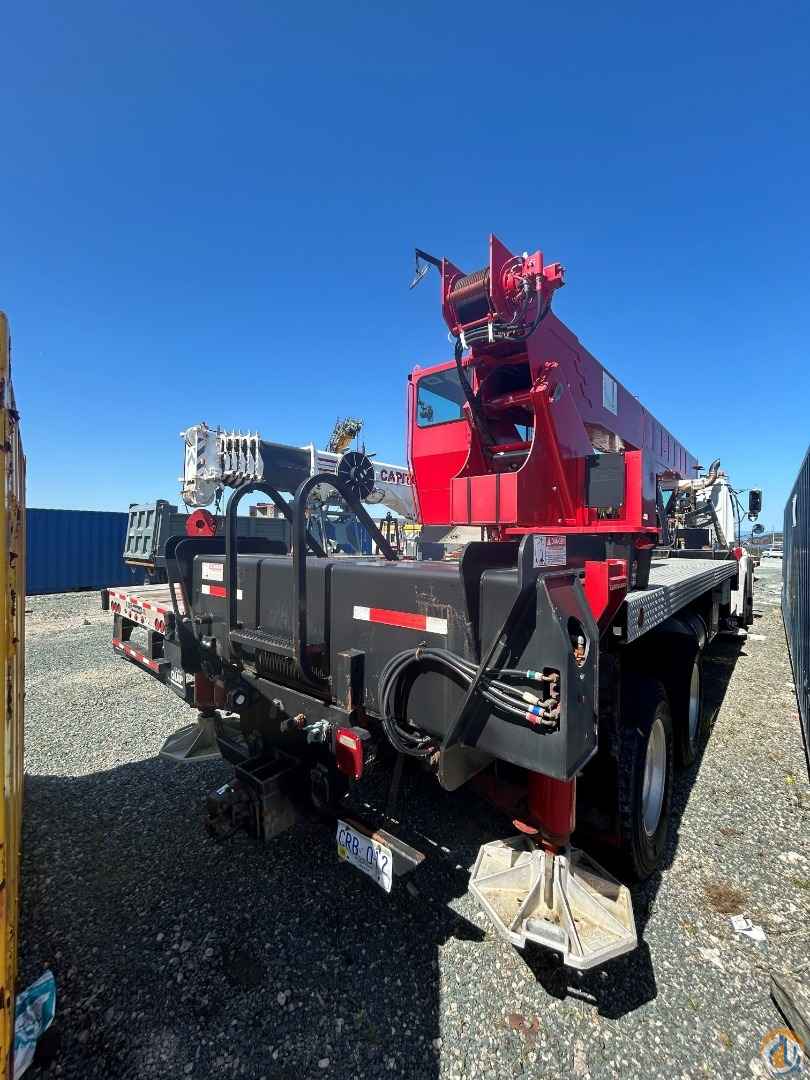

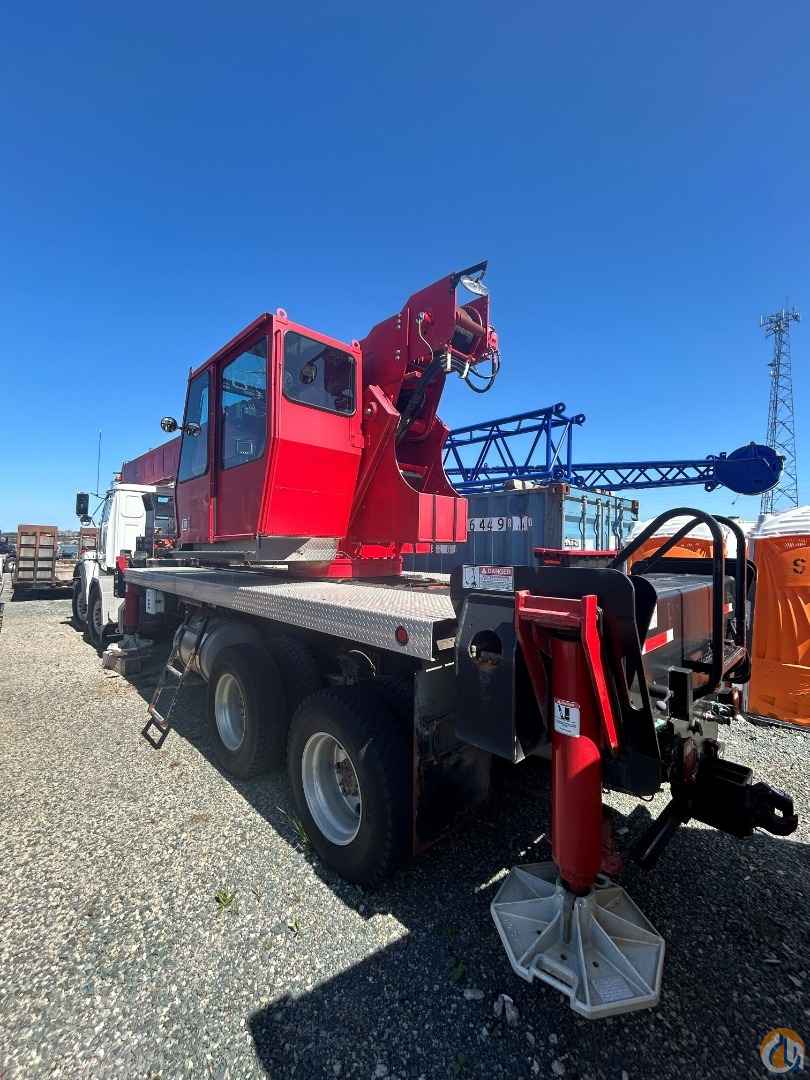

2-sets of 26' Span out and down, over-frame outriggers w/ ball socket aluminum, removable floats & Front Bumper Stabilizer
Ground Level Operated Outrigger and Stabilizer Controls - 2-sided- independent outrigger controls in sealed box
Rotating Seated Controls - rotates with turret- including: sliding door, 2-fans, deluxe operator seat, electric control levers, variable speed thumb throttle, LMI console display, tinted glass, front and top window wipers, sliding side window, diesel heater, engine start & stop, boom Bllgle indicator,lifting capacity charts (full and mid-span charts,) range diagram, signal horn, 12V DC power supply and cup holder
GLIDE SWING w/ foot brake - CONTINUOUS ROTATION
2-Speed Winch - 430' 5/8' diameter rotation resistant wire rope -10,000 LB SINGLE LINE PULL
Internal Boom hard wired LOAD MOMENT INDICATOR
Piston Pump. 143 Gallon Hydraulic Tank w/ Oil Cooler, 10-micron return line filter, and shut-off valve
Horizontal boom rest behind cab, 2,200 lb counterweight behind column
Installed on Elliott supplied chassis c/w air shift PTO, electronic throttle interface, hydraulic fluid, rear DOT bumper, access ladder for cab, back-up alarm
Painted crane frame, boom, and above deck Elliott White, below bed, includingoutriggers, sub.base, reservoir and boom rest Black.

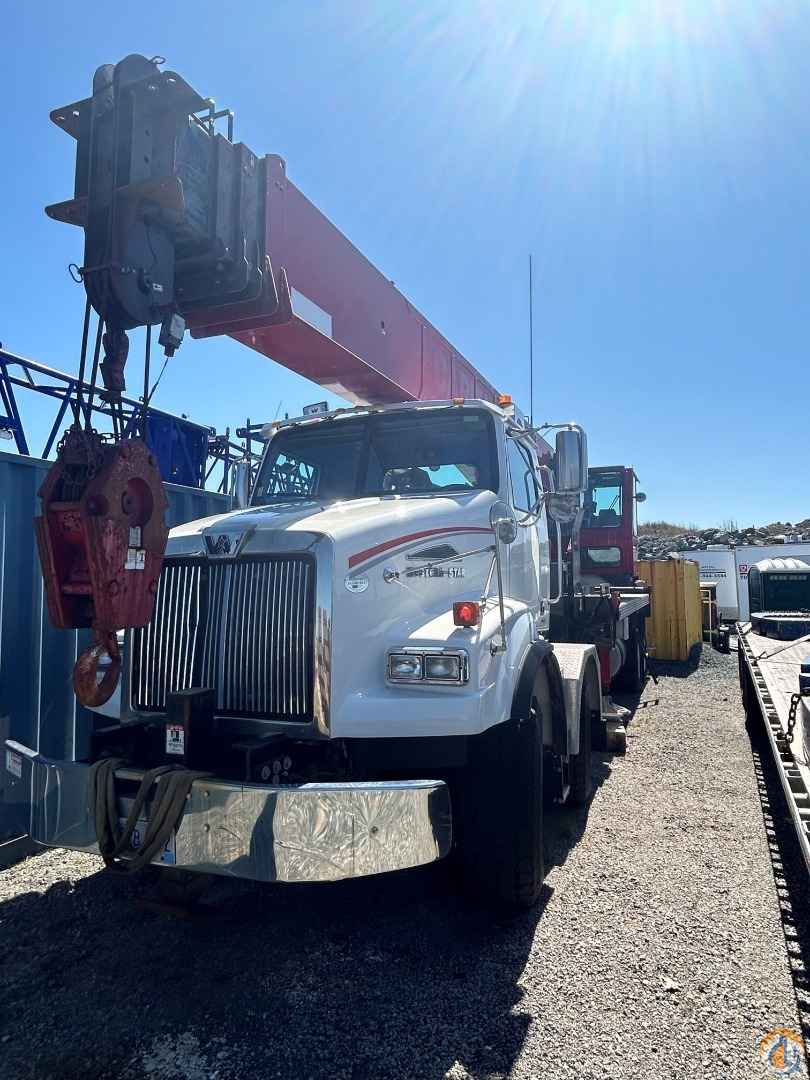

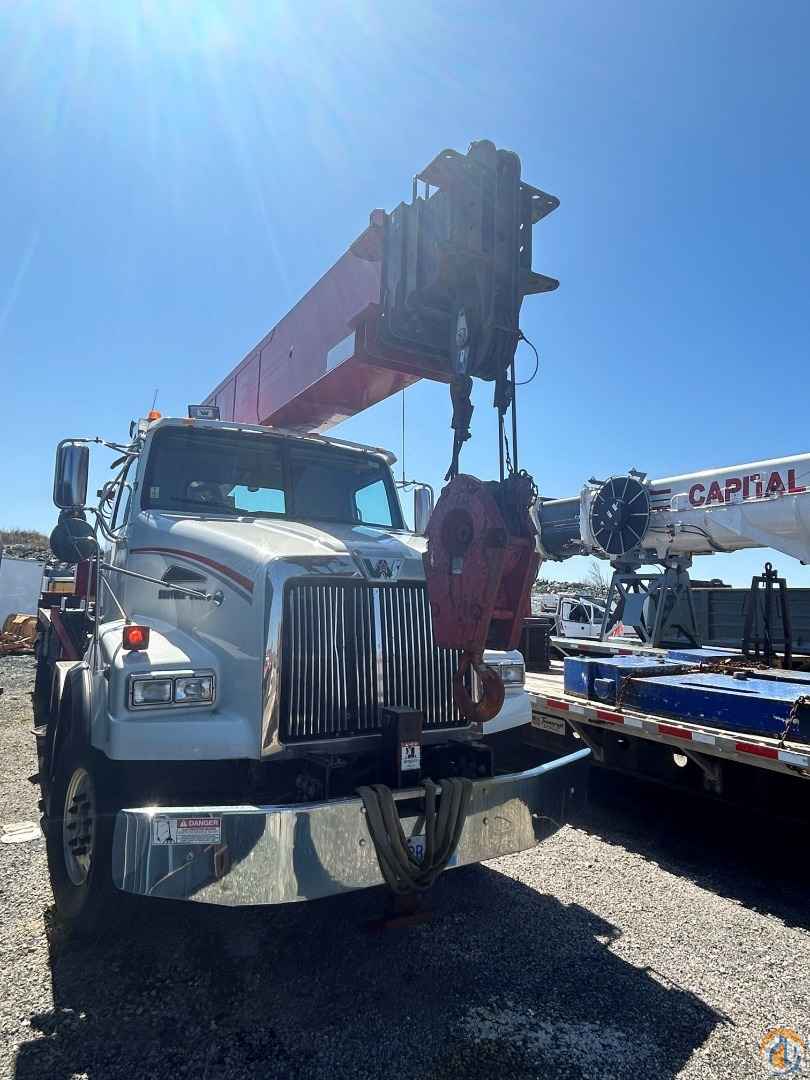

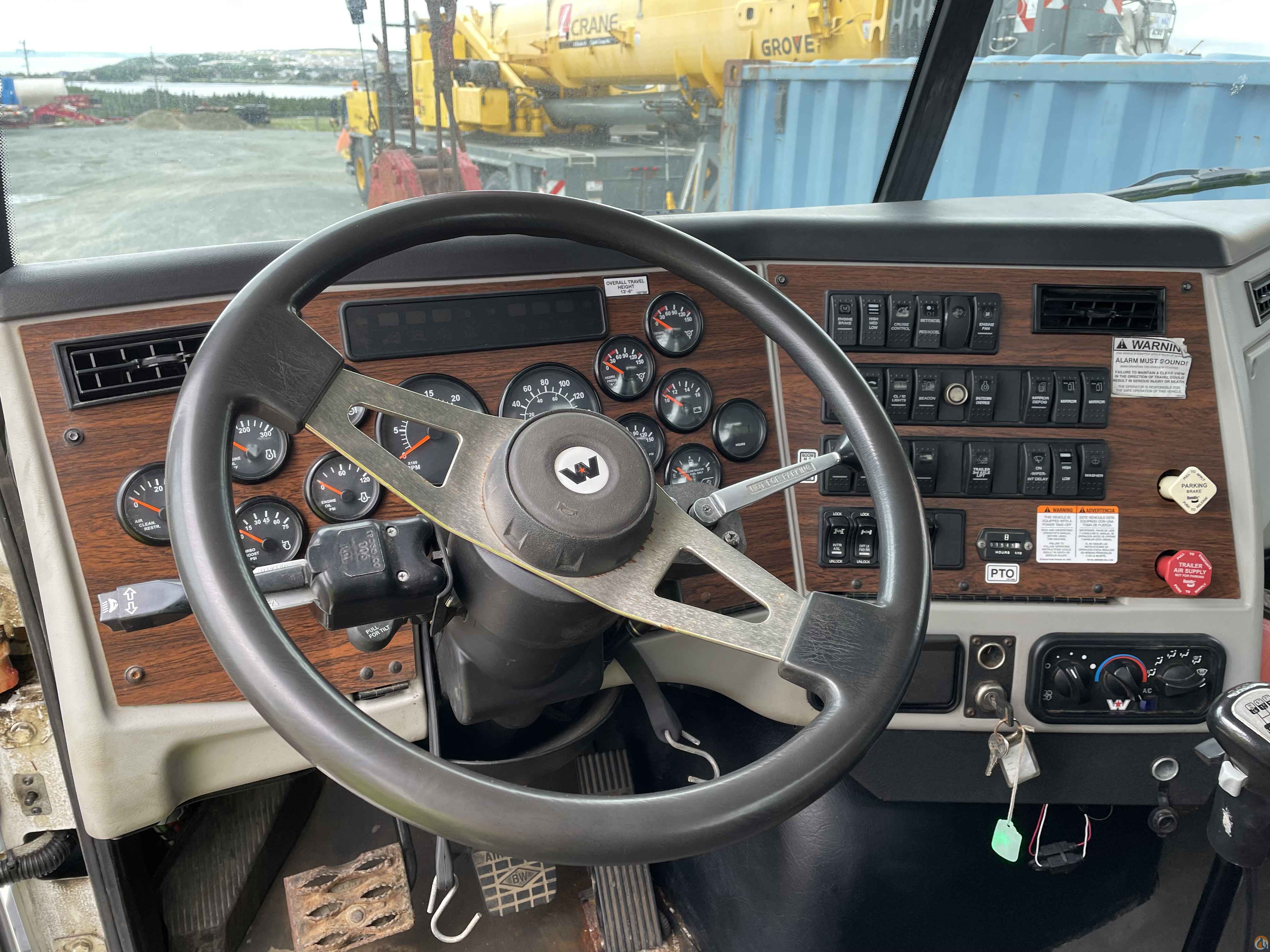

2014 Western Star 4800 Sloped Short Nose TIA Steer-TIA Rear Tractor - 4 Axle: DDC-13 Diesel - 470 hp with Jake
Fuller 18 spd trans with easy pedal option

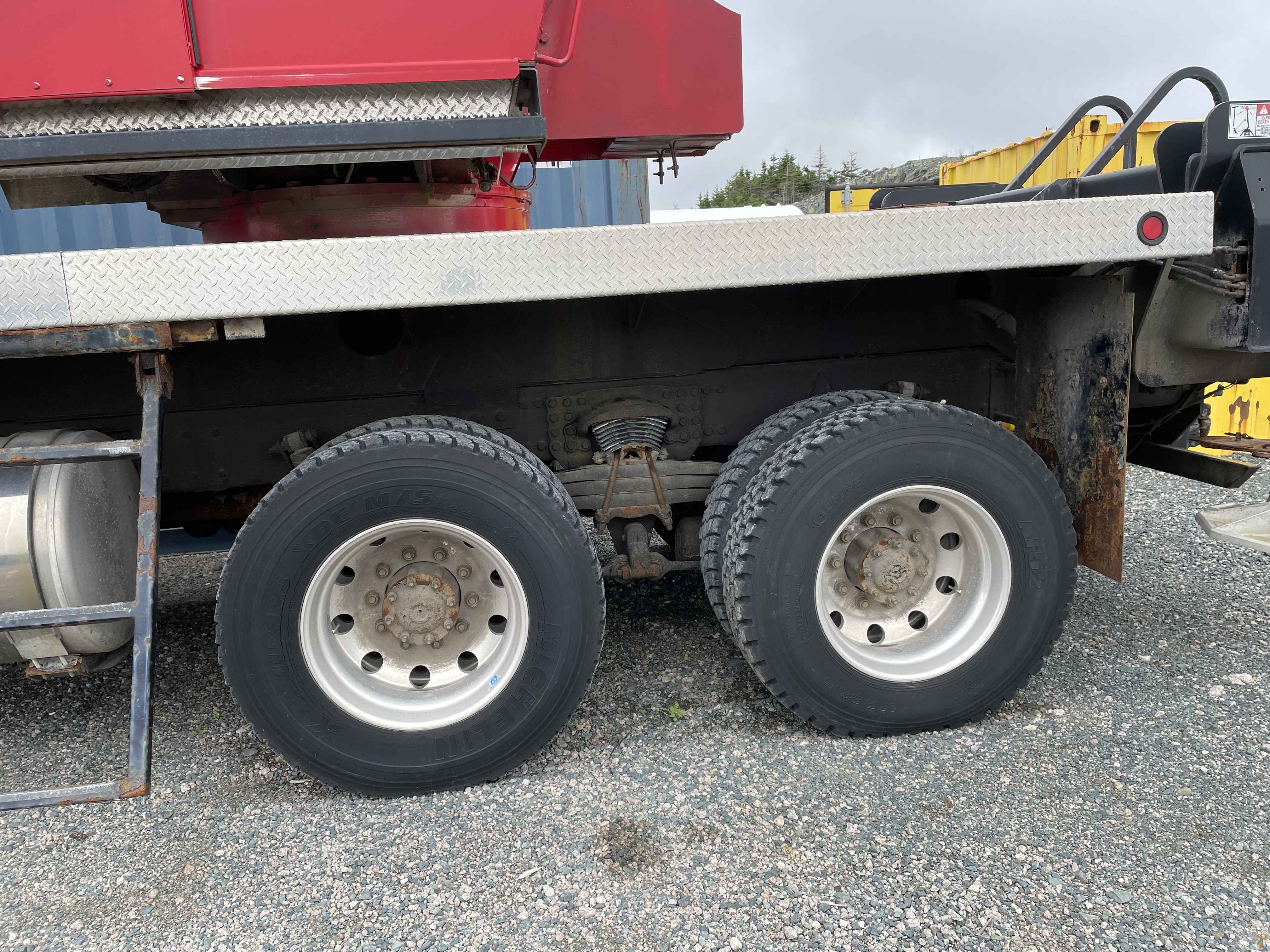

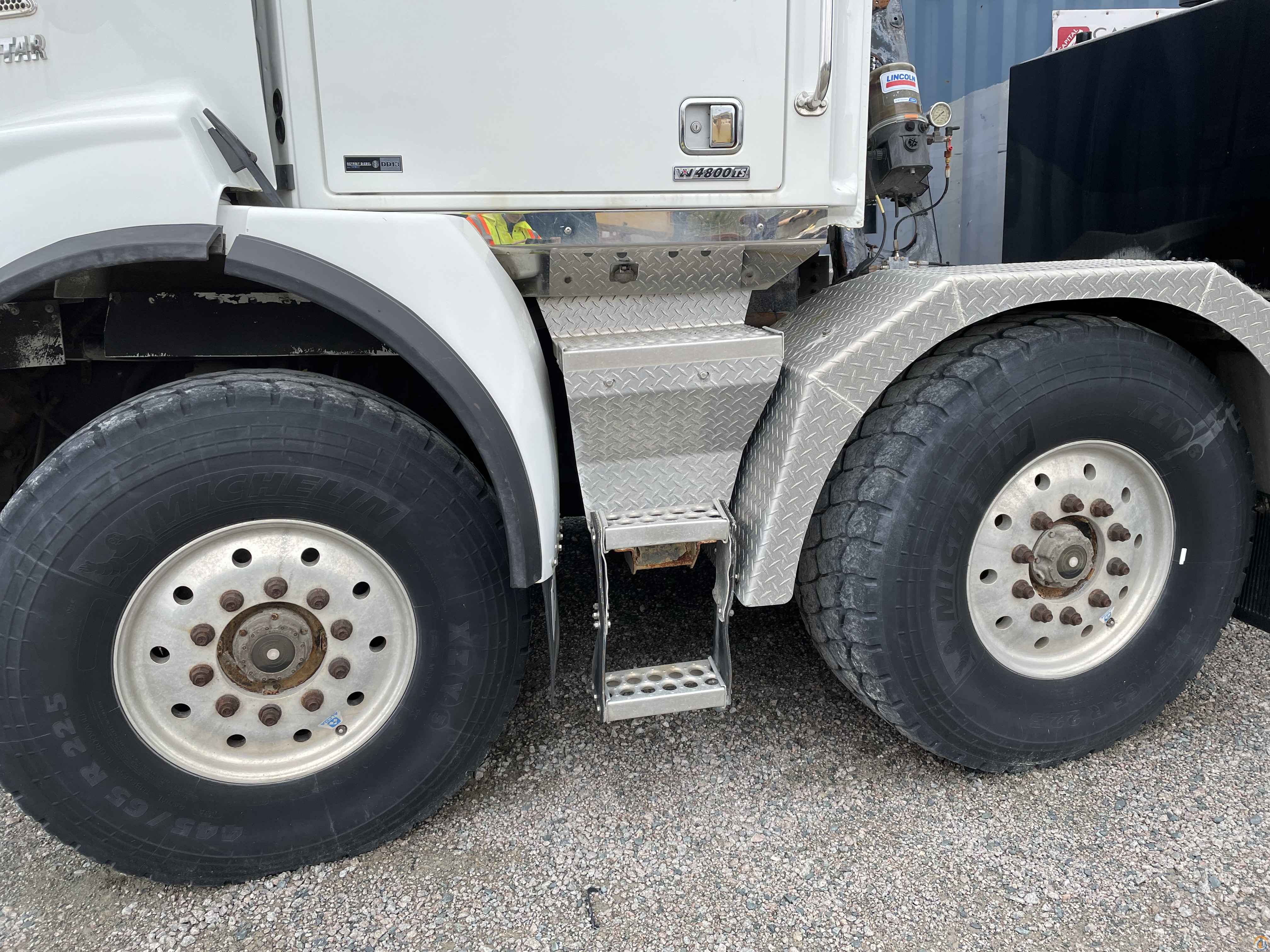

(2) x 20,000 LB fronts with 425 / 65R22.5 tires, 46,000 LB Rears on Chalmers Susp., Double Frame,
Polished ALCOA Aluminum Wheels front and outer rear
Dual Chrome single polished Exhaust
Chrome Grille & Bumper
dual 100 gallon aluminum fuel tank
