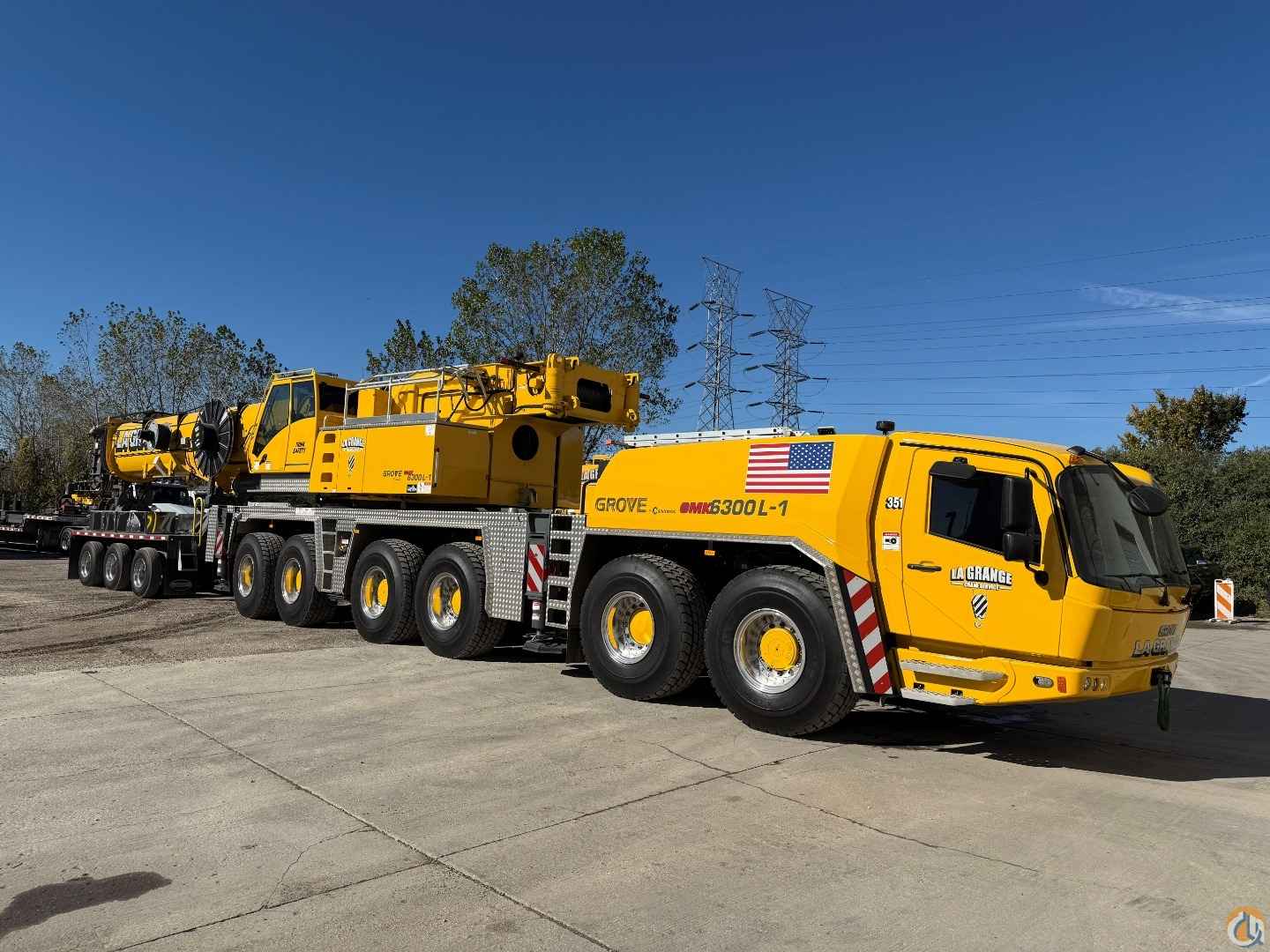

Carrier Engine: Mercedes Benz OM4 73(430kW/585HP) - TIER 4 final Mileage: Approx. 6216 Drive / Steer: 12X6X12 / All Wheel Steering Transmission: Allison 4500SP Automatic w/ torque converter & 2 speed transfer case Suspension: MEGATRAK™ all wheel independent hydro-pneumatic suspension Outriggers: 5 position, independently controlled w/ auto level. OMS, carrier controls & lights included. NO ROB Option. Tires / Wheels: 445/95 R25 on / off highway radial tires on aluminum wheels. [Note: Overall width 9.8 ft (3 m)] Brakes: Dual line pneumatic disc brakes on all wheels, Pneumatic parking brake acting on axle lines 2, 4, 5 and 6 Boom: 51 ft - 262 ft (15.5 - 80 m) 7 section boom w/ TWIN-LOCK™ pinning system Swing-away jib: 39 ft to 69 ft (12 m to 21 m) bi-fold swingaway, hydraulically offset from 5° to 40° . Includes testing and calibration of RCL Boom extension (insert): Two 26 ft (Sm) lattice inserts Hoist / Wire Rope: Main & Auxiliary Hoist w/ DRI, Camera & 22mm wire rope (D012T) Rated Capacity Limiter: Grove EKS5 Superstructure Engine: Mercedes Benz OM936 (210kW/282HP) - TIER 4 final Hours: Approx. 2057 Operators Cab: Full vision aluminum cab, hydraulically tiltable to 20° . Electronic dual axis joystick controls Counterweight: 203,900 lbs. (92.5 t) total counterweight. Hydraulic counterweight rigging and removal system operated from the crane cab. Hookblock / Headache ball: 5 sheave 127 USt (125t) block, 3 sheave 88 USt (80t) block & 13 USt (12t) overhaul weight Additional Options: 2 Boom Mounted Work Lights, Boom Head Indicator Light, Boom Head Camera (BOOST), Trailing Boom Float Kit with Boom Boost, Boom Removal, Auxiliary Boom Nose, Mounting Rack for Auxiliary Hoist, Additional Oil Cooler, Comfort Seat, Integrated Hydraulic Retarder, Additional Spotlight, External Starting Outlet.
Miles 13436
