Working Radius 55m
Jib-End Load = 20,000kg, power lift 22,000kg
Max Load = 50,000kg
Hook height = 29.3m

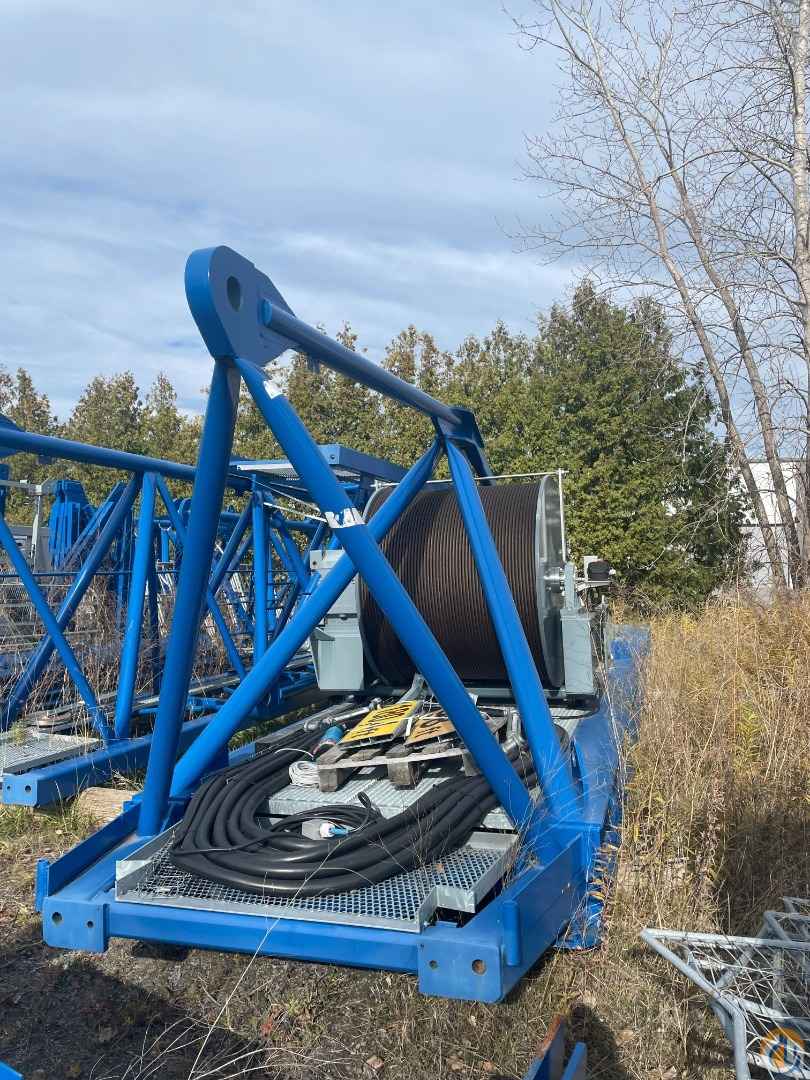

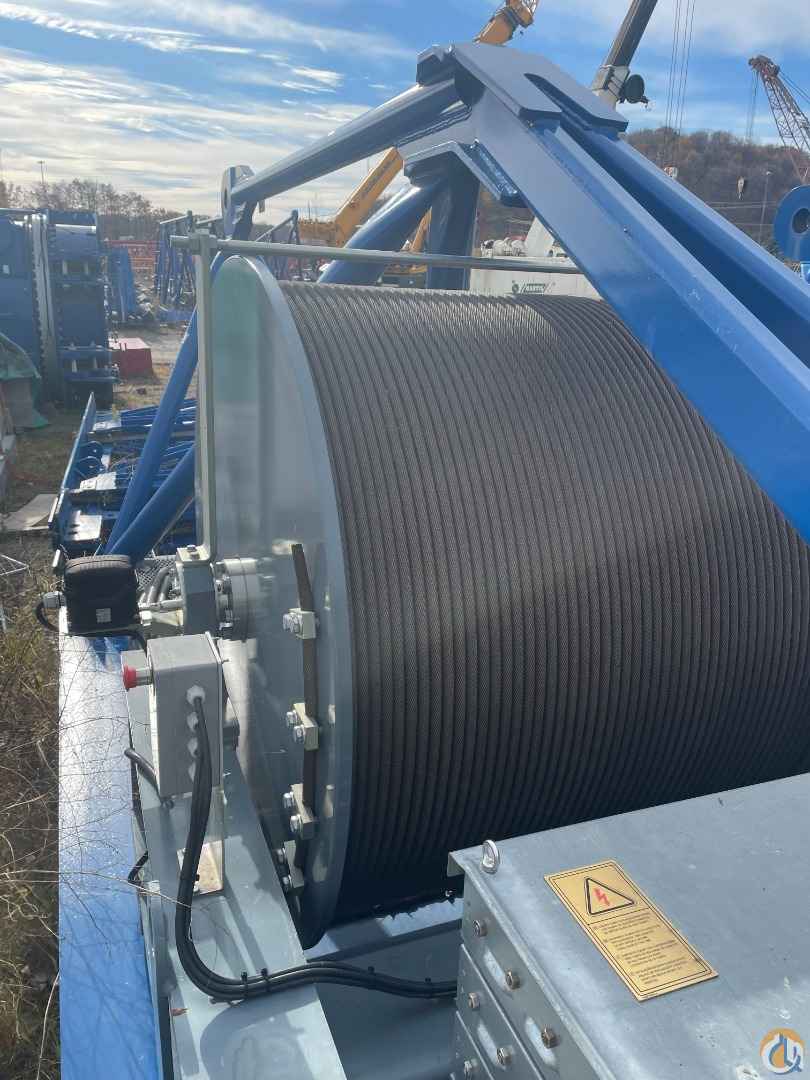

Mechanisms = Hoisting EFU6-132-62/trolley CFU13/slewing GFU7.5
Digital Readout XL cabin, air conditioning

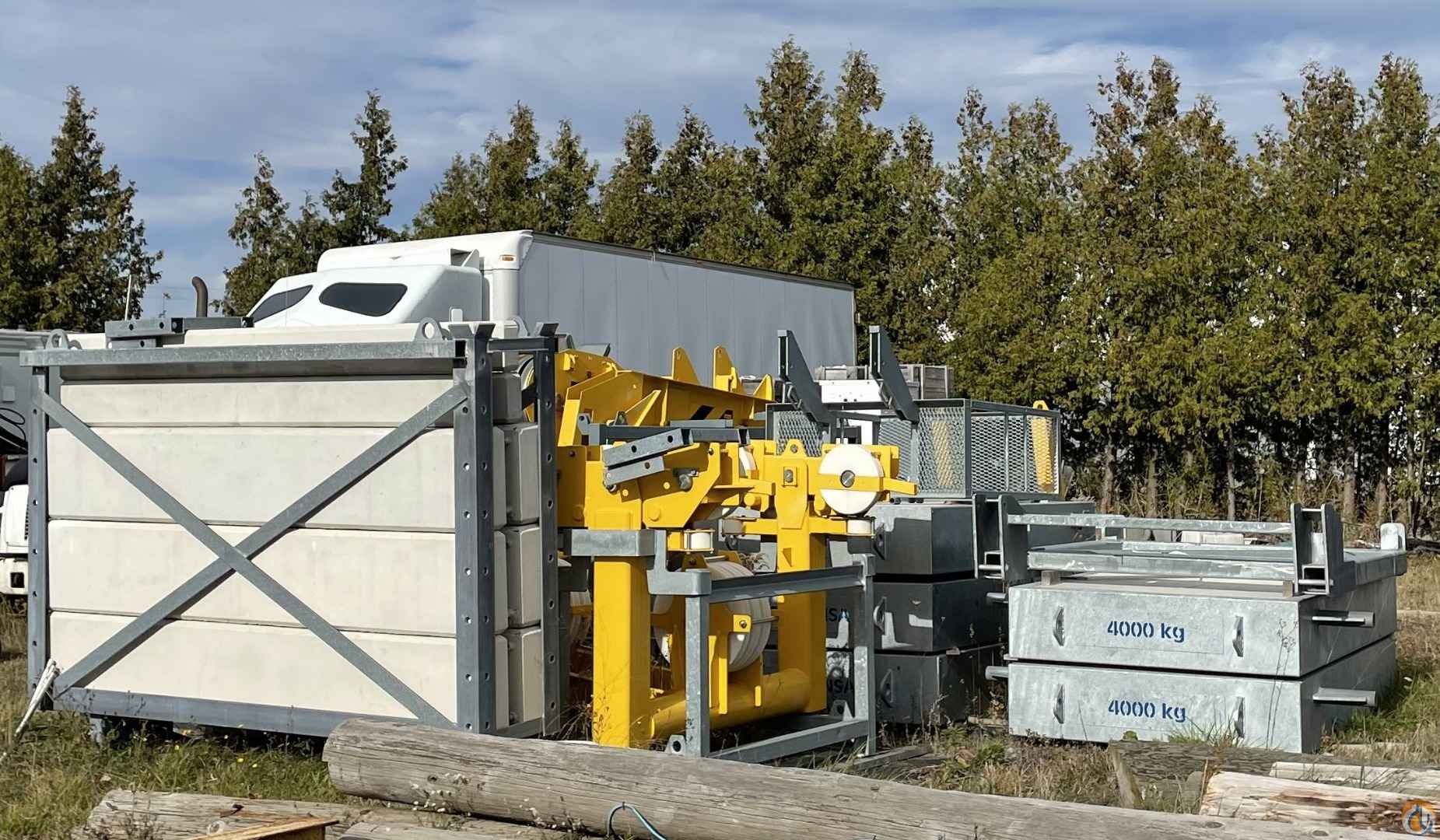

Arial steel cast counterweights included
One set PD6 fixing angles
Cold weather protection
cetnral lube upper and lower turntable
transformer, slip ring

The characteristics of load, reach and mechanisms of the 21LC1050 make this model ideal to offer an optimal result in large industrial or mining projects as well as for the construction of buildings with prefabricated and steel structures of great tonnage.

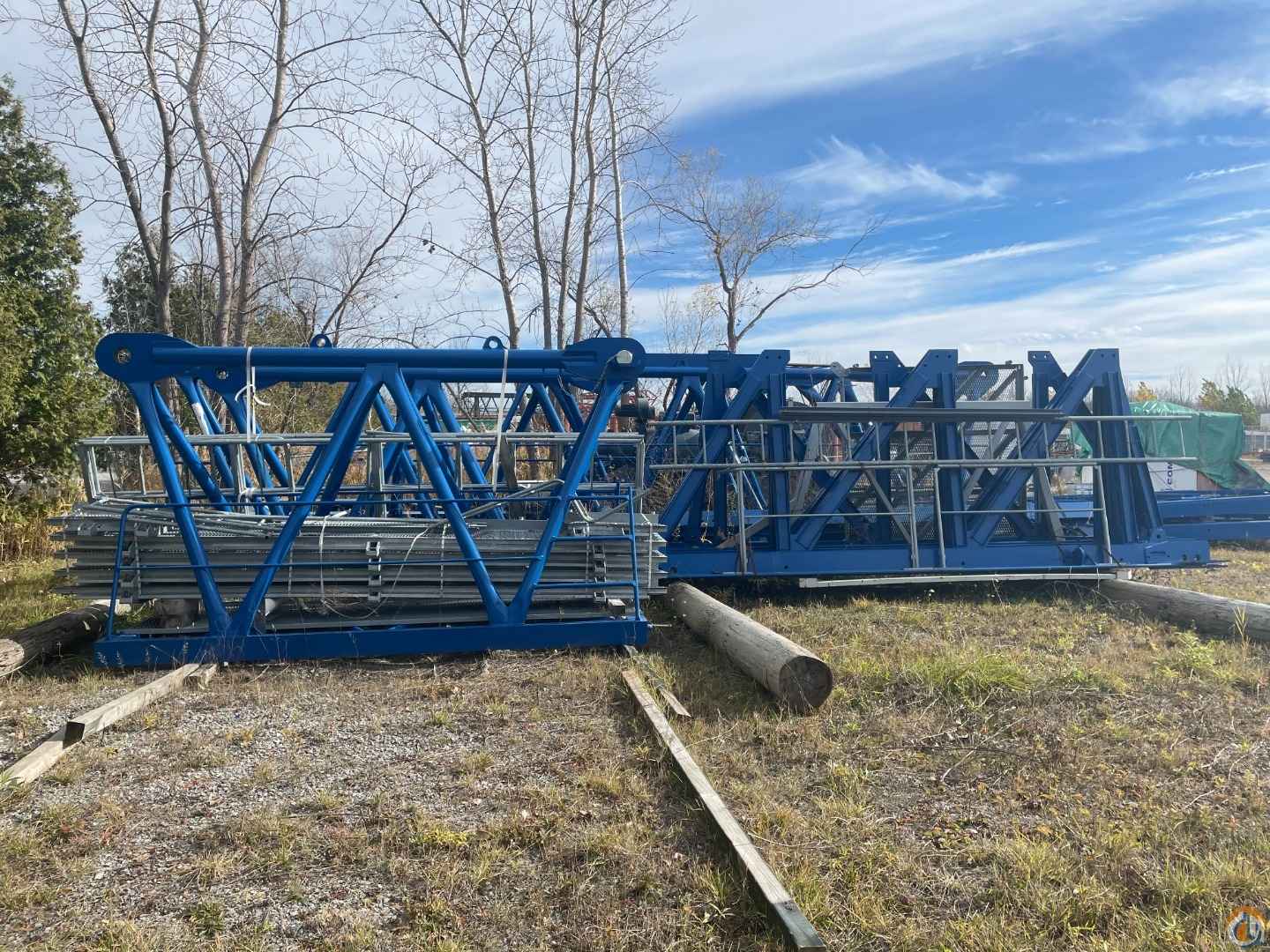

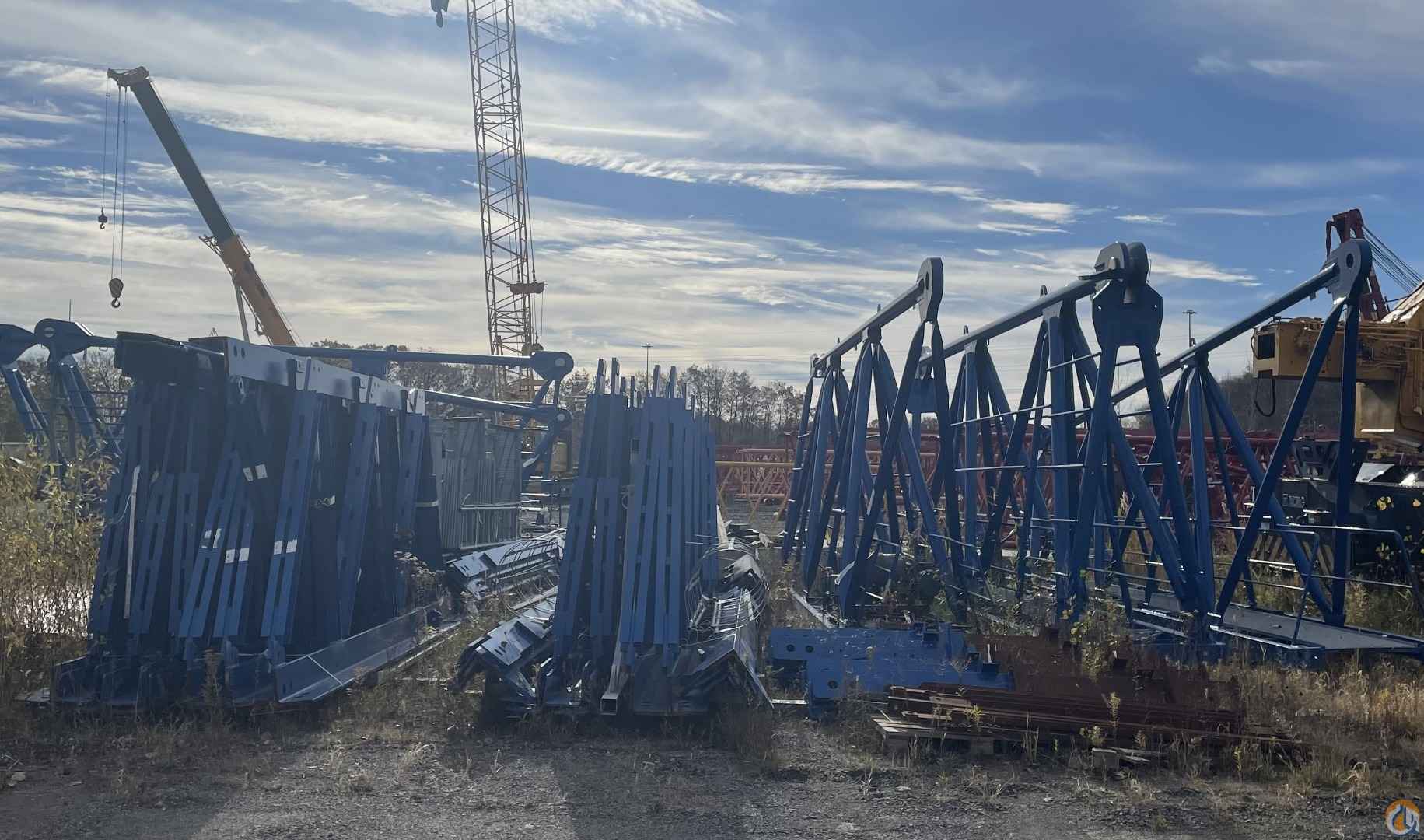

The design of the slewing (horizontal) part of the 21LC1050 is similar to that of the successful 21LC750 and 21LC660 and allows a much faster and safer assembly. The 21LC1050 also shares a large part of the jib and counterjib sections with them, which allows optimizing the investment to customers who already own these cranes.

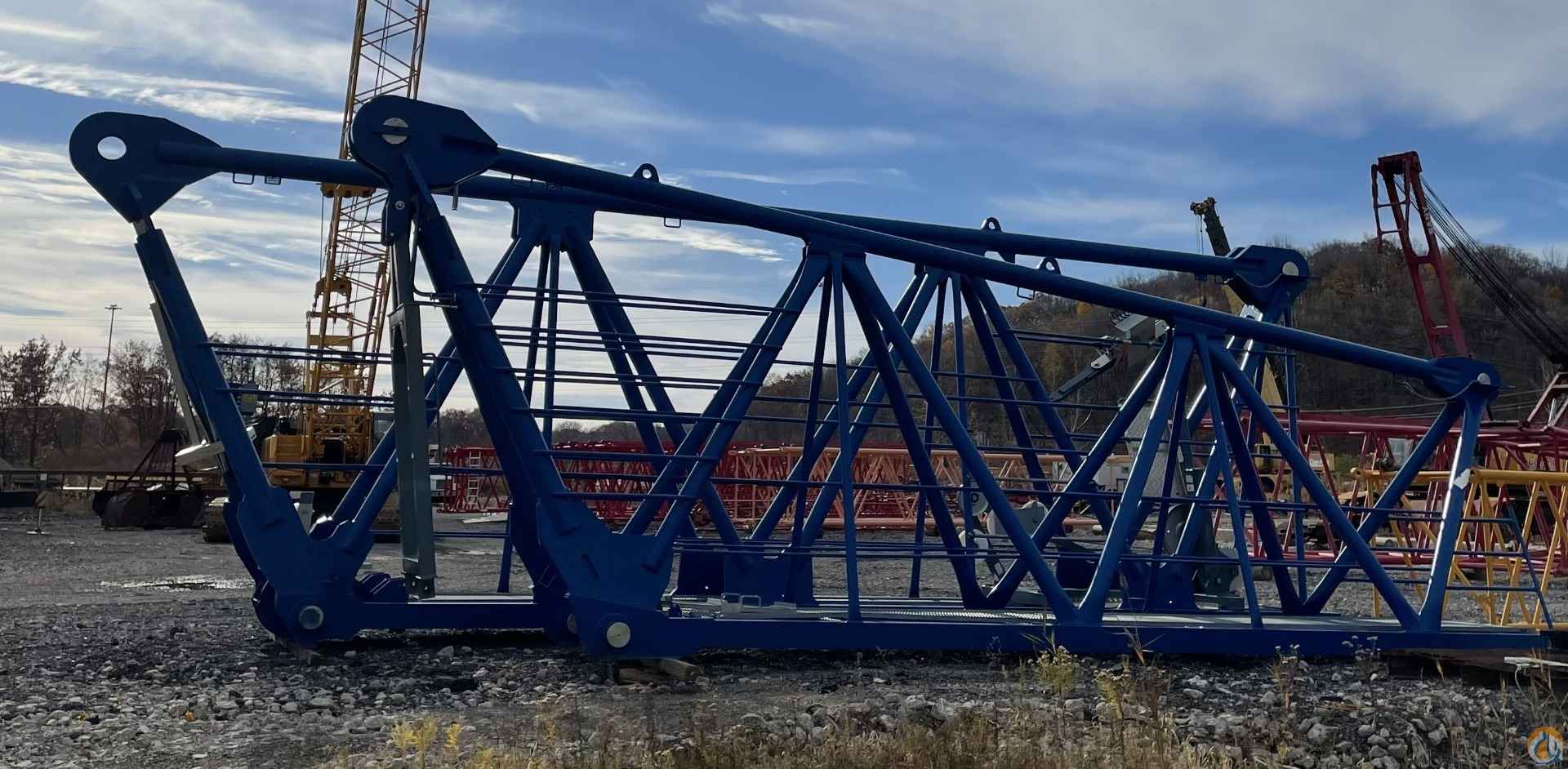

Among the novelties presented by the 21LC1050 is the design of its counterjib, which, like the jib, allows numerous different configurations to better adapt to the needs of each job. Always having a counterjib radius as short as possible avoids possible interference with buildings or other cranes present in the same project, thus increasing safety.

[information was taken from the website https://northamerica.comansa.com/en/21lc1050-flat-top-crane accessed March 2023]
