Stabilisers: Scissors
Lifting capacity: 13,200 lbs
Capacity at maximum height: 4,850 lbs
Lifting height: 82'
Reach: 69' 10''
Engine: Deutz TCD 3.6 L4 - Tier 4f
Rated power: 100 kW (136 hp) 2,200 rpm
Number of gears: 2/2
Hydraulic system: 350 bar (Load Sensing)
Length: 25'
Width: 8' 2''
Ground clearance: 1' 1''
Unladen weight: 39,680 lbs
Travel speed: 25 mph
Rotation: 360° (continue)

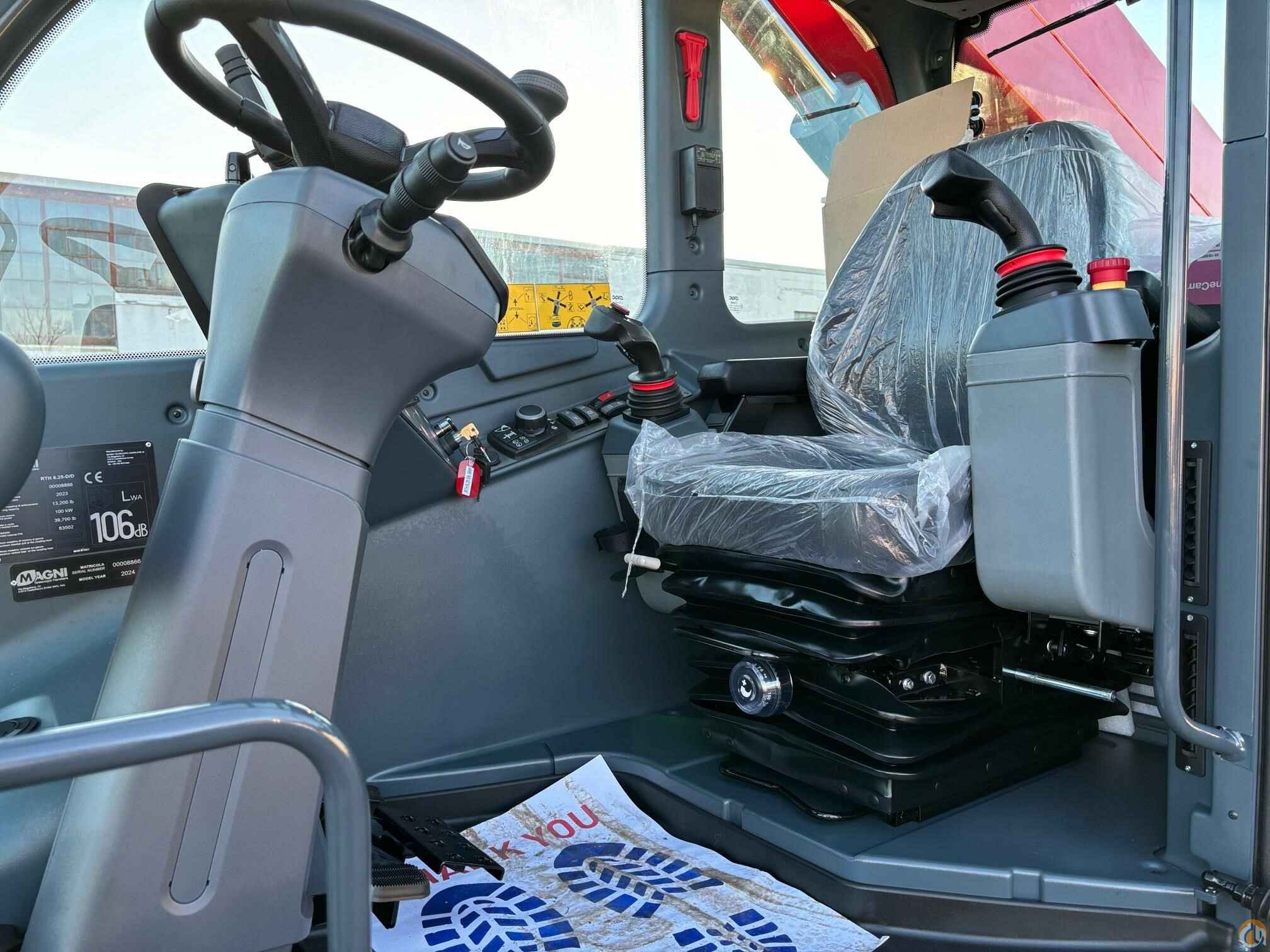

Climate control as standard: Yes
Automatic accessory recognition: Yes
Reversable fan drive: Yes

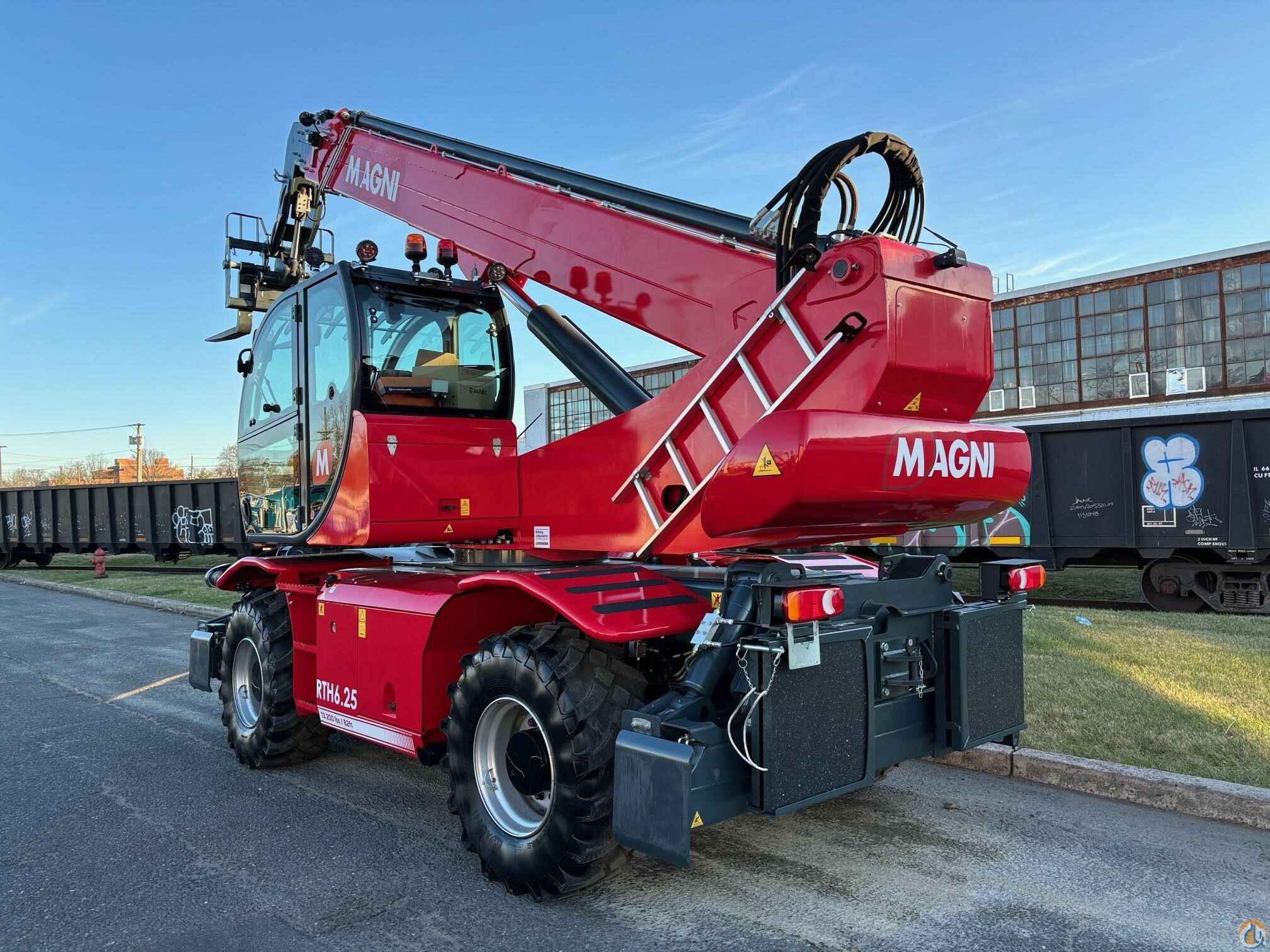

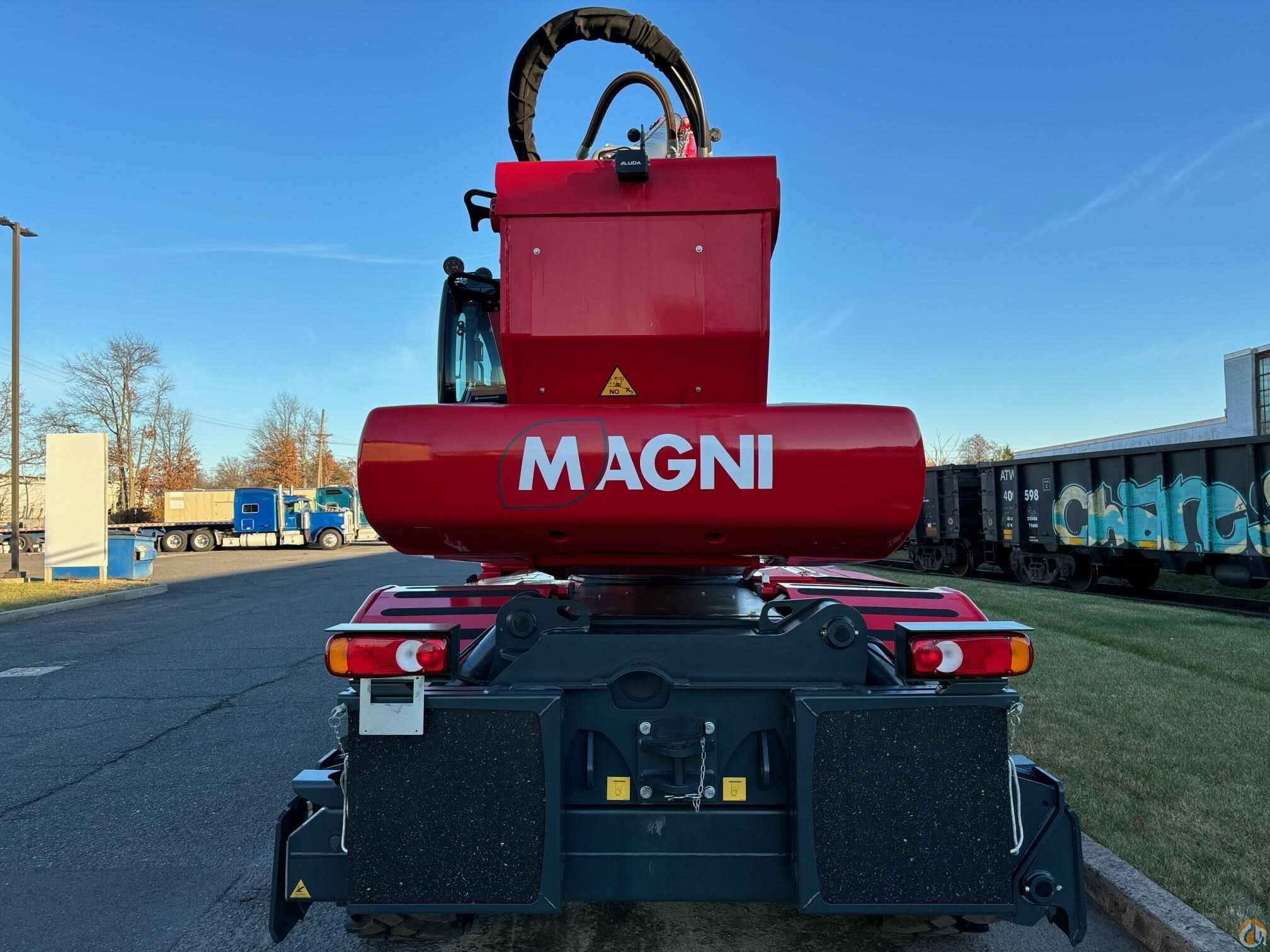

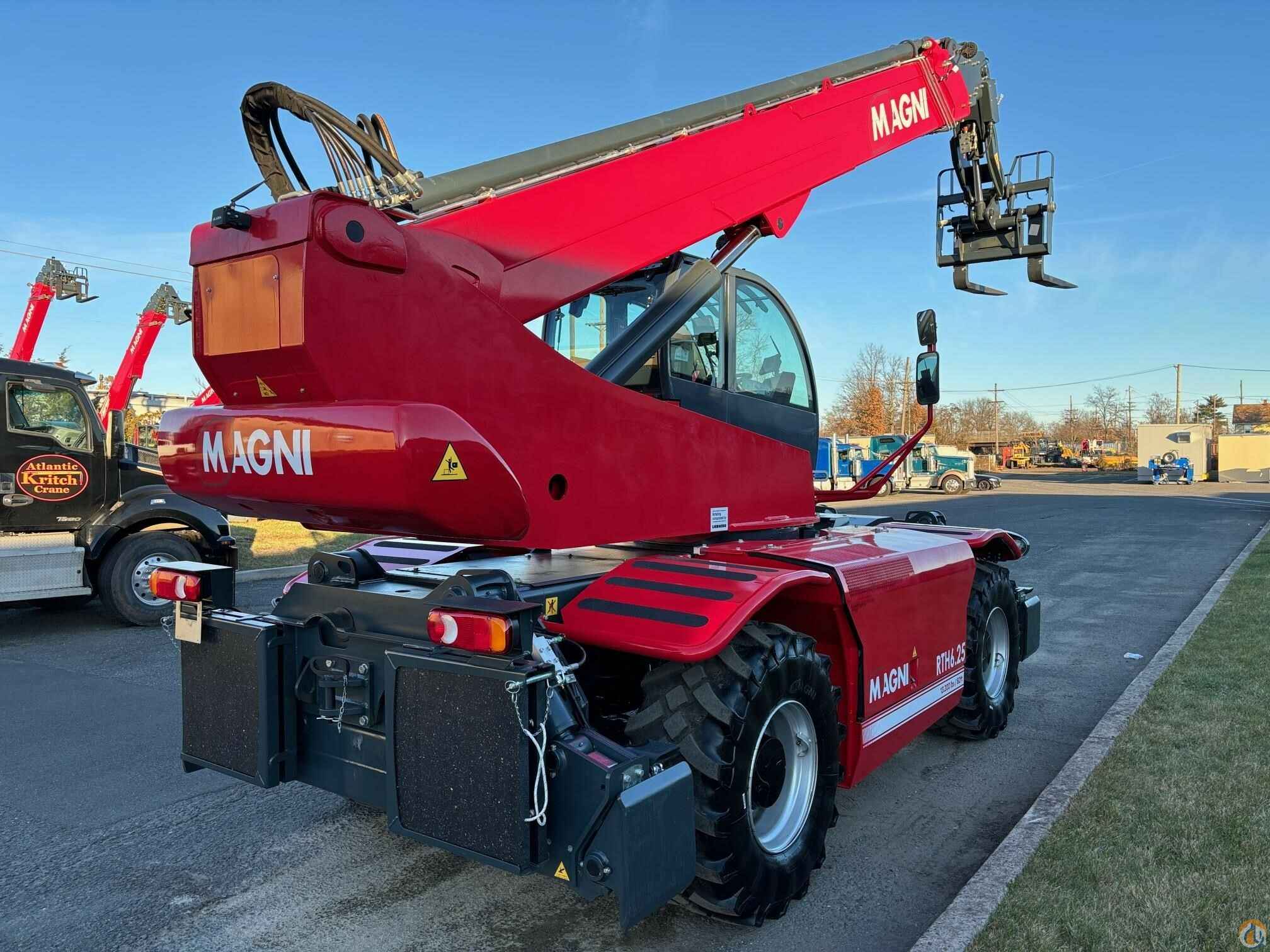

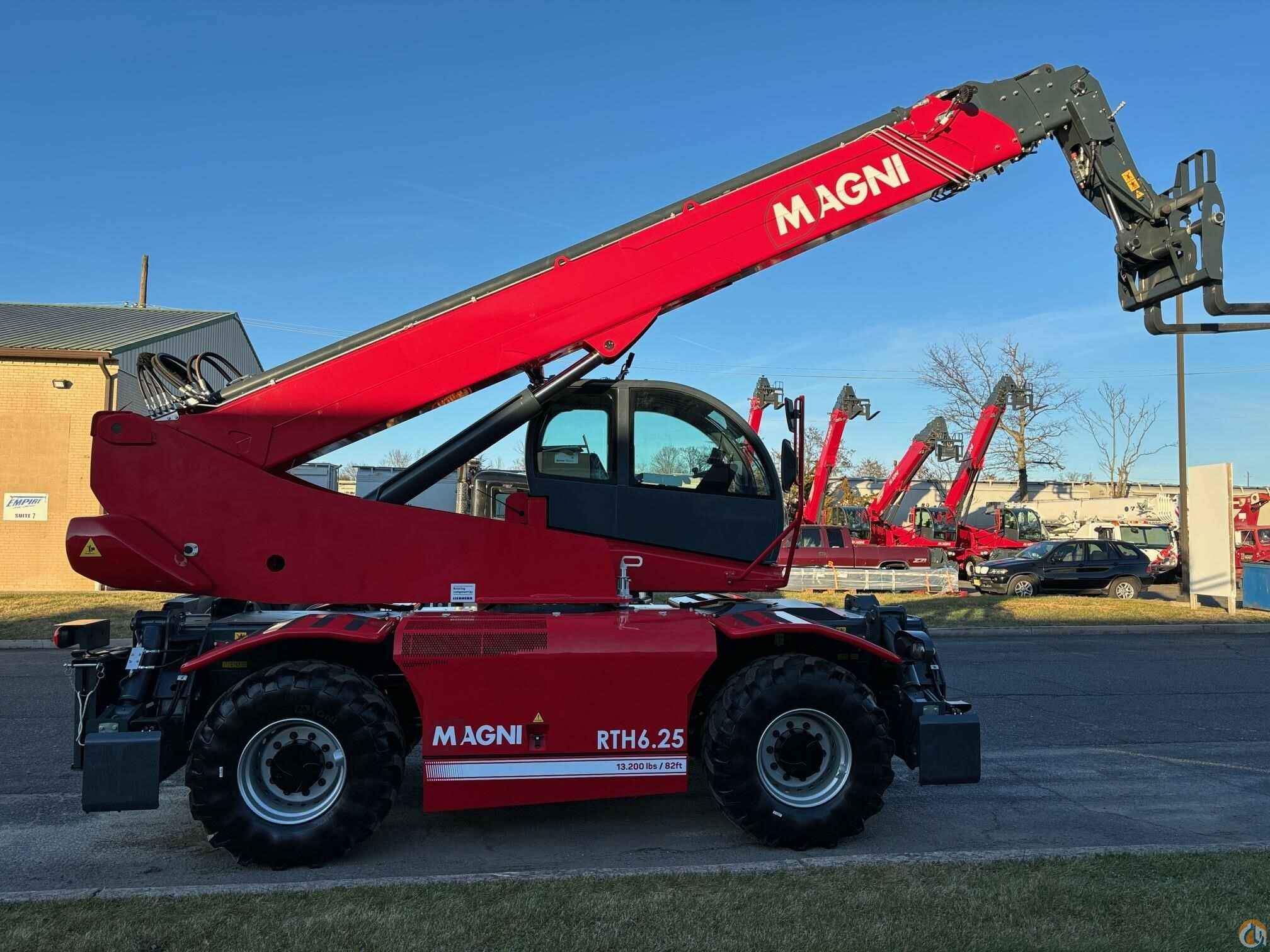

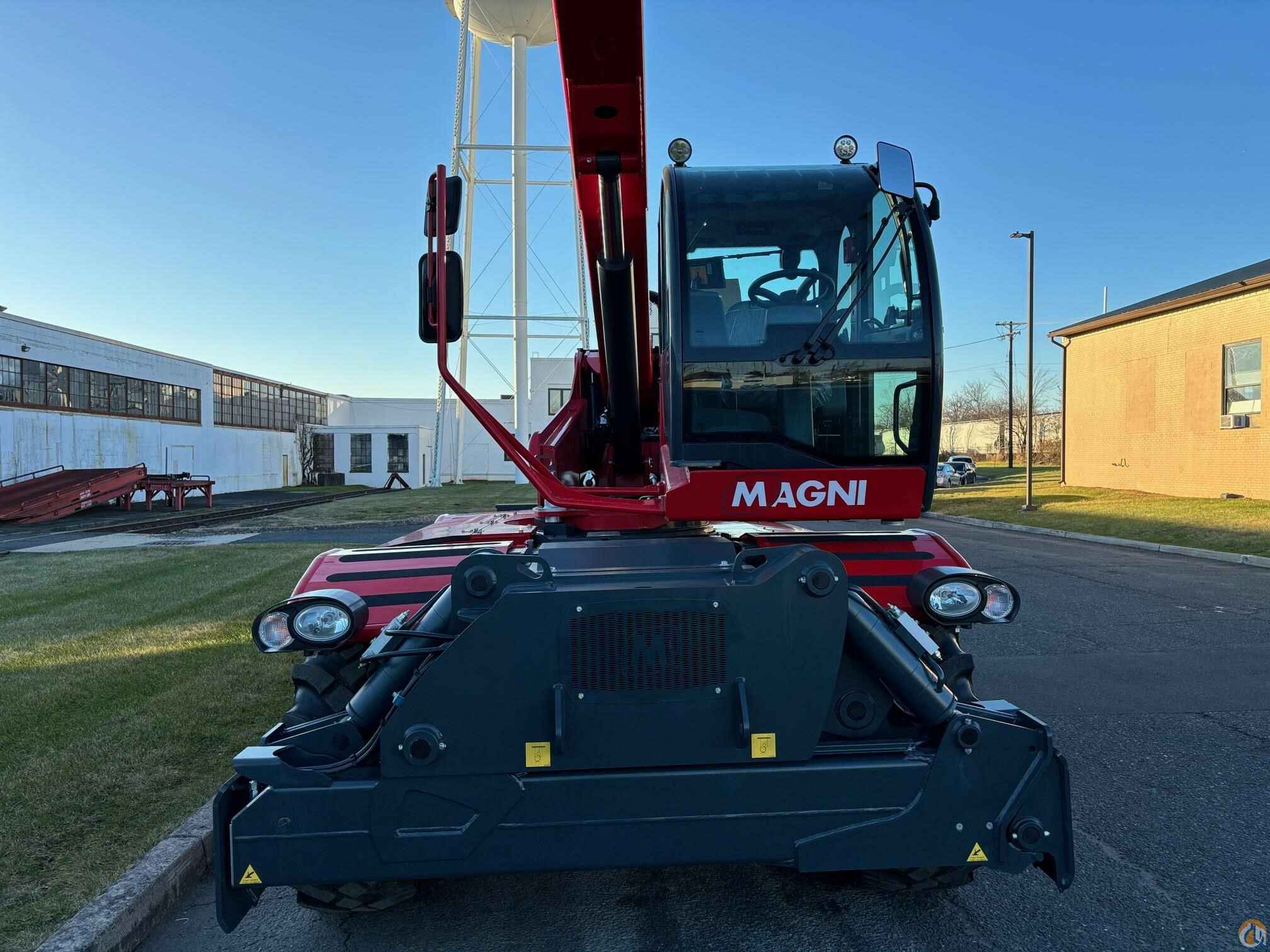

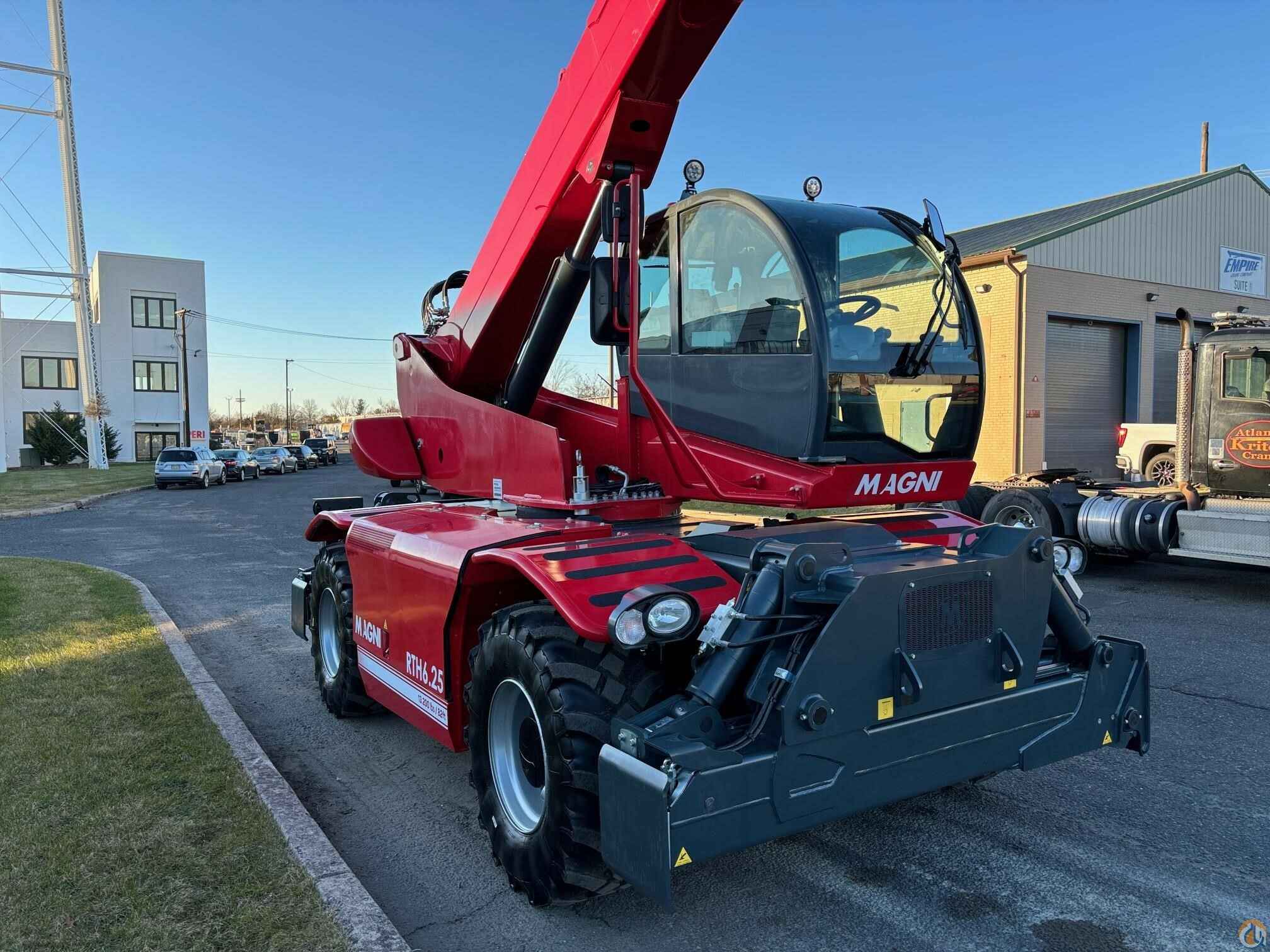

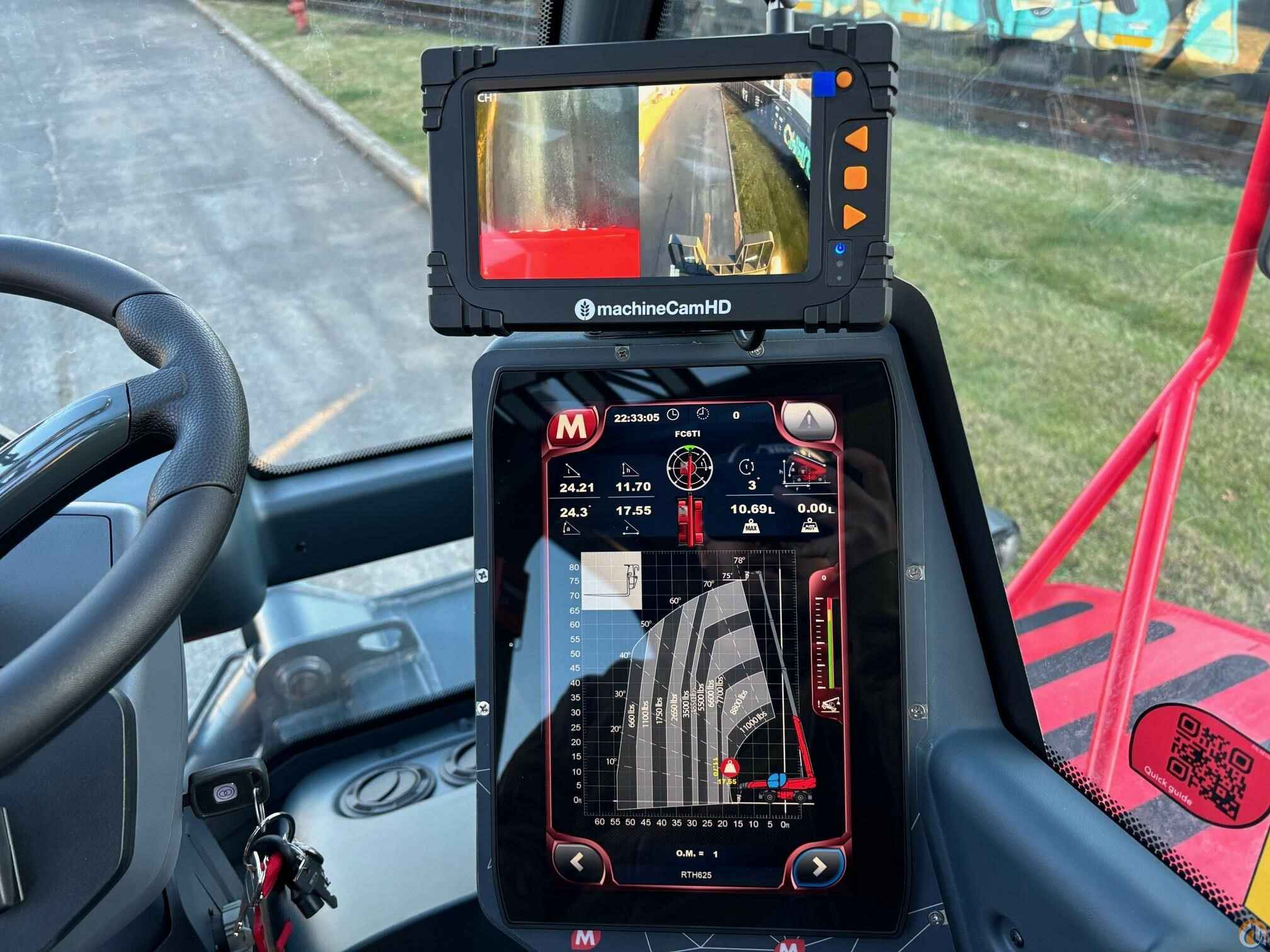

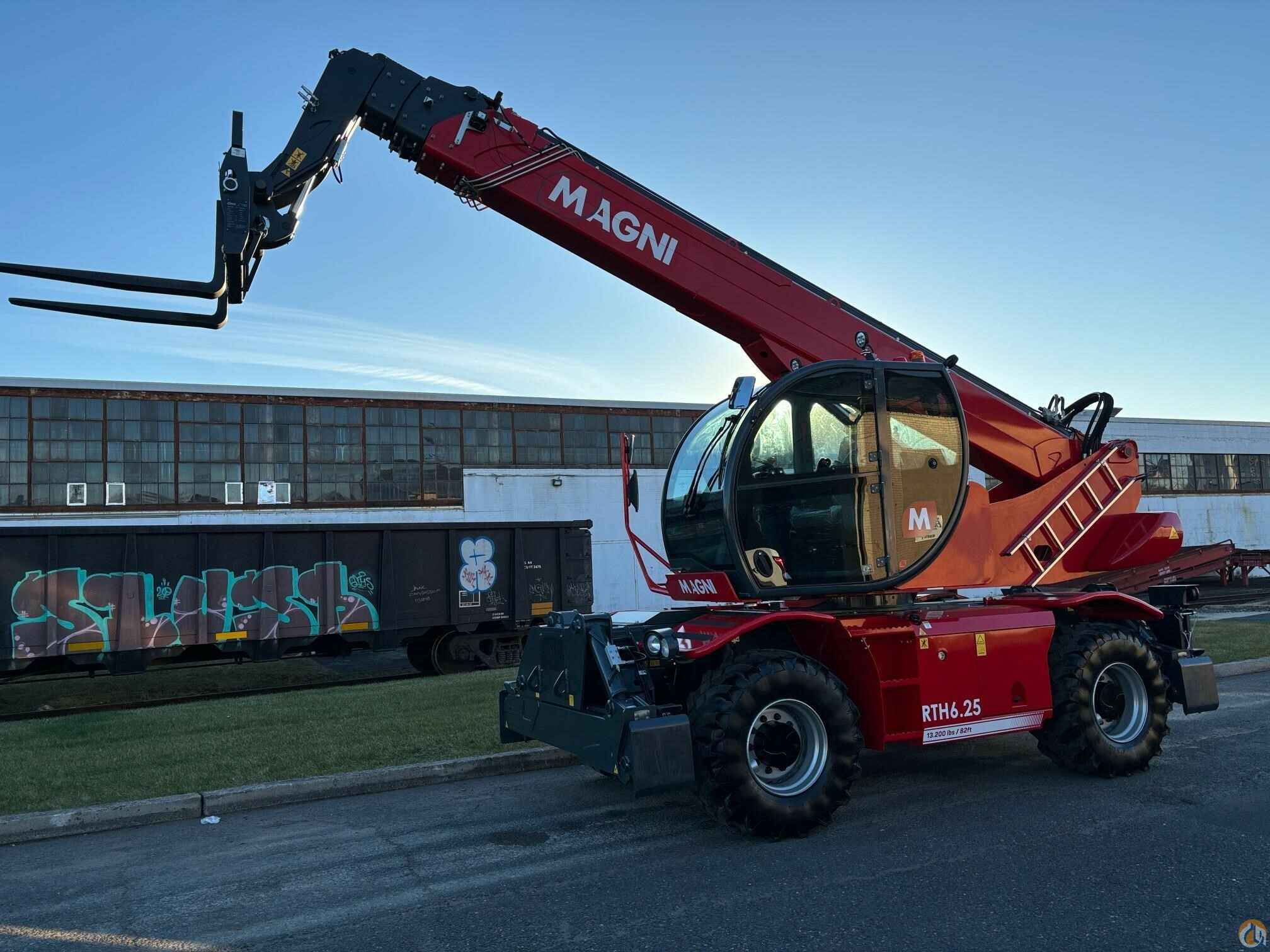

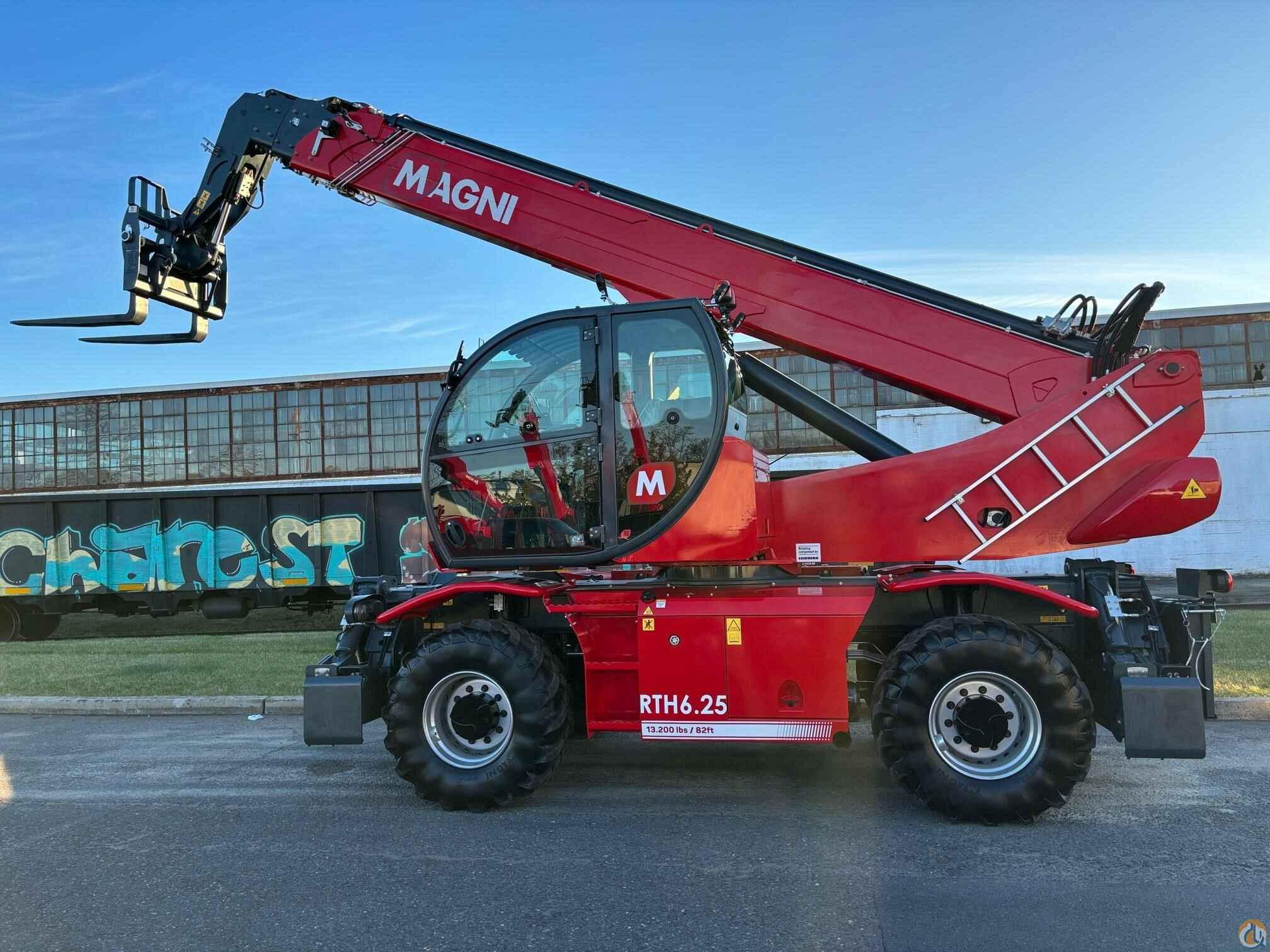

The RTH 6.25 is a simple yet high-performance rotating telescopic handler. It can lift loads to a height of 82 ft and is equipped with scissor stabilizers to ensure greater safety and stability during working maneuvers. The scissor stabilisers are ideal even with limited space available; even when it is only partially stabilised, the machine is programmed to provide the best possible load chart on each side. When the stabilisers are fully extended, on the other hand, they guarantee maximum machine performance over 360° as they are able to work over a very wide stabilisation base. It is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition of the attachment and creation of the relative load charts; this telescopic handler is able to meet a wide range of applications in construction and industry.
