Main Boom Length: 35.1' – 113.9'
Boom Extension: 28.9' X 50.0'
Outrigger Bases: 22.9' X 22.9'
Hoist Line Pull: 16,500 lbs.
Max Radius: 139.0'
Dimensions: 514.0" L x 117.3" W x 148.2" H
Axles: 2
Engine: Cummins
Drive: 4x4x4

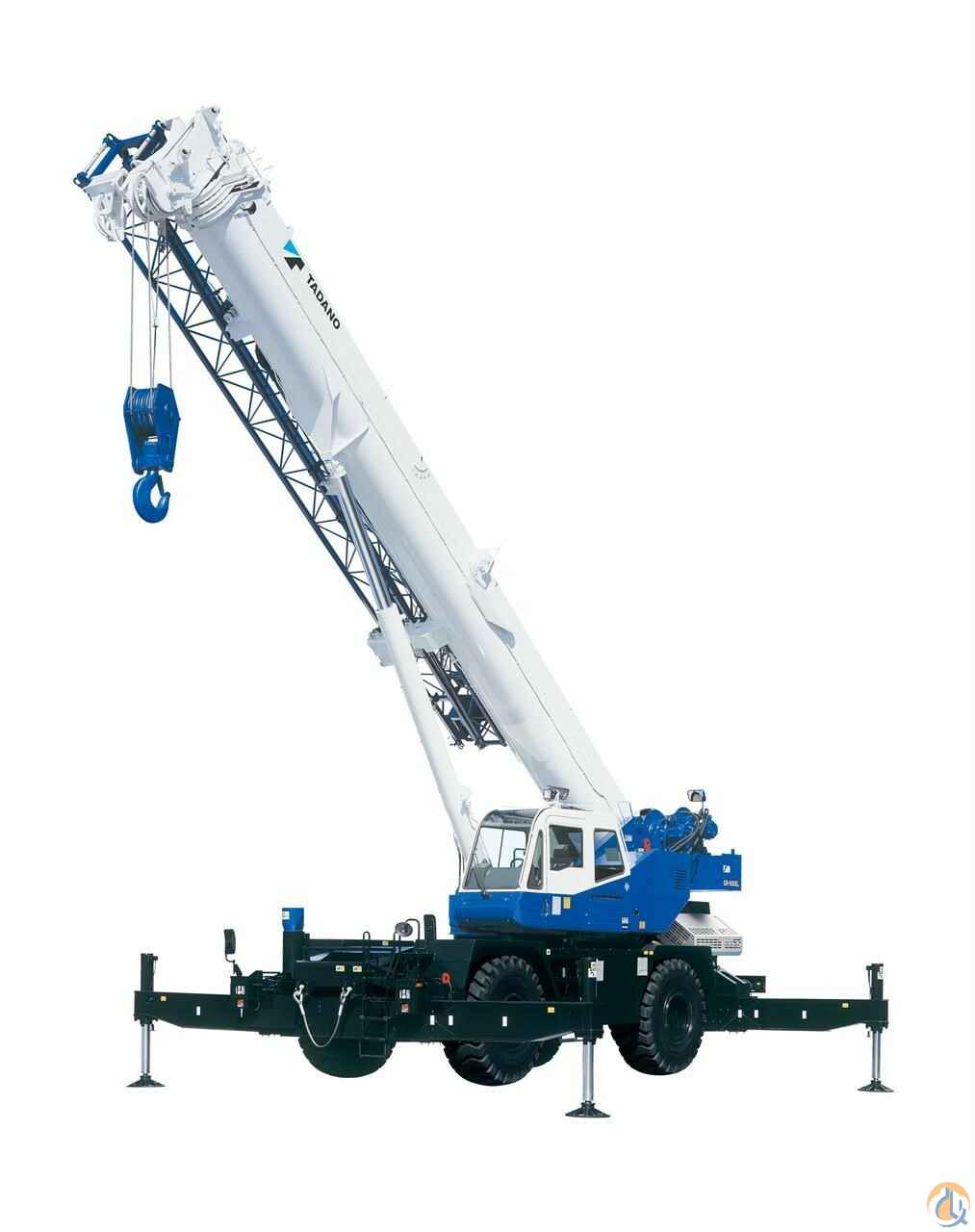

The Tadano GR-550XL provides a maximum lift capacity of 50t / 55 USt and a maximum lift height of 50.3m / 165 ft. Standard features include HELLO-NET, a telematics system that supports crane management with details on operational status, position, and maintenance. It also features the AML-C system, which detects the extension width of outriggers at all four corners to offer maximum area work value. The system monitors fuel consumption during crane operations and idling; while traveling, it allows operators to optimize fuel efficiency while reducing emissions and noise levels. The ECO Mode system controls maximum engine speed, helping to reduce fuel consumption up to 40%.
