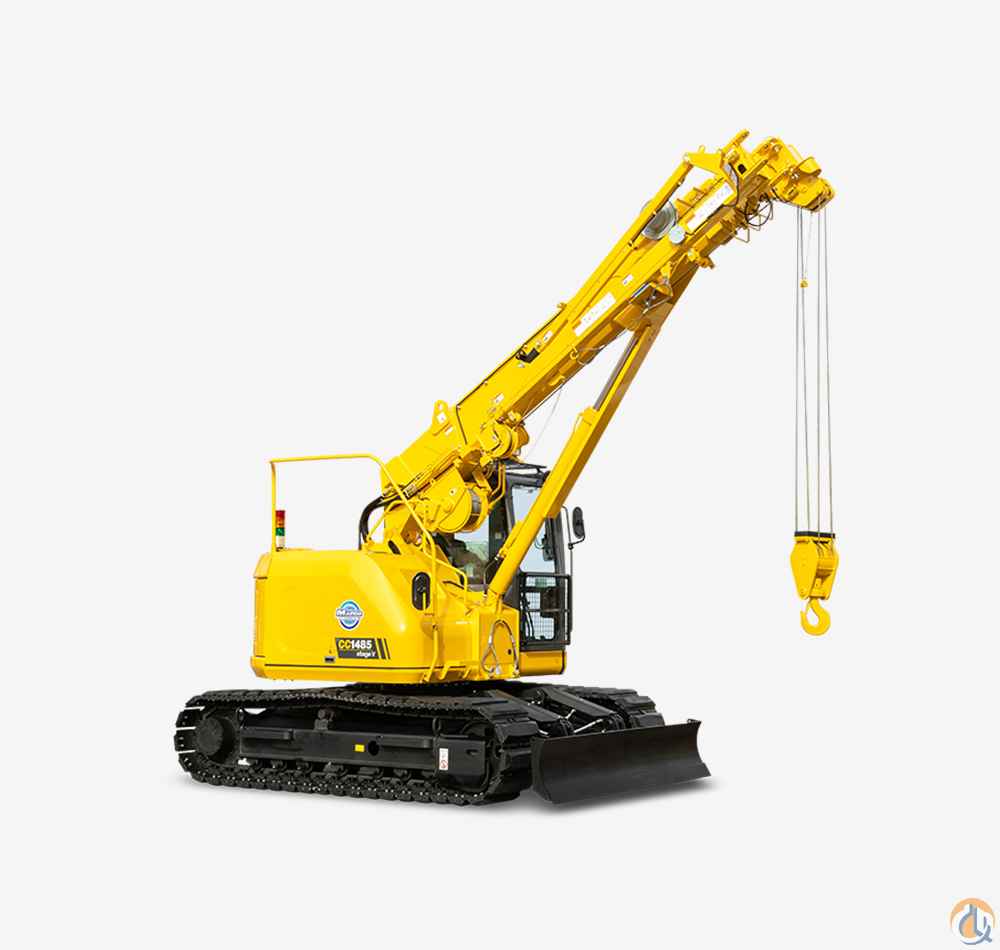

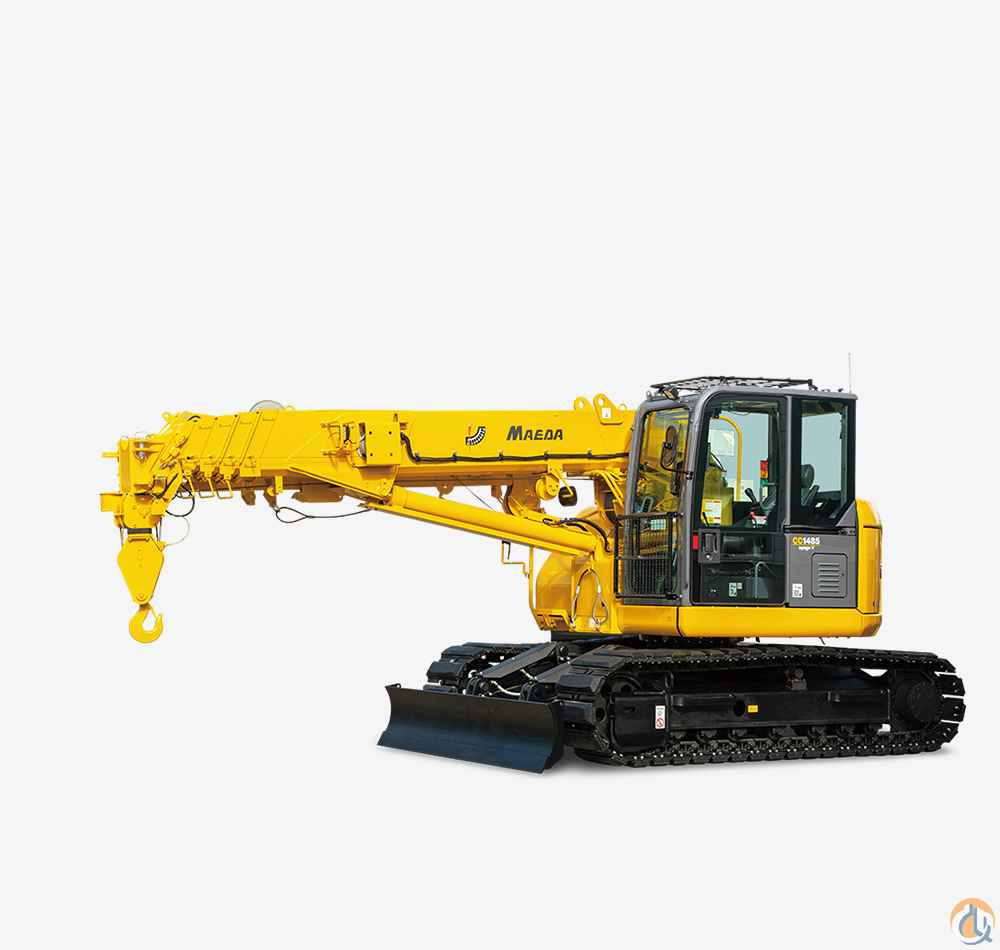

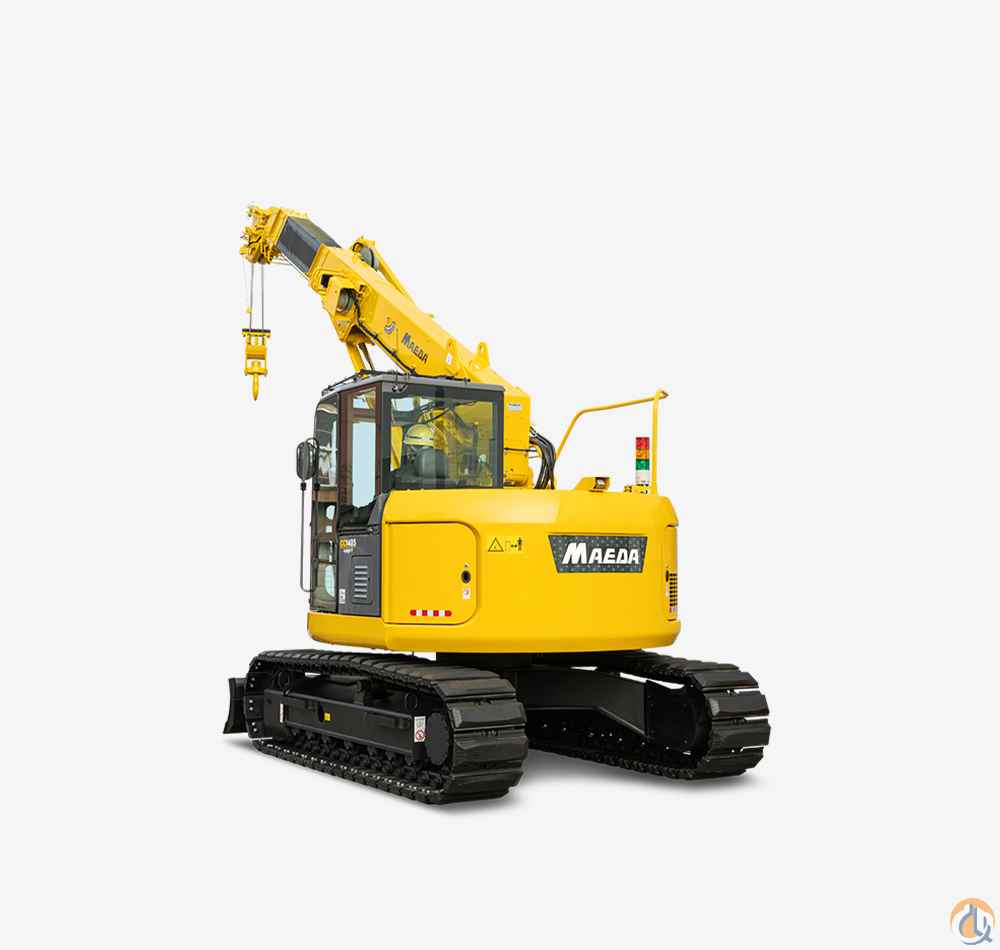

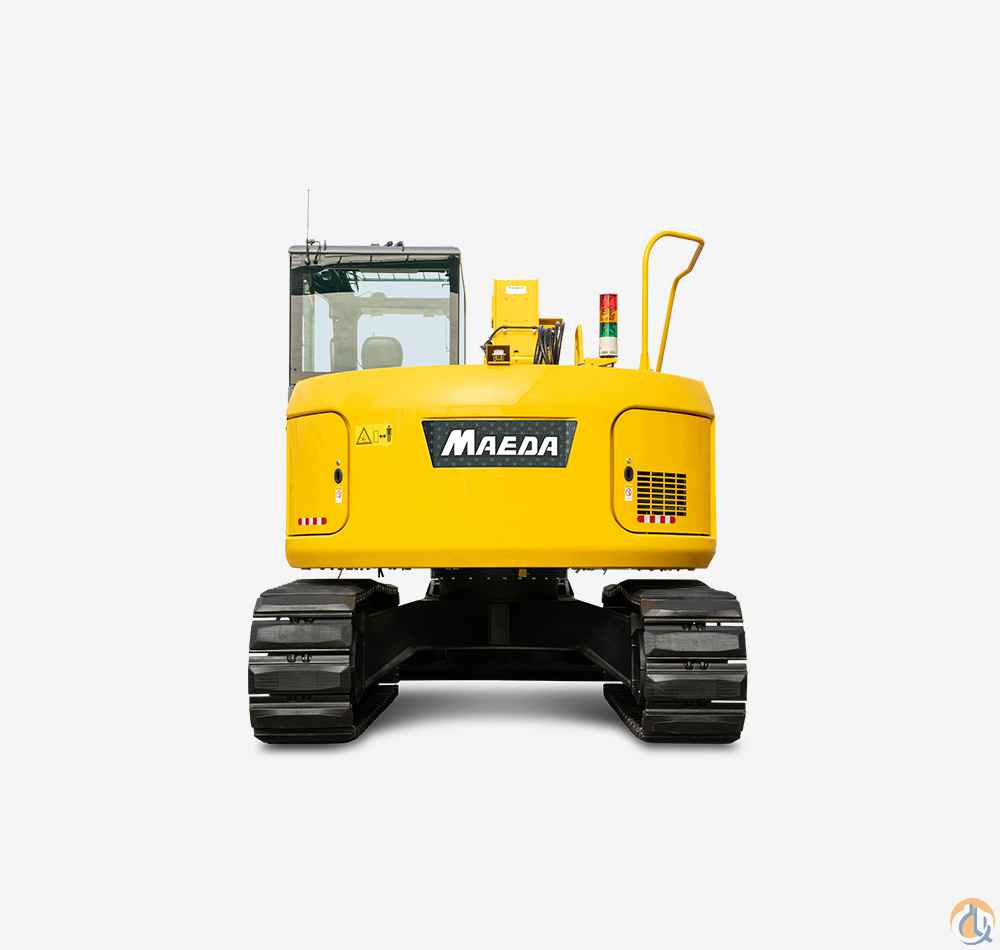

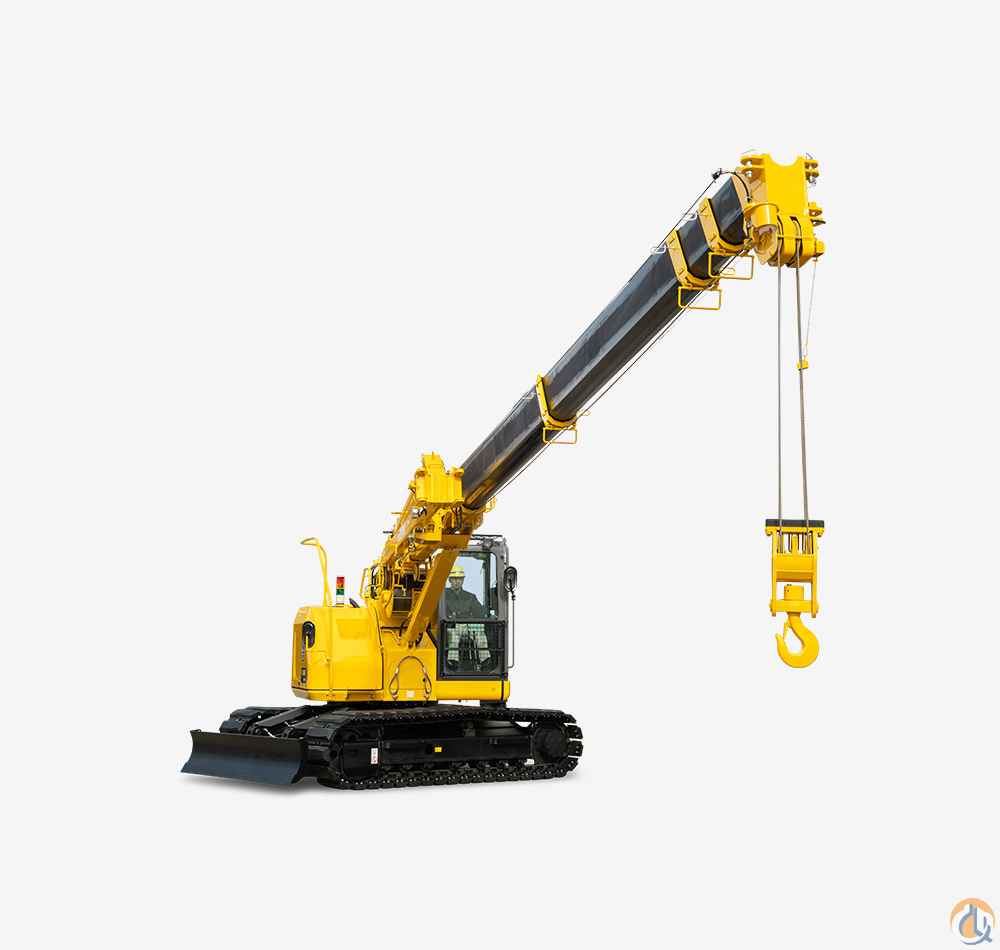

2024 Maeda CC1485S-2 Mini Crane
John Vieira: 905-825-6377
Last Updated: 10 Oct 2024
Capacity: 6.00
Boom/Jib: 55
Condition: New
Crane Capacity - 6.0t x 2.6m
Max. Working Radius - 16.1m
Max. Lifting Height- 16.7m (22.0m with fly jib)
Max. Reach Below Ground - 24.5m (4 falls)
Pick & Carry Capacity - 2,000kg
Travel Speed - 0-3.1km/h
Travel Ground Pressure (with rubber pads) - 51.2kPa (0.52kgf/cm2) [54.5kPa (0.56kgf/cm2) w/blade & fly jib]
Engine - ISUZU 4LE2XBJB / Diesel
Engine Rated Output - 44.6kW/2000min-1 (60.6PS / 2000rpm)
Dimensions (with rubber pads) - 6,610mm (L) x 2,490mm (W) x 2,910mm (H)
Tail swing - 1,550mm
Machine Weight (with rubber pads) - 15,030kg (15,710kg w/blade, 15,330kg w/fly jib, 16,010kg w/ blade & fly jib)
Cropac Equipment, Inc.
www.cropac.comContact: John Vieira
Phone: 905-825-6377
Fax: 905-825-5264
Condition
New
0 views this week
0 people have saved
Condition
New
Crane Capacity - 6.0t x 2.6m
Max. Working Radius - 16.1m
Max. Lifting Height- 16.7m (22.0m with fly jib)
Max. Reach Below Ground - 24.5m (4 falls)
Pick & Carry Capacity - 2,000kg
Travel Speed - 0-3.1km/h
Travel Ground Pressure (with rubber pads) - 51.2kPa (0.52kgf/cm2) [54.5kPa (0.56kgf/cm2) w/blade & fly jib]
Engine - ISUZU 4LE2XBJB / Diesel
Engine Rated Output - 44.6kW/2000min-1 (60.6PS / 2000rpm)
Dimensions (with rubber pads) - 6,610mm (L) x 2,490mm (W) x 2,910mm (H)
Tail swing - 1,550mm
Machine Weight (with rubber pads) - 15,030kg (15,710kg w/blade, 15,330kg w/fly jib, 16,010kg w/ blade & fly jib)
Rental Prices
No Operator
*Rental Prices are stated in USD*
