BOOM DETAILS

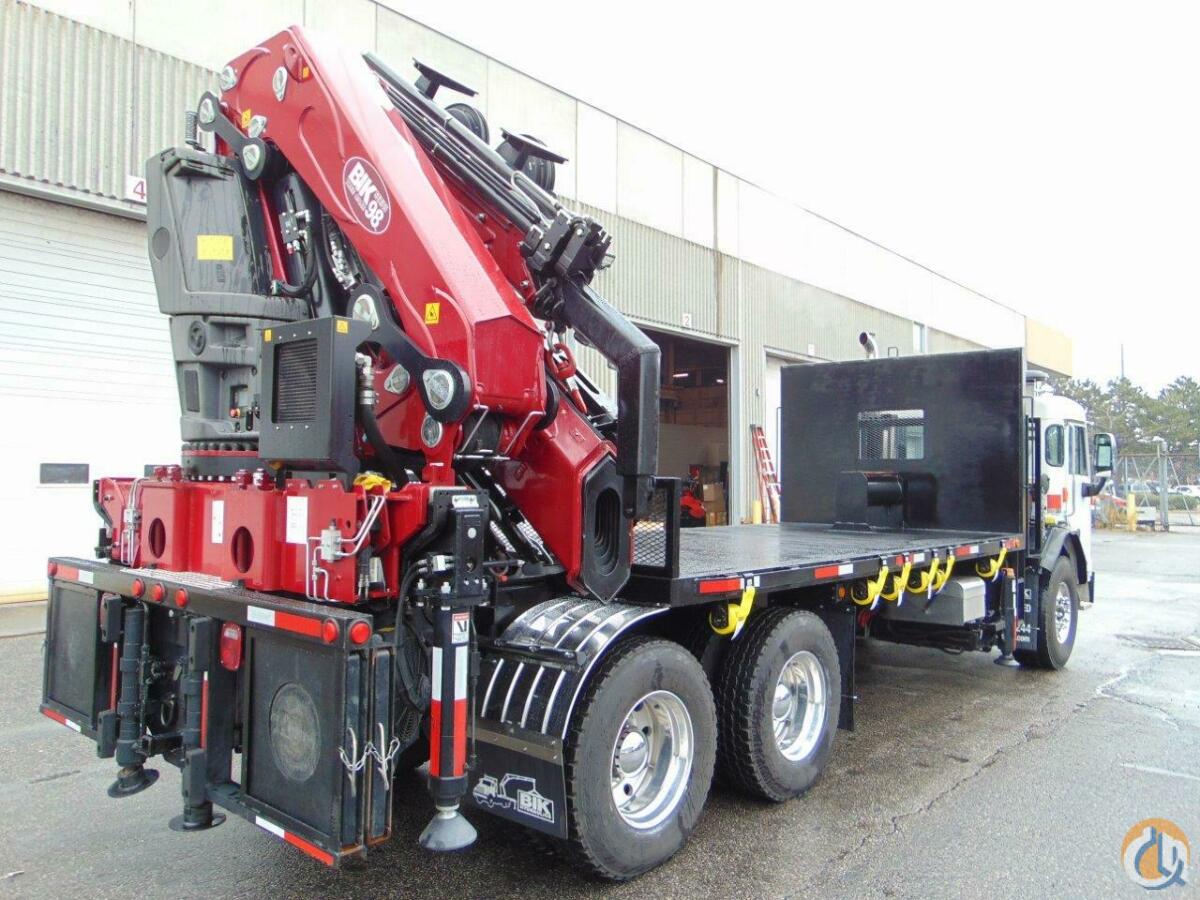

BIK Tree-Care Series TC-98 – 54.5 ton/m Knuckle Boom (was New in 2021)
- 6 hydraulic extension Knuckle Boom w/Detachable 3 extension jib + 1-grapple extn
- Including (1) Grapple extension in jib, Boom Capacity of 2,230 lbs @ 98’ Vertical Reach
- Main Boom Horizontal Capacity:
- 21,000 lbs @ 14’
- 10,900 lbs @ 25’ 8”
- 6,800 lbs @ 38’ 8”
- 4,830 lbs @ 53’ 6”
- Jib Horizontal Capacity:
- 2,100 lbs @ 63’
- 1,850 lbs @ 75’ 4”
- 1,700 lbs @ 82’
- Grapple man extn to 86’
- “Power-Link” connecting rods at First Boom and Knuckle, Double pilot operated on slewing and pilot check valves on all cylinders
- Planetary Gear Rotation Motor & Continuous Boom Rotation – for maximized slewing torque and reliability
- 15 Degree negative angle on main knuckle, 20 degree negative angle on jib – Hyd Extra Wide Main outriggers at base – 25’ 7” total span
- Auxilary Stabilizers – Extra wide type – 21’ span, hyd out & down type at rear – Front Bumper Hyd Stabilizer – 100% stability 360 degrees
- Two Hydraulic Oil Coolers, high pressure return filter and 100 gal custom hydraulic oil tank with Enviro-Friendly AW-46 weight Hyd Oil
- DANFOSS Proportional Control Valve mtd on Column & SCANRECO Proportional Radio Remote Control w/2 batteries, charger & back up cord
