BOOM DETAILS

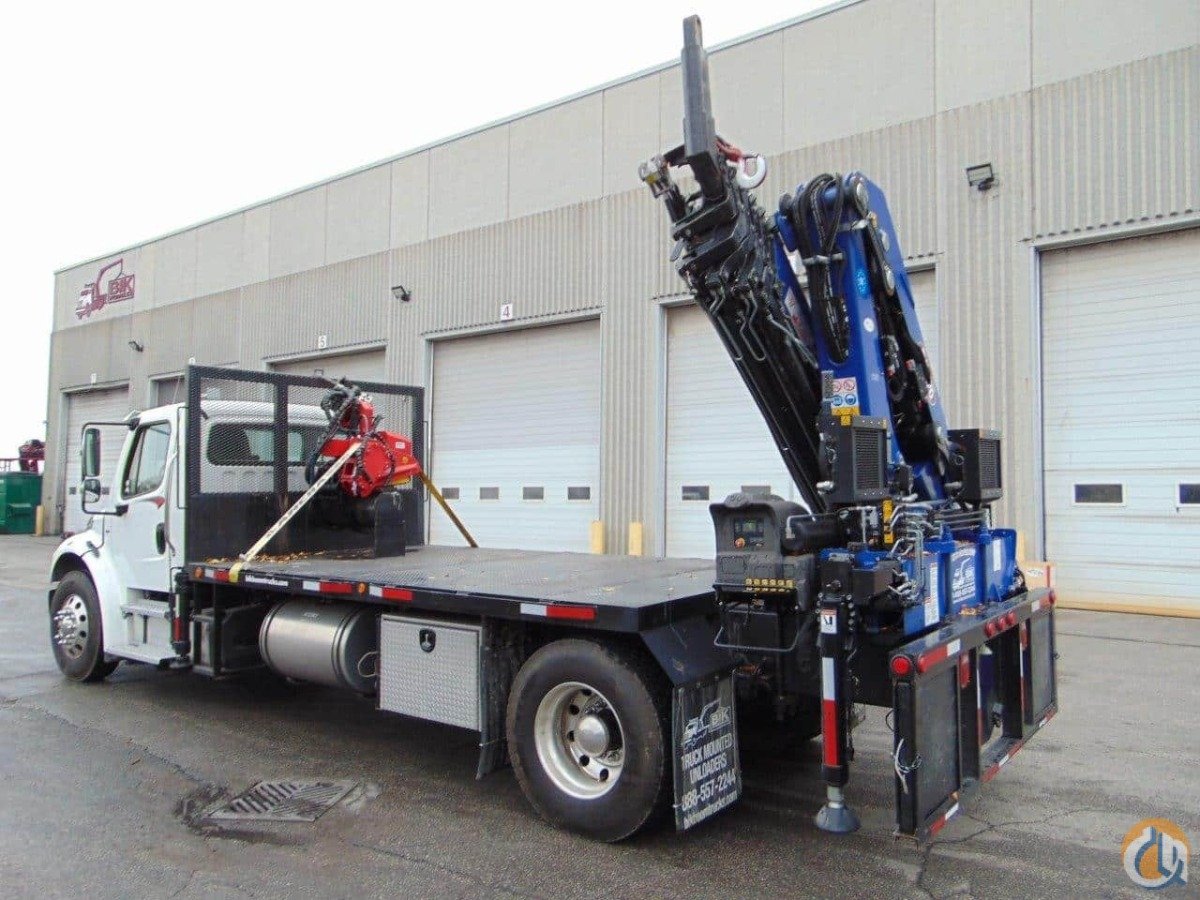

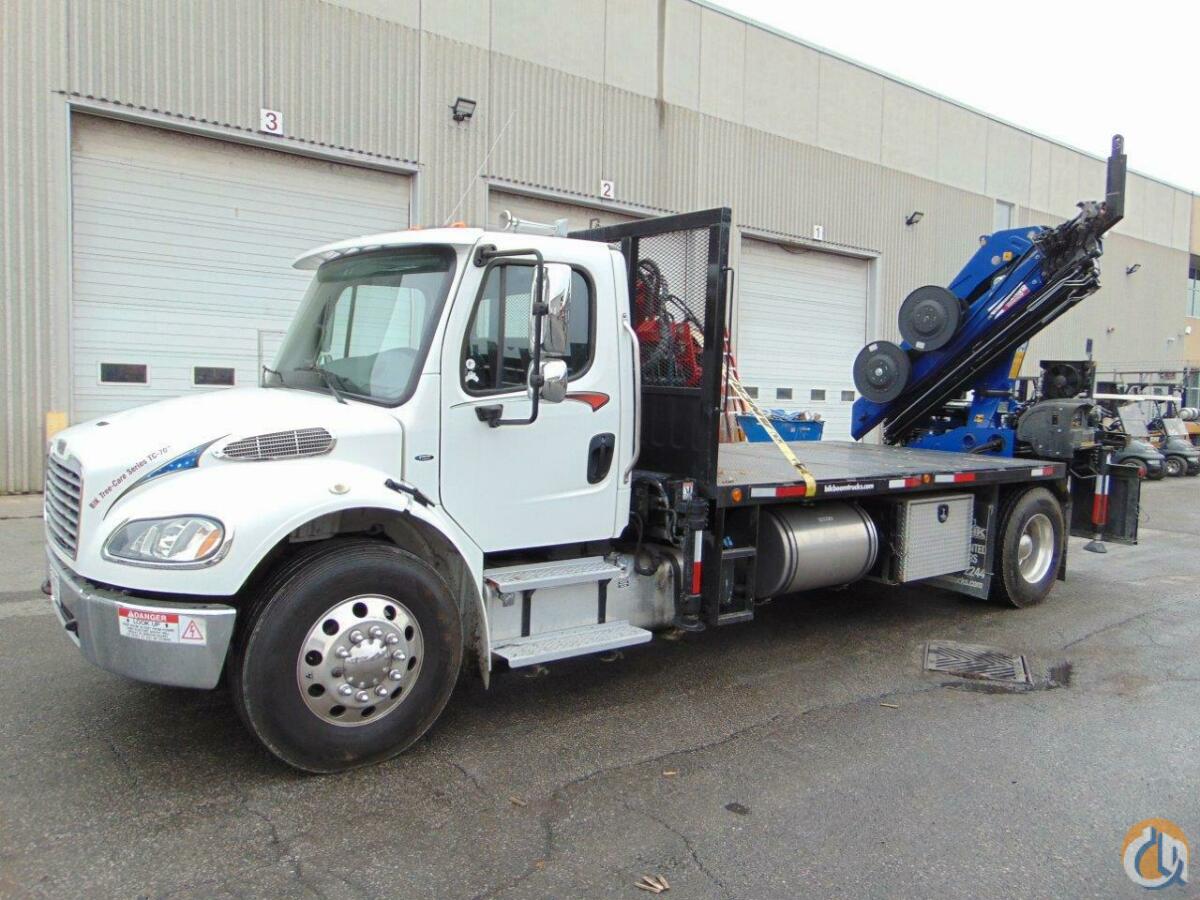

Used – BIK Tree-Care Series TC-70 (PM 23.5 ton/m):
- 6-hydraulic extensions & one manual grapple extension
- Vertical Reach of 70’
- Handles 3,800 lbs @ 70’ Vertical
- HORIZONTAL Capacities:
- 9,800 lb @ 14’
- 5,900 lb @ 20’
- 4,330 lb @ 26’
- 2,560 lb @ 40’
- 1,750 lb @ 55’
- 408 Degrees Rotation on Main Hydraulic Slewing
- Double pilot operated on slewing and pilot operated check valves on all cylinders, Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
- DANFOSS Proportional Valve Controls – single sided operator control station, Load Holding Valves on all cylinders
- PM Power–Tronics electronic monitoring & load control with Stabilizer deployments sensors & didgital read-out on the remote
- SCANRECO Radio Remote Control
- Hydraulic OUT and Hydraulic DOWN Extra Wide – 21’ 6” span , 2-sided stabilizers w/ round foot pads welded to bottom of cylinder.
- 15 degree negative angle on folding arm – Hydraulic Overload Protection – simplified sysTem that prevents boom from overload
- Two functions plumbed to end of 6th extn, – Heavy Duty Pedestal Turning Cylinders for greater turning torque & reduced wear
- Load Tested & Installed behind cab, with integral sub-frame to meet or exceed all CMVSS Standards
