FOR RENT/RPO

345' boom,  49 ' jib. HSL3AF wind kit

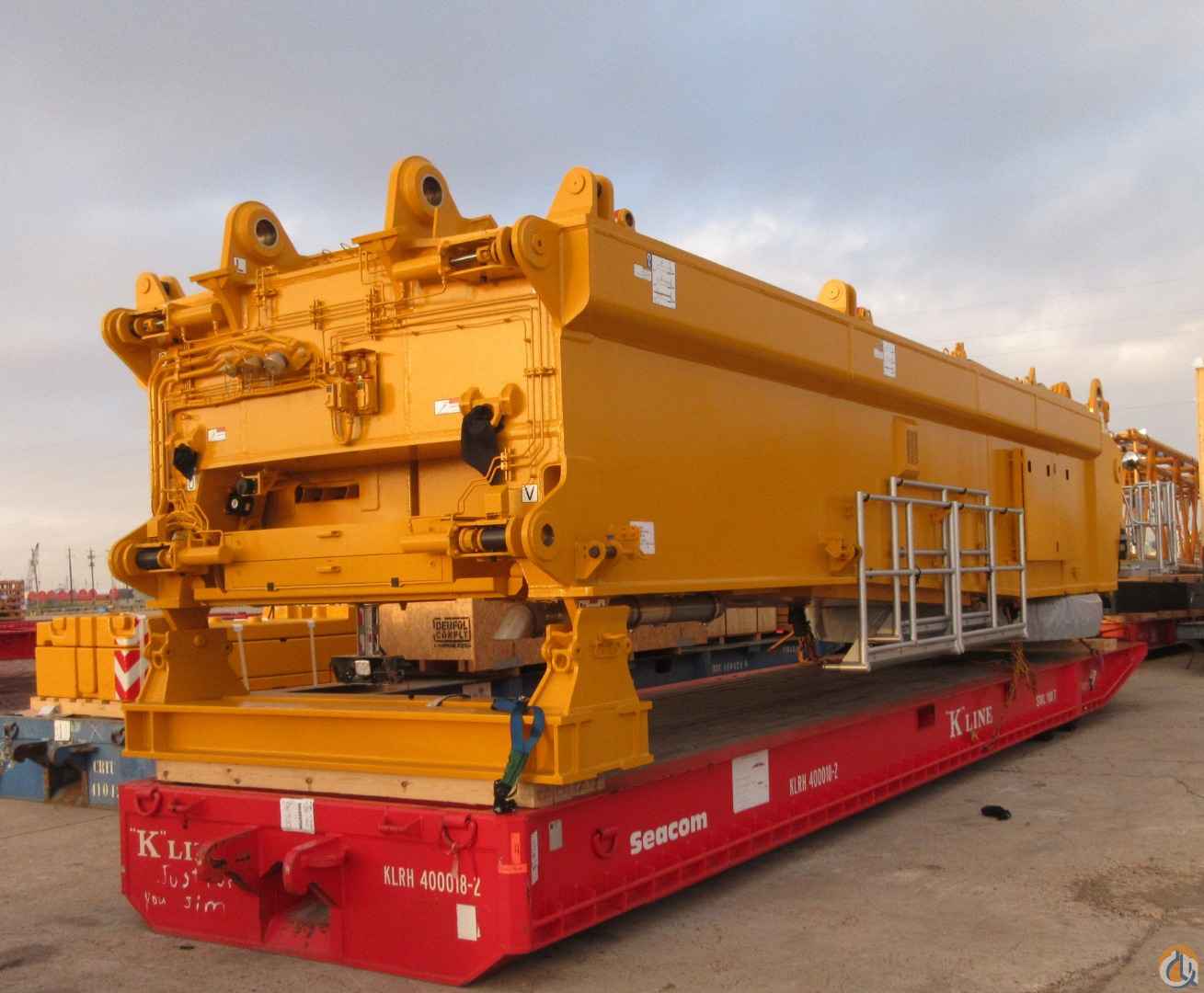

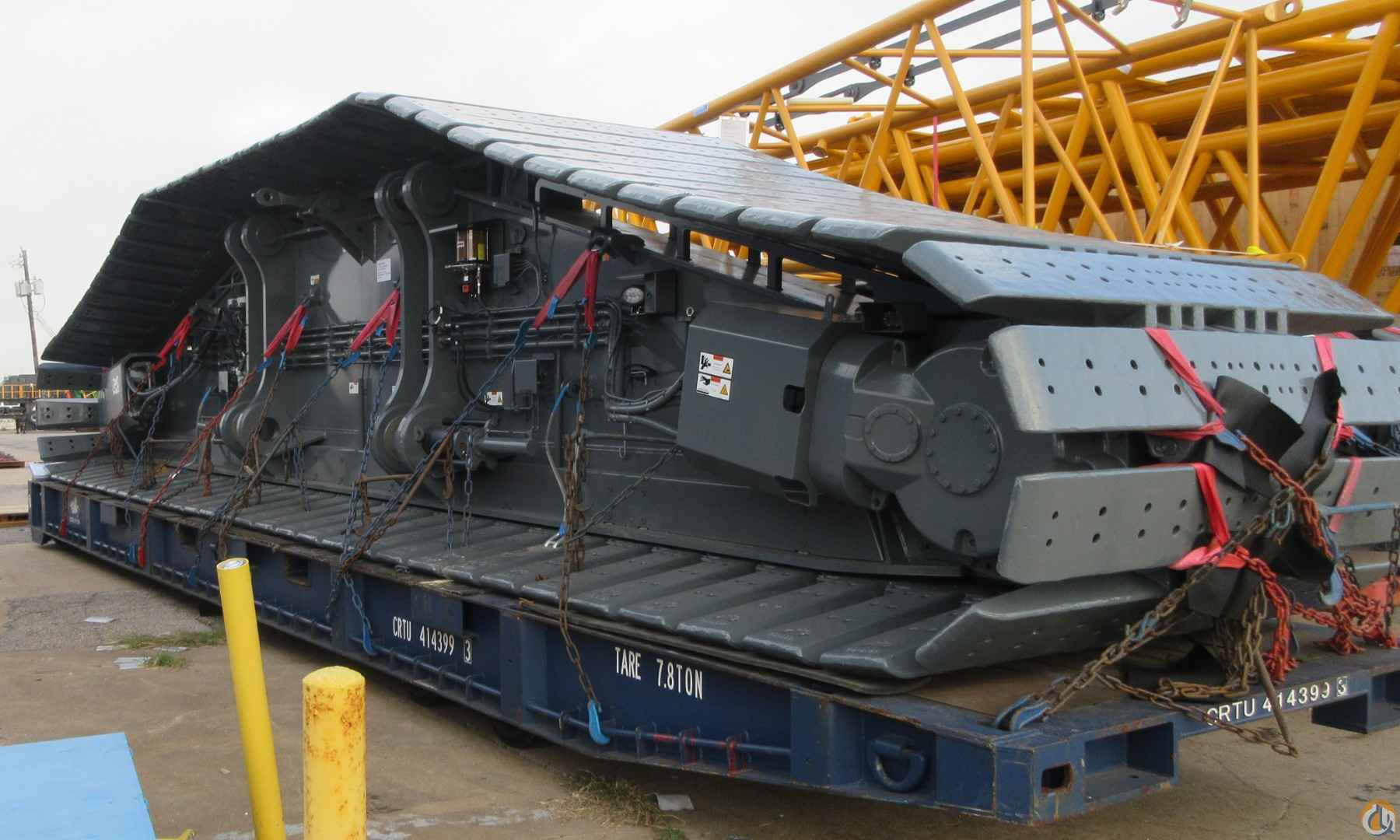

Crawler chassis

- Crawler center section

- Central ballast brackets 2 x 5 tm, incl. hydraulic assembly jacks (without ballast plates)

- Two crawler side frames, crawler pads (width 2,0 m), driving gear (4-fold drive)

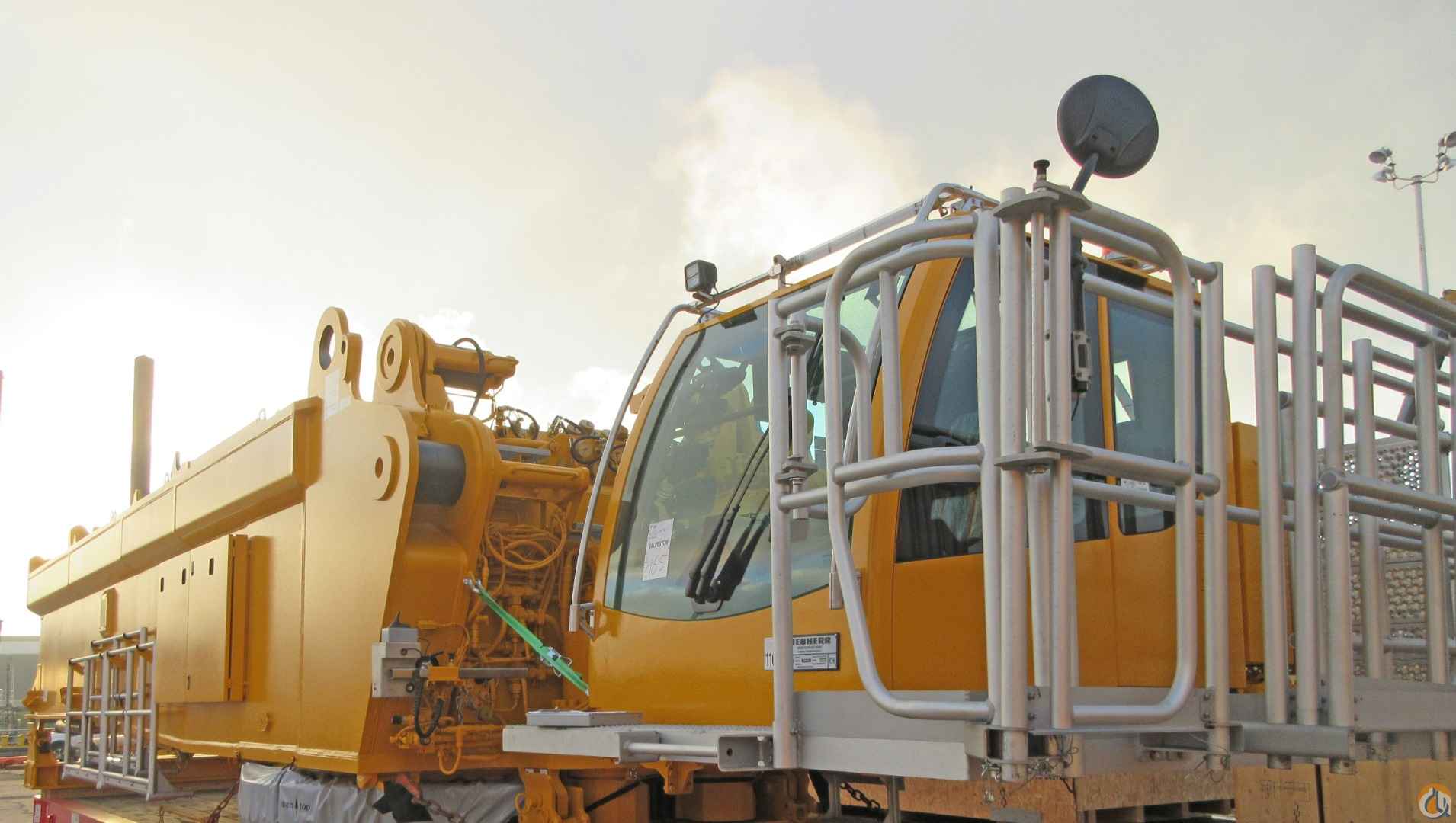

Superstructure

- Roller slewing ring with Quick Connection

- Slewing gear, double

- Superstructure counterweight brackets 30 t (2 x 15 tm) (without ballast plates)

- Spark arrestor, engine shutdown valve with emergency button

- Winch I - hoist gear

- Winch IV - derricking main boom

Reeving winch

Standard painting

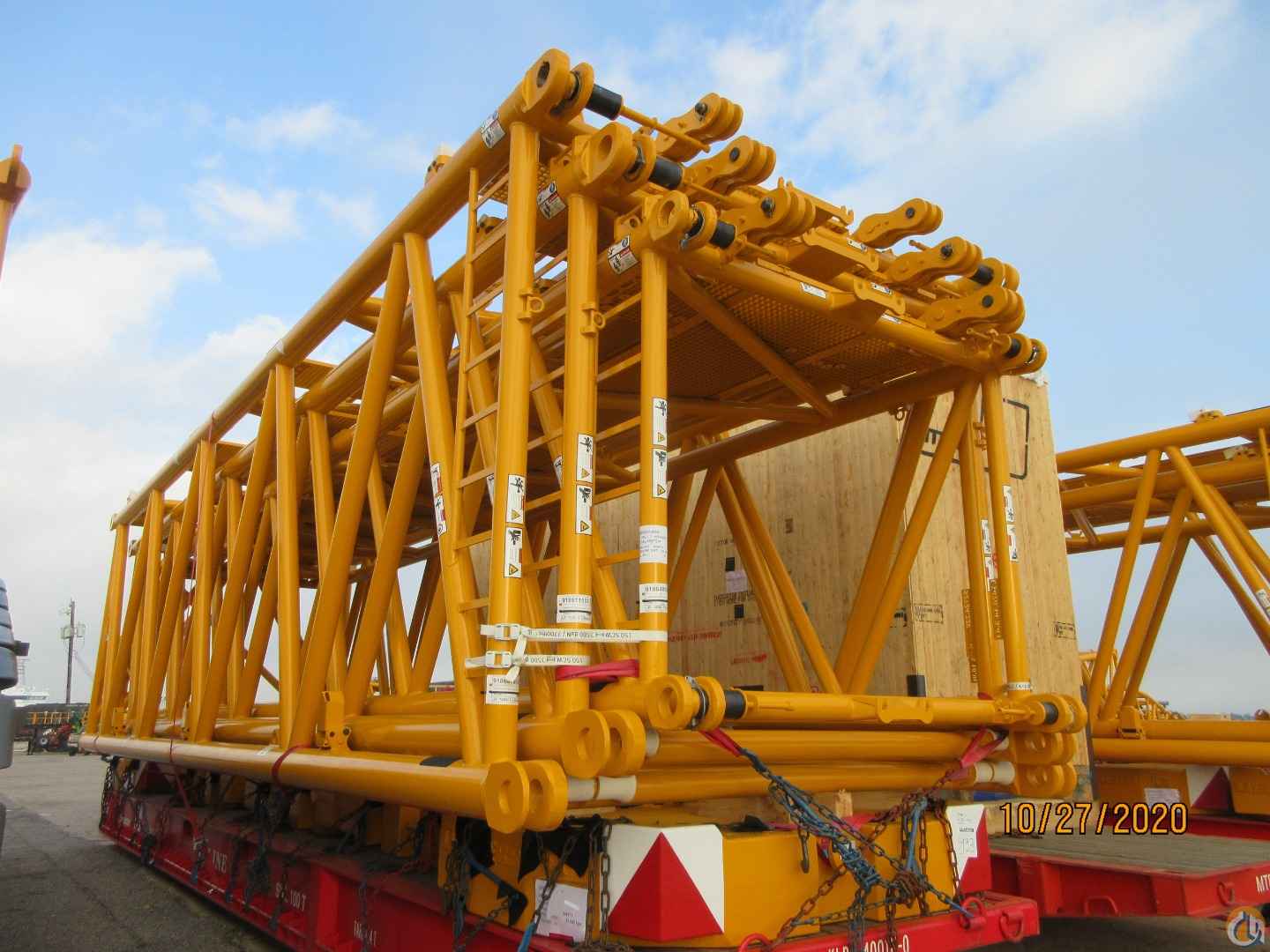

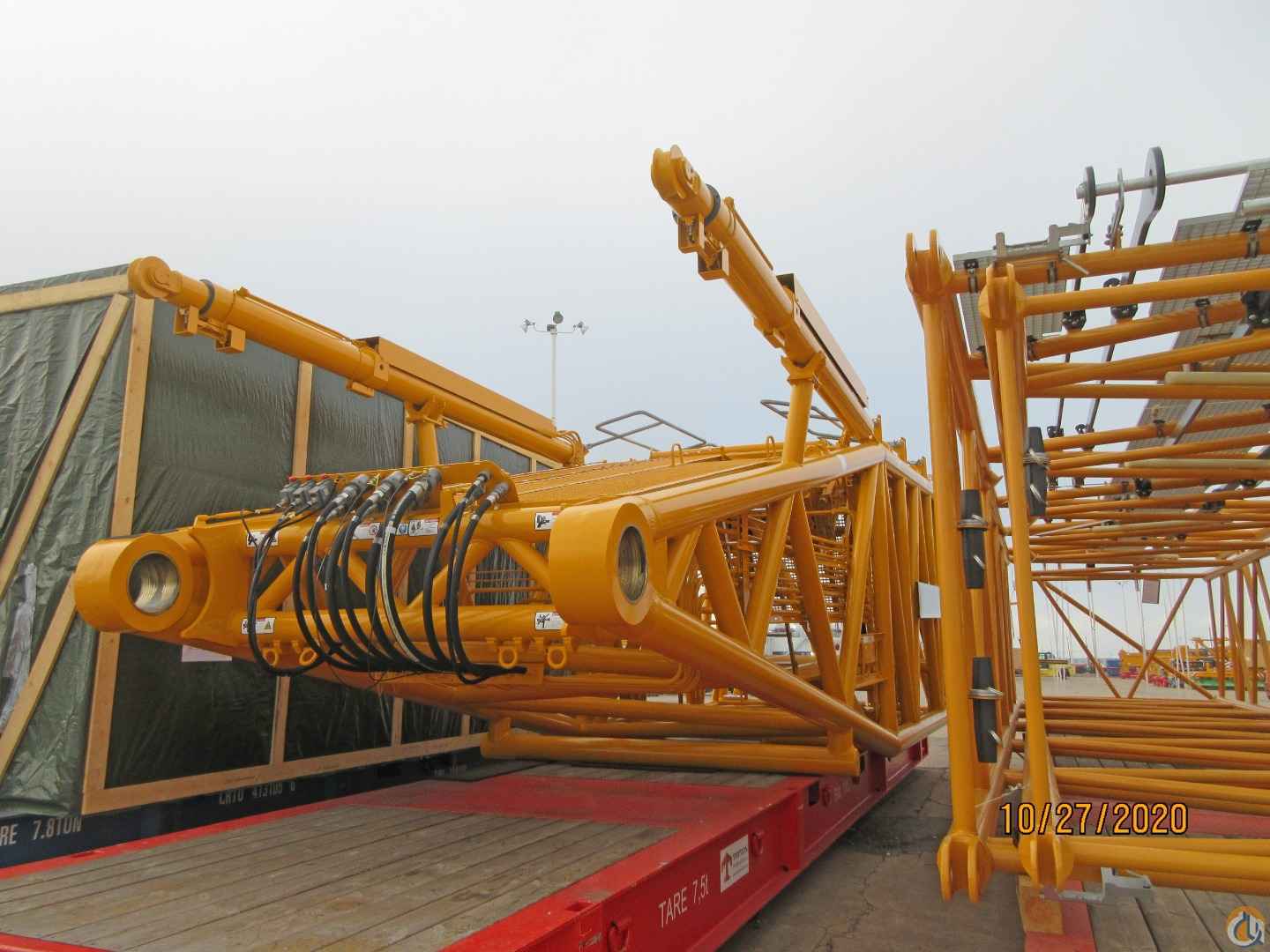

Main boom systems – wind turbine erection

1508      Main boom HSL3 - 102 m + F-12 m for HSL3AF incl. S-3 m, F - adapter

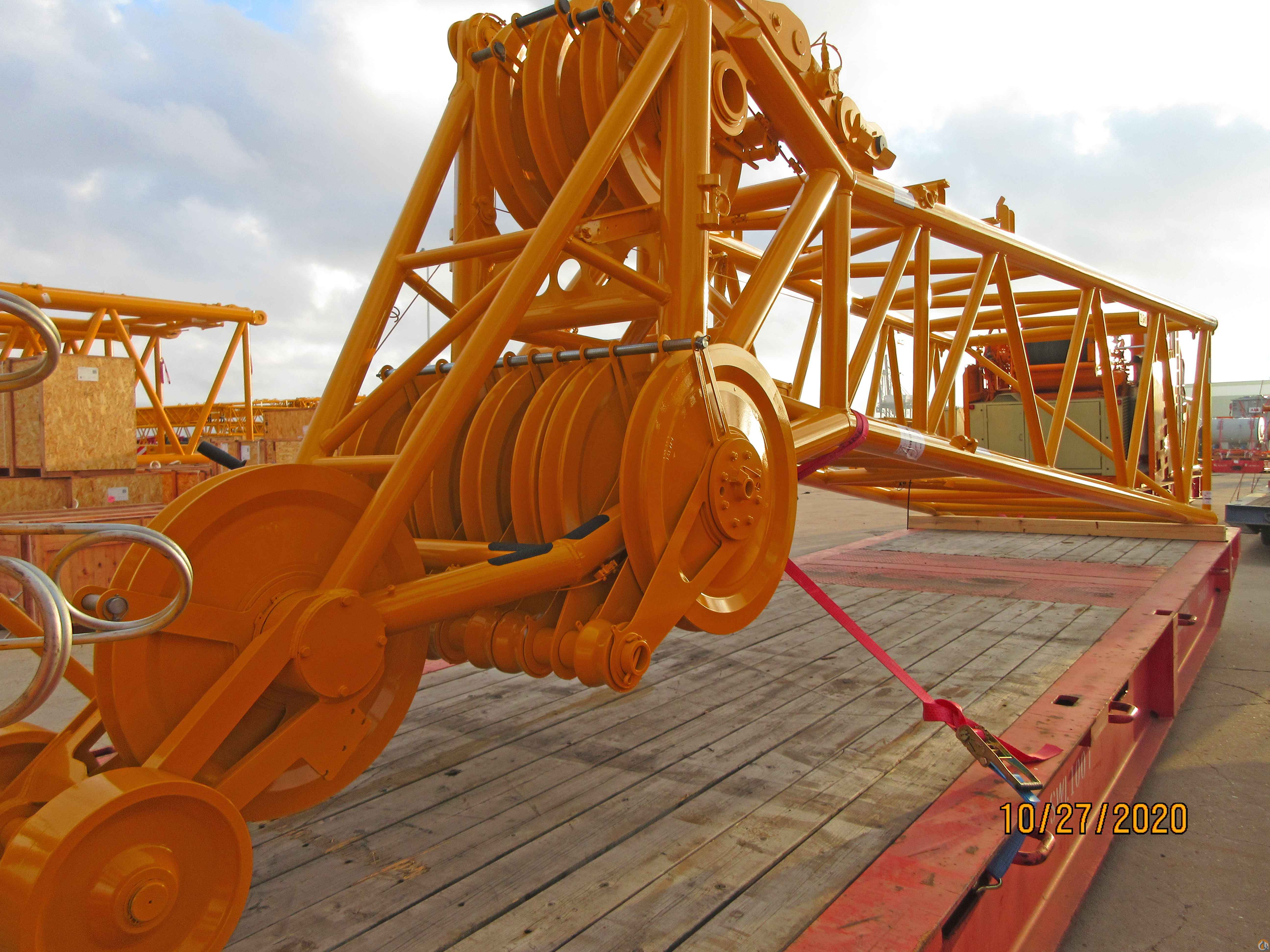

9810      L-head section 450 tm

9813      Extension to HSL3AF  105 m + F – 15 m consisting of:

                - 1 x S-intermediate section 3 m 2724.22

                - 1 x F-intermediate section 3 m 2116.7

                - 1 x S-intermediate section 12 m 2724.22

Winches

4000      Winch II - hoist drum

4090      Winch VI - auxiliary hoist drum (rope 25 mm)

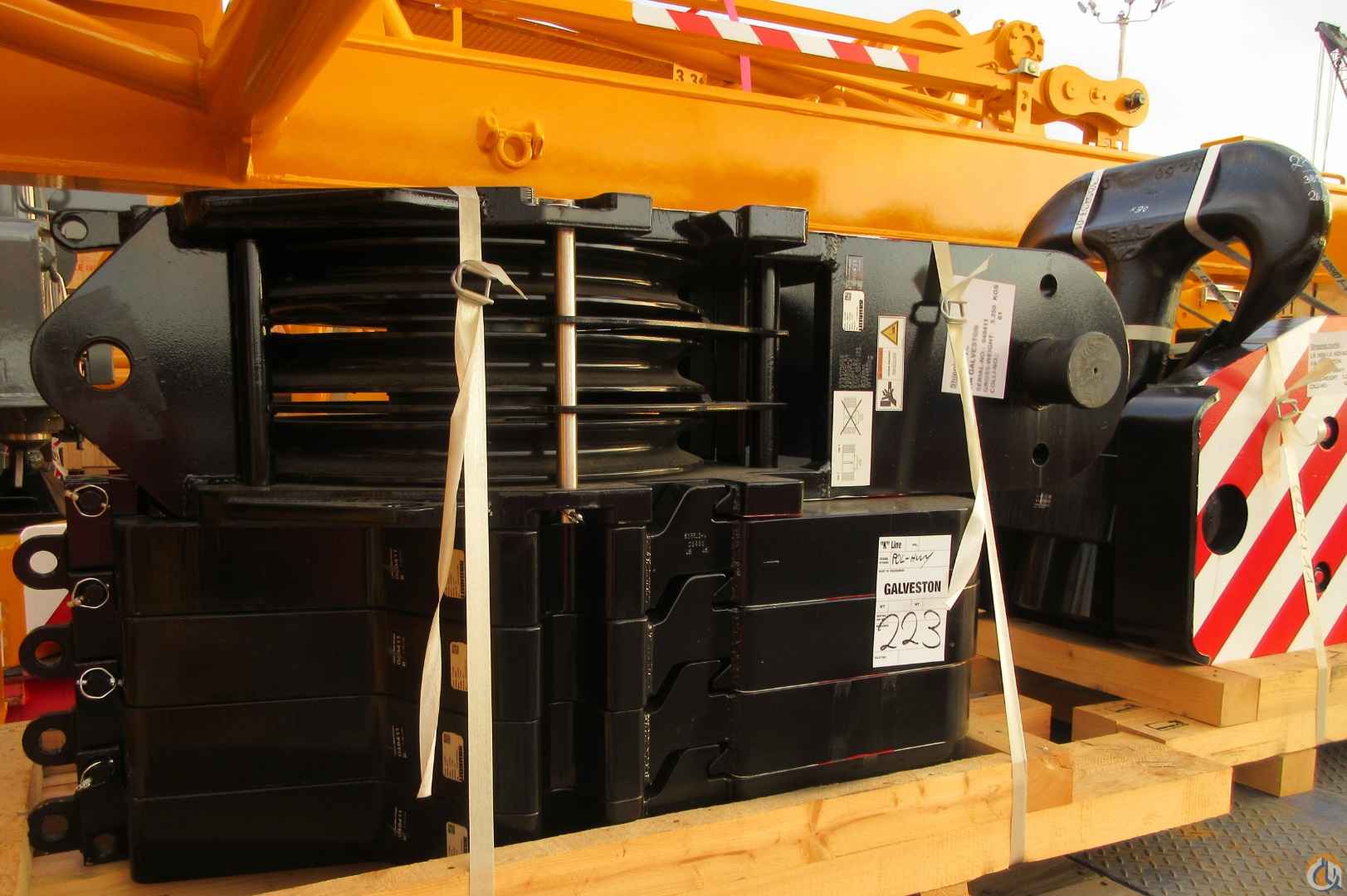

Hook blocks

4300      Hook block 210 tm - 5-sheaves

4350      Crane hook 20 t m

9811      Hook block 185 tm - 2 x 3 sheaves

Counterweight

7151      Additional counterweight 200tm for total 230 tm

9812      Additional central ballast 120tm for total 130 tm

Additional equipment

9300      Mechanical outriggers

9320      Hydraulic assembly cylinder

9340      Hydraulic pin pulling device (mini crawler)

9814      Crawler pads, width 2.4 m
