Features

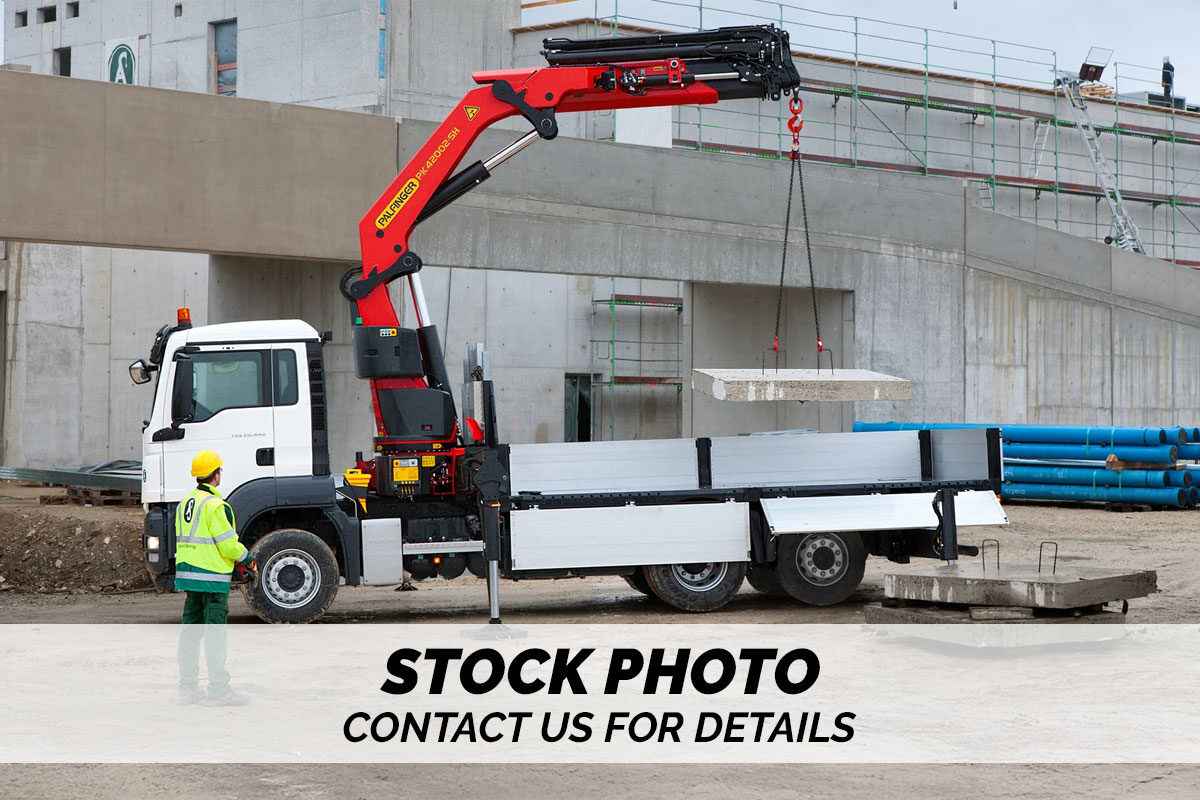

PK 42002 SH-B High Performance knuckle boom crane - Power Link Plus delivers extreme versatility and enables crane work even under difficult conditions - High value retention thanks to KTL coating technology - Increased comfort and safety due to Soft Stop - Maximum utilization of the working range due to HPSC - More lifting power due to S-HPLS - More efficient and faster due to continuous slewing Lifting Capacities: - Lifting moment: 285603.8 ft-lbs - Outreach: 30’ 10” Technical Data - Max. lifting moment: 297270.0 ft lbs - Max. lifting capacity: 32848 lbs - Max. hydraulic outreach: 68' 11" - Max. manual outreach: 82'8" - Max. outreach (with fly jib): 102' 4" - Slewing angle: ∞ - Slewing torque with 2 gears: 36210.0 ft lbs - Stabilizer spread (std): 291.34 in - Fitting space required (std): 51.97 in - Width folded: 98.84 in - Max. operating pressure: 5293 psi - Pump capacity: 23.8 - 31.7 gpm - Dead weight (std): 8488 lbs
