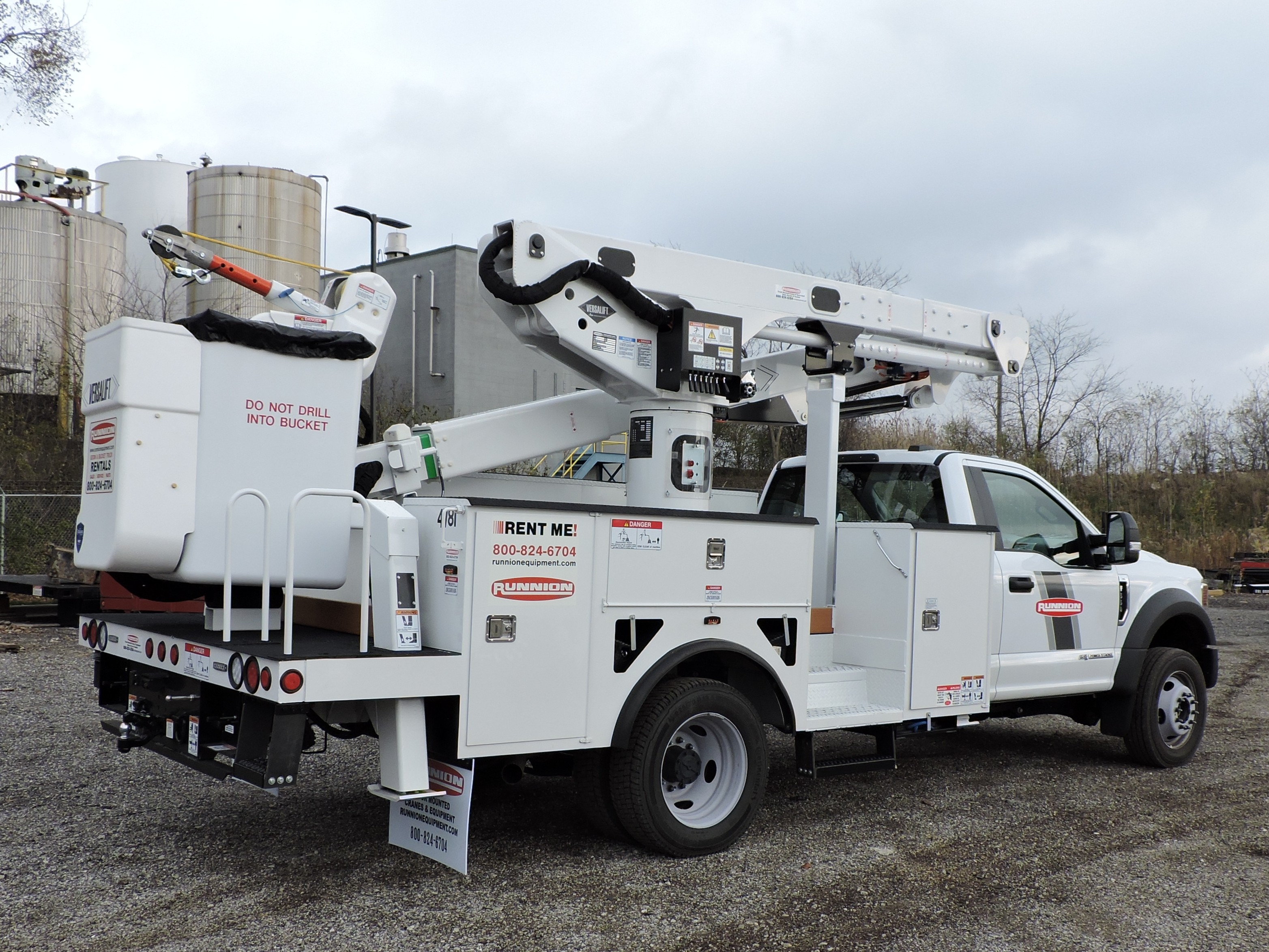

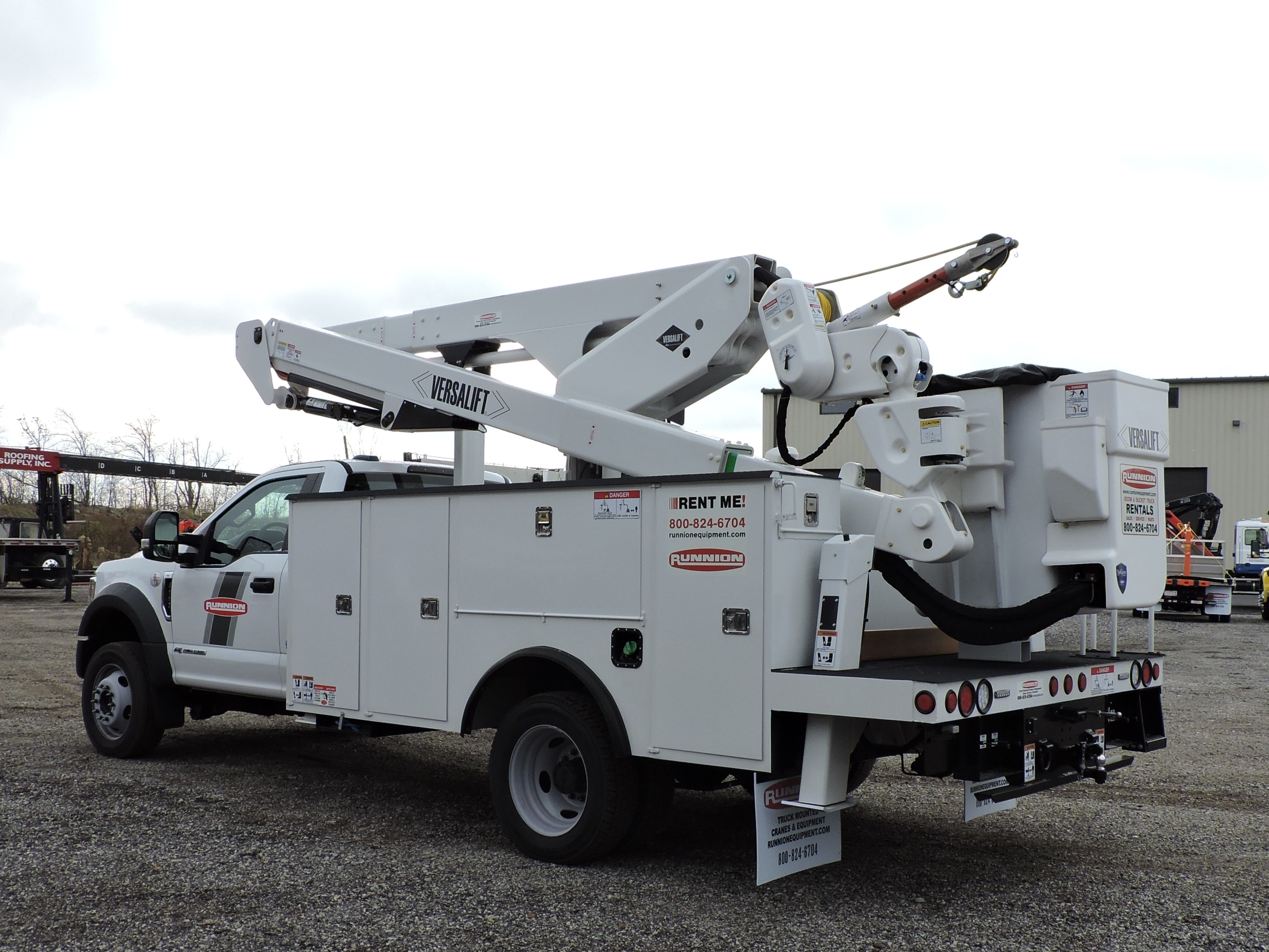

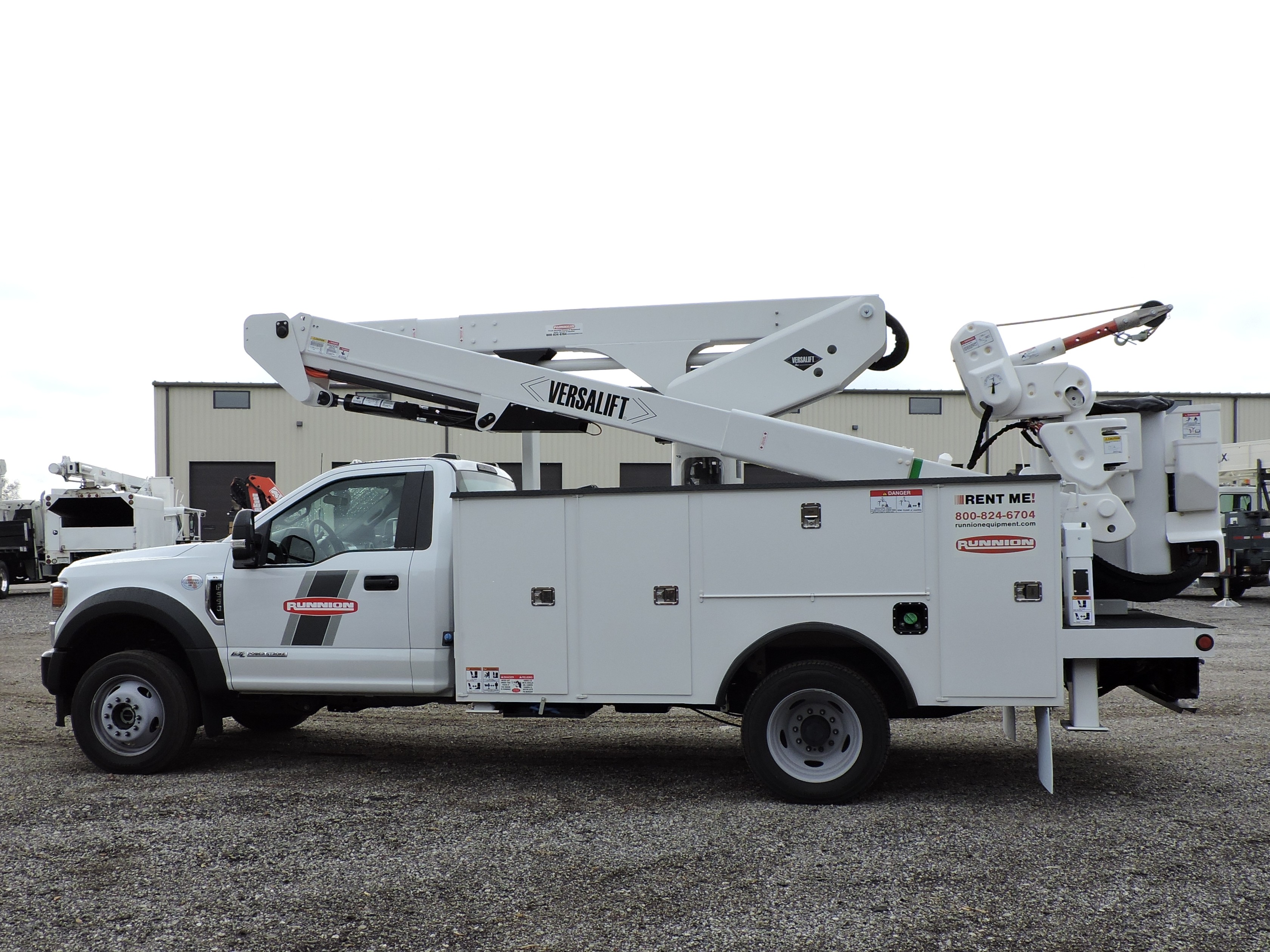

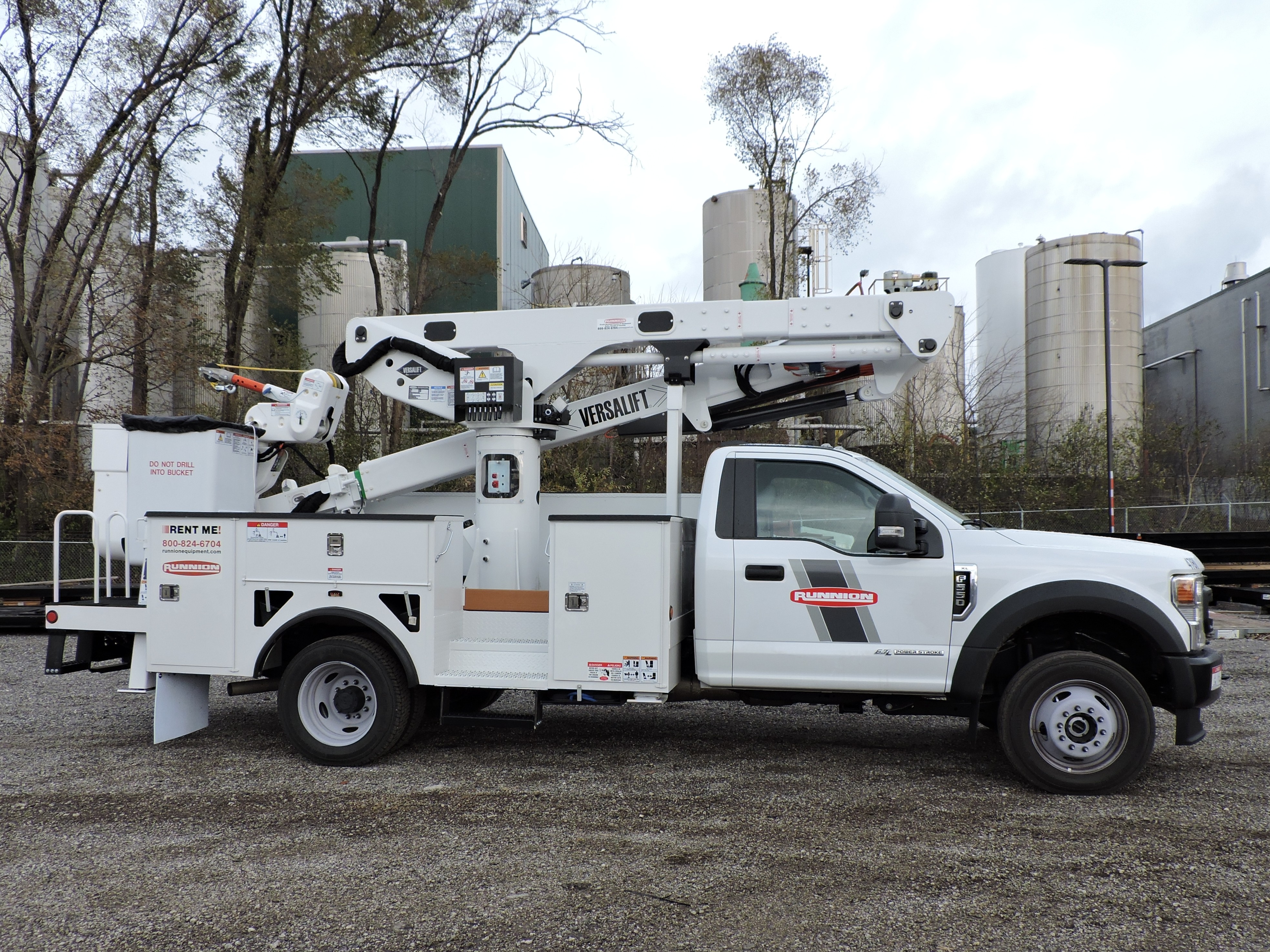

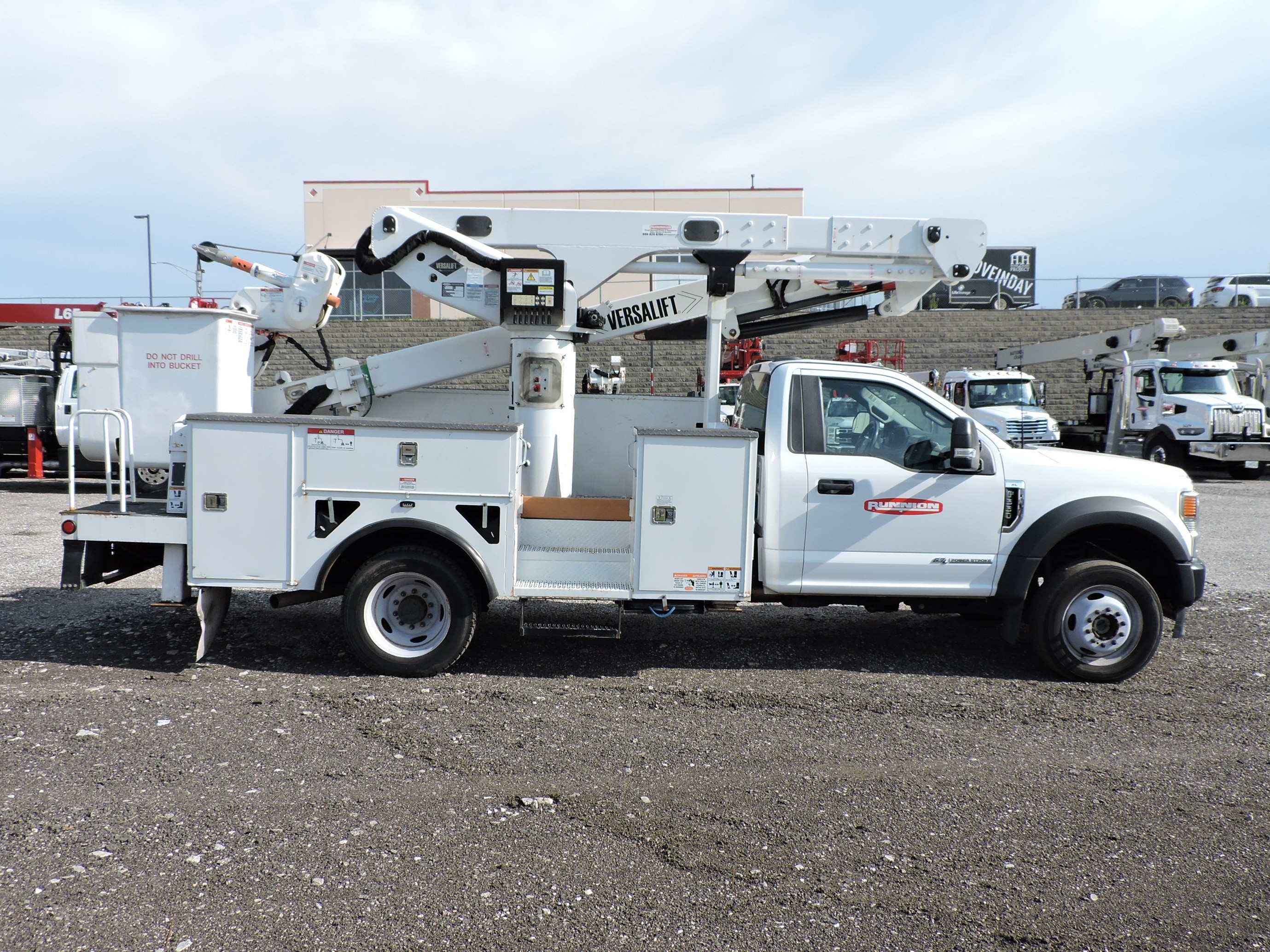

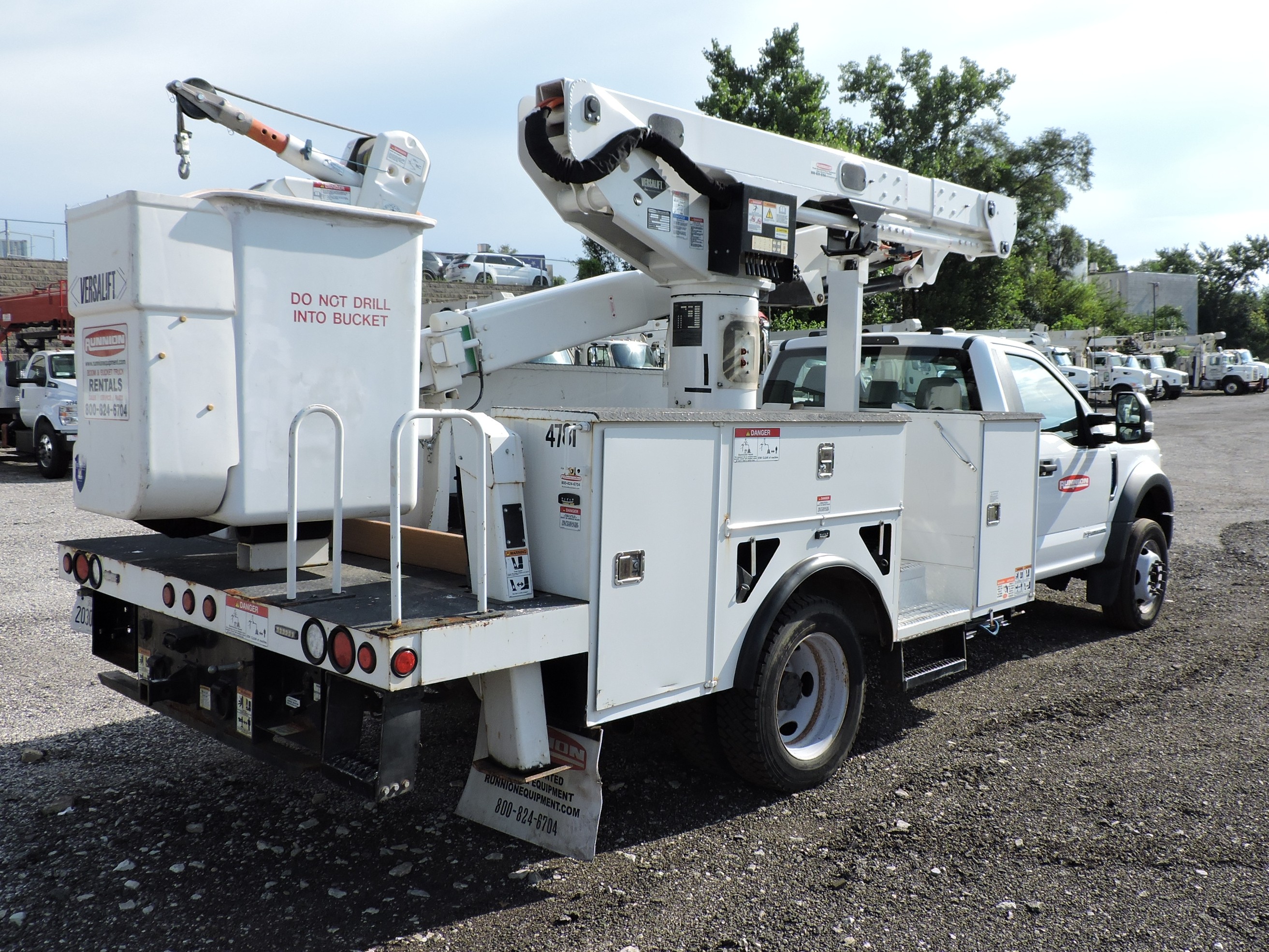

VERSALIFT VST-47-MHI equipped as follows:

-          52 ft. 4 in. working height

-          30 ft. 9 in. horizontal side reach

-          Platform capacity of 300 lbs

-          Side mounted closed one-step 24 in. X 30 in. X 42 in. fiberglass platform

-          Platform liner and vinyl cover.

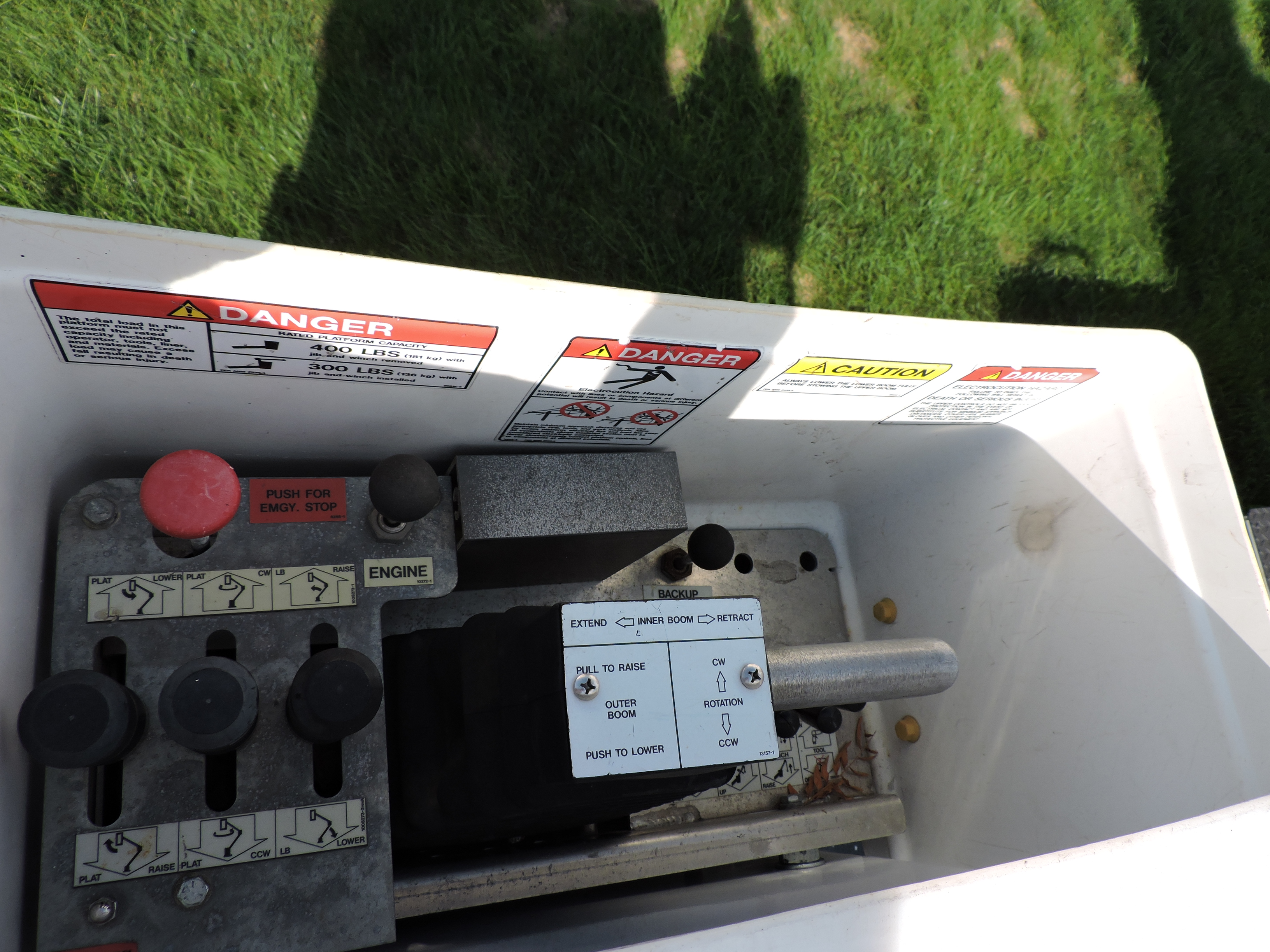

-          TruGuard™ dielectric isolating system with right hand single-stick control.

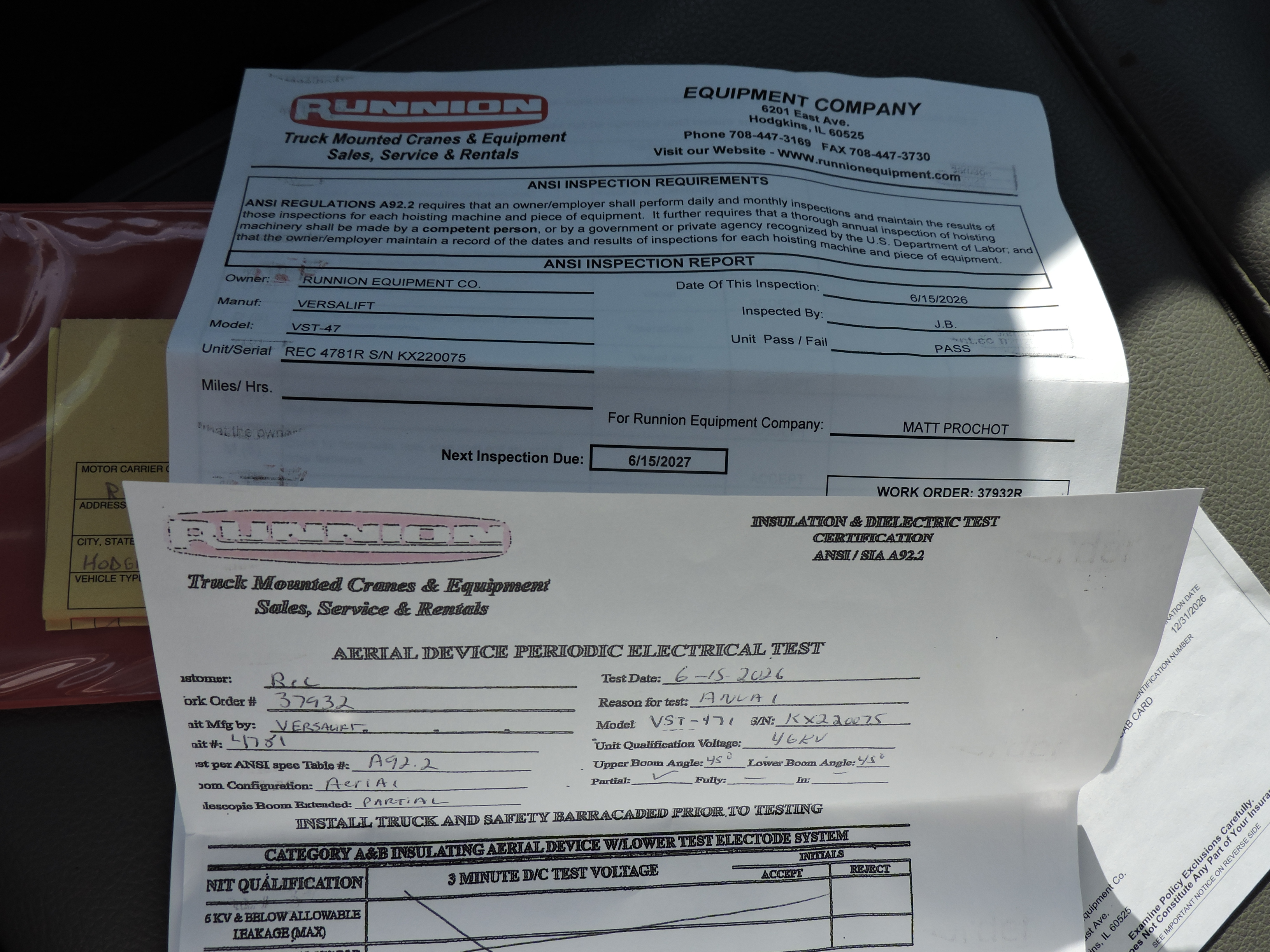

All control handles are isolated and tested per ANSI 92.2. The high resistive
dielectric system is protected from direct environmental and job related
contamination.  TruGuard™ technology incorporates the use of full hydraulic
controls with durable metal handles and linkages.

-          180 degree Hydraulic platform rotator.

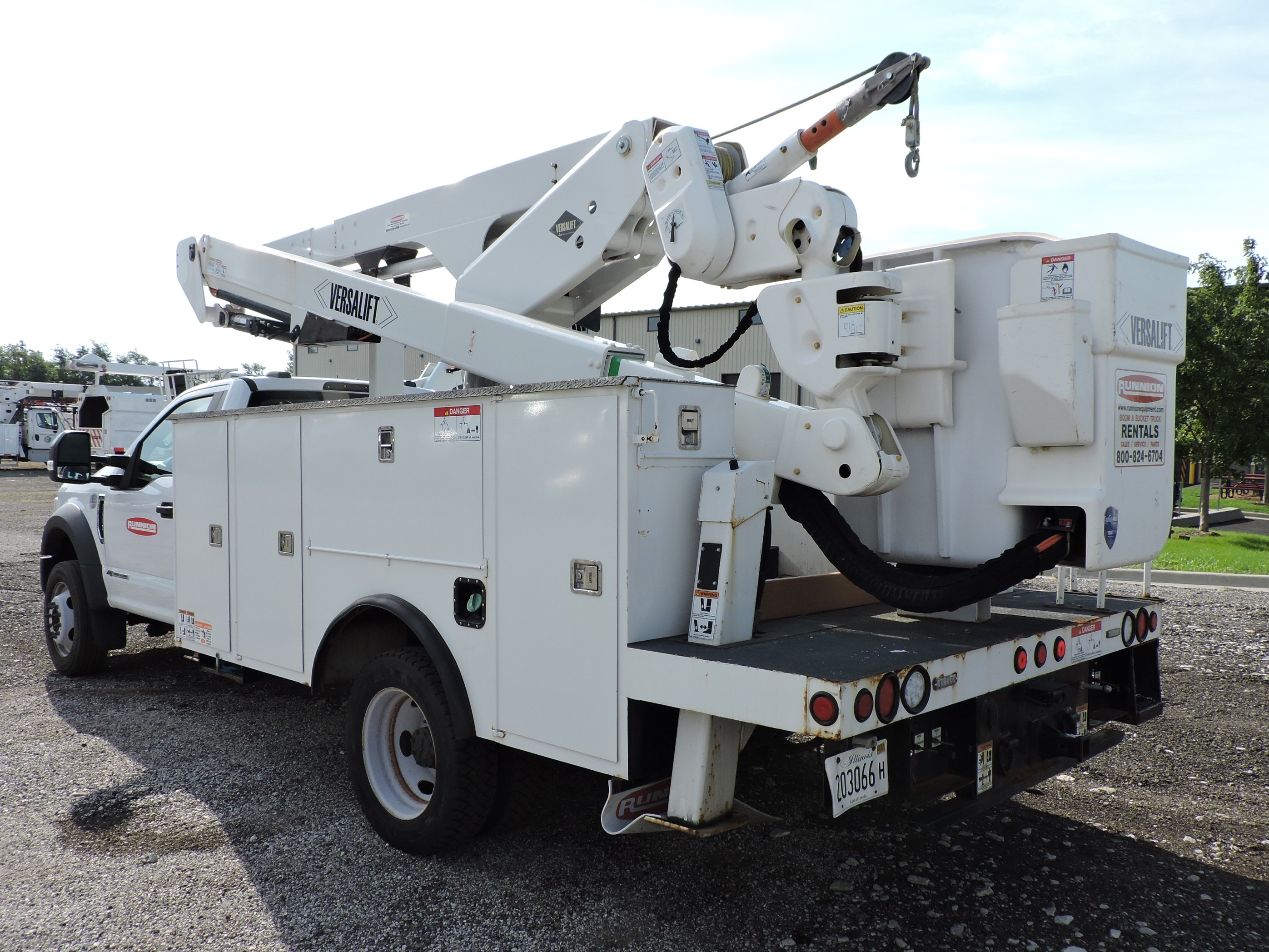

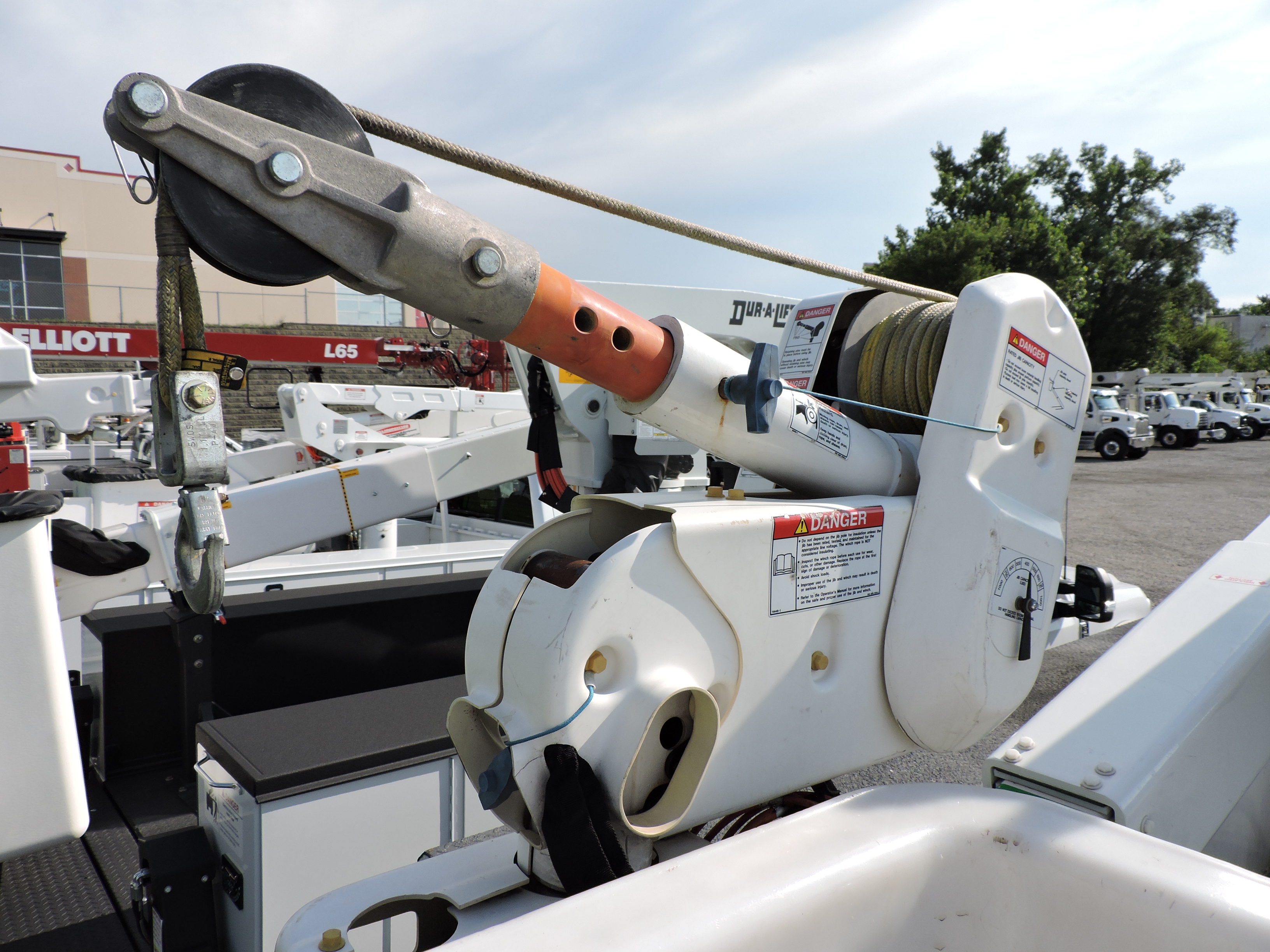

-          Hydraulic dual arm articulating jib pole and winch package for up to 1,000 lbs.
capacity, including insulated jib pole

-          360^o continuous rotation

-          Six GPM open center hydraulic system with a 3000 psi operating pressure

-          Side mounted telescopic upper boom allows low stowing of platform.
Fiberglass inner boom and patented ELECTROGARD provide insulation
gap of 41 inches fully retracted meeting ANSI A92.2 requirements for
Category C 46KV and below.

-          Chassis insulating system (fiberglass lower boom insert) providing 12 in.
insulation gap and including accommodations to bridge insulation gap for
testing per ANSI 92.2

-          ELECTROGARD and inner boom finished with white urethane paint
over a white gel coat.

-          Non-lube bearings used throughout.

-          One set of hydraulic tool outlets with pressure limit valve. Valve can be
adjusted from 1000 to 2500 psi.

-          Sub frame mounted main A-frame outriggers with pivot feet, two control
valves, and a selector valve.

-          A-frame outriggers with pivot feet

-          Outrigger boom interlock system for main and auxiliary outriggers

-          Integral reservoir with a 17-gallon (64.4 l) capacity and dual sight gauges.

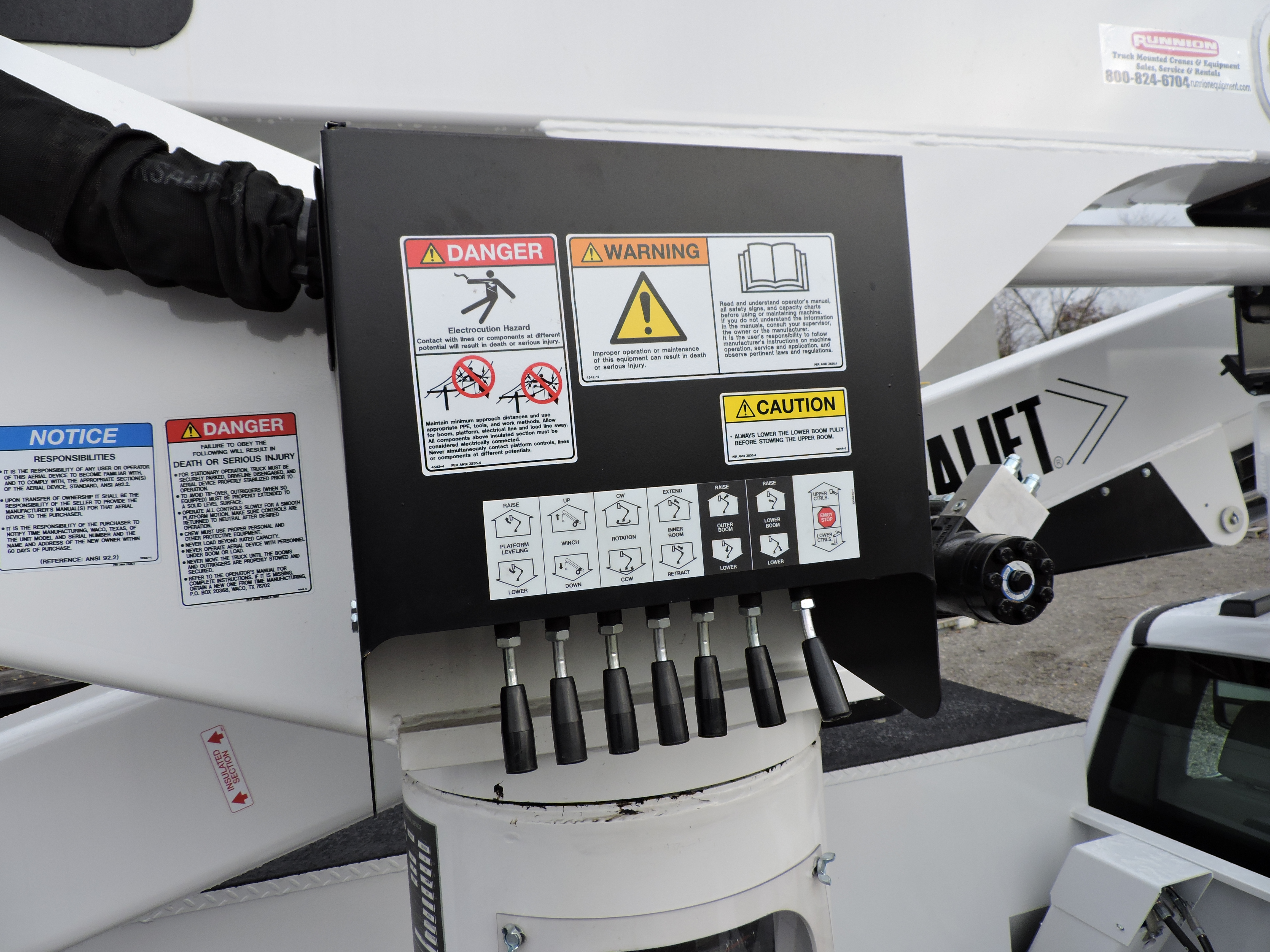

-          Individual full pressure controls at the turret actuate all boom functions
and is equipped with a selector valve  to override upper controls

-          12 volt DC backup pump providing power to all boom functions

-          Auto boom latch for mounting on inner boom. The rotary auto boom latch
works off the lift hydraulic pressure to open and close.

-          Standard white urethane paint

-          Safety harness and lanyard

-          Brand FX service body

MOUNTED ON:

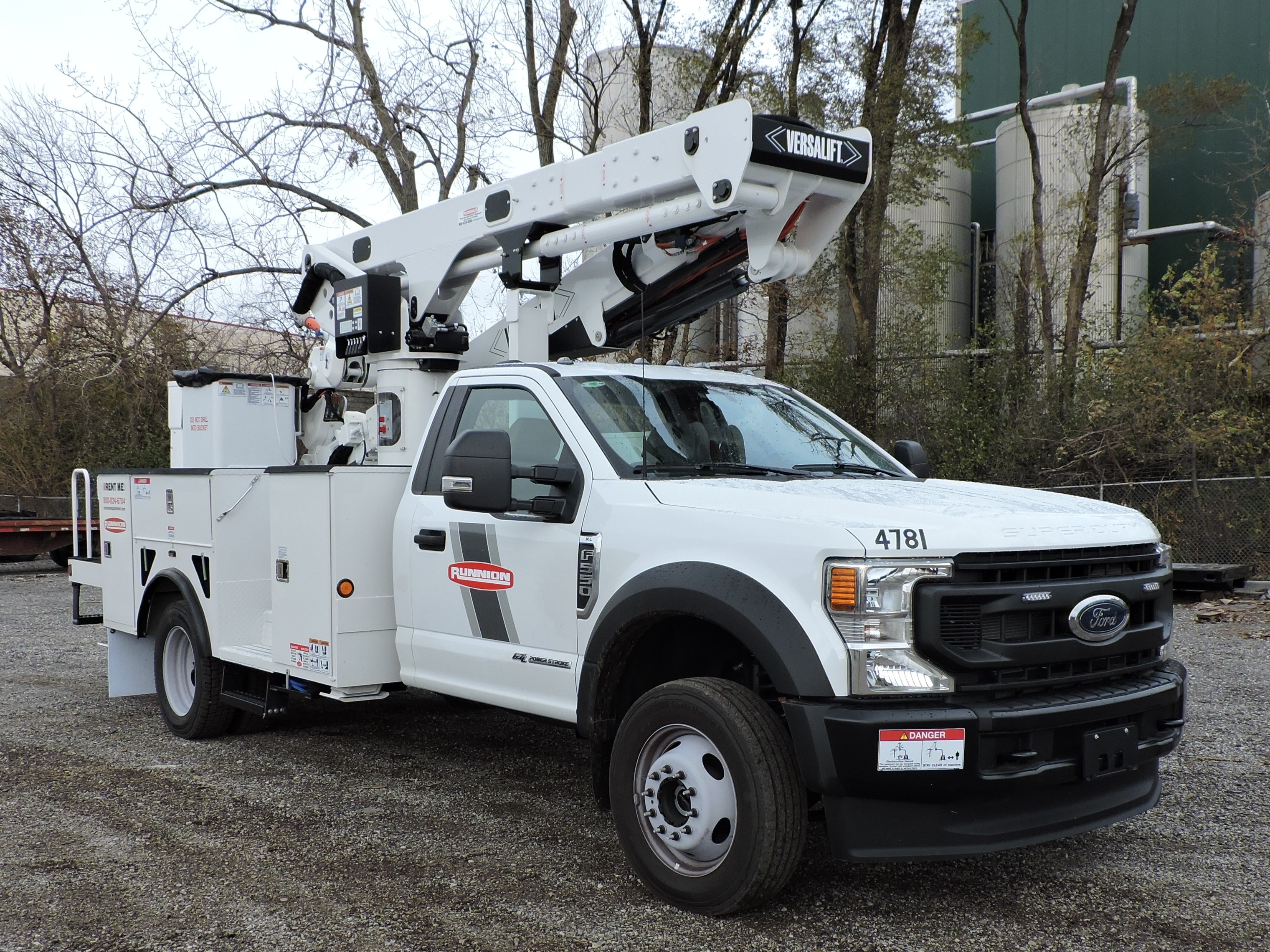

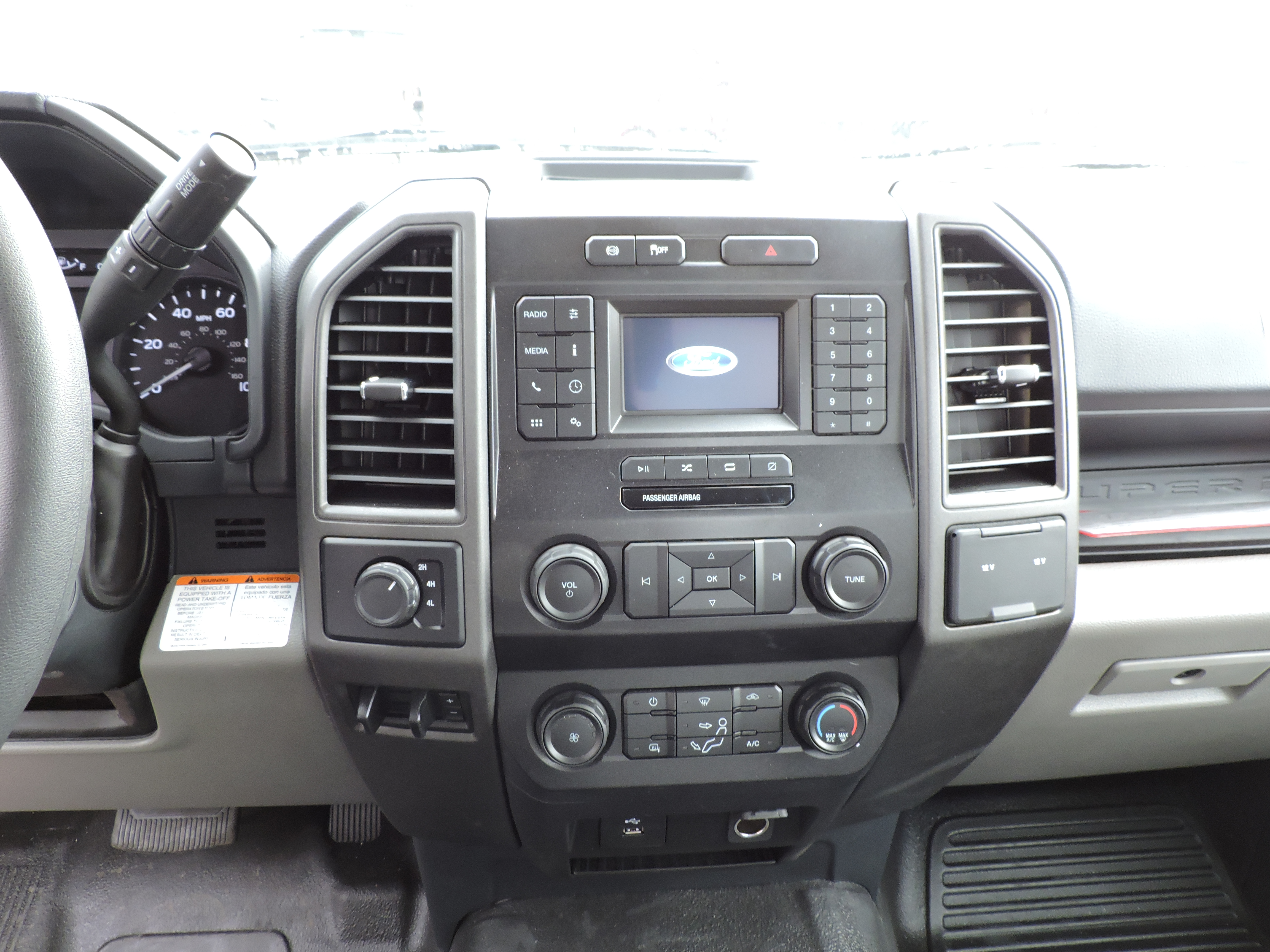

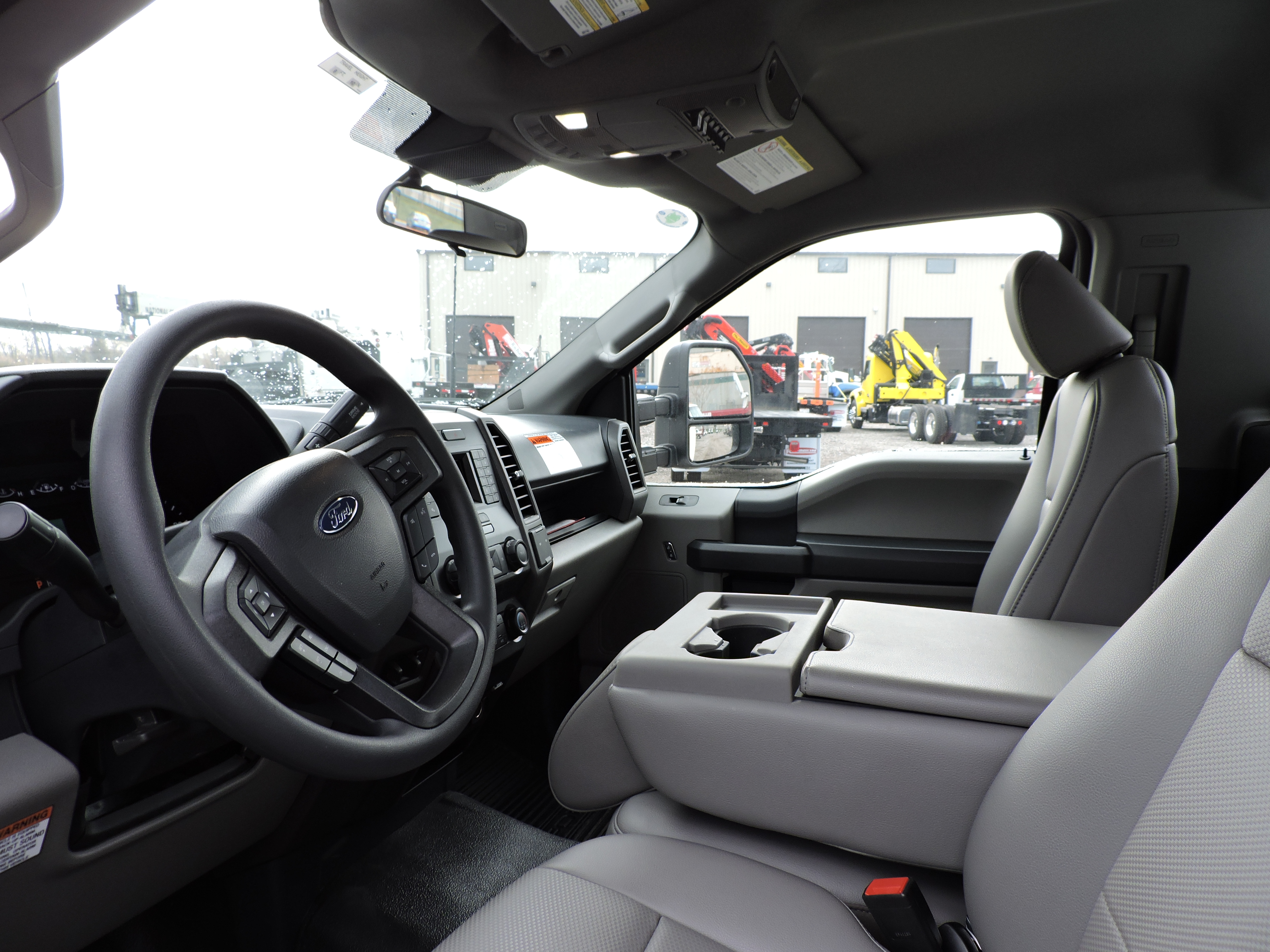

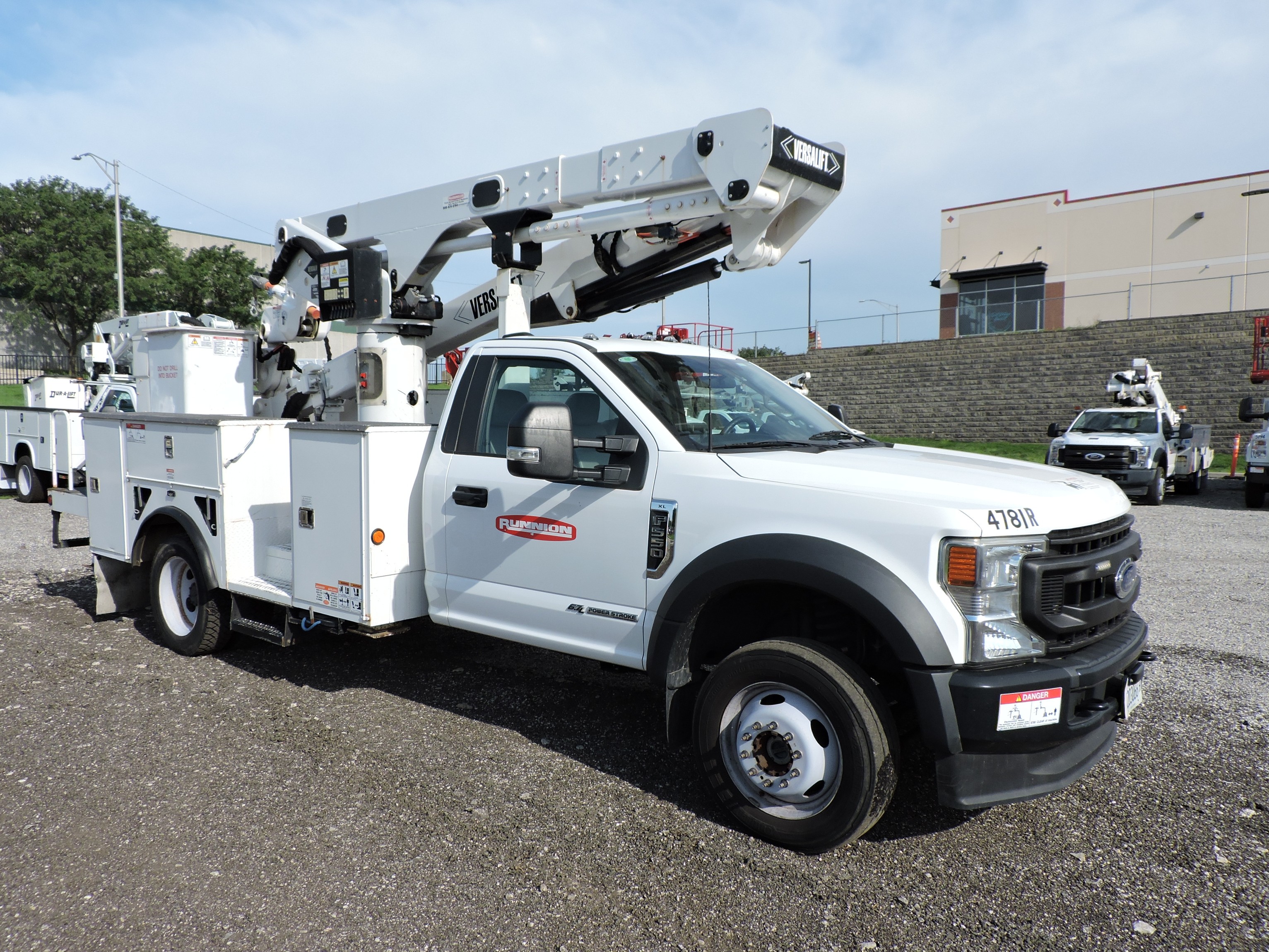

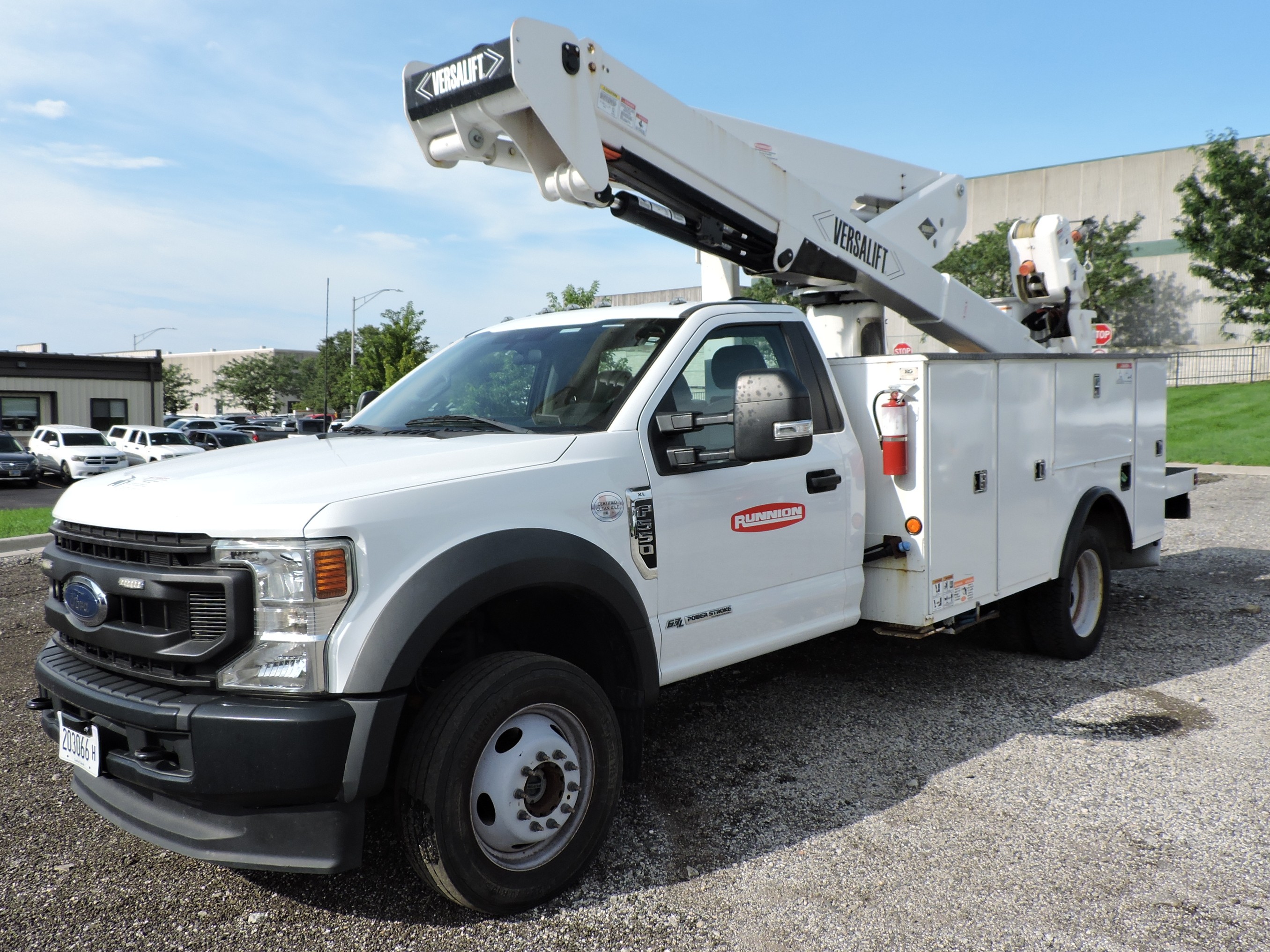

2022 Ford F550 4x4 equipped as follows:

-          GVWR: 19,500 lbs

-          6.7L 4V OHV Power Stroke V8 turbo diesel engine

-          Automatic transmission

-          225/70Rx19.5G BSW traction tires

-          Painted Oxford White
