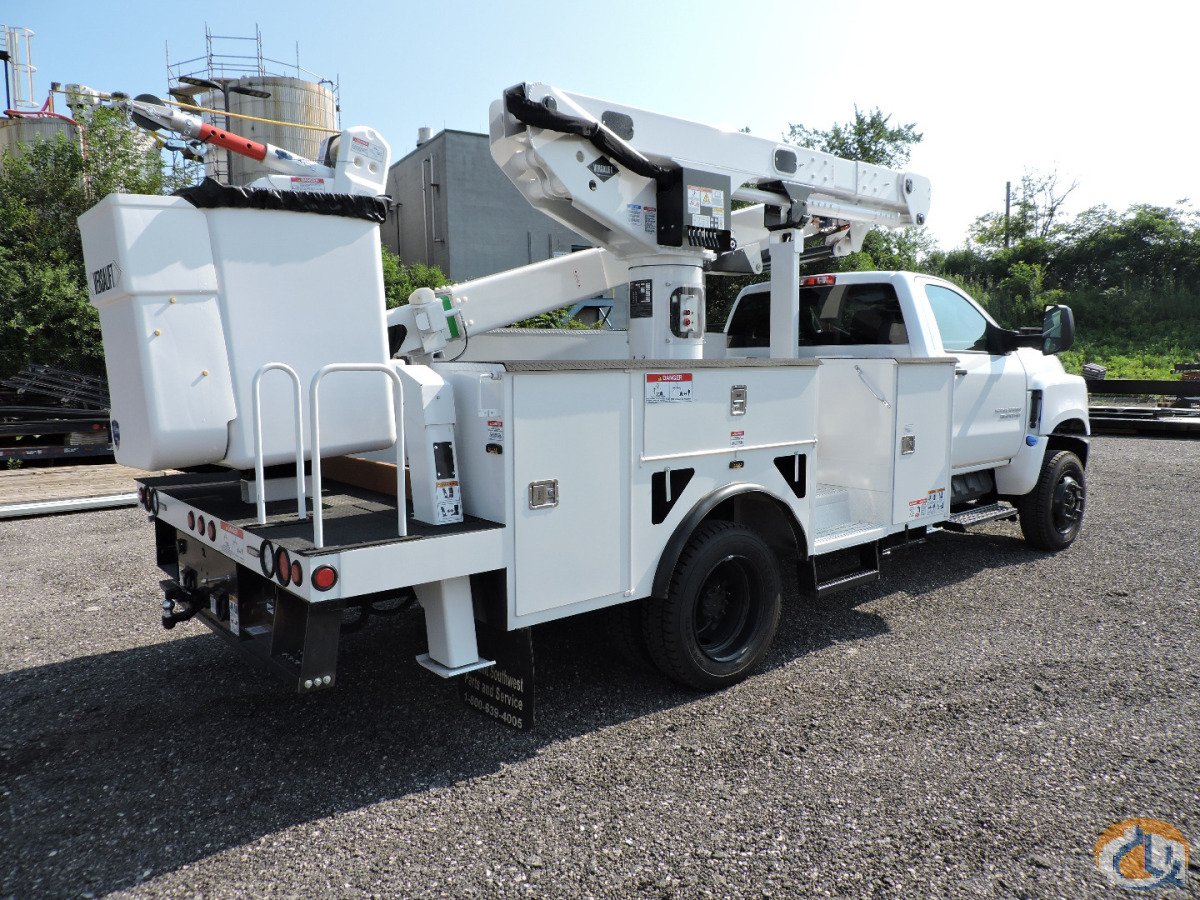

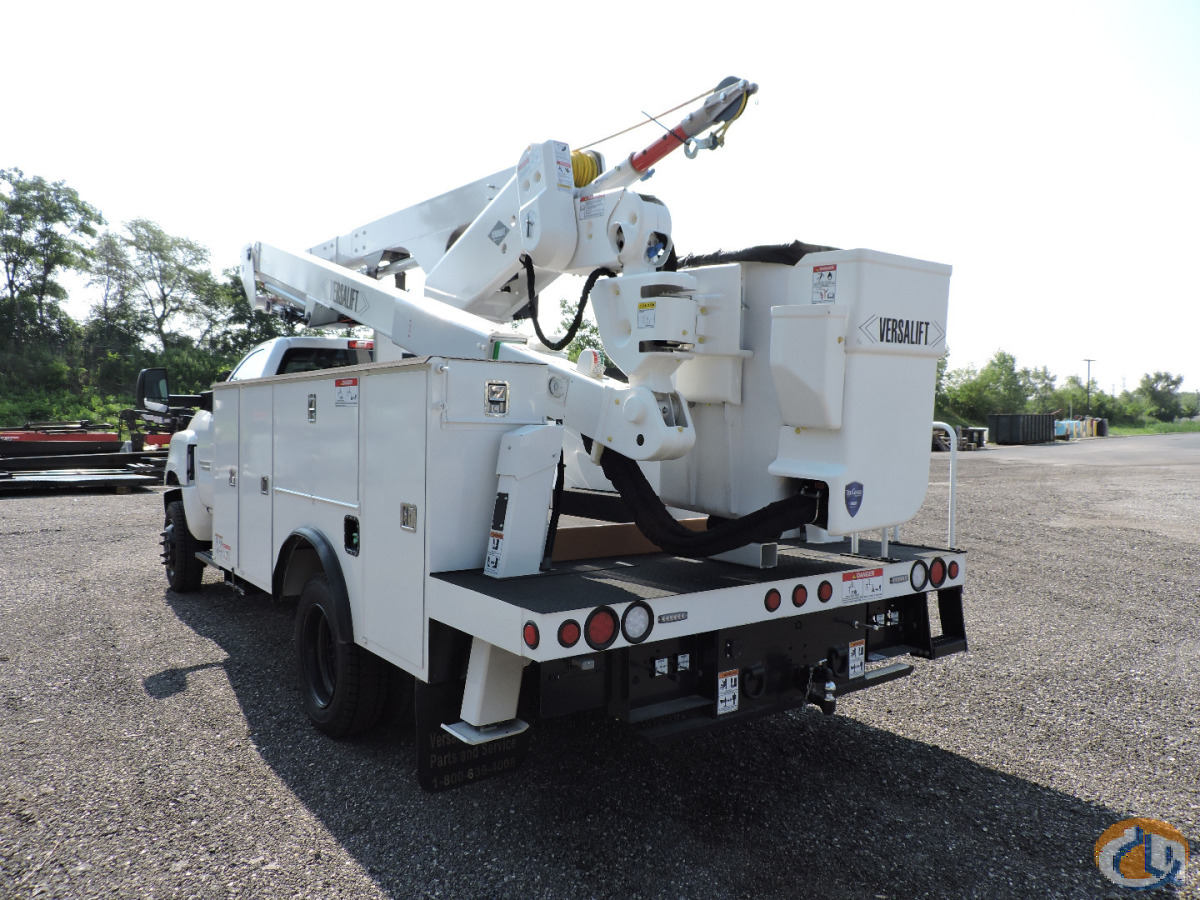

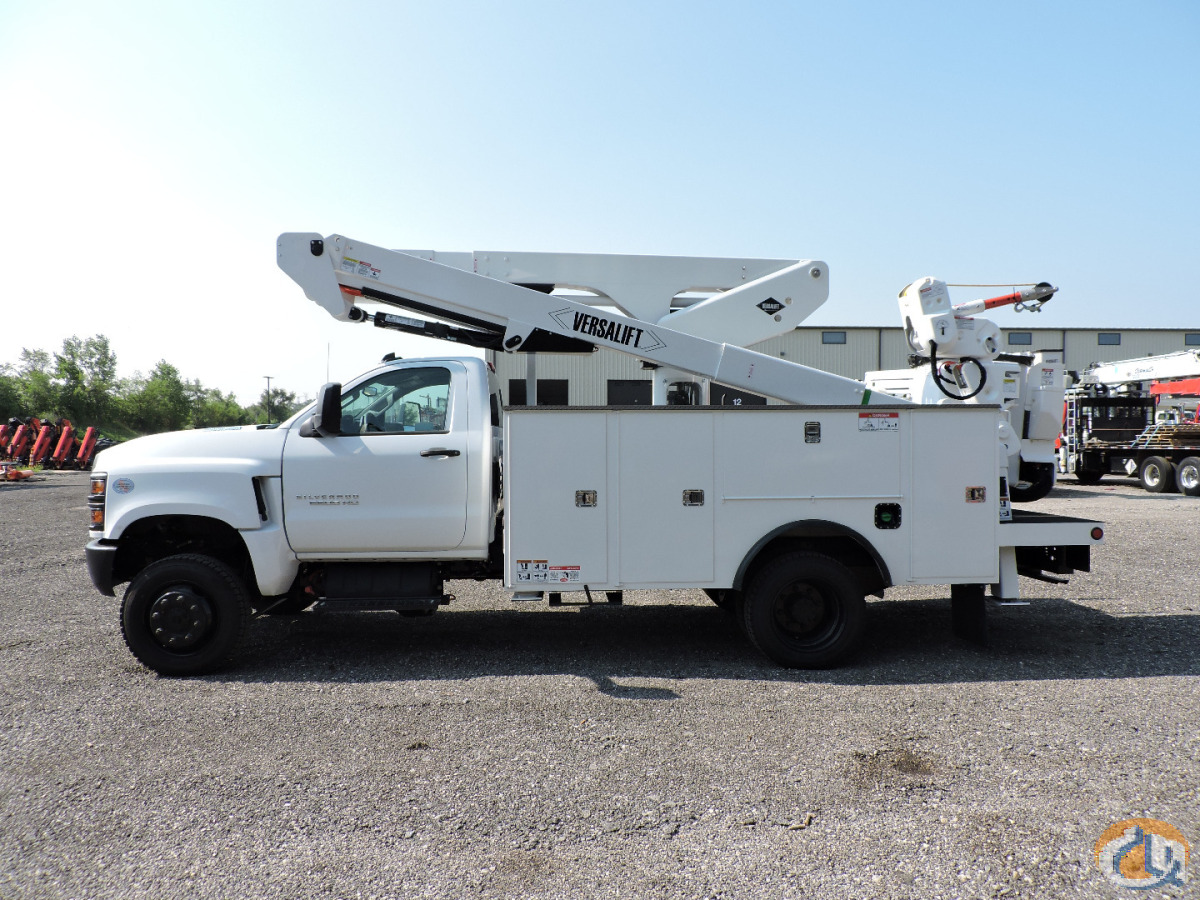

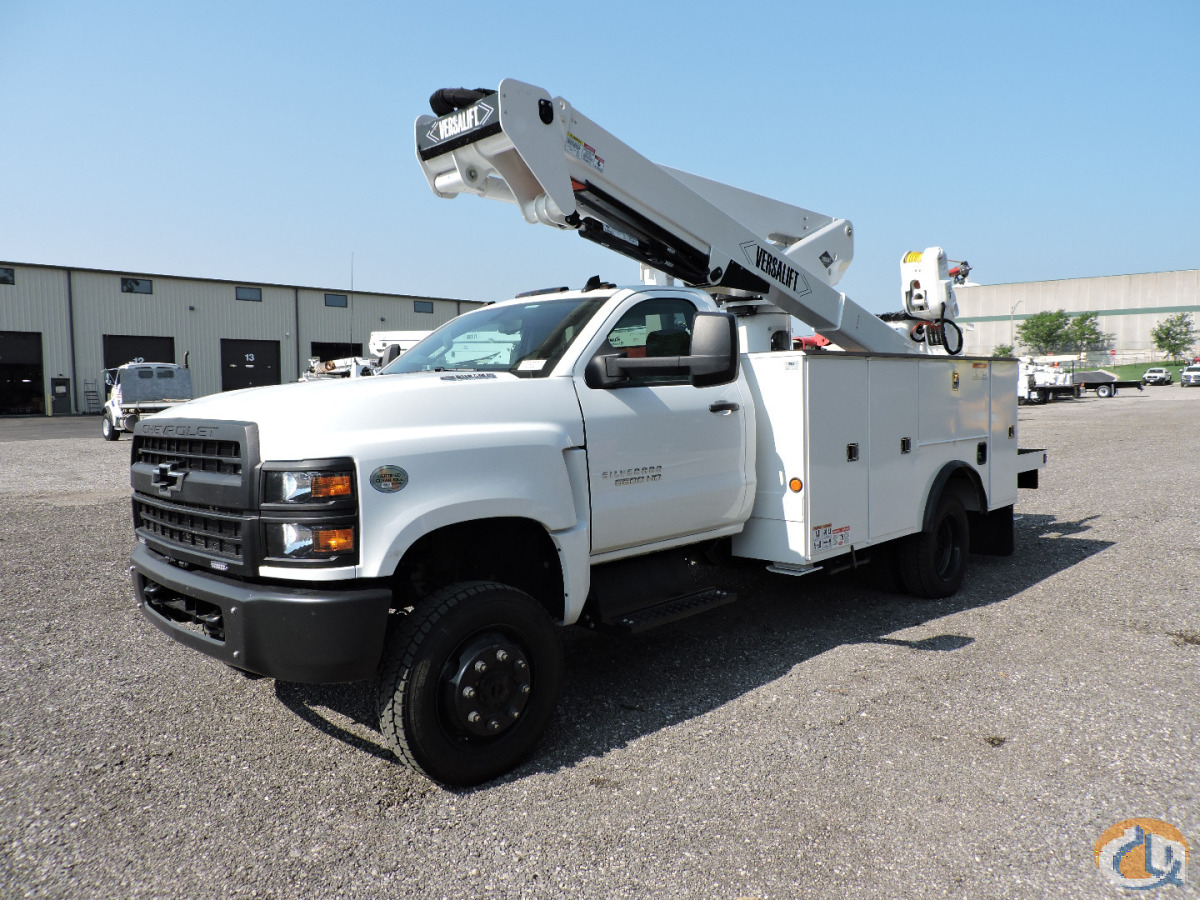

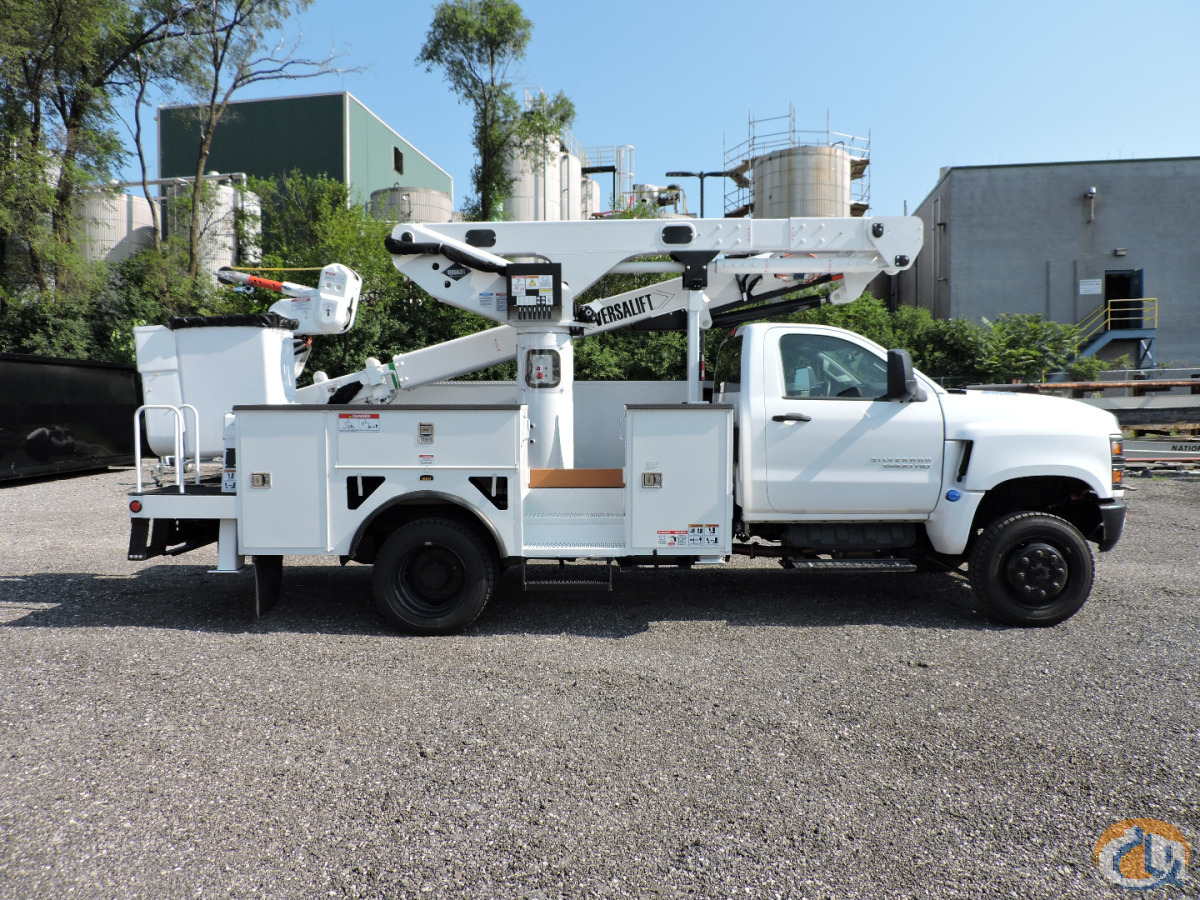

2022 Versalift VST-47-MHI Bucket/Service Truck Crane

Dan Runnion: 708-541-1066
Last Updated: 10 Jun 2025
Capacity: 0.00
Condition: Excellent
Unit #: 4783R
VERSALIFT VST-47-MHI equipped as follows:
- 52 ft. 4 in. working height
- 30 ft. 9 in. horizontal side reach
- Platform capacity of 300 lbs
- Side mounted closed one-step 24 in. X 30 in. X 42 in. fiberglass platform
- Platform liner and vinyl cover
- TruGuard™ dielectric isolating system with right hand single-stick control. All control handles are isolated and tested per ANSI 92.2. The high resistive dielectric system is protected from direct environmental and job related contamination. TruGuard™ technology incorporates the use of full hydraulic controls with durable metal handles and linkages
- 180 degree Hydraulic platform rotator
- Hydraulic dual arm articulating jib pole and winch package for up to 1,000 lbs. capacity, including insulated jib pole
- 360 degree continuous rotation
- Six GPM open center hydraulic system with a 3000 psi operating pressure
- Side mounted telescopic upper boom allows low stowing of platform. Fiberglass inner boom and patented ELECTROGARD provide insulation gap of 41 inches fully retracted meeting ANSI A92.2 requirements for Category C 46KV and below
- Chassis insulating system (fiberglass lower boom insert) providing 12 in. insulation gap and including accommodations to bridge insulation gap for testing per ANSI 92.2
- ELECTROGARD and inner boom finished with white urethane paint over a white gel coat
- Non-lube bearings used throughout
- One set of hydraulic tool outlets with pressure limit valve. Valve can be adjusted from 1000 to 2500 psi
- Sub frame mounted main A-frame outriggers with pivot feet, two control valves, and a selector valve
- A-frame outriggers with pivot feet
- Outrigger boom interlock system for main and auxiliary outriggers
- Integral reservoir with a 17-gallon (64.4 l) capacity and dual sight gauges.
- Individual full pressure controls at the turret actuate all boom functions and is equipped with a selector valve to override upper controls
- 12 volt DC backup pump providing power to all boom functions
- Auto boom latch for mounting on inner boom. The rotary auto boom latch works off the lift hydraulic pressure to open and close
- Standard white urethane paint
- Safety harness and lanyard
- Brand FX service body
MOUNTED ON:
2022 Chevy 5500 equipped as follows:

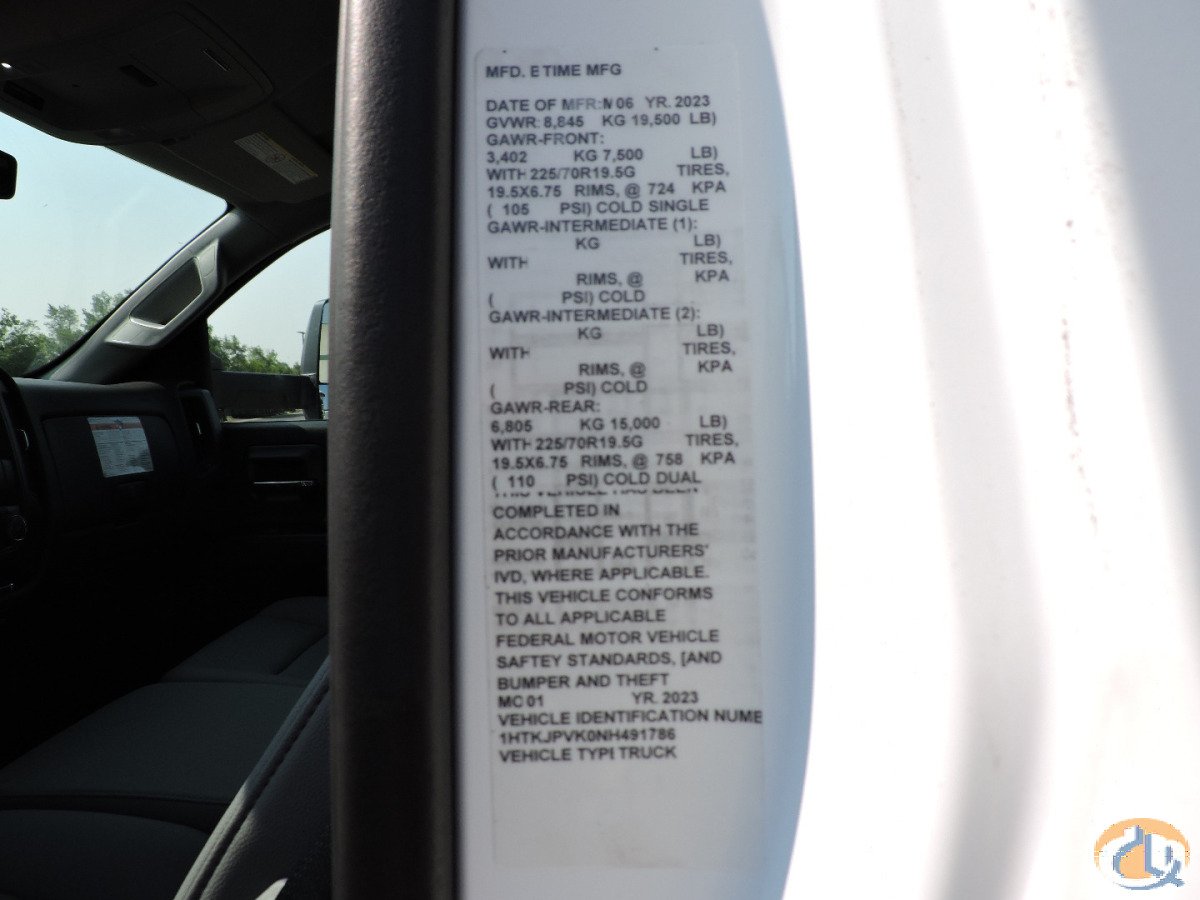

- 19,500 lbs GVW
- 6.6L Duramax V8 Turbo diesel engine
- 6-speed Allison A1700RDS automatic transmission
- Front axle – 7,500 lb, multi-leaf suspension
- Rear axle – 15,500 lb multi-leaf suspension
- 110-volt AC power outlet
- 1300 cold-cranking amps heavy-duty dual batteries
- Air conditioning
- Engine block heater
- 225/70Rx19.5G all traction tires
- AM/FM stereo with Bluetooth USB port, and auxiliary jack

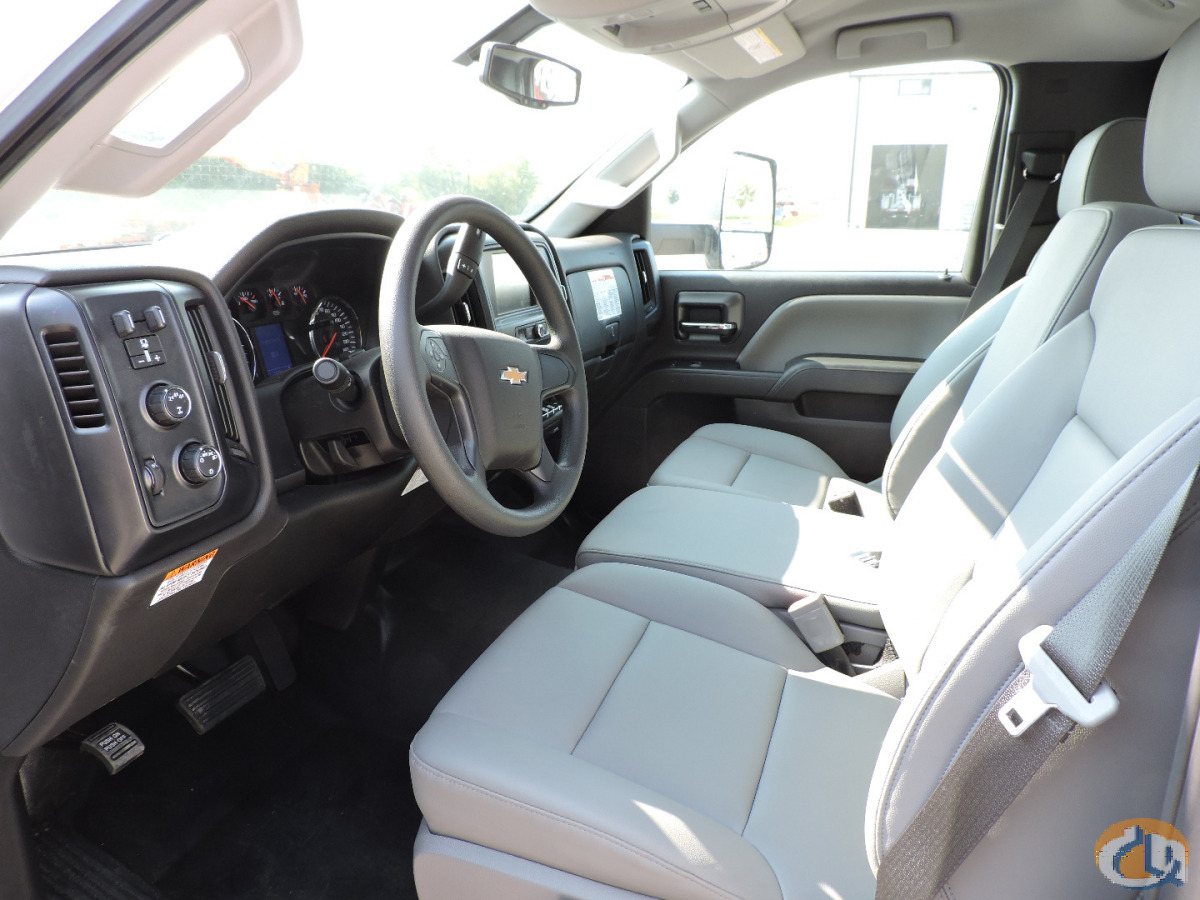

- 40/20/40 split vinyl bench seat
- Back up camera
- Transfer case skid plate shield
- Painted Summit White

Runnion Equipment Co.
www.runnionequipment.comContact: Dan Runnion, Sales
Phone: 708-541-1066
Fax: 708-447-3730
Condition
Excellent
0 views this week
0 people have saved
Condition
Excellent
VERSALIFT VST-47-MHI equipped as follows:
- 52 ft. 4 in. working height
- 30 ft. 9 in. horizontal side reach
- Platform capacity of 300 lbs
- Side mounted closed one-step 24 in. X 30 in. X 42 in. fiberglass platform
- Platform liner and vinyl cover
- TruGuard™ dielectric isolating system with right hand single-stick control. All control handles are isolated and tested per ANSI 92.2. The high resistive dielectric system is protected from direct environmental and job related contamination. TruGuard™ technology incorporates the use of full hydraulic controls with durable metal handles and linkages
- 180 degree Hydraulic platform rotator
- Hydraulic dual arm articulating jib pole and winch package for up to 1,000 lbs. capacity, including insulated jib pole
- 360 degree continuous rotation
- Six GPM open center hydraulic system with a 3000 psi operating pressure
- Side mounted telescopic upper boom allows low stowing of platform. Fiberglass inner boom and patented ELECTROGARD provide insulation gap of 41 inches fully retracted meeting ANSI A92.2 requirements for Category C 46KV and below
- Chassis insulating system (fiberglass lower boom insert) providing 12 in. insulation gap and including accommodations to bridge insulation gap for testing per ANSI 92.2
- ELECTROGARD and inner boom finished with white urethane paint over a white gel coat
- Non-lube bearings used throughout
- One set of hydraulic tool outlets with pressure limit valve. Valve can be adjusted from 1000 to 2500 psi
- Sub frame mounted main A-frame outriggers with pivot feet, two control valves, and a selector valve
- A-frame outriggers with pivot feet
- Outrigger boom interlock system for main and auxiliary outriggers
- Integral reservoir with a 17-gallon (64.4 l) capacity and dual sight gauges.
- Individual full pressure controls at the turret actuate all boom functions and is equipped with a selector valve to override upper controls
- 12 volt DC backup pump providing power to all boom functions
- Auto boom latch for mounting on inner boom. The rotary auto boom latch works off the lift hydraulic pressure to open and close
- Standard white urethane paint
- Safety harness and lanyard
- Brand FX service body
MOUNTED ON:
2022 Chevy 5500 equipped as follows:
- 19,500 lbs GVW
- 6.6L Duramax V8 Turbo diesel engine
- 6-speed Allison A1700RDS automatic transmission
- Front axle – 7,500 lb, multi-leaf suspension
- Rear axle – 15,500 lb multi-leaf suspension
- 110-volt AC power outlet
- 1300 cold-cranking amps heavy-duty dual batteries
- Air conditioning
- Engine block heater
- 225/70Rx19.5G all traction tires
- AM/FM stereo with Bluetooth USB port, and auxiliary jack
- 40/20/40 split vinyl bench seat
- Back up camera
- Transfer case skid plate shield
- Painted Summit White
Rental Prices
Please contact the dealer for pricing -- 708-541-1066
