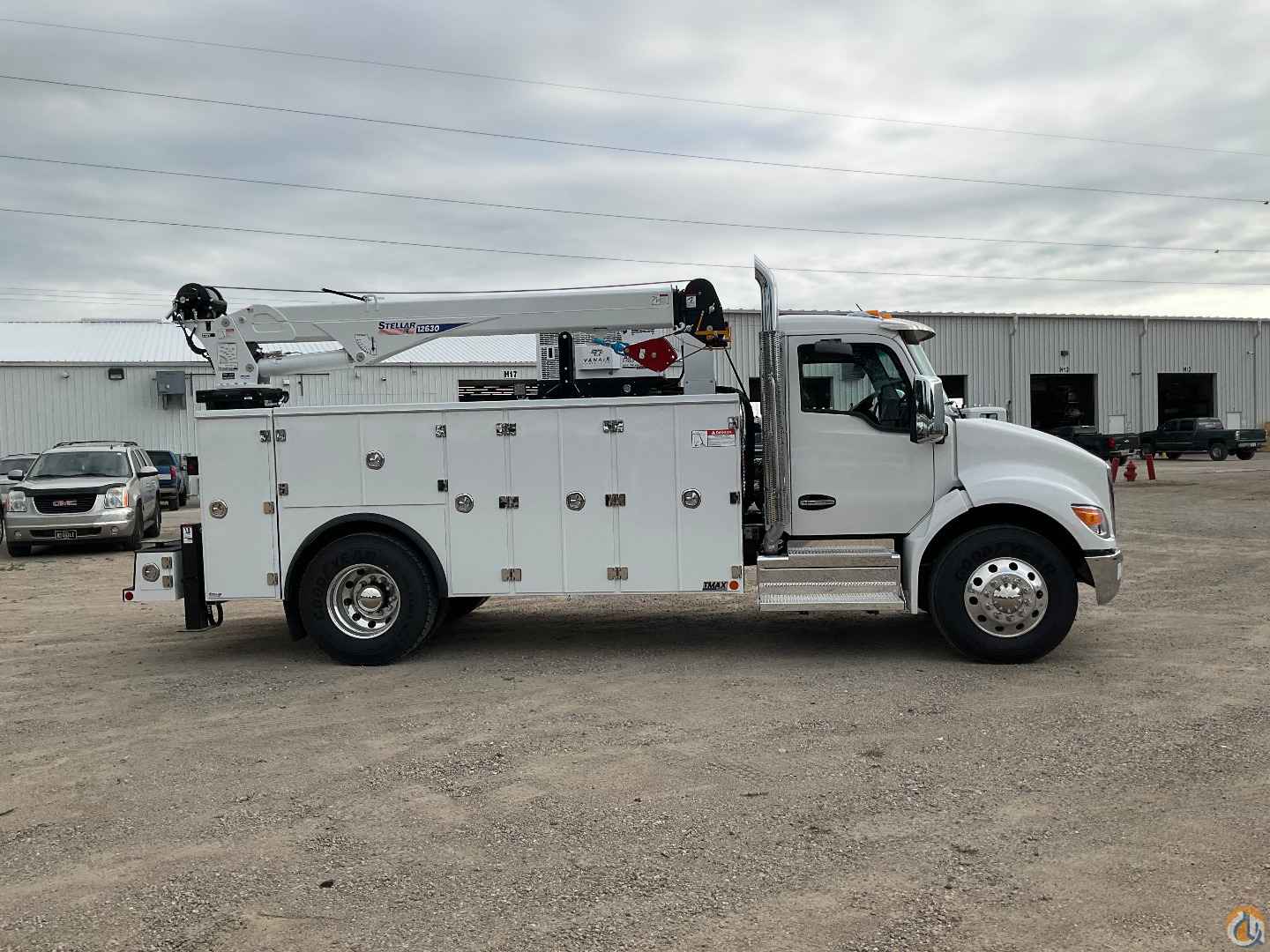

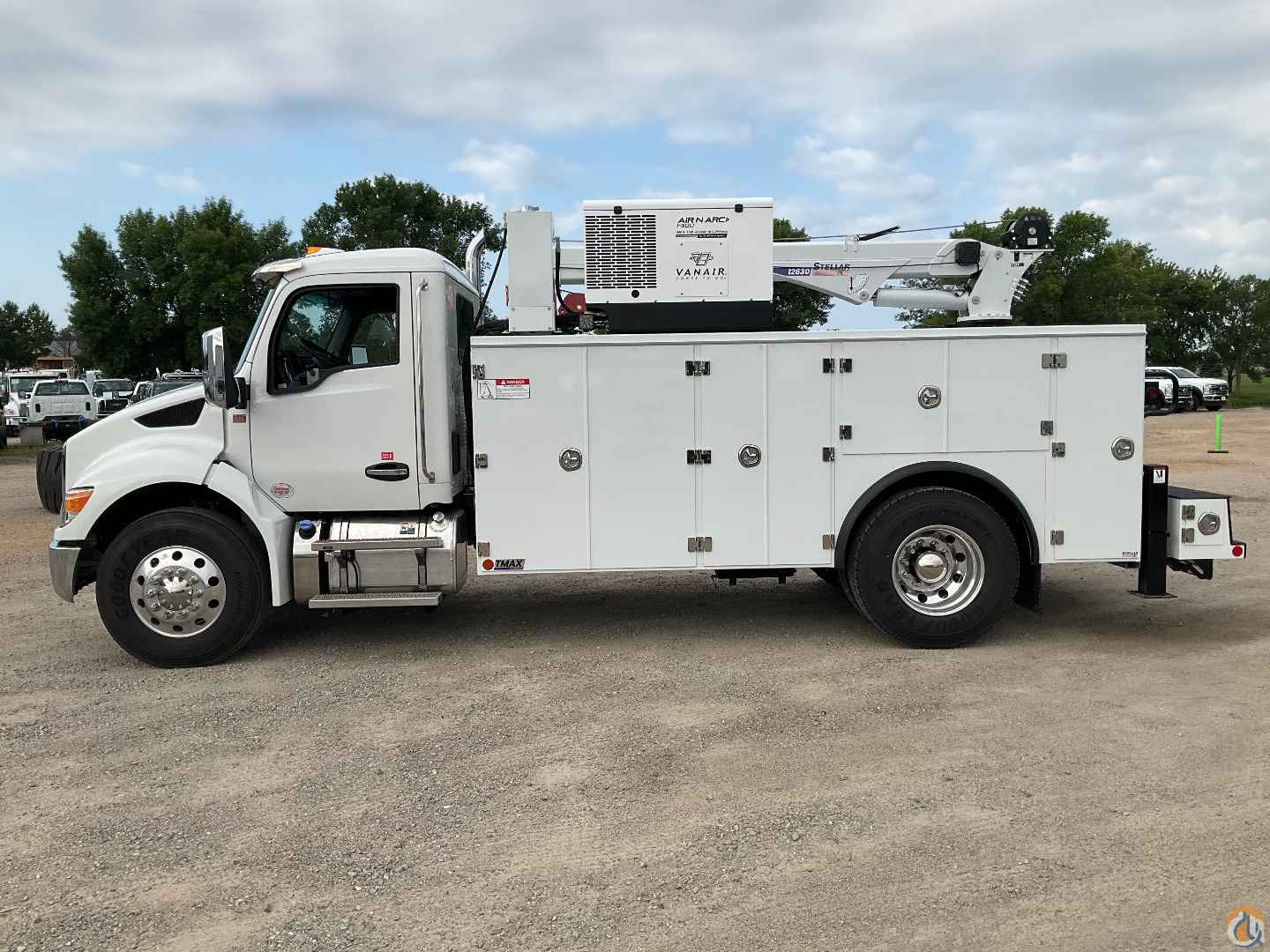

Stellar TMAX2-14 Aluminum Mechanic Body equipped as follows:

- Aluminum doors and side packs

- Torsion box understructure with isolated steel crane compartment

- Master-Lock system

- 168” long

- Six (6) recessed cargo tie-downs

- Two (2) rear mounted grab handles

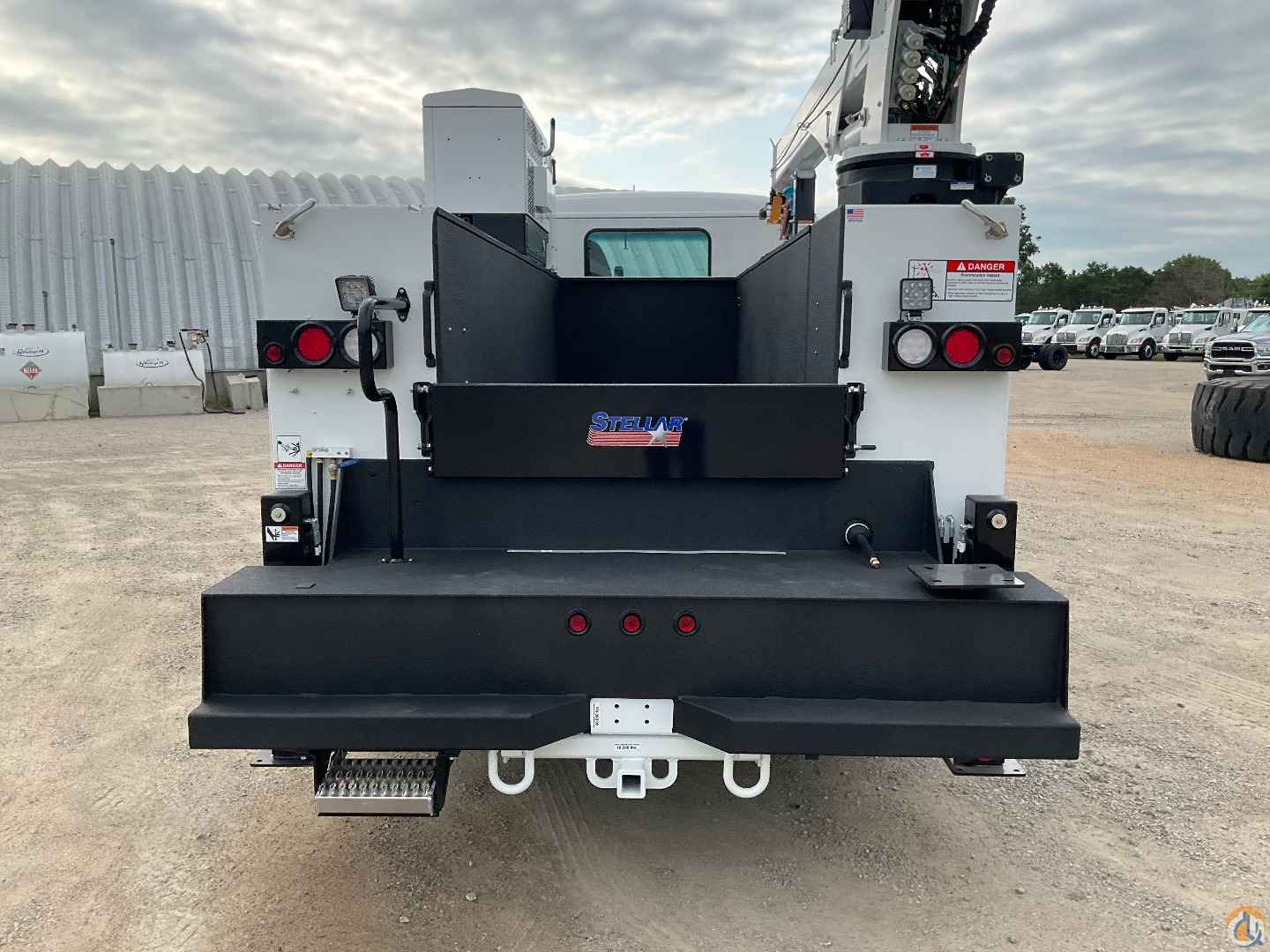

- 12” aluminum fold down tailgate – painted black

- 21” work bench bumper with thru compartment

- Vise mounting plate – receiver workbench mount

- Step, slide out for TMAX mechanics work bench bumper

- Rubber fenderettes

- All compartments raised to 60” H

- Overlapped doors on SS1V/CS1V and horizontal compartments

- 2- & 3-point stainless steel compression latches

- Stainless steel “Billet Style” hinges

- Spring loaded door stops

- Dual-seal automotive type compartment weather seal

- LED compartment lights

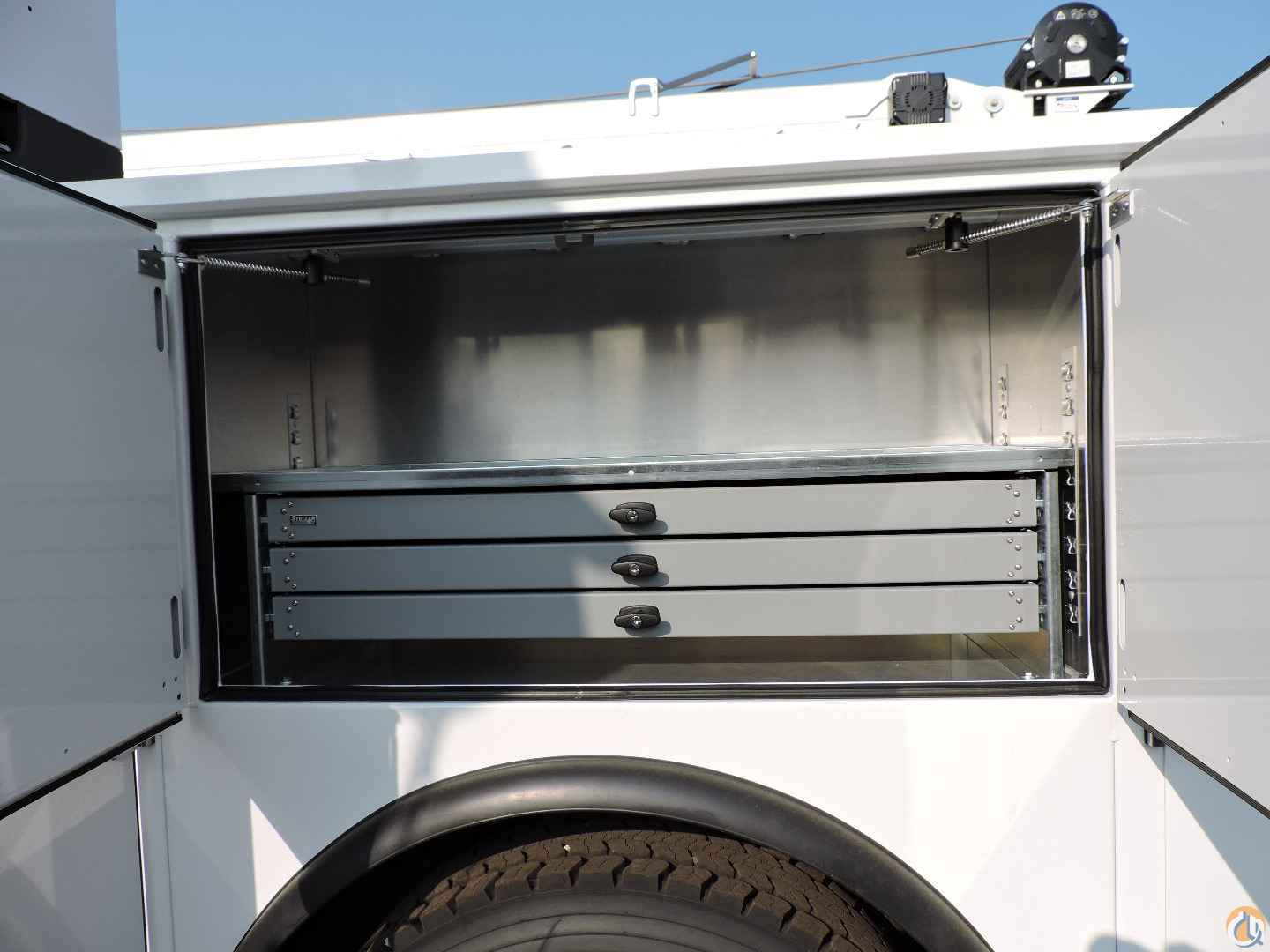

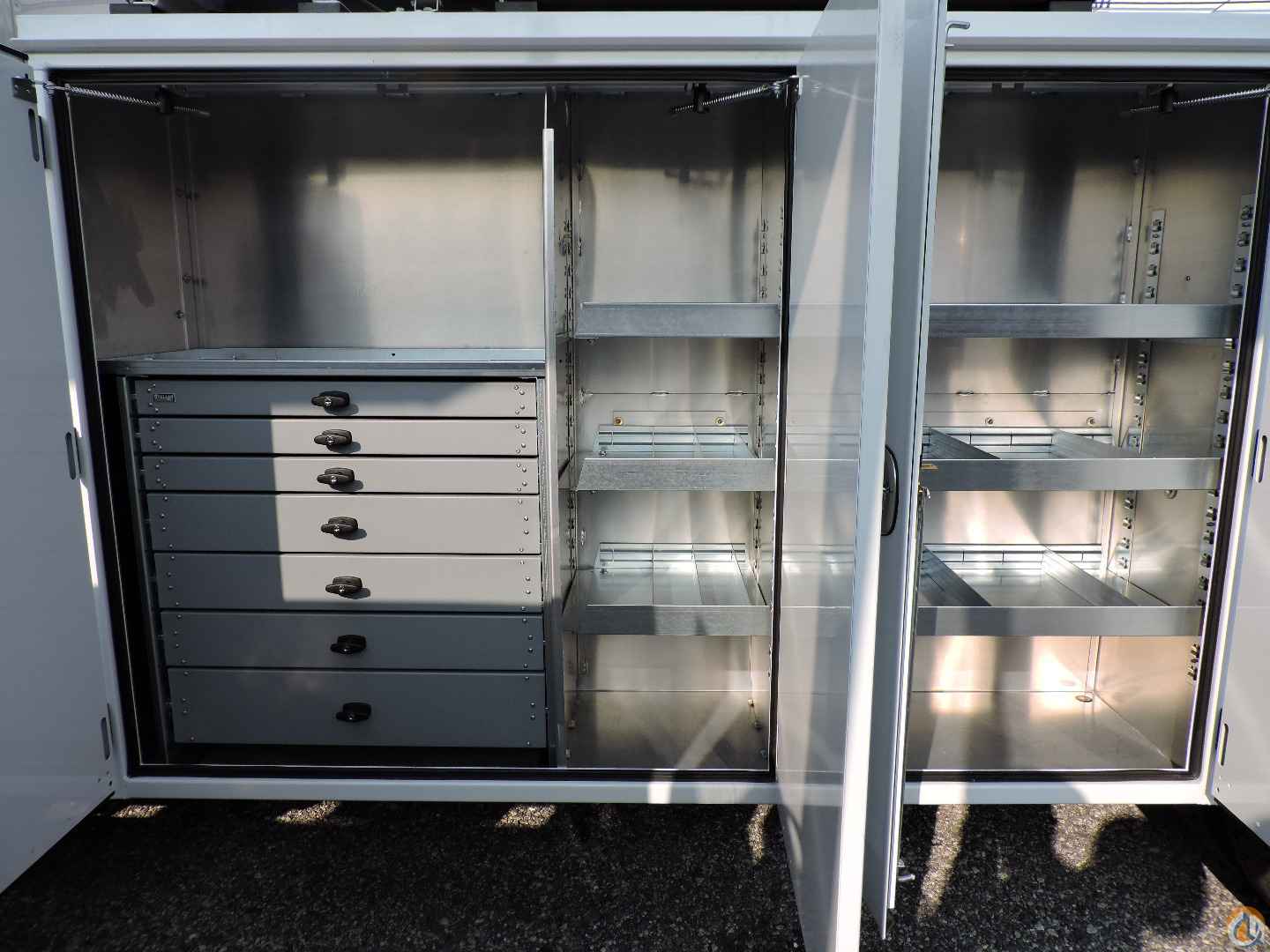

- SS1VF – Heavy duty aluminum drawer set – 41”H x 34”W x 18”D – 5-3”, 2-5”, 2-7”

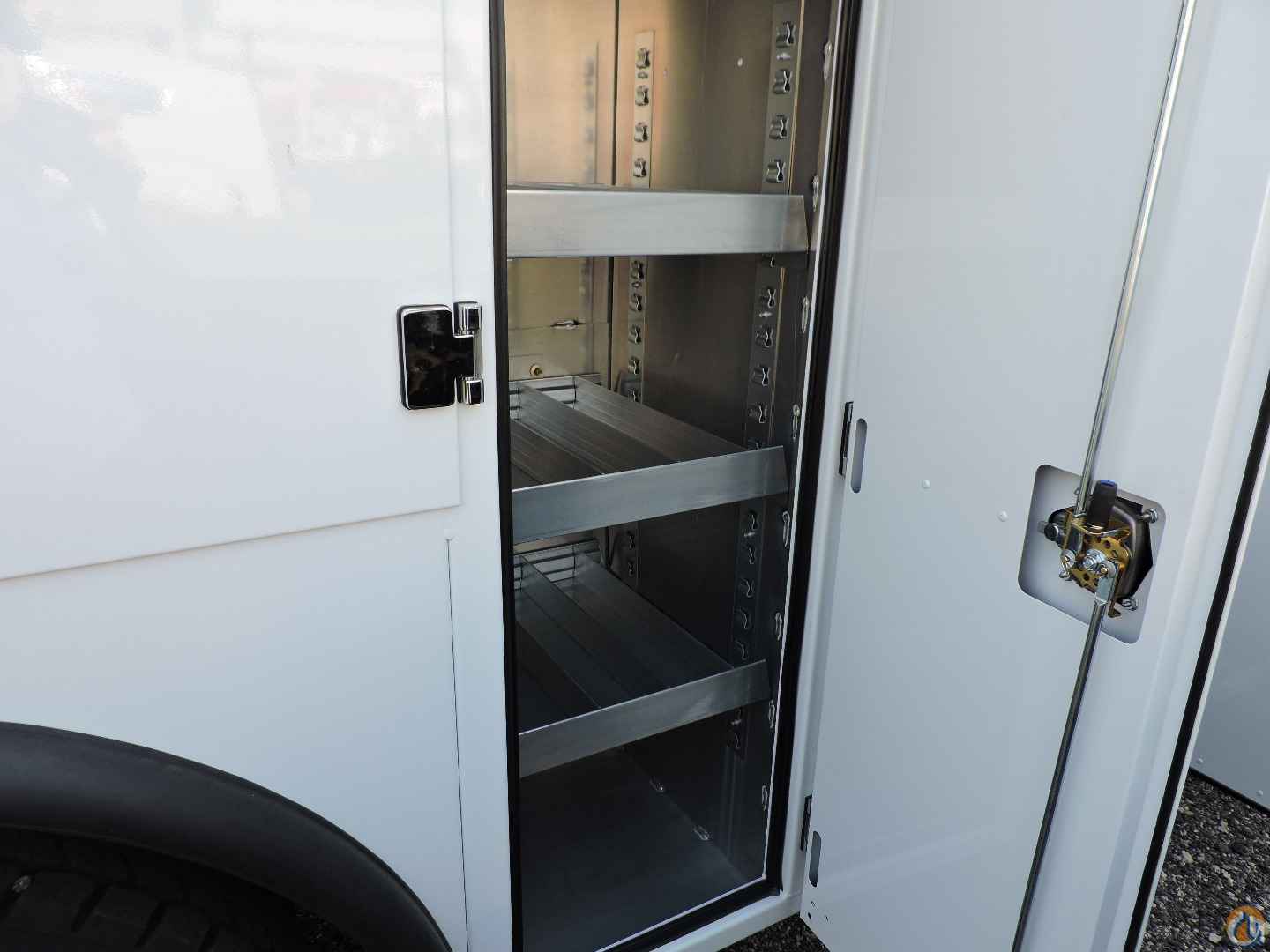

- SS1VR – Two (2) shelves with (3) dividers – 17” W x 19”D

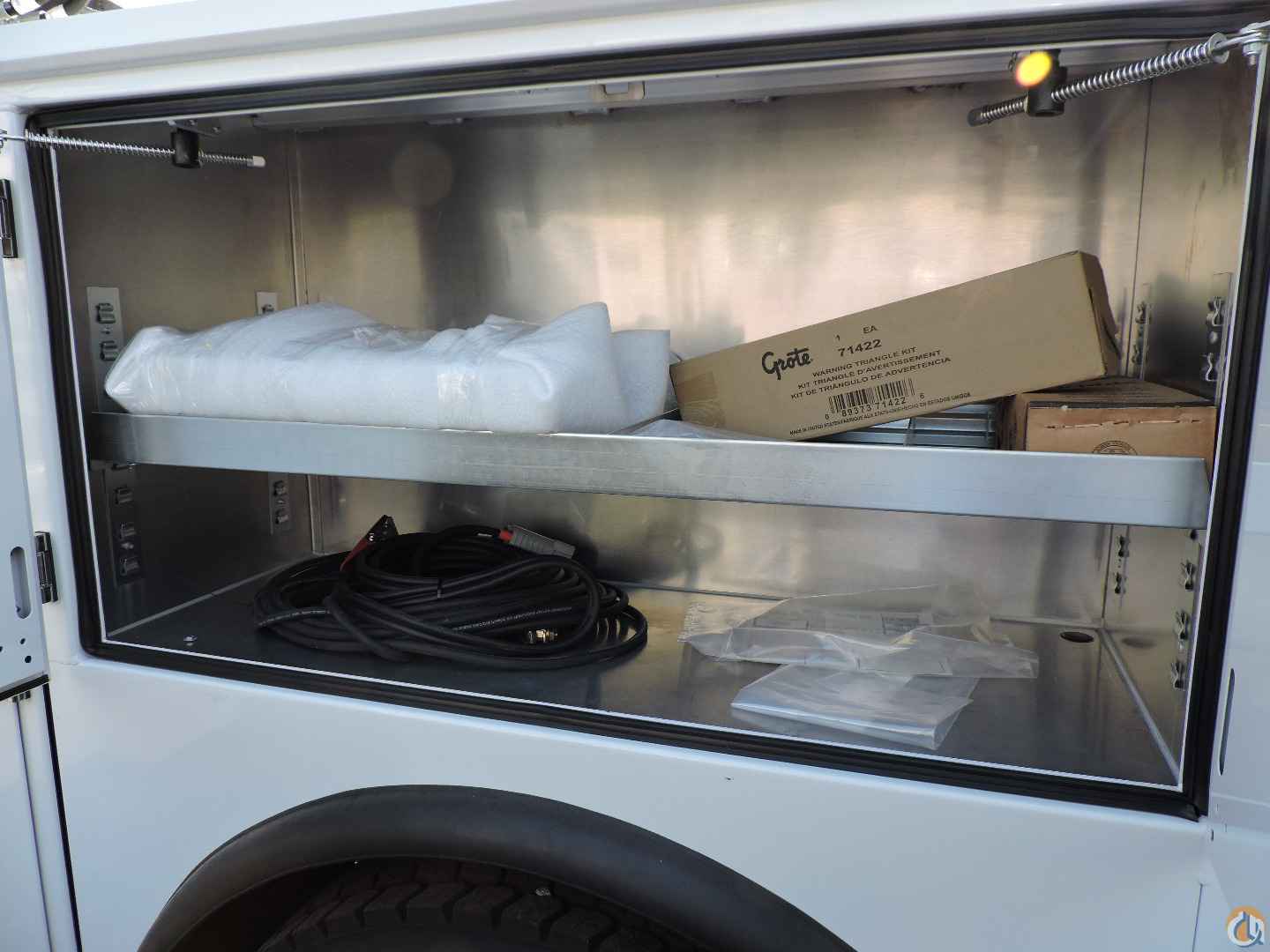

- SS2V - Two (2) shelves with (3) dividers – 36” W x 19” D

- SS Horizontal – drawer set – 17”H x 48”W x 18”D

- SS Rear – Two (2) shelves with (3) dividers – 24”W x 19”D

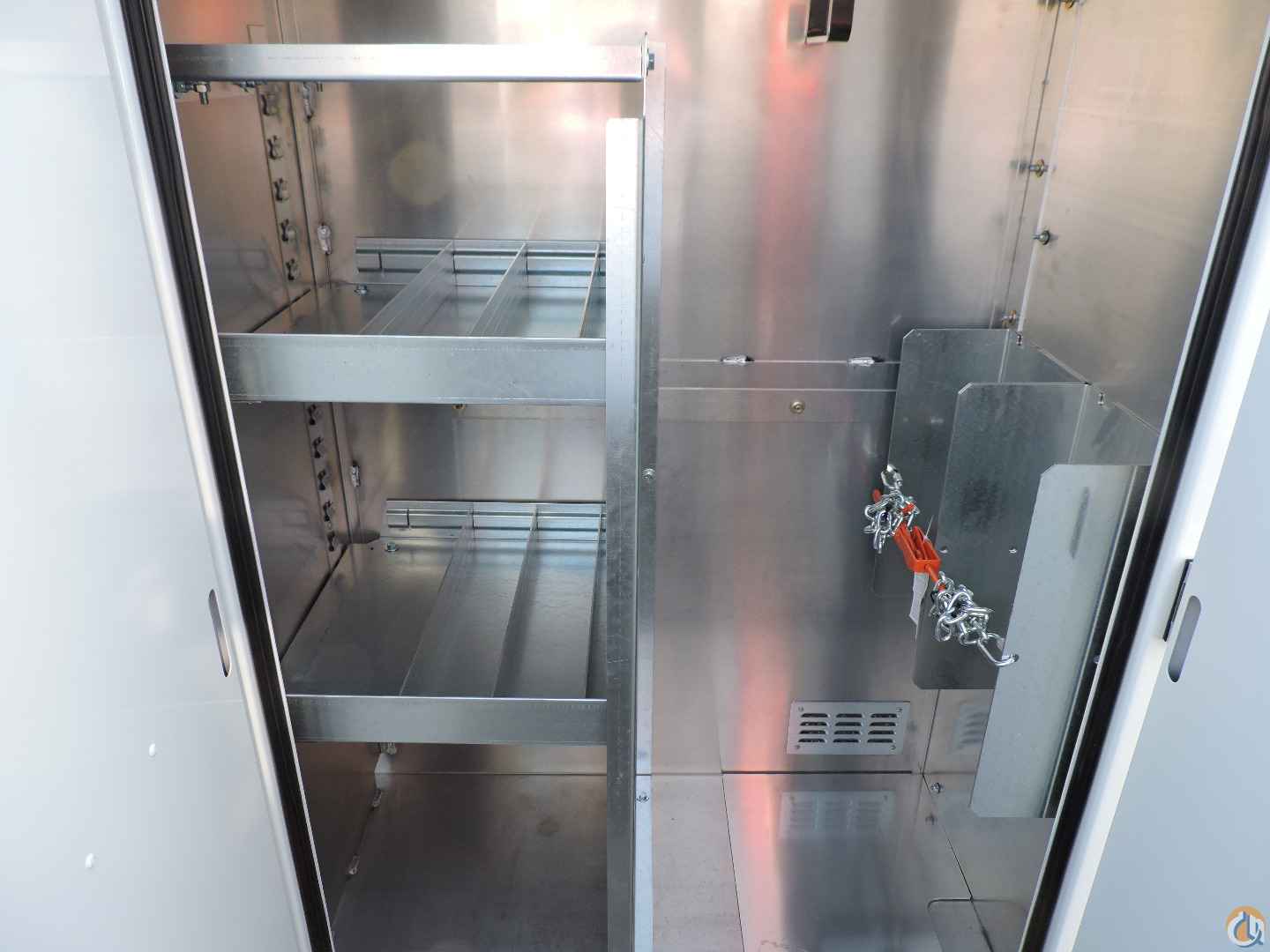

- CS1V – Divider kit with shelves and Oxy-Acetyln bottle holder holds 2 bottles

- CS2V – Two (2) shelves with (3) dividers – 32” W x 19” D

- CS3V – Three (3) shelves with (3) dividers – 19” W x 19” D

- CS Horizontal – 21 Drawer steel bolt bin – 16”H x 47”W x 17”D

- CS Rear – ½” x 50’ hose reel with roller guide – exits rear of body

- Cab guard

- 36-gallon air tank

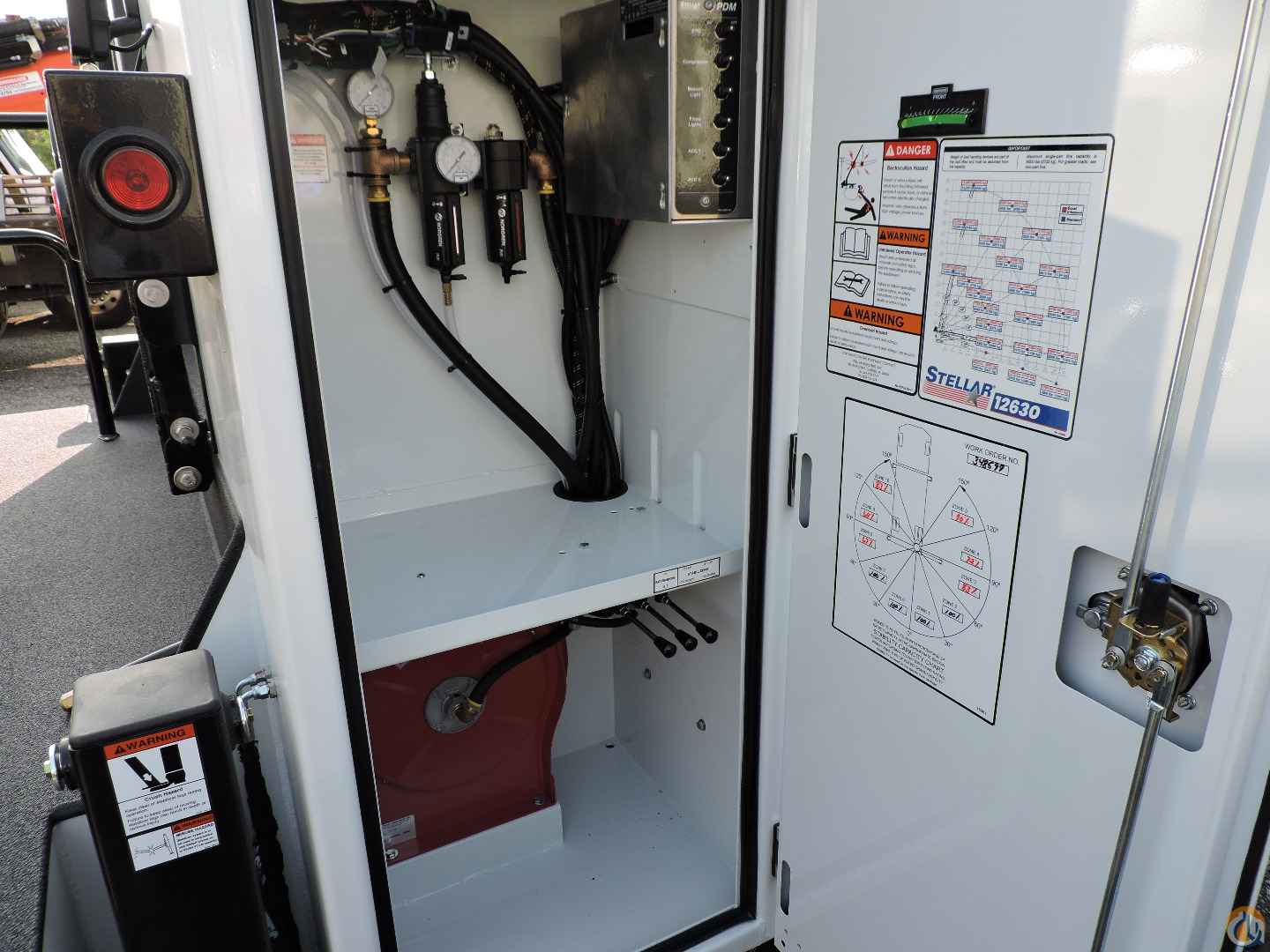

- FLR system – 1 outlet for air hose (filter, lubricator, regulator)

- LED floodlights – Four (4) total. 1 on boom support, 1 SS behind compressor, 1 on each rear taillight box

- Backup alarm

- ICC safety kit – 2.5 lb fire extinguisher and reflector kit

- Adjustable boom support, roller rest

- Spray-on bed liner for load bed walls and floors

- Undercoated

- Prime painted white

- Stellar 46P hydraulic driven air compressor that produces 46 CFM @ 175 PSI, 4 cylinder 2 stage compressor, direct drive coupling, oil cooler, fan, and hydraulic motor.

Stellar 12630 telescopic crane equipped as follows:

- 77,800 ft/lb rated when in boost mode

- 12,000 lb maximum capacity at 6’5” radius when in boost mode

- 30’ maximum hydraulic reach

- Hexagonal boom – optimized to deliver dramatically less boom flex and side to side movement

- Boom elevation: -10° to +80°

- 400° non-continuous rotation – durable enclosed rotation system with a cast iron base and an internal mechanical stop

- Planetary winch with 100’ of 7/16” wire rope

- Max line pull speed 55ft/min

- Quick release snatch block stow

- Proportional radio remote control – LCD features real time load capacity, maximum distance with the current load, boom angle, and percentage of load

- CDTpro boost mode allows for a momentary 18% increase in the capacity of the crane, and a Safe Mode to keep the crane and operator safe should a load indicating device fail to operate correctly

- On-Demand speed control ramps engine RPM up only when the crane is being used. When crane is not used for 5 seconds engine RPM returns to idle. This lowers fuel consumption and reduces noise pollution in the work area

- Greasable pivot bushings, each pivot pin location includes bushings and grease zerks to provide for years of use

- Dual LED Trilliant lights - mounted on boom tip – gravity rotating

- Hydraulic stabilizers

MOUNTED ON:

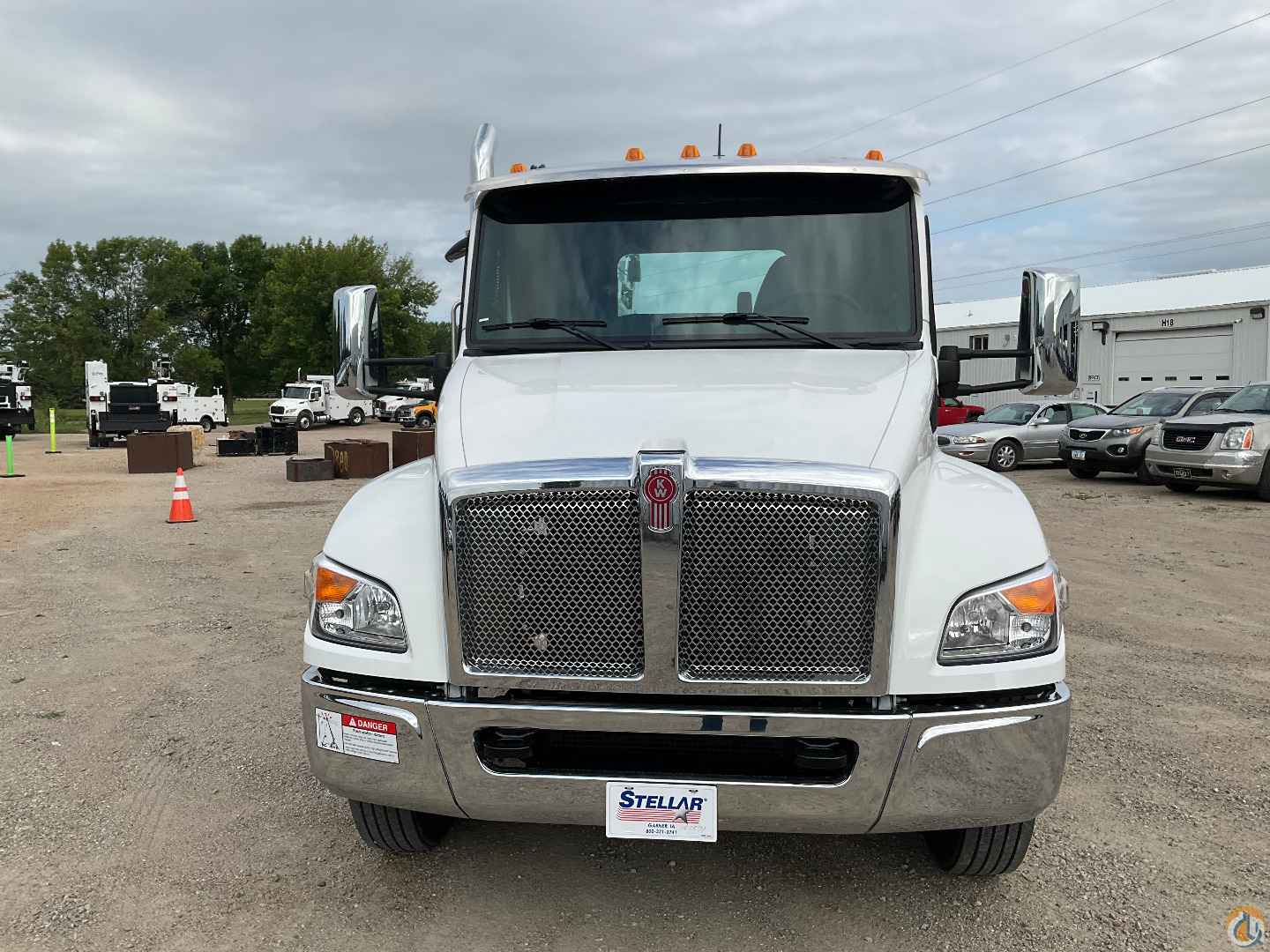

2025 Kensworth T380 equipped as follows:

- Paccar PX-7 engine 300hp @ 2600 rpm, 660 lb/ft @ 1400 rpm

- Allison 3000RDS 6-speed automatic transmission

- Front Axle – 13,000# with Taperleaf shocks

- Rear Axle – 20,000# with Hendrickson suspension

- Tires – 11R22.5

- Aluminum wheels – Alcoa 22.5x8.25

- Chrome bumper

- 50 gallon aluminum fuel tank

- 5.5 gallon DEF tank with polished cover

- Block heater

- Air dryer with heater

- Air cab

- Dual Kenworth Aero motorized mirrors – heated

- Stainless steel exterior sun visor

- Adjustable tilt and telescoping steering wheel

- 18” steering wheel with integrated radio and cruise control

- Power windows and locks

- Heater, defroster, and air conditioner

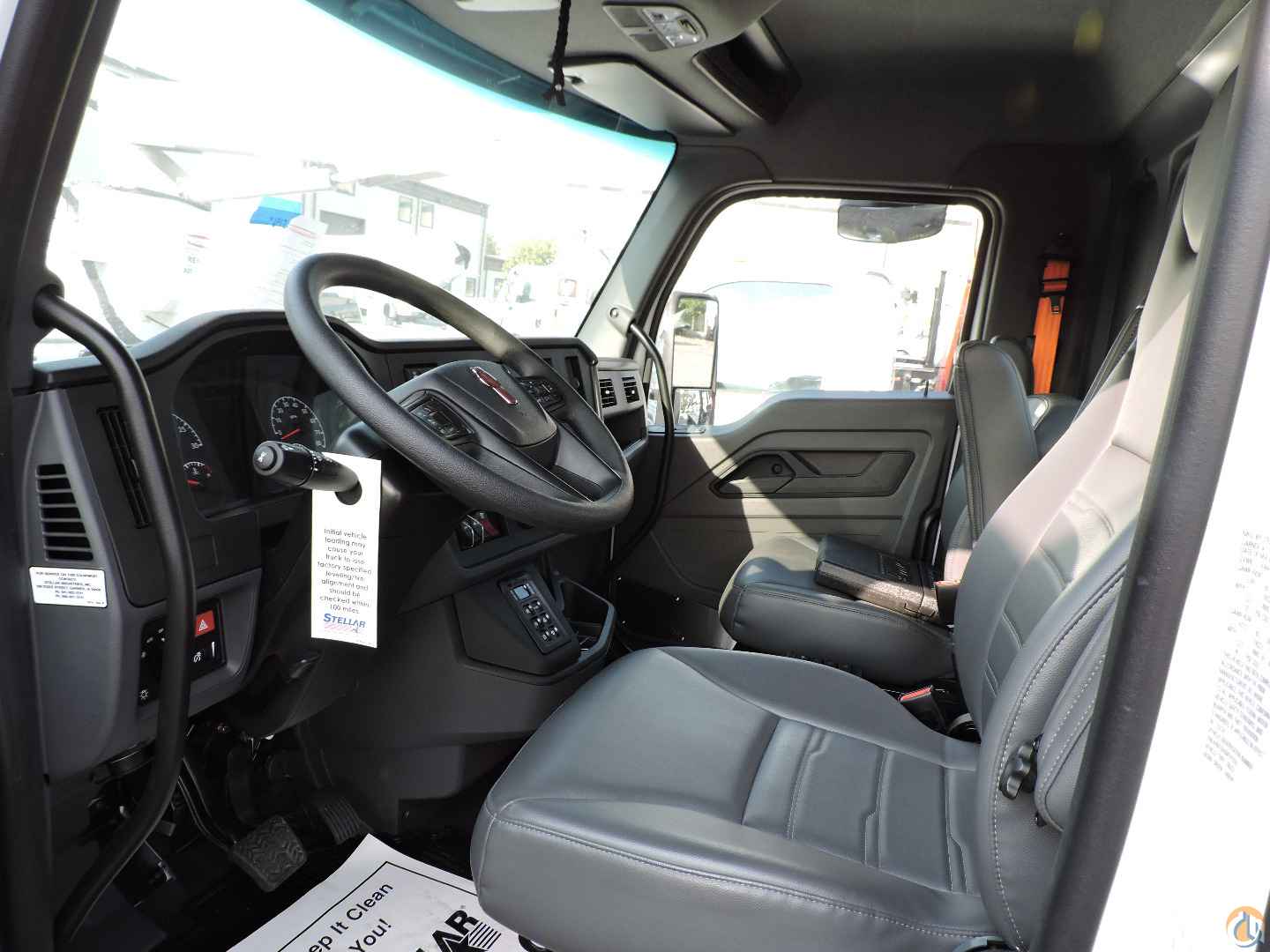

- Driver’s seat – high-back, air suspension, vinyl, dual armrests

- Passenger seats– non-suspension, battery box, vinyl, dual armrests

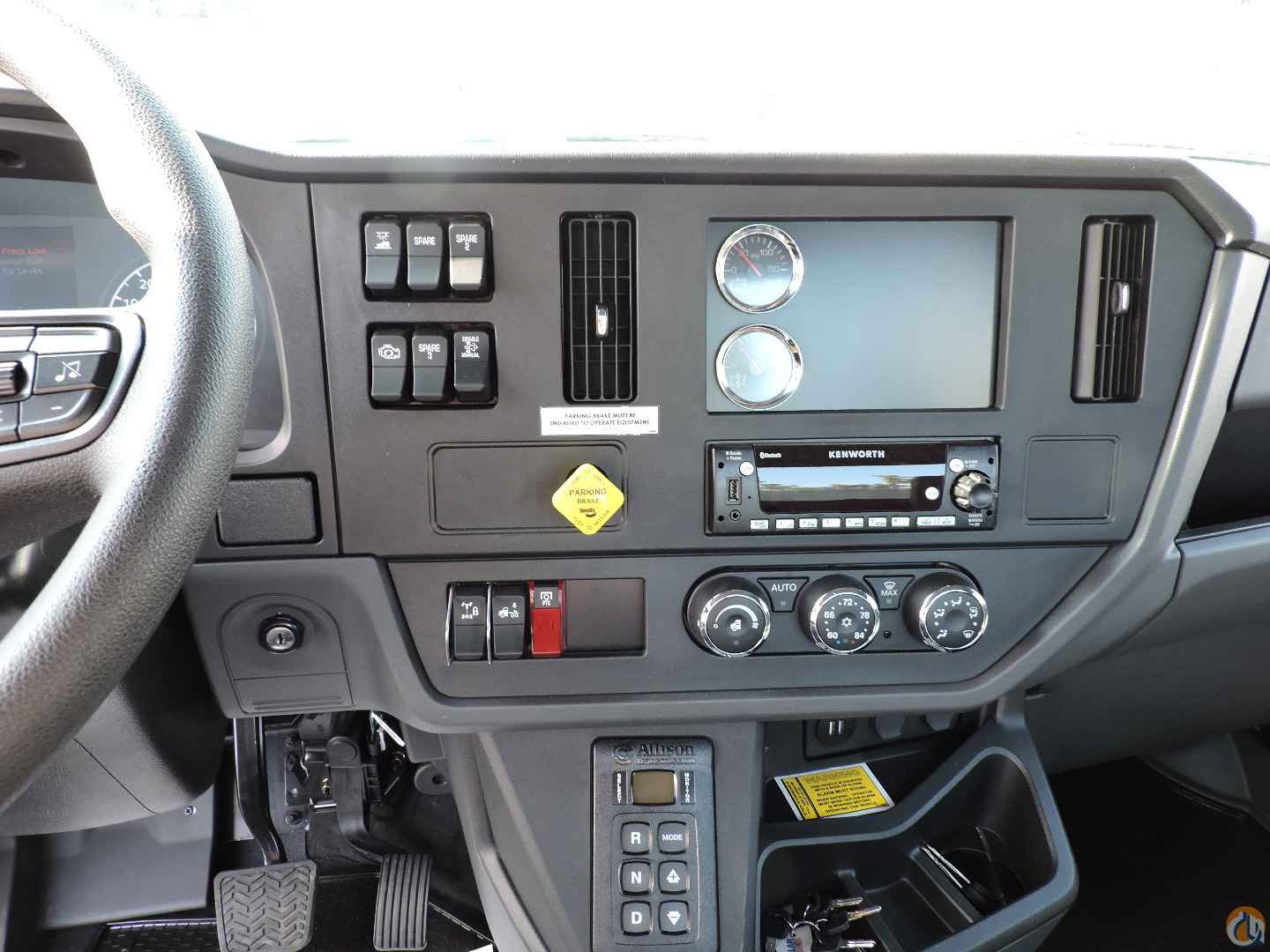

- Kenworth AM/FM/WB/USB radio with Bluetooth

- Painted White
