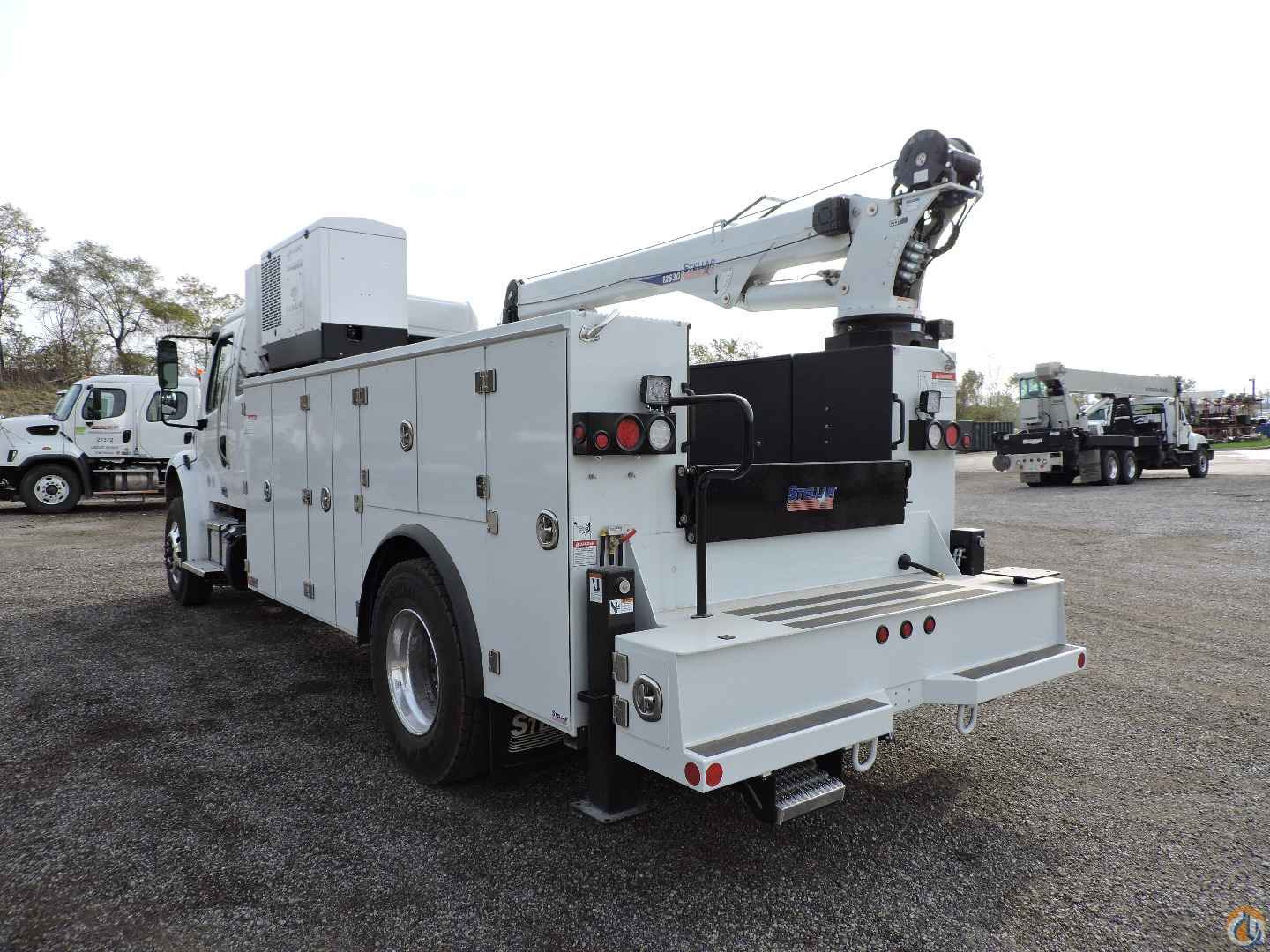

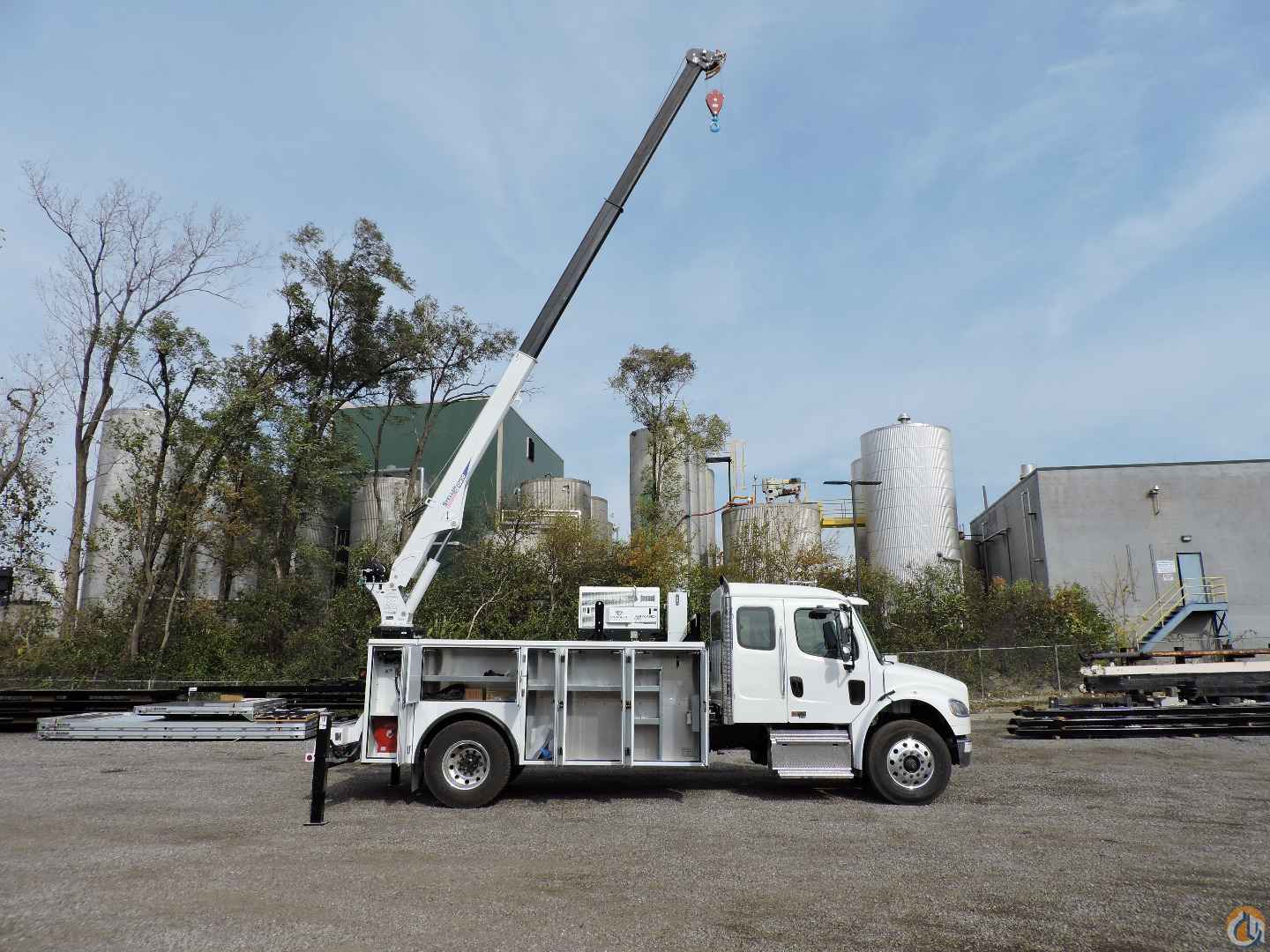

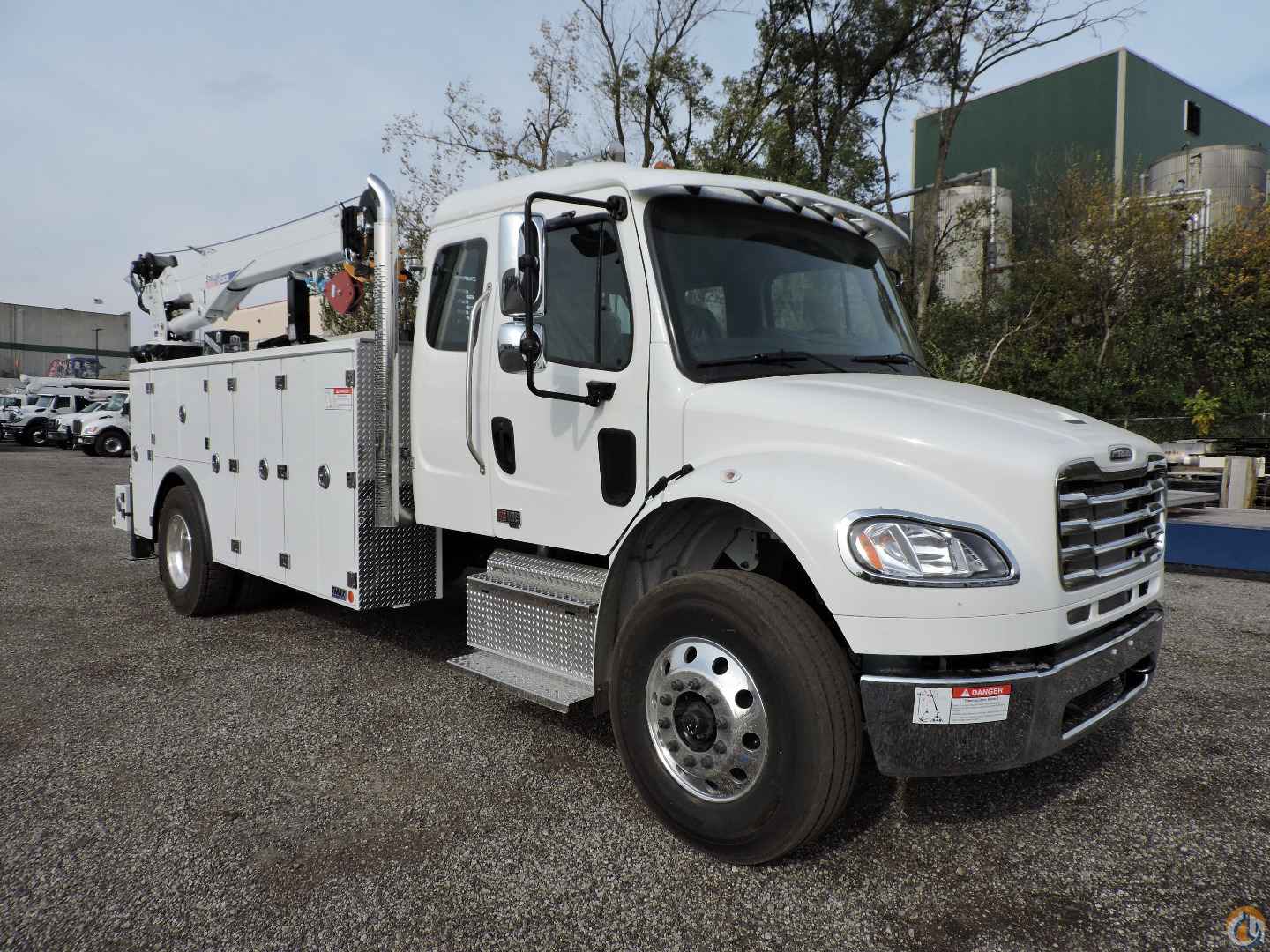

Stellar 12630 telescopic crane
- 77,800 ft/lb rated when in boost mode
- 12,000# maximum capacity at 5.5’ radius
- 30’ maximum hydraulic reach – 2,590# at 30’ when in boost mode
- Hexagonal boom – optimized to deliver dramatically less boom flex and side to side movement
- Boom elevation: -100 to +800
- 400degree non-continuous rotation – durable enclosed rotation system with a cast iron base and an internal mechanical stop
- Planetary winch with 100’ of 7/16” wire rope
- Max line pull speed 55ft/min
- Quick release snatch block stow
- Adjustable boom support, roller rest
- Proportional radio remote control – LCD features real time load capacity, maximum distance with the current load, boom angle, and percentage of load
- CDTplus boost mode allows for a momentary 18% increase in the capacity of the crane, and a Safe Mode to keep the crane and operator safe should a load indicating device fail to operate correctly
- On-Demand speed control ramps engine RPM up only when the crane is being used. When crane is not used for 5 seconds engine RPM returns to idle. This lowers fuel consumption and reduces noise pollution in the work area
- Greasable pivot bushings, each pivot pin location includes bushings and grease zerks to provide for years of use

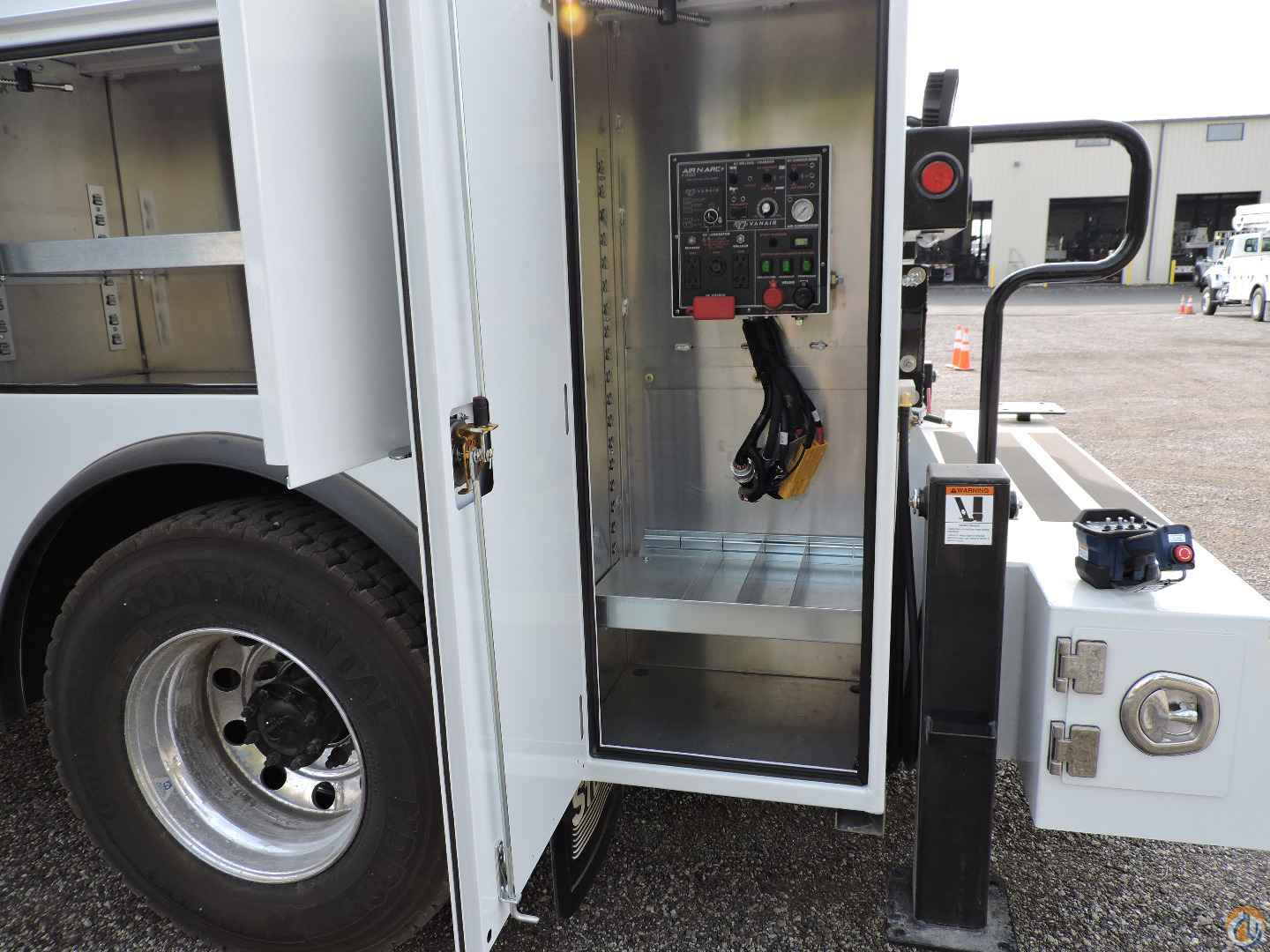

- Hydraulic stabilizers

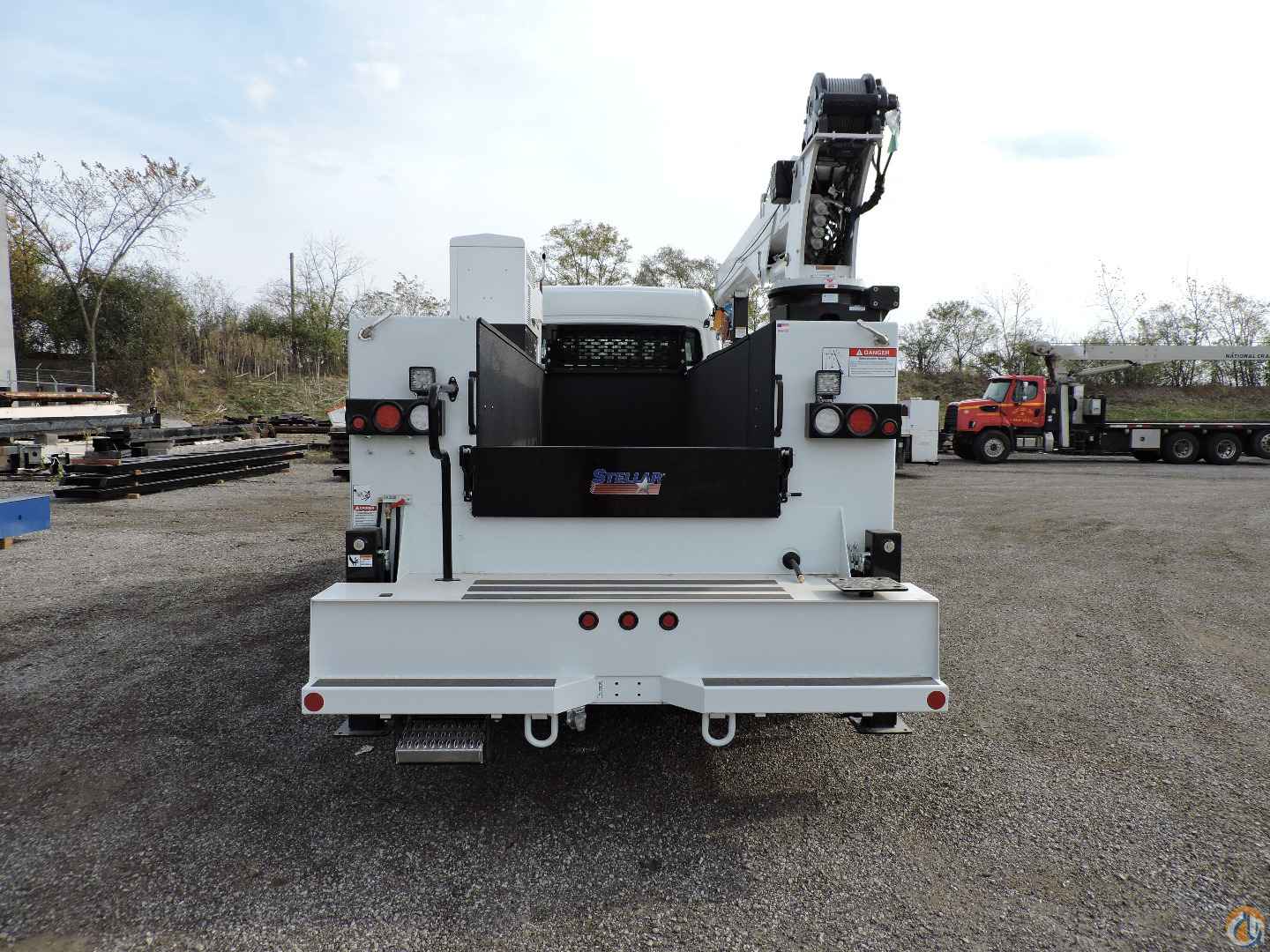

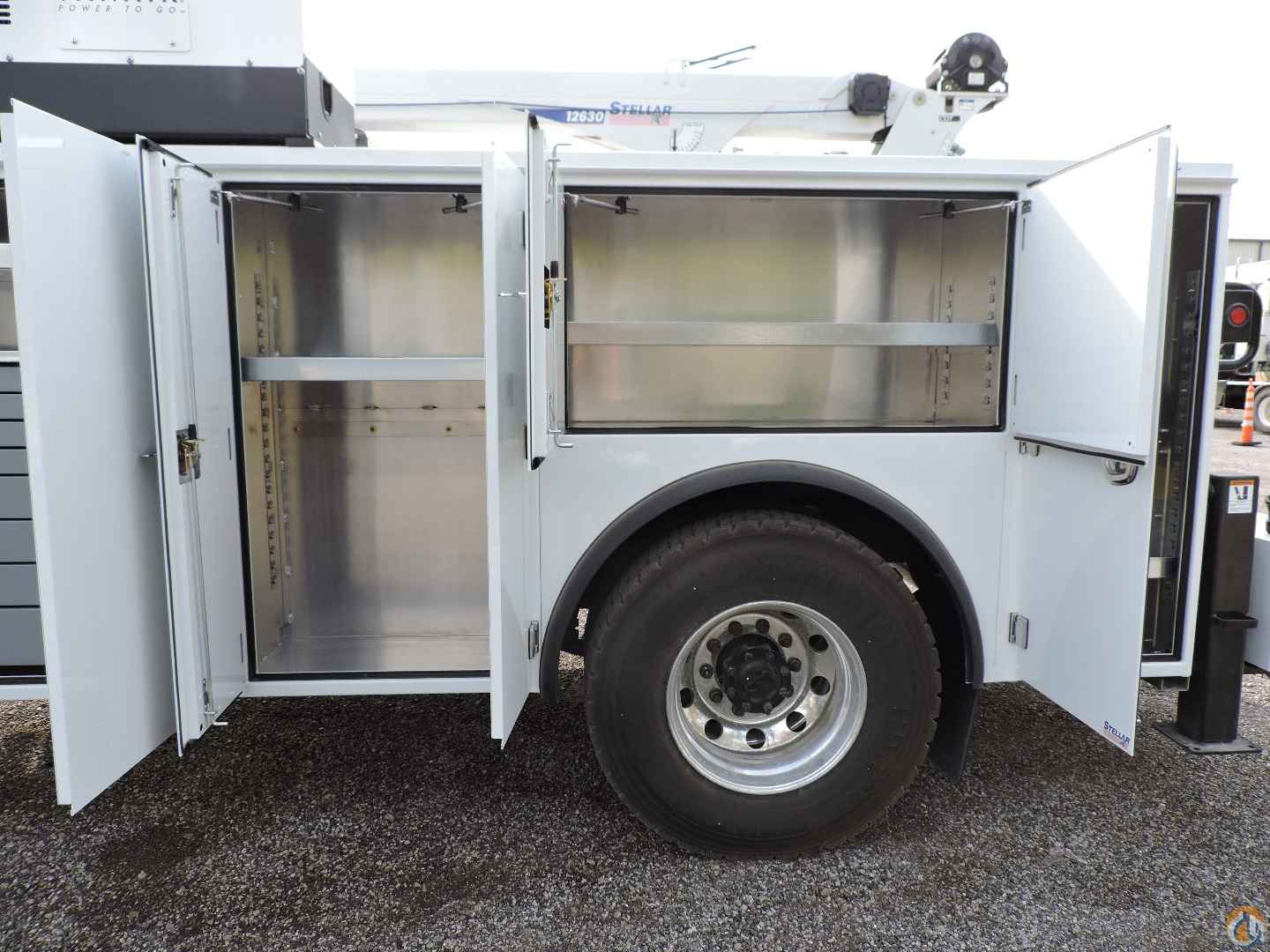

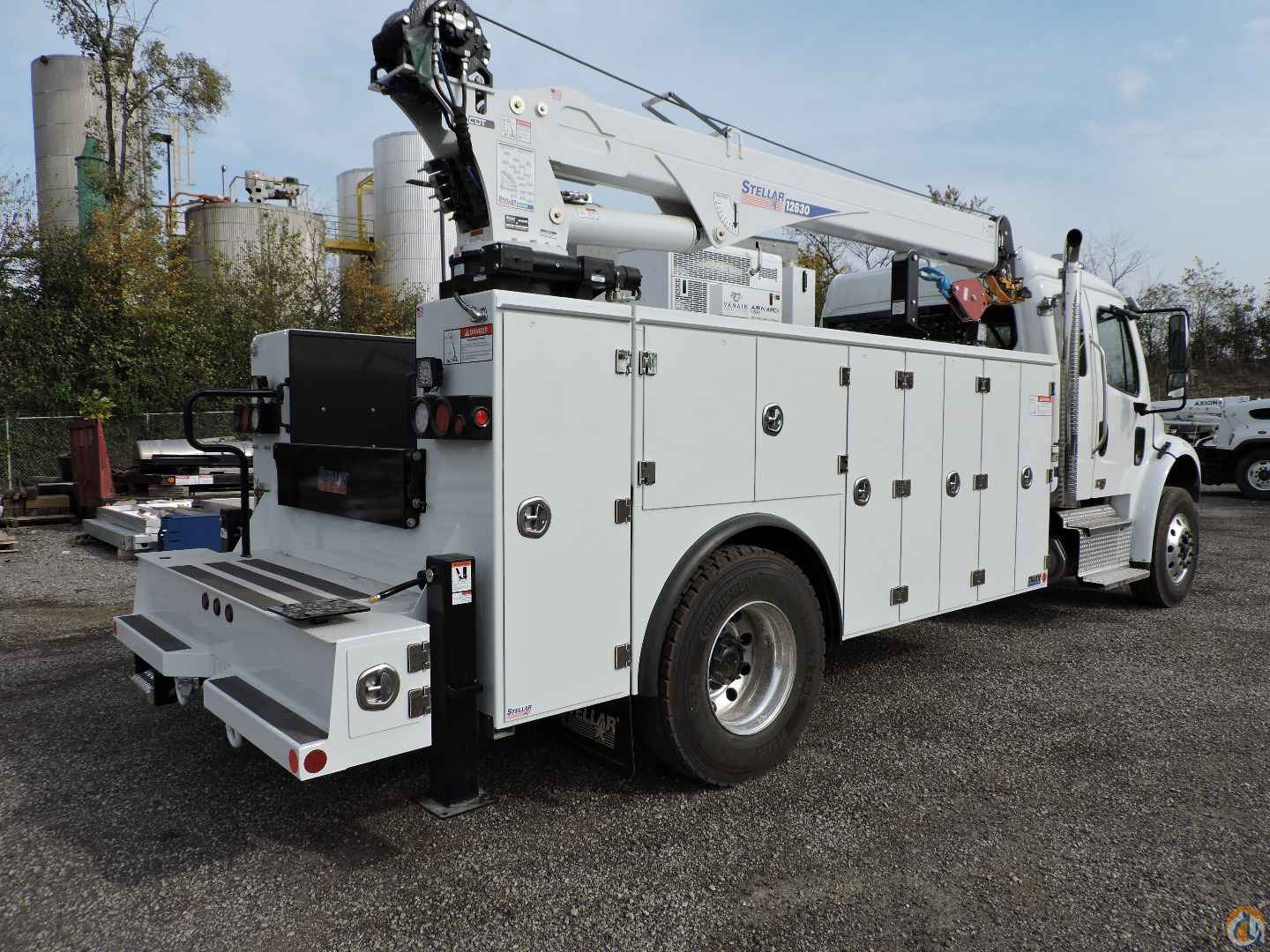

Stellar TMAX2-14’ Aluminum Mechanic Body
- Aluminum doors and side packs
- Torsion box understructure with isolated steel crane compartment
- Master-Lock system
- 168” long
- 50” loadbed width
- Six (6) recessed cargo tie-downs
- Two (2) rear mounted grab handles
- 12” aluminum fold down tailgate – painted black
- 21” step bumper with thru compartment
- Vise mounting plate – receiver workbench mount
- Step, slide out for TMAX mechanics work bench bumper
- Rubber fenderettes
- All compartments raised to 60” H x 22” D
- Overlapped doors on SS1V/CS1V and horizontal compartments
- 2 & 3 point stainless steel compression latches
- Stainless steel “Billet Style” hinges
- Spring loaded door stops
- Dual-seal automotive type compartment weather seal
- LED compartment lights

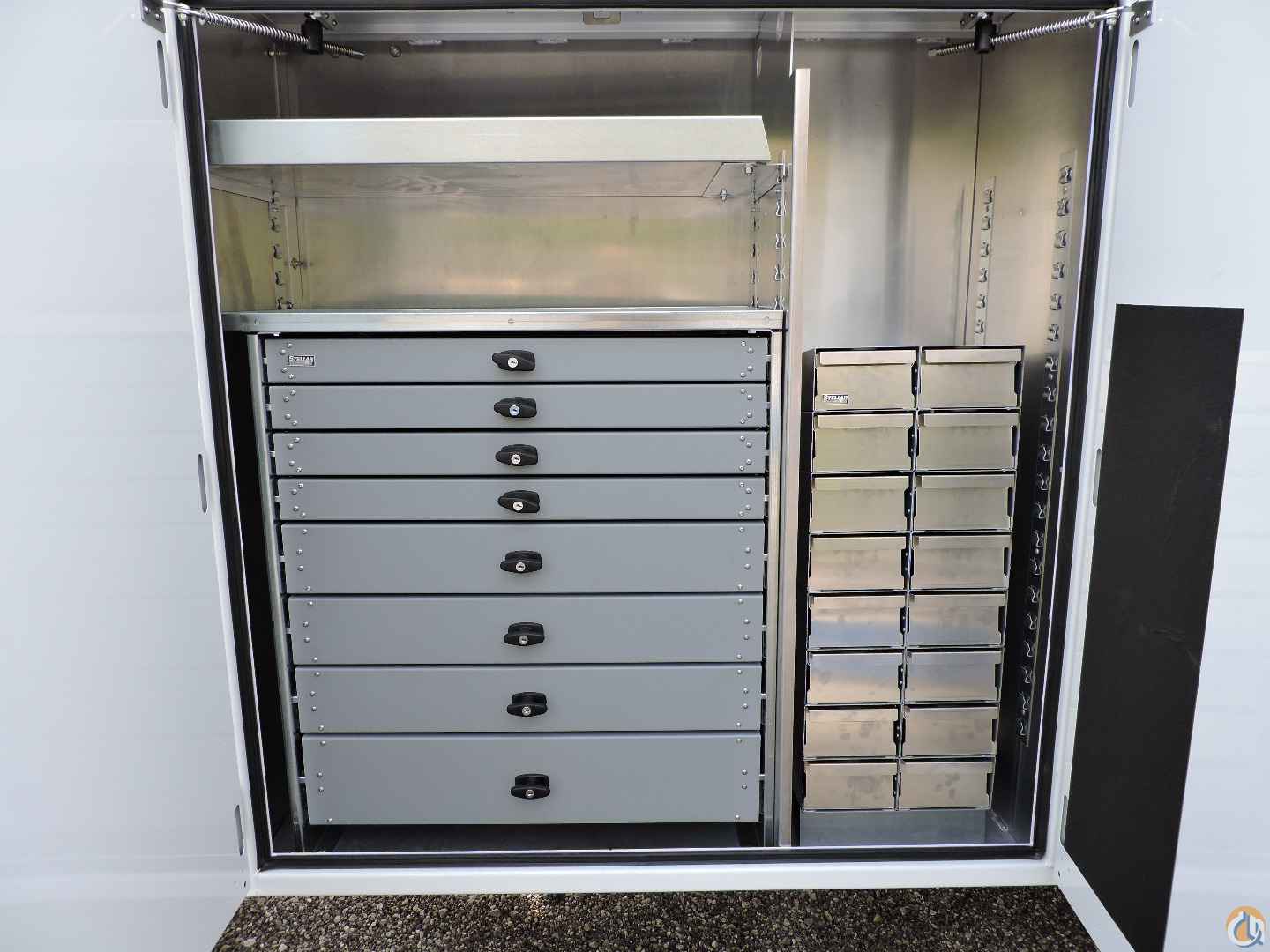

- SS1VF – Heavy duty aluminum drawer set – 36”H x 34”W x 18”D – 4-3”, 3-5”, 1-7”, One (1) shelf with (3) dividers
- SS1VR – 18 steel belt bin with aluminum pullouts – 41”H x 13.5” W x 17.25” D

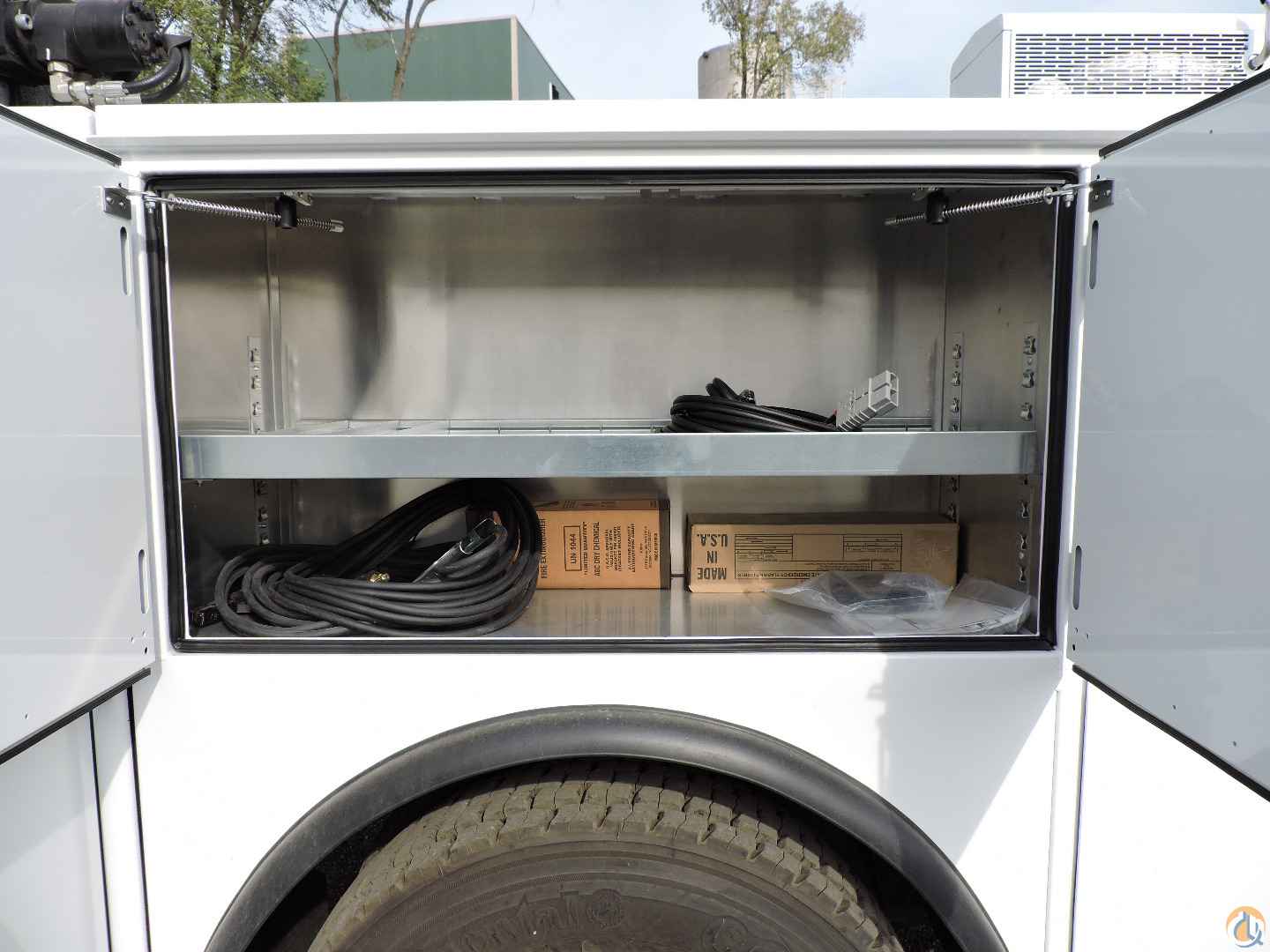

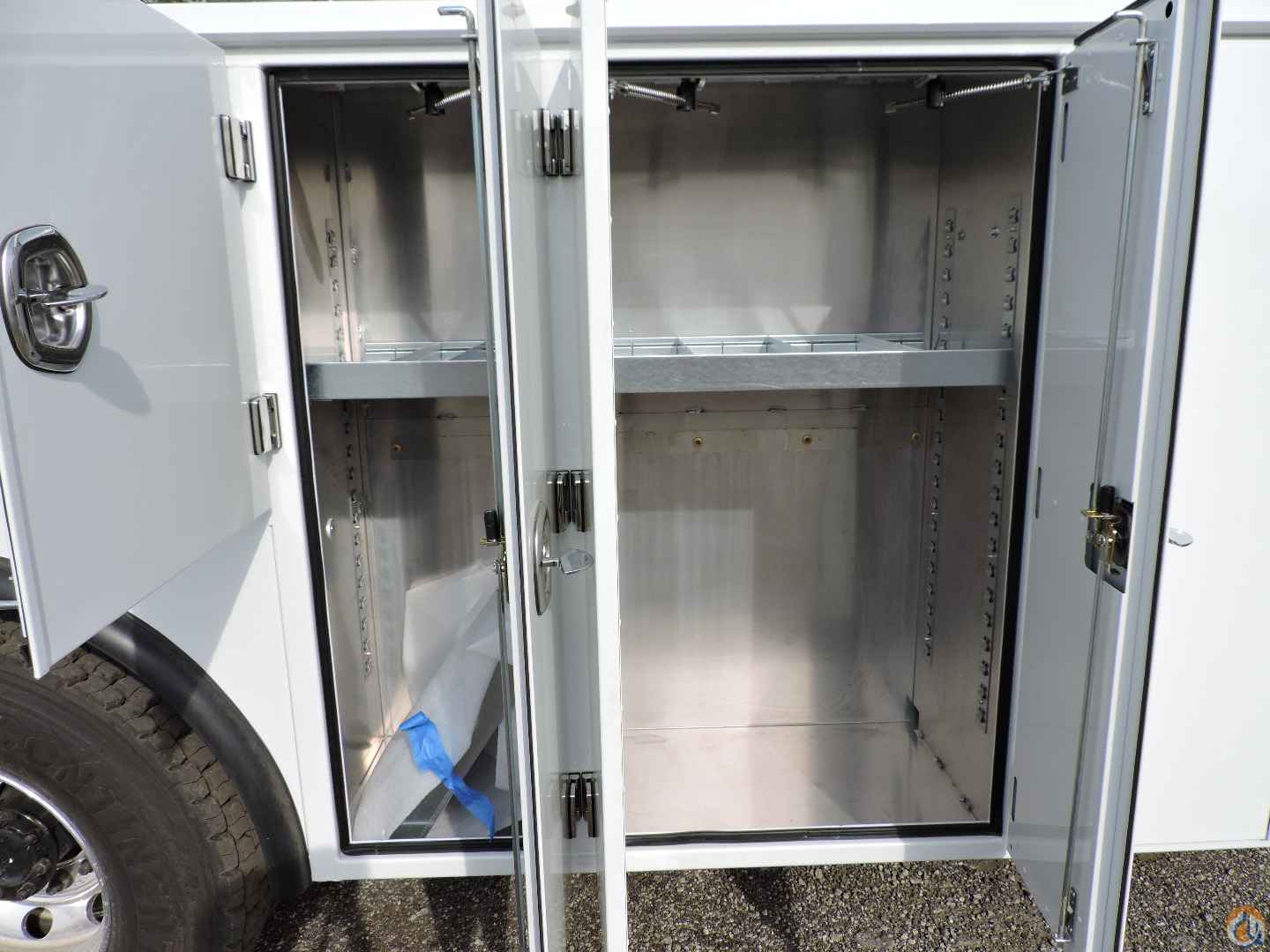

- SS2V - One (1) shelf with (3) dividers – 36” wide
- SS Horizontal – One (1) shelf with (3) dividers – 52” wide
- SS Rear – Two (2) shelves with (3) dividers – 24” wide

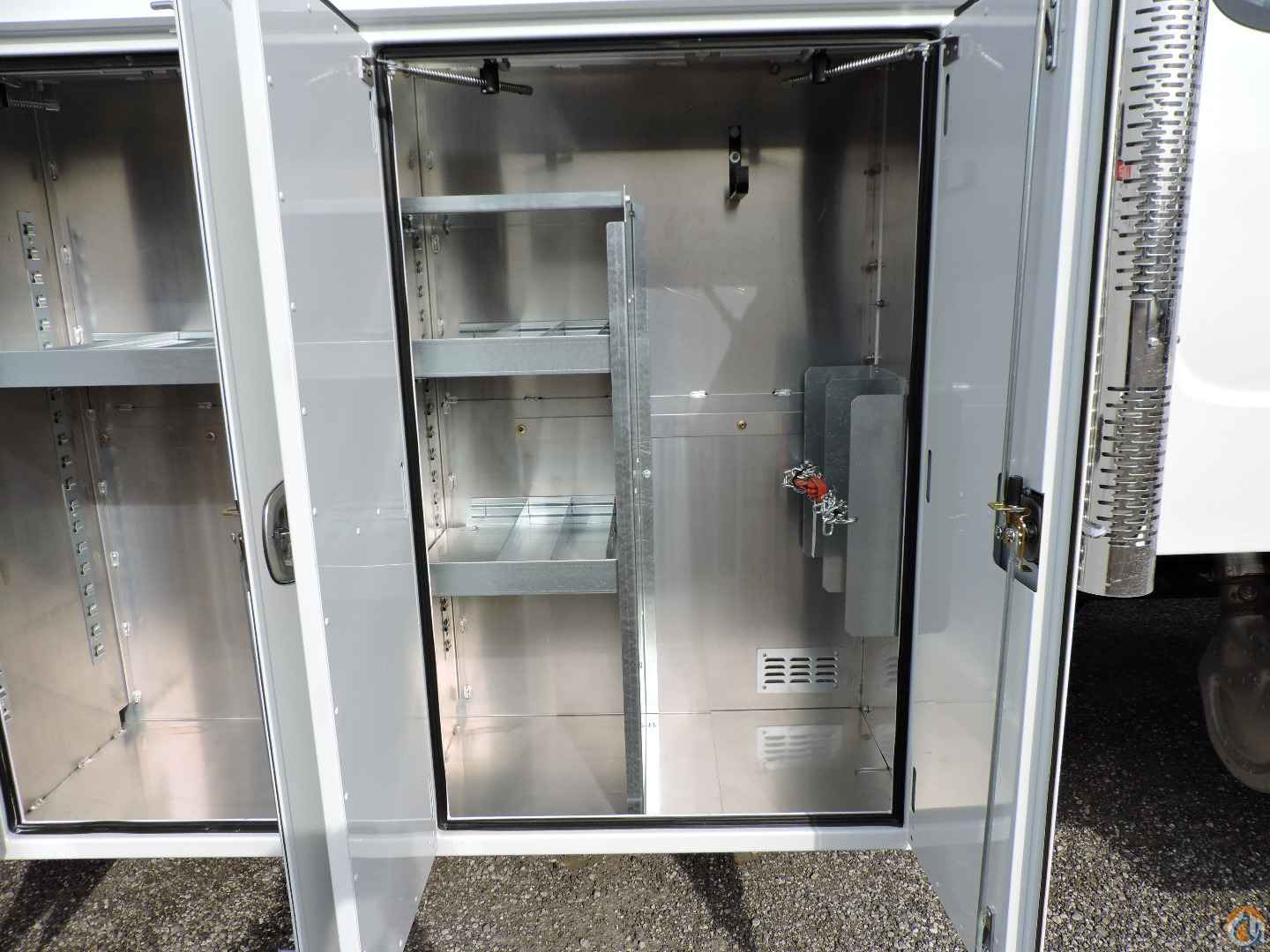

- CS1V – Divider kit with shelves and Oxy-Acetyln bottle holder holds 2 bottles
- CS2V – One (1) shelf with (3) dividers – 32” wide
- CS3V – One (1) shelf with (3) dividers – 19”wide
- CS Horizontal – Shelf with 3 dividers – 52” wide
- CS Rear – ½” x 50’ hose reel with roller guide – exits rear of body
- Cab guard
- 22 gallon air tanks

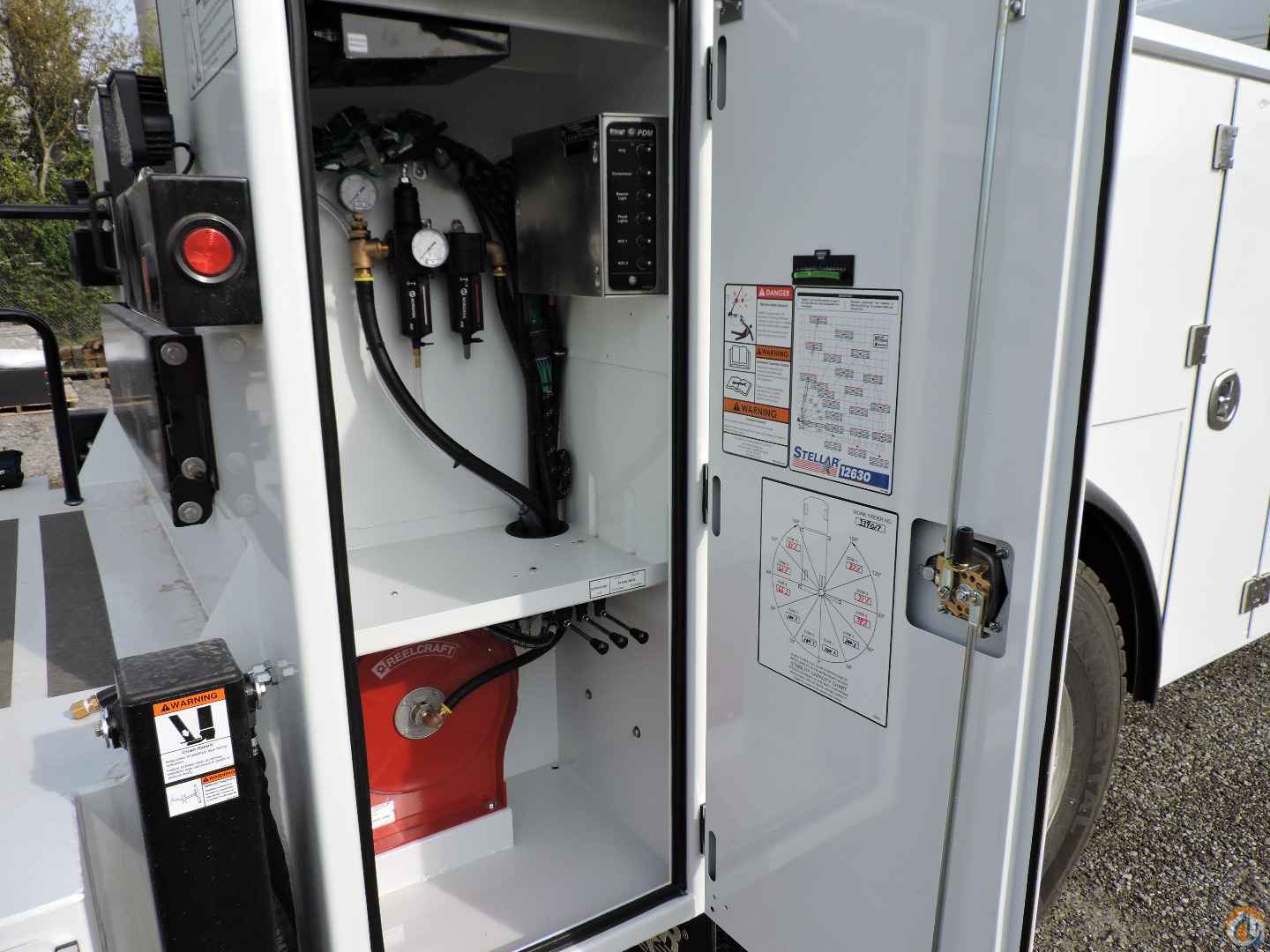

- FLR system – ¾” air feed for ½” hose reel (filter, lubricator, regulator)
- LED floodlights – Four (4) total. 1 on boom support, 1 SS behind compressor, 1 on each rear taillight box
- Dual LED Trilliant lights - mounted on boom tip – gravity rotating
- Backup alarm
- ICC safety kit – 2.5# fire extinguisher and reflector kit
- Weld-on receiver hitch
- Spray-on bed liner for load bed walls and floors
- Undercoated
- Prime painted white

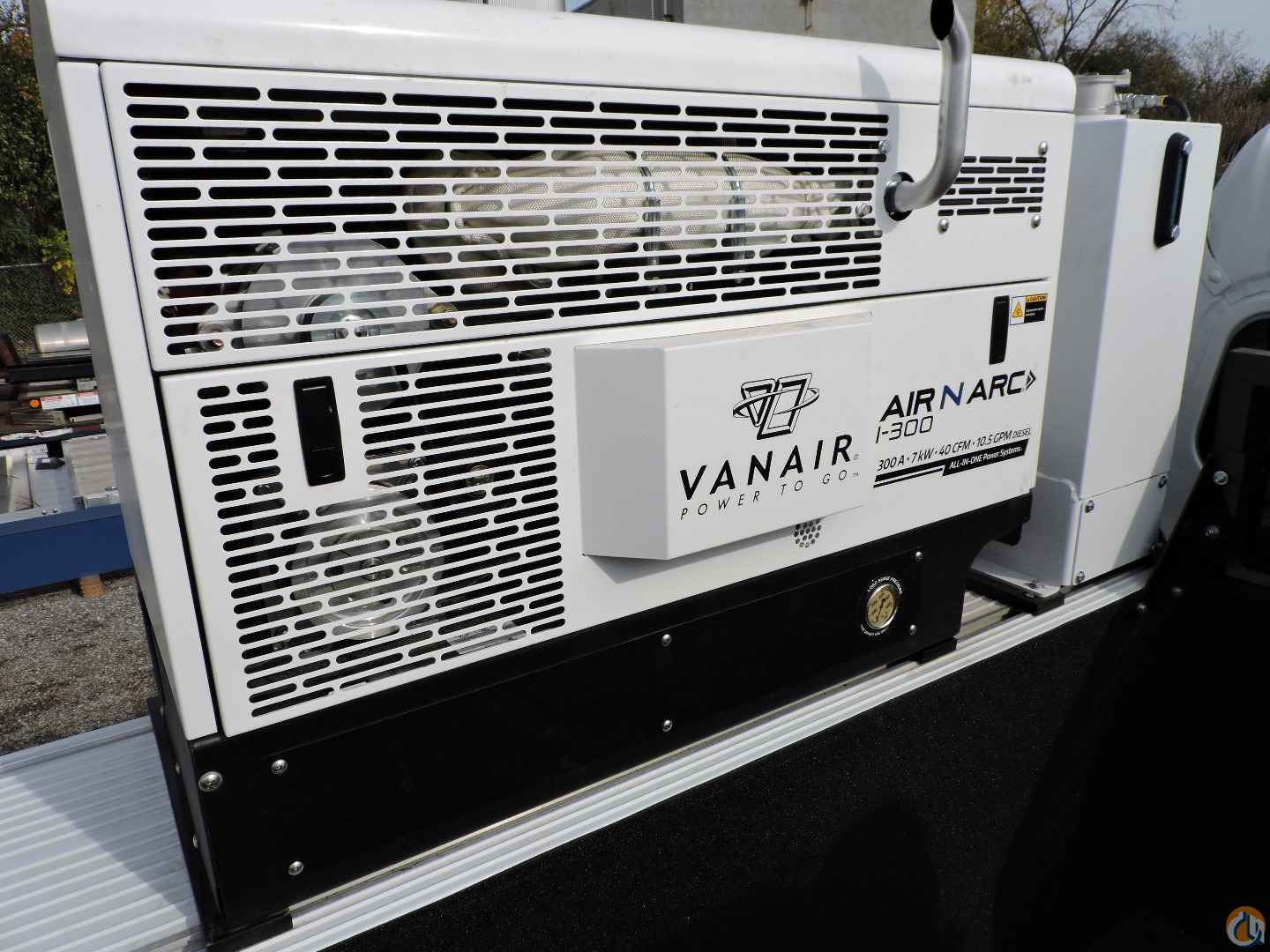

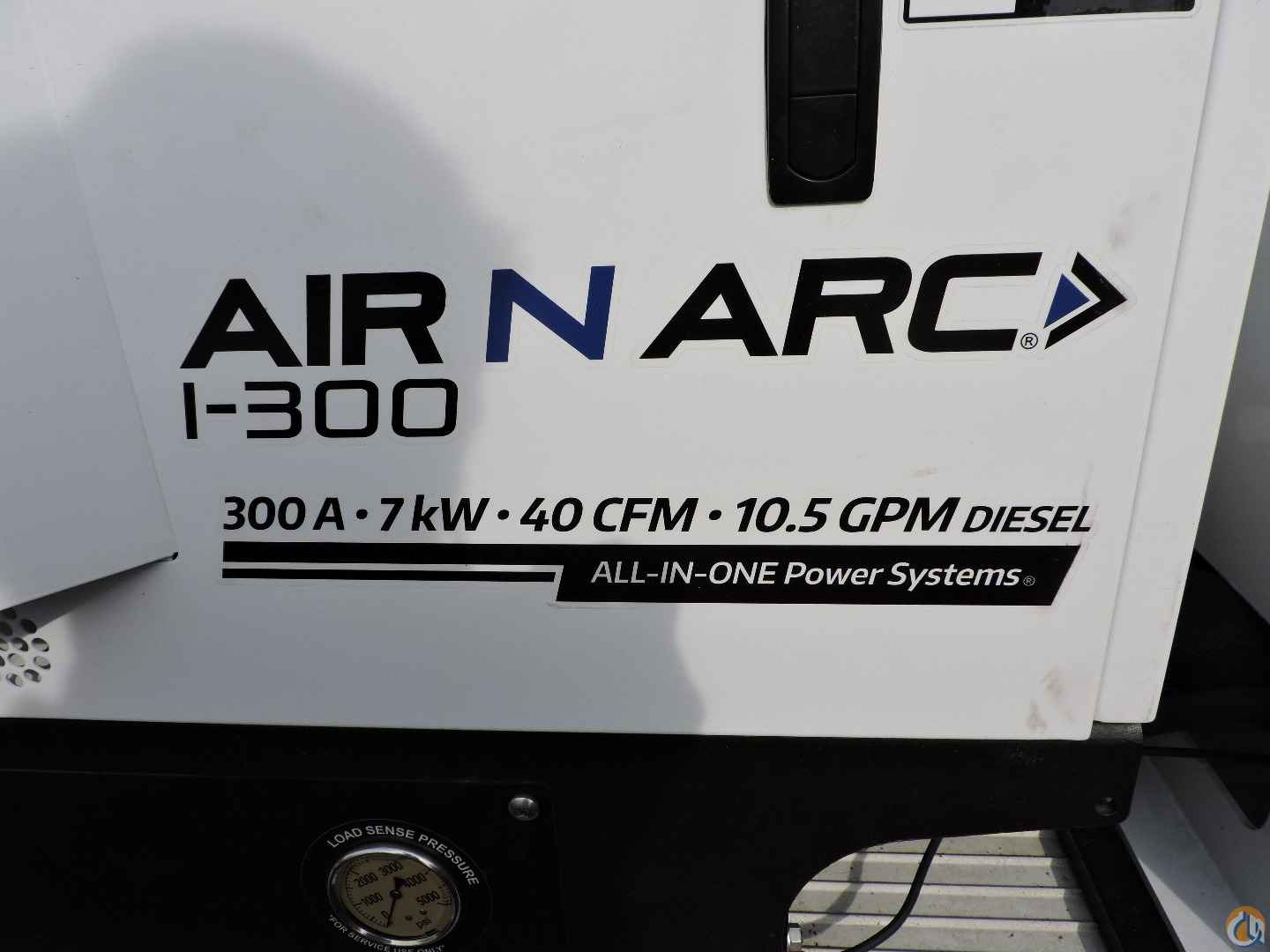

- Vanair Air-N-Arc i300 – mounted on side pack, 24.8 hp Kubota engine with 40 CFM rotary screw compressor, 6.8 kW generator, welder 300 amps peak, 260 amps @ 100% duty cycle, battery charger/booster – 300 amps 12V/24V boost, 50 amp 12V charge

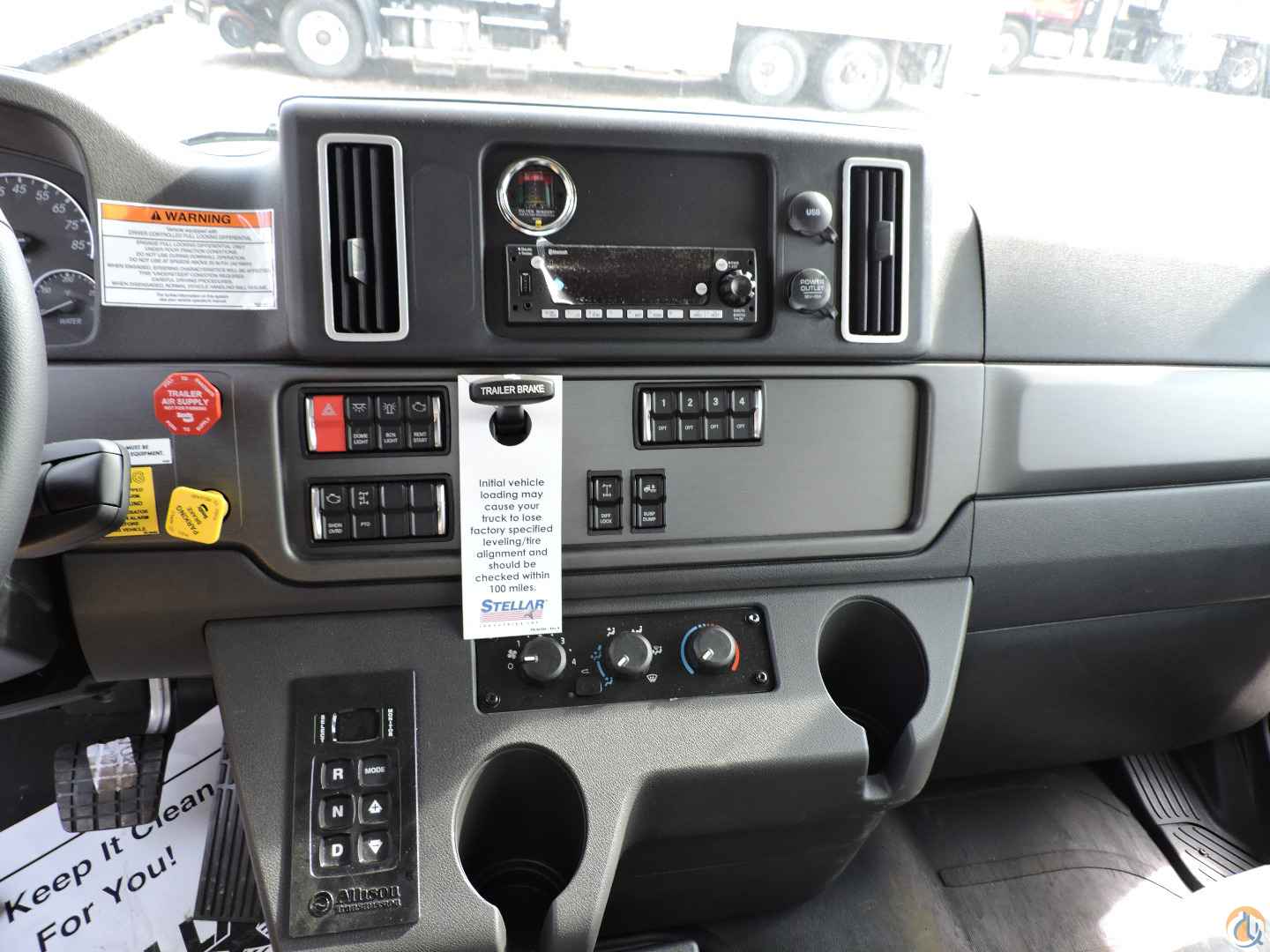

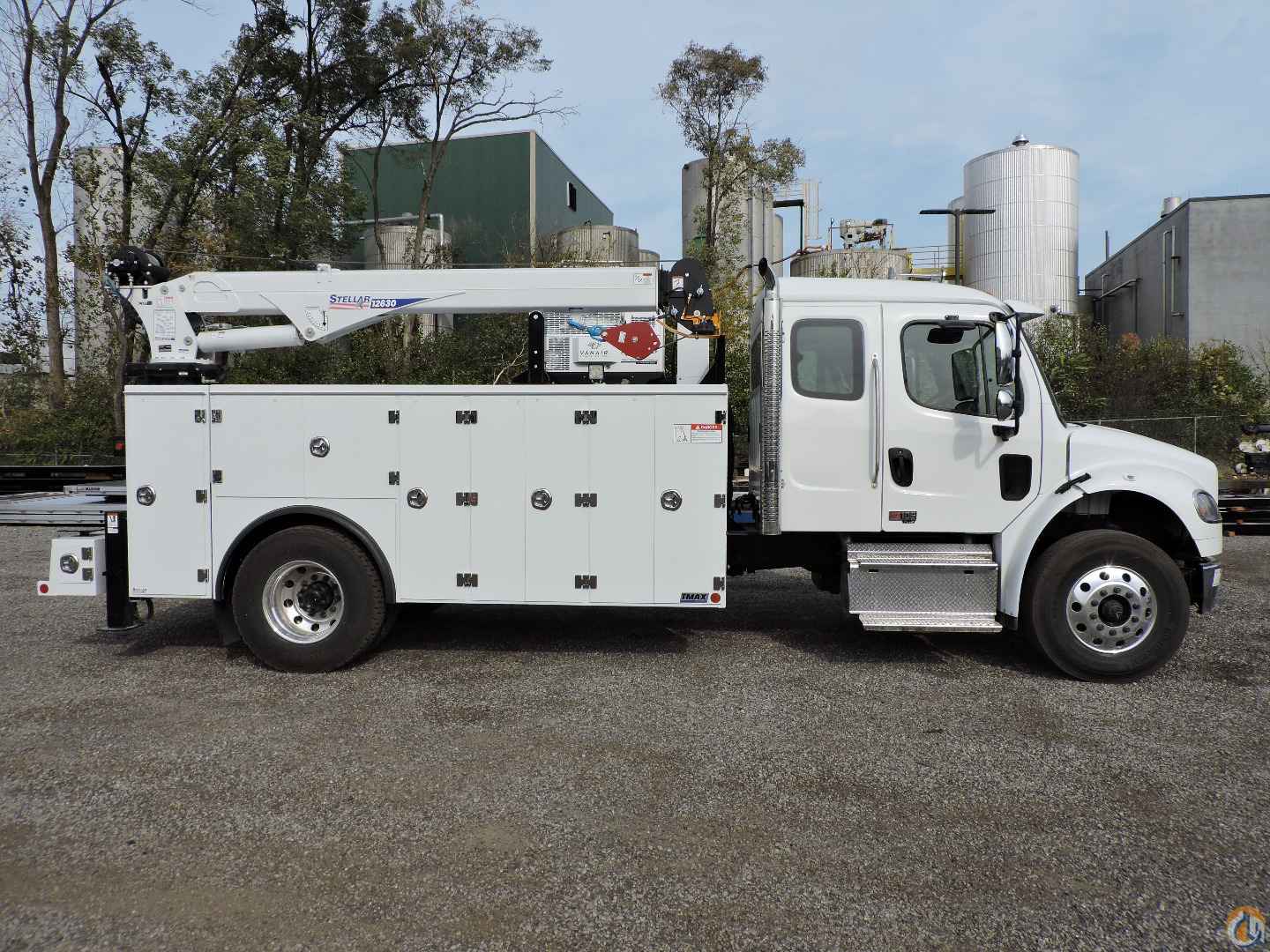

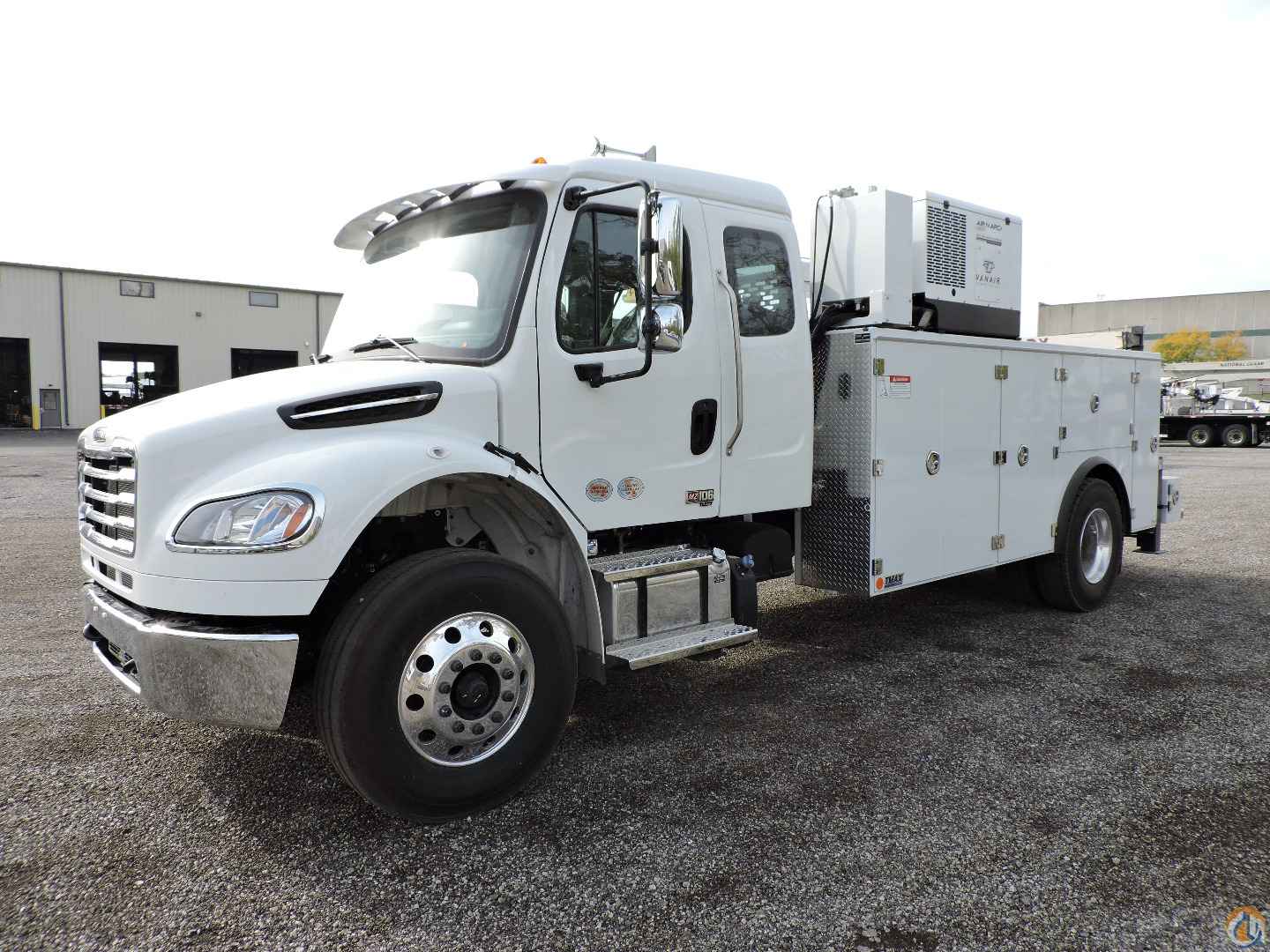

2026 Freightliner M2-106
- Extended cab
- 33,000# GVW
- Cummins L9 engine – 350 hp at 2000 rpm, 1000 ft./lbs at 1400
- Cummins exhaust brake
- 1000W engine block heater

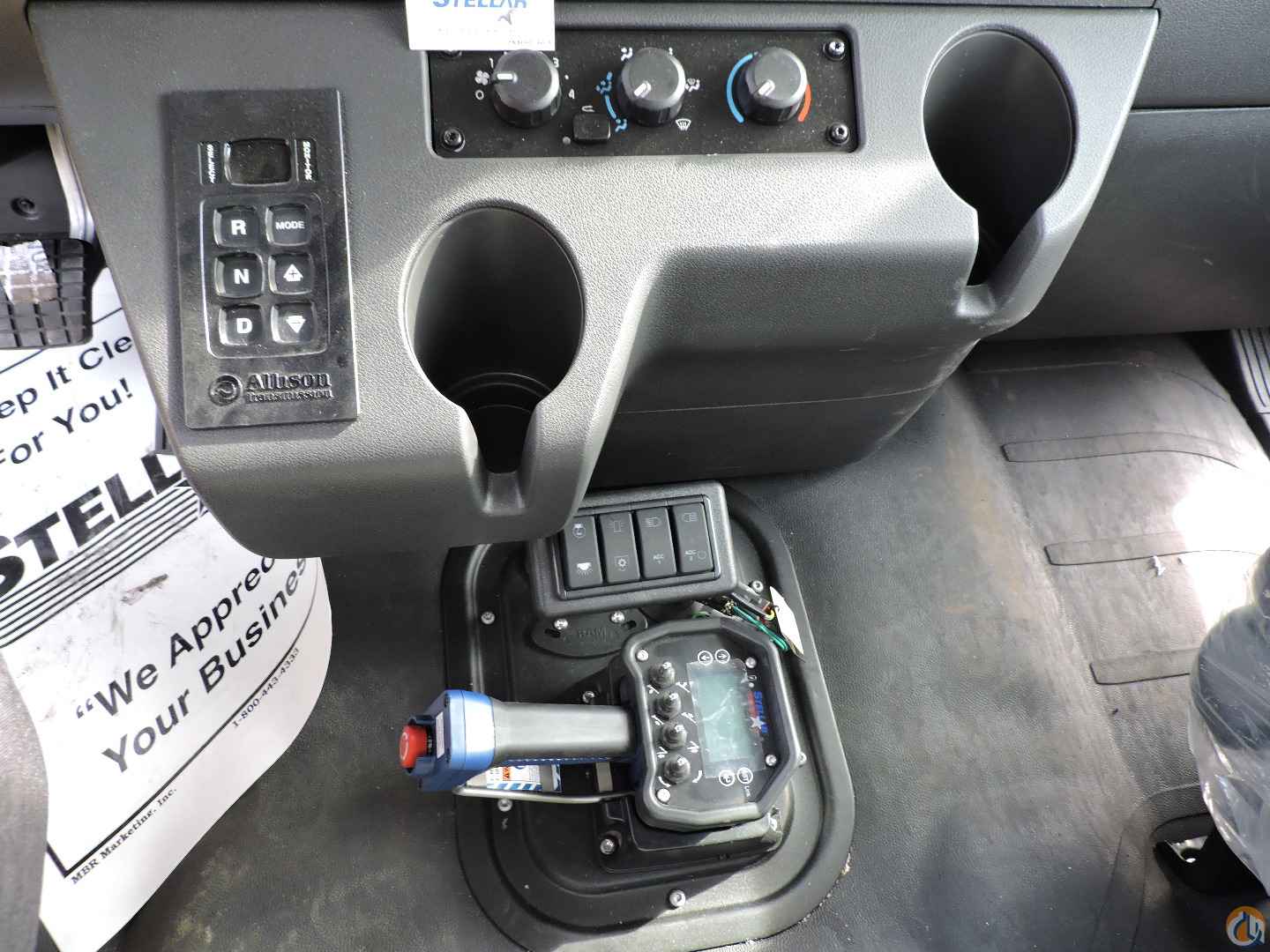

- Allison 3000 RDS automatic transmission
- 127” CA/219” wheelbase
- Front axle: 12,000# with Taperleaf spring and shocks
- Rear axle: 21,000# with Airliner suspension
- 5.22 rear axle ratio
- Removable front tow hooks
- Chromed steel bumper
- Telescope and tilt steering column

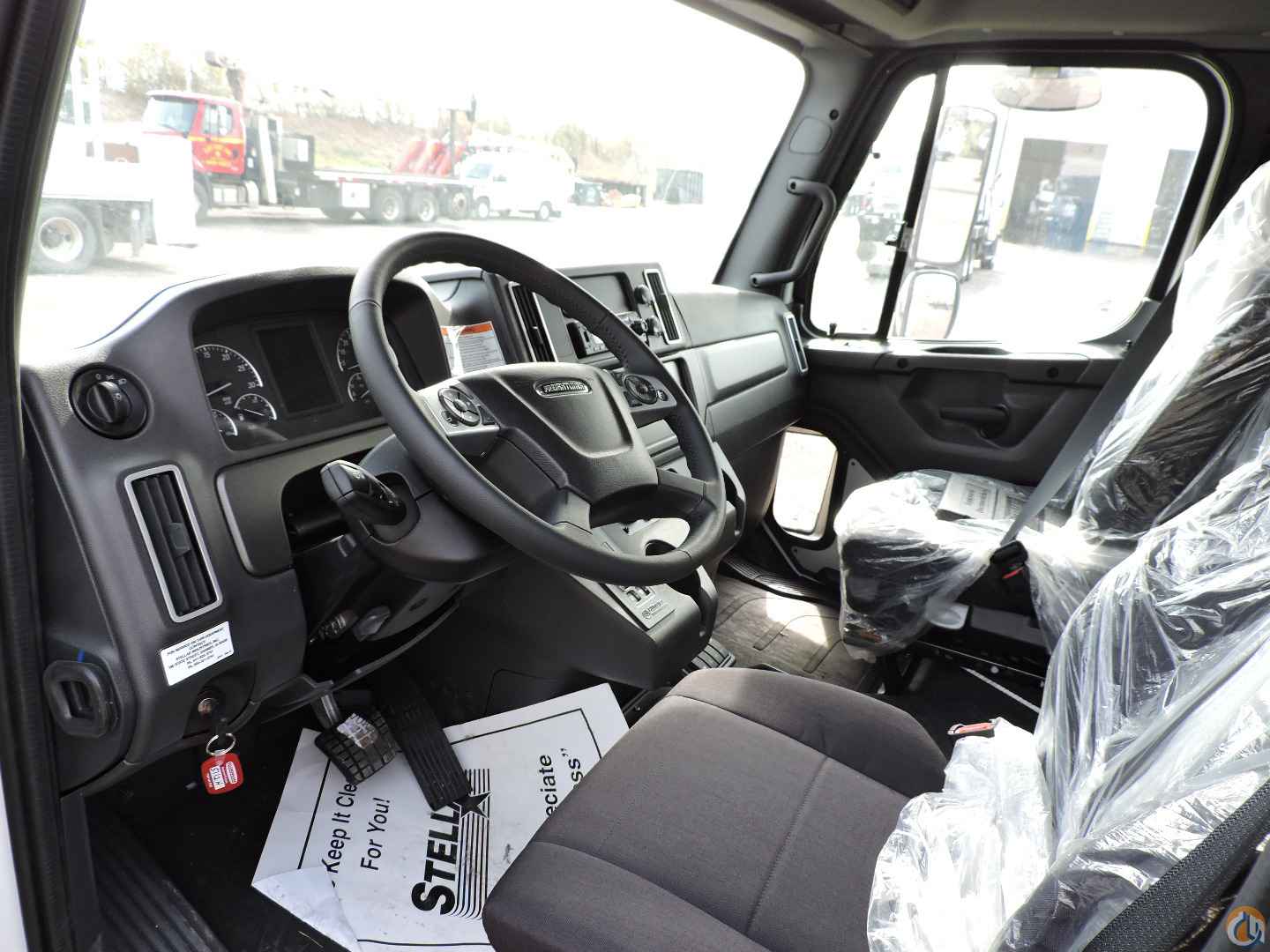

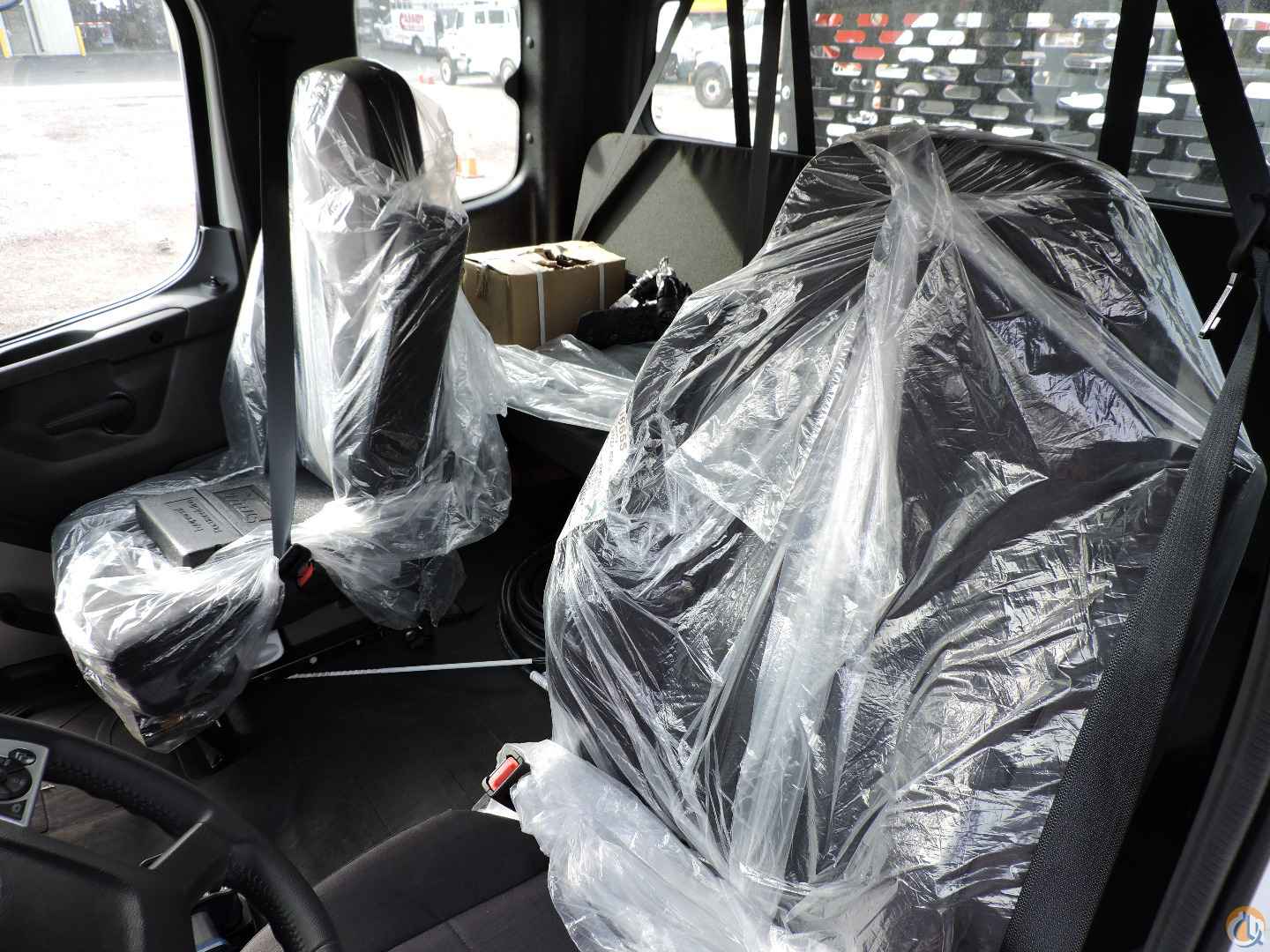

- Driver and passenger’s seat - high back air suspension with lumbar support, Mordura cloth, dual armrests
- Full width rear bench seat
- Dual polished air horns mounted
- Composite exterior sun visor
- Air brakes
- Heated air dryer
- Air cab
- 50 gallon fuel tank
- 11R22.5 tires – Michelin
- Aluminum wheels – polished finish on outside wheels
- Air conditioning
- Power windows
- AM/FM/WB/USB radio with Bluetooth
- Heated and motorized mirrors
- RH downview mirror
- Painted White
STOCK PHOTOS
