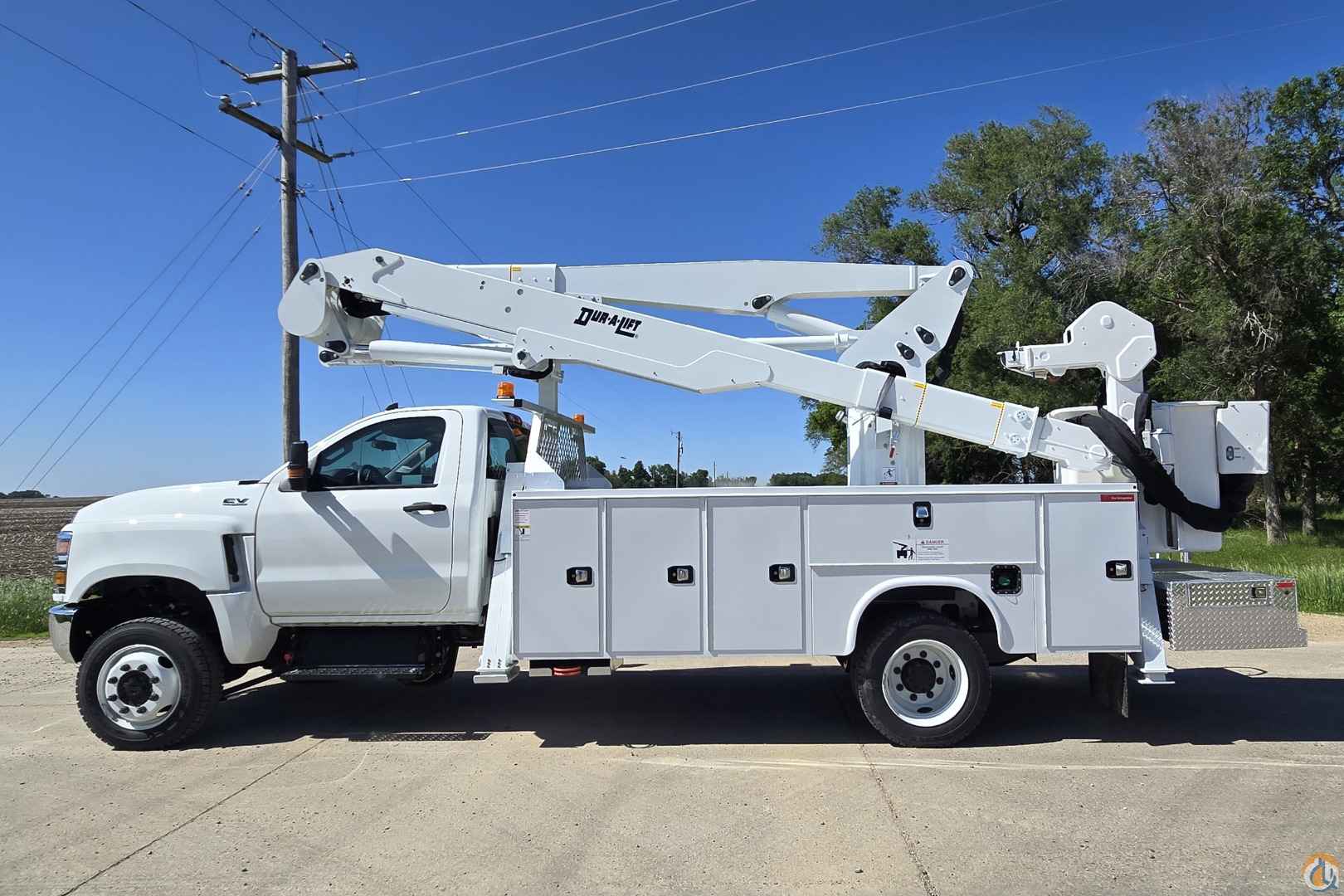

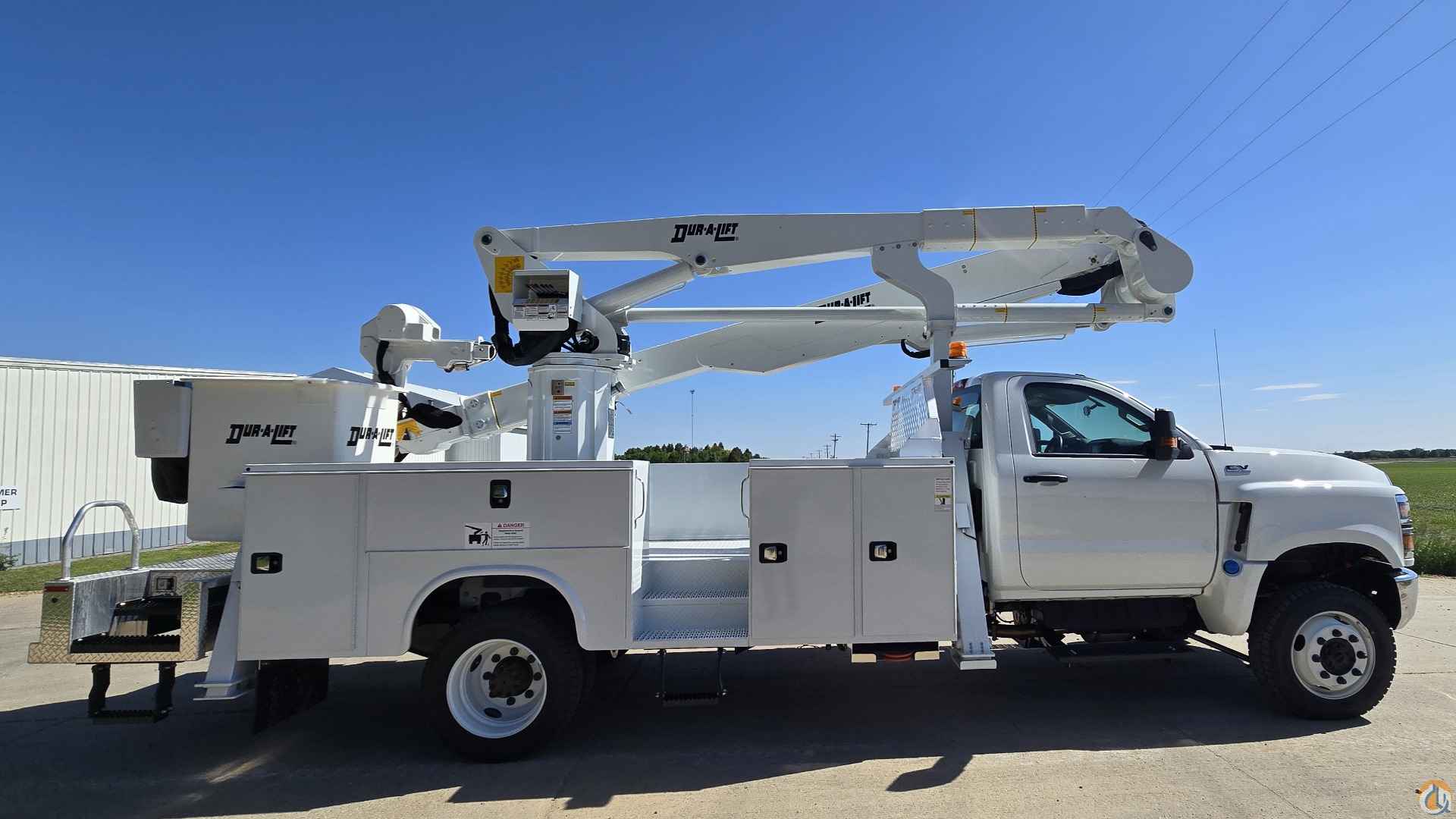

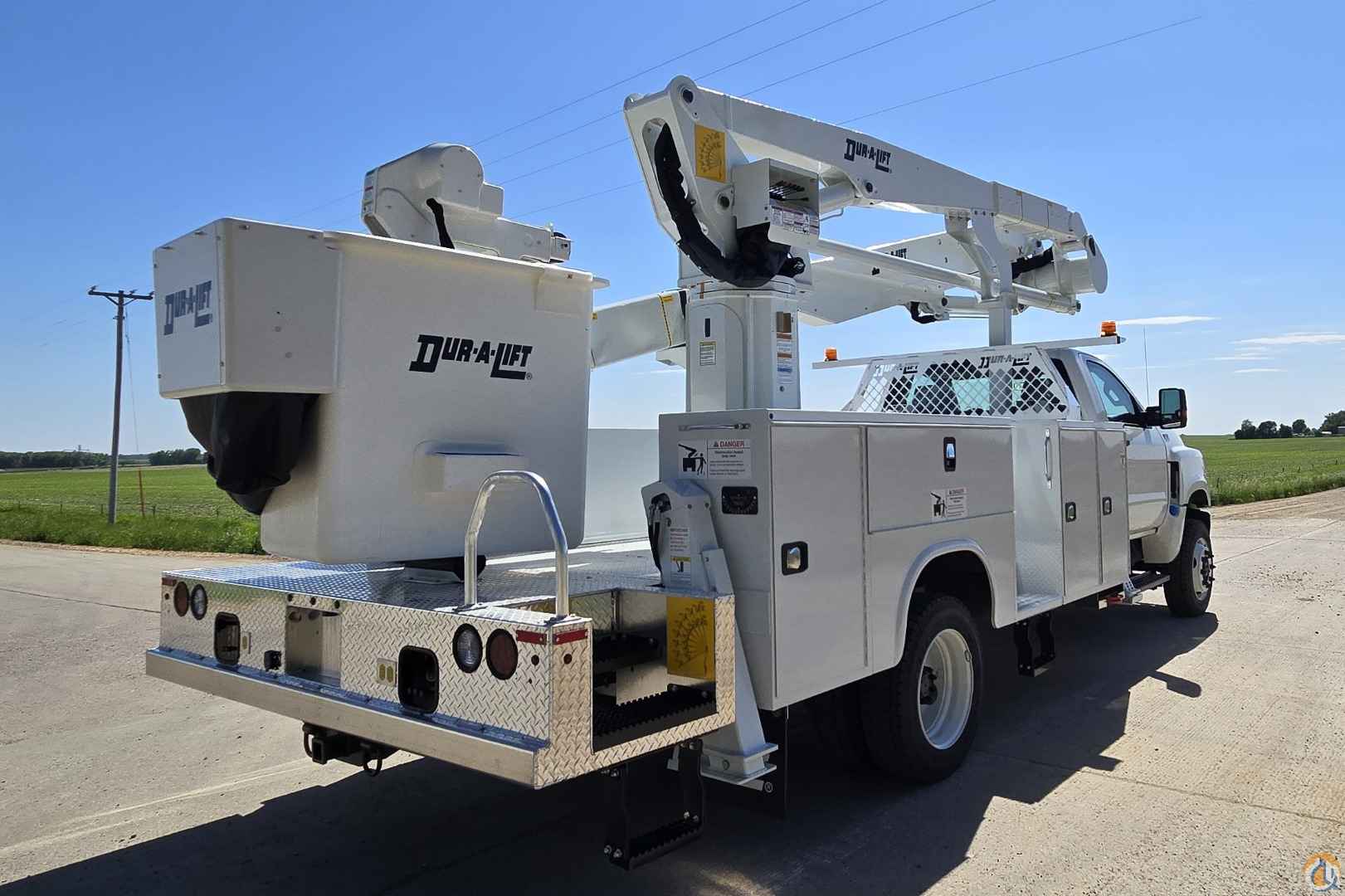

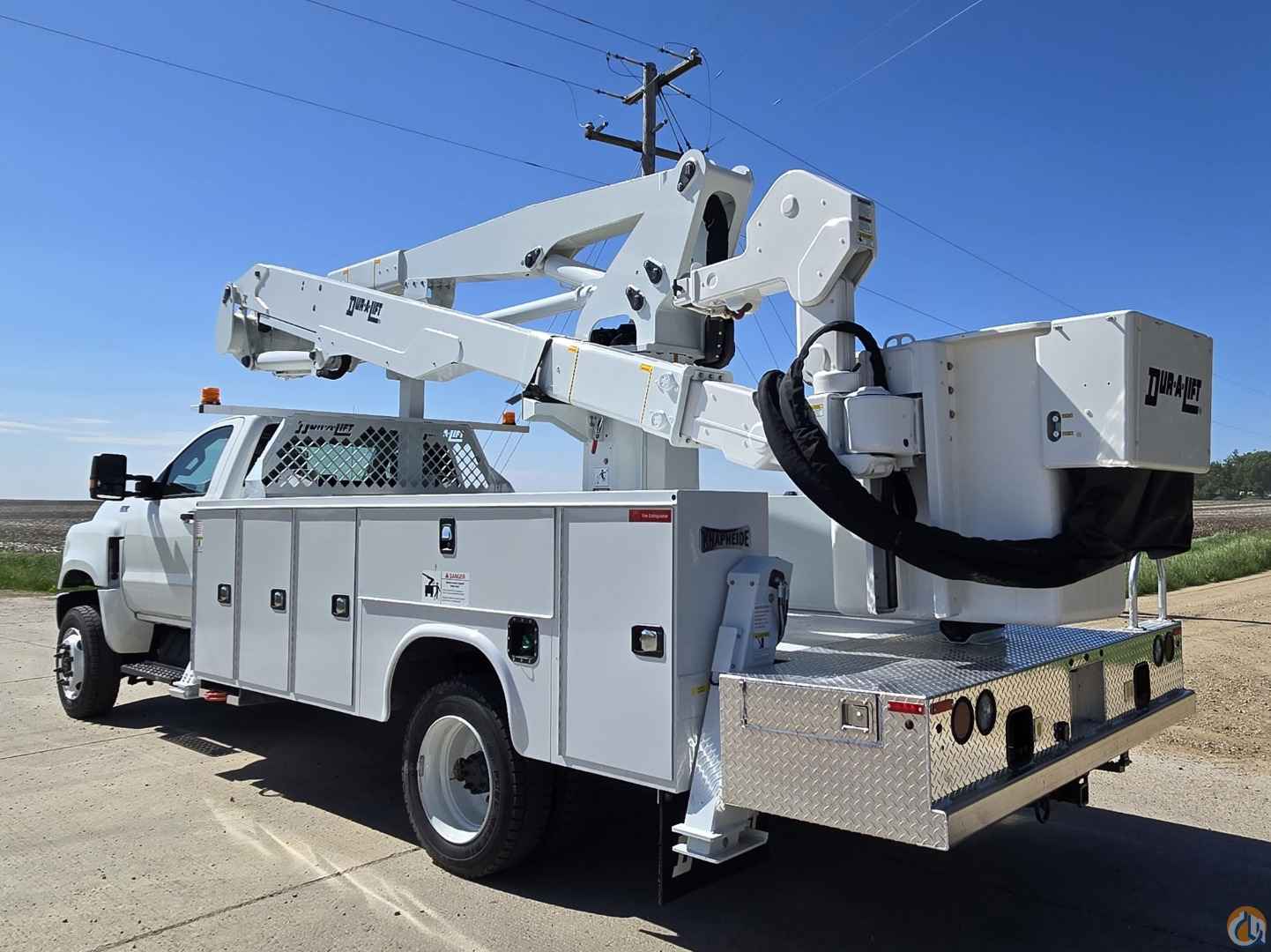

Duralift DPM2-52DU:

- CAT C Insulated aerial device

- 57’ working height, 59’ working height with basket elevator

- 54’ height to bottom of basket

- Main boom fiberglass insert

- Chassis isolator insert

- 31’6” side reach

- 24” x 42” x 42” fiberglass basket with step, including basket liner, clips, and cover

- 550# basket capacity when not using winch

- 400# basket capacity when using jib

- Hydraulically extendable jib. Jib is top-mounted with a maximum capacity of 1000#

- Hydraulic leveling, stow, and dump

- 180° basket rotator

- Continuous rotation

- Inclinometer

- Transmission mounted P.T.O, pump and hydraulic reservoir

- 12 volt emergency hydraulic backup system

- Upper & lower operation controls with emergency shut down and start/stop controls

- HERC single hand upper controls

- Hydraulic tool circuit at bucket

- A-frame outriggers with outrigger interlock, mid mount and rear mount

- Outrigger motion alarm

- Four 18” x 18” composite outrigger pads with two (2) outrigger pad holders

- Backup alarm

- Two (2) LED dome strobe lights

- Four corner LED strobe lights

- Timbren load boosters on front and rear axle

- Body harness & lanyard

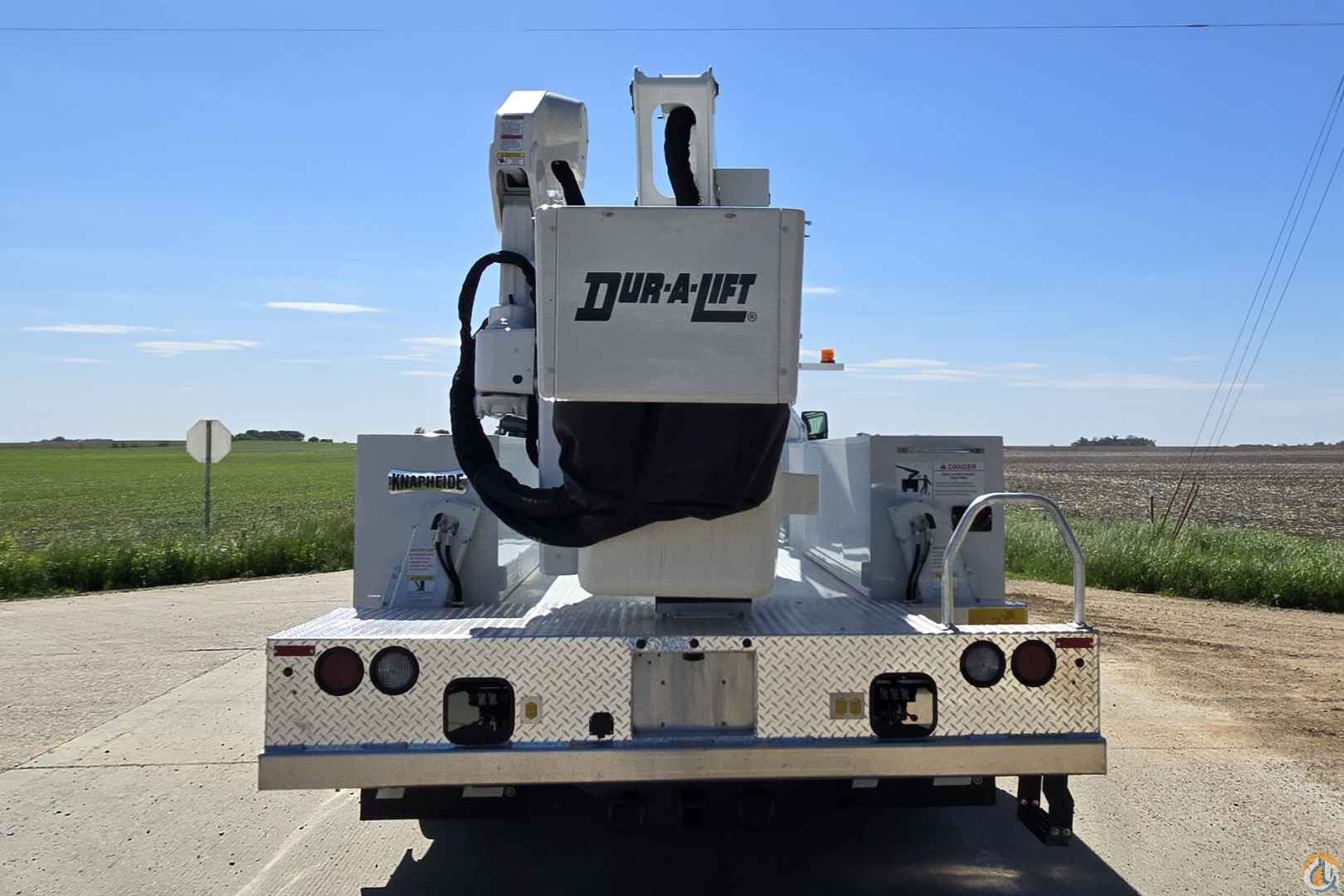

- 30” x 94” aluminum tailshelf and through box

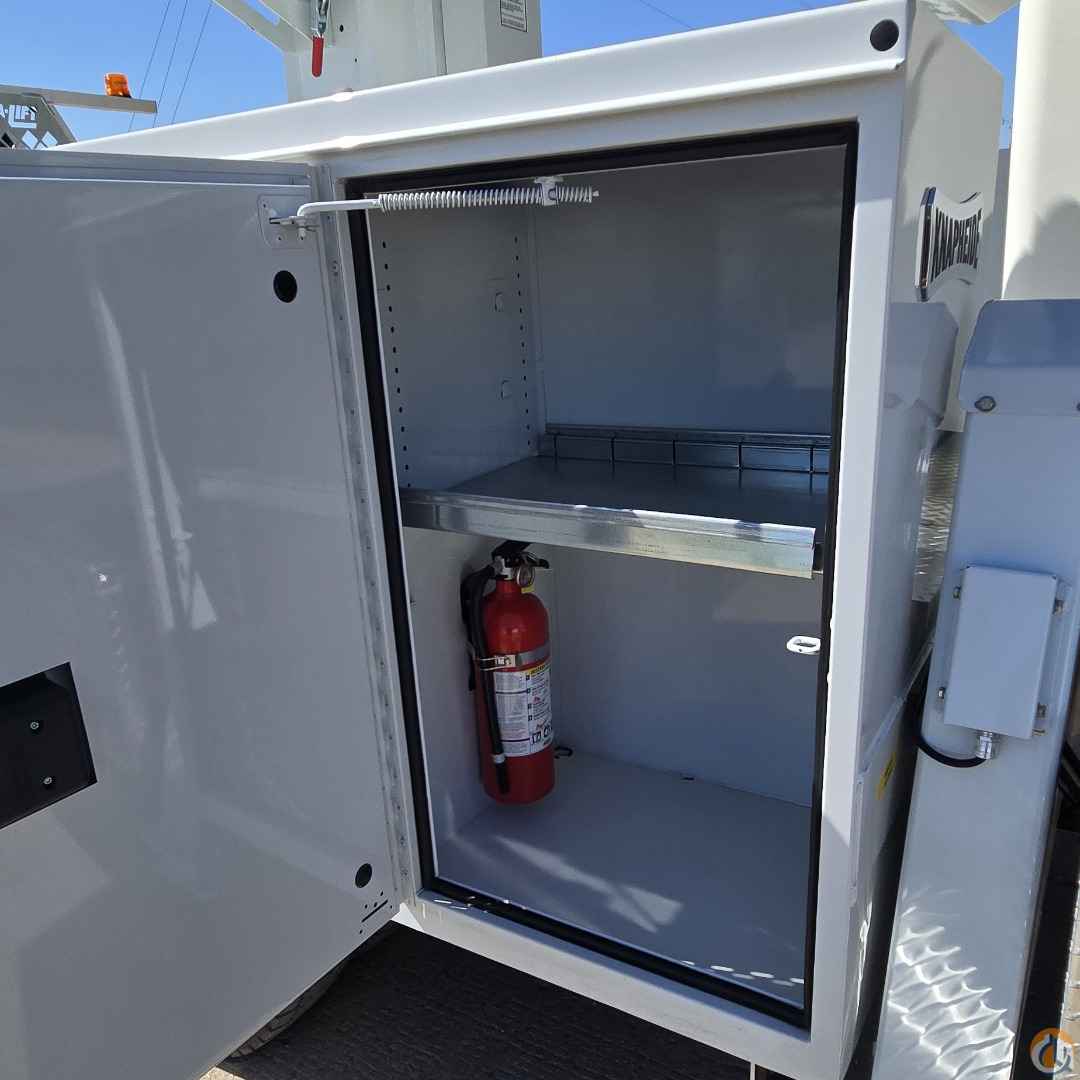

- Fire extinguisher

- Reflector kit

- 2” Pintle/Ball and 7 pin trailer receptacle

- C shape grounding lug

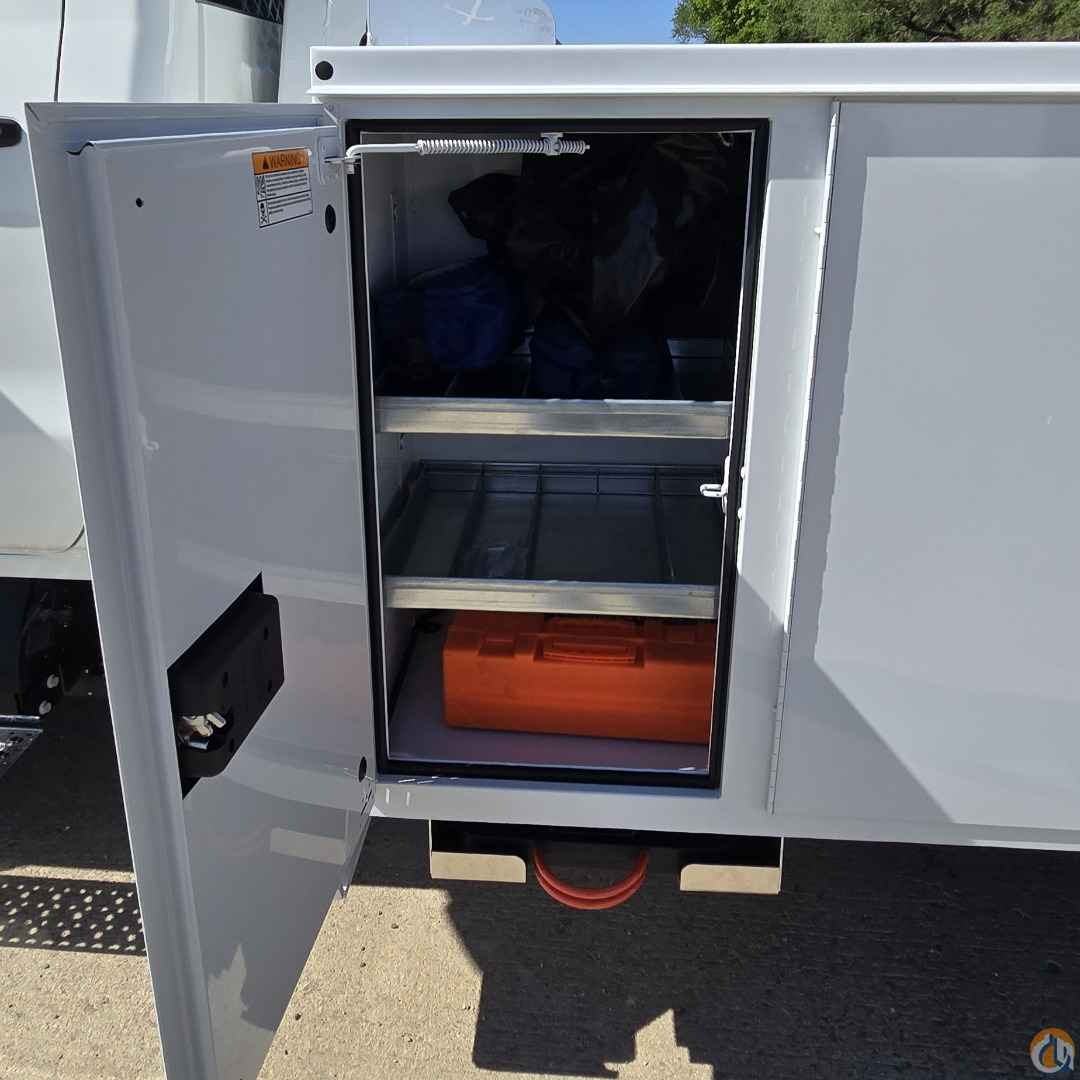

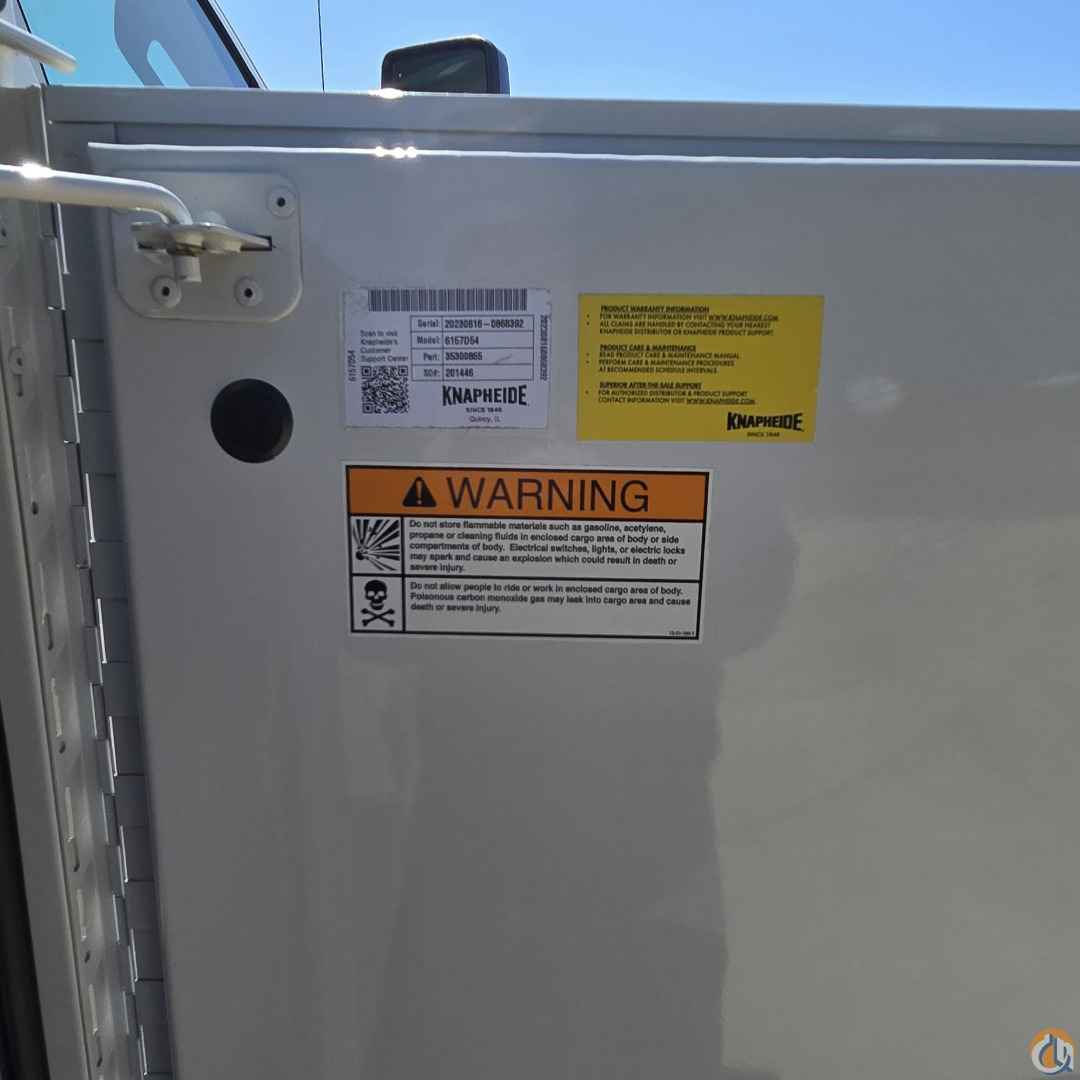

Knapheide 6150D54 service body:

- 94” wide

- 149” long

- Compartments depth 20”

- SS/CS1V – 22.25” L x 40” H

- SS/CS2V – 23” L x 40” H

- SS3V – 26” L x 40” H

- CS3V – Curbside walkup

- SSH – 52.75” L x 18 ½” H

- CSH – 54” L x 18 ½” H

- SS/CS4V – 25.25” L x 40” H

MOUNTED ON:

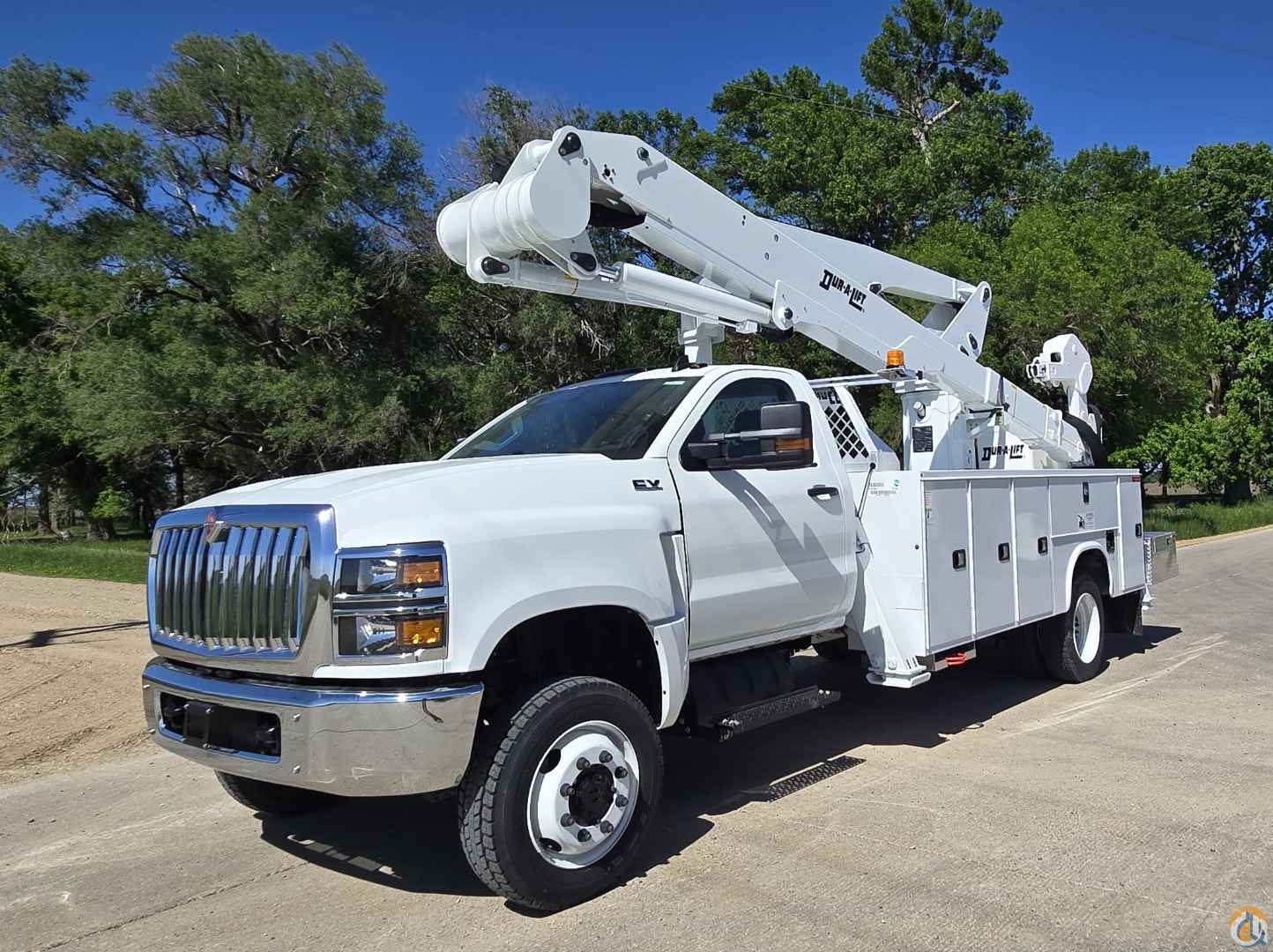

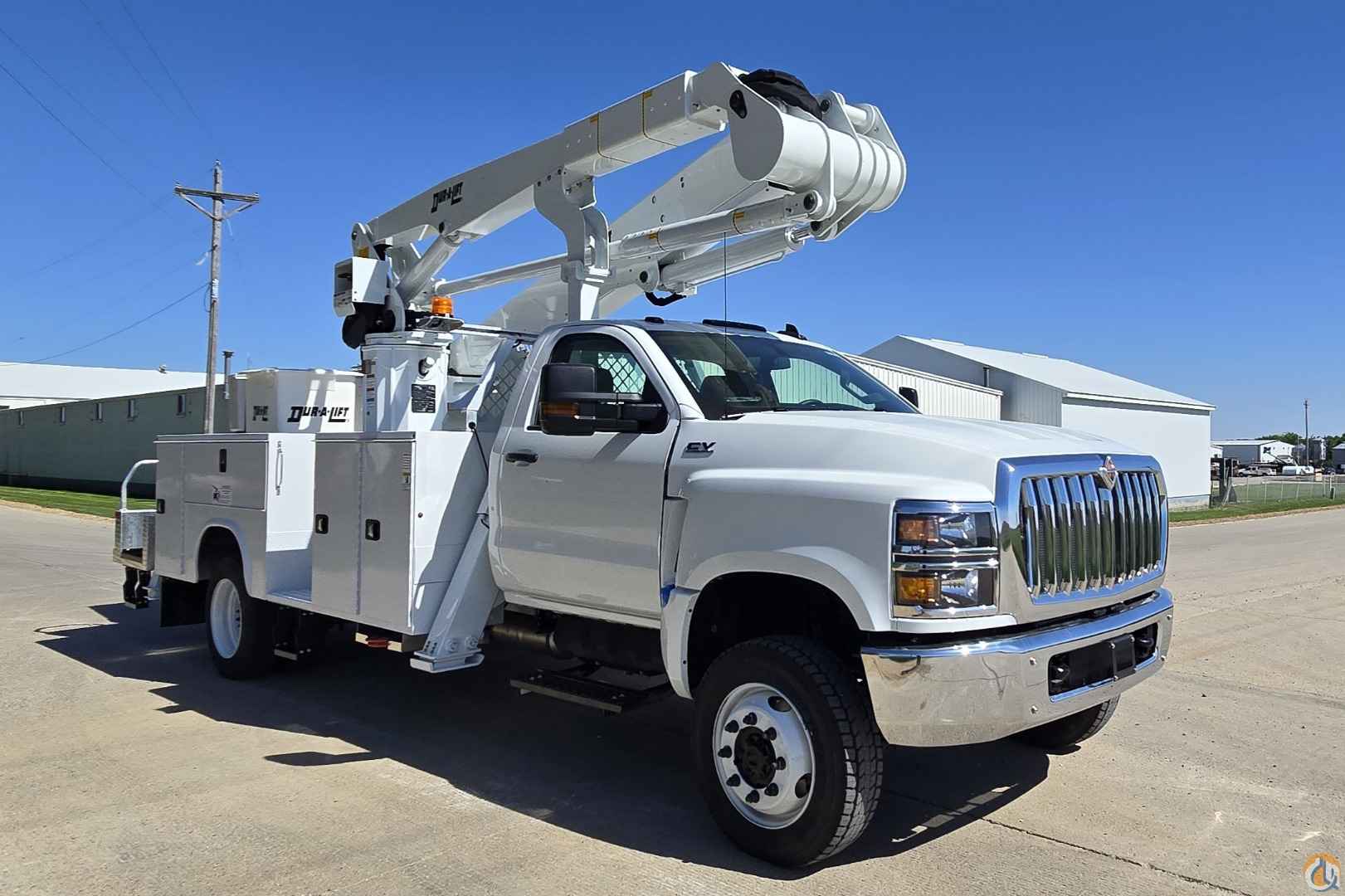

2023 International CV515 SFA:

- 22,500 GVWR

- International 6.6 EPA 2021, 350 HP @ 2700 RPM, 700 lb/ft torque @ 1600 RPM

- 120V/800W engine block heater

- Allison 2750 RDS, 6-speed with overdrive

- 40-gallon fuel tank

- Front axle – 7,500 lb

- Rear axle – 15,500 lb

- Front and rear tires – 225/70R19.5

- Front (disc) and rear (dual disc) wheels – 19.5x6.75 rims, powder coat steel

- Tilt steering column

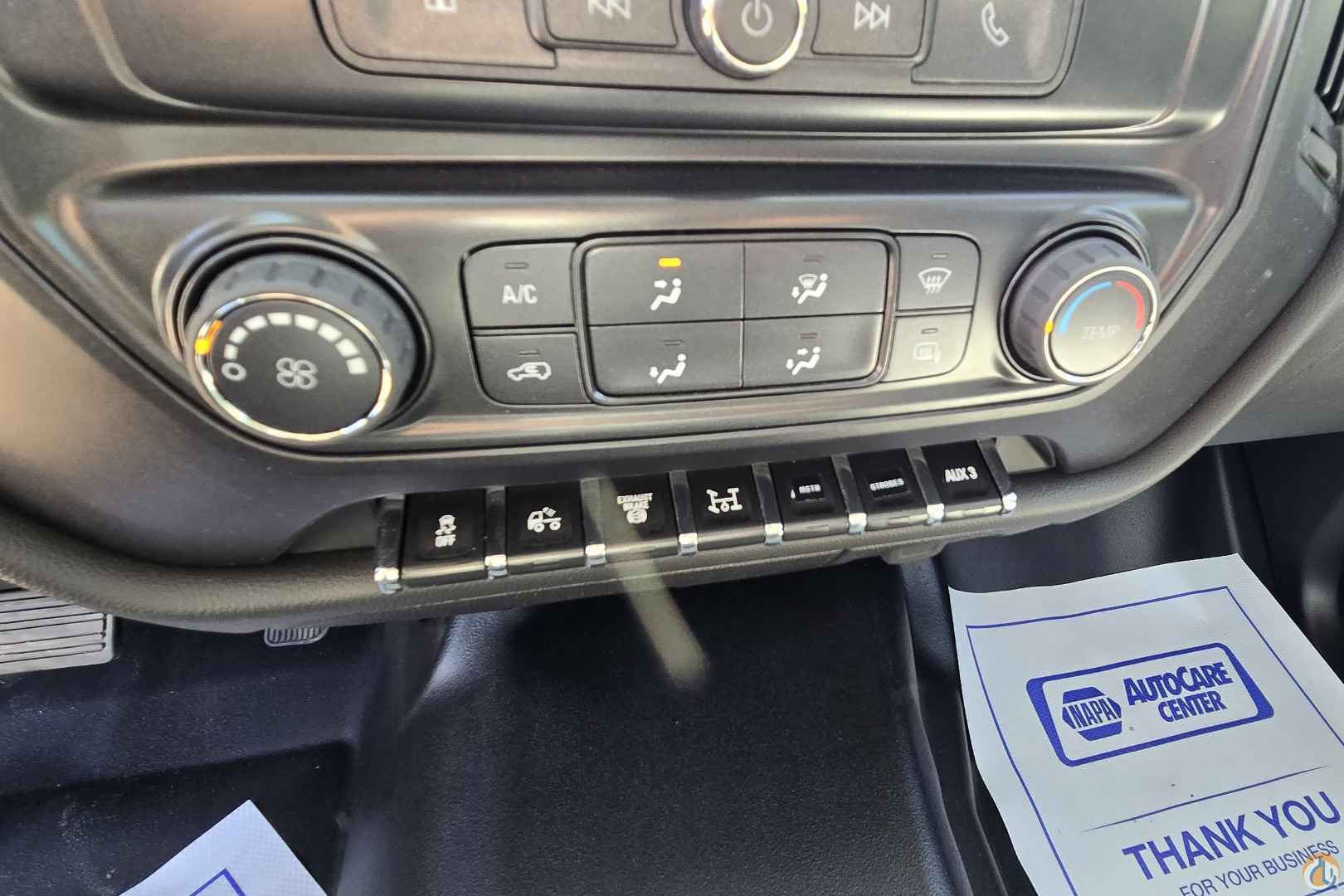

- Radio AM/FM/Clock/Bluetooth with 7” color touch panel display

- Power locks and windows

- Driver’s seat - high back, manual adjust lumbar, cloth

- Two-man passenger seat – high back, center fold-down armrest, cloth

- Air conditioner with heater

- Color: Winter White
