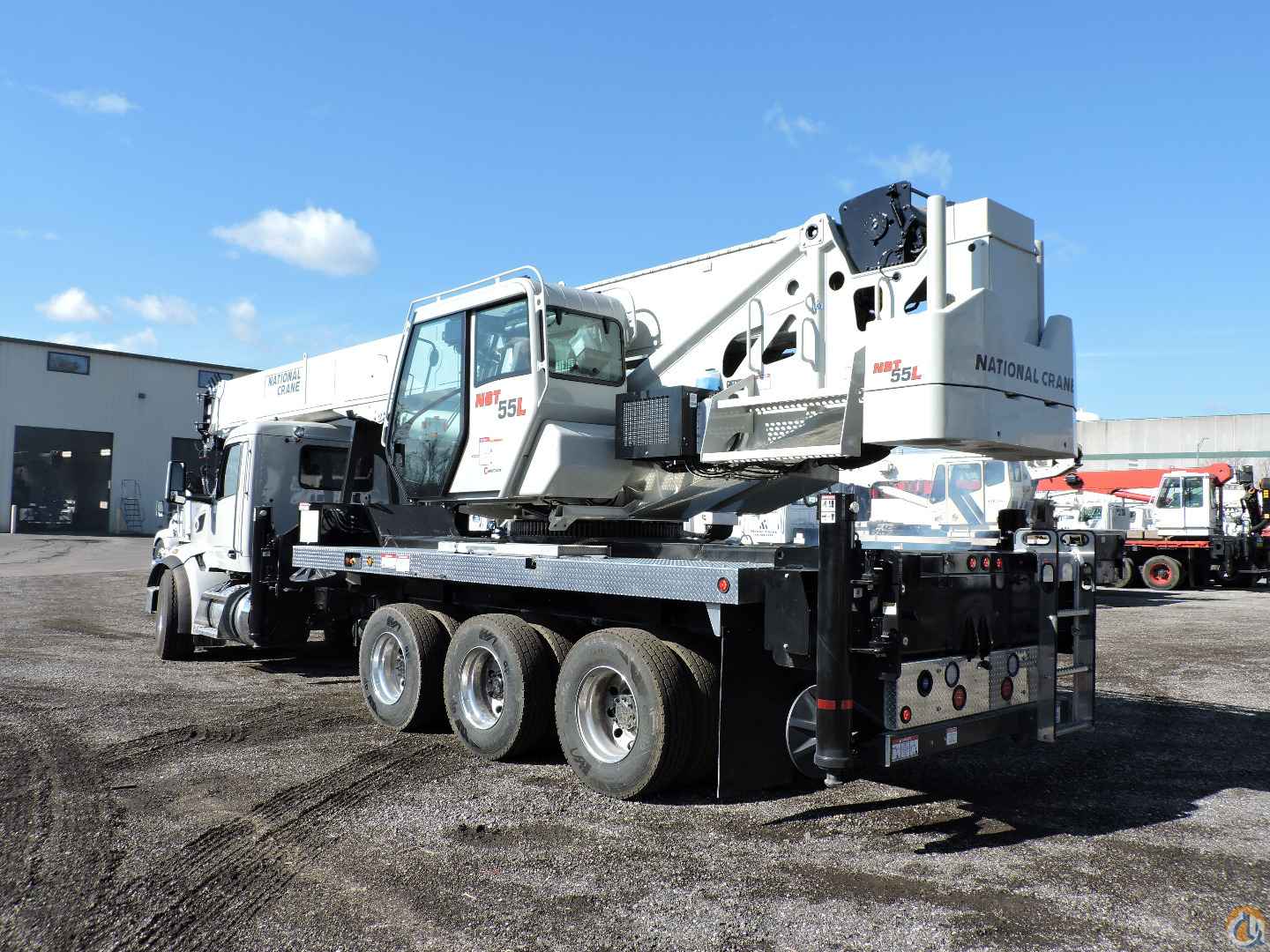

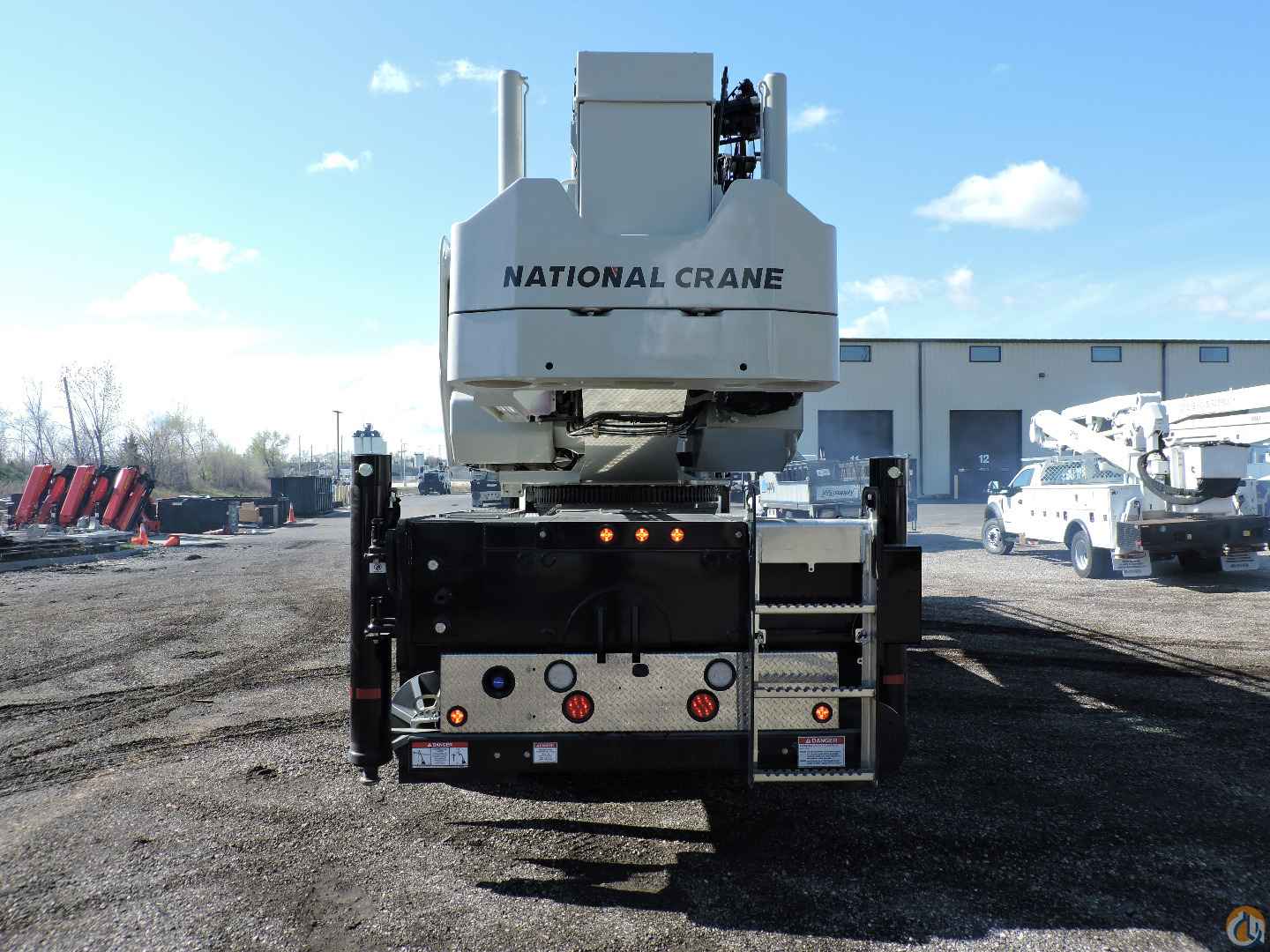

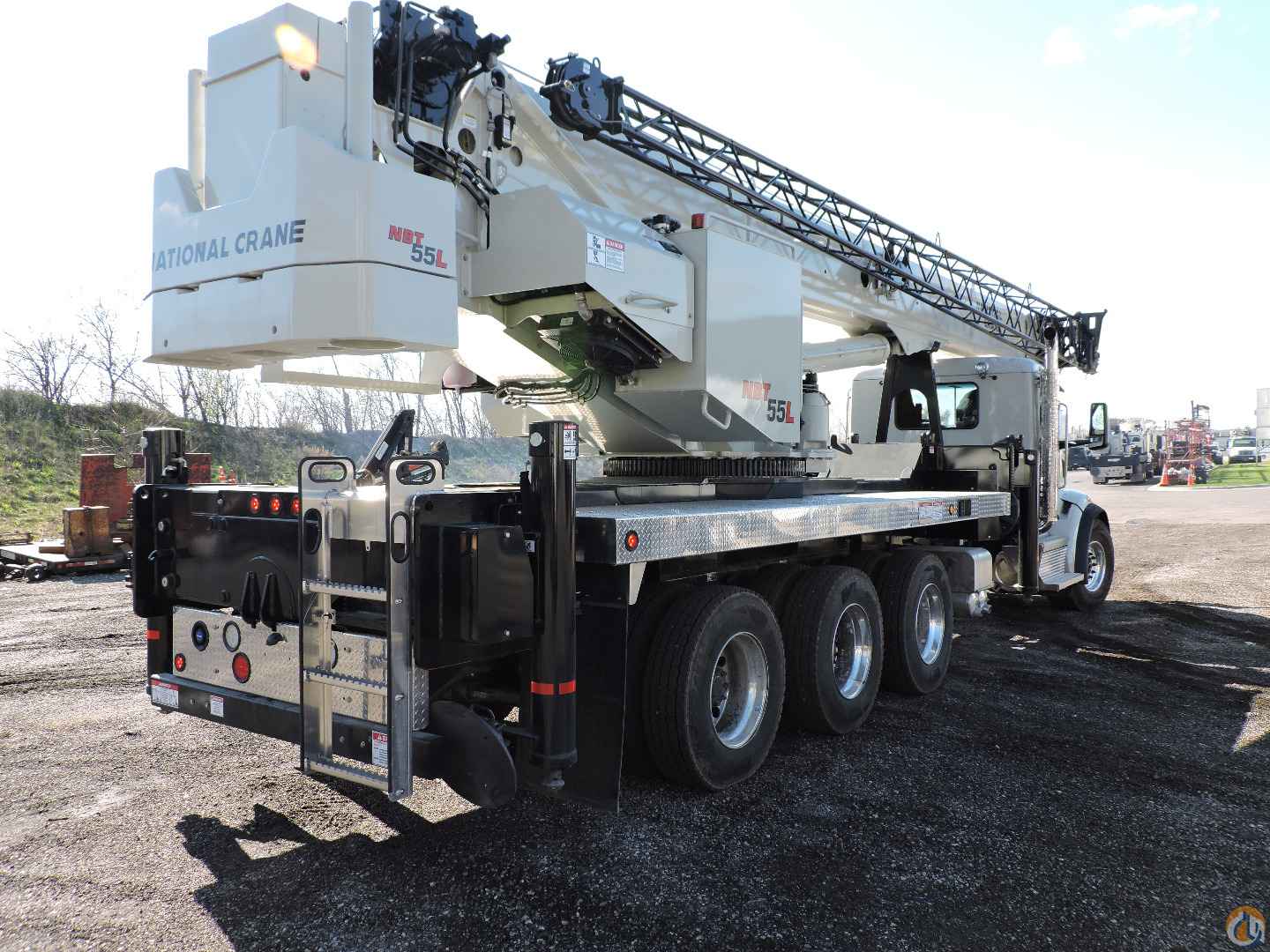

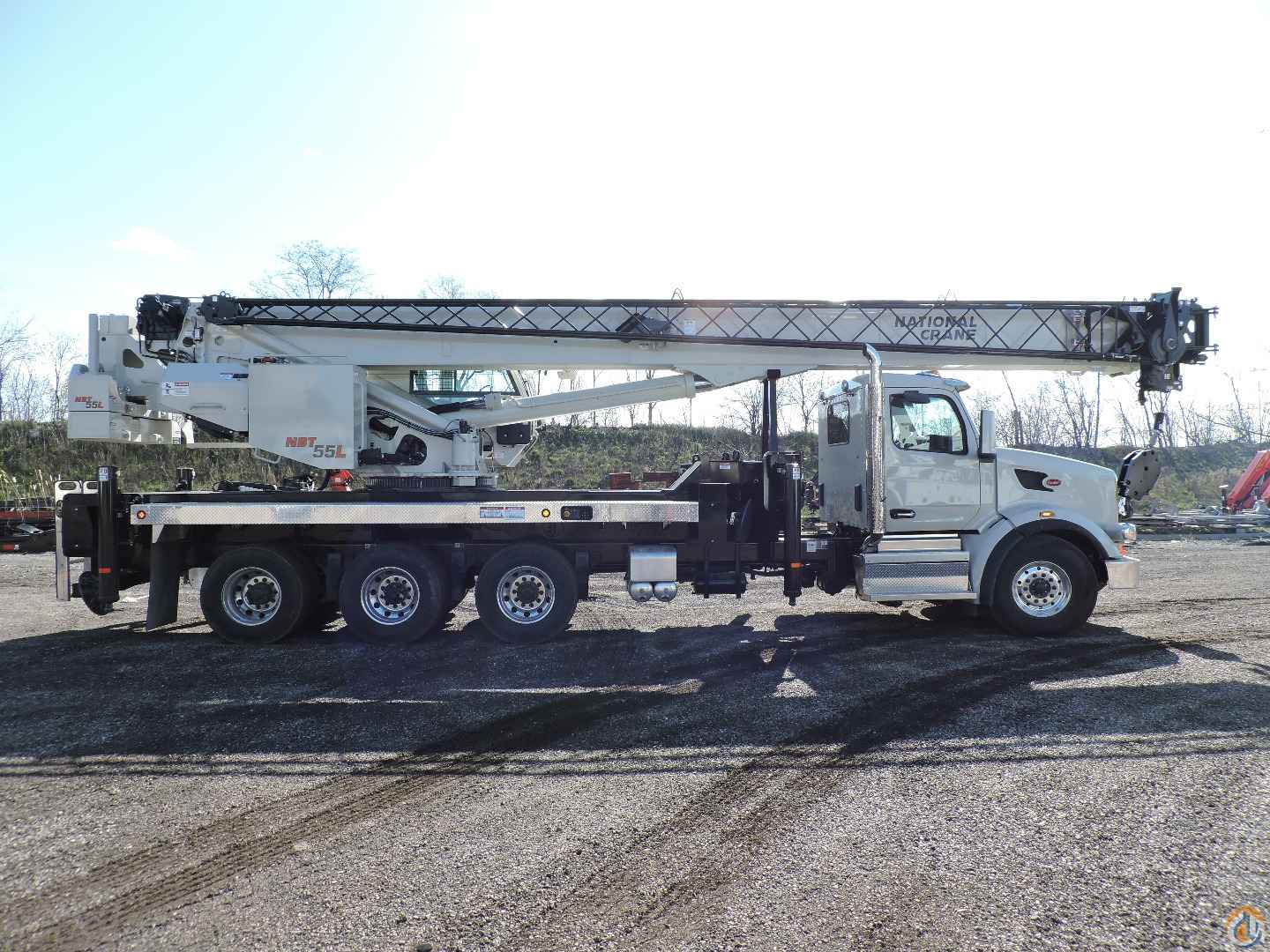

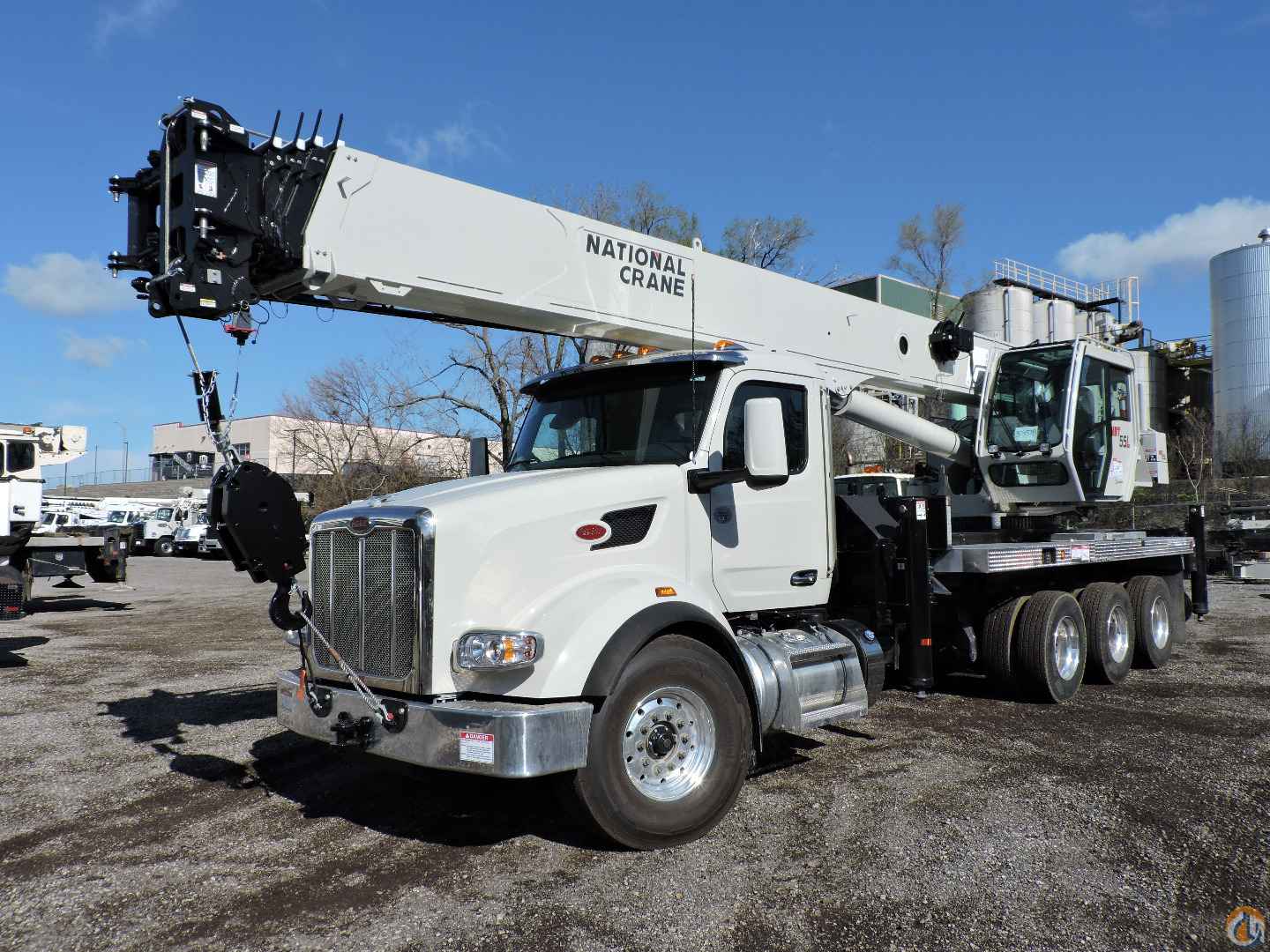

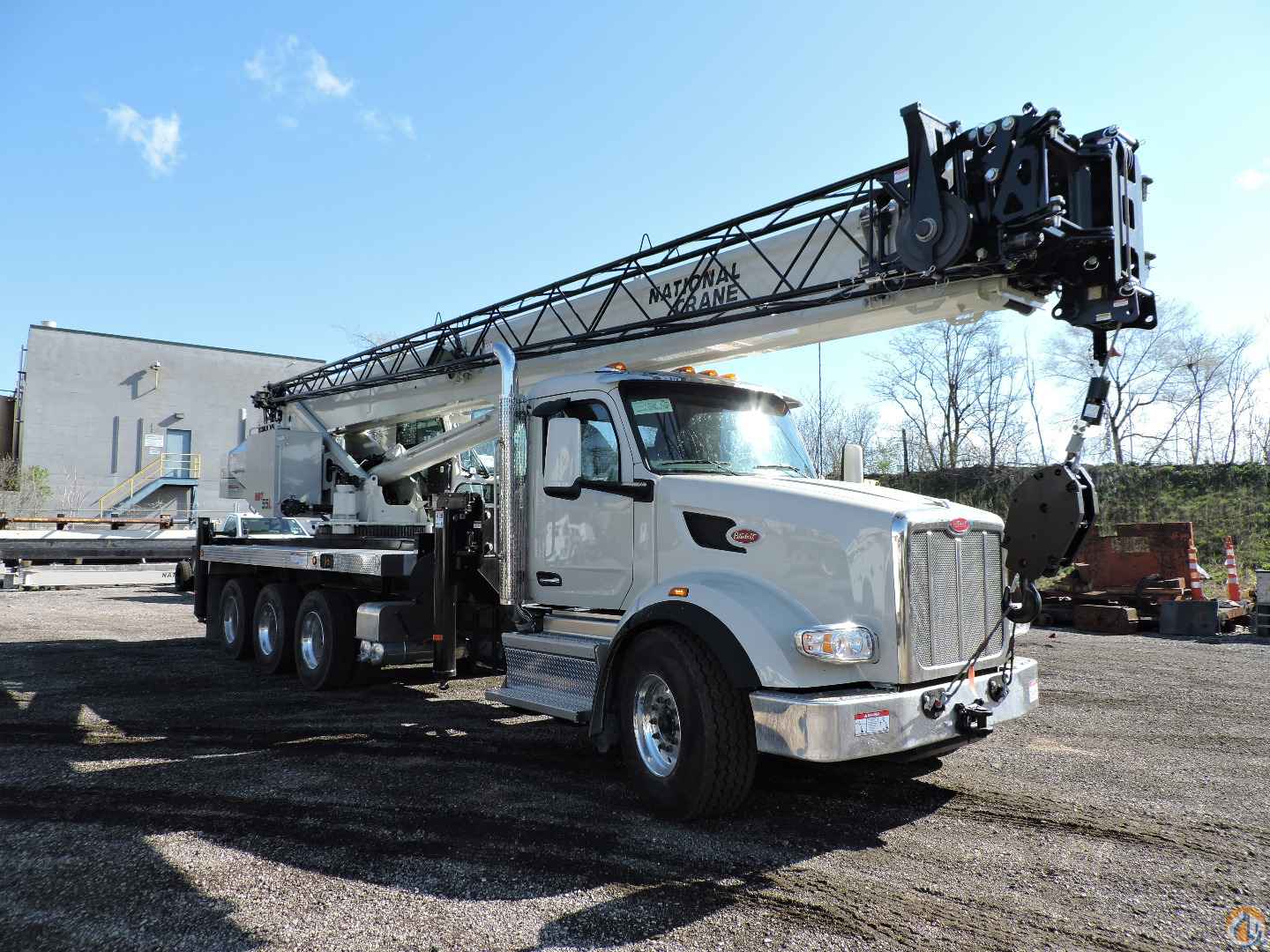

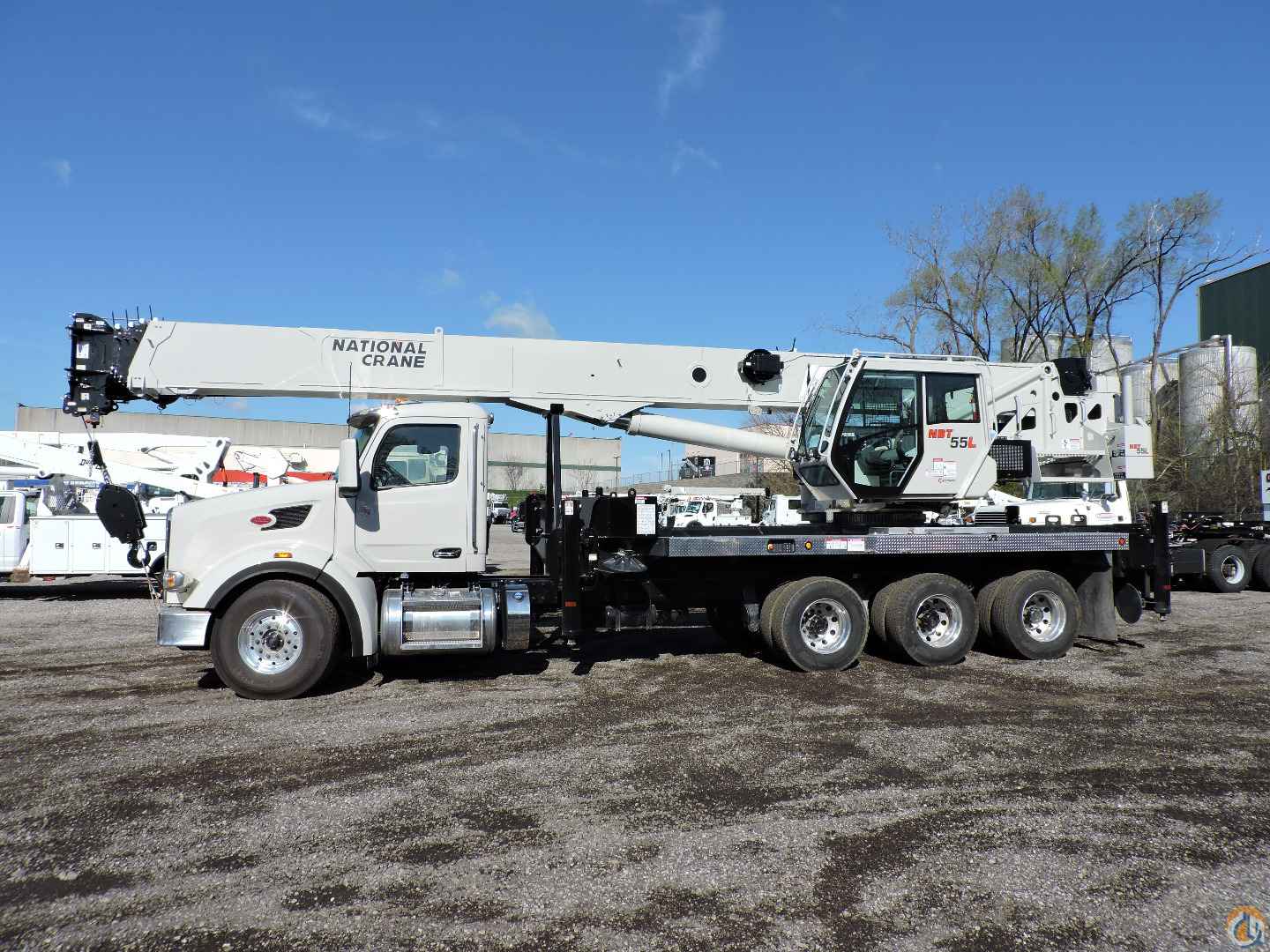

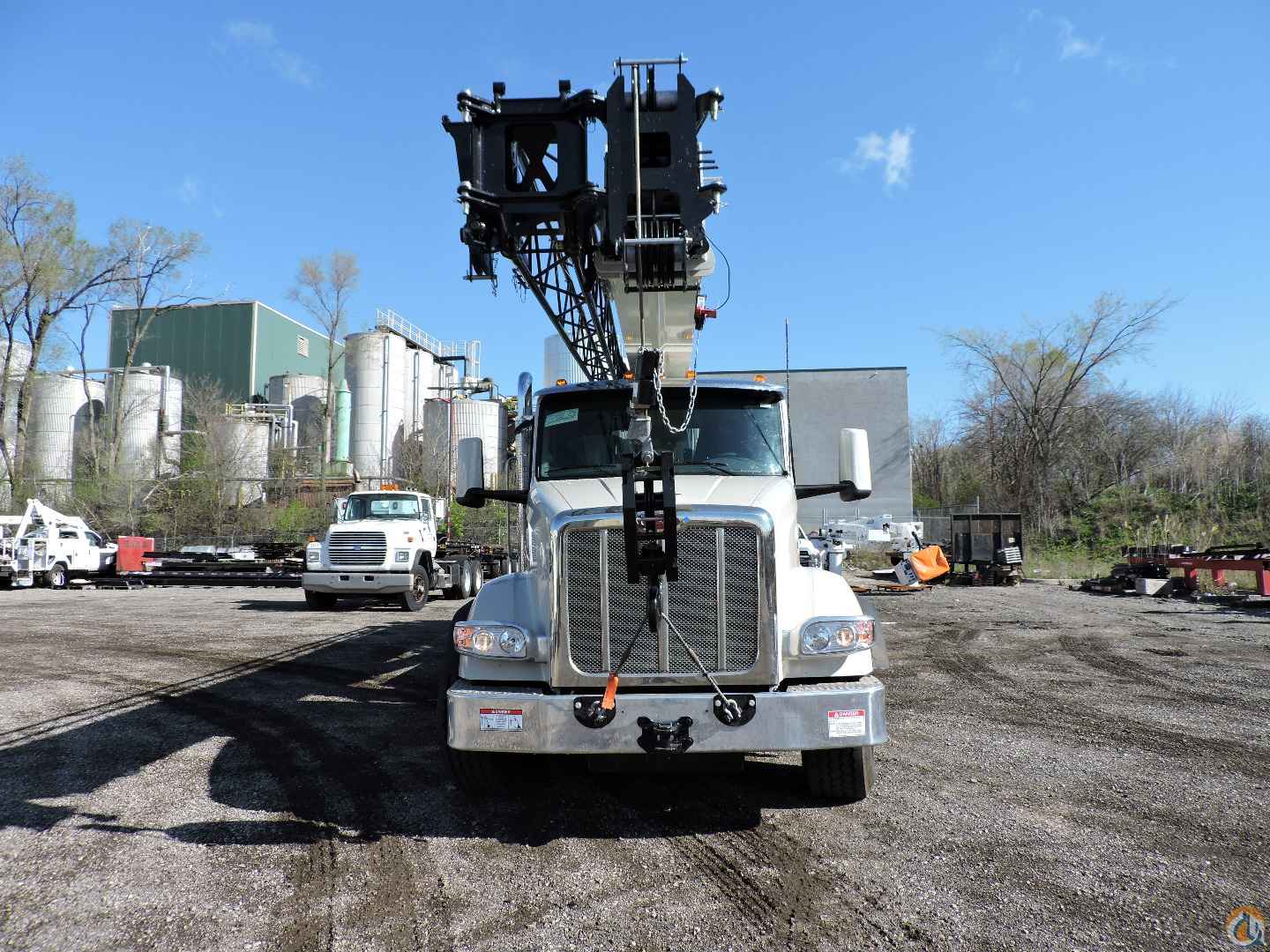

National Crane NBT55L equipped as follows:

-          55 ton capacity: 360o stable standard configuration

-          Counterweight: Two (2) 3,000 lbs hydraulically removable counterweight slabs

-          Boom: Five (5) section, 36 - 151 ft four plate, full power telescoping cylinder with integral holding valve.  Four (4) quick reeve cast iron sheaves

-          Boom Elevation: One (1) double acting hydraulic lift cylinder with integral holding valve.  (-7.5o to 80o)

-          Jib: 36 ft fixed length lattice jib offsetable at 0°, 15° and 30° (side fold for stowing)

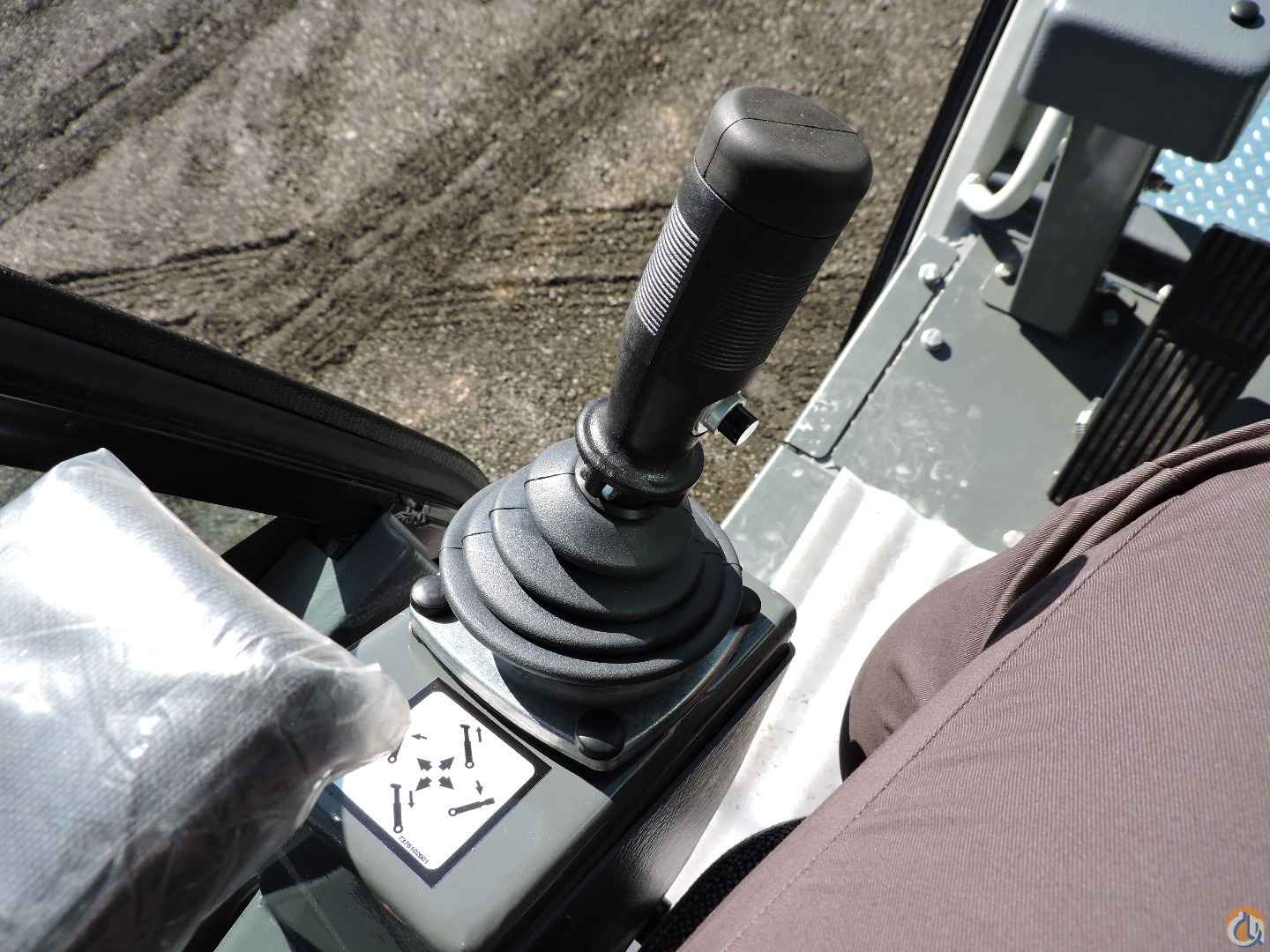

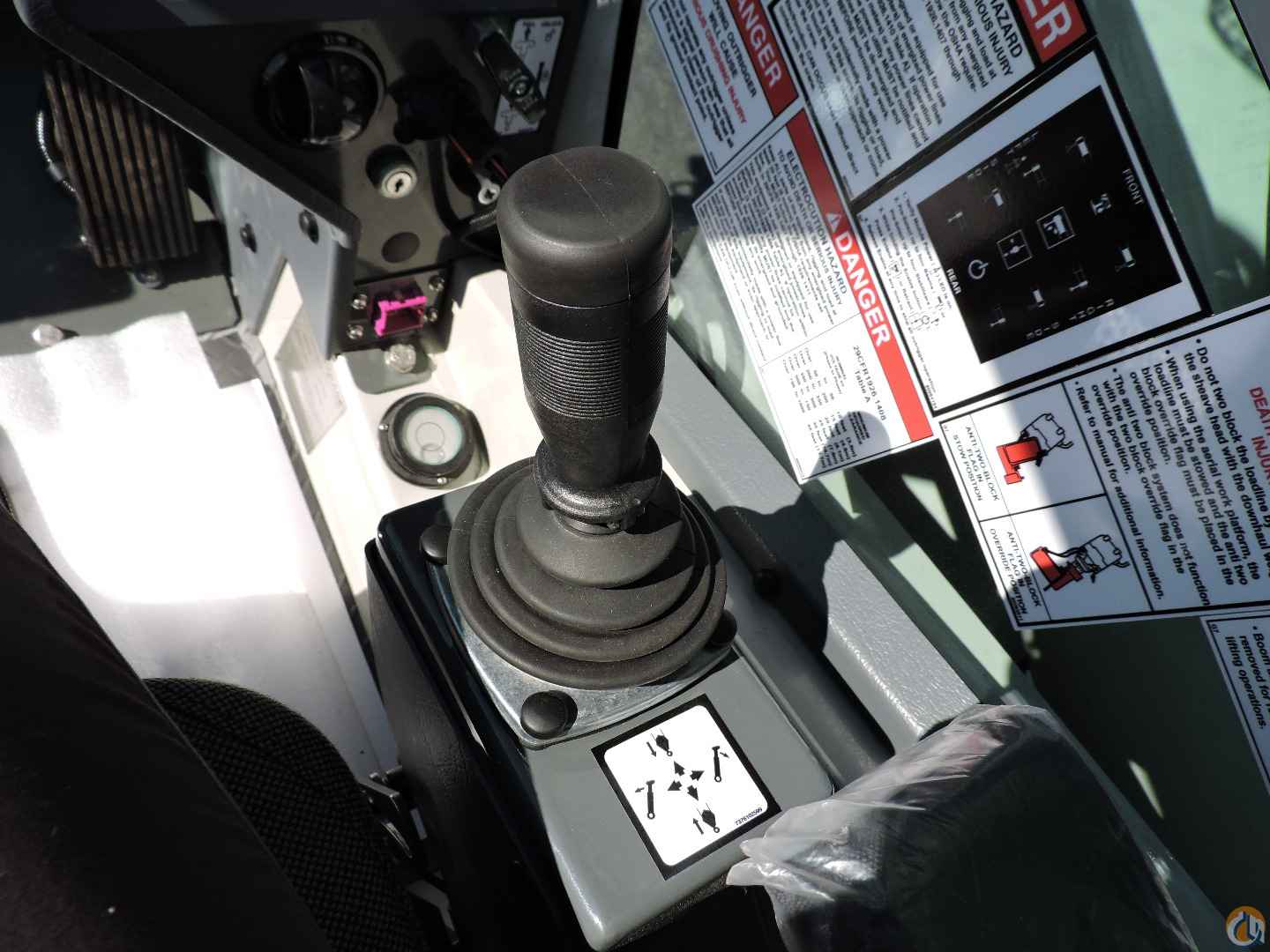

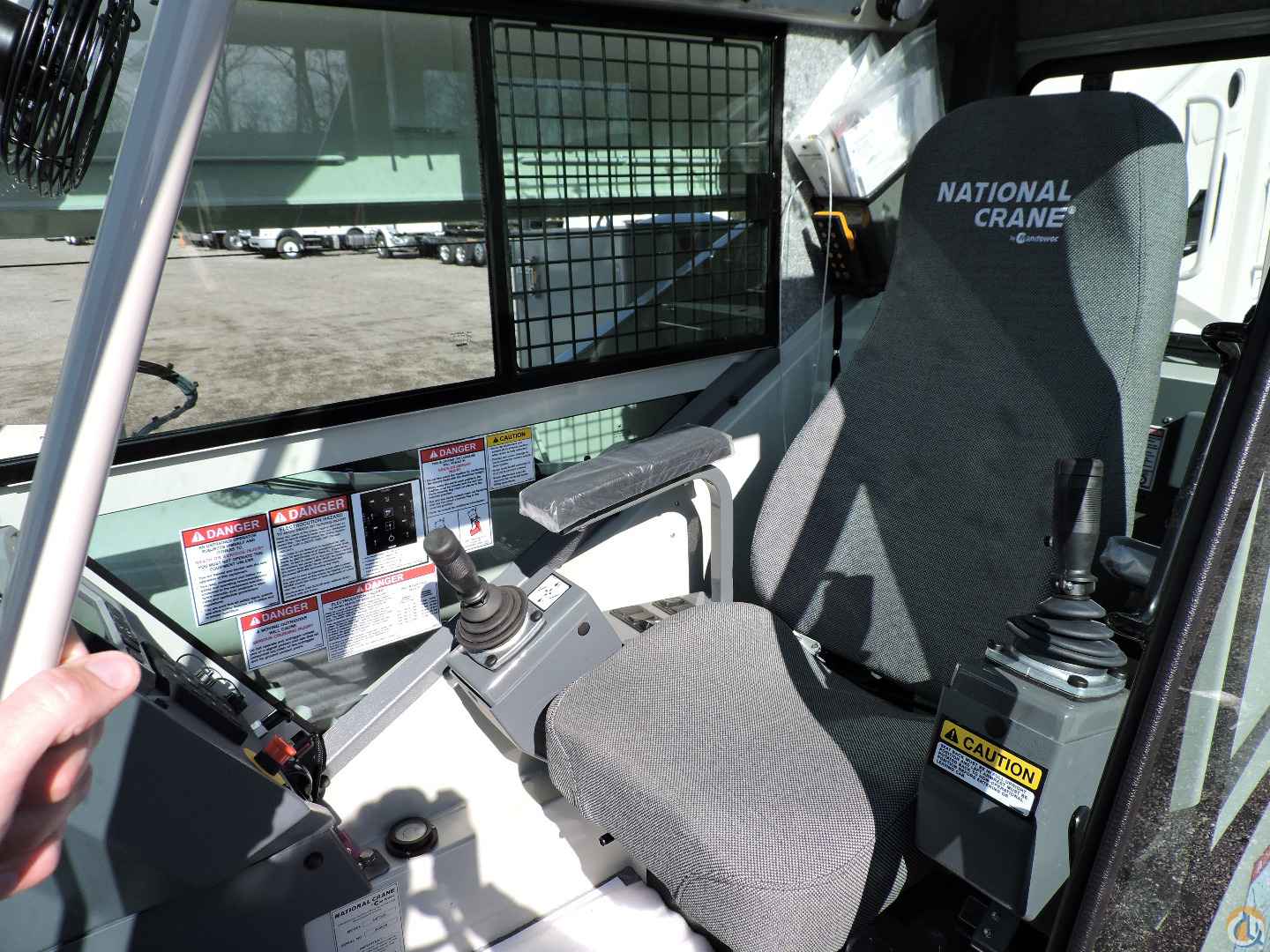

-          Tilting Crane Cab: All steel construction with a 0° to 20° hydraulic tilting cab with acoustical lining and tinted glass, deluxe seat with armrest mounted dual axis electronic controllers, windshield with electric wiper, sliding skylight with wiper and sunshade, hot water cab heater with defroster (diesel fired with remote diesel tank mounted to cab and coolant tank mounted to turret), circulating fan, air conditioning, fire extinguisher, dual cab mounted work lights, engine start/stop switches, hour meter (shown on the RCL display) and signal horn.

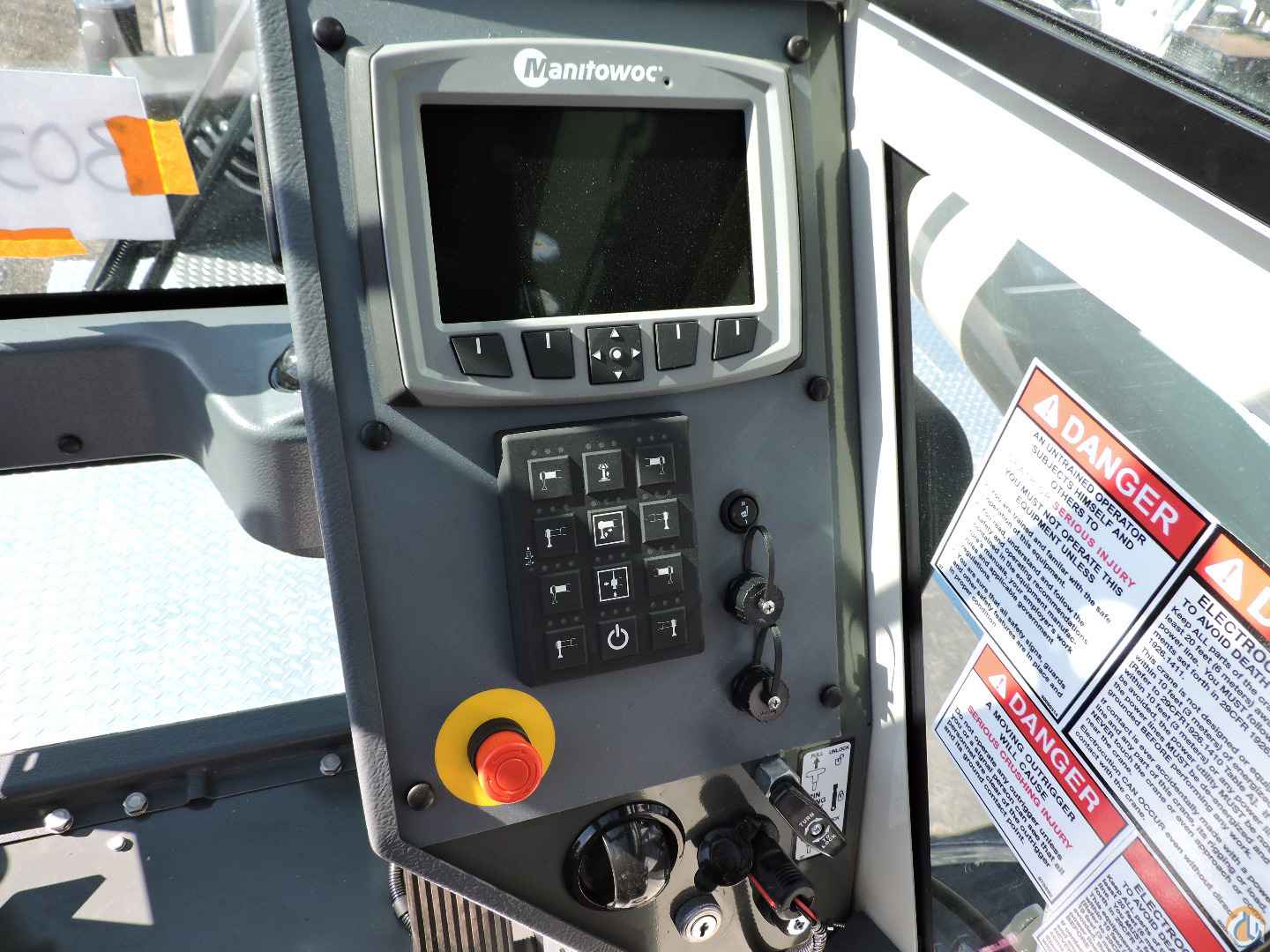

-          Rated Capacity Limiter & Anti-two Block Systems: Graphical color RCL system with audio/visual warning system and control lever lockout. Electronic display of boom angle, boom length, relative load moment indication, rated load, load, radius and boom tip height. Internal anti-two block system. Standard WADS (Work Area Definition System) allows operator to pre-select and define safe working areas. When crane approaches set limits, audio/visual warnings alert the operator of the jobsite obstructions

-          Swing: 360o continuous rotation, planetary "Glide Swing" with foot actuated multi-disc brake and pinion guard

-          Hydraulic System: Pressure compensated, load sense, closed-center hydraulic system with one (1) left-hand rotation, variable displacement piston pump.  170 gal hydraulic reservoir, external sight level indicator, filter condition indicator, oil temperature gauge and oil cooler with electric fan and butterfly valve on the suction line

-          Hoist: One (1) main hoist with grooved drum, two-speed power up and down, automatic multi-disc brake, electronic drum rotation indicator (DRI), and drum cable follower. Bare drum maximum pull 17,250 pounds low speed

-          Wire Rope: 518 ft of 5/8 in diameter 35x7 (5:1 design factor) for main hoist.  Single line pull 11,280 pounds

-          Hook Block: 20 ton single sheave, "Quick Reeve" type block with swivel hook and safety latch

-          Outriggers: Hydraulic front and rear. Two section extendable beams with integral check valves for 360o operation, 20 in diameter polymeric outrigger floats. Controls located in crane cab and both sides of subframe. Outrigger Monitoring System included. Two outrigger configurations available: Three position configuration at 0%, 50% and 100% of full outrigger spread

-          Decking/Ladders/Bumpers: Full length 102" width aluminum decking, fold down ladder on drivers side that aligns with crane cab and a portable aluminum ladder that stows at the rear of the crane (can be used for crane cab access on passenger side of crane and on the driver and passenger's side over the rear bumper, two (2) mud flaps which attach to truck frame and full width rear bumper which bolts to truck frame

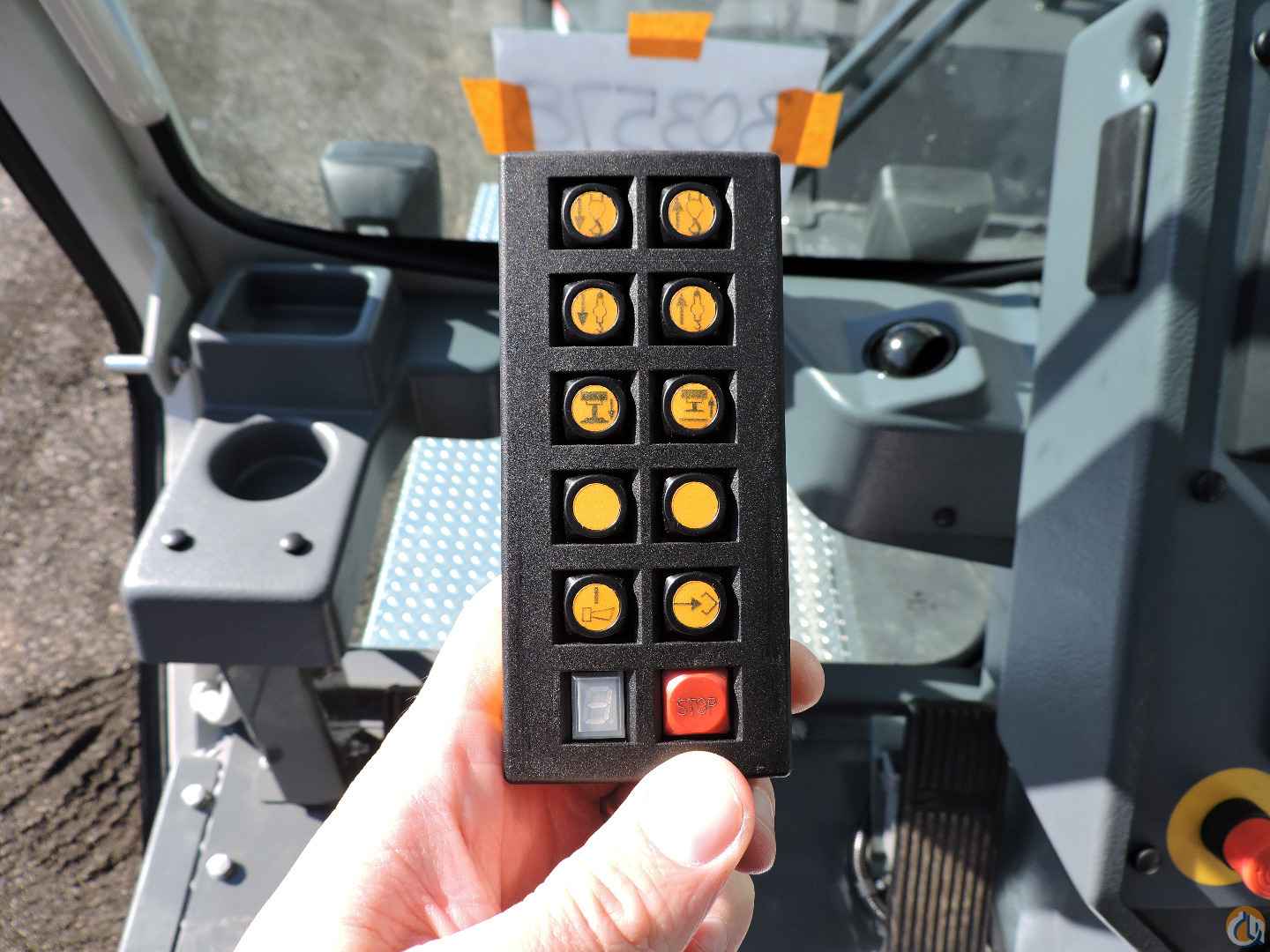

-          Miscellaneous Standard Equipment: 360o stable, Back-up alarm, outrigger motion alarm, LED marker and indicator lights, wireless radio remote to control main winch and aux winch (as required), two (2) English owner's manuals (1 paper & 1 USB flash drive), electronic engine throttle (EET) included and rotation house lock (for when boom is stowed over the truck)

-          Mounting includes hydraulic oil, transmission grease, electronic engine throttle (EET), electronic back up alarm (BUA), air shift PTO and neutral safety switch. Includes installation of fenders, rear bumper underride protection, BUA, and EET




2024 Peterbilt 567 equipped as follows:

-          Cummins X15 500 hp @1900 rpm, GOV@2000, 1850 ft/lb @950 rpm

-          CARB engine idling compliance

-          Engine block heater 110-120V

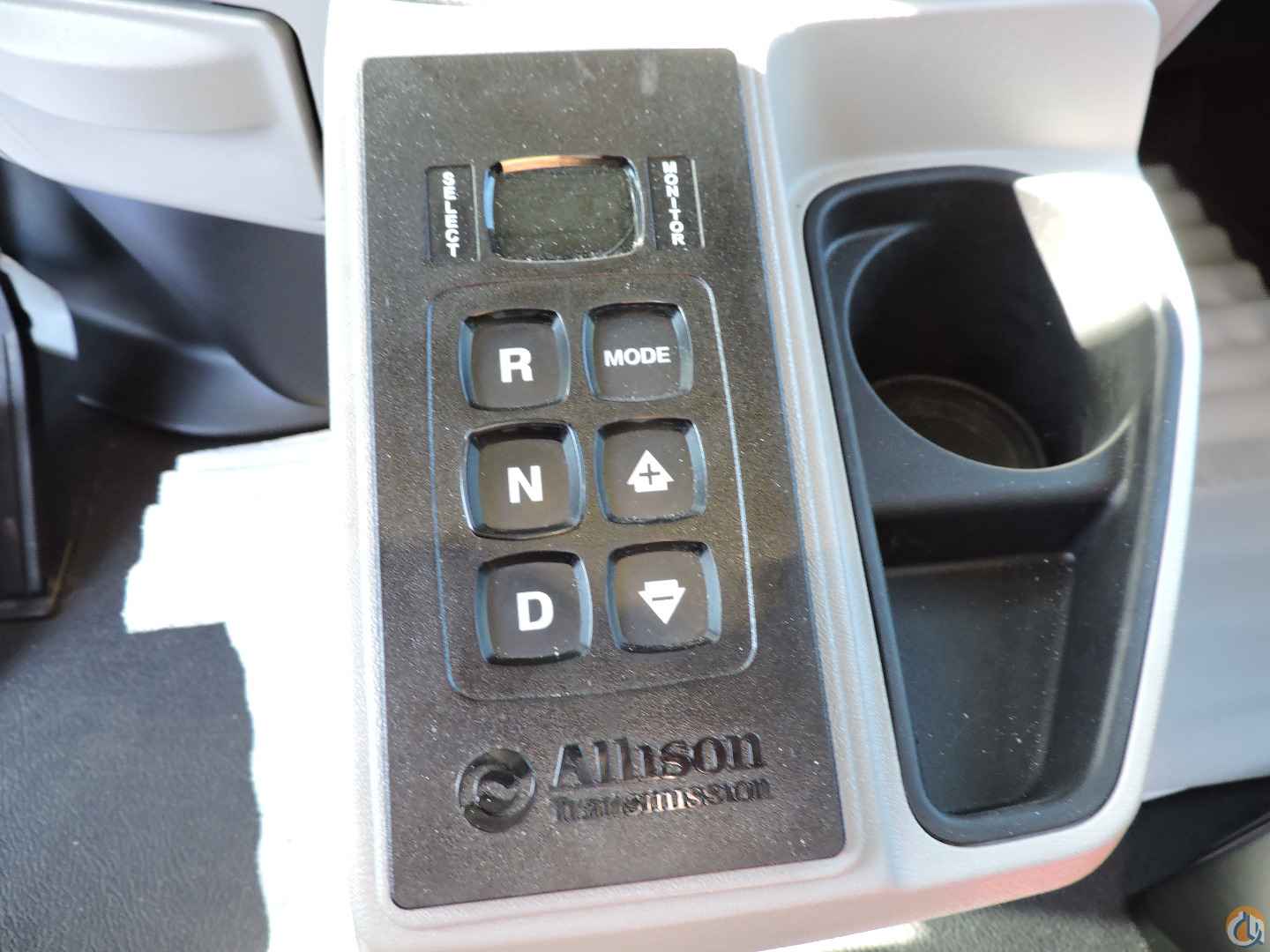

-          Allison 4500 RDS-P Transmission, Gen 6

-          20,000 lb PACCAR front axle

-          20,000 lb front Taper-leaf spring suspension with heavy resistance shocks

-          69,000 lb Dana Spicer rear axle

-          69,000 lb Neway air rear suspension

-          4.56 rear axle ratio

-          Tires

-          Front – 20 ply 425/65R22.5

-          Rear – 16 ply 11R22.5

-          Aluminum wheels with high polish finish

-          4 PACCAR premium 12V batteries – 2920 CCA total

-          Exhaust single RH side of cab

-          Bendix air dryer with heater

-          Polished aluminum air tanks outside

-          26” aluminum 90-gallon fuel tank

-          Aluminum bumper swept back polished

-          Stainless steel cover for DEF tank

-          Thermal insulation package in cab

-          Rubber fender lips 4.5” wide

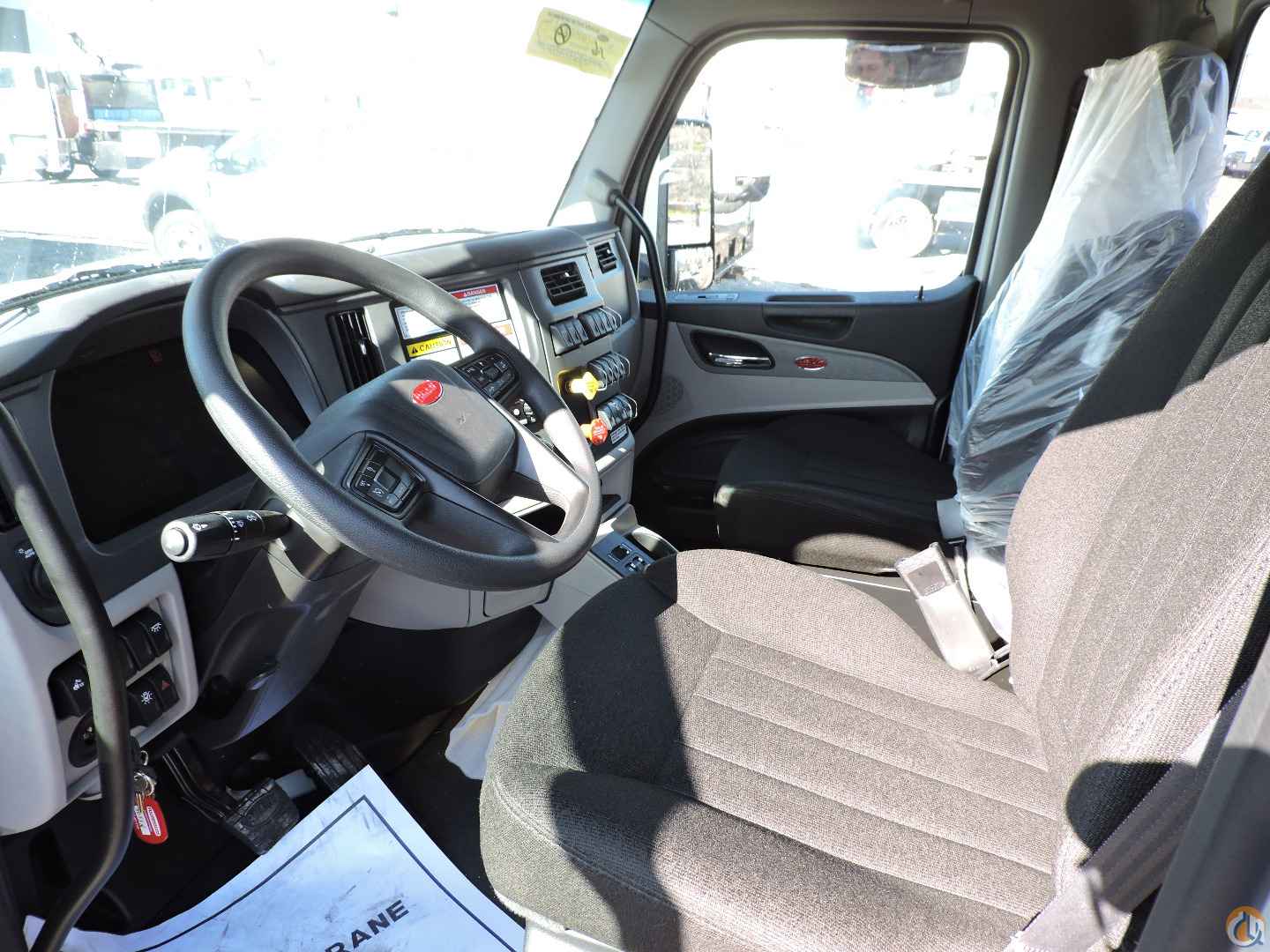

-          Peterbilt high-back driver seat, air ride, Mordura, w/ dual arm rests

-          Peterbilt high-back passenger seat, fixed, Mordura

-          Adjustable steering column, tilt/telescope

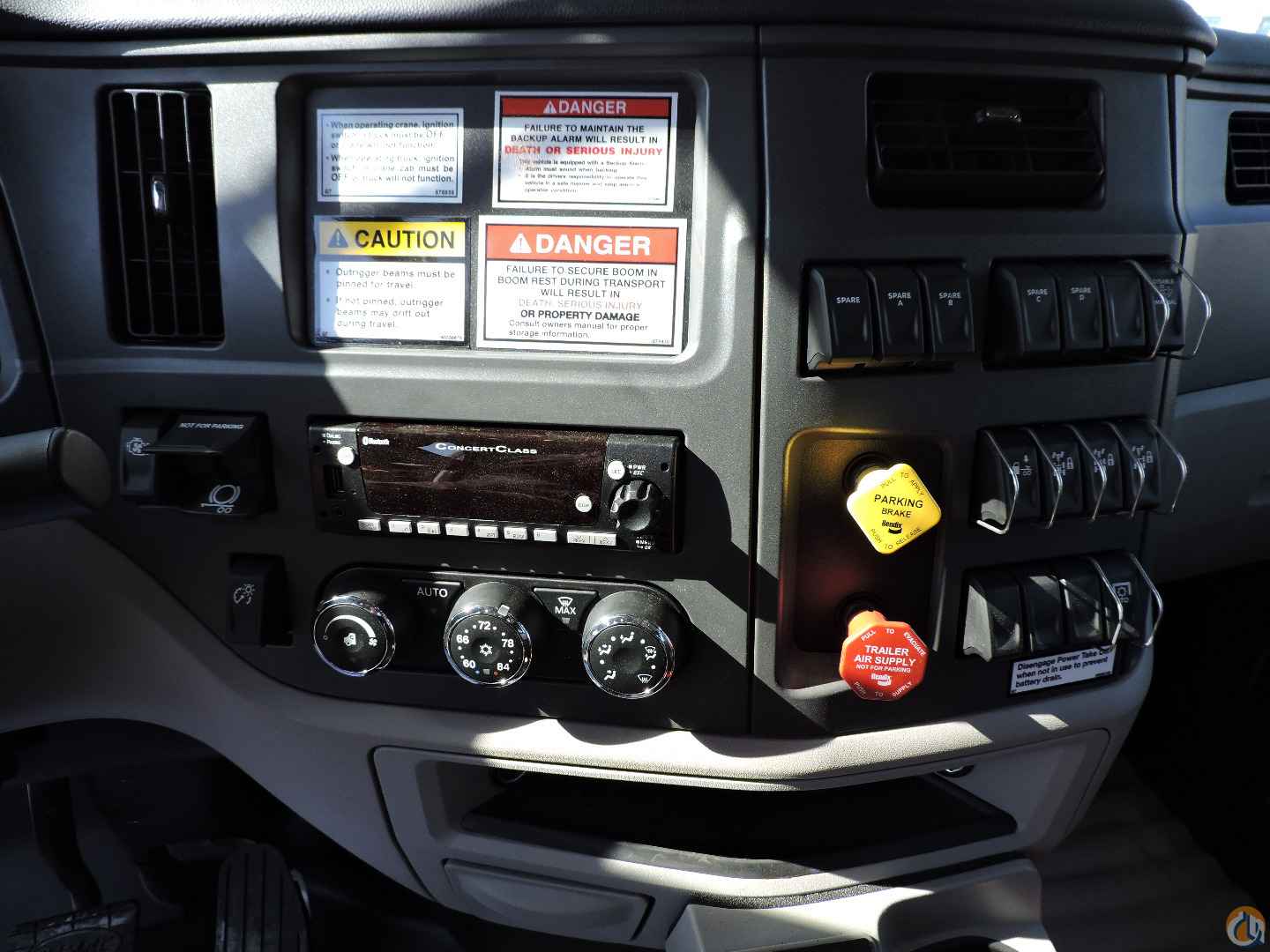

-          ConcertClass stereo – AM/FM, WB, USB, BT phone

-          Power lift windows

-          Power door locks

-          Outside sunvisor stainless steel

-          Air horn

-          Cab air suspension

-          Triangle reflector kit

-          Fire extinguisher

-          Painted Sand Gray

  • Year: 2024
  • Capacity: 55.00
  • Condition: New
  • Unit #: 5053N
  • Location: Hodgkins Illinois USA
