Condition

New

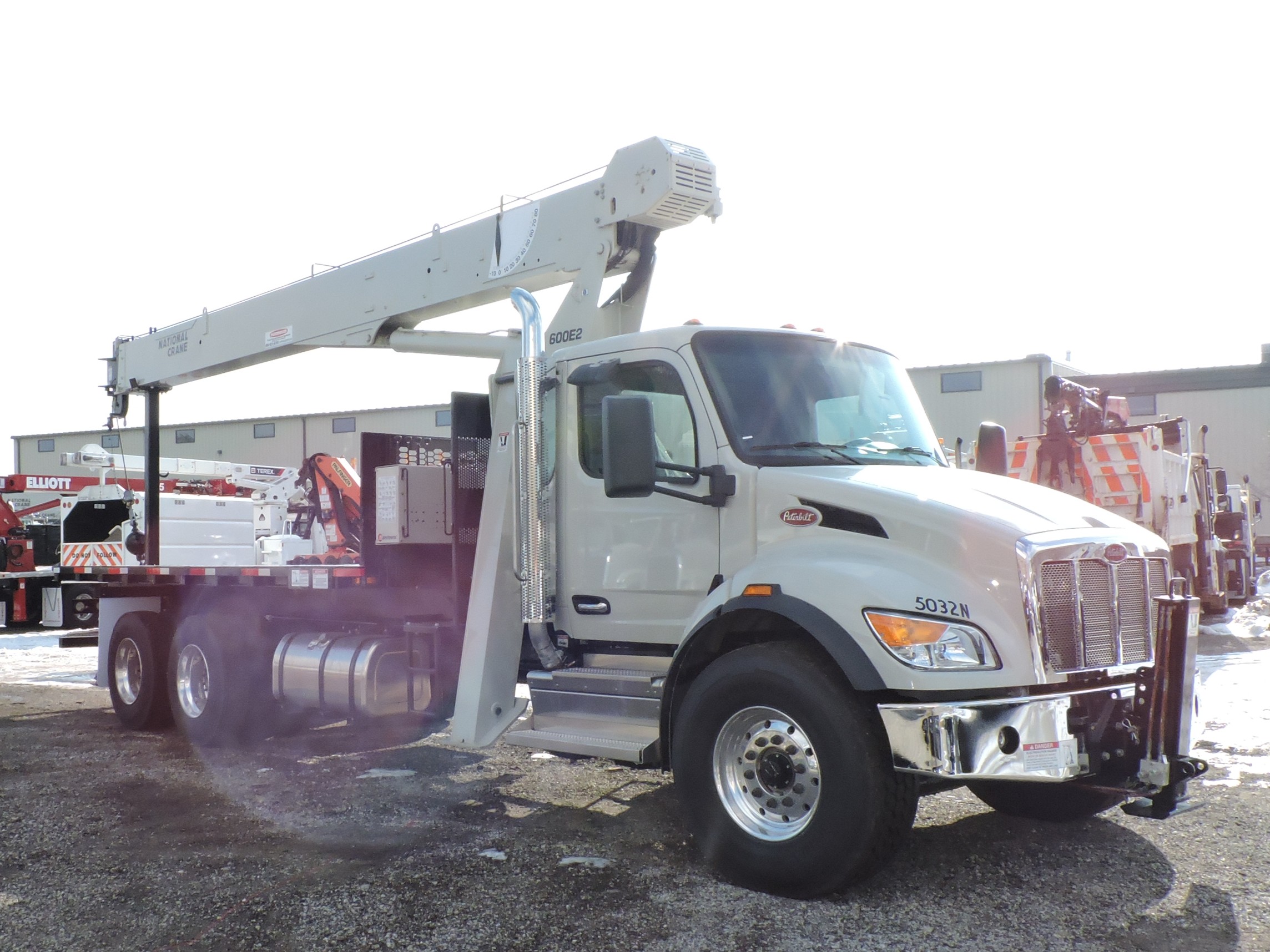

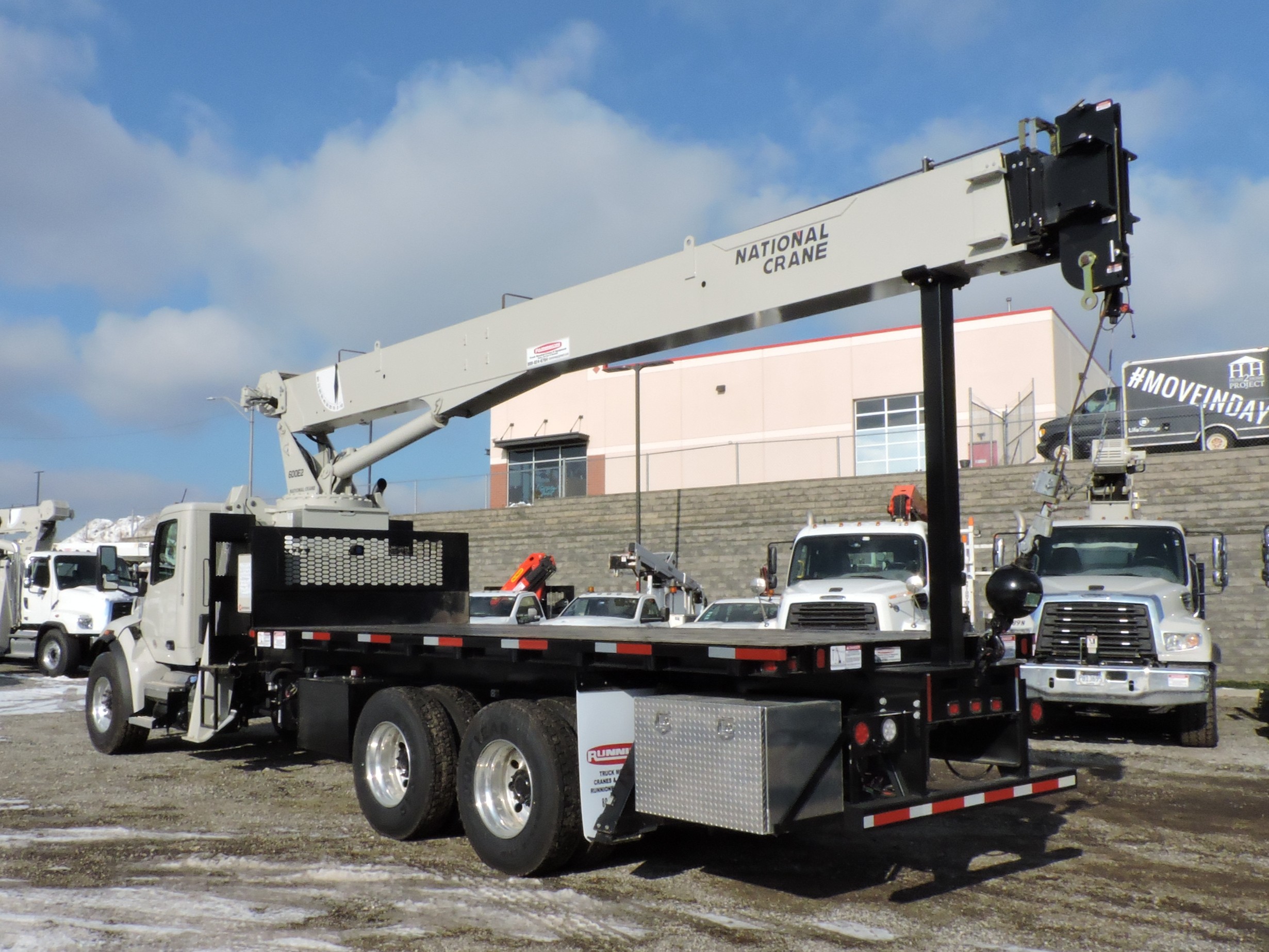

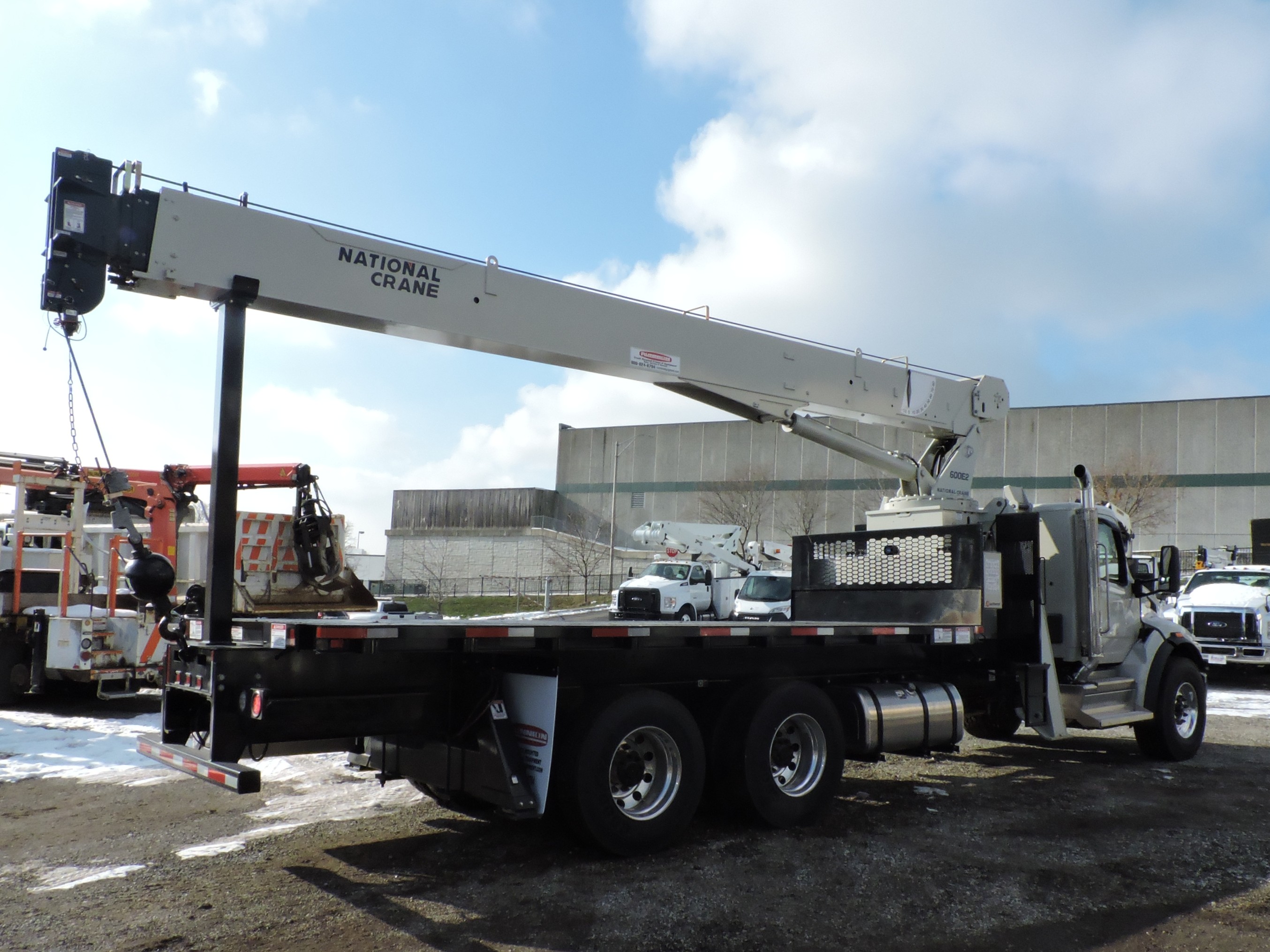

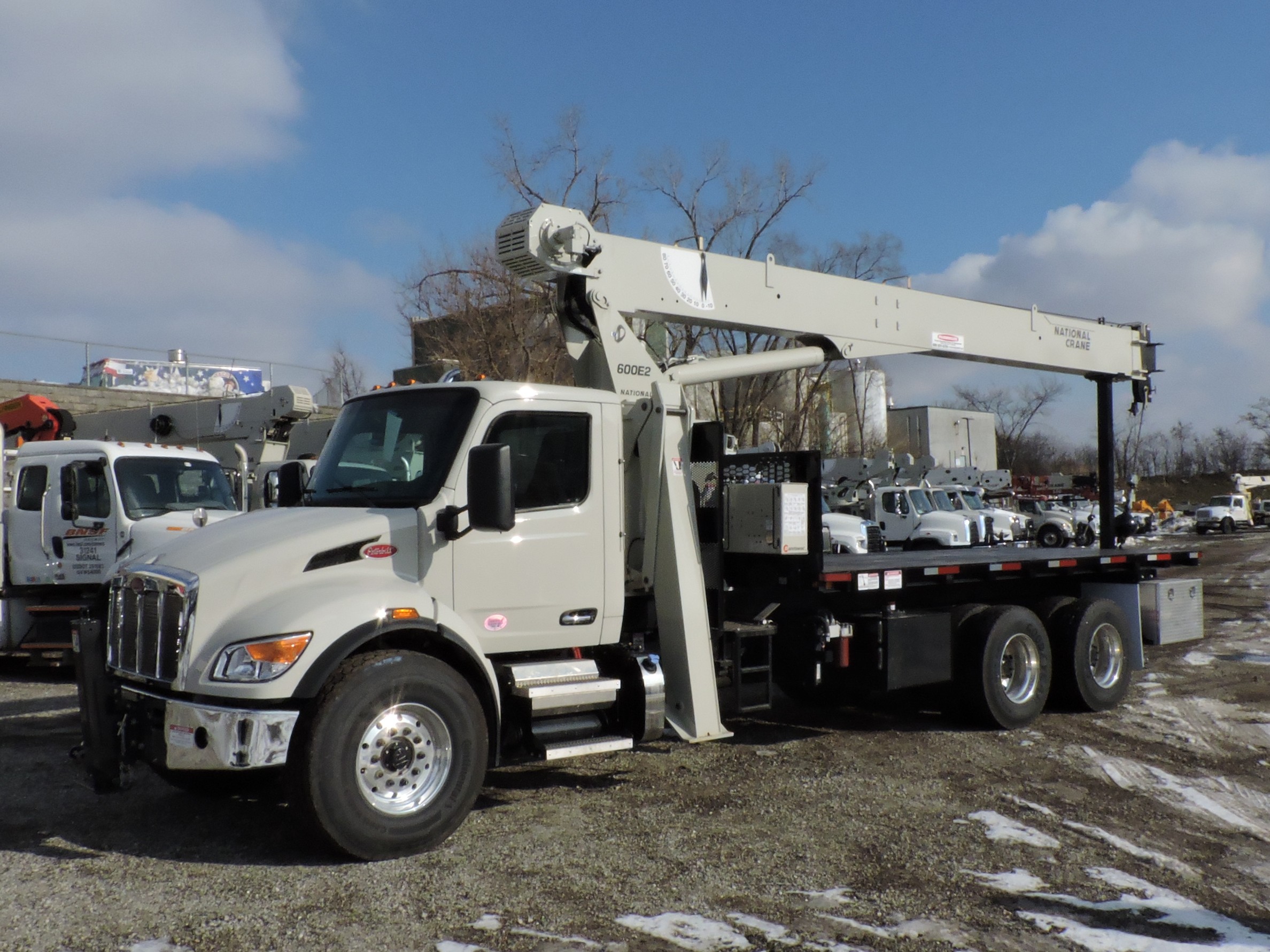

National Crane 690E2 equipped as follows:

-          20-Ton capacity

-          27’ to 90’ four (4) section hydraulic proportional boom – 100’ sheave height

-          “A” type box slide outriggers in front - 20’ span

-          A-frame rear hydraulic stabilizers with 10’ span

-          Single front hydraulic stabilizer for 360 degree stability

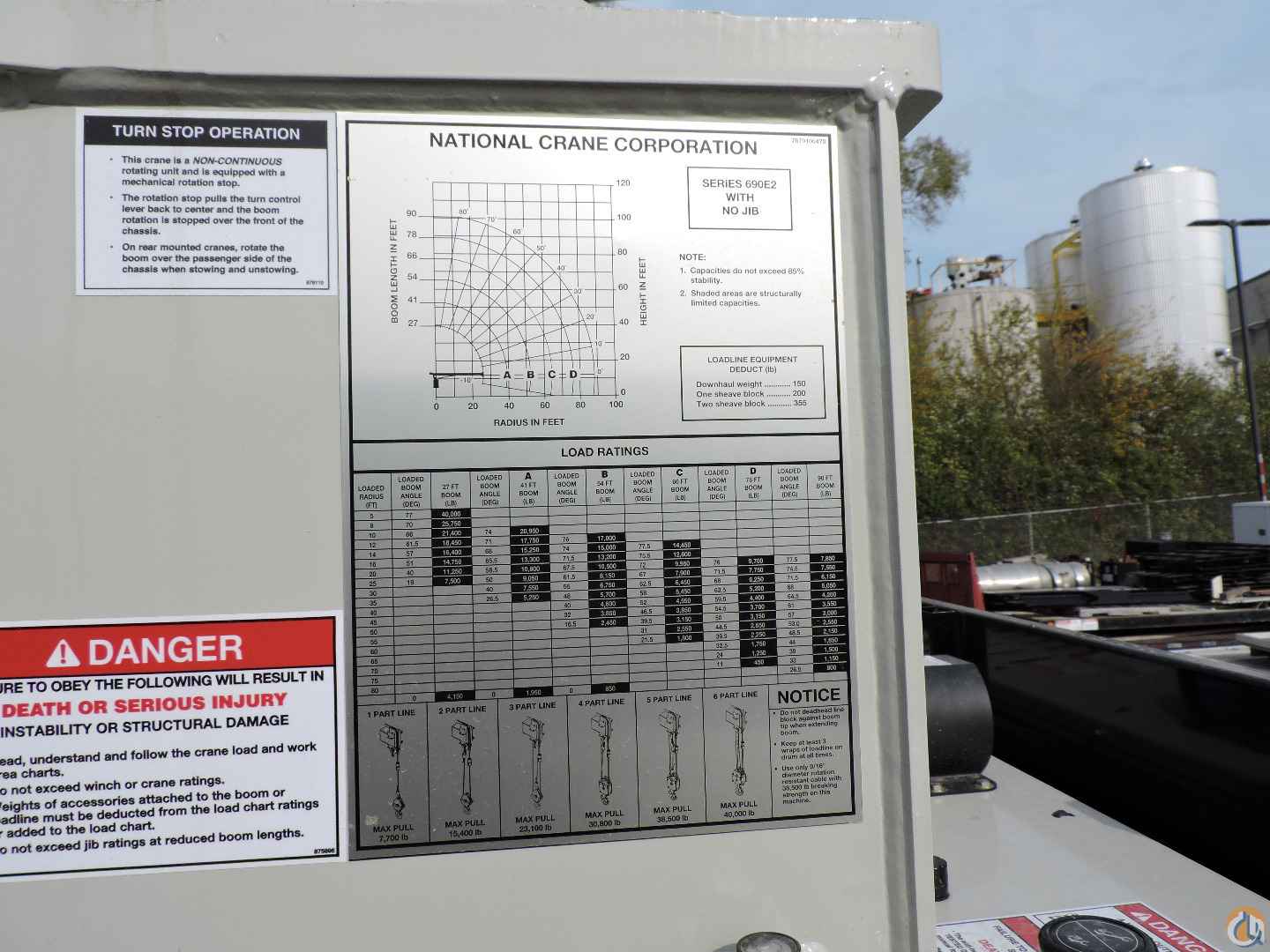

-          HCAS hydraulic capacity alert system is a hydraulically operated, maximum capacity sensing device that is designed to stop all of the normal crane functions that cause overload when maximum capacity is exceeded on the main boom. Includes indicator gauge and key operated override

-          Anti-two block safety device; shuts off telescope out and winch up controls and does not allow hook to be pulled into sheave case

-          Anti-two block reel and cable run inside boom

-          Single speed planetary winch with 9/16” spin resistant wire rope

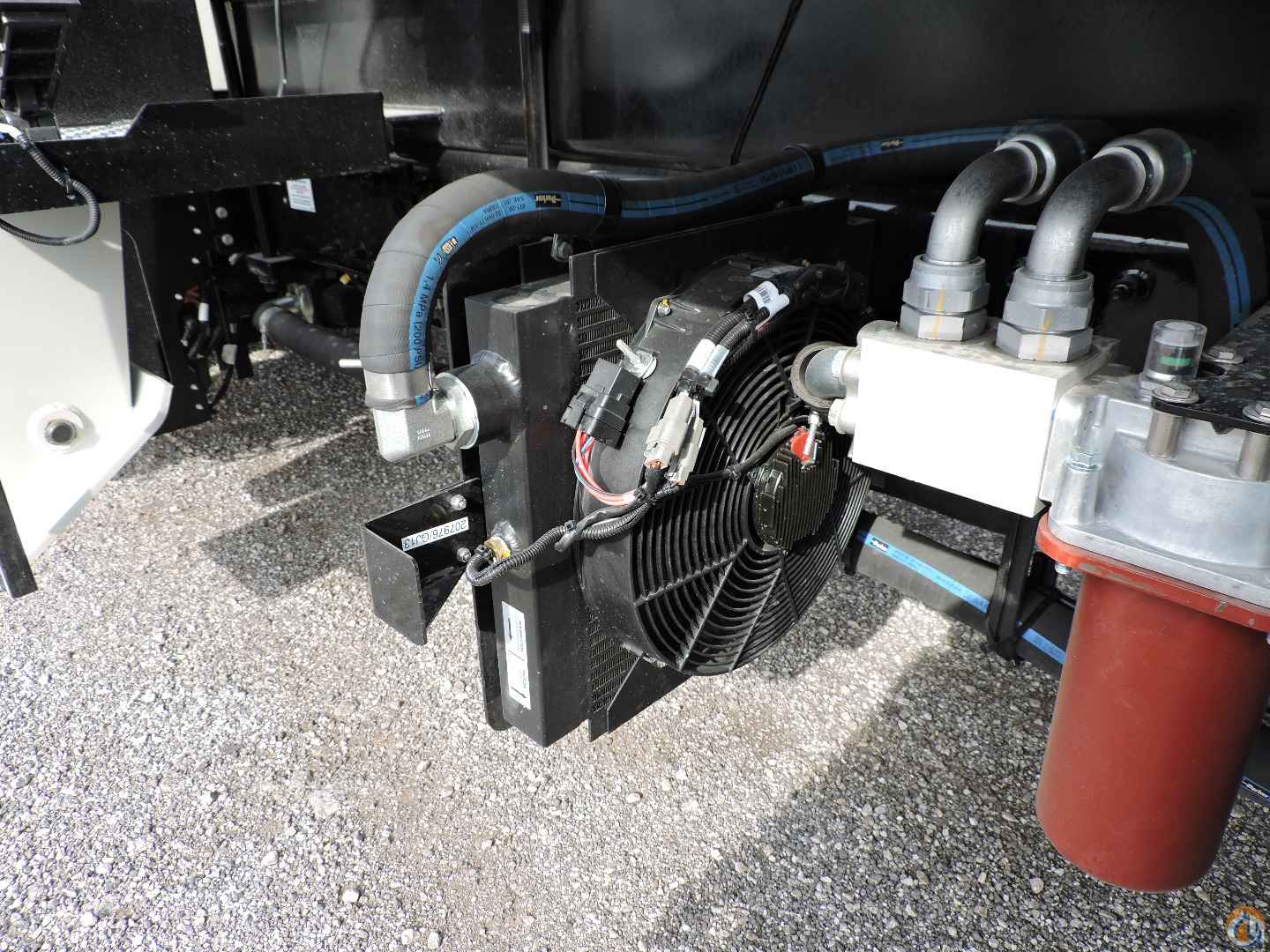

-          Duty cycle package includes Burst-o-Speed winch with oil cooler

-          Dual side controls with operator platforms, foot throttles, horn and kill switches. Operator platform 40” above ground for maximum visibility

-          375 degree non-continuous rotation

-          Adjustable swing speed

-          Heavy duty hydraulic system with triple pump

-          66-gallon hydraulic tank with return line filter

-          20’ super duty wood bed with 30” steel bulkhead

-          36” x 24” x 24” aluminum toolbox

-          Removable boom rest



MOUNTED ON:



2025 Peterbilt 548 equipped as follows:

-          60,000 lb GVWR

-          Paccar PX-9 engine, 350 hp @ 2000 rpm, 1050 lb/ft @ 1200

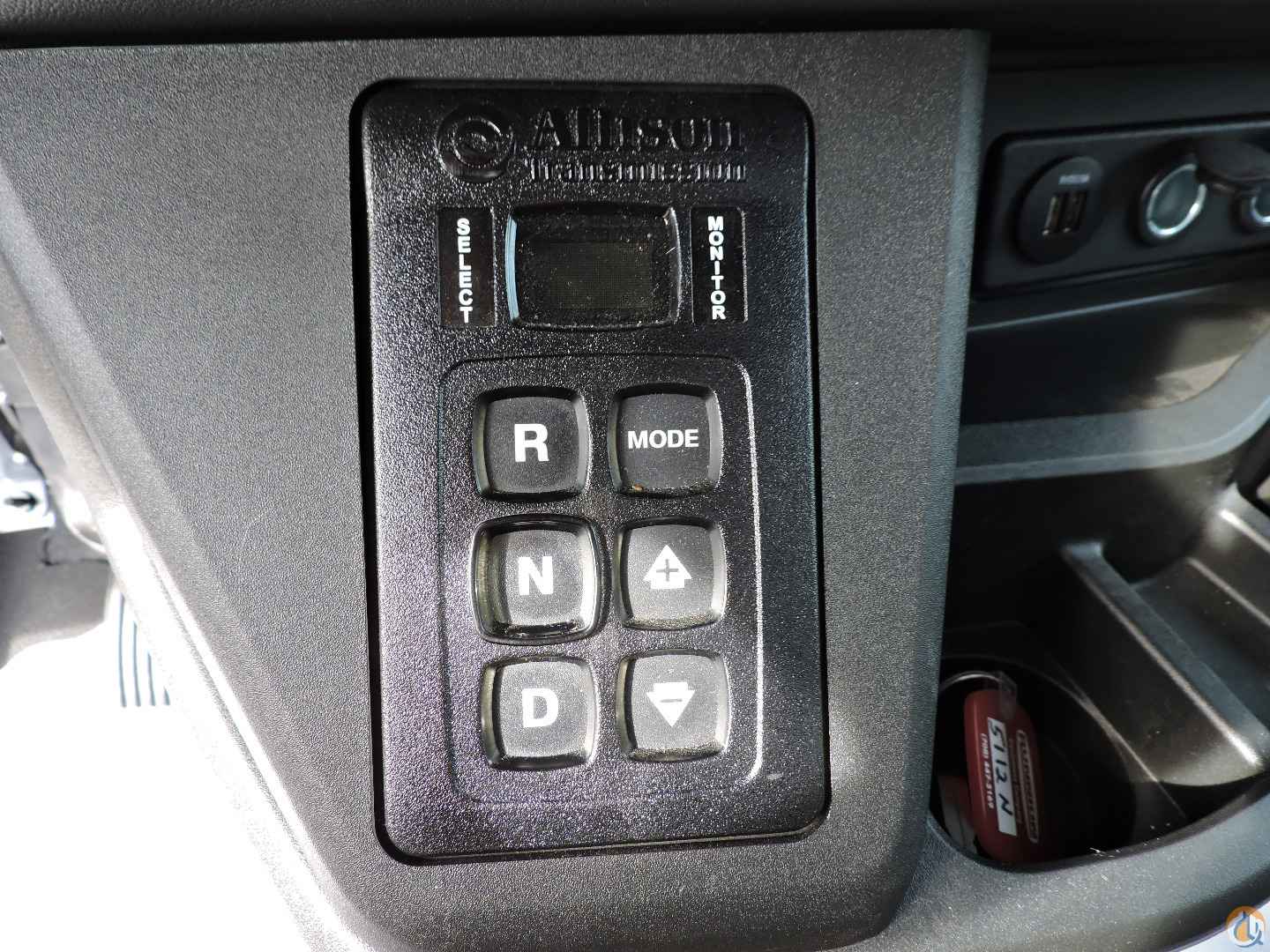

-          Allison 3000 RDS-P automatic transmission

-          Front Axle – 20,000# with Taper Leaf springs

-          Rear Axle – 40,000# with Haulmaax HMX EX 400 suspension

-          Front tires 425/65R22.5

-          Front wheels – 22.5x12.25 high polish

-          Rear tires – 11R22.5

-          Rear wheels – 22.5x8.25 high polish

-          Differential locks on tandem axles

-          Aluminum hubs

-          Anti-Lock Braking System 4S4M

-          PACCAR 160 Amp alternator

-          Block heater

-          PACCAR 12V starter

-          Three (3) PACCAR Premium 12V dual purpose batteries 2190 CCA

-          2-Speed fan clutch

-          Bendix air dryer with heater

-          Pull cord drain valves on all air tanks

-          Aluminum with painted finish air tanks

-          80-gallon aluminum fuel tank

-          14-gallon DEF tank with polished stainless-steel cover

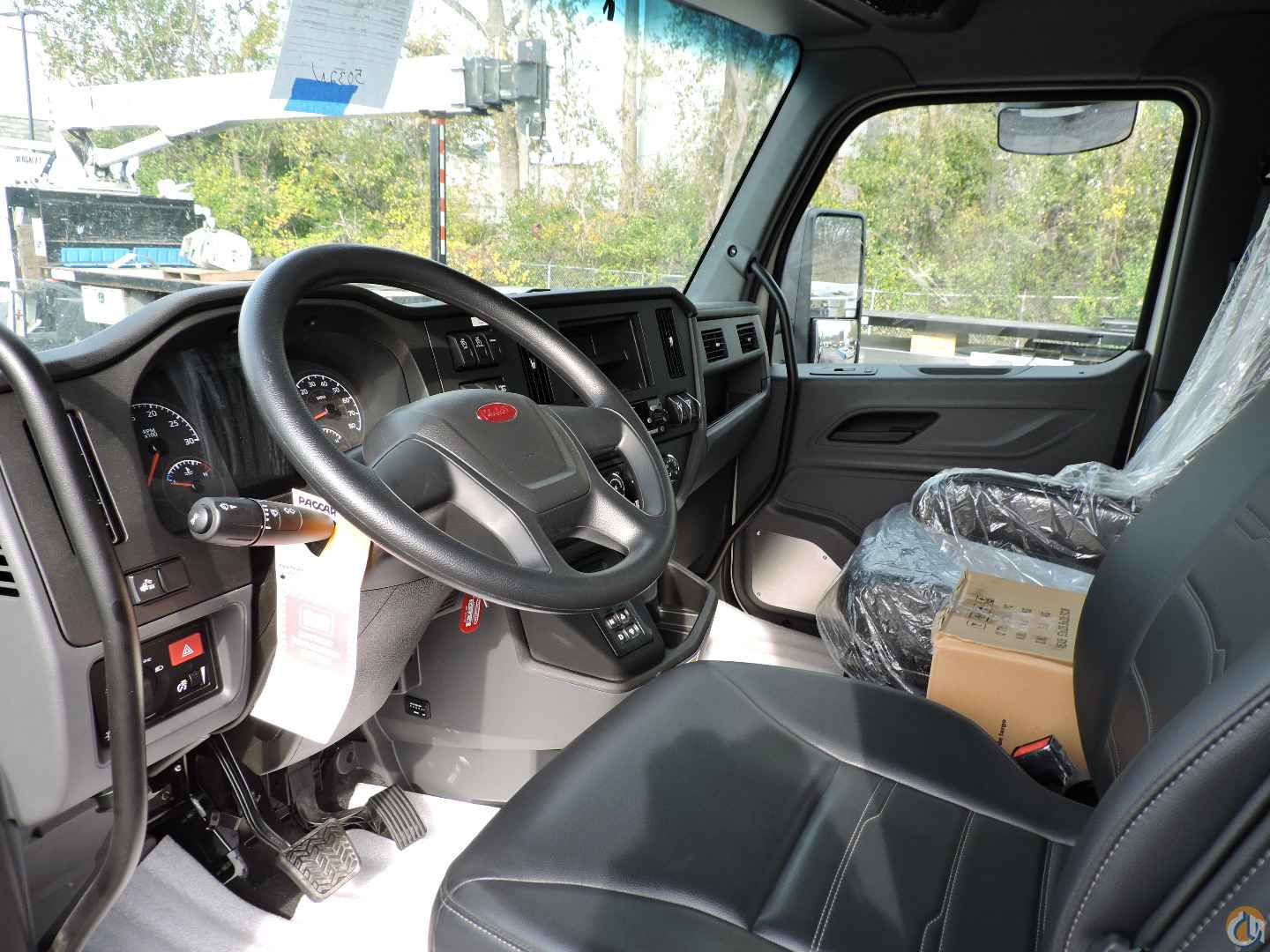

-          Driver’s seat – air ride, high back, vinyl with dual armrests

-          Passenger’s seat – fixed, high back, vinyl with left armrest

-          Adjustable steering column – tilt/telescope

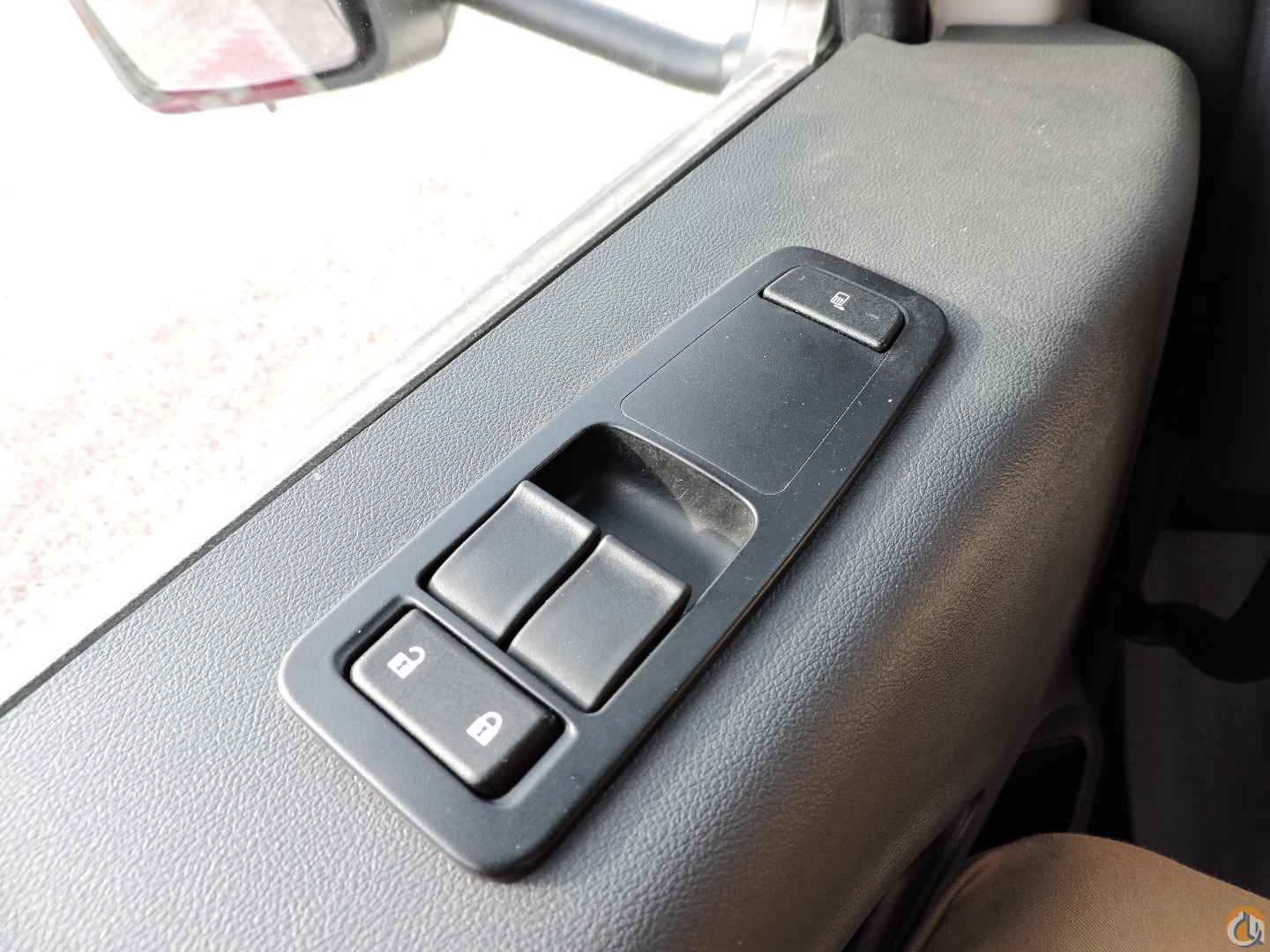

-          Power windows and doors

-          Air horn

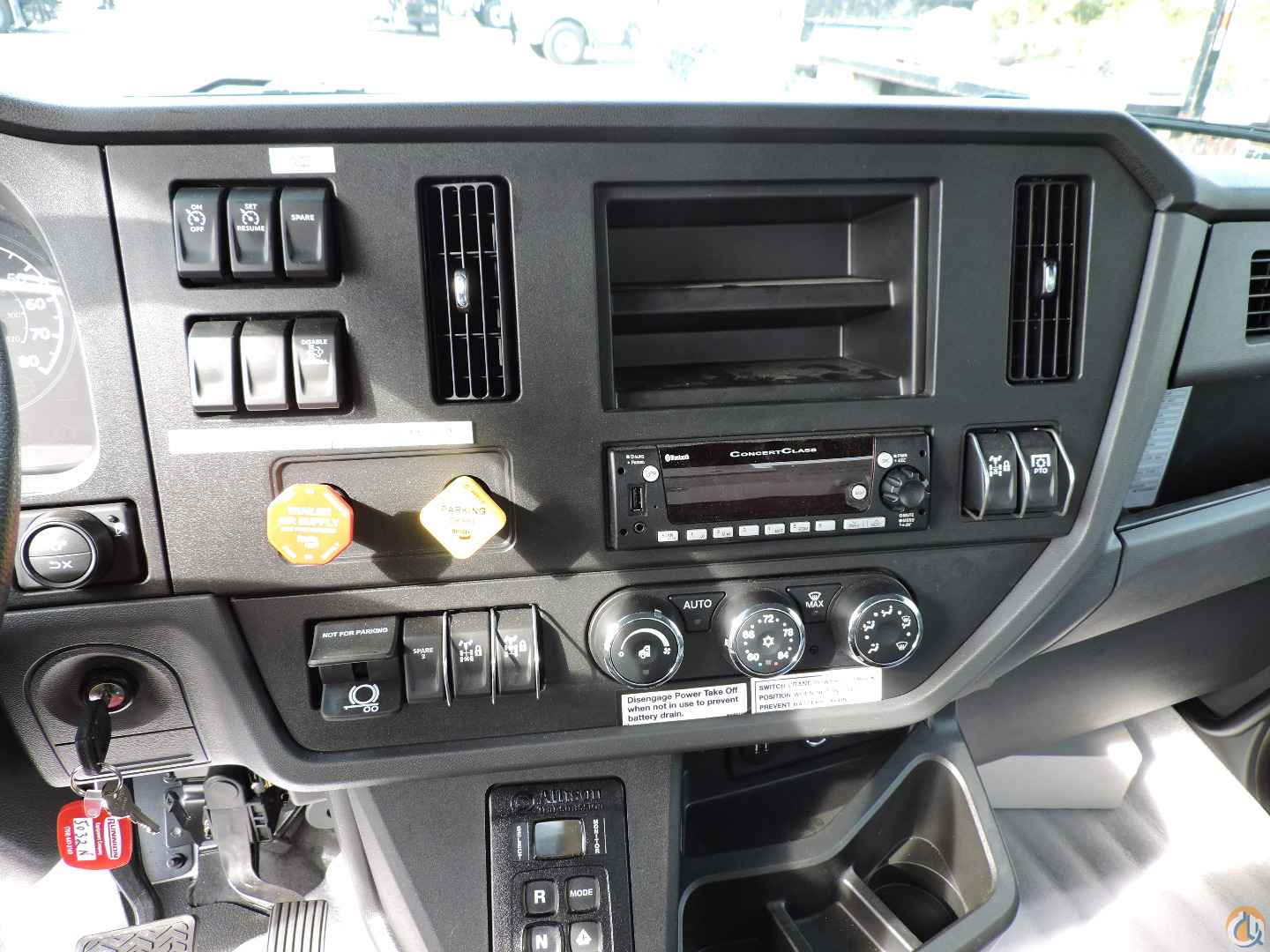

-          ConcertClass Stereo – AM/FM, WB, USB, Bluetooth phone

-          Cab air suspension

-          Painted Sand Gray

  • Year: 2025
  • Capacity: 20.00
  • Condition: New
  • Unit #: 5032N
  • Location: Hodgkins Illinois USA

View the manufacturer specifications here: National 690E2 Specs
