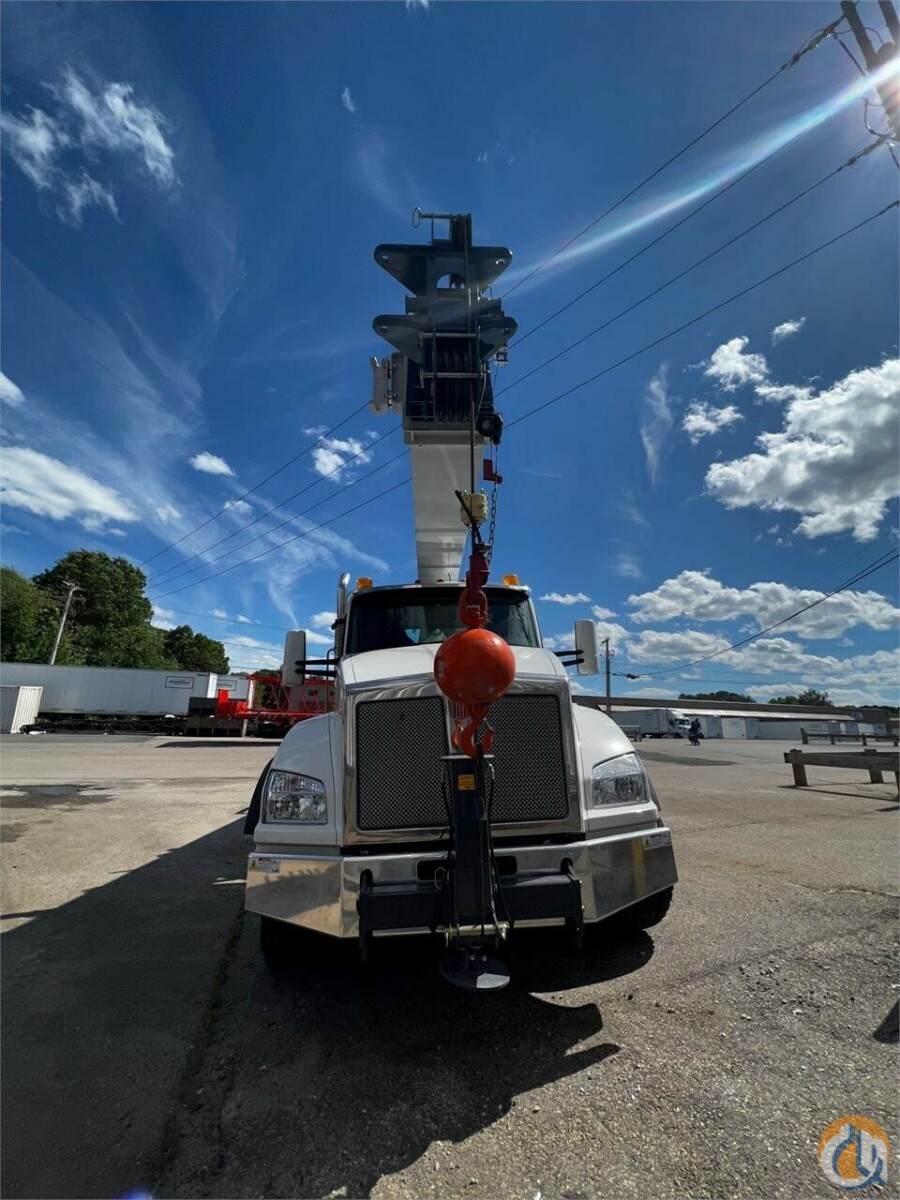

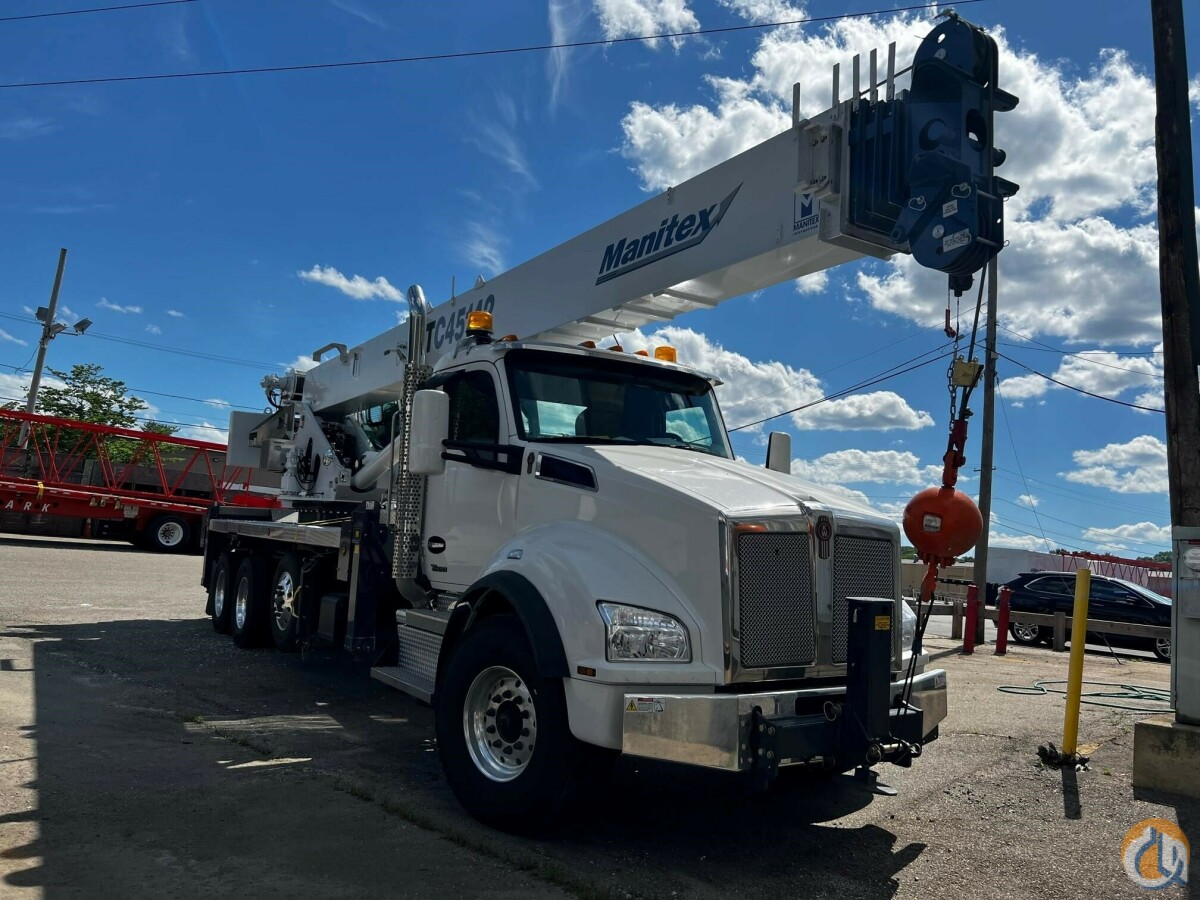

2022 Manitex TC45142 Shorty for sale

* 5- Section 142 or 127' Fully Proportional Extended Telescopic Boom
*2-speed Hoist, Grooved Drum,H.D.R.I.,Rope Tensioner, Piston Motor
*7 Ton (6,4 mt) Hook and Ball
* 500' (152.4M) 5/8" (16mm) rotation Resistant Wire rope
* 2 Upper Idler and 4 Lower-Load Sheave Quick Reeve Boom Head
* Audible Outrigger Motion Alarm
*Hard-Wired Anti-Two Block w/ Lockout
*155 Gallon (587 L) Reservoir w/Suction Strainer & Ball Valve
*Boom Hoist Cylinder
*Outrigger Monitoring System for Verification Only
*Intermediate Subframe with 102" Platforms
* Turret, Rotation Bearing & Hi-Torq Swing System
*360° Area of Operation
*Load Moment Indicator-Audio/Visual Capacity Alert w/Shutoff
* Continuous Rotation
* 4 Out-And-down Outriggers, 24'(7.3m) Maximum Spread Capacities for Intermediate 17'6" (5.3m) and Retraced 7' 3" (2.23m) Spreads
*Full Vision Cab, Integrated Electric Heat, A/C, 20 Deg. Tilt Feature
*Removable Boom Rest
*2 Retractable Ladders / 1-Aluminum Easy Access Maintenance Ladder
*Engine Start/Stop
*1-Variable Displacement Pump/1-Gear Pump-CCW Rotation-Std
* Free Swing/No free Swing Select Feature
* Aluminum Decking
*Radio Remote Ready
*Oil Cooler
*Remote Winch Control for Main Winch
*Dual Axis Electric over Hydraulic Programmable Controls
*Third Wrap Limit
*1-In Cab Digital Bubble Level 1-liquid level at Rear
*Engine Monitoring System
*Aluminum Outrigger Floats-22" Diameter
*Thumb Operated Electronic Throttle
*Bubble Level
*ROC solid radio remote outrigger controls & control valve for Optional FBS
*Signal Horn
*Standard Countweight is 2000 lbs.
*Operator's Service/Parts Manuals
*Heated Operator Seat
*Boom Length and Angle Indicators

Option Equipment Included:
45-Ton Basic Machine
142' Five-Section Telescopic Boom
Jib Ready Option
Short Subframe 102" Wide Platform
Front Bumper Stabilizer for Short Subframe
Braden Winch
Cab Weather Band Radio
Remote Winch for Main
15 Ton Single Sheave Block

Mounted on 2023 Kenworth T880
Cummins 15L Engine
18 Speed Ultrashift
Tandem Configuration

Call Empire Crane for a quote!
  • Year: 2022
  • Capacity: 45.00
  • Condition: New
  • Location: Holbrook Massachusetts USA
