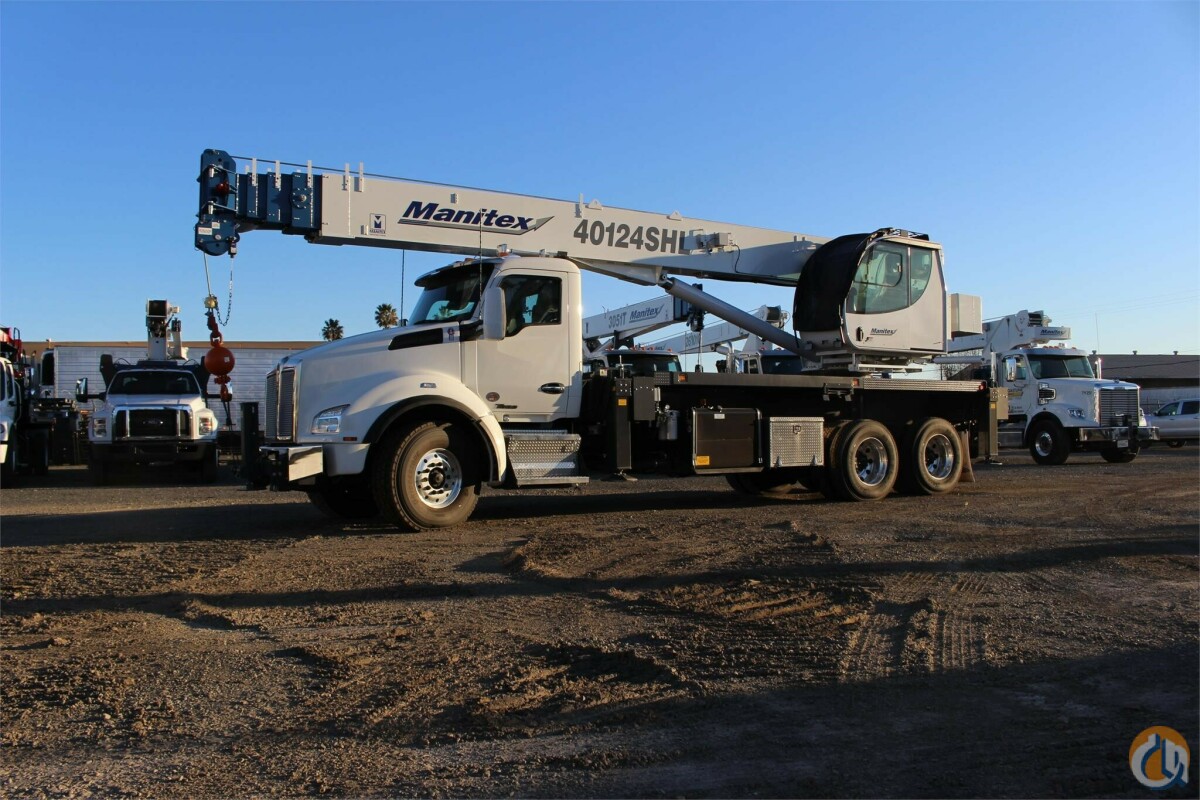

40 TON
Standard features:
124’ five section telescopic boom, 2 speed hoist with grooved drum & hoist drum rotation indicator, 7 ton hook and ball, 2-Upper and 3-Lower load sheave quick reeve boom head, External wired anti-two block with lockout, Boom hoist cylinder. System pressure gauge, 360° area of operation. Continuous rotation. Tilting Cab w/Heater and Windshield cover & upper Hatch guard, Engine Monitoring system, Engine start/stop. Operator’s service/parts manuals. Boom length and angle indicators. Electronic throttle. Foot throttle, free swing, signal horn, 380’ of 5/8” rotation resistant wire rope, Audible Outrigger Motion Alarm, 115 gallon reservoir with suction strainer and ball valve, Outrigger Monitoring System for Verification only, Turret, rotation bearing and swing system, Load moment indicator-audio/visual capacity alert with shutoff, 4 out-and-down outriggers, 22’ spread including capacities for intermediate 13’ 4” and retracted 7’ 2” spreads, Removable Boom Rest, 2 retractable ladders for easy access to bed. 3-section Vane pump counterclockwise rotation is standard, Lower frame for 10’ flatbed, Oil Cooler, Pilot controls, bubble level, ROC solid radio remote outrigger control and control valve for FBS.
Additional Options Included:
• LMI 40124SHL
• 1 Piece Jib 31’
• 10’ Steel Bed
• Air Conditioning
• 35 ton 3-Sheave Block for 1-6 part line
• Front center stabilizer
• Aluminum Toolbox (36” L x 24” W x 24” H) Chassis Mount

Mounted on a 2023 Kenworth T880 tractor chassis with a Paccar MX-13 500HP diesel engine, Fuller RTLO18913A 13-speed Transmission, Dana Spicer D2200 front axle rated 22,000 lbs., Dual Meritor RT46-160 tandem rear axles rated at 46,000lbs., Tandem Hendrickson HAULMAAX EX(HMX) 460 46,000lbs. rear suspension, Full set of Alcoa Polished wheels, Single Aluminum 110 gallon fuel tank, Panoramic curved cab, Heater and air conditioner with defrosters, full instrumentation, full power windows, interior color Slate Gray, Kenworth Radio DEA710 AM/FM/WB/USB Bluetooth, Dual air horns, dual heated mirrors, exterior stainless steel sunvisor, and unit is painted Dupont Imron Elite white.
  • Year: 2023
  • Capacity: 40.00
  • Condition: New
  • Unit #: 106073
  • Serial #: 310861
  • Location: Sacramento California USA

View the manufacturer specifications here: Manitex 40124 SHL Specs
