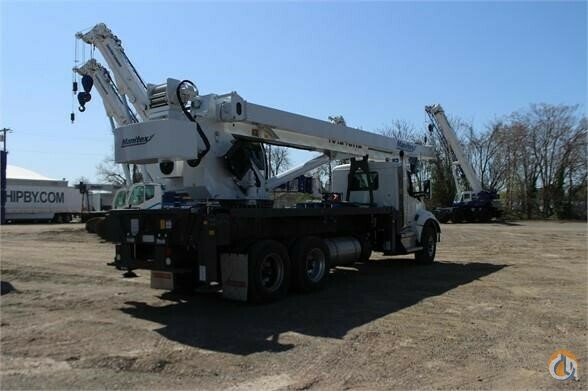

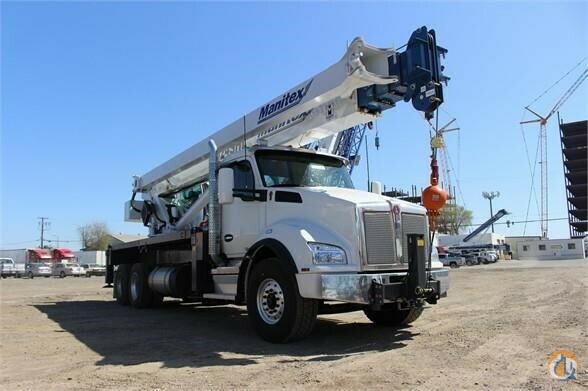

2023 Manitex 40124 SHL Boom Truck Crane
Coastline Equipment Crane Division
Neil Goodale: 916-440-8090
Last Updated: 25 Mar 2023
Neil Goodale: 916-440-8090
Last Updated: 25 Mar 2023
Price: Inquire
Location: Sacramento, California, United States
Year: 2023
Capacity: 40.00
Condition: New
Serial #: 300778
Unit #: 99623
Capacity: 40.00
Condition: New
Serial #: 300778
Unit #: 99623
MANITEX 40124SHL
Standard features:
Basic machine 124’ 5 section telescopic boom, 2 speed hoist with grooved drum & hoist drum rotation indicator, 7 ton (6,4 mt) hook and ball, 2-Upper and 3-Lower load sheave quick reeve boom head, External wired anti-two block with lockout, Boom hoist cylinder. System pressure gauge, 360° area of operation. Continuous rotation. Tilting Cab w/Heater and Windshield cover & upper Hatch guard, Engine Monitoring system, Engine start/stop. Operator’s service/parts manuals. Boom length and angle indicators. Electronic throttle. Foot throttle, free swing, signal horn, 380’ (115.82M) of 5/8” (16mm) rotation resistant wire rope, Audible Outrigger Motion Alarm, 115 gallon (435.3 liter) reservoir with suction strainer and ball valve, Outrigger Monitoring System for Verification only, Turret, rotation bearing and swing system, Load moment indicator-audio/visual capacity alert with shutoff, 4 out-and-down outriggers, 22’ (6.71m) spread including capacities for intermediate 13’ 4” (4.05m) and retracted 7’ 2” (2.18) spreads, Removable Boom Rest, 2 retractable ladders for easy access to bed. 3-section Vane pump counterclockwise rotation is standard, Lower frame for 10’ (3.05m) flatbed, Oil Cooler, Pilot controls, bubble level, ROC solid radio remote outrigger control and control valve for FBS.
Additional Options Included:
• LMI 40124SHL Radio Only
• 1 Piece Jib 31’
• 10’ Steel Bed
• Braden Winch - 380’ rope
• Air Conditioning
• ClockWise Pump (Required with Automatic Transmission)
• Hot Shift PTO (Required with Automatic Transmission)
• Drive Shaft for Pump Installation (Required with automatic transmission)
• 35 ton 3-Sheave Block for 1-6 part line
• Hydraulic Reservoir Chassis Mount
• Front center stabilizer
• Aluminum Tool Box (36” L x 24” W x 24” H) Chassis Mount
MOUNTED ON 2023 KENWORTH T880
Mounted on a 2023 Kenworth T880 tractor chassis with a Cummins X15 500V 500@1700 1850@950. Transmission: Allison 4000RDS 6-speed with retarder. Dana Spicer D2200 front axle rated 22K standard track. Dual Meritor RT46-160 rear axle rated at 46K. Tandem rear axles. Full set of Alcoa Polished wheels, Single Aluminum 110 gallon fuel tank, Panoramic curved cab, Heater and air conditioner with defrosters, full instrumentation, full power windows, interior color Slate Gray, Kenworth Radio DEA710 AM/FM/WB/USB Bluetooth, Dual air horns, dual heated mirrors, and unit is painted Dupont Imron Elite white.
Standard features:
Basic machine 124’ 5 section telescopic boom, 2 speed hoist with grooved drum & hoist drum rotation indicator, 7 ton (6,4 mt) hook and ball, 2-Upper and 3-Lower load sheave quick reeve boom head, External wired anti-two block with lockout, Boom hoist cylinder. System pressure gauge, 360° area of operation. Continuous rotation. Tilting Cab w/Heater and Windshield cover & upper Hatch guard, Engine Monitoring system, Engine start/stop. Operator’s service/parts manuals. Boom length and angle indicators. Electronic throttle. Foot throttle, free swing, signal horn, 380’ (115.82M) of 5/8” (16mm) rotation resistant wire rope, Audible Outrigger Motion Alarm, 115 gallon (435.3 liter) reservoir with suction strainer and ball valve, Outrigger Monitoring System for Verification only, Turret, rotation bearing and swing system, Load moment indicator-audio/visual capacity alert with shutoff, 4 out-and-down outriggers, 22’ (6.71m) spread including capacities for intermediate 13’ 4” (4.05m) and retracted 7’ 2” (2.18) spreads, Removable Boom Rest, 2 retractable ladders for easy access to bed. 3-section Vane pump counterclockwise rotation is standard, Lower frame for 10’ (3.05m) flatbed, Oil Cooler, Pilot controls, bubble level, ROC solid radio remote outrigger control and control valve for FBS.
Additional Options Included:
• LMI 40124SHL Radio Only
• 1 Piece Jib 31’
• 10’ Steel Bed
• Braden Winch - 380’ rope
• Air Conditioning
• ClockWise Pump (Required with Automatic Transmission)
• Hot Shift PTO (Required with Automatic Transmission)
• Drive Shaft for Pump Installation (Required with automatic transmission)
• 35 ton 3-Sheave Block for 1-6 part line
• Hydraulic Reservoir Chassis Mount
• Front center stabilizer
• Aluminum Tool Box (36” L x 24” W x 24” H) Chassis Mount
MOUNTED ON 2023 KENWORTH T880
Mounted on a 2023 Kenworth T880 tractor chassis with a Cummins X15 500V 500@1700 1850@950. Transmission: Allison 4000RDS 6-speed with retarder. Dana Spicer D2200 front axle rated 22K standard track. Dual Meritor RT46-160 rear axle rated at 46K. Tandem rear axles. Full set of Alcoa Polished wheels, Single Aluminum 110 gallon fuel tank, Panoramic curved cab, Heater and air conditioner with defrosters, full instrumentation, full power windows, interior color Slate Gray, Kenworth Radio DEA710 AM/FM/WB/USB Bluetooth, Dual air horns, dual heated mirrors, and unit is painted Dupont Imron Elite white.
This crane was posted by:
Coastline Equipment Crane Division
www.coastlinecd.comContact: Neil Goodale, Division Manager
Phone: 916-440-8090
Alt Phone: 562-673-4049
