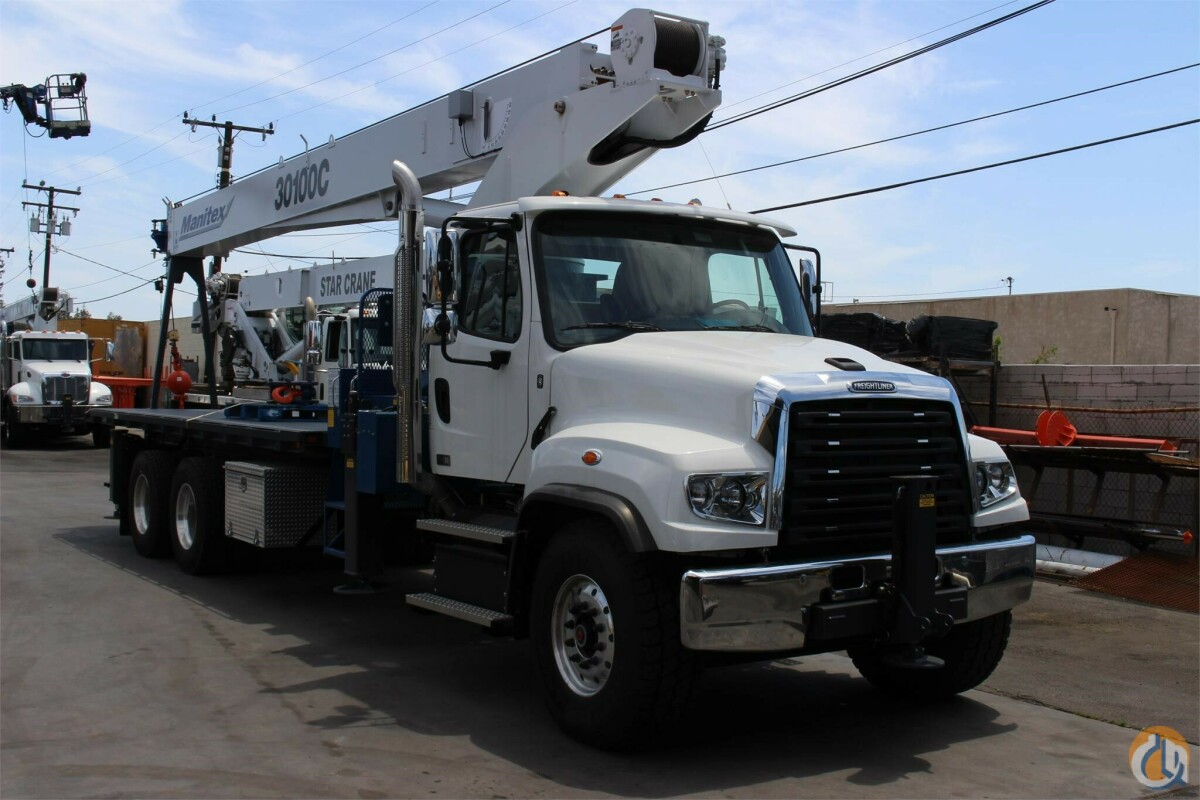

2019 Manitex 30100 C Boom Truck Crane
Coastline Equipment Crane Division
Neil Goodale: 916-440-8090
Last Updated: 23 Mar 2023
Neil Goodale: 916-440-8090
Last Updated: 23 Mar 2023
Price: $270,000
Location: Long Beach, California, United States
Year: 2019
Capacity: 30.00
Condition: Good
Serial #: 265745
Unit #: 79347
Capacity: 30.00
Condition: Good
Serial #: 265745
Unit #: 79347
MANITEX 30100C
30 TON CRANE
Standard features:
2-speed hoist with grooved drum, 7 ton hook and ball, 100’ Four-Section Telescopic Boom O&D O/R, 3-Load Sheave Quick Reeve Boom Head, Externally wired Anti-Two Block w/Lockout, Boom Hoist Cylinder, System Pressure Gauge, 372° Non Continuous Rotation, Removable Boom Rest, Engine Start/Stop, Operator’s Service/ Parts Manuals, Boom Length and Angle Indicators, Electronic Foot Throttle, Signal Horn, Bubble Level, Beverage Cup Holders, 335’ of 9/16” Rotation Resistant Wire Rope, 70 Gallon Reservoir w/Suction Strainer & Ball Valve, Pedestal, Swept Back Turret, Rotation Bearing & Swing System, Dual Operator Control Stations, Can Bus Load Moment Indicator w/Internal length Cable– Audio/Visual Capacity Alert w/Shutoff, Hermetically sealed Printed Circuit Board Electrical system w/LED Circuit Status Indicators, Audible Outrigger/Stabilizer Motion Alarm, A-frame Link Type Front Outriggers (22’ 4” Spread Width), Out and Down Rear Stabilizers (13’7” Spread), 3-Section Hydraulic Pump – Counterclockwise Rotation is standard, Outrigger Monitoring System.
Included Options:
• Radio ATB – 100’ Boom Out/Down Outrigger
• 2 Piece 26’- 46’ Jib 100’ Boom (G/RS)
• 21’ HH Steel Bed
• Non-Standard Heavy-Duty Chassis Mounted Hydraulic Reservoir Mount
• 15 Ton 1-Sheave Quick Reeve Block
• Front Center Stabilizer
• Control valve for operation of single stabilizer, Required w/FBS
• Aluminum Tool Box (36” x 24” x 24”) Chassis mounted
MOUNTED ON 2019 FREIGHTLINER 114SD
Mounted on 2019 Freightliner 114SD truck chassis with a Detroit DD13 12.8L 410 HP diesel engine, Eaton RTO-14908LL Transmission, Detroit DA-F-20.0-5 20,000 lb. front axle, MT-40-14XP 40,000 lb. R-Series Tandem rear axle, Full set of Alcoa aluminum polished wheels, Single Aluminum 70 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, full power windows, interior color Opal Gray, AM/FM/WB radio with Auxiliary Input, Single Air Horn Roof Mounted, Dual heated mirrors, External Composite sunvisor, Halogen headlights and unit is painted Elite BC White.
30 TON CRANE
Standard features:
2-speed hoist with grooved drum, 7 ton hook and ball, 100’ Four-Section Telescopic Boom O&D O/R, 3-Load Sheave Quick Reeve Boom Head, Externally wired Anti-Two Block w/Lockout, Boom Hoist Cylinder, System Pressure Gauge, 372° Non Continuous Rotation, Removable Boom Rest, Engine Start/Stop, Operator’s Service/ Parts Manuals, Boom Length and Angle Indicators, Electronic Foot Throttle, Signal Horn, Bubble Level, Beverage Cup Holders, 335’ of 9/16” Rotation Resistant Wire Rope, 70 Gallon Reservoir w/Suction Strainer & Ball Valve, Pedestal, Swept Back Turret, Rotation Bearing & Swing System, Dual Operator Control Stations, Can Bus Load Moment Indicator w/Internal length Cable– Audio/Visual Capacity Alert w/Shutoff, Hermetically sealed Printed Circuit Board Electrical system w/LED Circuit Status Indicators, Audible Outrigger/Stabilizer Motion Alarm, A-frame Link Type Front Outriggers (22’ 4” Spread Width), Out and Down Rear Stabilizers (13’7” Spread), 3-Section Hydraulic Pump – Counterclockwise Rotation is standard, Outrigger Monitoring System.
Included Options:
• Radio ATB – 100’ Boom Out/Down Outrigger
• 2 Piece 26’- 46’ Jib 100’ Boom (G/RS)
• 21’ HH Steel Bed
• Non-Standard Heavy-Duty Chassis Mounted Hydraulic Reservoir Mount
• 15 Ton 1-Sheave Quick Reeve Block
• Front Center Stabilizer
• Control valve for operation of single stabilizer, Required w/FBS
• Aluminum Tool Box (36” x 24” x 24”) Chassis mounted
MOUNTED ON 2019 FREIGHTLINER 114SD
Mounted on 2019 Freightliner 114SD truck chassis with a Detroit DD13 12.8L 410 HP diesel engine, Eaton RTO-14908LL Transmission, Detroit DA-F-20.0-5 20,000 lb. front axle, MT-40-14XP 40,000 lb. R-Series Tandem rear axle, Full set of Alcoa aluminum polished wheels, Single Aluminum 70 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, full power windows, interior color Opal Gray, AM/FM/WB radio with Auxiliary Input, Single Air Horn Roof Mounted, Dual heated mirrors, External Composite sunvisor, Halogen headlights and unit is painted Elite BC White.
This crane was posted by:
Coastline Equipment Crane Division
www.coastlinecd.comContact: Neil Goodale, Division Manager
Phone: 916-440-8090
Alt Phone: 562-673-4049
Condition
Good
0 views this week
0 people have saved
Condition
Good
MANITEX 30100C
30 TON CRANE
Standard features:
2-speed hoist with grooved drum, 7 ton hook and ball, 100’ Four-Section Telescopic Boom O&D O/R, 3-Load Sheave Quick Reeve Boom Head, Externally wired Anti-Two Block w/Lockout, Boom Hoist Cylinder, System Pressure Gauge, 372° Non Continuous Rotation, Removable Boom Rest, Engine Start/Stop, Operator’s Service/ Parts Manuals, Boom Length and Angle Indicators, Electronic Foot Throttle, Signal Horn, Bubble Level, Beverage Cup Holders, 335’ of 9/16” Rotation Resistant Wire Rope, 70 Gallon Reservoir w/Suction Strainer & Ball Valve, Pedestal, Swept Back Turret, Rotation Bearing & Swing System, Dual Operator Control Stations, Can Bus Load Moment Indicator w/Internal length Cable– Audio/Visual Capacity Alert w/Shutoff, Hermetically sealed Printed Circuit Board Electrical system w/LED Circuit Status Indicators, Audible Outrigger/Stabilizer Motion Alarm, A-frame Link Type Front Outriggers (22’ 4” Spread Width), Out and Down Rear Stabilizers (13’7” Spread), 3-Section Hydraulic Pump – Counterclockwise Rotation is standard, Outrigger Monitoring System.
Included Options:
• Radio ATB – 100’ Boom Out/Down Outrigger
• 2 Piece 26’- 46’ Jib 100’ Boom (G/RS)
• 21’ HH Steel Bed
• Non-Standard Heavy-Duty Chassis Mounted Hydraulic Reservoir Mount
• 15 Ton 1-Sheave Quick Reeve Block
• Front Center Stabilizer
• Control valve for operation of single stabilizer, Required w/FBS
• Aluminum Tool Box (36” x 24” x 24”) Chassis mounted
MOUNTED ON 2019 FREIGHTLINER 114SD
Mounted on 2019 Freightliner 114SD truck chassis with a Detroit DD13 12.8L 410 HP diesel engine, Eaton RTO-14908LL Transmission, Detroit DA-F-20.0-5 20,000 lb. front axle, MT-40-14XP 40,000 lb. R-Series Tandem rear axle, Full set of Alcoa aluminum polished wheels, Single Aluminum 70 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, full power windows, interior color Opal Gray, AM/FM/WB radio with Auxiliary Input, Single Air Horn Roof Mounted, Dual heated mirrors, External Composite sunvisor, Halogen headlights and unit is painted Elite BC White.
30 TON CRANE
Standard features:
2-speed hoist with grooved drum, 7 ton hook and ball, 100’ Four-Section Telescopic Boom O&D O/R, 3-Load Sheave Quick Reeve Boom Head, Externally wired Anti-Two Block w/Lockout, Boom Hoist Cylinder, System Pressure Gauge, 372° Non Continuous Rotation, Removable Boom Rest, Engine Start/Stop, Operator’s Service/ Parts Manuals, Boom Length and Angle Indicators, Electronic Foot Throttle, Signal Horn, Bubble Level, Beverage Cup Holders, 335’ of 9/16” Rotation Resistant Wire Rope, 70 Gallon Reservoir w/Suction Strainer & Ball Valve, Pedestal, Swept Back Turret, Rotation Bearing & Swing System, Dual Operator Control Stations, Can Bus Load Moment Indicator w/Internal length Cable– Audio/Visual Capacity Alert w/Shutoff, Hermetically sealed Printed Circuit Board Electrical system w/LED Circuit Status Indicators, Audible Outrigger/Stabilizer Motion Alarm, A-frame Link Type Front Outriggers (22’ 4” Spread Width), Out and Down Rear Stabilizers (13’7” Spread), 3-Section Hydraulic Pump – Counterclockwise Rotation is standard, Outrigger Monitoring System.
Included Options:
• Radio ATB – 100’ Boom Out/Down Outrigger
• 2 Piece 26’- 46’ Jib 100’ Boom (G/RS)
• 21’ HH Steel Bed
• Non-Standard Heavy-Duty Chassis Mounted Hydraulic Reservoir Mount
• 15 Ton 1-Sheave Quick Reeve Block
• Front Center Stabilizer
• Control valve for operation of single stabilizer, Required w/FBS
• Aluminum Tool Box (36” x 24” x 24”) Chassis mounted
MOUNTED ON 2019 FREIGHTLINER 114SD
Mounted on 2019 Freightliner 114SD truck chassis with a Detroit DD13 12.8L 410 HP diesel engine, Eaton RTO-14908LL Transmission, Detroit DA-F-20.0-5 20,000 lb. front axle, MT-40-14XP 40,000 lb. R-Series Tandem rear axle, Full set of Alcoa aluminum polished wheels, Single Aluminum 70 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, full power windows, interior color Opal Gray, AM/FM/WB radio with Auxiliary Input, Single Air Horn Roof Mounted, Dual heated mirrors, External Composite sunvisor, Halogen headlights and unit is painted Elite BC White.
